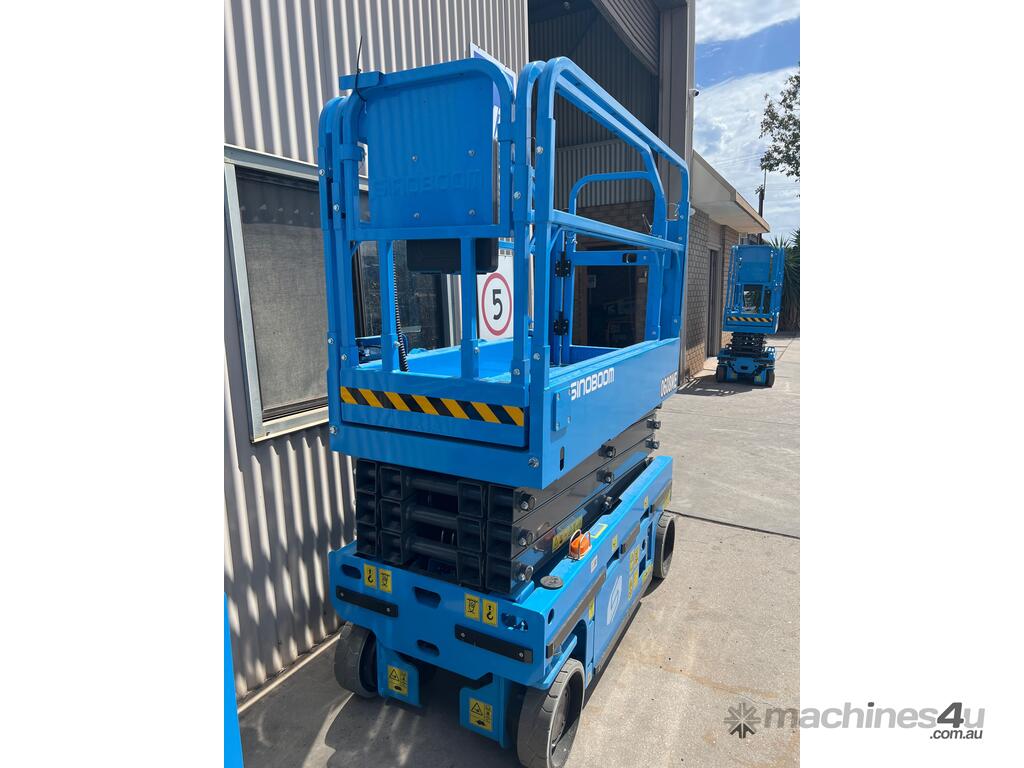

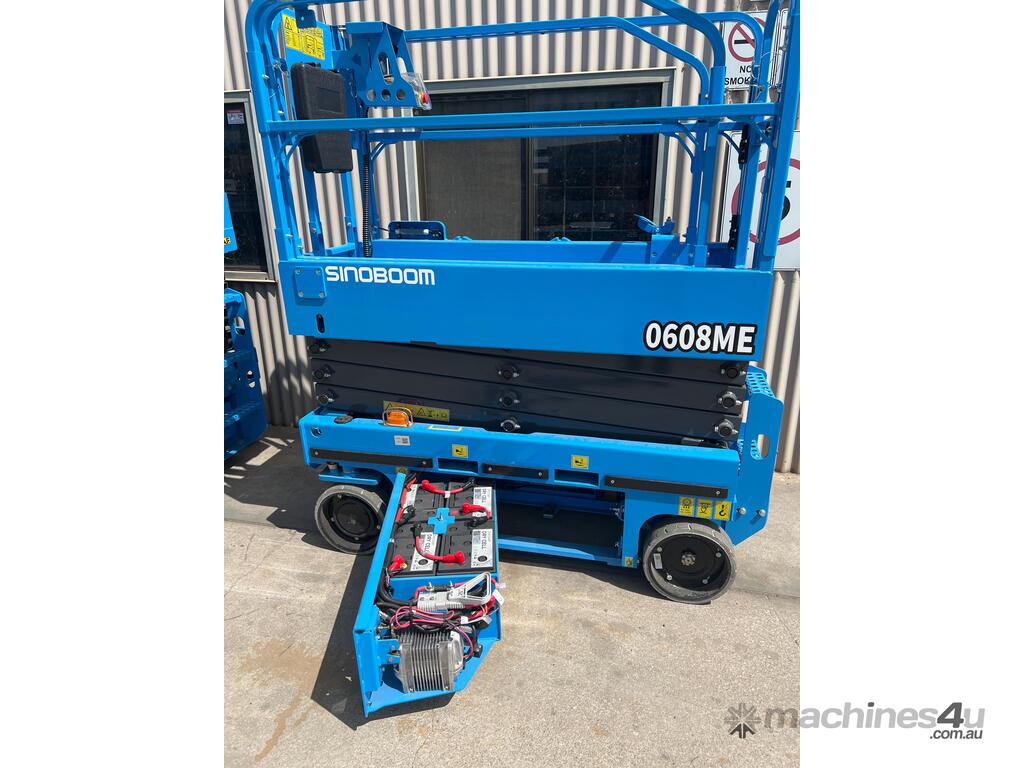

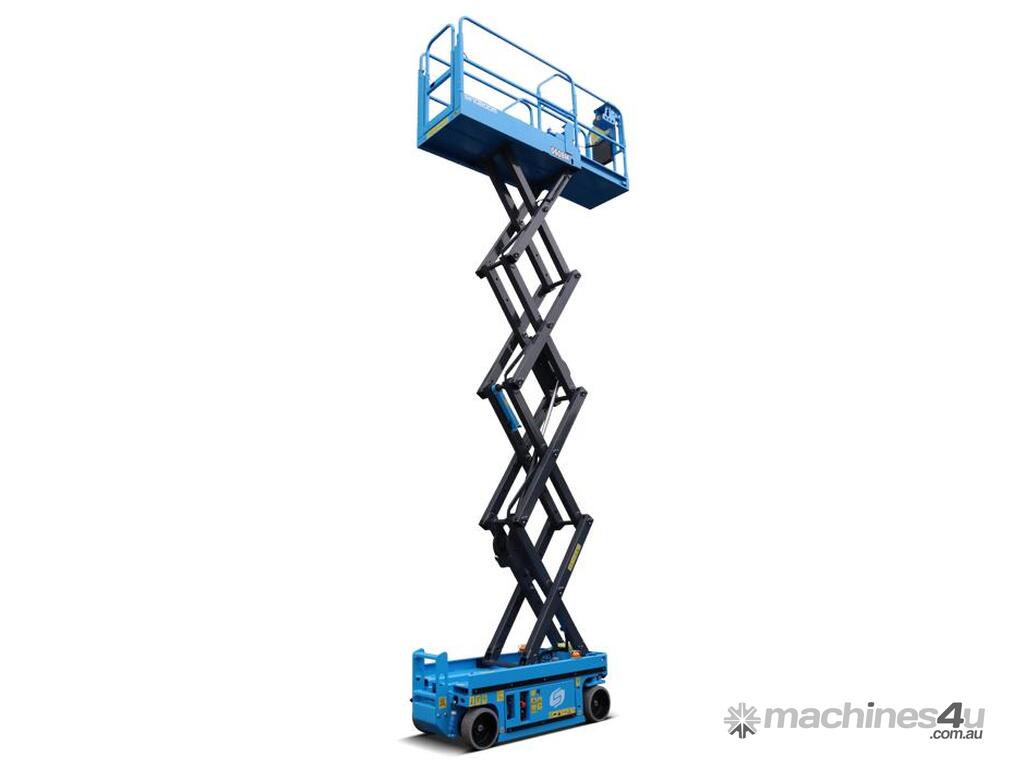

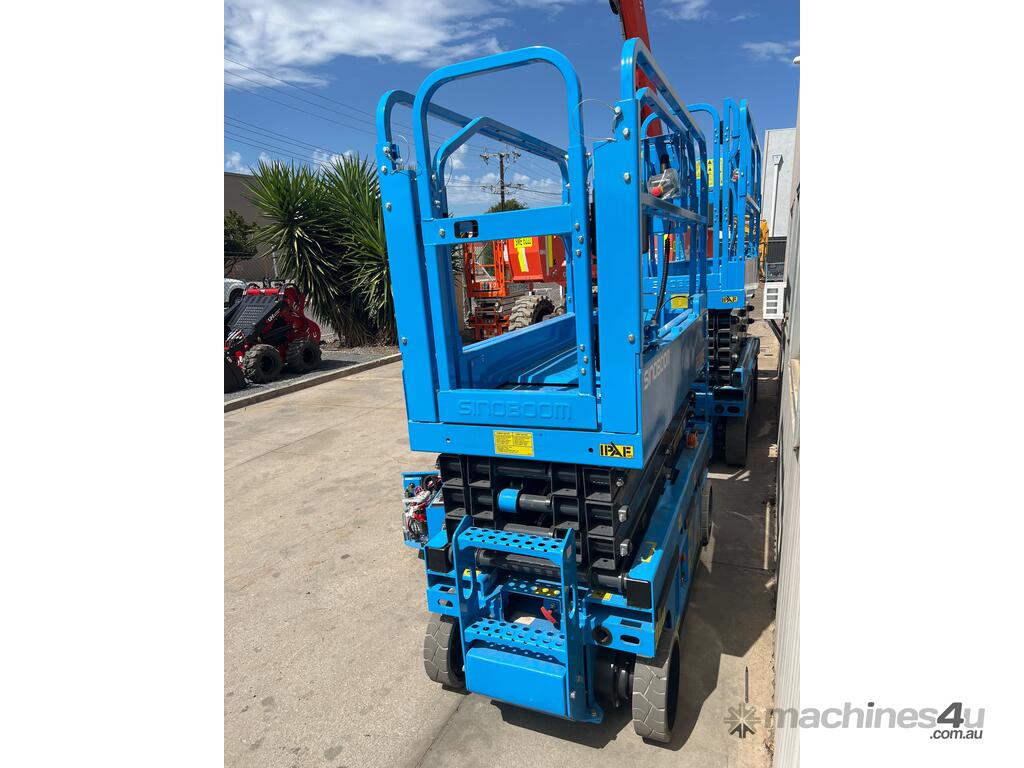

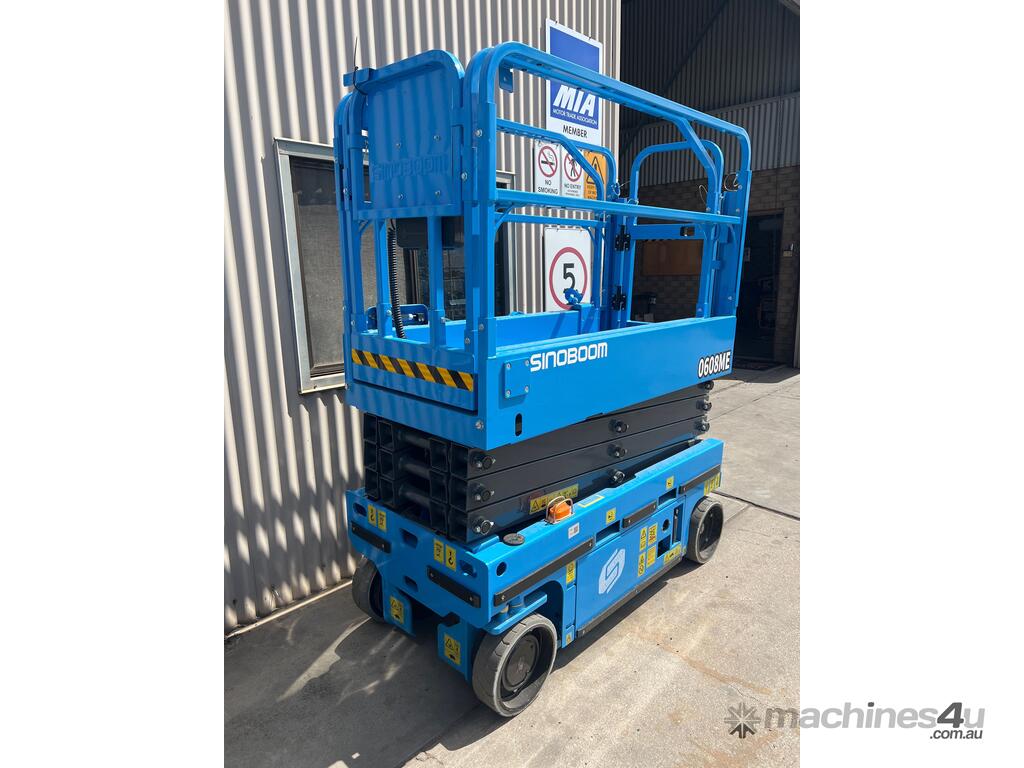

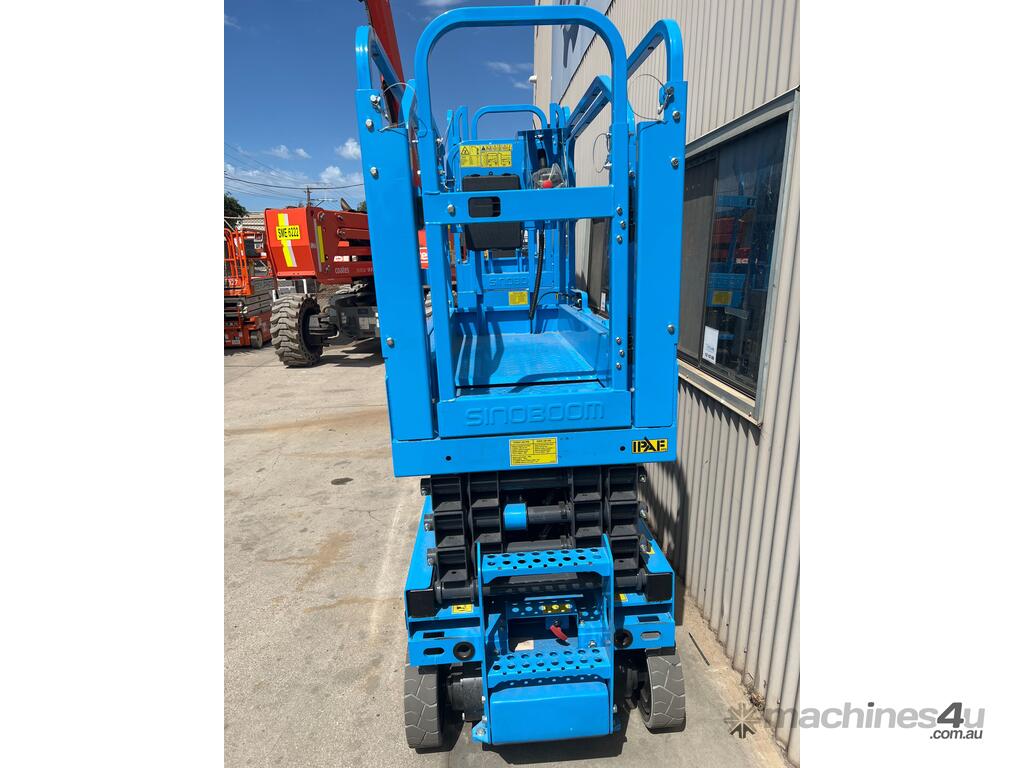

0608ME Electric Scissor Lift

- Free delivery within 50km of Adelaide CBD.
- Includes MEWP Shield Operator Protection System.

Working height
7.8m
Platform Capacity
230kg
Gradeability
25%

PRODUCT HIGHLIGHTS
MORE RELIABLE PERFORMANCE
- Battery voltage early warning to ensure battery life
- Bumper rail protection
- The pothole protection reporting and horizontal protection system give peace of mind during operation
REDUCED MAINTENANCE COSTS
- Double-door design for easy maintenance
- Troubleshooting for quick fault diagnosis
- Highly quality parts and components
EFFICIENT AND ENVIRONMENTALLY FRIENDLY
- Small turning radius, flexible operation in narrow spaces
- Standard forklift slot, for efficient equipment transportation
- Folding guardrails for easy transport
DIMENSIONS
Max Working Height
7.8m (25'7")
[A] Max Platform Height
5.8m (19')
[B] Max Horizontal Extension
0.9m (3')
[C] Length-Stowed
1.78m (5'10.1")
[D] Width-Stowed
0.76m (2'6") / 0.81m (2'8")
Height - stowed (Rail Folded)
1.86m (6'1")
[E] Height - stowed
(Rail Unfolded)
2.12m (6'11.5")
[F] Wheelbase
1.325m (4'4.2")
Ground Clearance
73mm (3")
Platform Dimensions(L×W×H)
1.64m×0.76m×1.1m(5'4.6"×2'6"×3'7")
PERFORMANCE
Platform Allowable Occupants
?Indoor/Outdoor?
0608S(1930S): 2 persons(Indoor Only)/- 0608M(1932M): 2 persons
Platform Capacity
230kg (507lbs)
Drive Speed-Stowed
3km/h (1.86mph)
Drive Speed-Raised
0.8km/h (0.5mph)
Elevation Time
(Unloaded)
15s~20s
Descent Time
(Unloaded)
25s~30s
Gradeability
25%
Turning Radius
(Inside/Outside)
0/1.49m (0/4'10.7")
Tilt Rating
(Front to Back/Side to Side)
3°/1.5°
Tyres-solid
305×115mm(12×4.5'')/solid
POWER

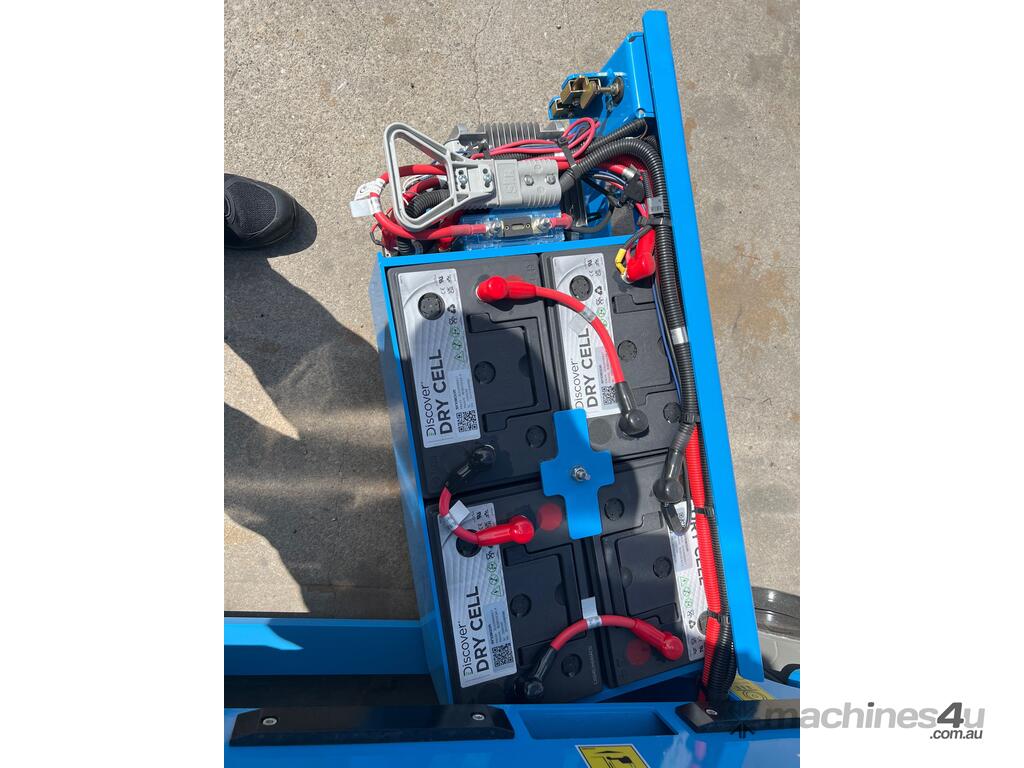

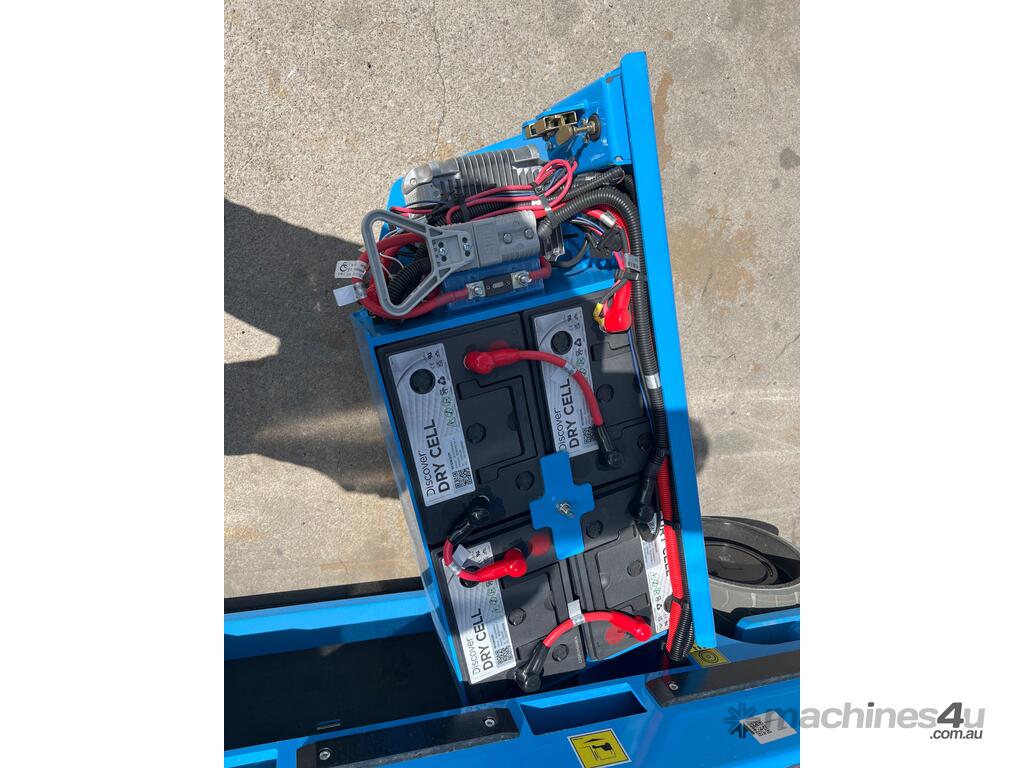

Batteries
24V, 220Ah (Lead acid battery)
Power Source
24V DC
Drive Mode
2WD, front wheel
Charger Input
100~240V AC
Charger Output
30A
Brake
2 rear wheel
Hydraulic System Capacity
9L (2.0 gal(UK)/2.4 gal (US))

Weight(Indoor/Outdoor)
0608M: 1,526kg(3,365lbs)
Weight(Indoor Only)
0608S: 1,526kg(3,365lbs)
Standards Compliance
0608S: CE/ANSI/CSA/KCS/EAC 0608M: CE/ANSI/CSA/AS/EAC
