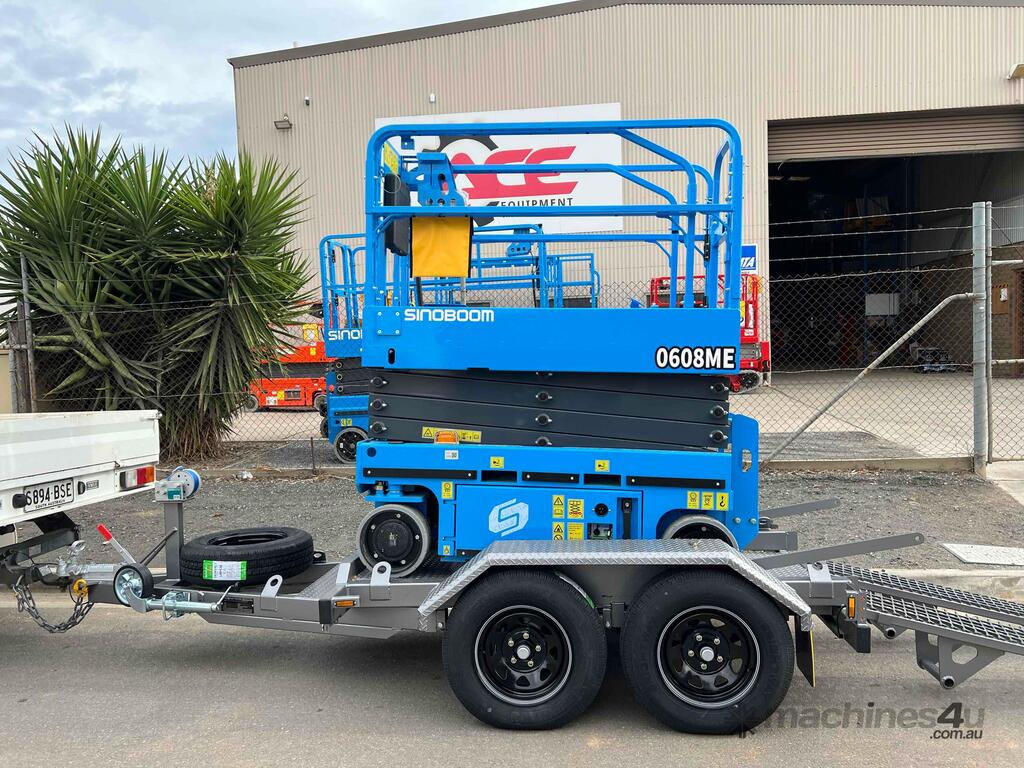

0608ME Scissor Lift & 7x3 Trailer Package

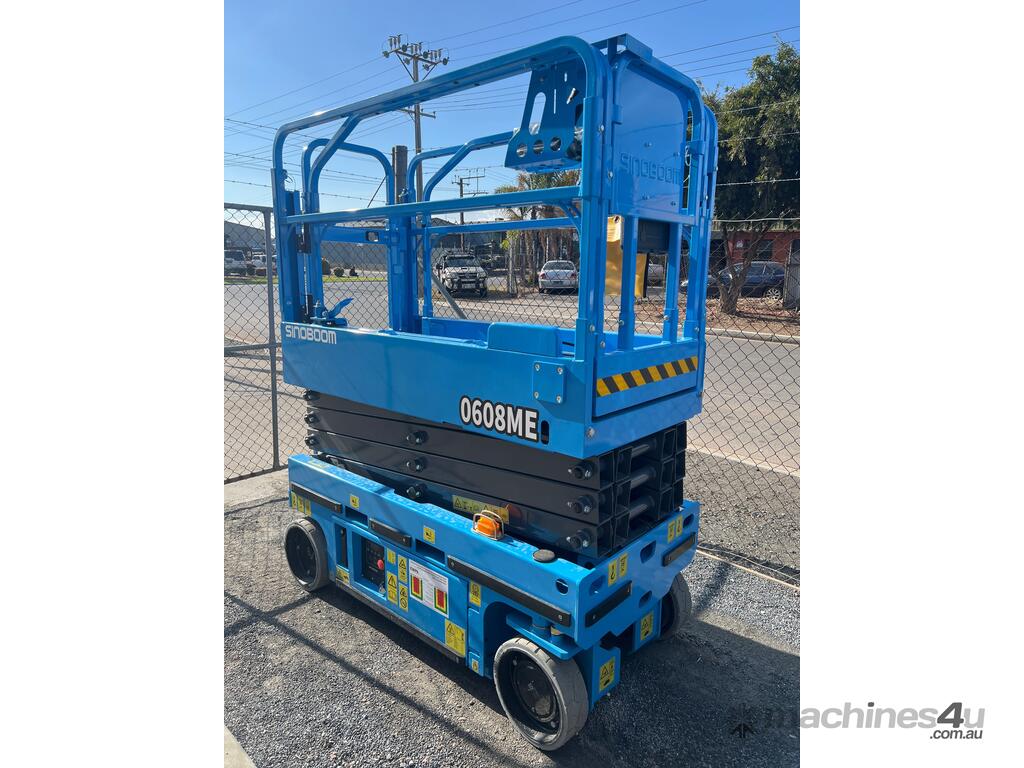

Sinoboom 0608ME Eelctric Scissor Lift

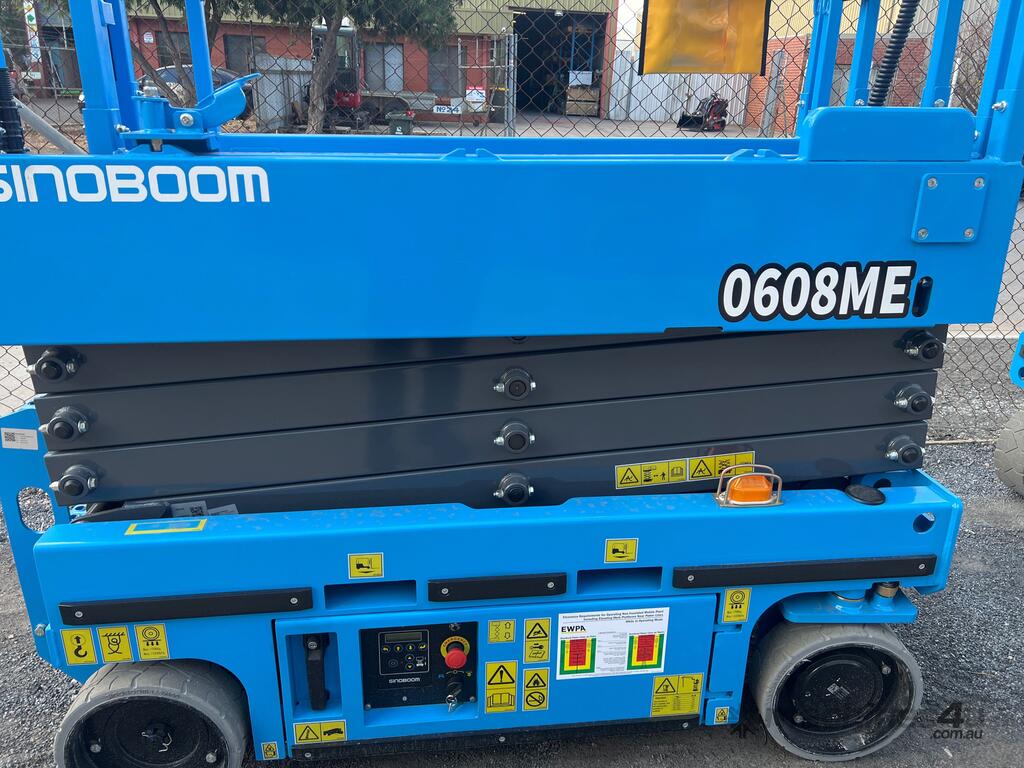

0608ME Scissor
Working height
7.8m
Platform Capacity
230kg
Gradeability
25%

Trailer - ATM 2200kg

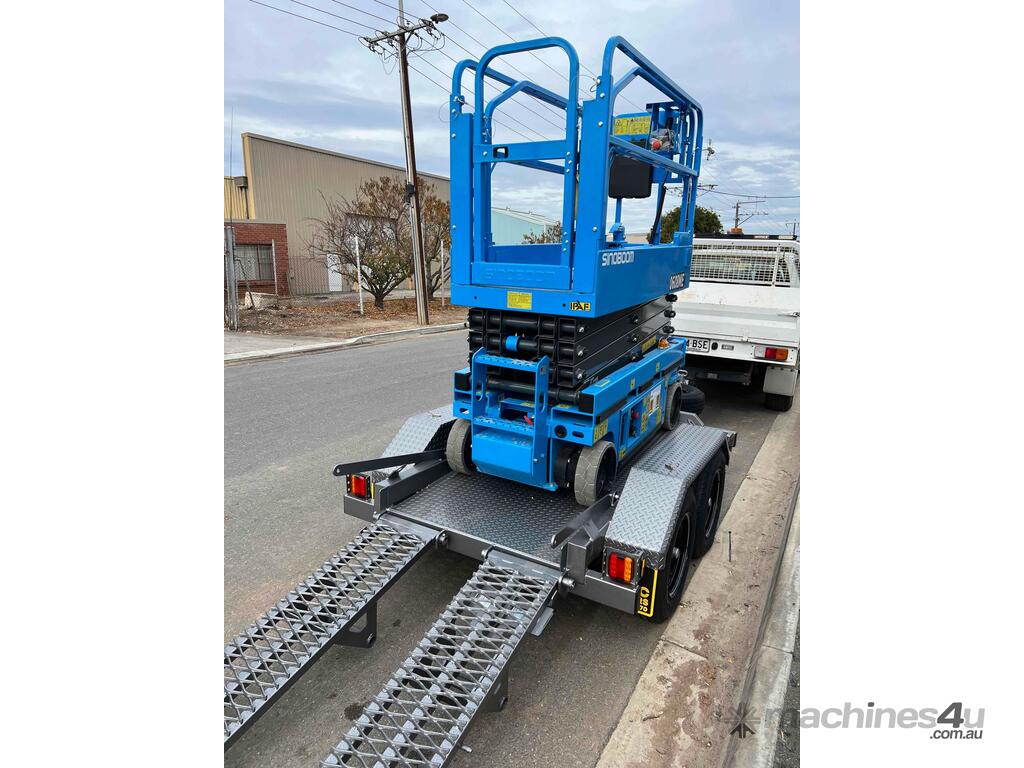

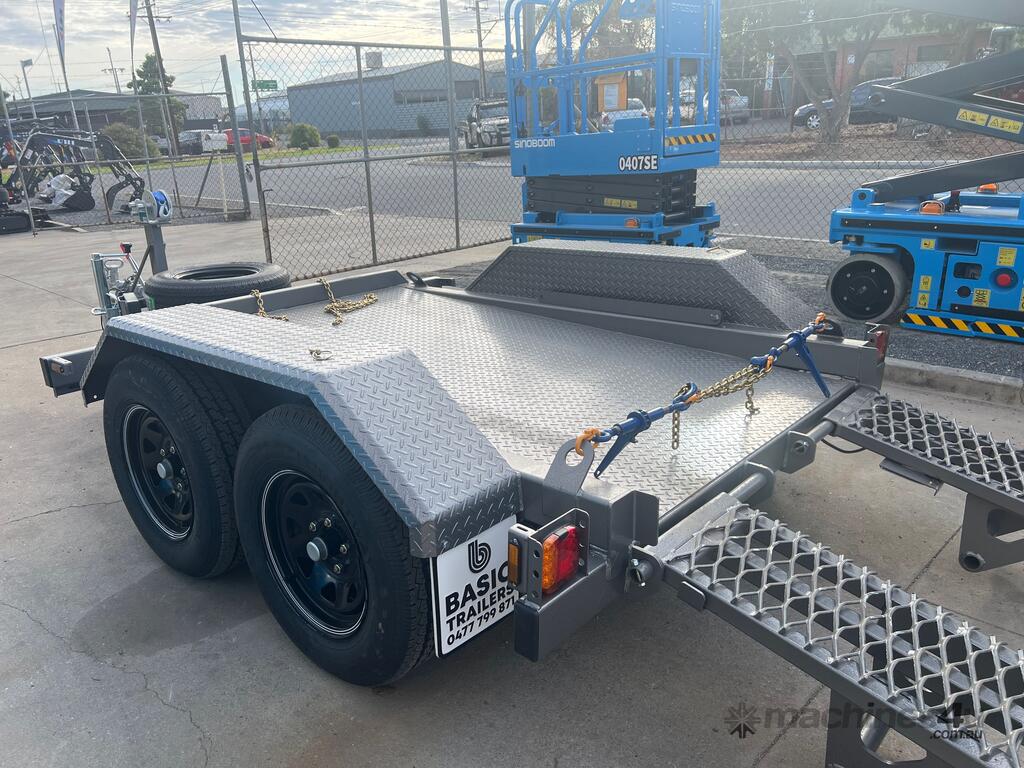

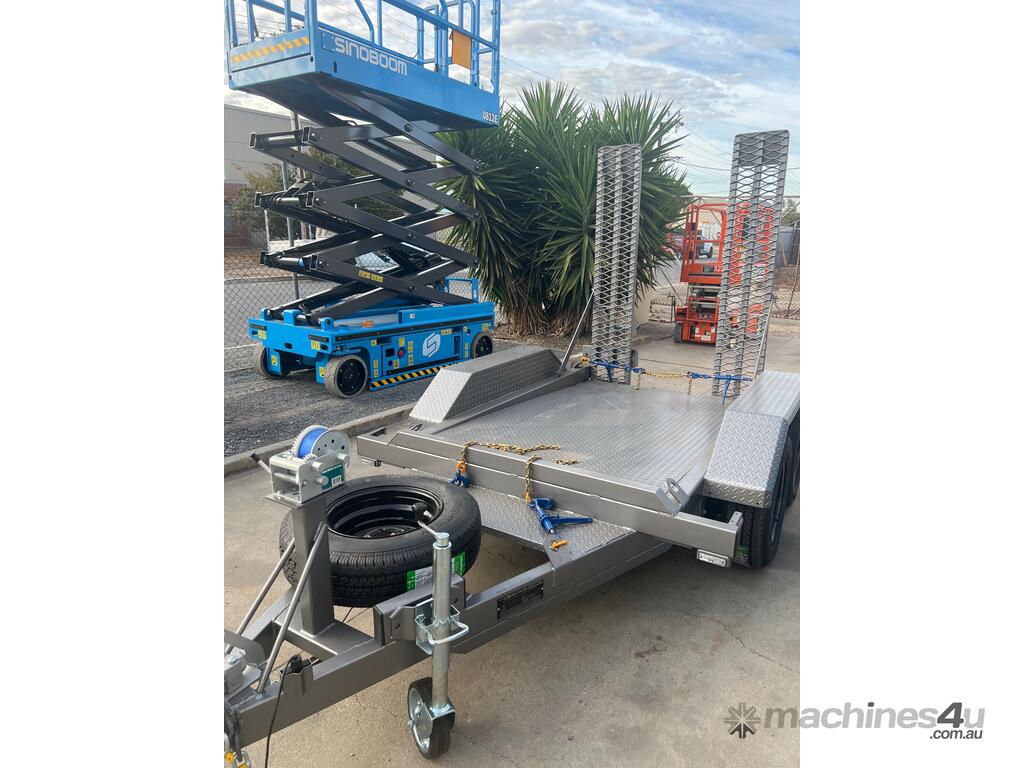

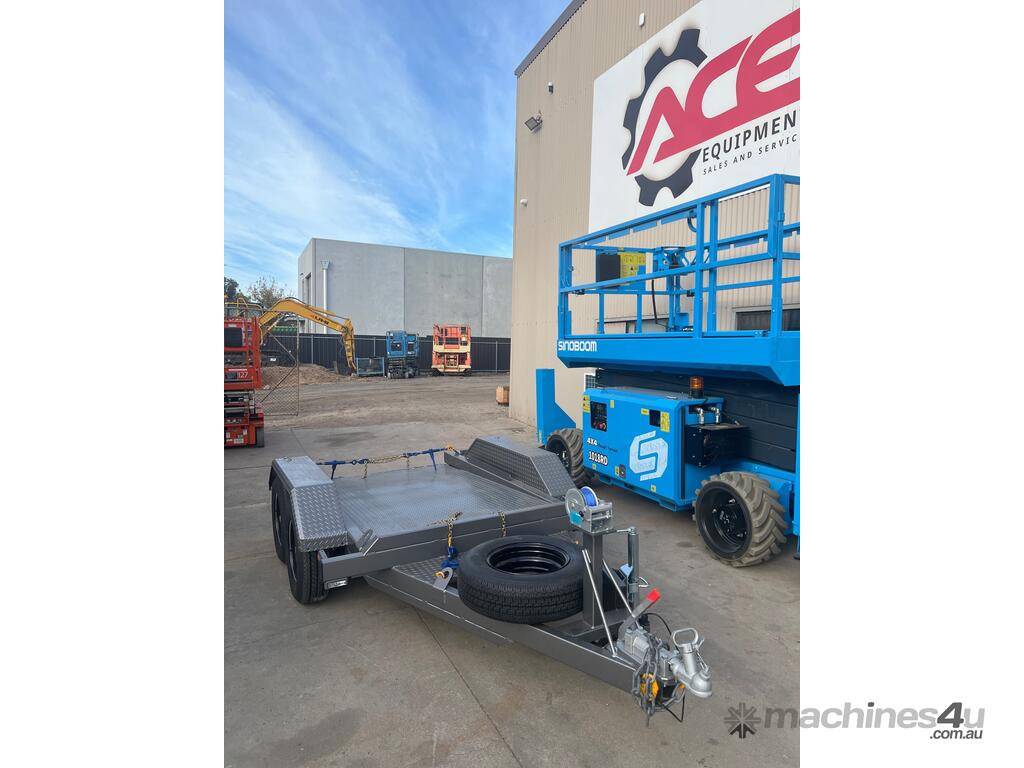

7x3 Scissor Lift Trailer -Tandem Axle

Trailer Extras Include

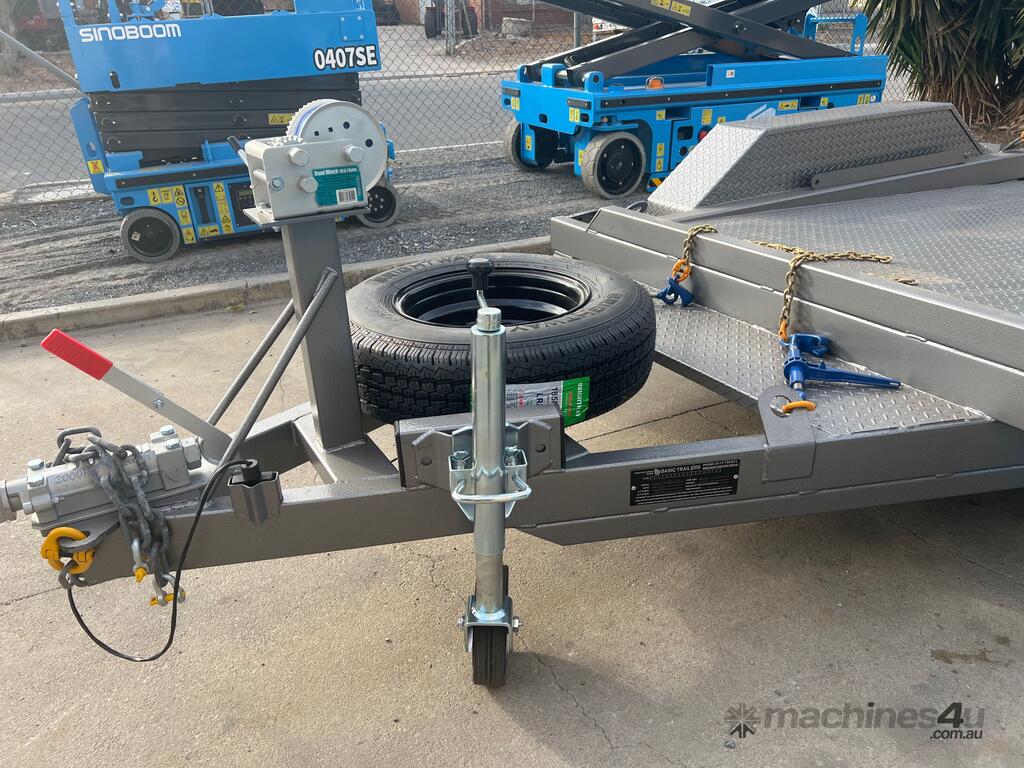

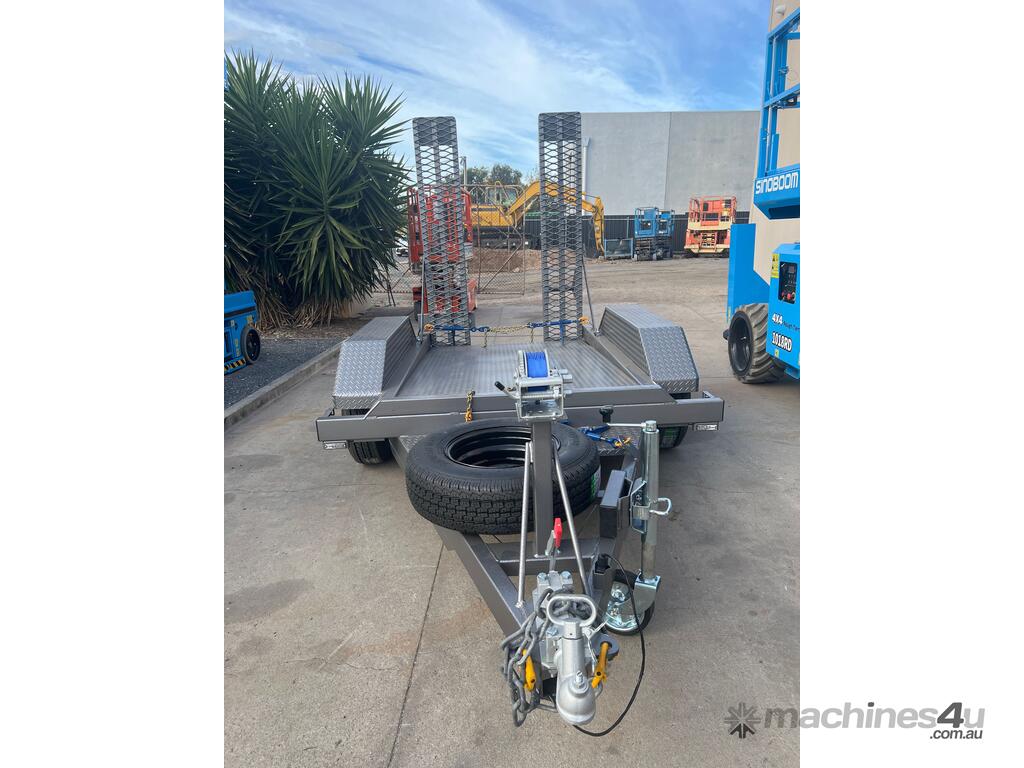

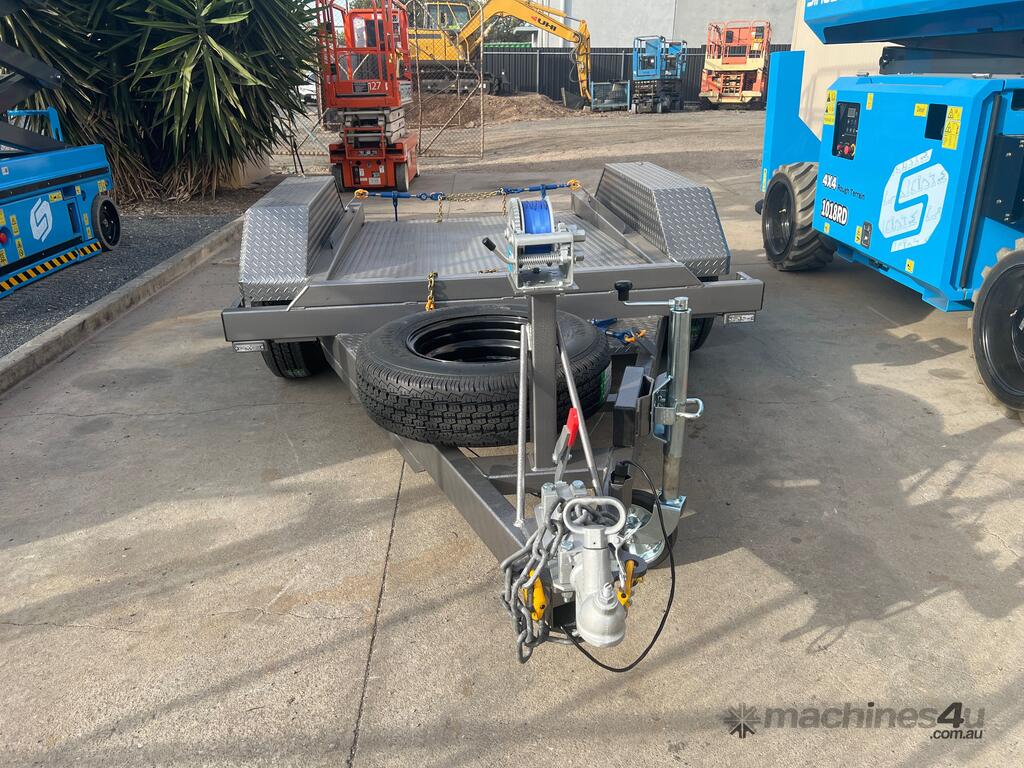

Winch Post on Drawbar
Floor supports the length of the Trailer

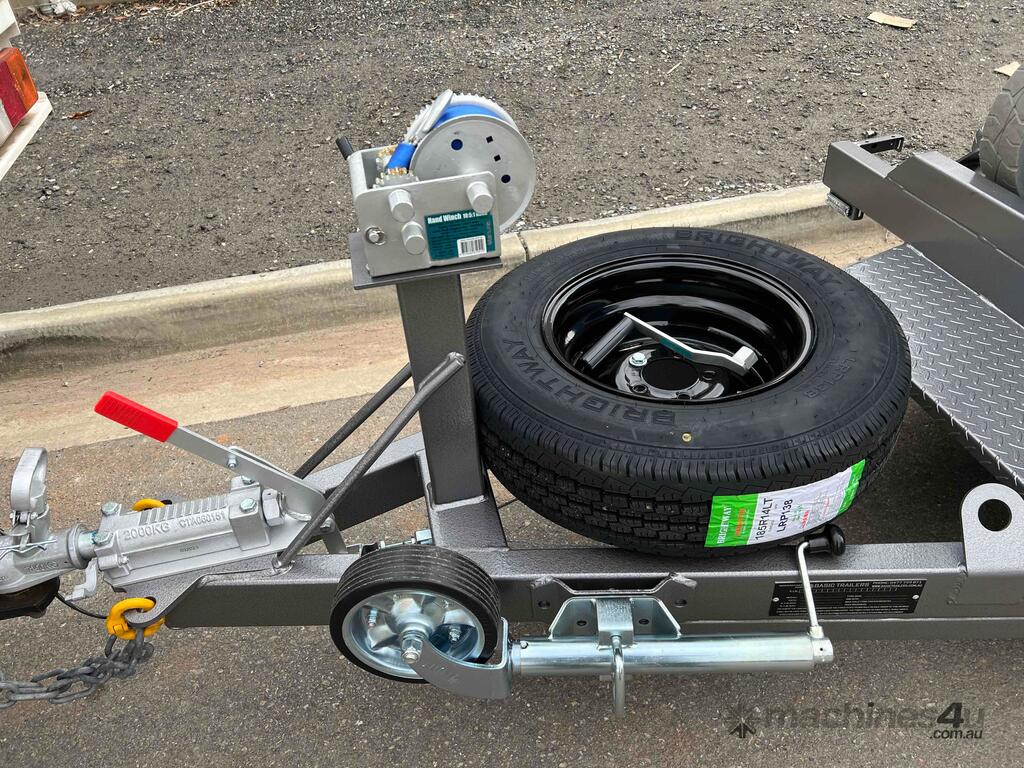

Heavy duty Winch

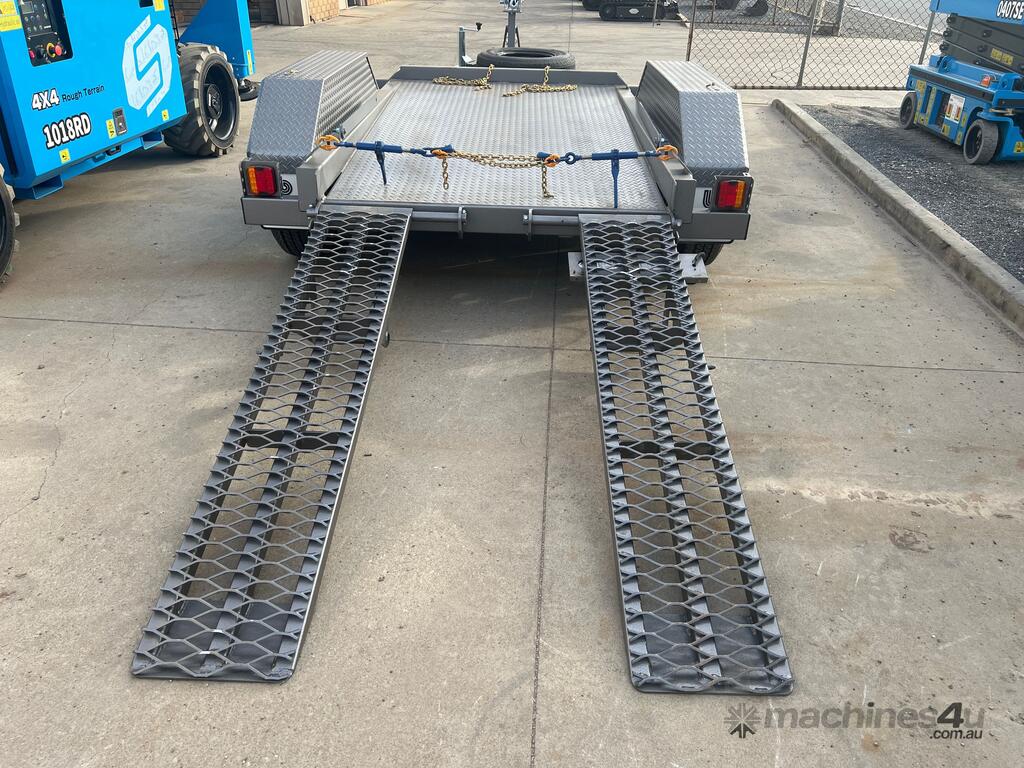

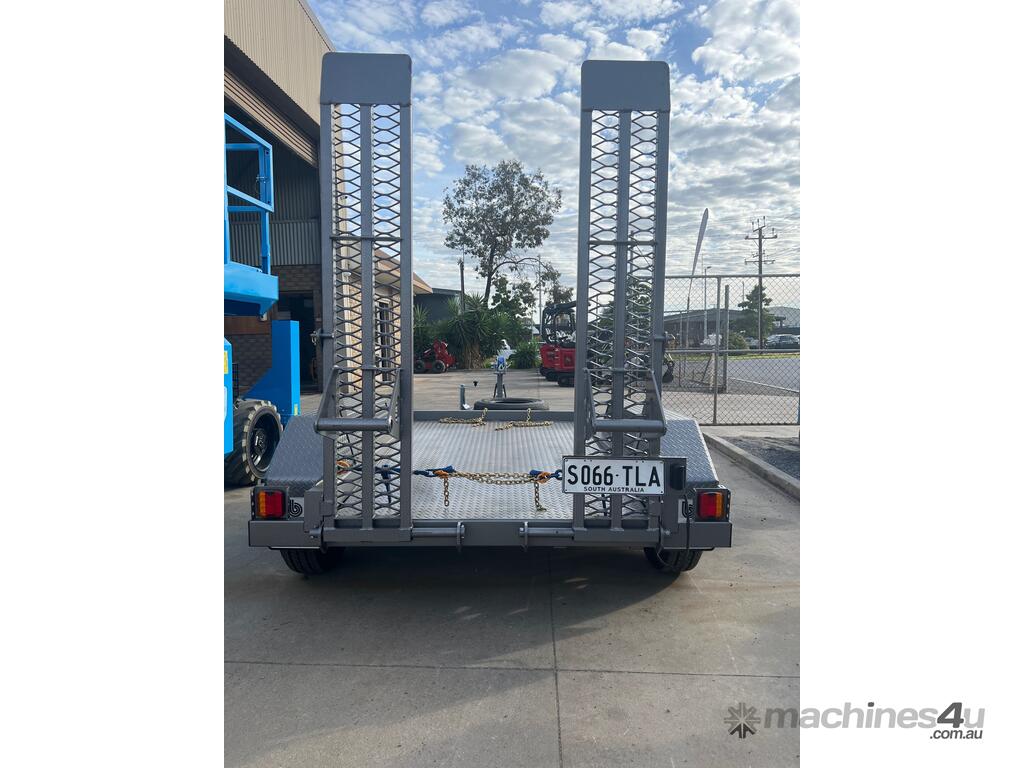

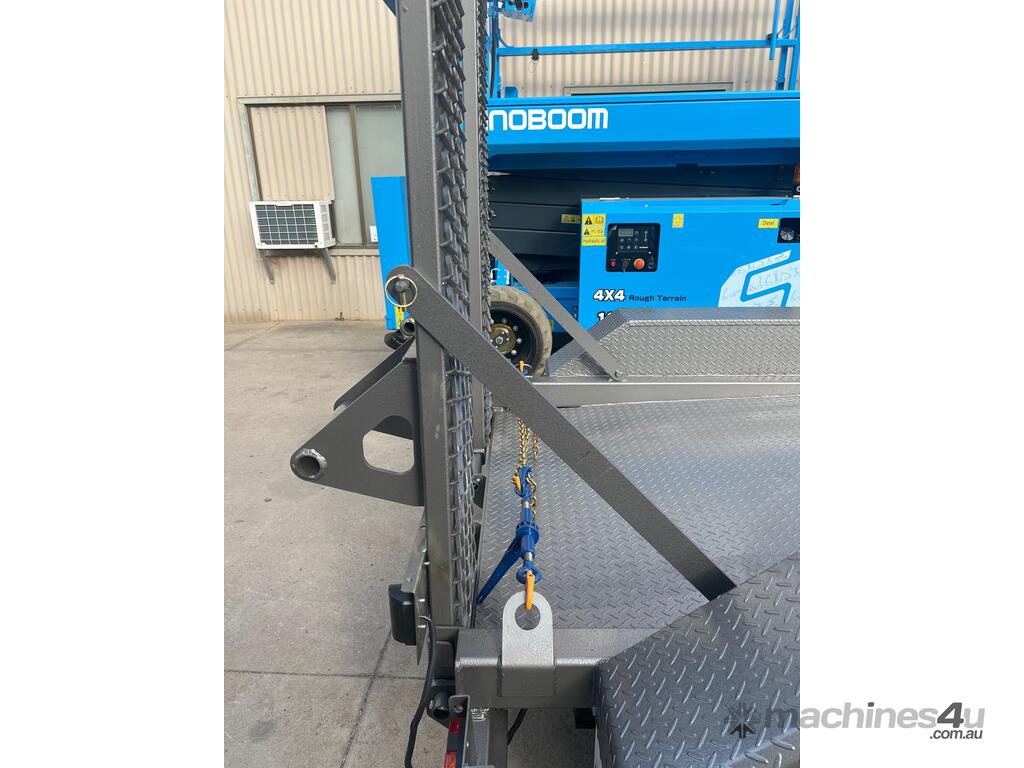

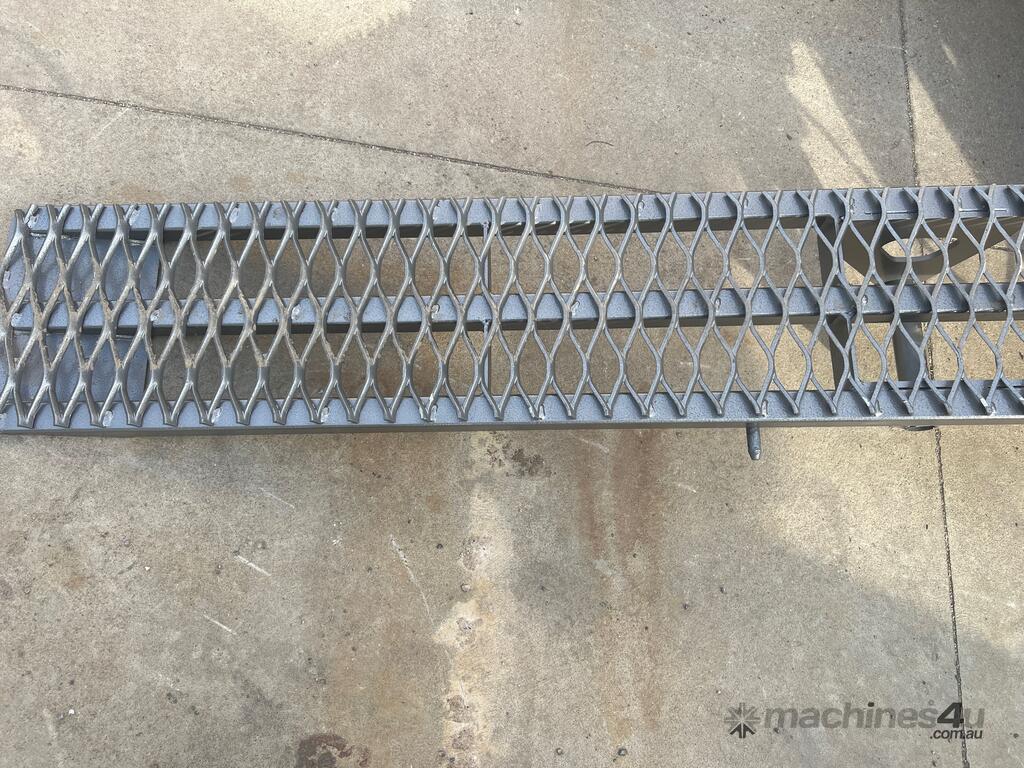

Mesh Ramp
Spare Wheel

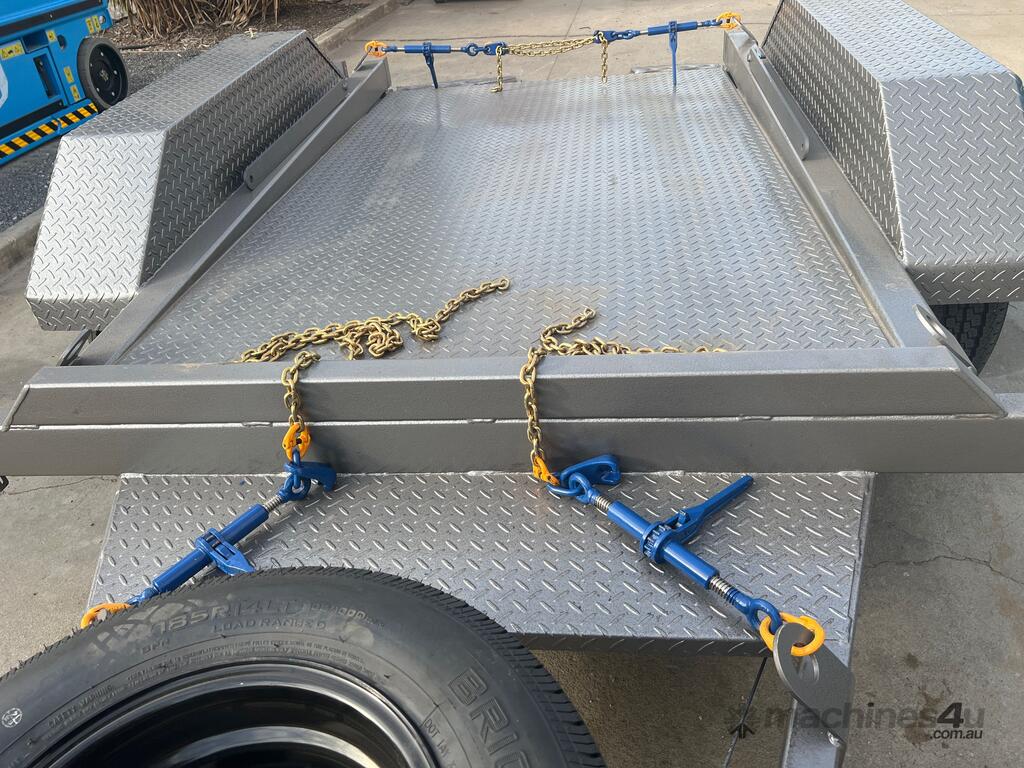

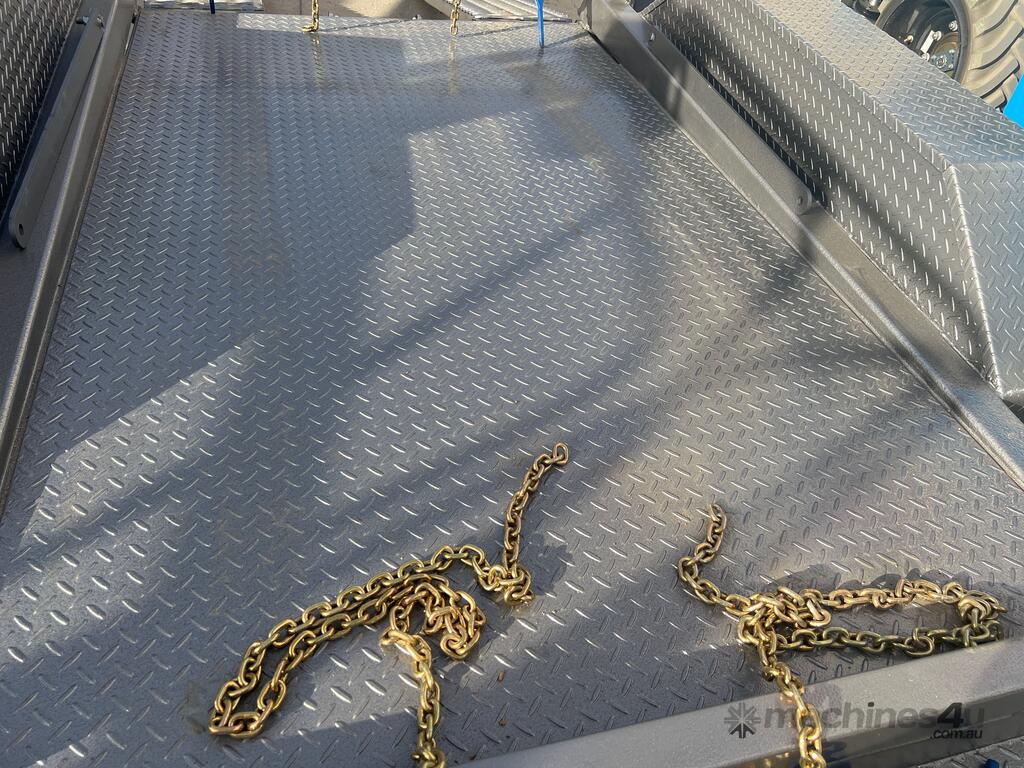

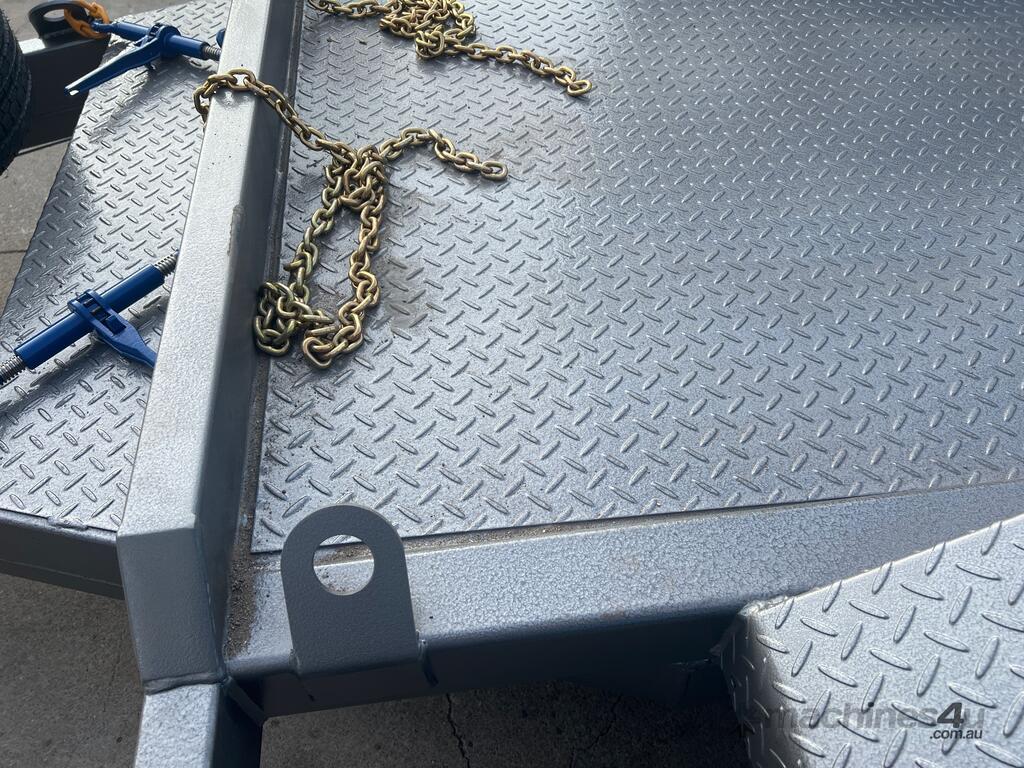

Tie down chains and Ratchet binders included

AXLE/S- 45mm Solid 1045-SL 1400kg Rated each
Suspensions- 7 Leaf Slipper Springs- 1400kg Rated per Pair
Brakes- Mechanical disc brakes & calipers
Coupling- 50mm Ball Override
Lights- Multi-Volt Let Lights
Jockey- 8" Solid Wheel
Chassis- 50X50X2.5mm RHS
Drawbar- 100x50x3mm RHS

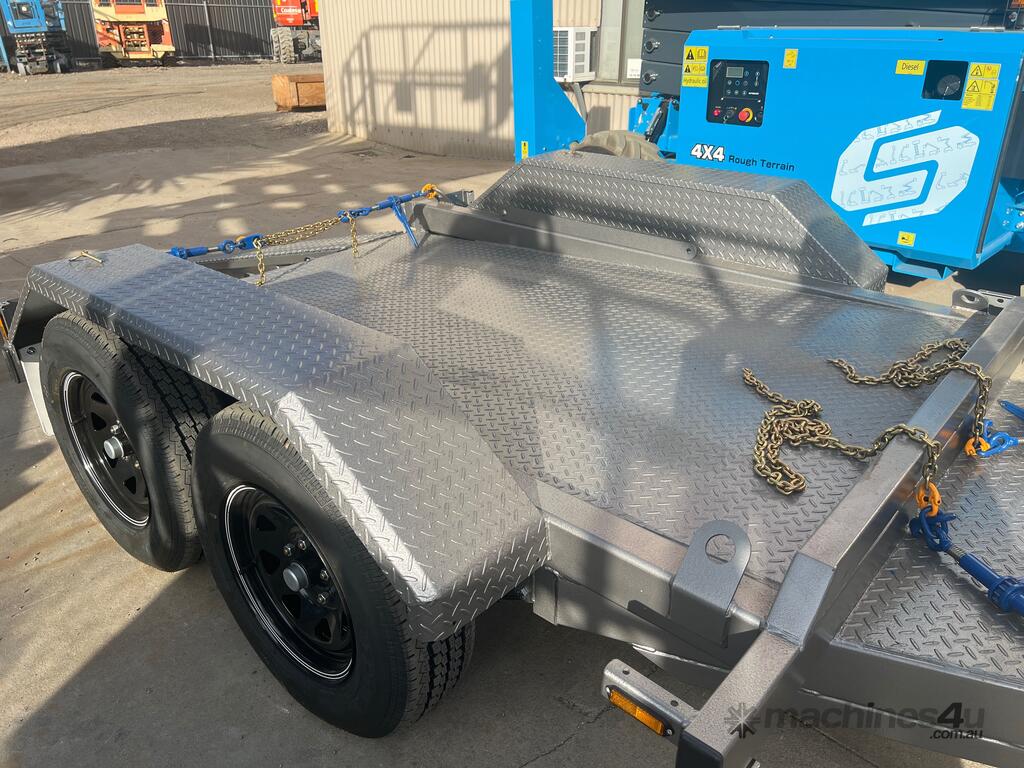

Floor/sides- 2.1mm checker plate
Paint- Basic Grey
Wheels- 14X6 5*114 PCD- 185R 102 load



SCISSOR PRODUCT HIGHLIGHTS
MORE RELIABLE PERFORMANCE
- Battery voltage early warning to ensure battery life
- Bumper rail protection
- The pothole protection reporting and horizontal protection system give peace of mind during operation
REDUCED MAINTENANCE COSTS

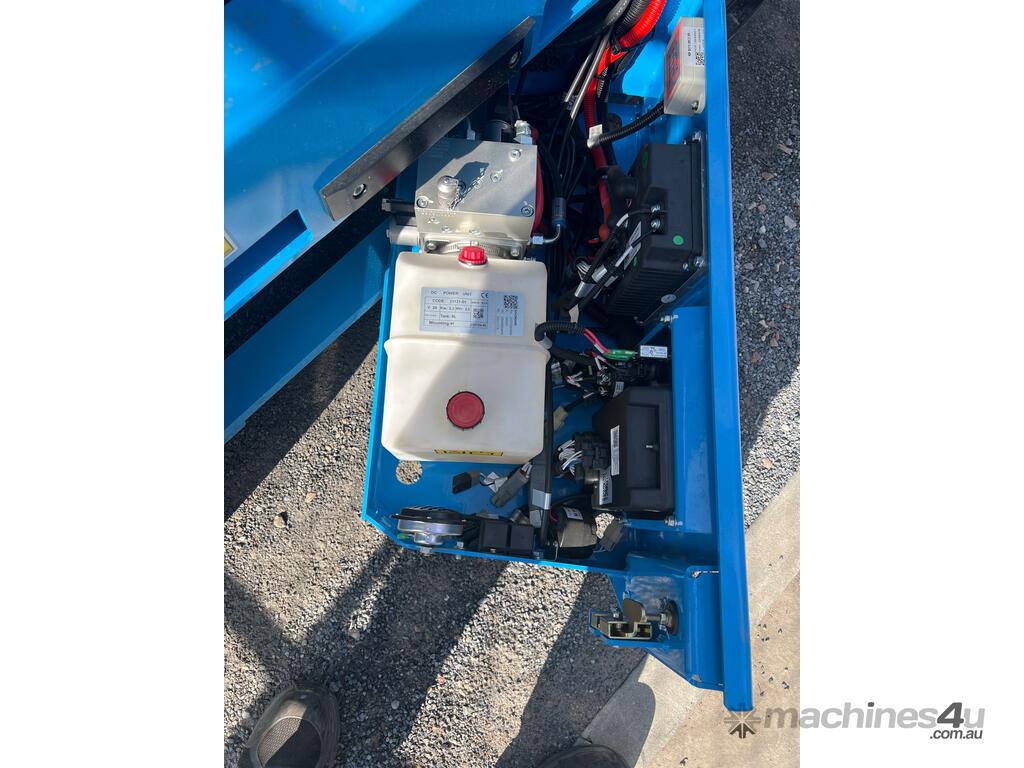

- Double-door design for easy maintenance
- Troubleshooting for quick fault diagnosis
- Highly quality parts and components
EFFICIENT AND ENVIRONMENTALLY FRIENDLY
- Small turning radius, flexible operation in narrow spaces
- Standard forklift slot, for efficient equipment transportation

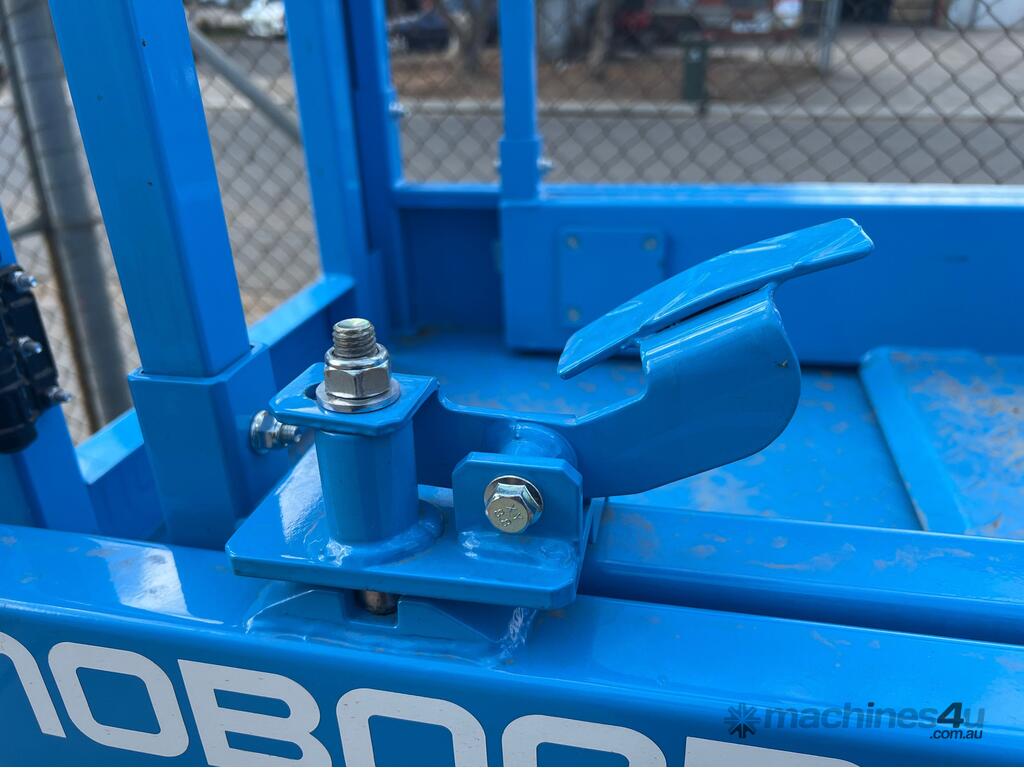

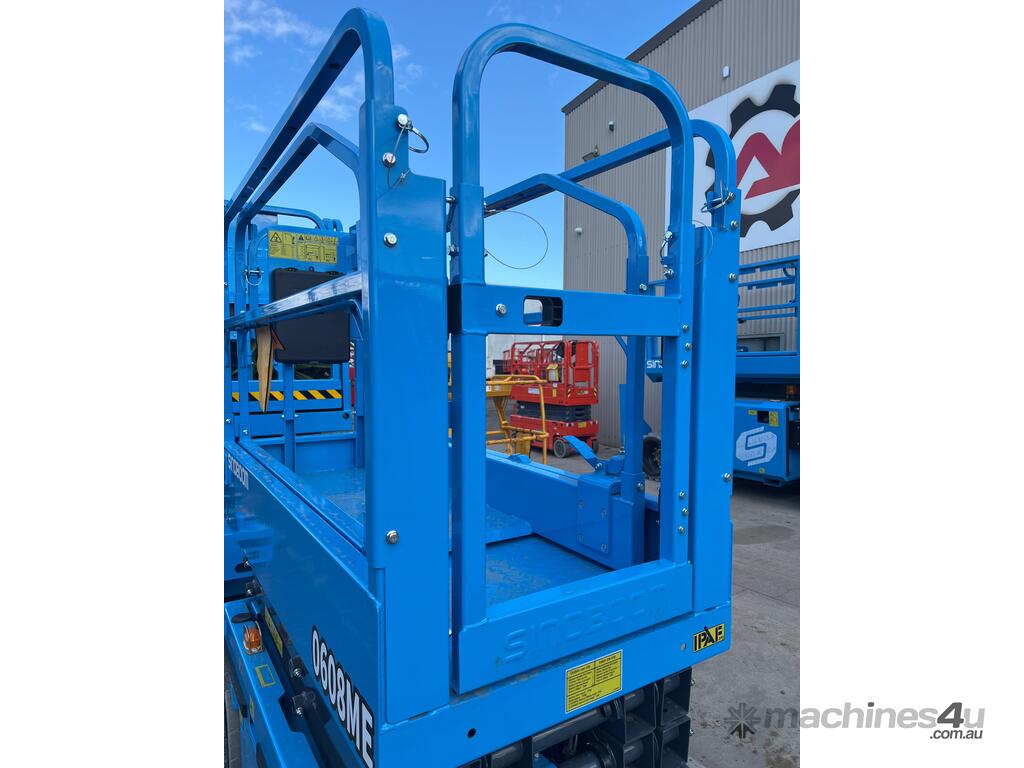

- Folding guardrails for easy transport
DIMENSIONS
Max Working Height
7.8m (25'7")
[A] Max Platform Height
5.8m (19')
[B] Max Horizontal Extension
0.9m (3')
[C] Length-Stowed
1.78m (5'10.1")
[D] Width-Stowed
0.76m (2'6") / 0.81m (2'8")
Height - stowed (Rail Folded)
1.86m (6'1")
[E] Height - stowed
(Rail Unfolded)
2.12m (6'11.5")
[F] Wheelbase
1.325m (4'4.2")
Ground Clearance
73mm (3")
Platform Dimensions(L×W×H)
1.64m×0.76m×1.1m(5'4.6"×2'6"×3'7")
PERFORMANCE
Platform Allowable Occupants
?Indoor/Outdoor?
0608S(1930S): 2 persons(Indoor Only)/- 0608M(1932M): 2 persons
Platform Capacity
230kg (507lbs)
Drive Speed-Stowed
3km/h (1.86mph)
Drive Speed-Raised
0.8km/h (0.5mph)
Elevation Time
(Unloaded)
15s~20s
Descent Time
(Unloaded)
25s~30s
Gradeability
25%
Turning Radius
(Inside/Outside)
0/1.49m (0/4'10.7")
Tilt Rating
(Front to Back/Side to Side)
3°/1.5°
Tyres-solid
305×115mm(12×4.5'')/solid
POWER

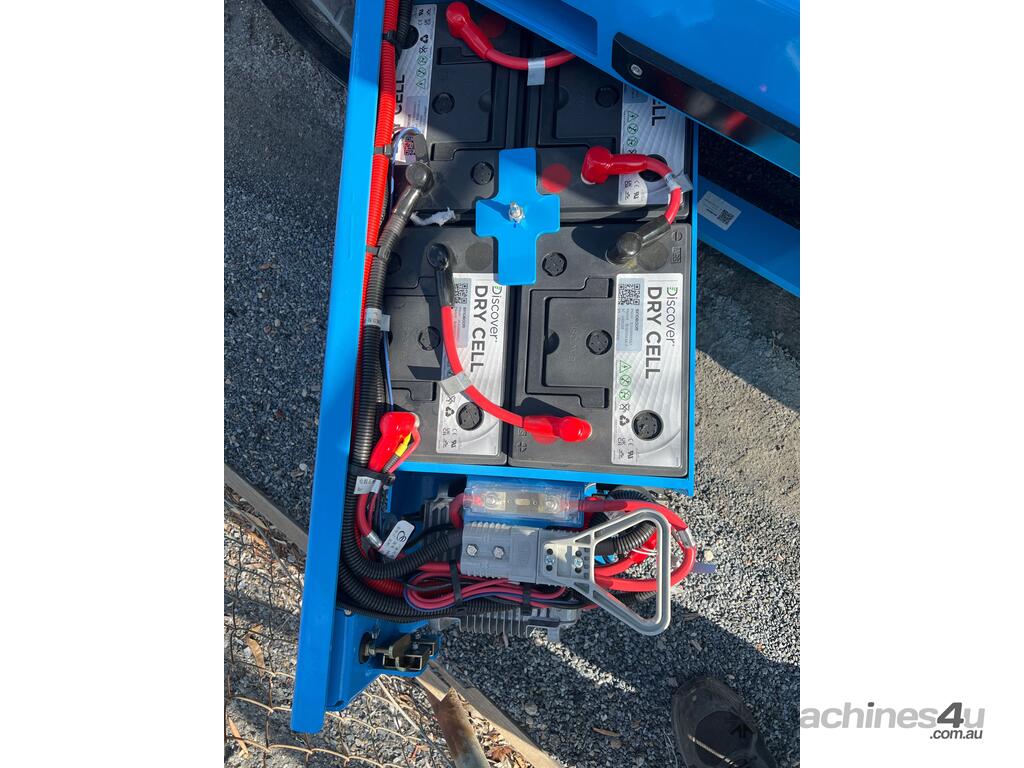

Batteries
24V, 220Ah (Lead acid battery)
Power Source
24V DC
Drive Mode
2WD, front wheel
Charger Input
100~240V AC
Charger Output
30A
Brake
2 rear wheel
Hydraulic System Capacity
9L (2.0 gal(UK)/2.4 gal (US))

Weight(Indoor/Outdoor)
0608M: 1,526kg(3,365lbs)
Weight(Indoor Only)
0608S: 1,526kg(3,365lbs)
Standards Compliance
0608S: CE/ANSI/CSA/KCS/EAC 0608M: CE/ANSI/CSA/AS/EAC
