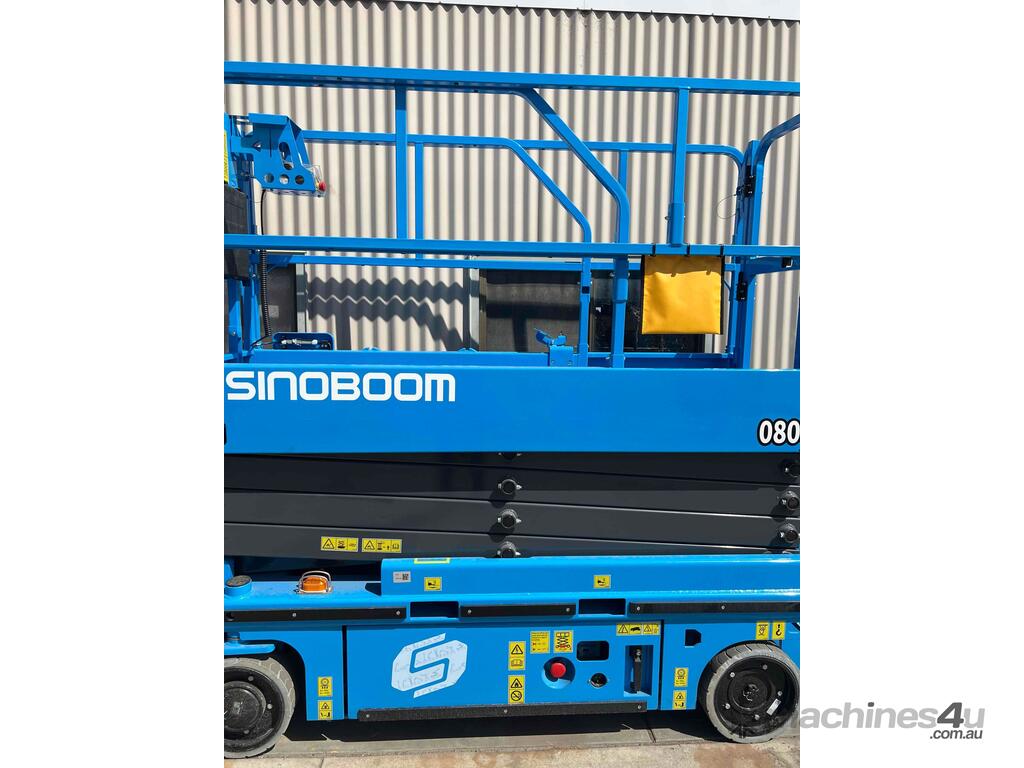

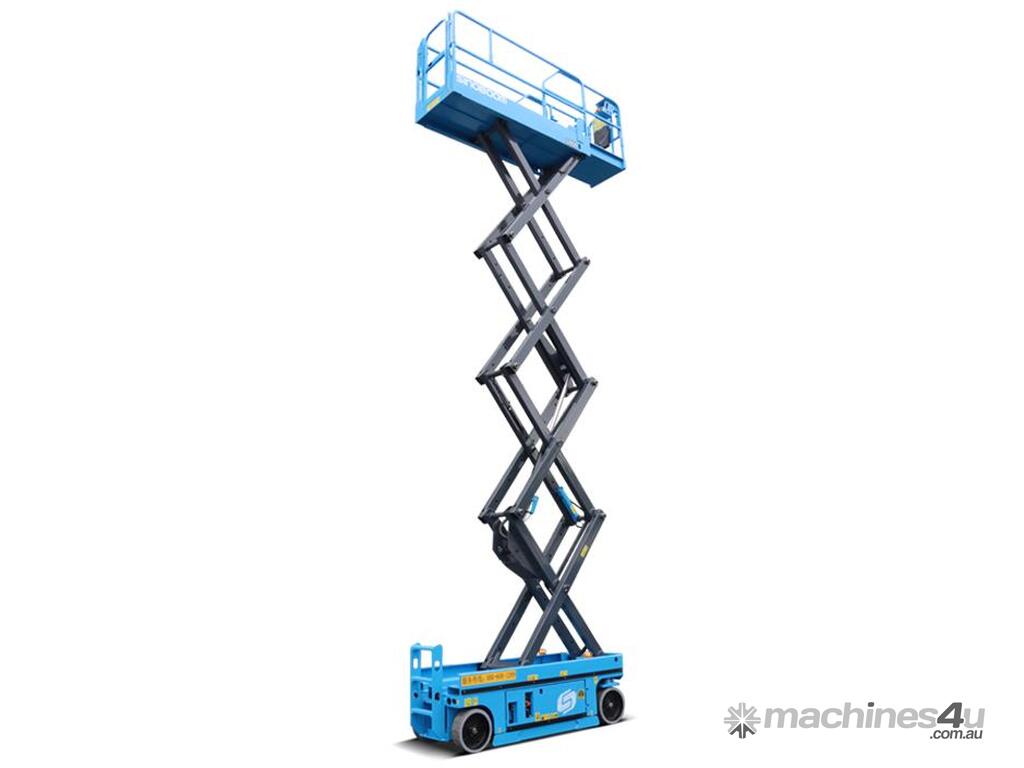

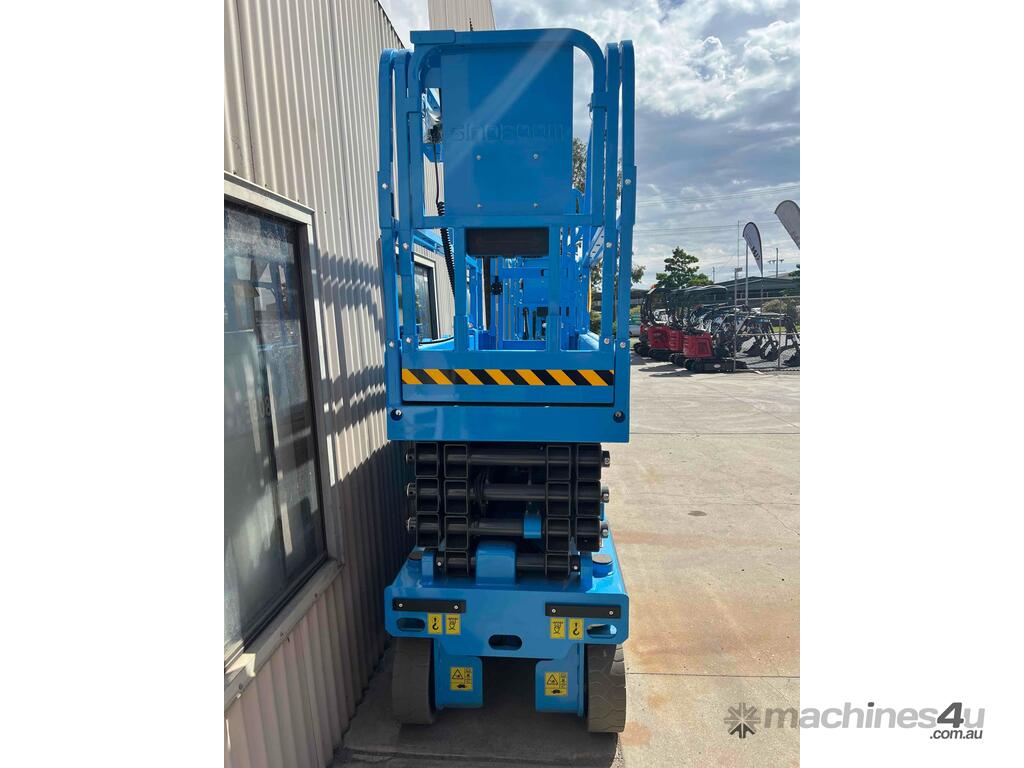

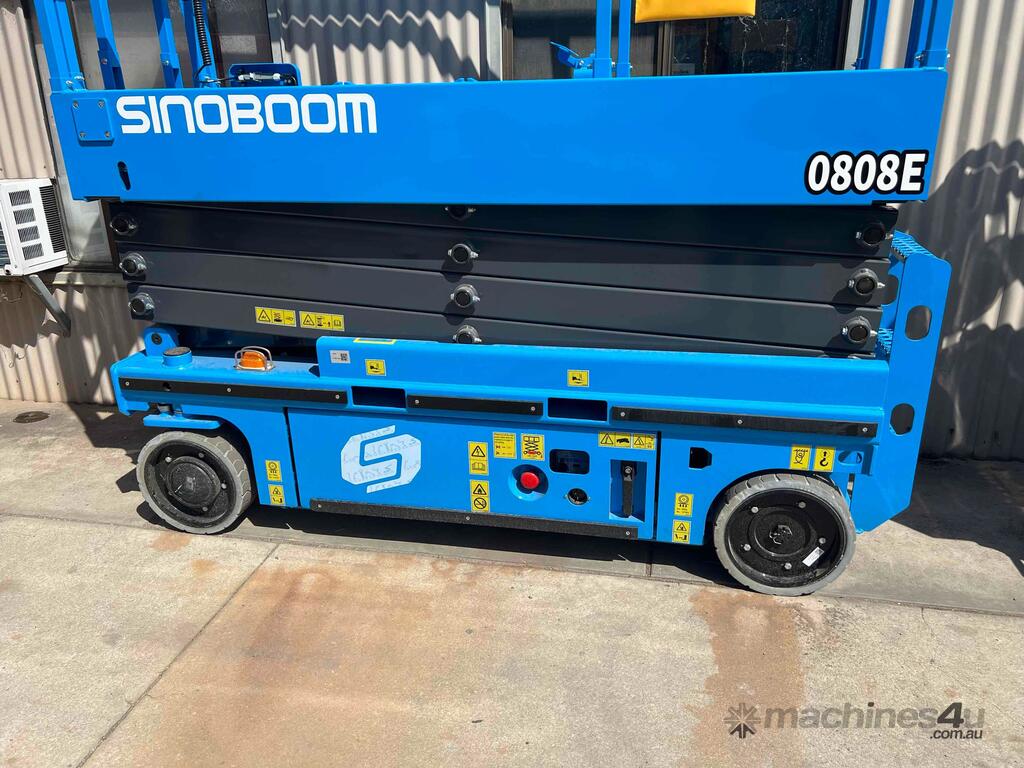

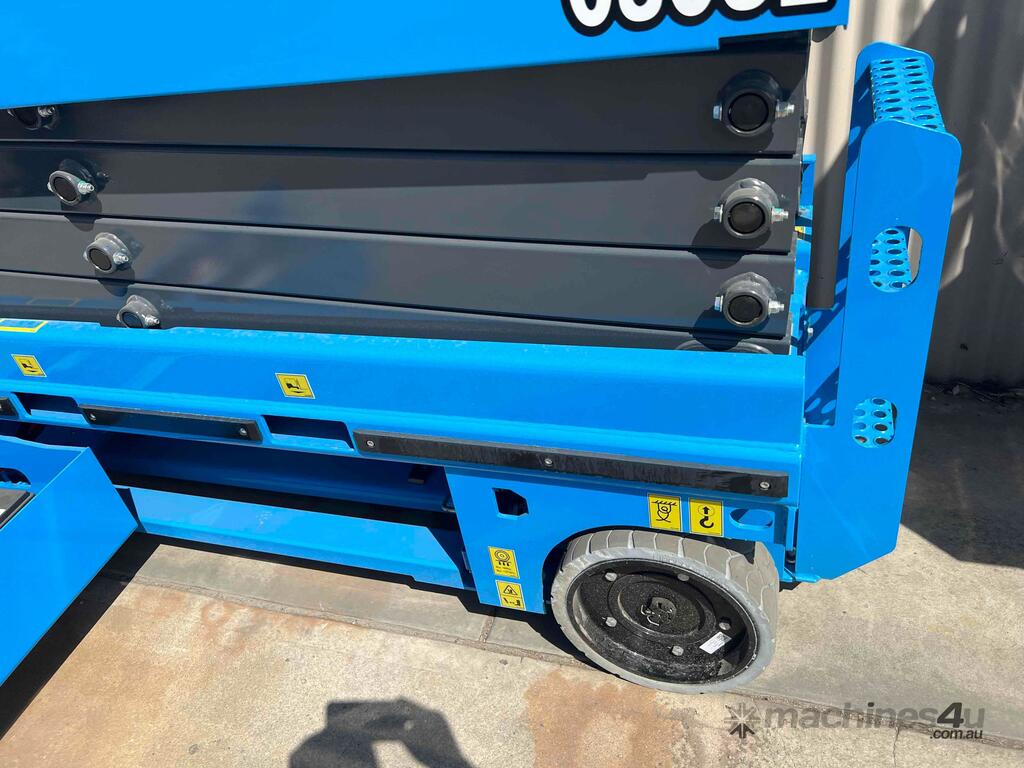

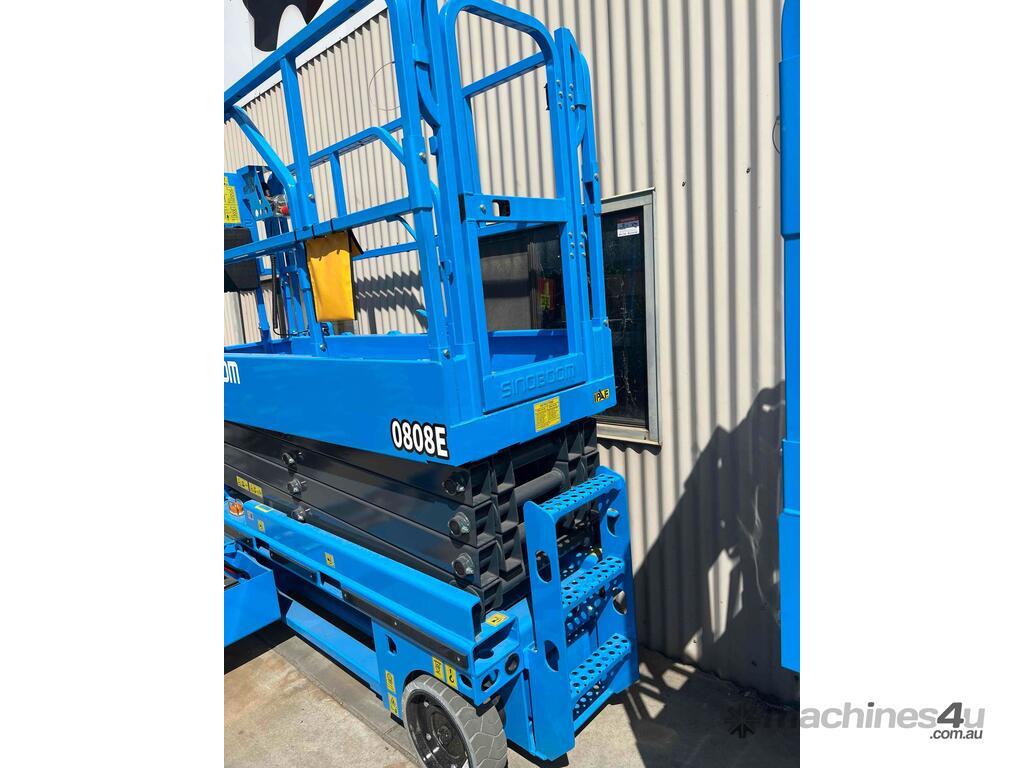

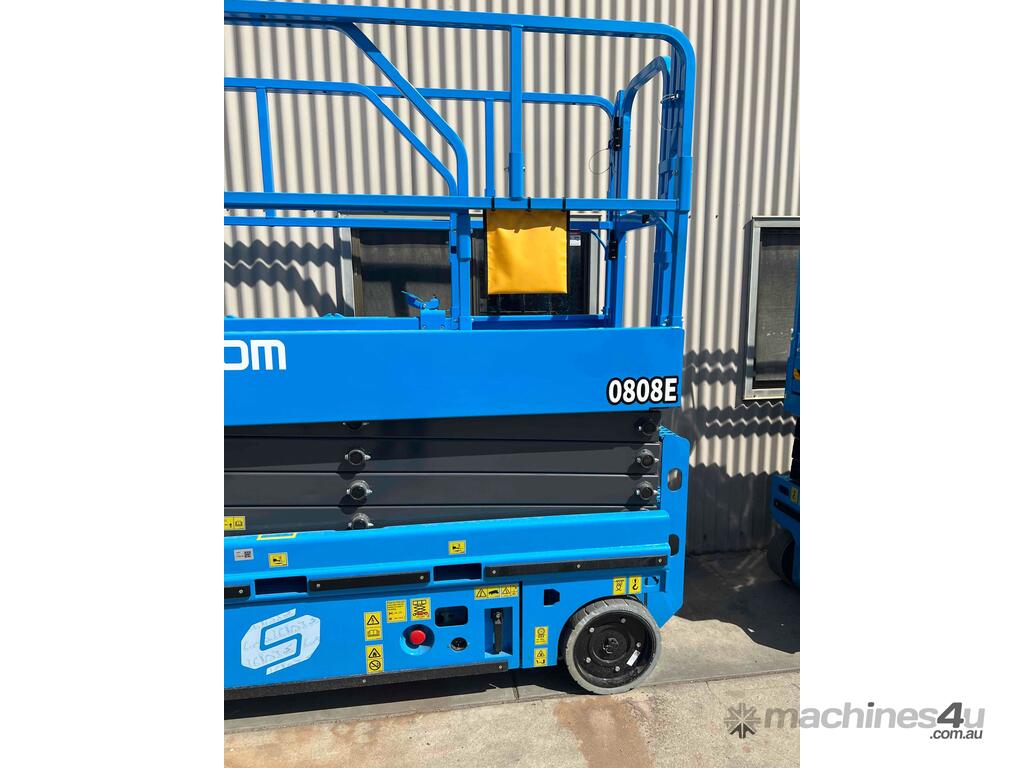

0808E(2732E) Electric Series Scissor Lifts

Working height
10.1m
Platform Capacity
250kg
Gradeability
25%

DIMENSIONS
Max Working Height
10.1m/8m (33'2"/26'3'')
[A] Max Platform Height
8.1m/6m (26'7"/19'8'')
[B] Max Horizontal Extension
0.9m (3')
[C] Length-Stowed
2.46m (8')
[D] Width-Stowed
0.83m (2'8.7")
Height - stowed Rail Folded
1.96m (6'5")
[E] Height - stowed Rail Unfolded
2.36m (7'9")
Height - stowed Fixed Rail
[F] Wheelbase
1.88m (6'2")
Ground Clearance
(Pothole Guard Stowed)
0.1m (4")
Ground Clearance
(Pothole Guard Deployed)
25mm (0.98")
Platform Dimensions(L×W×H)
2.30m×0.8m×1.1m (7'6.5"×2'7.5"×3'7")

PERFORMANCE
Platform Allowable Occupants
(Indoor/Outdoor)
2 persons/1 person
Platform capacity
250kg (551lbs)
Lift Extension Capacity
Drive Speed-Stowed
4km/h (2.5mph)
Drive Speed-Raised
0.8km/h (0.5mph)
Elevation Time(Unloaded)
30s~35s
Descent Time(Unloaded)
34s~39s
Gradeability
25%
Turning Radius
(Inside/Outside)
0/2.1m (0/6'10.7'')
Tilt Rating
(Front to Back/Side to Side)
3°/1.5°
Tyres-solid
380×125mm (15×5")

POWER

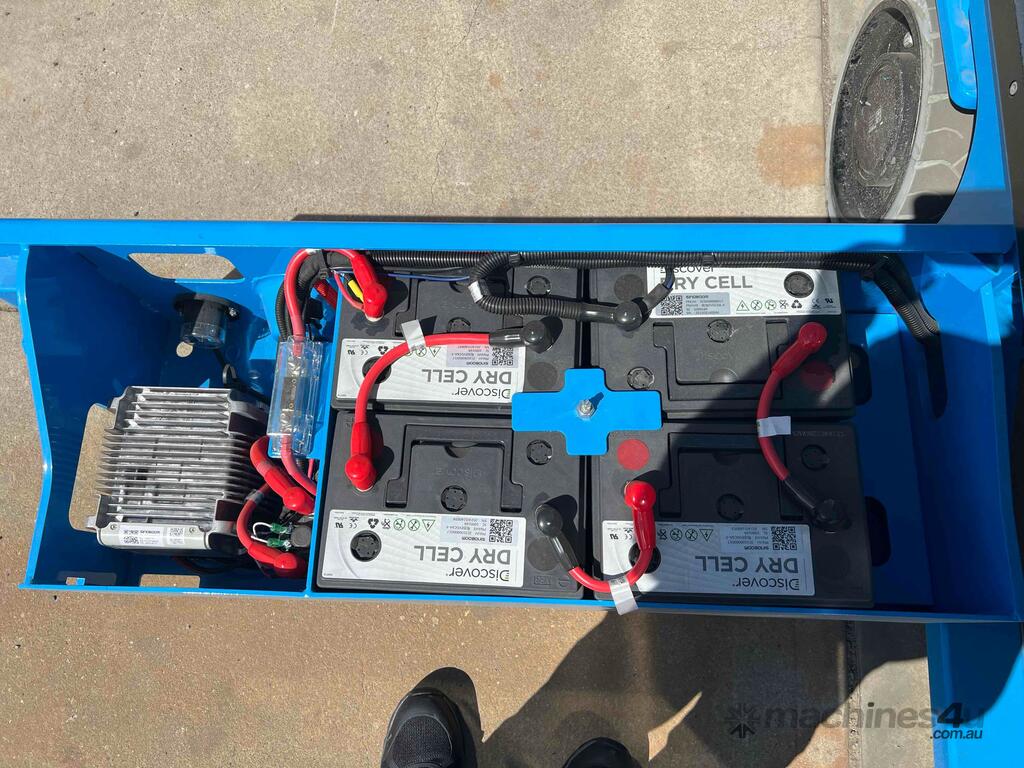

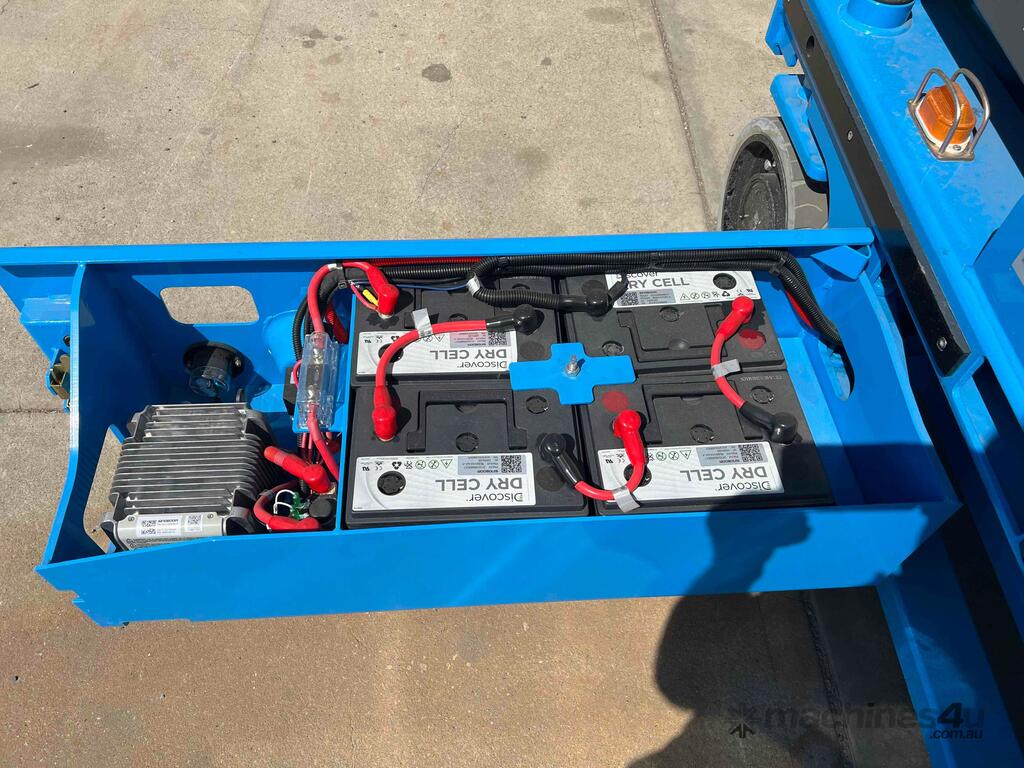

Batteries
24V, 220Ah (Lead acid battery)
Power Source
24V DC
Drive Mode
Motor, front-wheel
Charger Input
100~240V AC
Charger Output
30A
Hydraulic System Capacity
15L (3.3 gal(UK)/4.0 gal(US))

Weight(Indoor/Outdoor)
2,265kg (4,994lbs)
Weight(Indoor Only)
-
Standards Compliance
CE/ANSI/CSA/AS/EAC/KCS
