Working height
10.1m
Platform Capacity
450kg
Gradeability
25%
DIMENSIONS
Max Working Height
10.1m (33'2")
[A] Max Platform Height
8.1m (26'7")
[B] Max Horizontal Extension
0.9m (3')
[C] Length-Stowed
2.45m (8')
[D] Width-Stowed
1.17m (3'10")
Height - stowed Rail Folded
1.73m (5'8")
[E] Height - stowed Rail Unfolded
2.36m (7'9")
Height - stowed Fixed Rail
[F] Wheelbase
1.88m (6'2")
Ground Clearance
(Pothole Guard Stowed)
0.1m (4")
Ground Clearance
(Pothole Guard Deployed)
25mm (0.98")
Platform Dimensions(L×W×H)
2.30m×1.15m×1.1m (7'6.5"×3'9"×3'7")
PERFORMANCE
Platform Allowable Occupants
(Indoor/Outdoor)
2 persons/2 persons
Platform capacity
450kg (992lbs)
Lift Extension Capacity
4km/h (2.5mph)
Drive Speed-Stowed
0.8km/h (0.5mph)
Drive Speed-Raised
Elevation Time(Unloaded)
33s~38s
Descent Time(Unloaded)
35s~40s
Gradeability
25%
Turning Radius
(Inside/Outside)
0/2.35m (0/7'8.5")
Tilt Rating
(Front to Back/Side to Side)
3°/1.5°
Tyres-solid
380×125mm (15×5")
POWER

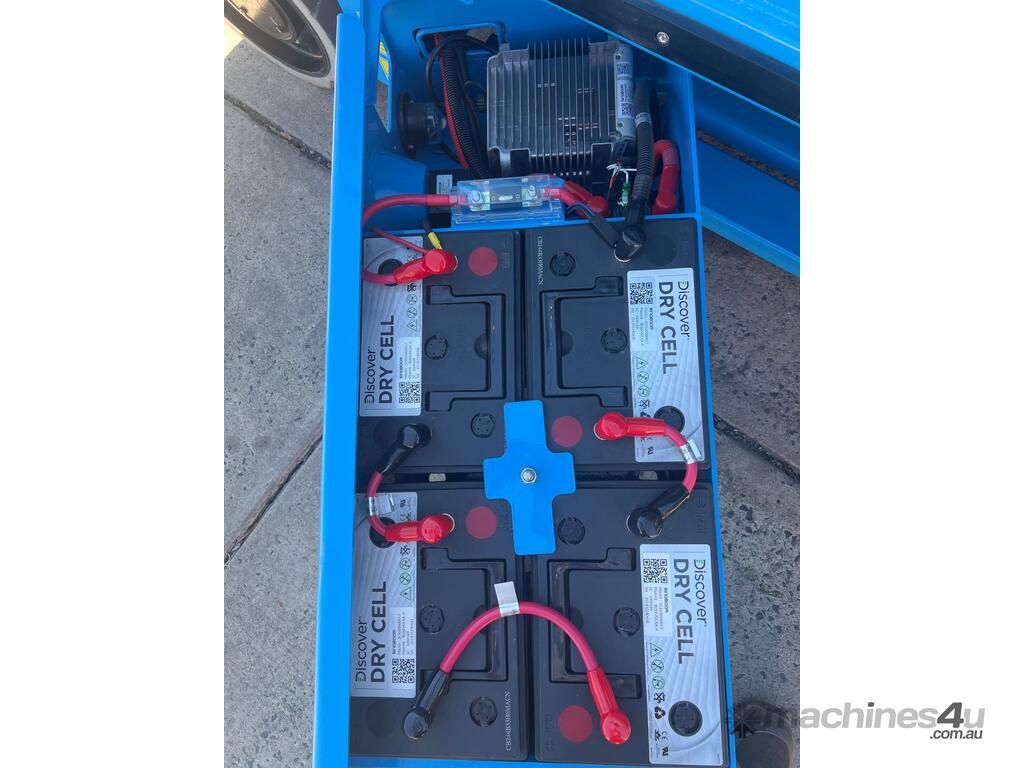

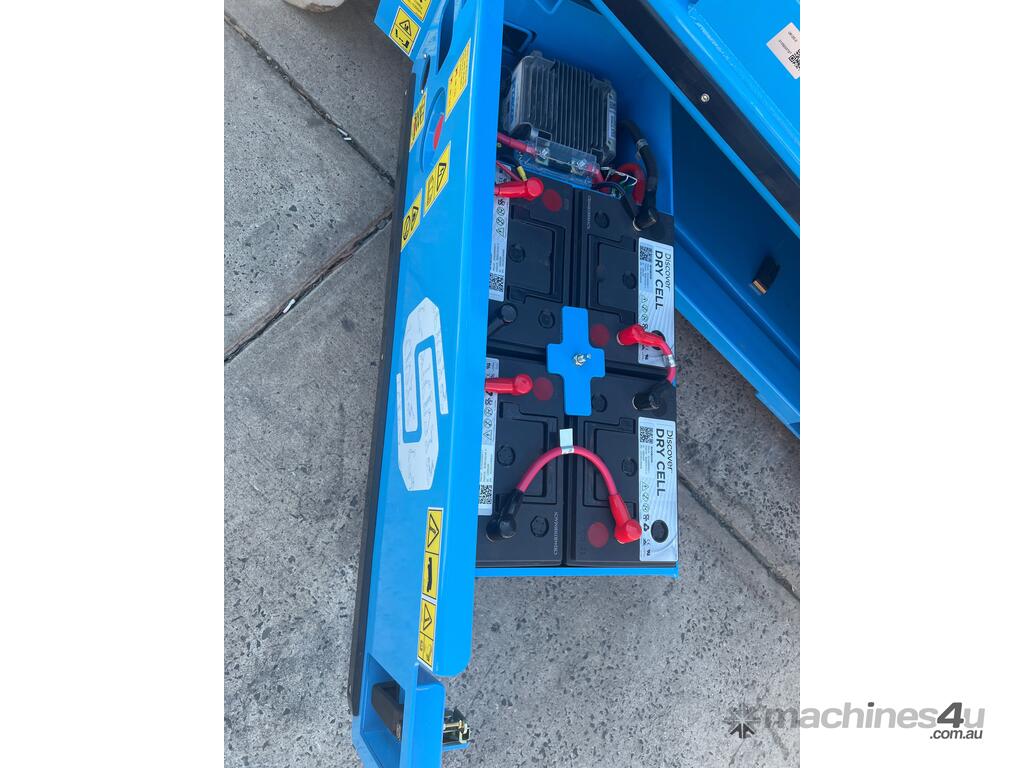

Batteries
24V, 220Ah (Lead acid battery)/25.6V, 200Ah (Lithium battery)
Power Source
24V DC
Drive Mode
Motor, front-wheel
Charger Input
100~240V AC
Charger Output
30A
Hydraulic System Capacity
15L (3.3 gal(UK)/4.0 gal(US))
Weight(Indoor/Outdoor)
2,715kg (5,986lbs)
Weight(Indoor Only)
Standards Compliance
CE/ANSI/CSA/AS/EAC
