10" Chuck GA-2000 Series Turn/Mill Centre

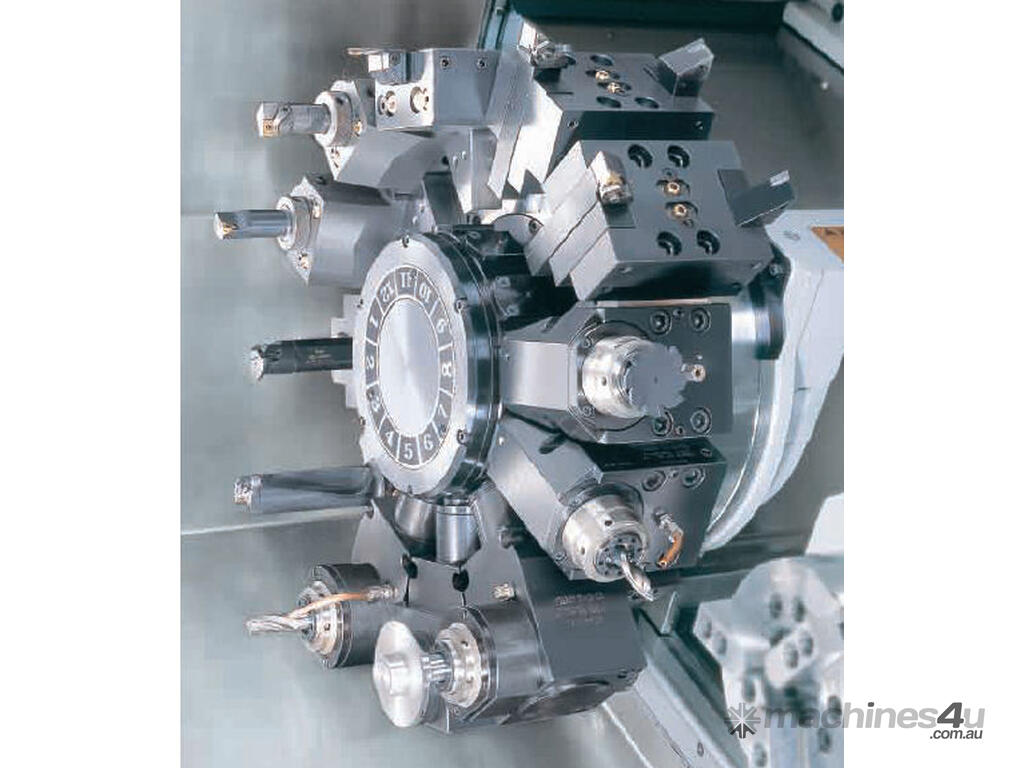

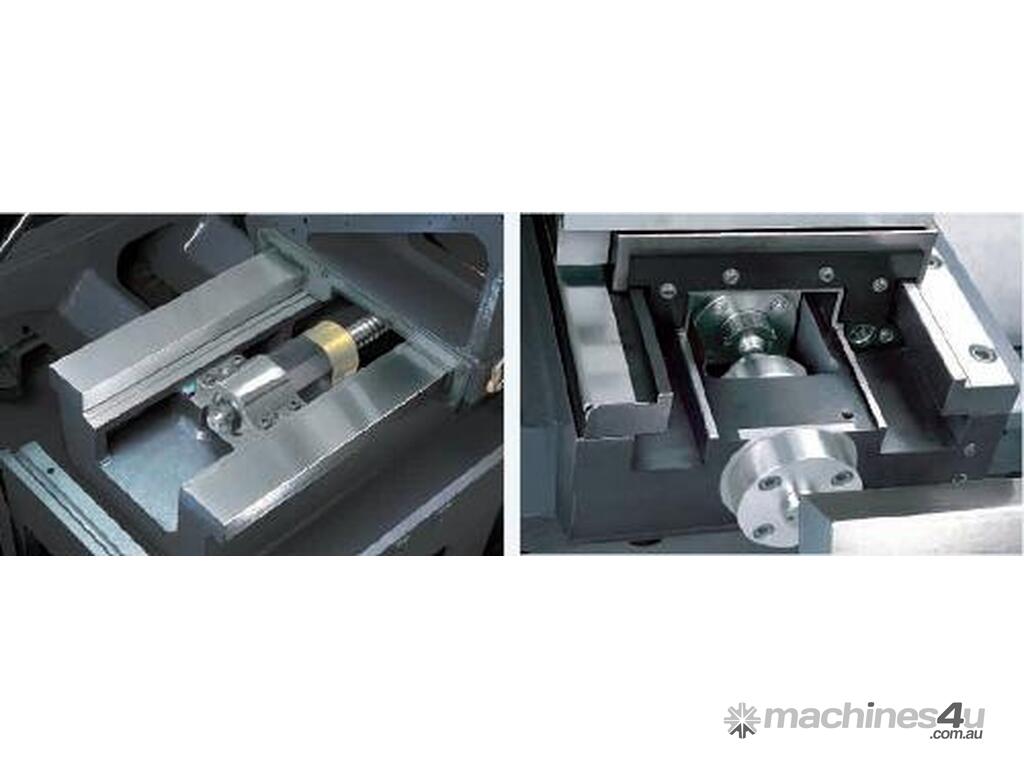

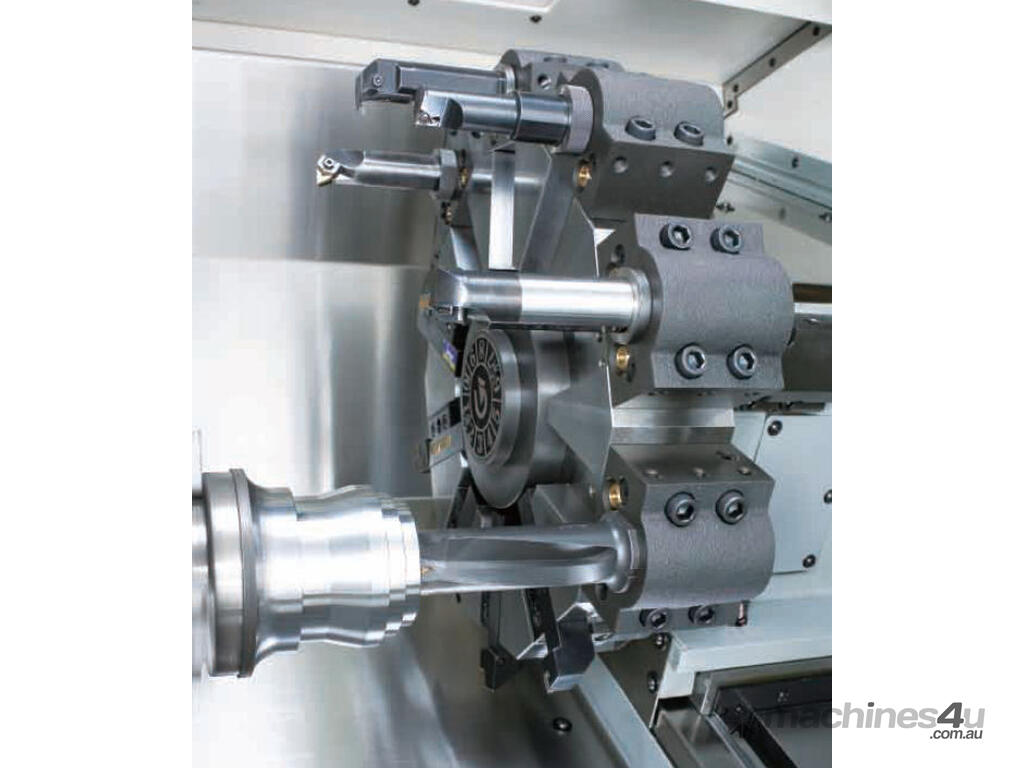

Engineered to handle heavy-duty turning applications with superb accuracy, the GA series ultra-performance turning centres combine extremely powerful high torque motors, super rigid box way constructions, and large diameter servo indexing turrets to bring you The Ultimate Machining Power®. The GA series will help you be more competitive by achieving faster cycle times with heavier cuts, faster machine movements, and allow cutting of tough material efficiently. You'll also appreciate the reliability and durability that our machines are known for Plus, with more standard features than any other machine on the market today, many say it's the best investment they have ever made.

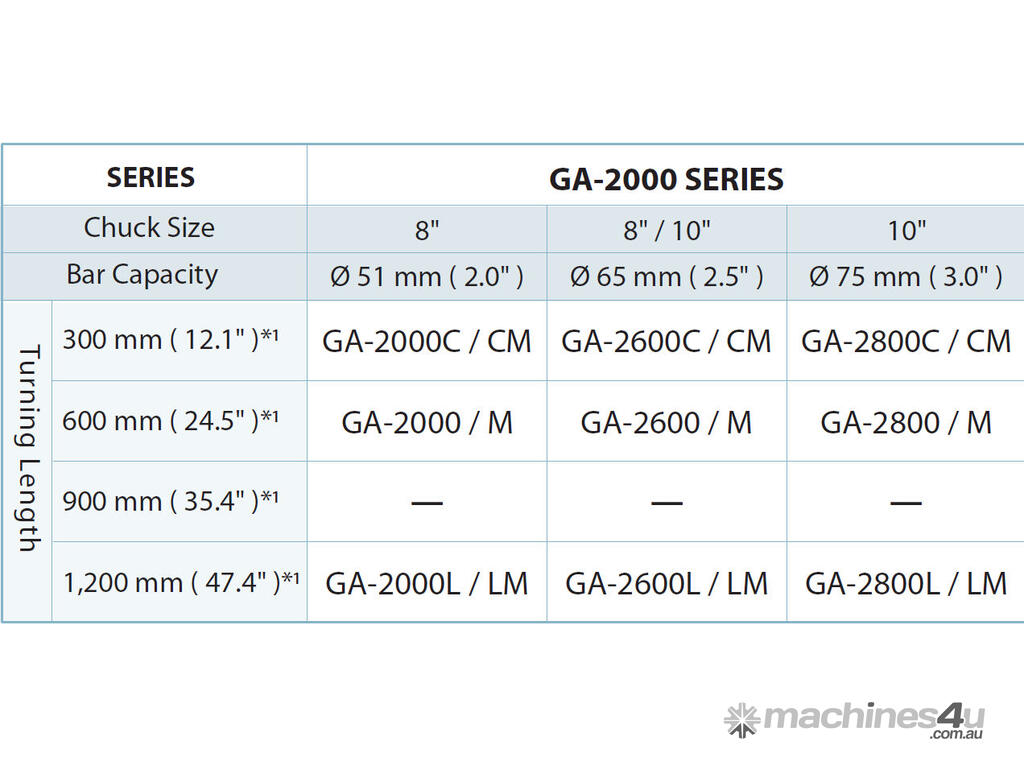

Model: GA-2600M / 2800M
Chuck size: 10”
Max Bar capacity (mm): 65 / 75
Max turning diameter (mm): 350
Swing over bed (mm): 580
Max turning length (mm): 300 / 600 / 1200
Spindle speed (rpm): 4000 / 3500

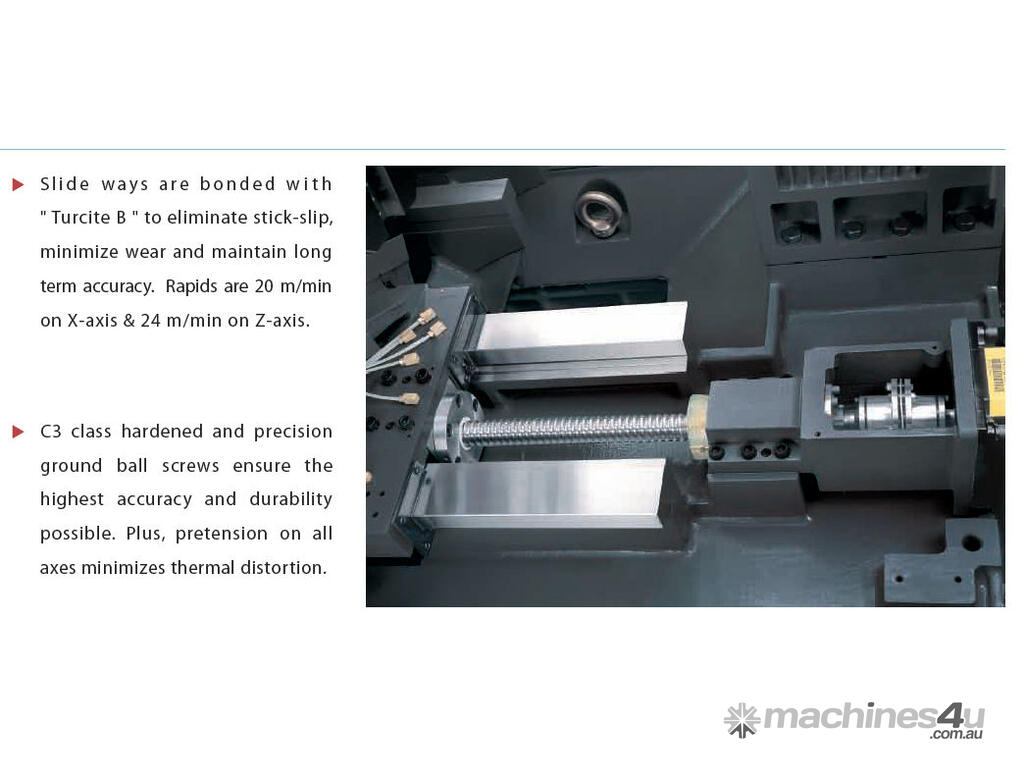

Rapid traverse (X/Z m/min): 20 / 24

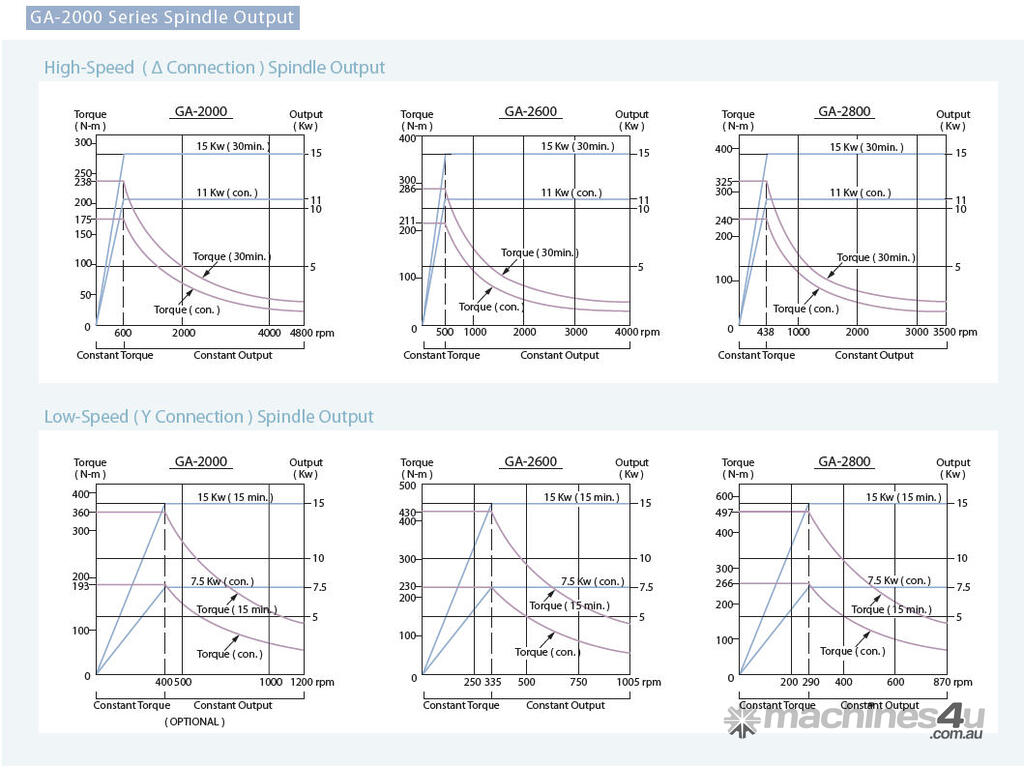

Motor (kW): 15 / 11

C/w Fanuc or Siemens Conversational Control, Renishaw Tool Setter, Live Tools, C Axis, 4 x Milling Holders & Programmable Tailstock Body & Quill.

Large range of models available, would suit Mazak, Okuma, Mori Seiki & Doosan buyer!

Goodway’s are now one of the largest CNC Lathe manufacturers in the world and their recently opened state of the art manufacturing facility enables them to produce their range of CNC turning Centres in one the most modern plants in Taiwan, they are also one of the few Taiwanese machine tool manufacturers with their own sophisticated machine shop to produce critical components.

Goodway’s massive investment in new development areas over recent years has seen their range grow into new areas such as: Multi Tasking Machines, Swiss Type Lathes, Large Slant Bed Lathes up to Ø980mm turning diameter, CNC Vertical Lathes including a Ø5000mm vertical lathe currently in development and the soon to be released CNC Flat Bed Lathes with swings up to Ø2000mm.

Since 1975 Goodway Machine Corp has specialised in the development and manufacture of high precision turning centres, currently Goodway produce in excess of 2,000 CNC Lathes each year and have grown to be one of the largest CNC lathe manufacturers in the world. Their machines are now well known in over 50 countries for their exceptional performance, quality and value and with over 75 model variants ranging from Ø32 ~ Ø205mm bar capacity, Ø6” ~ Ø24” chuck size, turning lengths up to 4000mm and 2 ~ 9 axis configurations, Goodway has the capability to meet virtually any turn / mill application. There really is a solution for every turning requirement in the Goodway range of Turning Centres!
