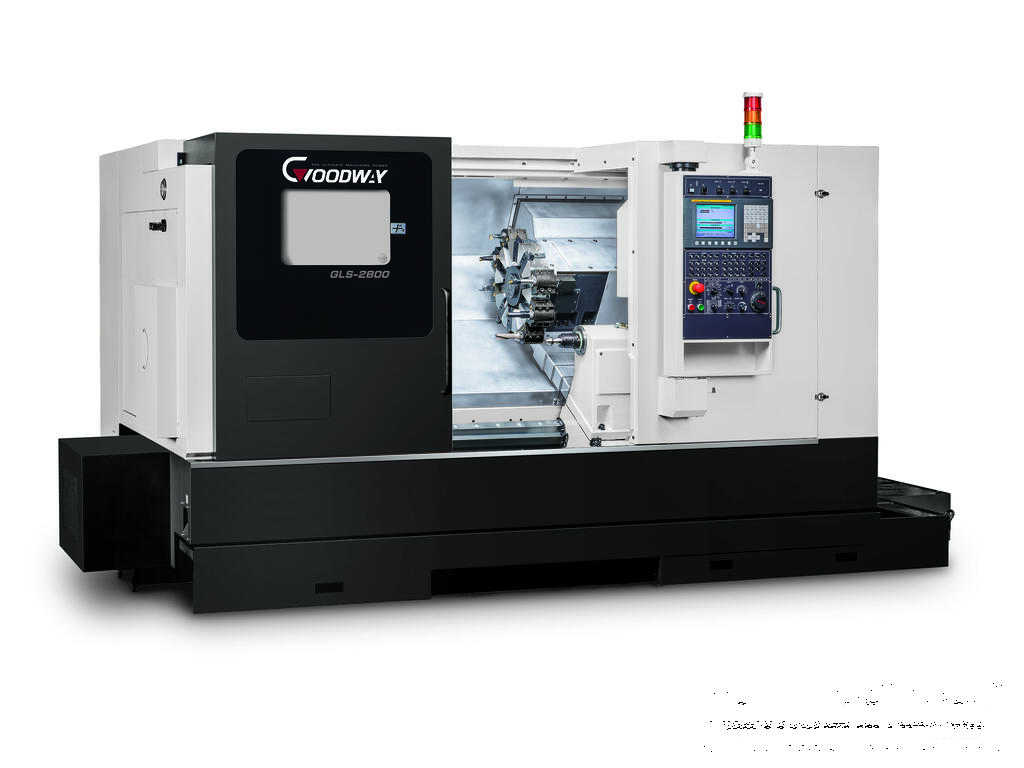

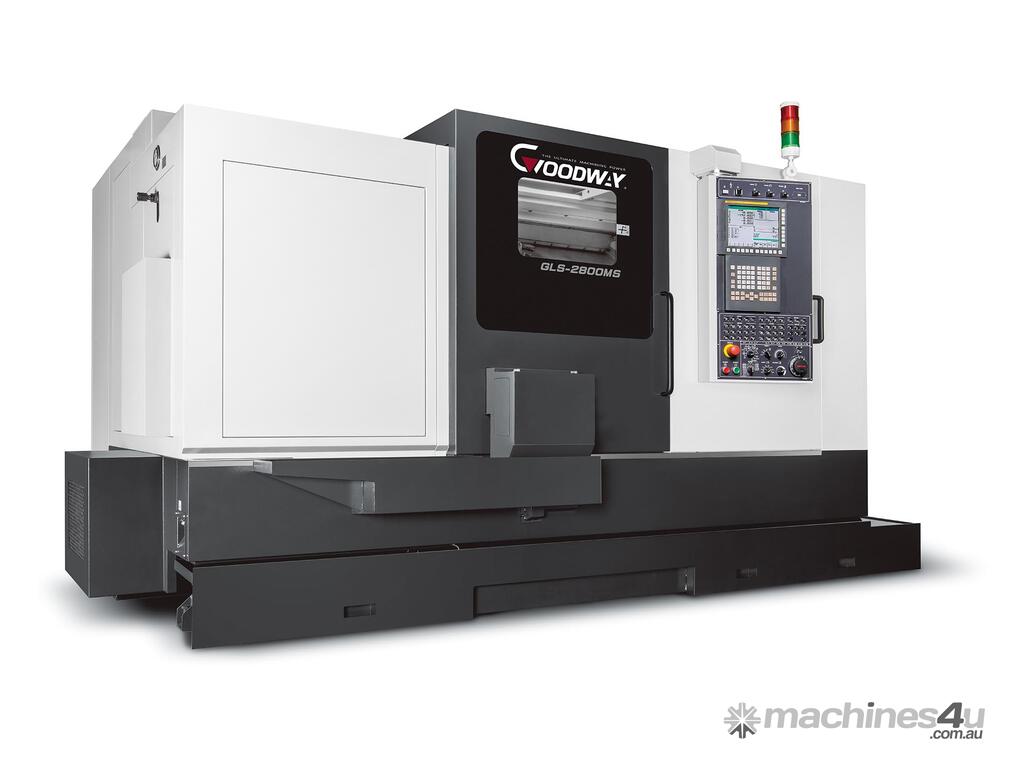

10" Chuck GLS-2800 Turning Centre

Goodways new GLS-2800 with 10" chuck, 75mm bar capacity offer fantstic value!

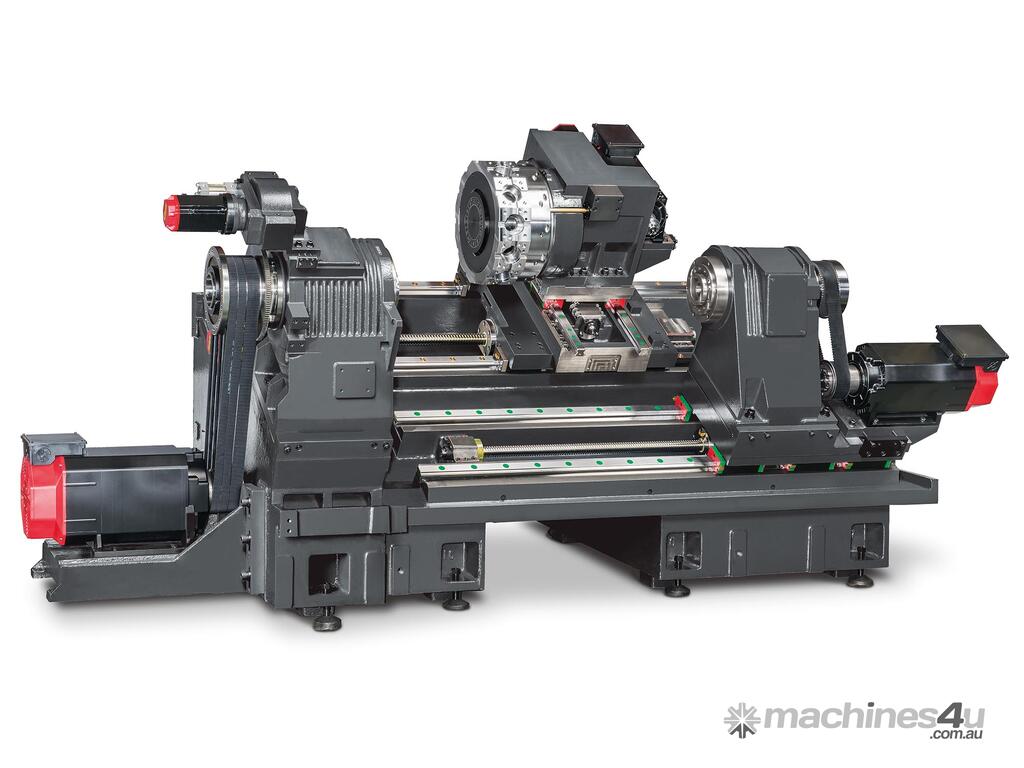

With the latest machine tools technology and high quality components, GOODWAY brings you the new GLS-2800 series high speed CNC turning center. This series features a big bore, high power, fast cut and more to provide you machining solution with high efficiency cutting power. Besides, The GLS-2800 can be equipped with a live tooling turret, C-axis, Y-axis and sub-spindle, G.LINC 350 intelligent control system and various automation equipment to reach a complete series and easily meet your machining needs of today and tomorrow.

Chuck size: 10”
Max bar capacity (mm): 75
Max turning diameter (mm): 440
Max swing (mm): 760
Max turning length (mm): 720
Spindle speed (rpm): 3500
Rapid traverse (X/Z m/min): 30 / 30

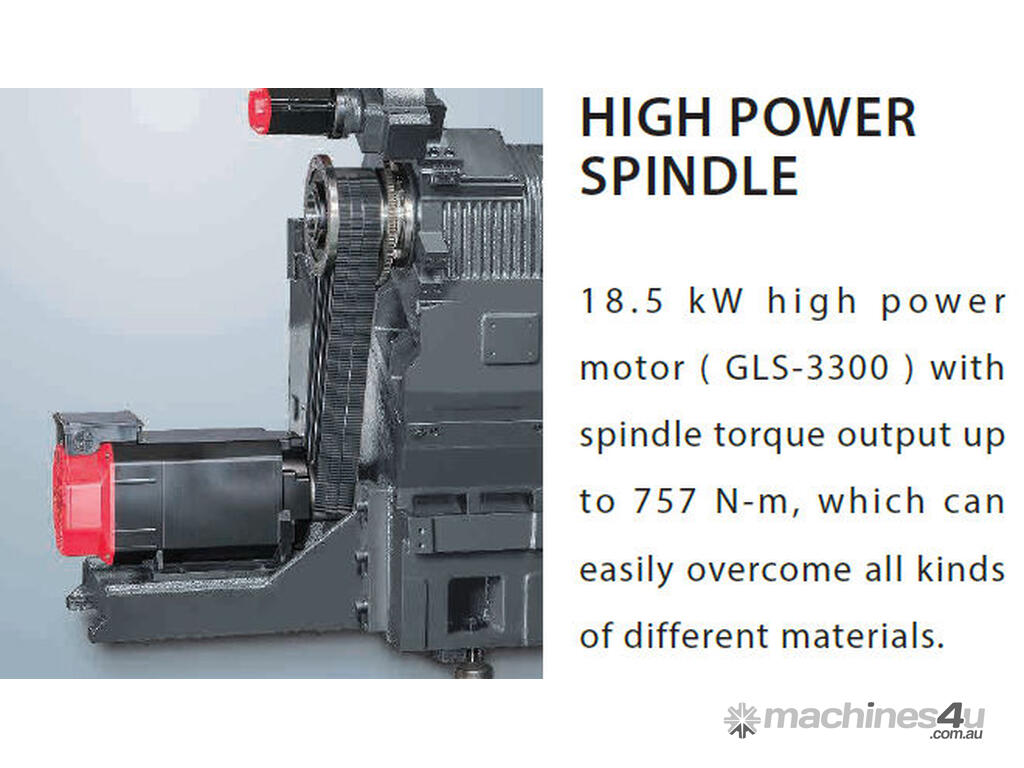

Spindle motor (kW): 15 / 11 (opt 18.5 / 15)

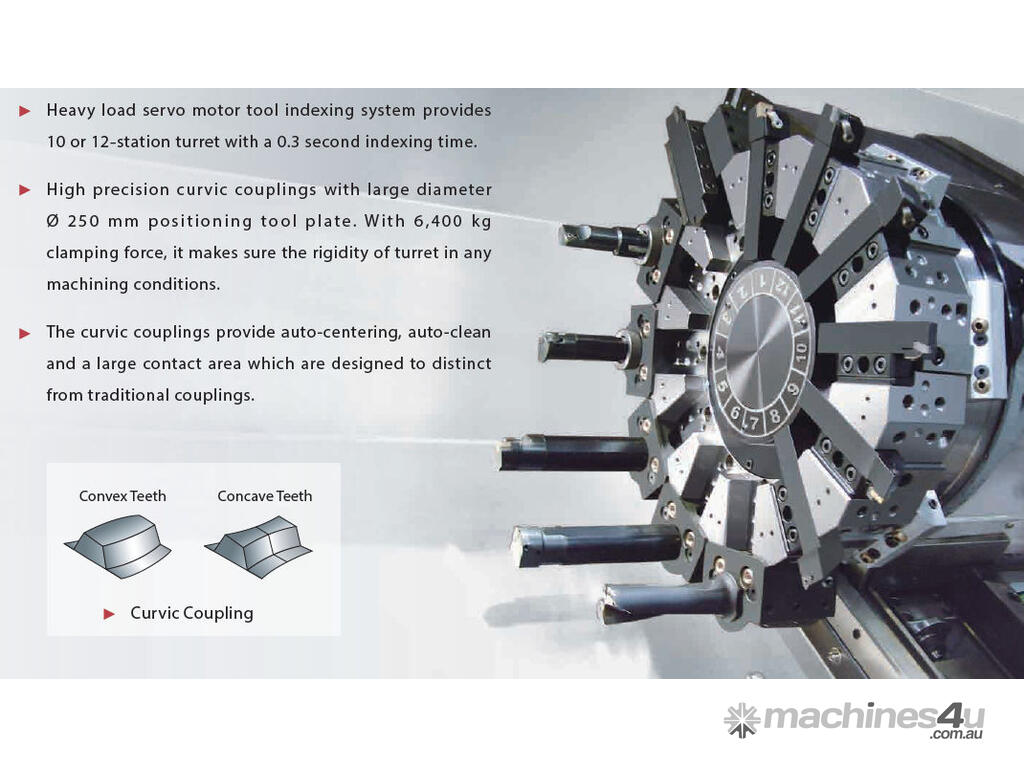

Turret: 12 positions

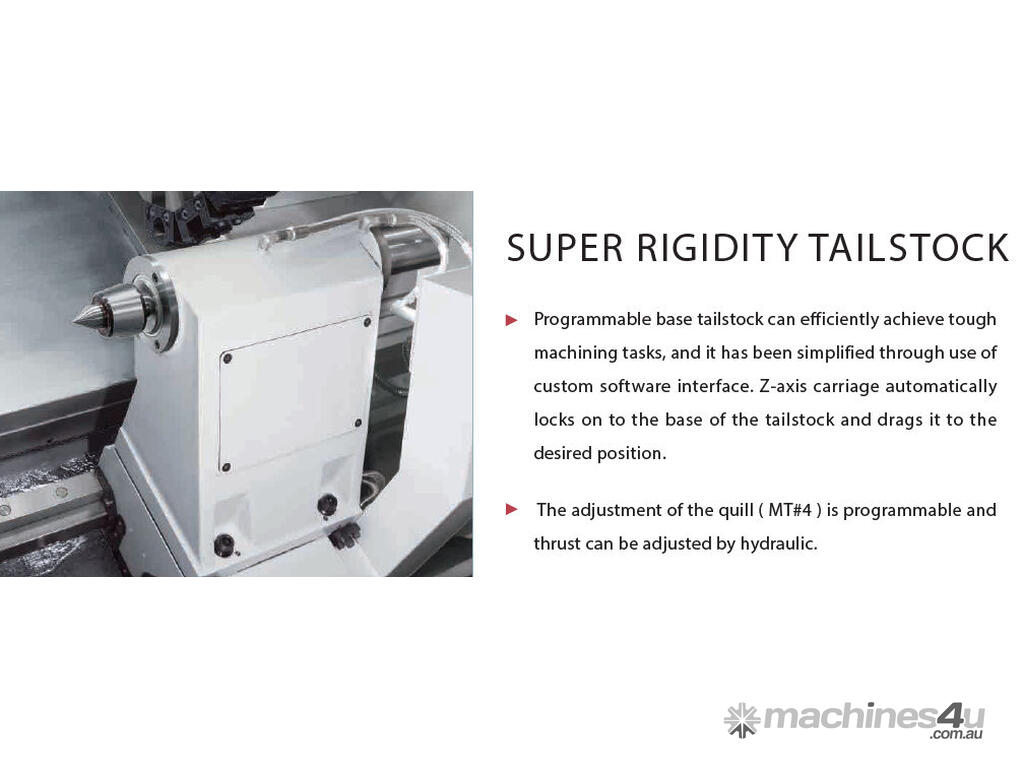

C/w Fanuc or Siemens Conversational Control, Chip Conveyor, Renishaw Tool Setter & Tailstock.

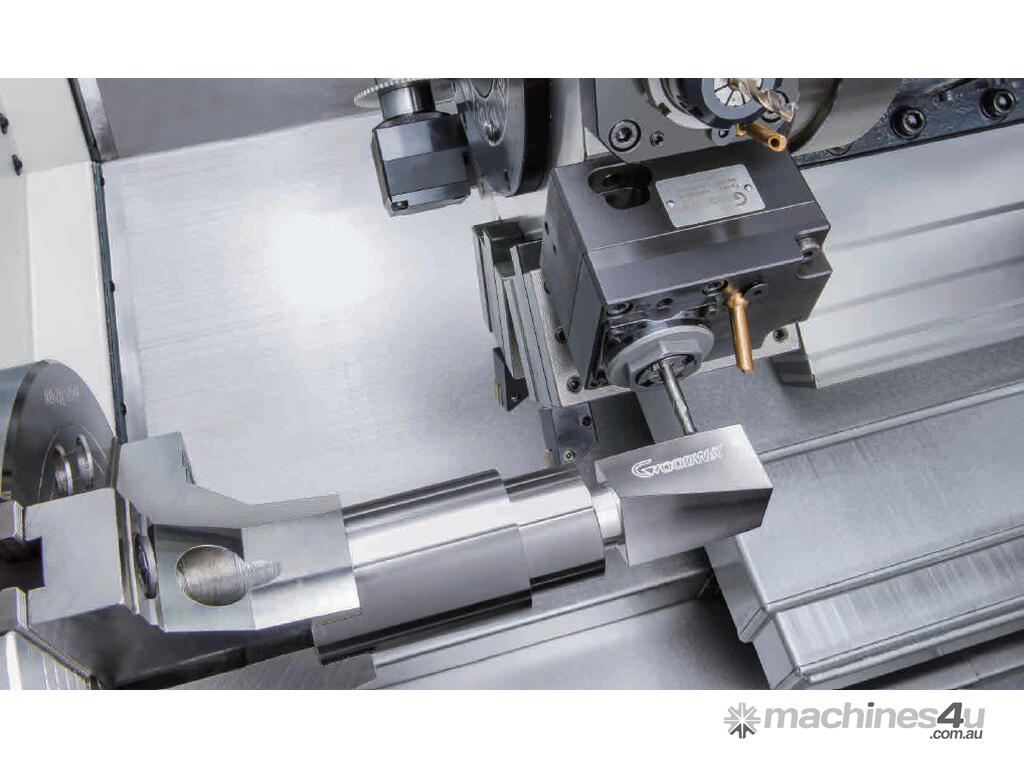

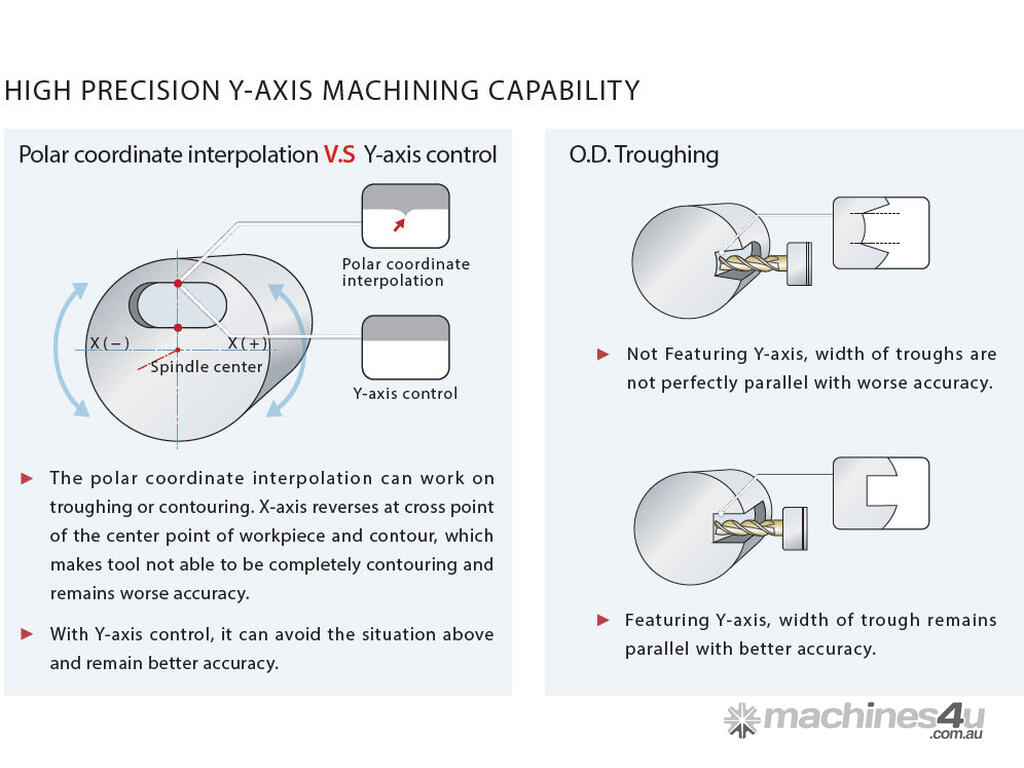

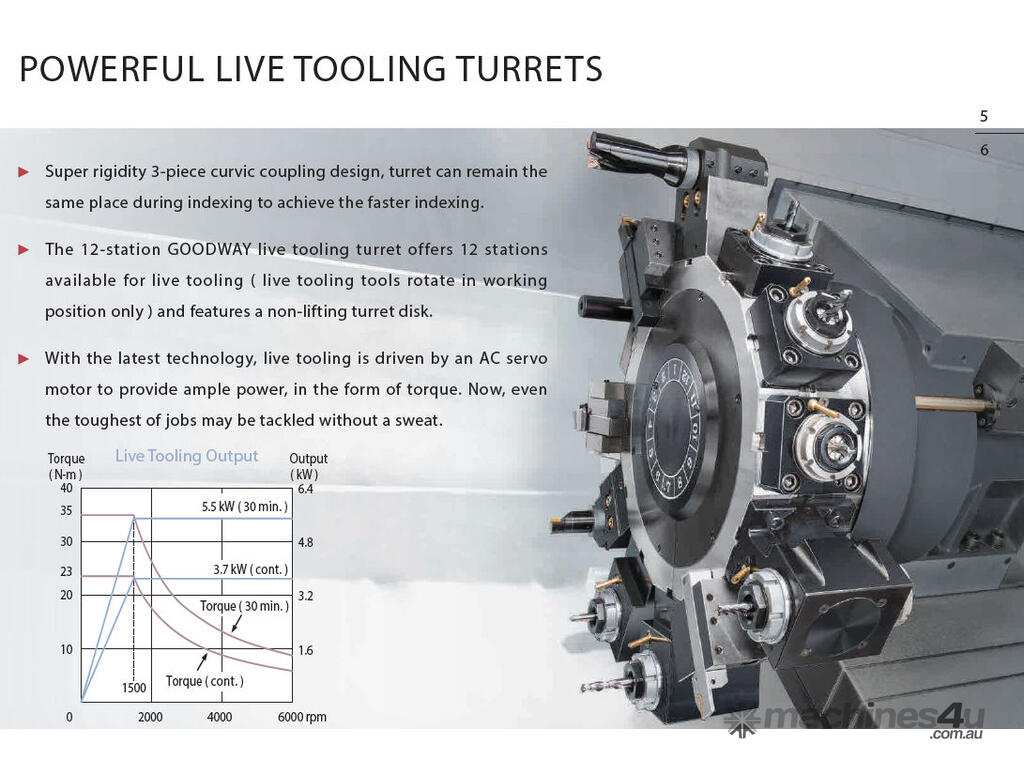

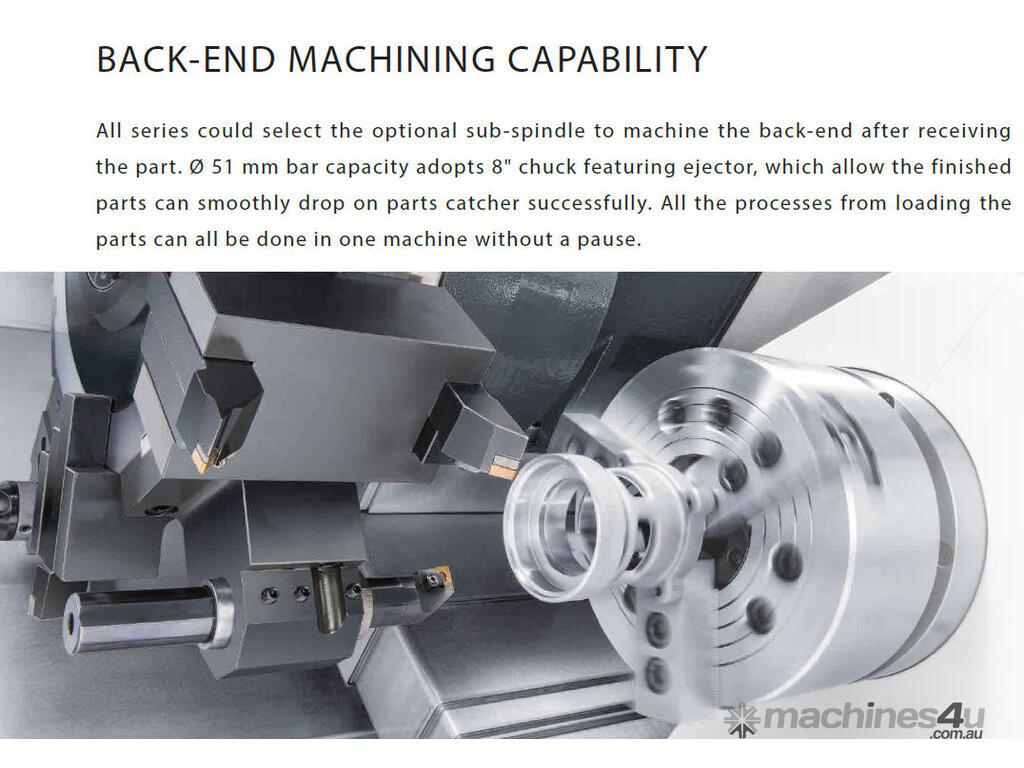

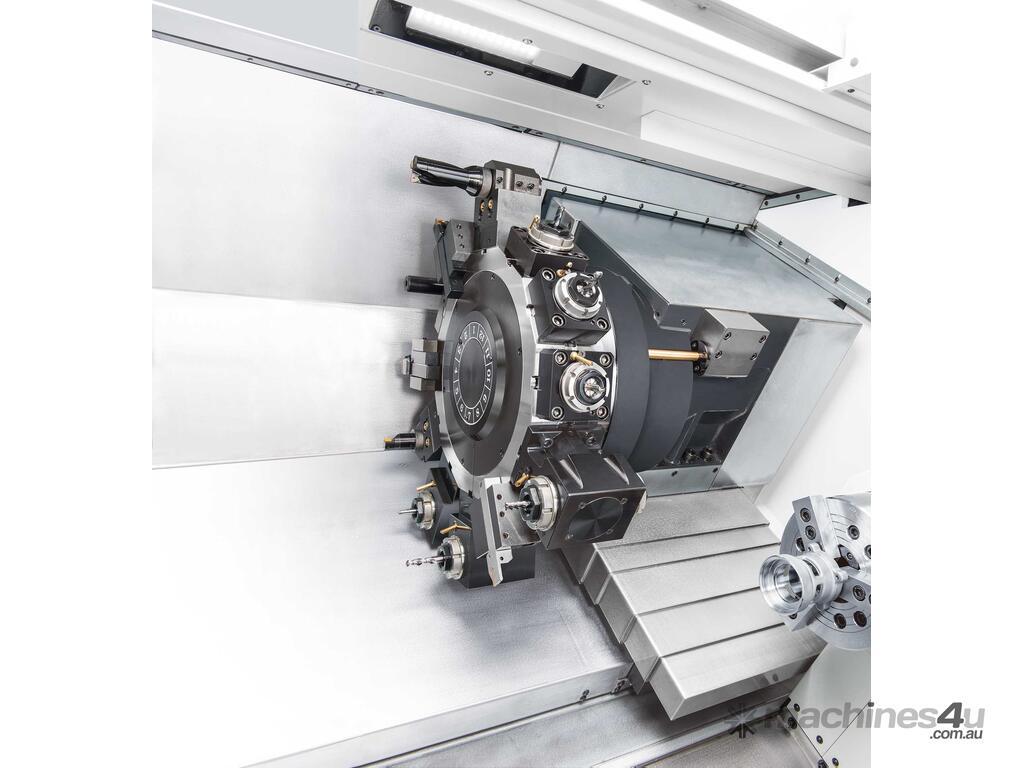

Live Tools, Y Axis and Sub Spindle Available

Goodway’s are now one of the largest CNC Lathe manufacturers in the world and their recently opened state of the art manufacturing facility enables them to produce their range of CNC turning Centres in one the most modern plants in Taiwan, they are also one of the few Taiwanese machine tool manufacturers with their own sophisticated machine shop to produce critical components
Goodway’s massive investment in new development areas over recent years has seen their range grow into new areas such as: Multi Tasking Machines, Swiss Type Lathes, Large Slant Bed Lathes up to Ø980mm turning diameter, CNC Vertical Lathes including a Ø5000mm vertical lathe currently in development and the soon to be released CNC Flat Bed Lathes with swings up to Ø2000mm.

Since 1975 Goodway Machine Corp has specialised in the development and manufacture of high precision turning centres, currently Goodway produce in excess of 2,000 CNC Lathes each year and have grown to be one of the largest CNC lathe manufacturers in the world. Their machines are now well known in over 50 countries for their exceptional performance, quality and value and with over 75 model variants ranging from Ø32 ~ Ø205mm bar capacity, Ø6” ~ Ø24” chuck size, turning lengths up to 4000mm and 2 ~ 9 axis configurations, Goodway has the capability to meet virtually any turn / mill application. There really is a solution for every turning requirement in the Goodway range of Turning Centres!
