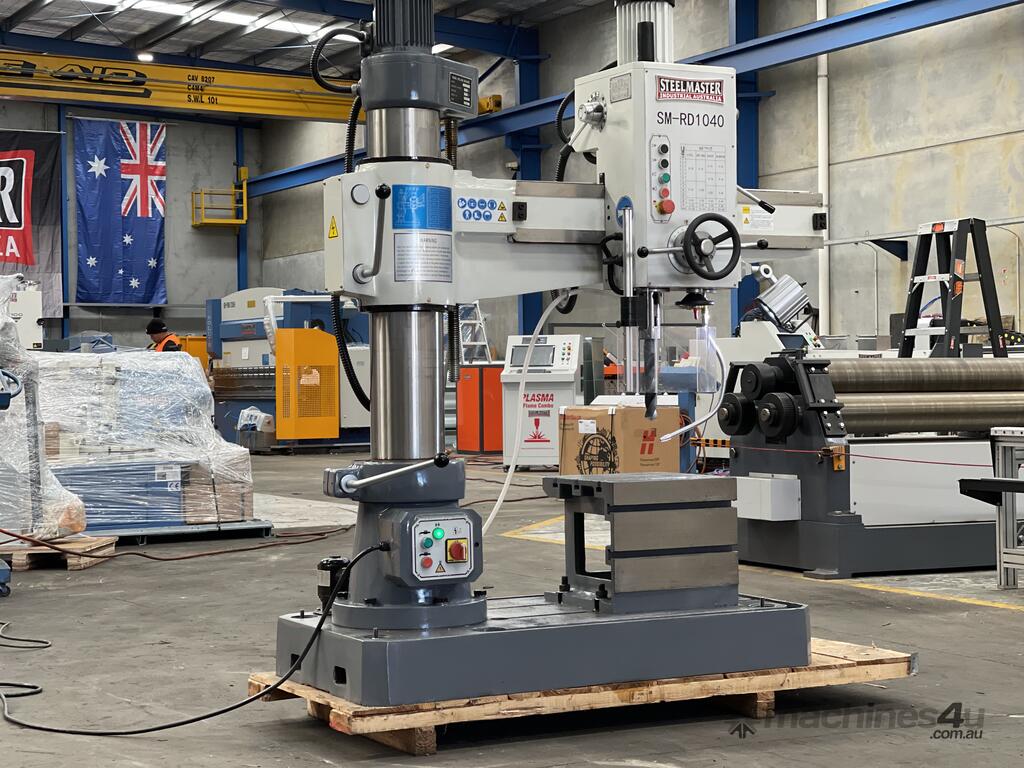

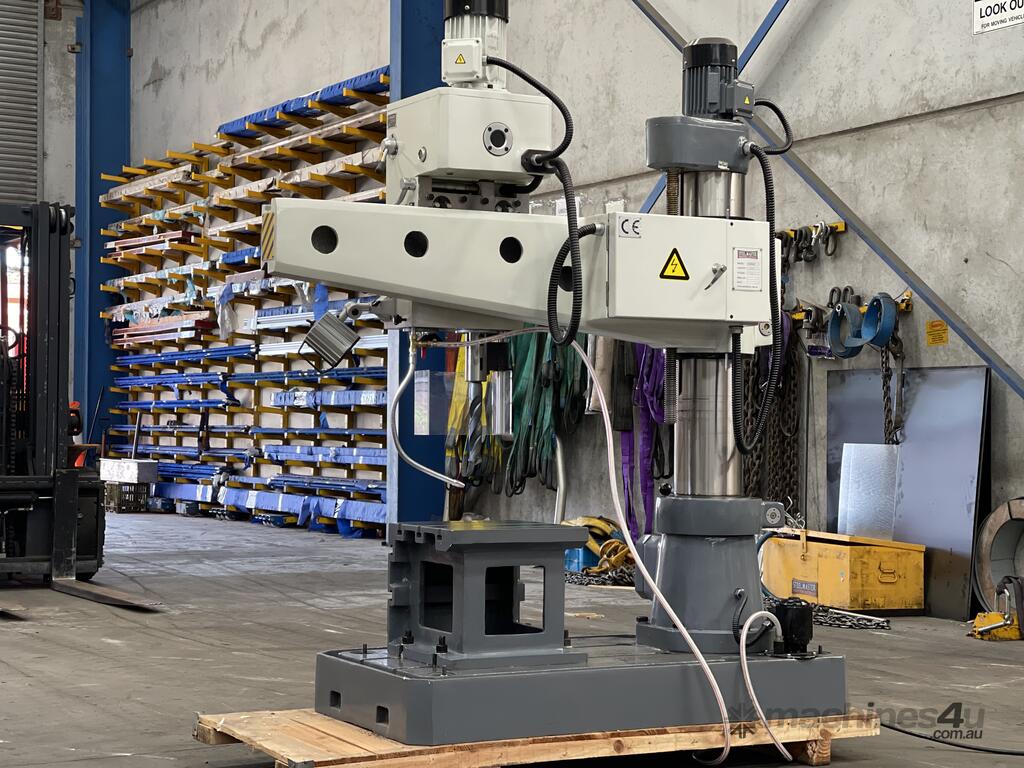

1000mm Arm Heavy Duty Industrial Radial Drill - 40mm Drilling Capacity Power Up & Down

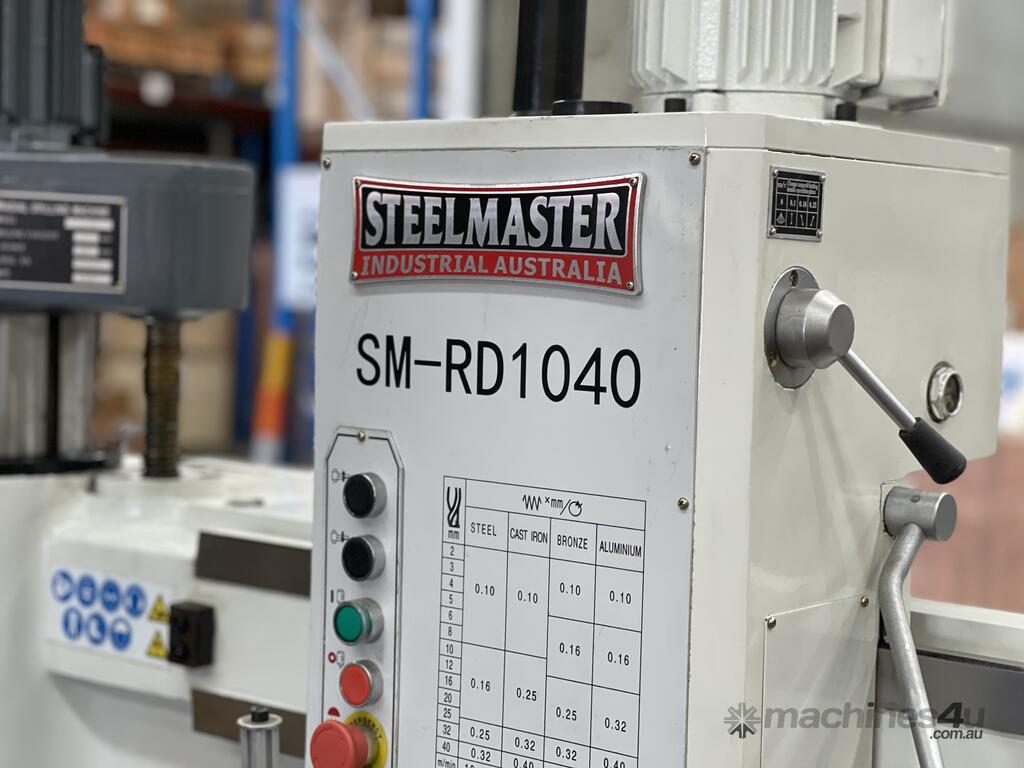

SM-RD1040. Radial Arm Drill Steelmaster. 1000mm Arm, 40mm Drilling Capacity, 4 M.T. Spindle,s.

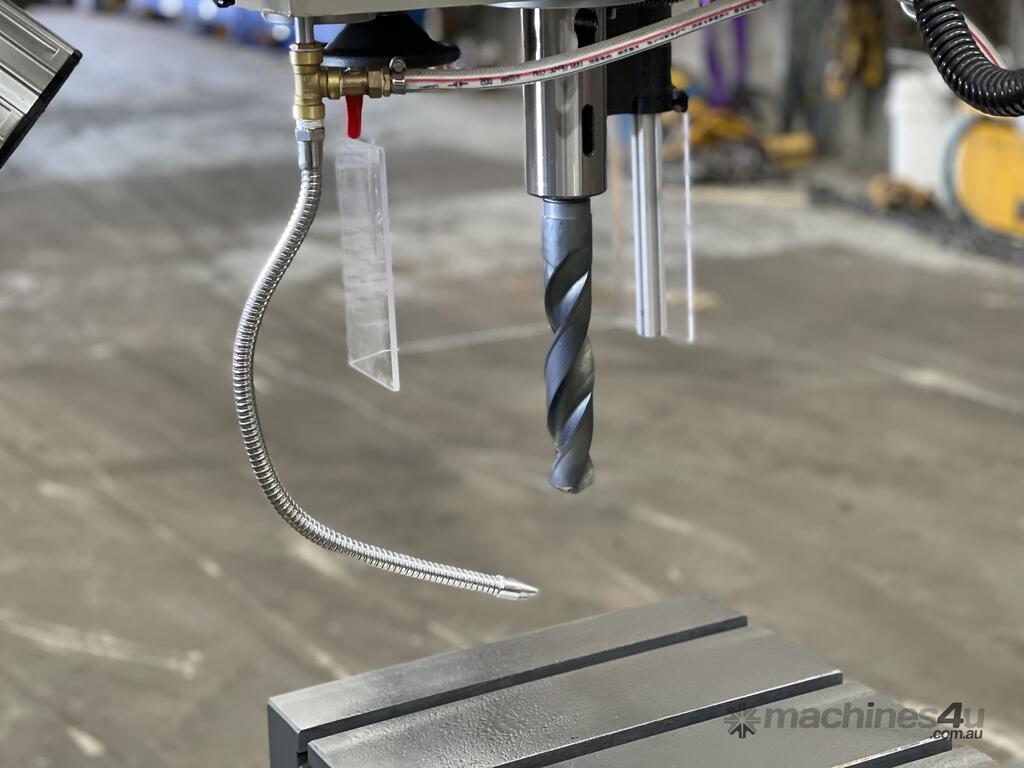

Power Feed, 75-1220Rpm (6), Column Lock, Coolant & Tee Slotted Box Table. Volt

Description
This Radial Drill has long been accepted in the market as a machine that can handle the work of machines costing thousands of dollars more.
We go one step further and offer you this improved model with a super-large box table.
It comes standard with drill chuck and standard accessories.

Features
? made from high quality fine grain cast iron with heavy duty ribbing to ensure extremely low vibration
? oil bath lubricated gearbox with hardened, precise ground gears
? quiet operation

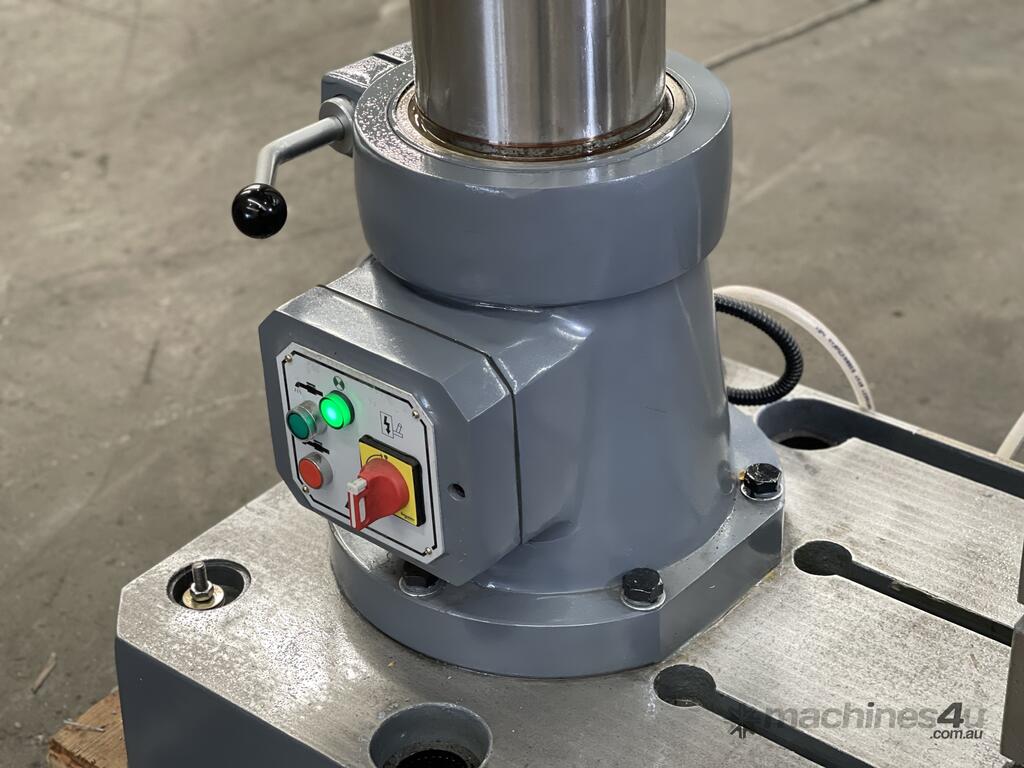

? easily accessible front panel to electrical and mechanical controls

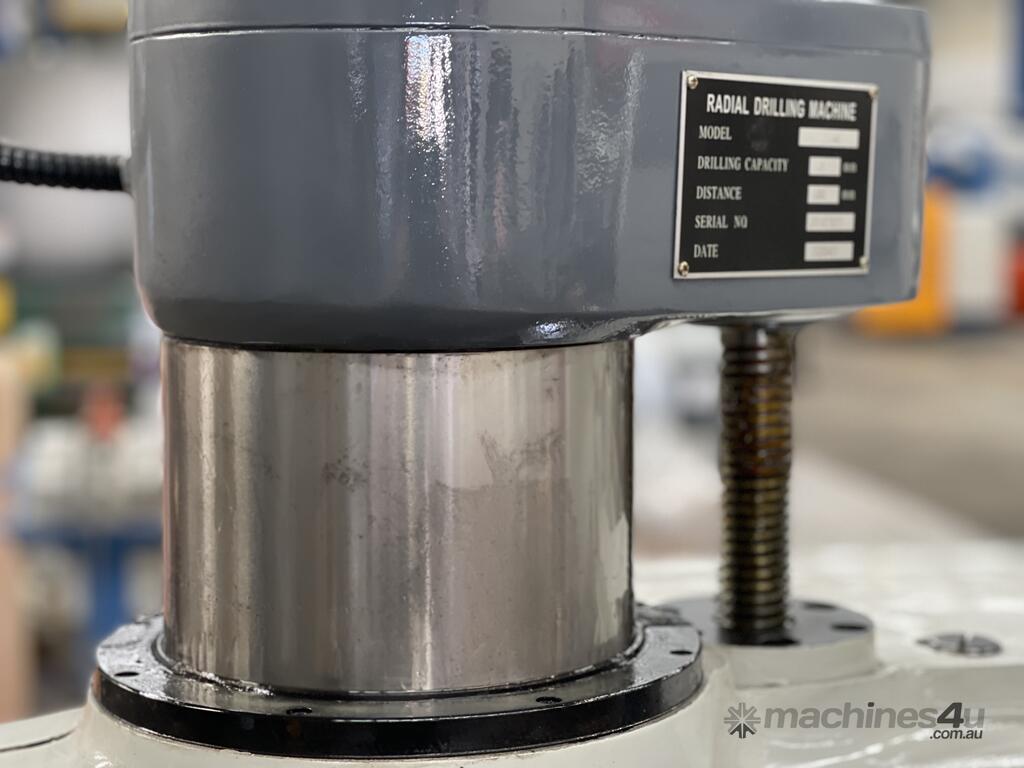

? arm height adjustment through elevating screw and elevating motor
? hardened and ground guide ways
? hydraulic operated feed and spindle drive system ensuring long life

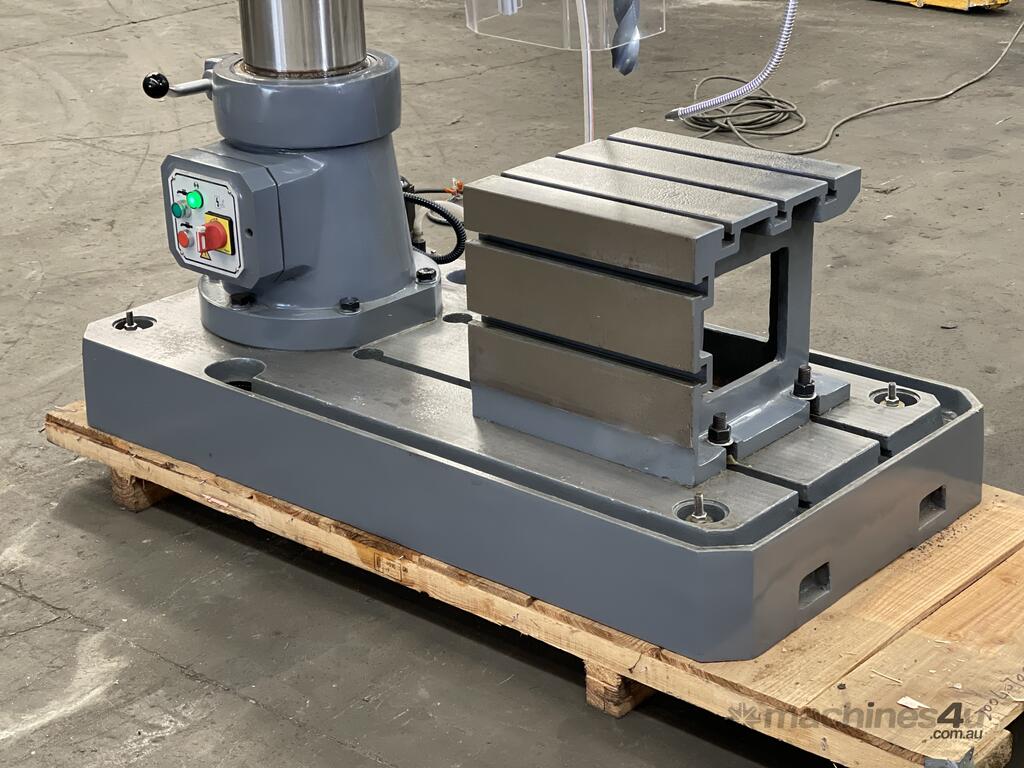

? heavy duty tee slotted box table
? up to 3000 mm capacity available

Technical Data Snap-Shot
?40mm drilling capacity

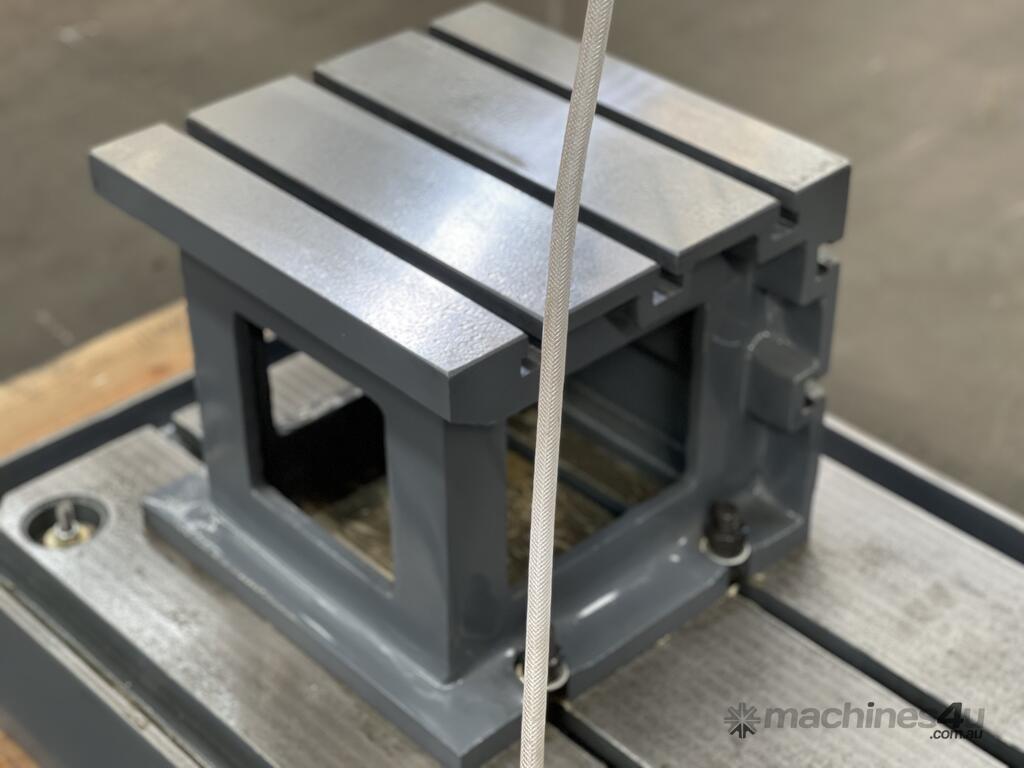

?450mm x 400mm x 400mm heavy duty box table
?240mm spindle travel
?320mm ~ 1020mm spindle to column
?120mm ~ 860mm spindle to base
?4 morse taper spindle

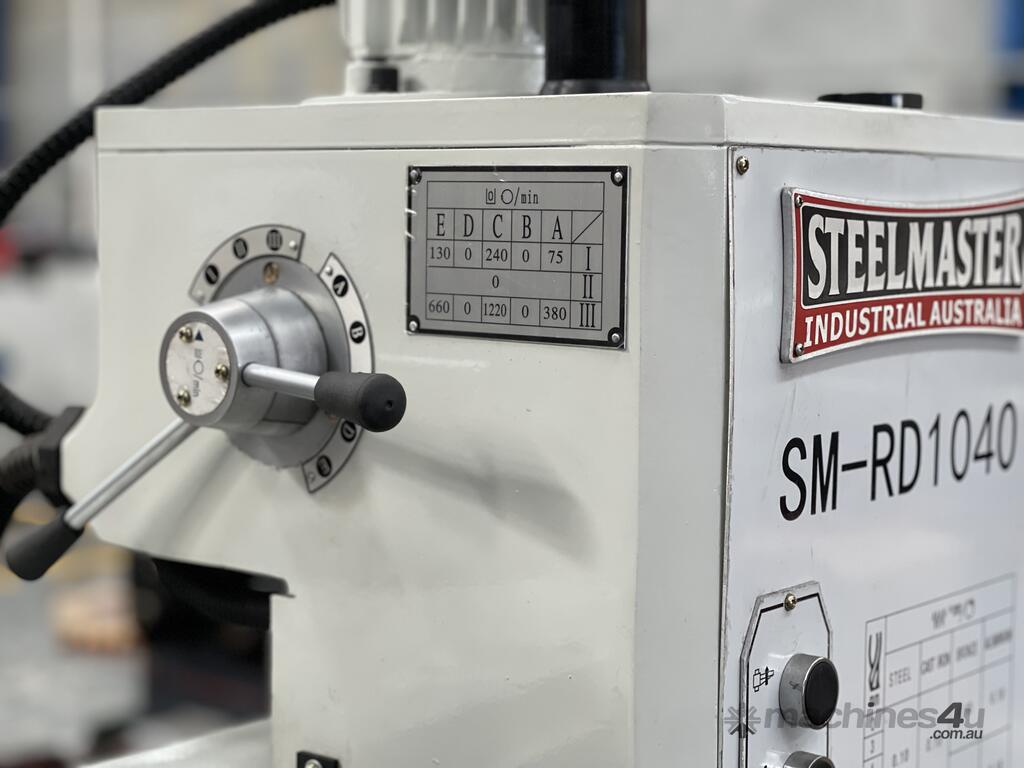

?speeds range - 75 ~ 1220 (6)

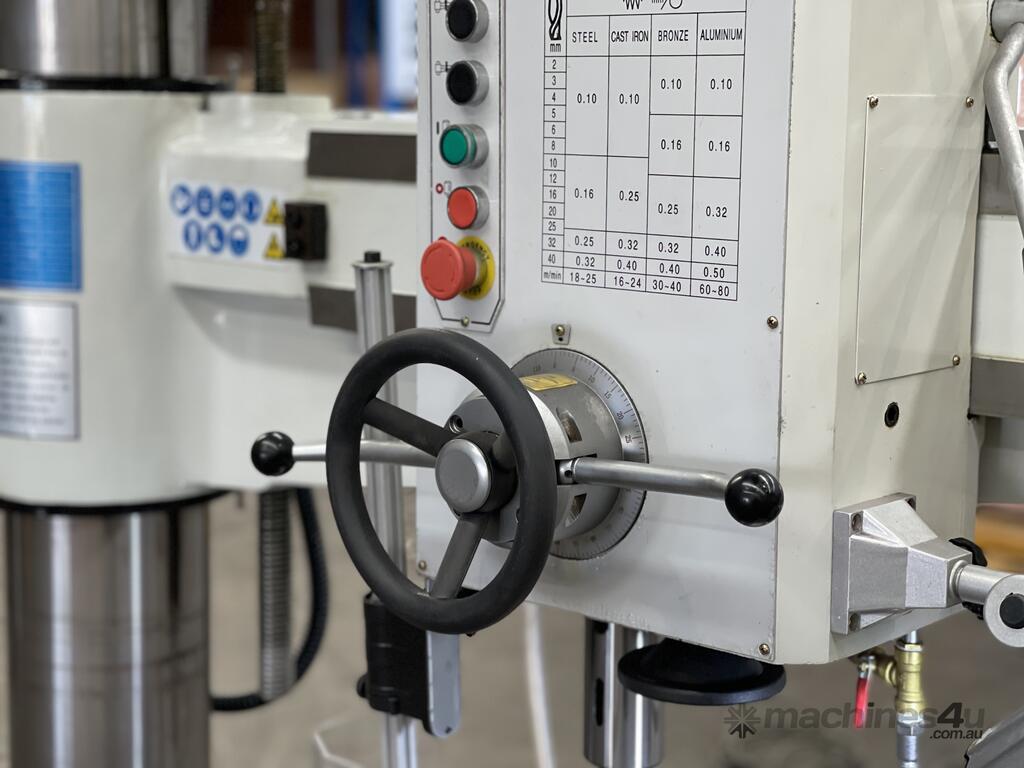

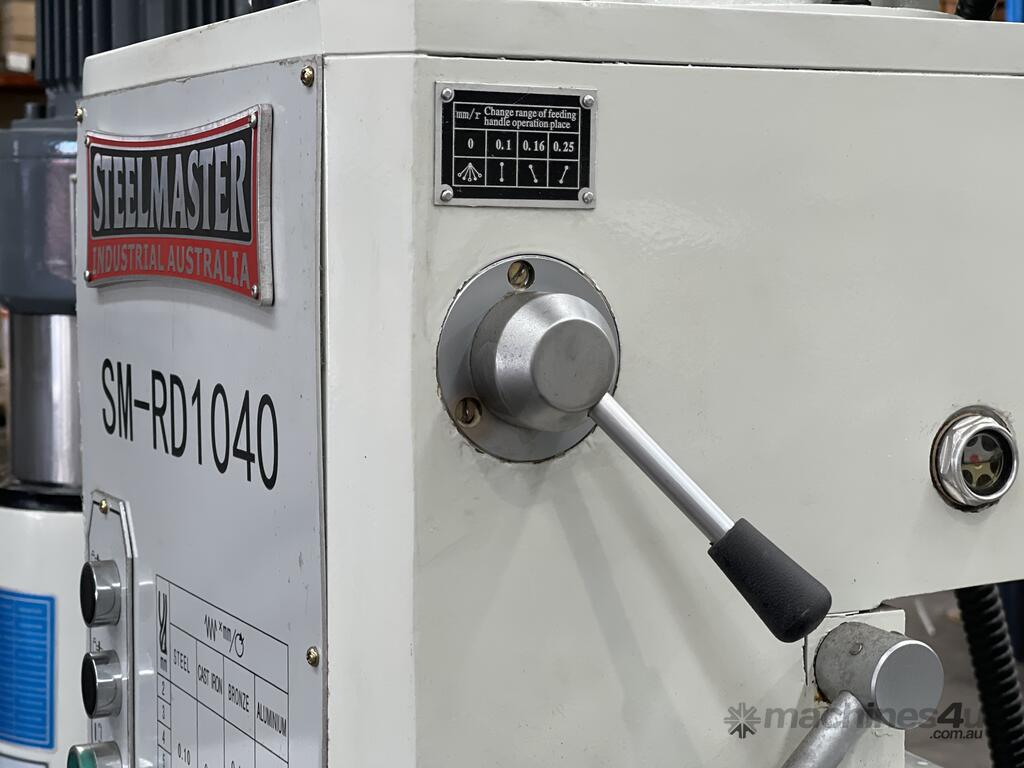

?0.10,0.15,0.25 feed selections

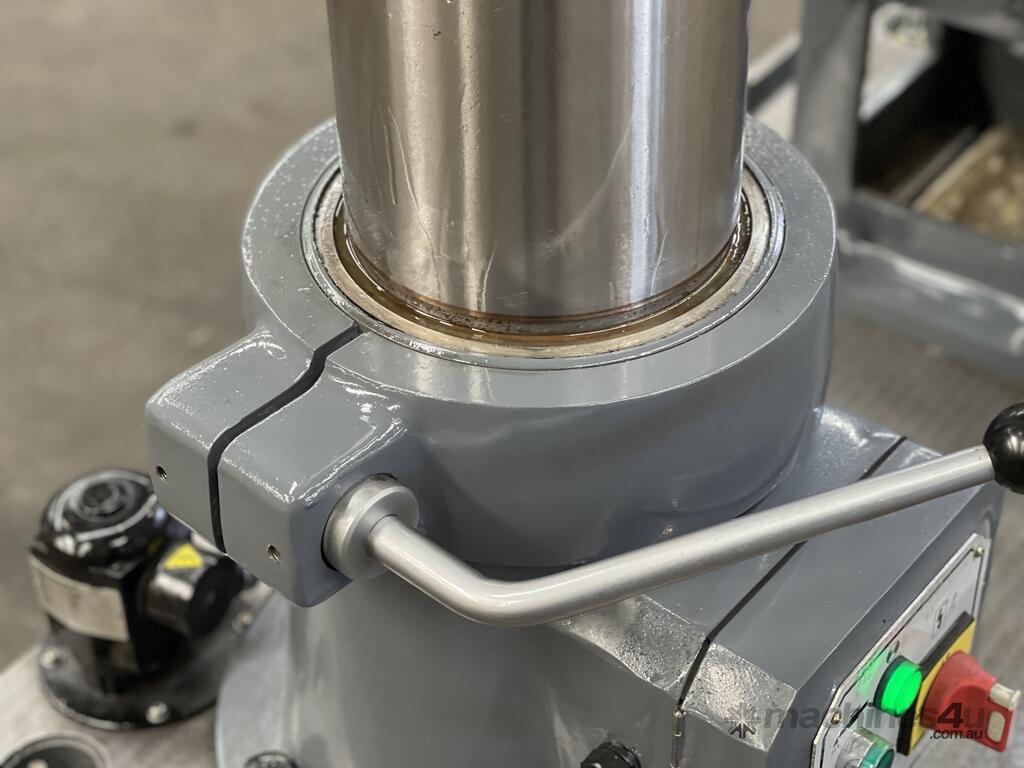

?200mm column diameter
?motor capacity – 1.5Kw x Volt
?shipping dimensions - 1600mm x 720mm x 1885mm
?approx weight: 1300kg

#######################################
Machines Can Be Demonstrated Under Power at 118 Logis Blvd Dandenong South, Vic.
Or See Videos or online
Otherwise call Us On And We Can Discuss Your Requirement
Asset Offer Full Sales Service, Parts & Accessories For Your Support!!!
#######################################

Steelmaster Metal Drilling Machines.
When looking for a quality metal drill, look no further than Steelmaster Industrial. Steelmaster Industrial metal drilling machines offer the machinist a very high quality machine with superb features and tight tolerances at reasonable prices. Steelmaster carries over 12 models of metal drilling machines in stock at all times for quick shipments. Steelmaster Industrial's ever growing line of metal drilling machines consists of belt drive drills, magnetic based drills, mill drills, radial arm drills, along with a large range of accessories. Depending on your needs we have the drill for you, starting with our cost effective belt drive drills to our large radial arm drills.

Belt Drive Drills
Depending on your needs, Steelmaster has a great line of cost effective belt drive drilling machines. With several models to choose from these models give the best ``bang for the buck`` of any of the Steelmaster drills. These metal drilling machines come standard with many of the features that are most important. Each drill comes standard with a stand, tee slotted table, adjustable height control, calibrated depth setting, generous spindle mount sizes, safety guards and interlocks are also all included.

Mill Drills
Steelmaster Industrial offer one of the best selections of milling and drilling machines around. From our belt drive SM-B32 to our fully spec's SM-MD45XL with 3 Axis DRO and Power up and down on dovetailed guides. Our Metal Milling & Drilling Machines have been fitted up to offer you the best selection of features and come standard with Perspex safety guards and all e stops to ensure all round safe operation.

Geared Head Drills
Each geared head metal drilling machine comes fully guarded with halogen lights. The castings on these machines are of good quality and will offer years of rigidity and accuracy. Coolant, power feeds, digital depth display, large tee slotted tables, large MT spindles are some of the features we offer. Some models also have power raise and lower on the tables. Our Metal Geared Head Drilling Machines come standard with Perspex safety guards and all e stops to ensure all round safe operation.

Radial Arm Drills
Our radial drilling range offered geared head drills from 1000mm in arm length up to our 2000mm heavy duty range. Hydraulic power locking on the column and power up and down for the larger models, power feeds, coolant and heavy duty tee slotted box tables are all features. The castings on these machines are of good quality and will offer years of rigidity and accuracy. All our radial drilling machines are pre commissioned prior to delivery.

Magnetic Based Drills
Steelmaster Industrial also offer our ALFRA German Magnetic Based Drills. These machines are the perfect off site partner. Our range covers the smaller Piccolo model upto the larger Junior Heavy Duty Model. Strong magnetic adhesion and quality German build ensure you years of magnetic based drilling.For More information on any of these metal drilling machines, go to or contact a Steelmaster industrial Rep
