Suitable for Commercial and Industrial power generation. It can be modified to suit your powering needs.
Rated at N.T.P. Conditions
Engine
Cummins 6BT5.9-G2
Remote and Manual start, Diesel
143HP approx
1500 RPM
6 Cylinders
Run Hours Shown - 00447
Alternator
Stamford UC-274
100kVA Standby rated (90kVA prime rated)
80kW Standby rated (72kW prime rated)
Power factor 0.8
240/415V at 50Hz, Brushless
Dimensions (LWH): 2210L x 700W x 1450H
Weight: 1136kg
Features
Engine, radiator and alternator mounted on a substantial base – Needs radiator and alternatorMounts replaced.
Fuel tank size: 300L base fuel tank.
Battery – 12V System. Battery charger automatic 24 Volt
Control panel fit to alternator

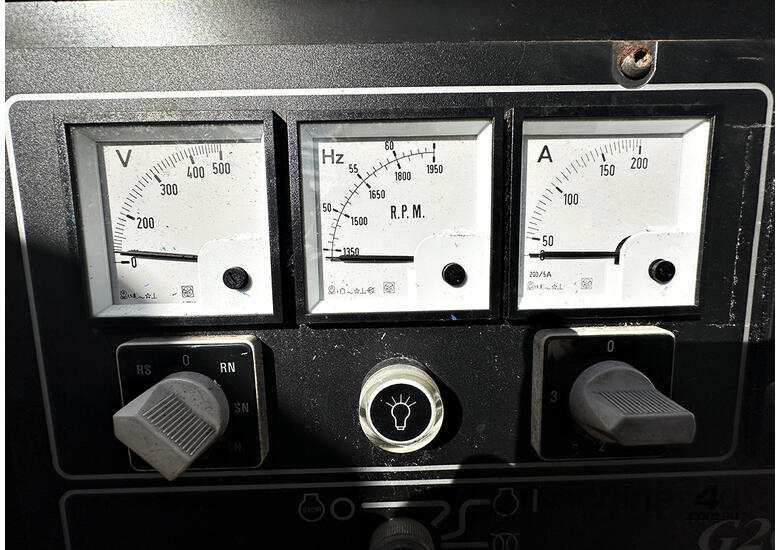

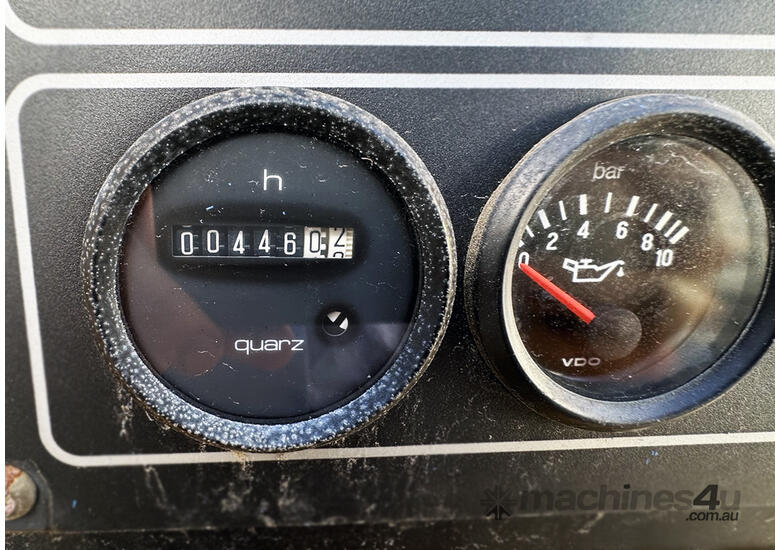

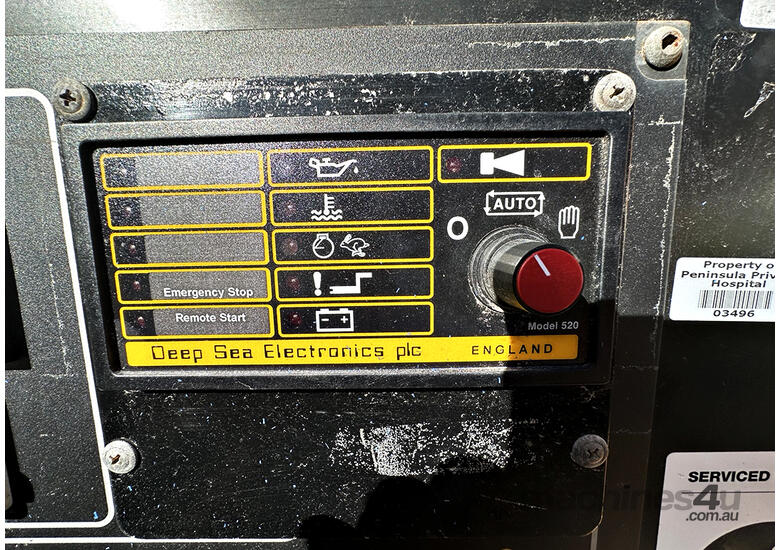

Analogue volts, frequency and ammeter. Deep Sea Model 520 controller, E-Stop, Oil pressure gauge, coolant temp gauge, battery volts meter, fuel gauge, analogue hour meter.
160Amp NSX160F Schneider Electric control switch
Busbar on 160A circuit breaker
Built: 1998
Load test report
Reference - U739
