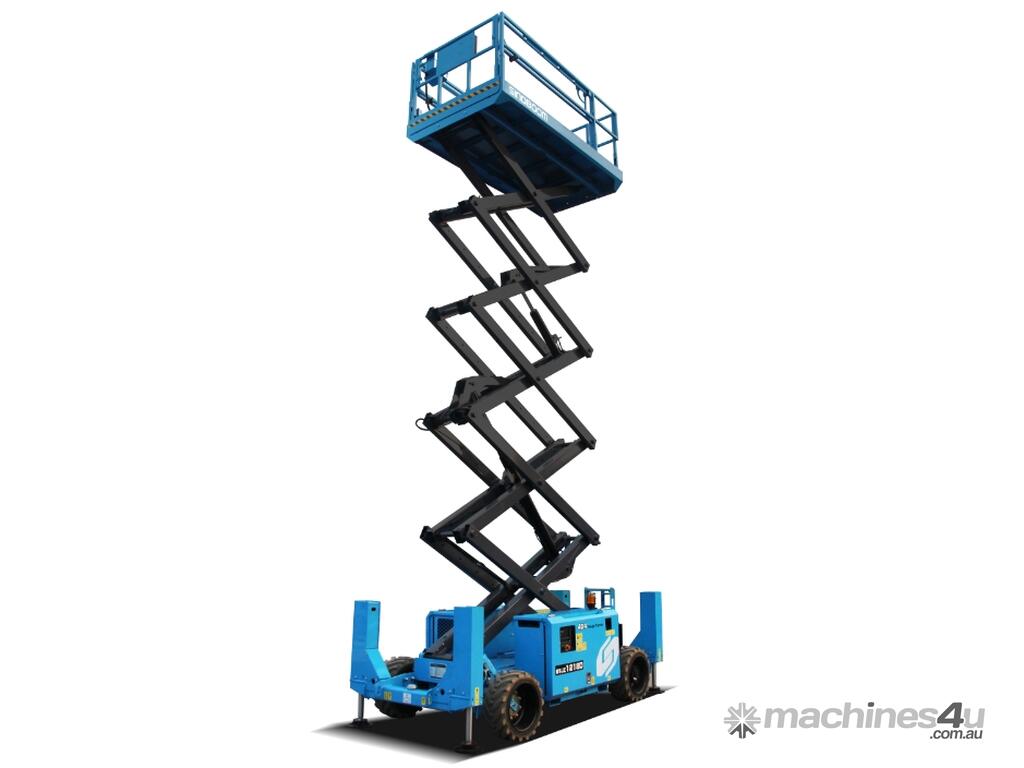

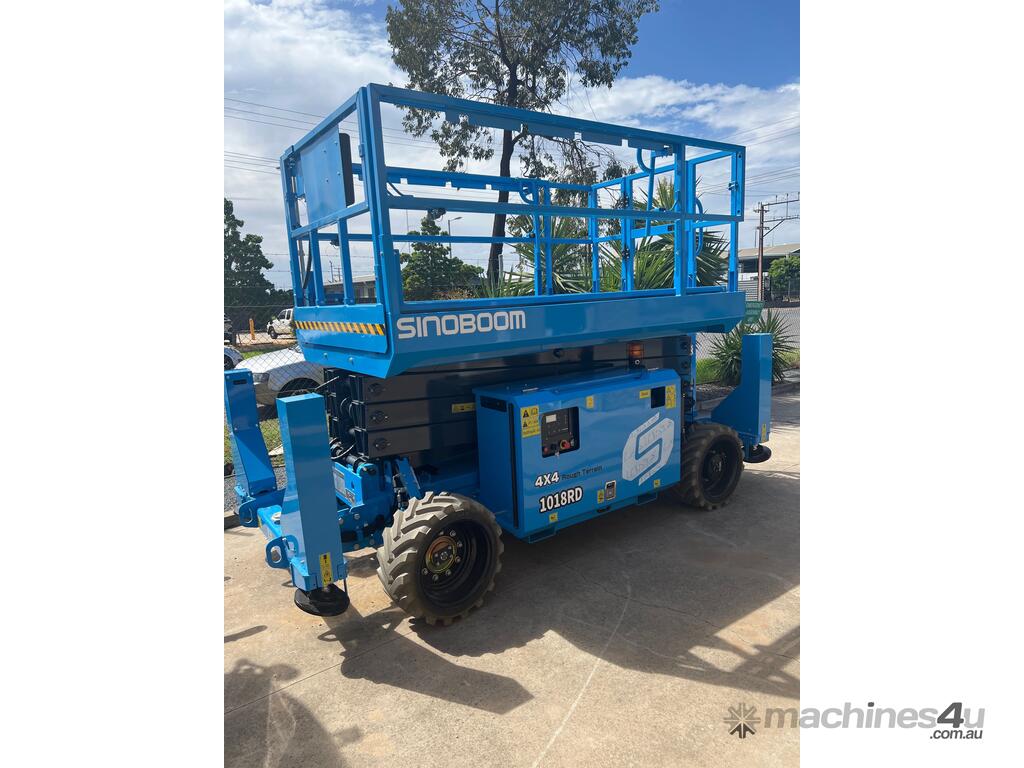

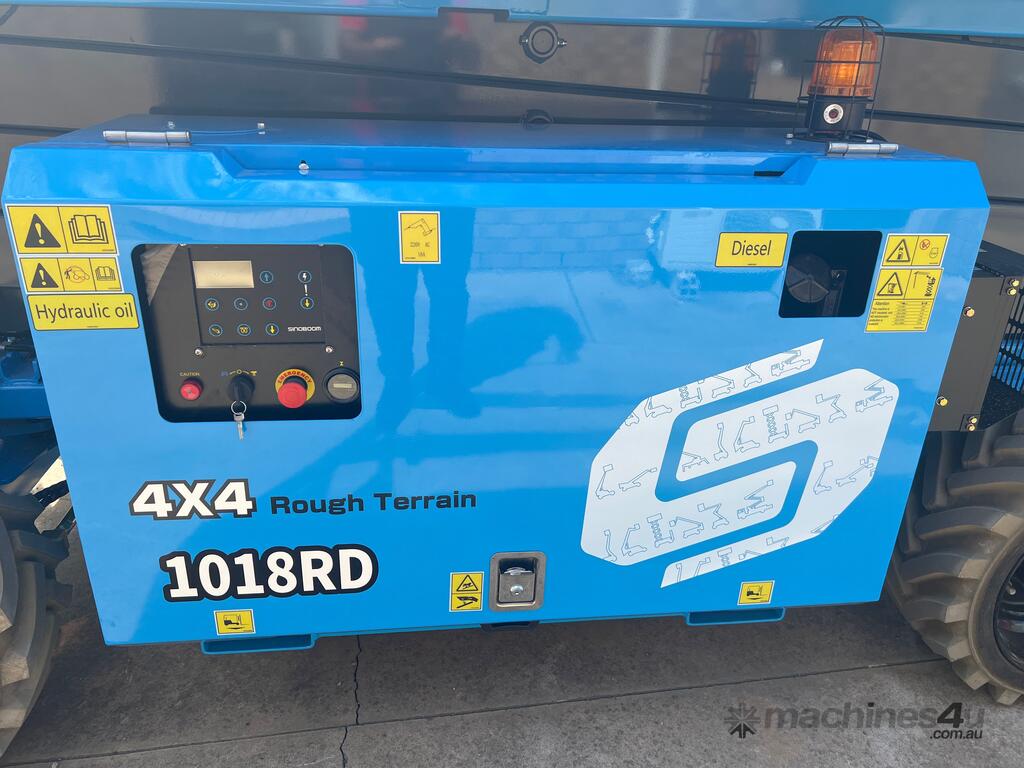

1018RD(3369RD) Rough Terrain Scissor Lifts

Working height
12m
Platform Capacity
450kg
Gradeability
35%

PRODUCT HIGHLIGHTS
EASY MAINTENANCE
- Two-sided hatchback door design, for convenient maintenance

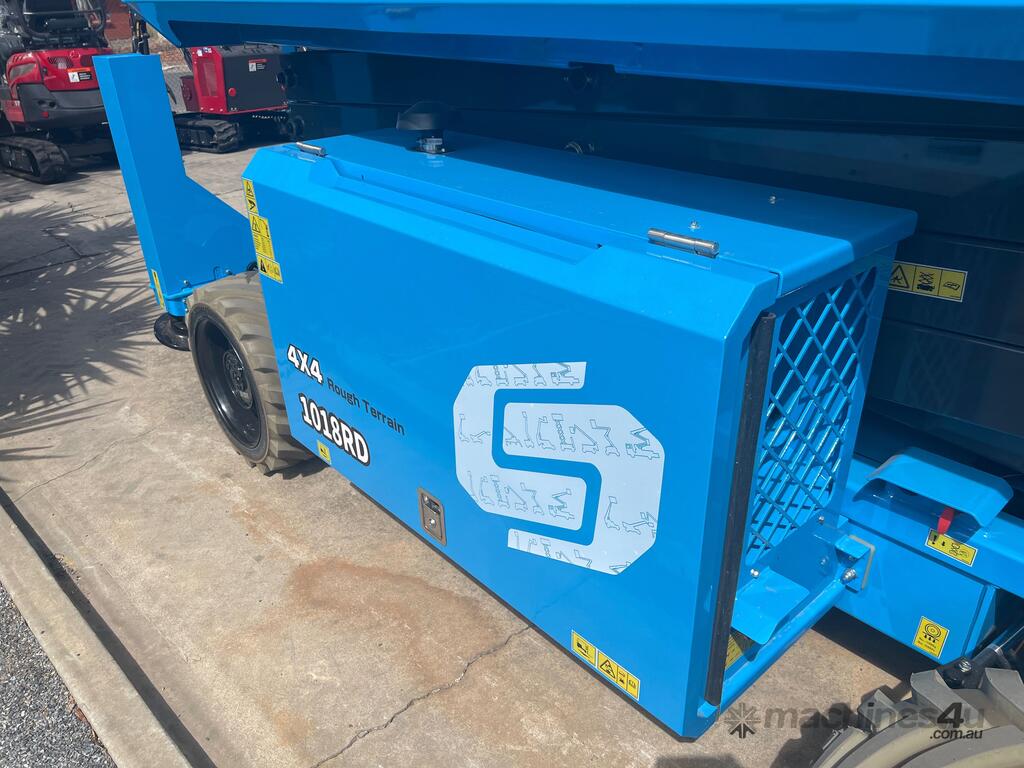

- Swing-out engine compartment for easy maintenance
HIGH EFFICIENCY
- 1.6m(5'3") wide platform with one-way extension platform
- One-click leveling, easy work on uneven road surfaces
EXCELLENT PERFORMANCE
- Up to 40% gradeability, easily handling outdoor needs
- Stable movement, copes well with potholed ground
DIMENSIONS
Max Working Height
12m (39'4.4")
[A] Max Platform Height
10m (32'9.7")
[B] Max Horizontal Extension
1.5m (4'11.1'')
[C] Length-Stowed
(Outriggers/Without Outriggers)
3.8m / 3.19m (12'5.6" / 10'5.6")
[D] Width-Stowed
1.78m (5'10")
Height - stowed (Rail Folded)
1.94m (6'4.4")
[E] Height - stowed
(Rail Unfolded)
2.56m (8'4.8")
[F] Wheelbase
2.28m (7'5.8")
Ground Clearance
0.22m (8.66")

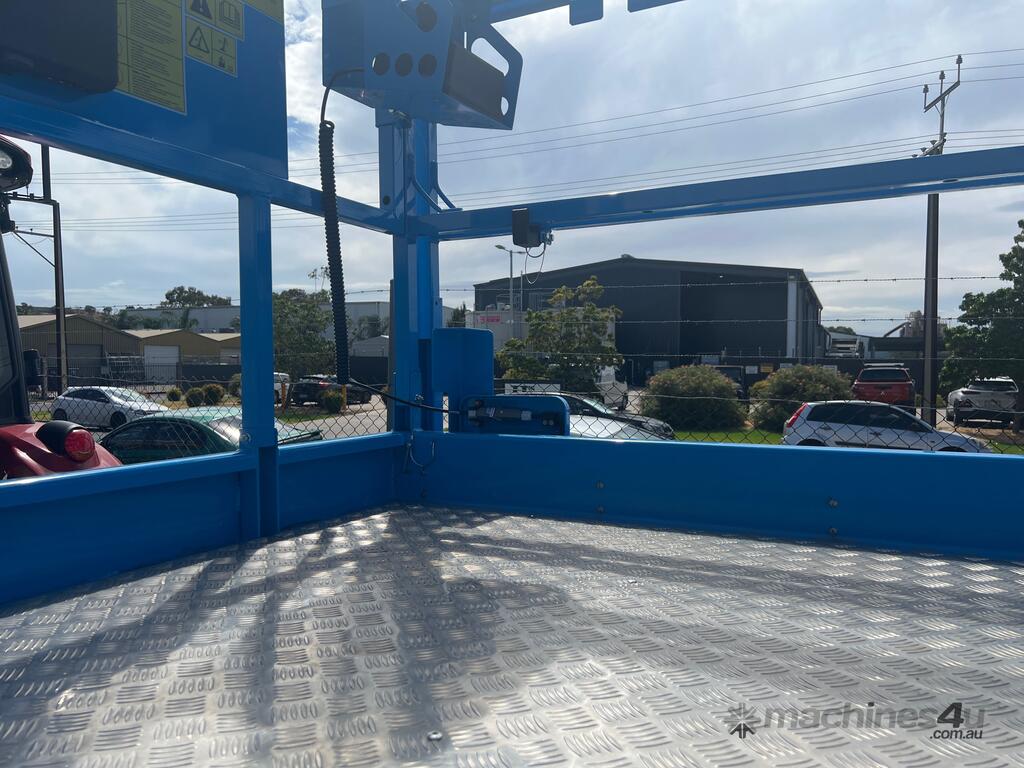

Platform Dimensions(L×W×H)
2.8m×1.6m×1.1m (9'2.2"×5'3"×3'7.3")
PERFORMANCE
Platform Allowable Occupants
(Indoor)
4 persons
Platform Allowable Occupants
(Outdoor)
2 persons
Platform Capacity
450kg (992lbs)
Drive Speed-Stowed
5.6km/h (3.5mph)
Drive Speed-Raised
0.48km/h (0.3mph )
Elevation Time
(Unloaded)
42s?52s
Descent Time
(Unloaded)
40s~50s
Gradeability
35%
Turning Radius
(Inside/Outside)
2.11m / 4.6m (6'11.1" / 15'1.1")
Tilt Rating
(Front to Back)
3°
Tilt Rating
(Side to Side, Outrigger Tele-In/Tele-Out)
2° / 0.8°
Max Outrigger Leveling
(Front to Back)
5.3° (front) / 4.2° (back)
Max Outrigger Leveling
(Side to Side)
11.7°

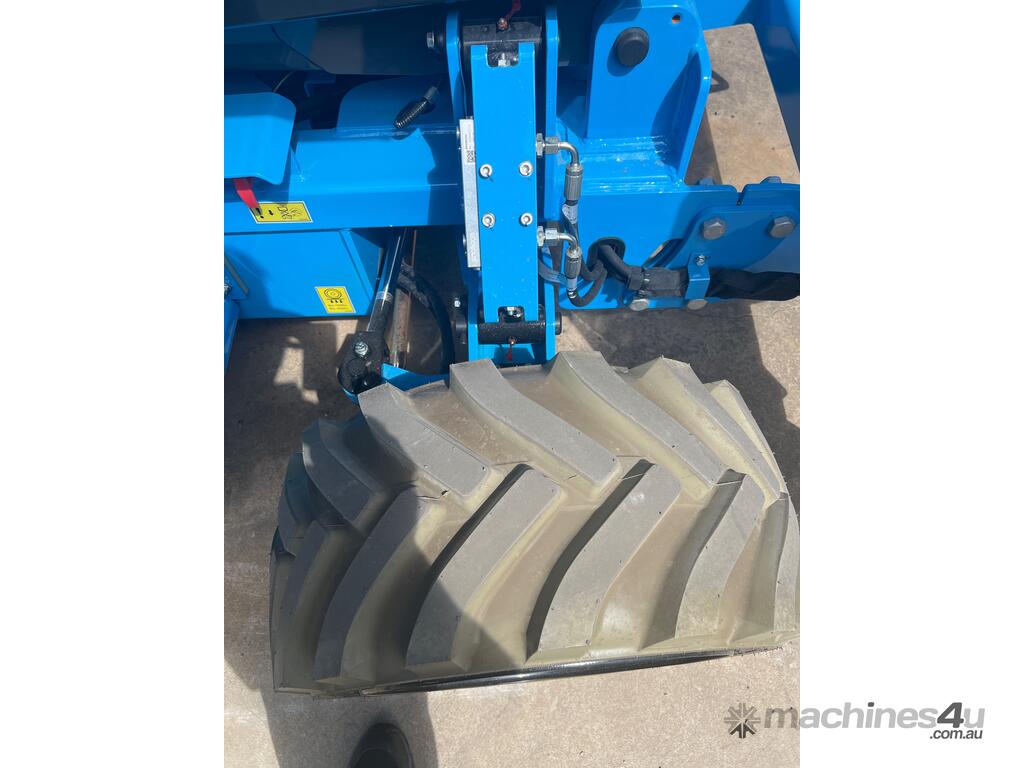

Tyres-solid
26×12-16.5/Solid
POWER
Power Source
Kubota D1105-E4B-EU-X1
Drive Mode
4WD×2WS
Fuel Tank Capacity - Diesel
48L (10.6 gal (UK) / 12.7 gal (US))
Hydraulic System Capacity
72L (15.8gal (UK) / 19gal (US))

Weight
(Outriggers/Without Outriggers)
4,110 kg (9,061 lbs) / 3,650 kg (8,046 lbs)
Standards Compliance
CE/ANSI/CSA/EAC/AS
