10T - 16T SK135SR-7 OFFSET

'Proudly representing Kobelco in North East Victoria and Southern NSW'

Engine output is increased by 10%, digging force is increased by 17% and digging cycle time has been reduced by 10%.

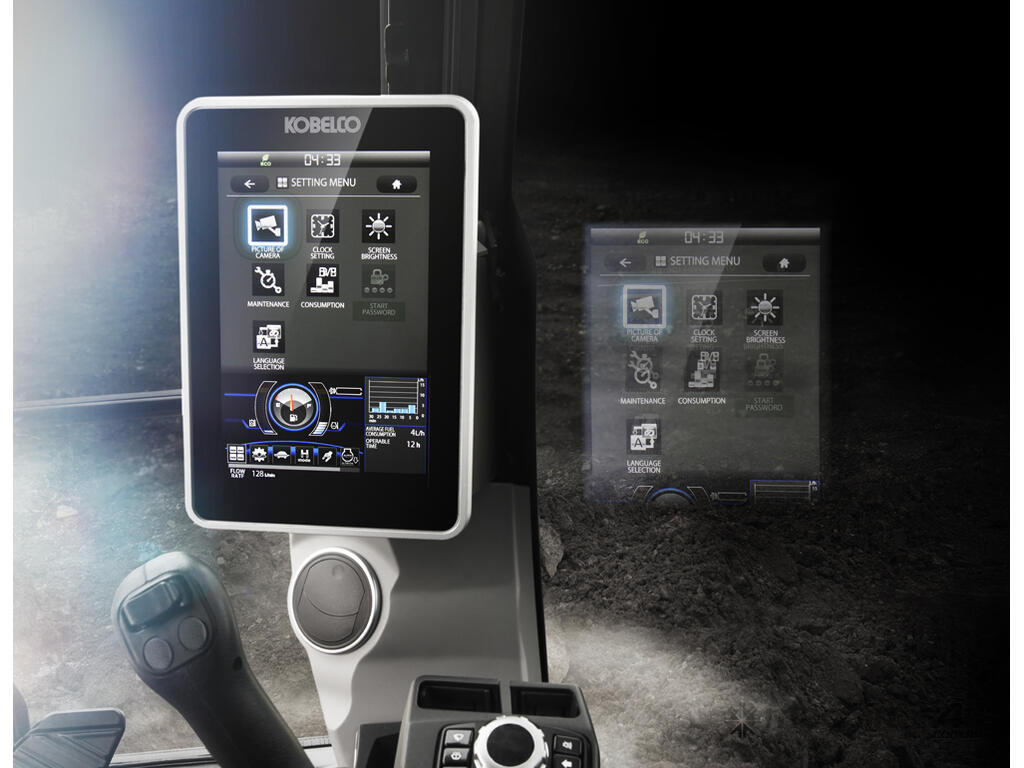

This new model features a 10" colour monitor with jog-dial operation and an eagle-eye camera for 270-degree vision.
2YR/3,000HR Full Machine Warranty and 4YR/6,000HR Major Component Extended Warranty.

The SK135SR-7 offers superior performance, greater efficiency and productivity with increased power and speed.

This new model features a 10? colour monitor with jog-dial operation and an eagle-eye camera for 270-degree vision. Includes Kobelco Geoscan Excavator Remote Monitoring System and Kobelco’s iNDr Cooling System for optimum low noise and dust reduction.

SPECIFICATIONS
Transport Dimensions
Length, Width & Height

7.56 x 2.49 x 2.86 m** (**500 mm shoe)

Operating Weight

15,800 kg with dozer

Refilling Capacities
Fuel Tank

186 L

Hydraulic Oil Tank

89.9 (186) L

Working Range
Max. Digging Depth

4.92 m

Max. Digging Reach

7.60 m

Engine
Rated Power Output

71.3 kW

Rated Torque

375 Nm

Breakout Force
Bucket Digging Force

92.9 kN (ISO 6015)

Arm Crowding Force

61.9 kN (ISO 6015)

Hydraulic System
Max. Pump Flow

2 x 130 L/min + 20, 50 L/min

Standard Auxiliary

N&B + Tilt Piping
