10T - 16T SK135SR-7

'Proudly representing Kobelco in North East Victoria and Southern NSW'

Engine output is increased by 10%, digging force is increased by 17% and digging cycle time has been reduced by 10%.
The short radius design allows operators to work in tight spaces.
2YR/3,000HR Full Machine Warranty and 4YR/6,000HR Major Component Extended Warranty.

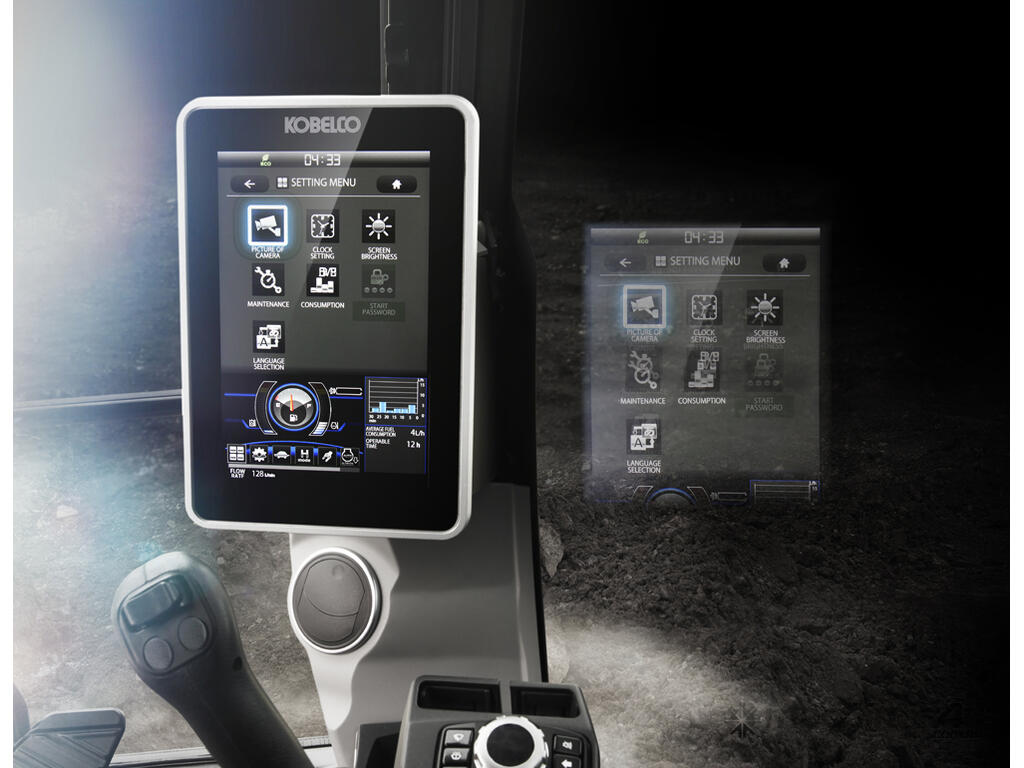

The SK135SR-7 offers superior performance, greater efficiency and productivity with increased power and speed. This new model features a 10? colour monitor with jog-dial operation and an eagle-eye camera for 270-degree vision.

This new model features a 10? colour monitor with jog-dial operation and an eagle-eye camera for 270-degree vision.

SPECIFICATIONS
Transport Dimensions
Length, Width & Height

8.07 x 2.49 x 2.86 m** (**500 mm shoe)

Operating Weight

15,100 kg with dozer

Refilling Capacities
Fuel Tank

186 L

Hydraulic Oil Tank

89.9 (176) L

Working Range
Max. Digging Depth

5.52 m

Max. Digging Reach

8.37 m

Engine
Rated Power Output

86.0 kW

Rated Torque

375 Nm

Breakout Force
Bucket Digging Force

105.4 kN

Arm Crowding Force

64.0 kN

Hydraulic System
Max. Pump Flow

2 x 142 L/min + 22, 66 L/min

Standard Auxiliary

N&B + Tilt Piping
