10ft Push around Scissor Lift

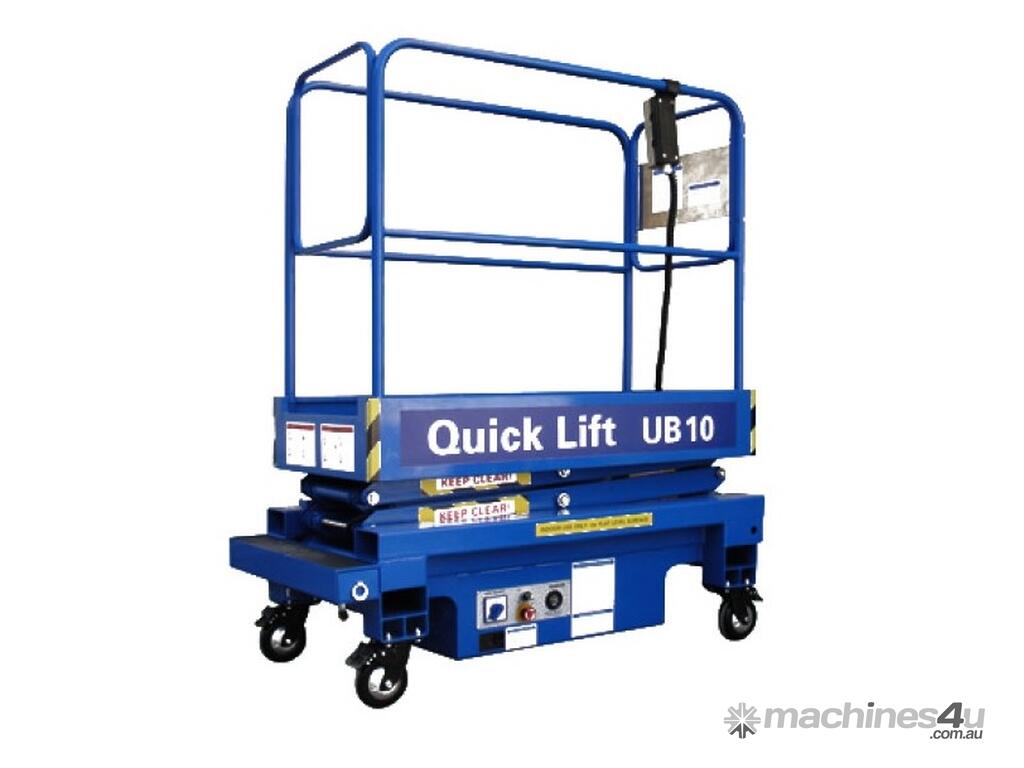

UB10 – 10ft Push around Scissor Lift

Up-Lift Scissor Lift model: UB10

Machine Specifications:
- Maximum Platform height of 3.0m
- Reach of 5.0m
- Safe Working Load – 200kg.
- Dimensions – Stored – 1.5m Long x 0.75m Wide x 1.8m High.
- Weight of UB10 is 515kg.
- Free-standing operation, with rechargeable 12V battery power.
- Minimum 200 operating cycles at rated loading.
- Quick and smooth ascent or descent.
- Compact 1.2m x 0.7m footprint.
- Ergonomic platform with a non-slip floor and secure gating.

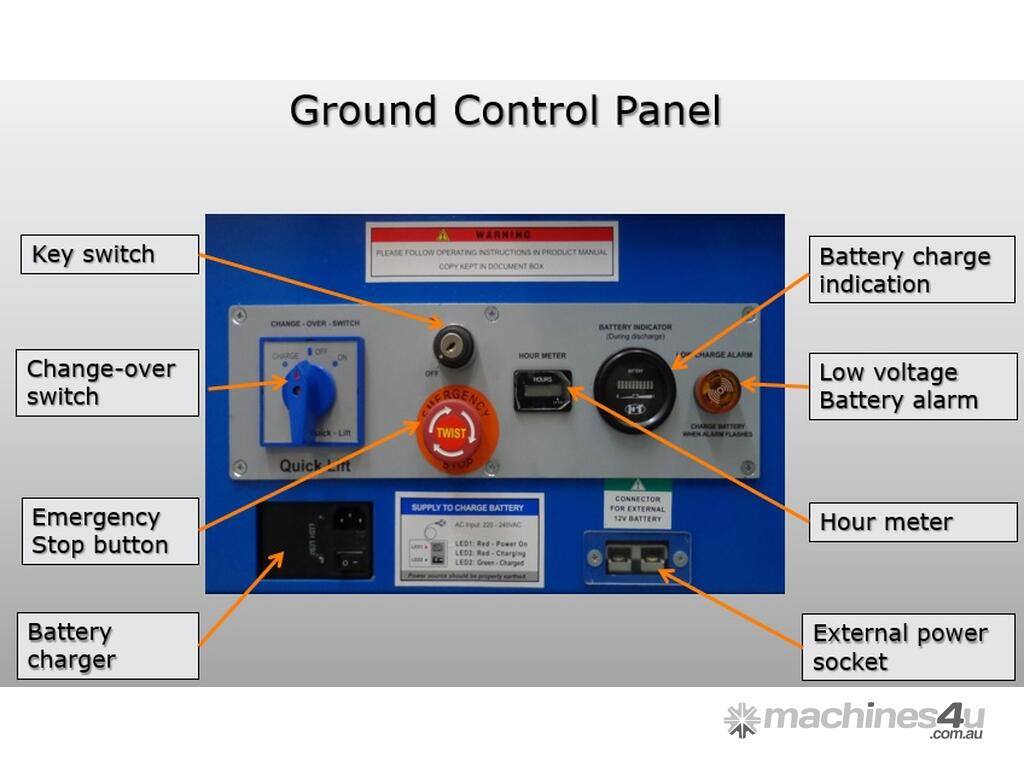

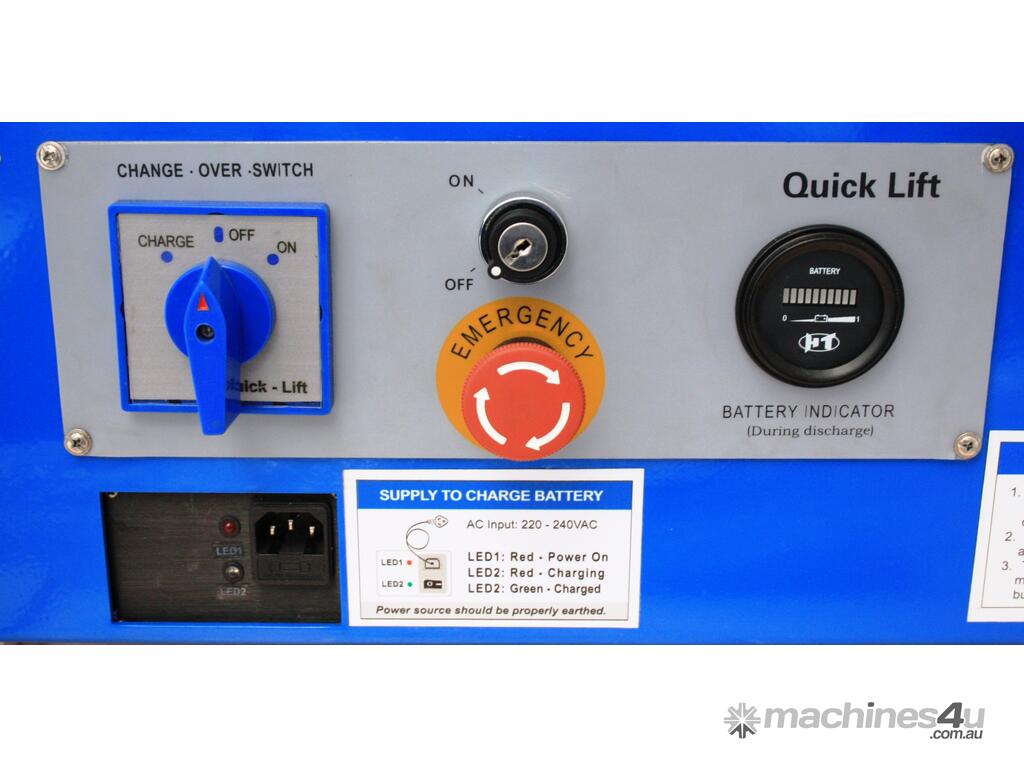

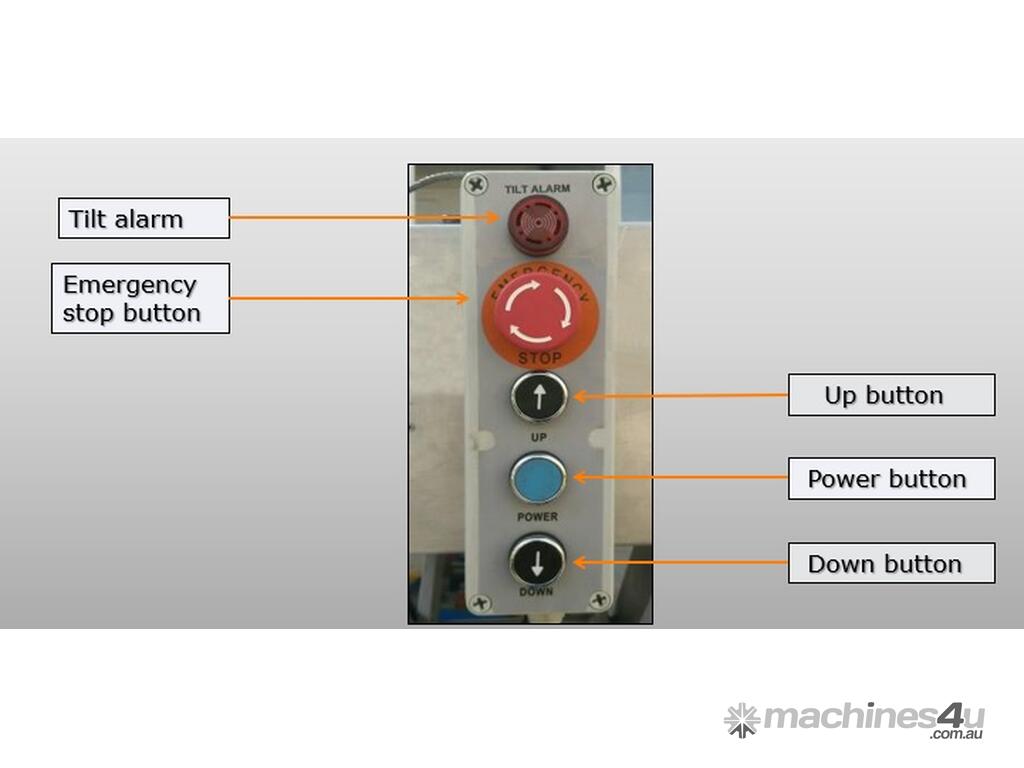

- Dual control points including emergency stops.
- Audible descend and tilt alerts.
- Spiral cable connection to the platform control unit.
- Emergency down valve
- Non-marking wheels, all 4 with brakes including 2 for steering.
- Prominent decals promoting responsible use.

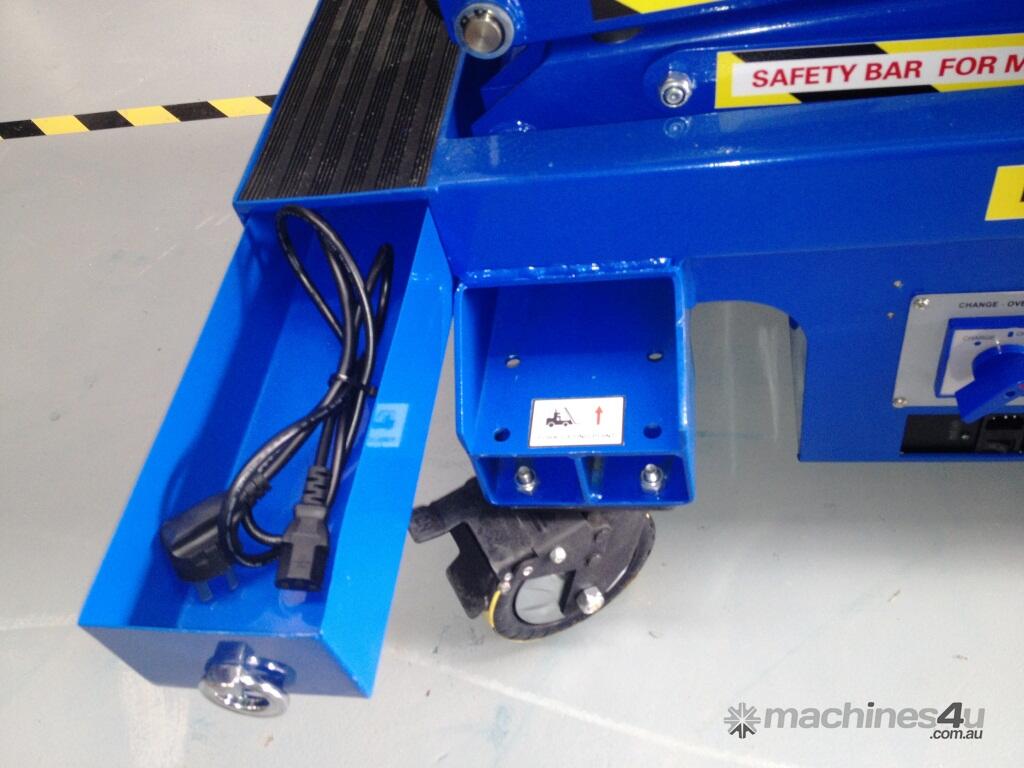

- Forklift pockets and toolbox.

Quick Lift mini scissor lifts are the smart alternative to ladders and scaffolds. Their design and manufacture deliver uncompromised safety, benchmark performance, easy operation, outstanding reliability and lifetime economy.

Manually-propelled UB Quick Lift mini scissors are ideal for workers requiring safe, vertical access at heights up to 5.9 metres. All Quick Lifts pass through standard doorways and are easily operated by one person.

Application environments include warehouses, supermarkets, department stores, offices, hotels, restaurants, construction fields, railway stations, subways, hospitals, universities and schools.

FEEL FREE TO CALL PRONTO ACCESS FOR ALL INFORMATION CONCERNING THIS MACHINE AND ANY OTHER PRODUCT WE SELL
