10x5 Hydraulic Tipper Trailer 3500KG One Piece Chassis BIGMAN TRAILER

Meet our 10×5 tipper trailer, the best-designed hydraulic tipper on the market. Boasting a fully welded, heavy-duty chassis made from hot-dipped galvanised steel and an advanced rocker roller suspension, this trailer is tailor-made for hard work and the perfect choice for growing businesses. With a 2500KG load capacity, this trailer makes it easy to move serious loads and is equipped with a powerful hydraulic tipper arm to make unloading easy when you get to your destination. Backed by our signature 24-month structural warranty, you can push this trailer to its limits, safe in the knowledge that you’re covered for up to 2 years.

Full body hot dipped galvanised (including inside the rail)
24 months structural warranty

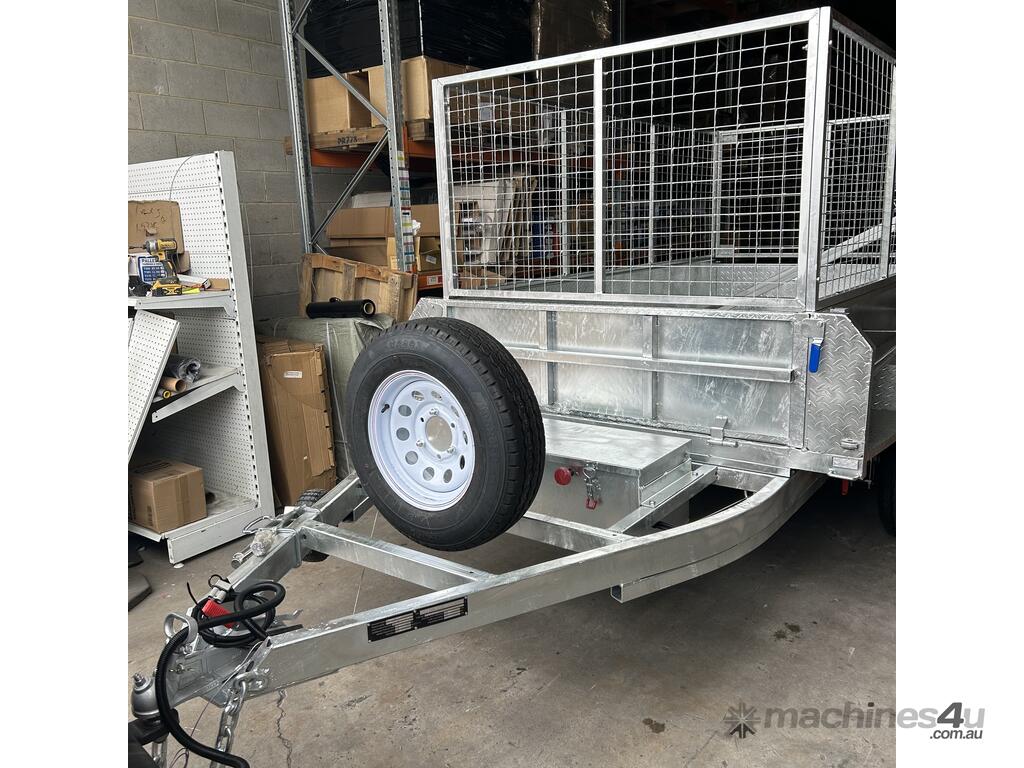

10-inch heavy duty jockey wheel
Brand new 15” Sunraysia rim and 195 light truck tyre

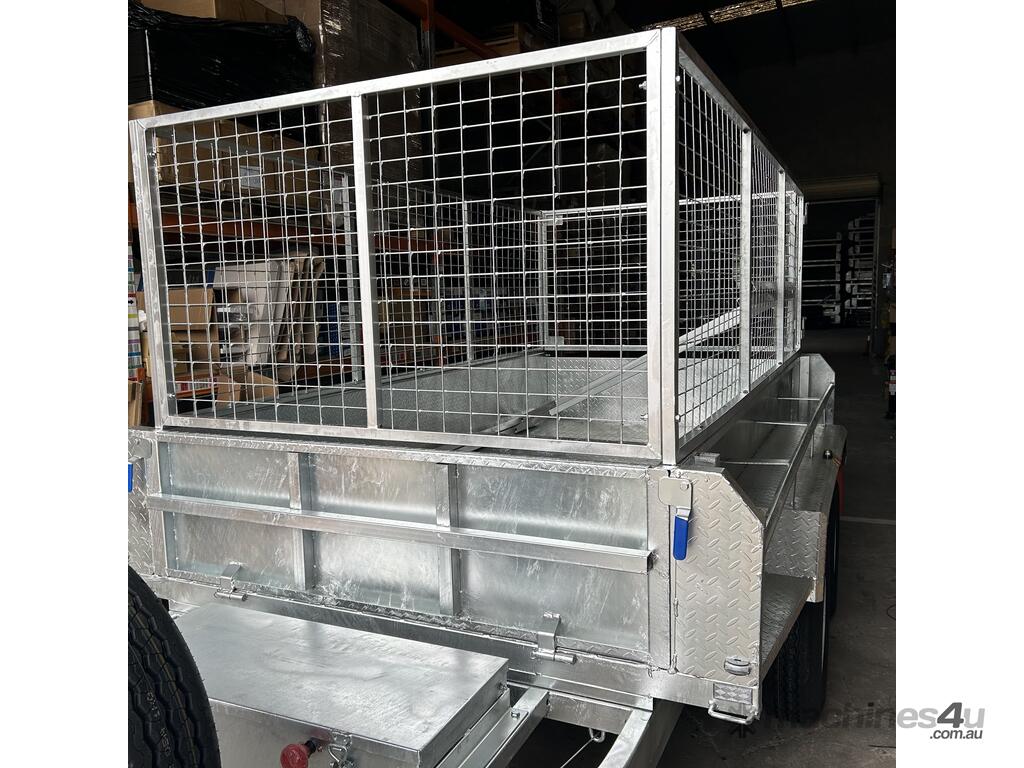

Removable 900mm Cage
Fully weld body
450mm deep side wall
One-piece fully welded heavy-duty chassis
3500kg ATM

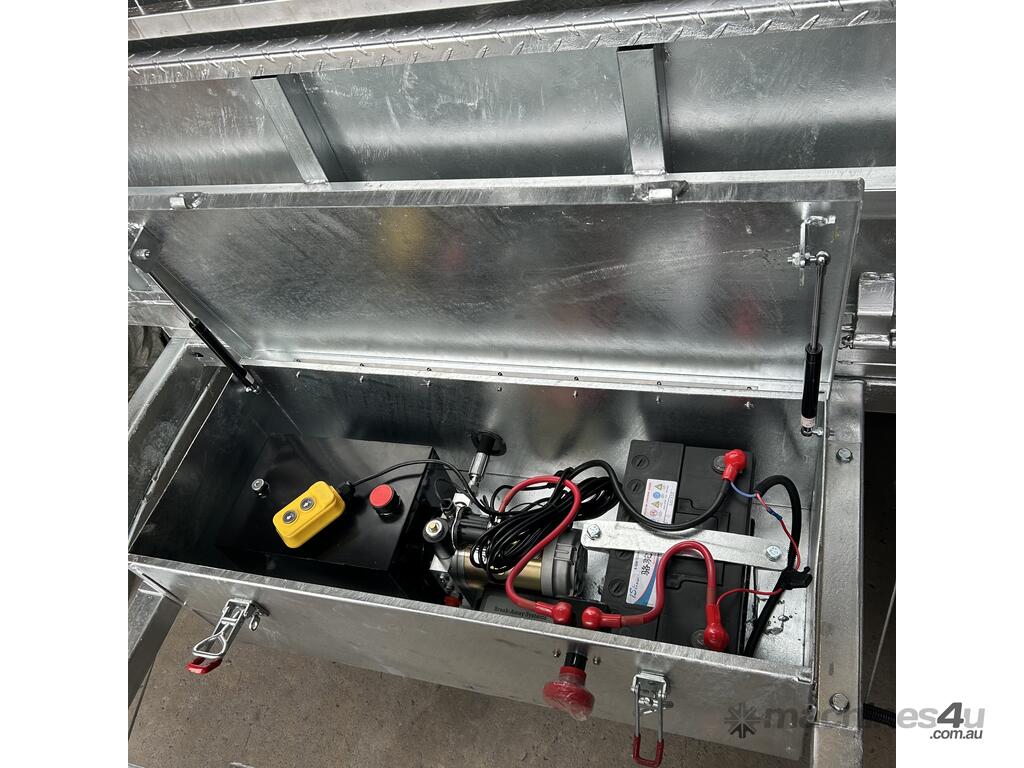

Hydraulic system and battery pack complete

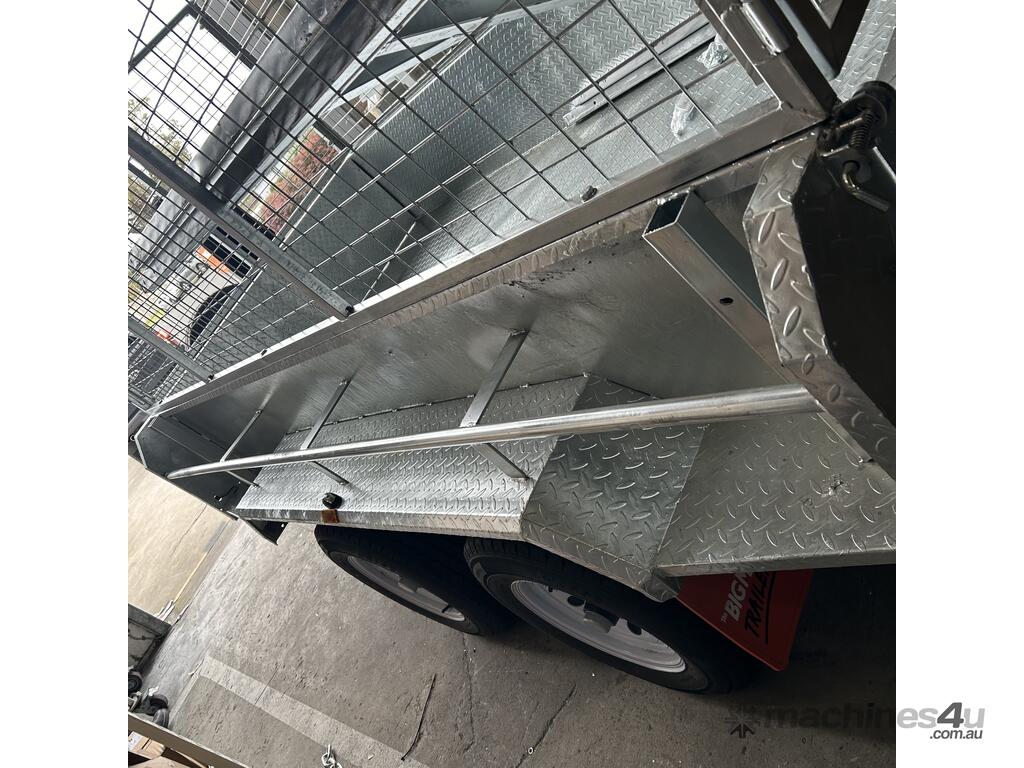

Checker plate floor
Breakaway unit fitted
7-pin flat plug

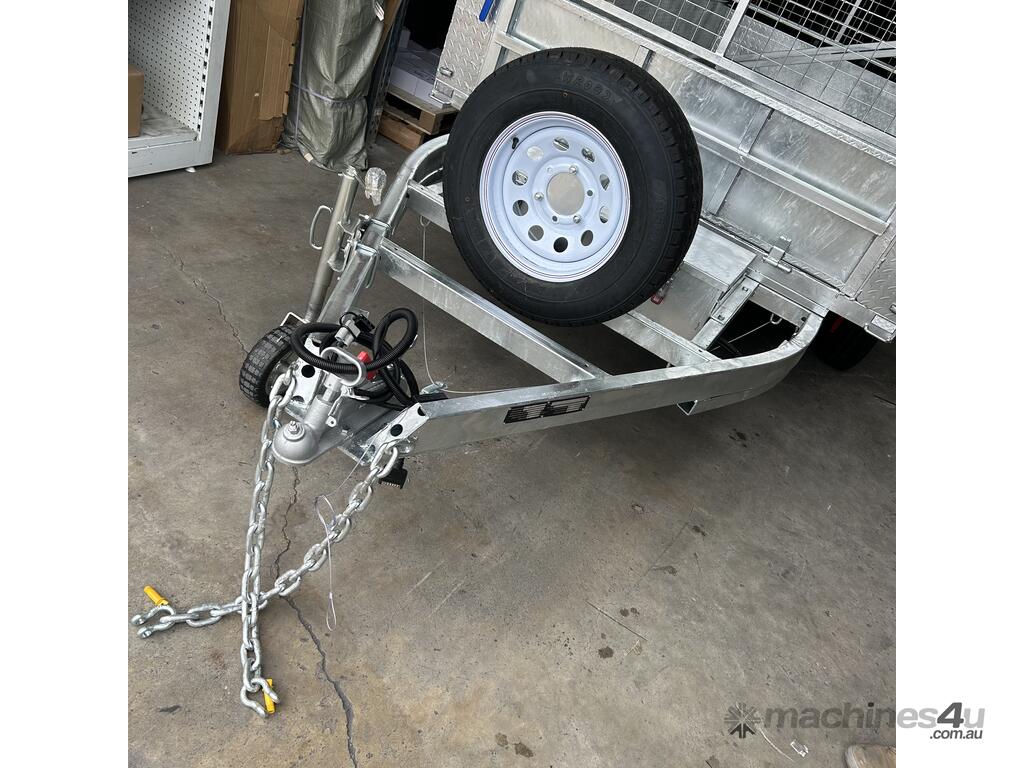

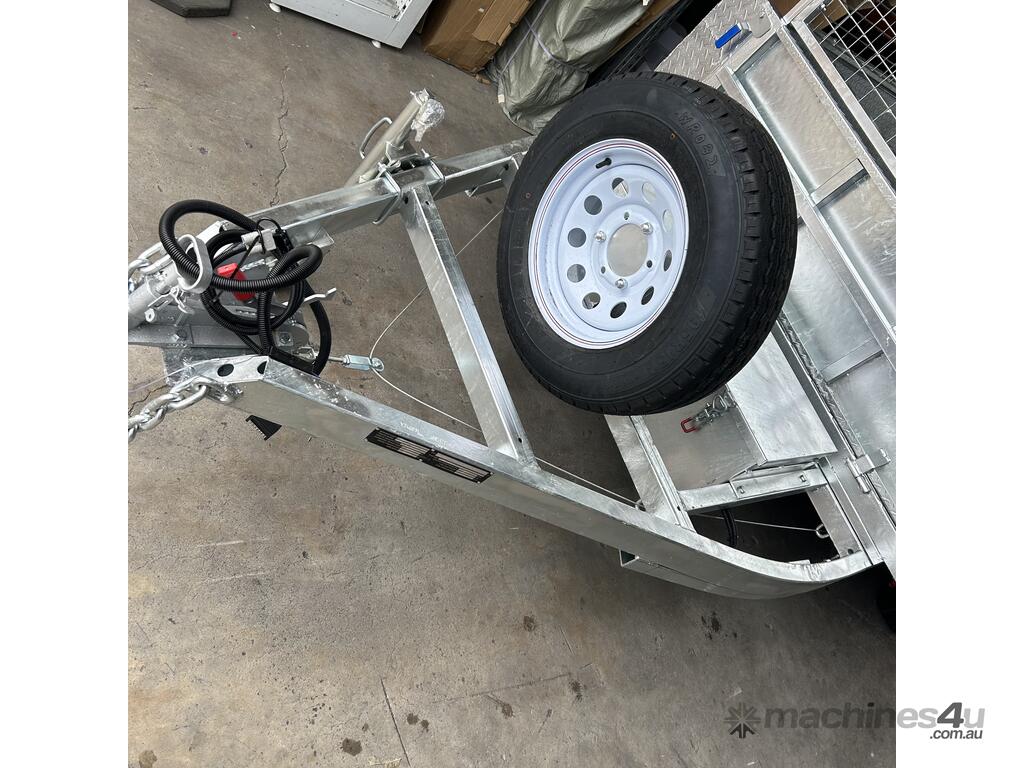

1800mm drawbar
Wheel nuts indicator included

Item Number HT105
Trailer Size 10’ x 5’
Drawbar 100x50x5mm
Internal Size 3000mm x 1500mm
Surface Finish Hot Dipped Galvanised
Colour Silver
Lights LED ADR Light

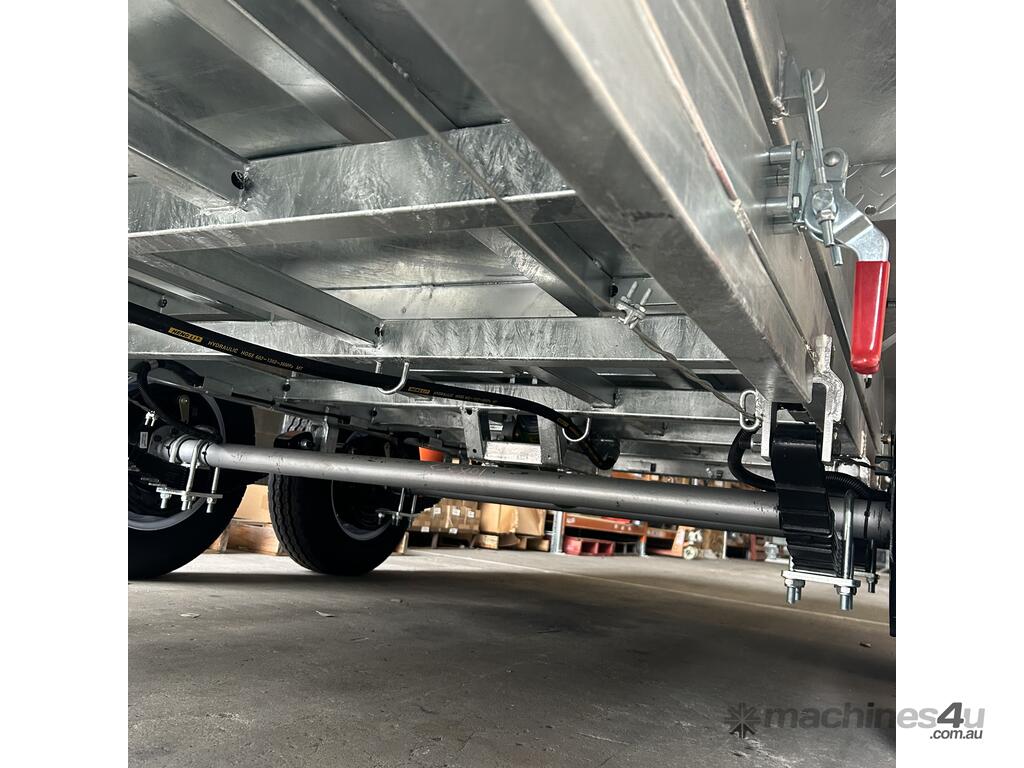

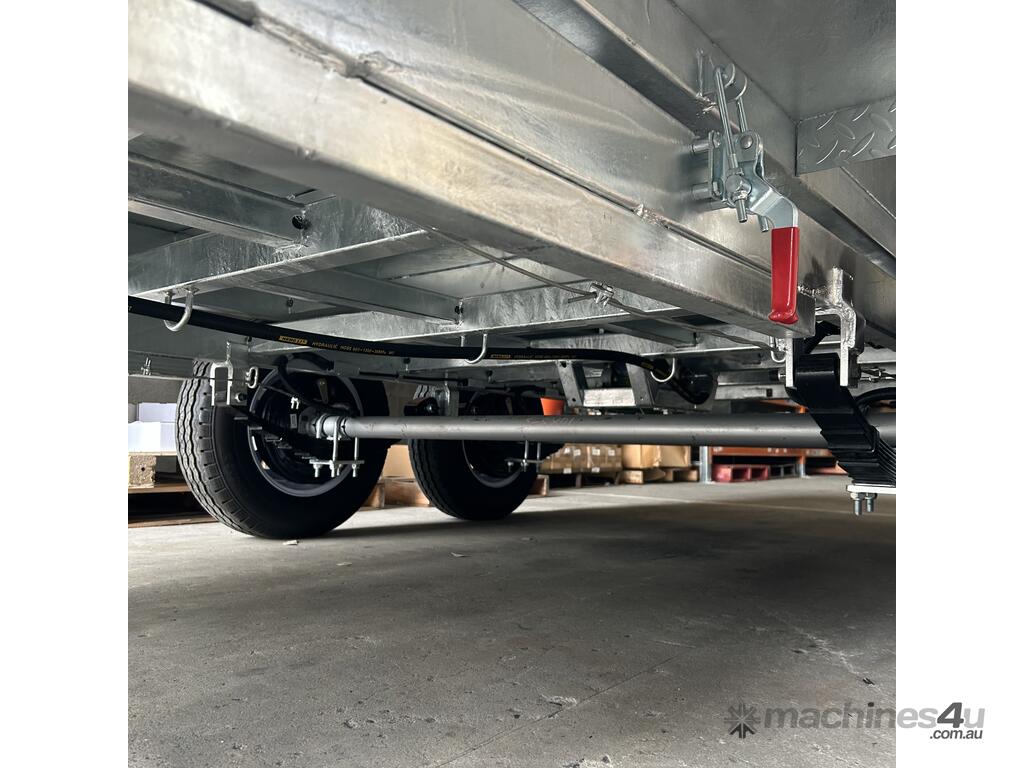

Axle 60mm Solid axle with 2T dexter bearings
ATM 3500kg
Tare Mass 1120kg
Jockey Wheel 10” Swivel
Fully Weld Yes
Checker Plate Full 2.5mm
Tilt body 4 stage ram with 4000KG lifting capacity
Side 450mm 2.5mm Fold Up

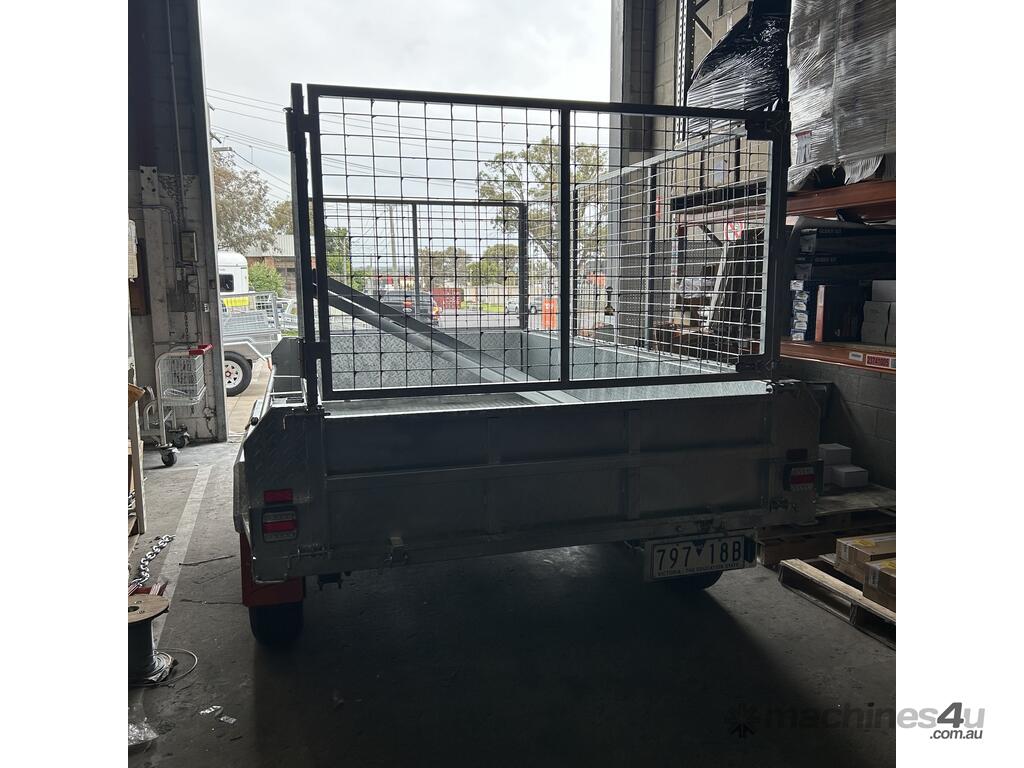

Cage 900mm 30x30mm

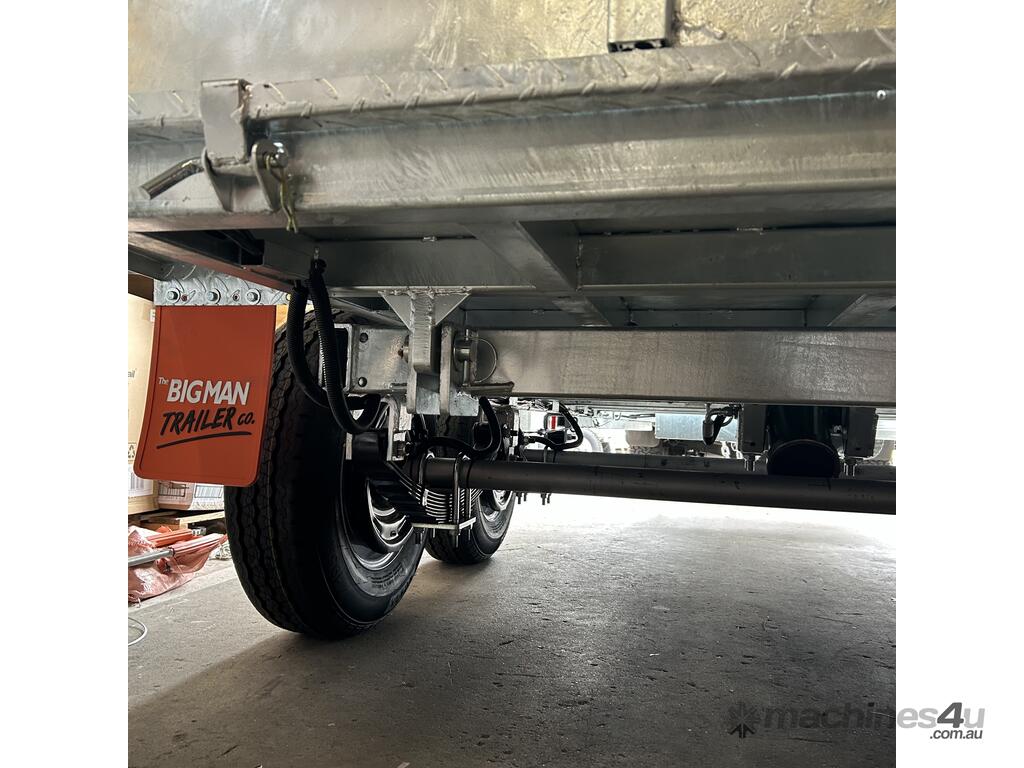

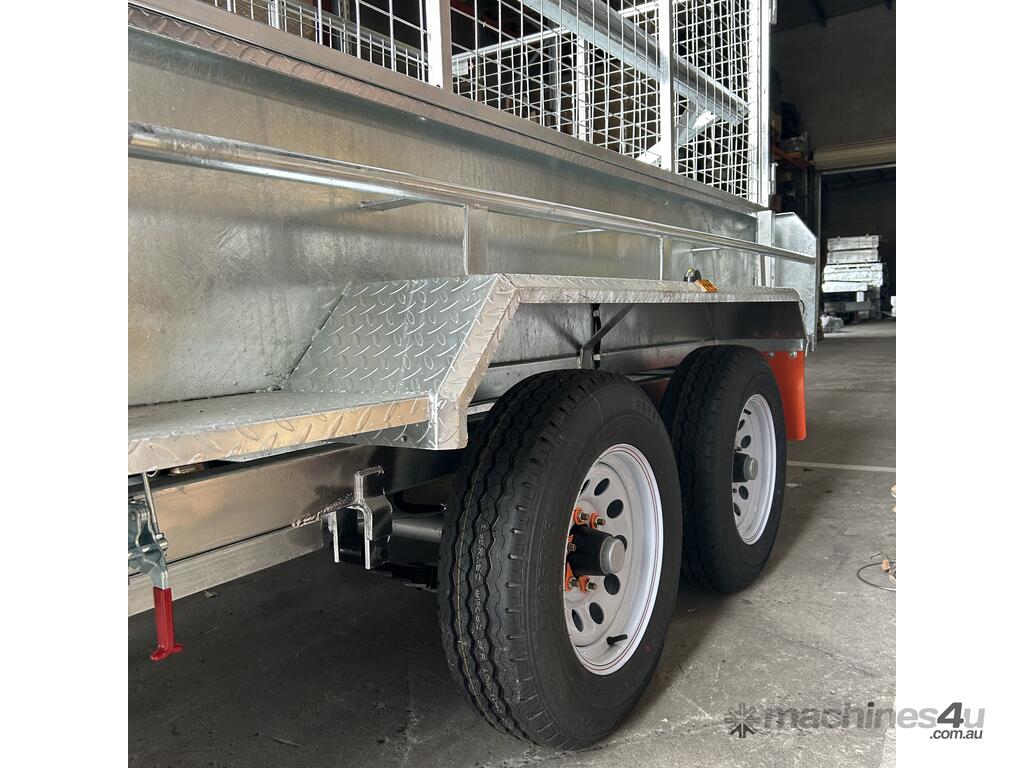

Suspension 9 leaf rocker roller
Cross Beam 70x50x5mm
Wheel & Tyre 195R15C Light Truck
Brake 12 inch electric drum brakes
Warranty 24 Months Structural

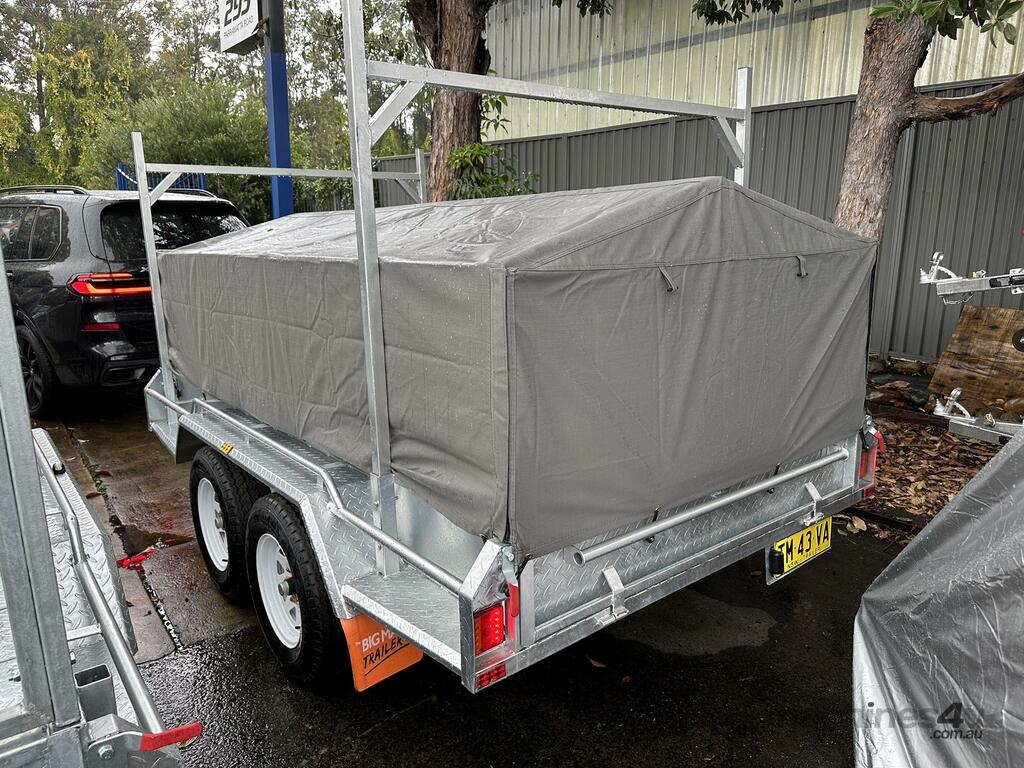

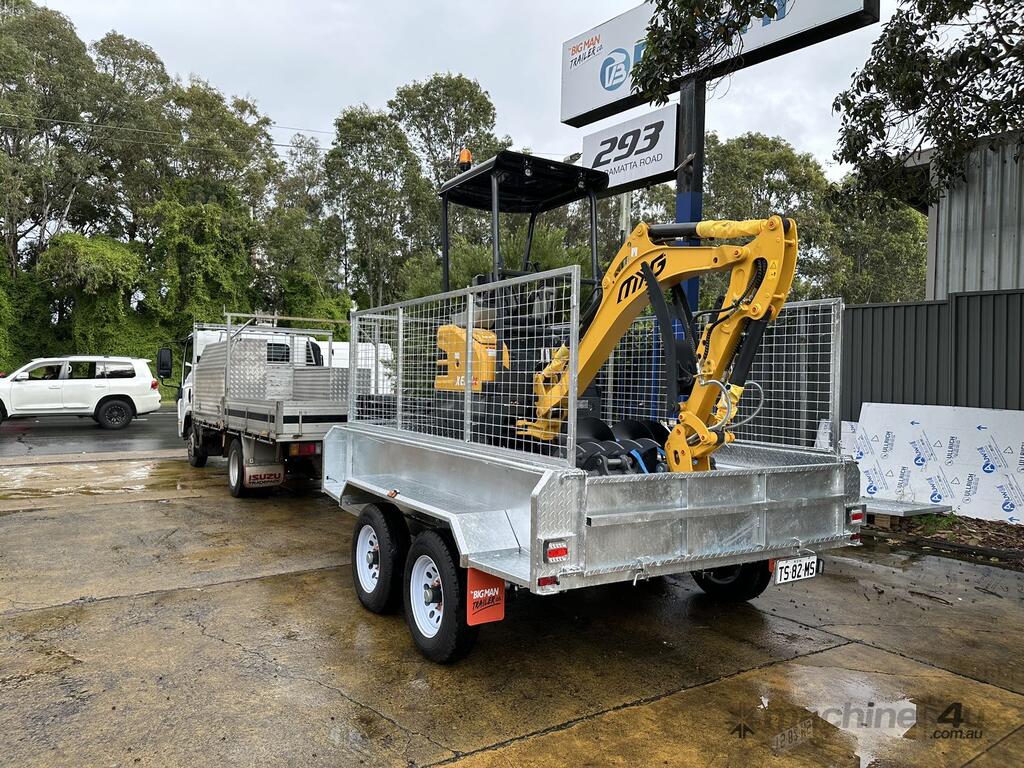

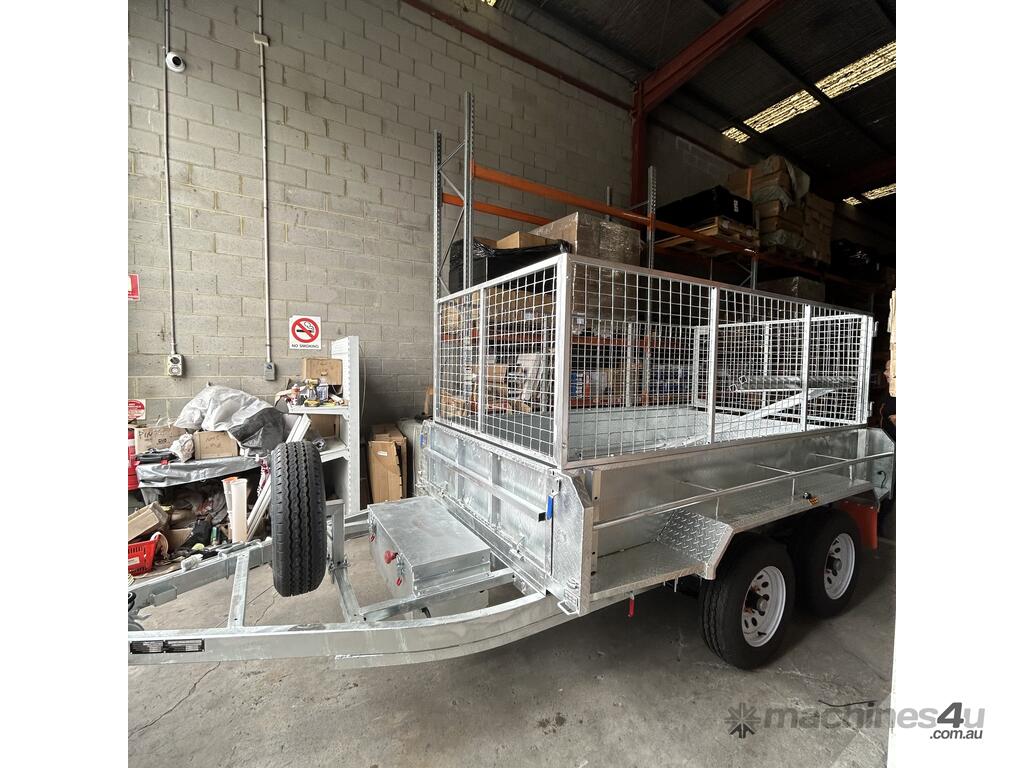

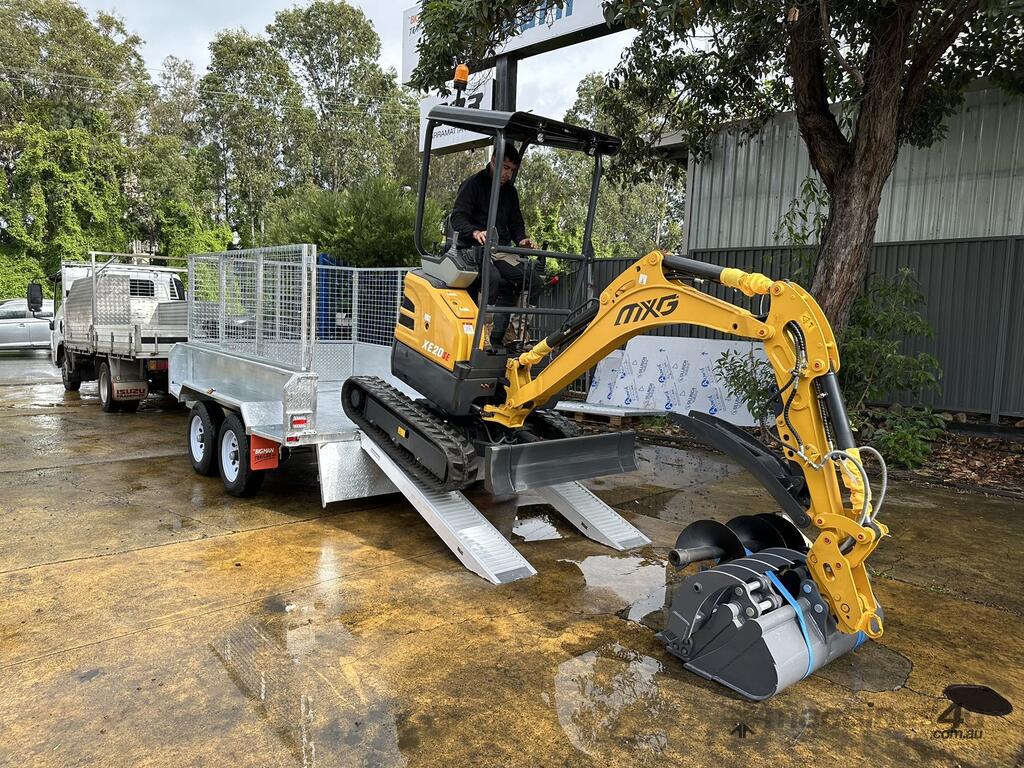

Photos of the trailer include some optional extras. Pictures shown are only for demonstration only. Speak to one of us further for info on accessories

Pick up in our local stores are free, but please always contact us for availability.

We can deliver Australia wide simply send us your postcode for a quote and we quote for transporting for all major cities.

Finance is Available on all of our trailers however please contact us via phone or for further information.

The Big Man Trailer Co. specializes in designing and manufacturing high-quality trailers tailored to the specific needs of professionals and home users alike. Founded in 2014 in Dandenong, Victoria, the company has built a reputation for innovation, durability, and compliance with Australian Design Rules and Standards. Initially producing trailer parts, The Big Man Trailer Co. expanded in 2016 to deliver complete trailer solutions that cater to industries ranging from construction and farming to landscaping and furniture moving, with a strong focus on customer service and after-sales support.

Go to The Big Man Trailer Co showroom on Machines4u to see the full range of trailers that is available for immediate national delivery, send The Big Man Trailer Co a message about the item you are interested in, or give The Big Man Trailer Co a call, we are happy to answer any of your questions.

* Click on the pdf spec sheet or contact us for more detailed information *
