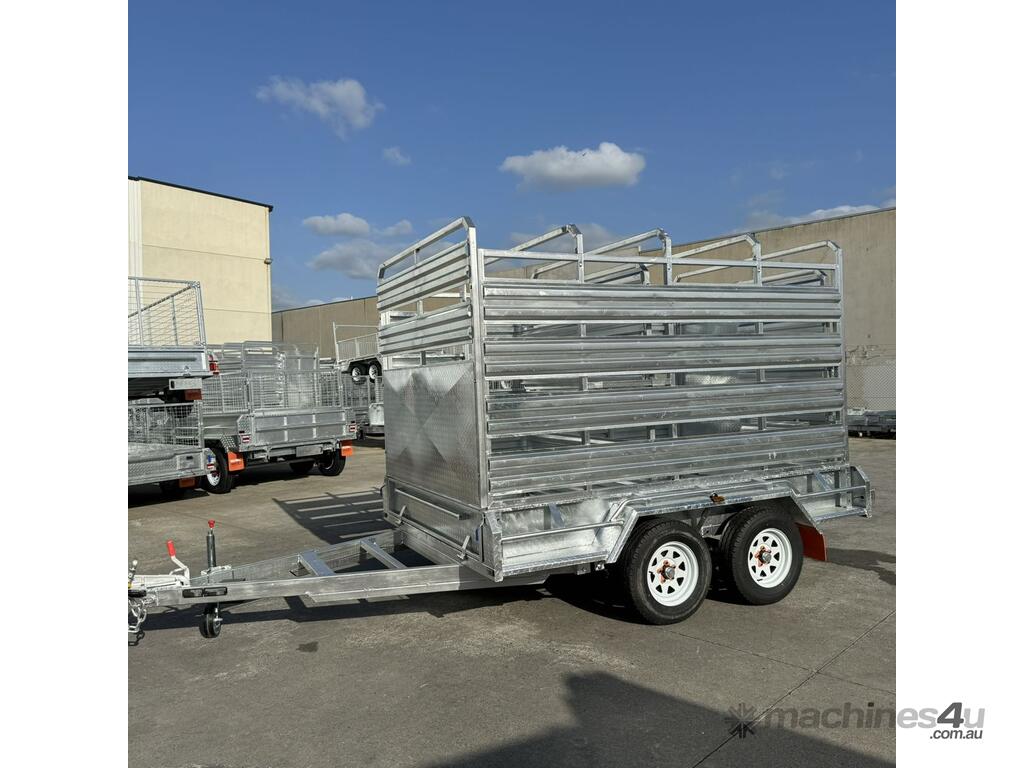

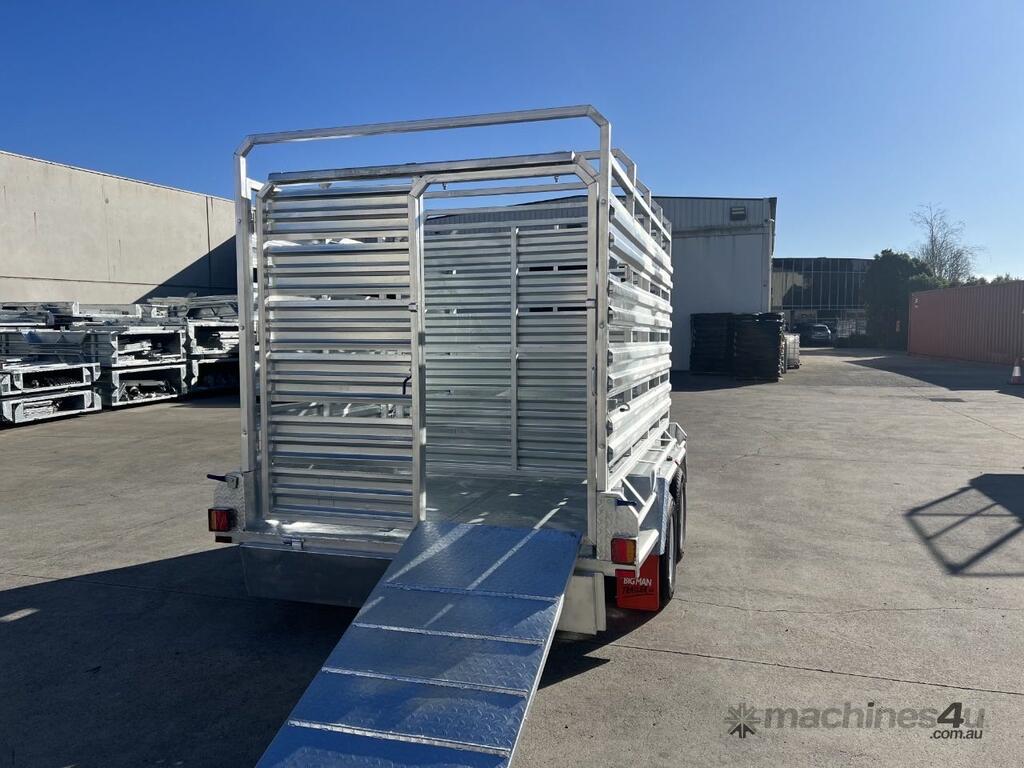

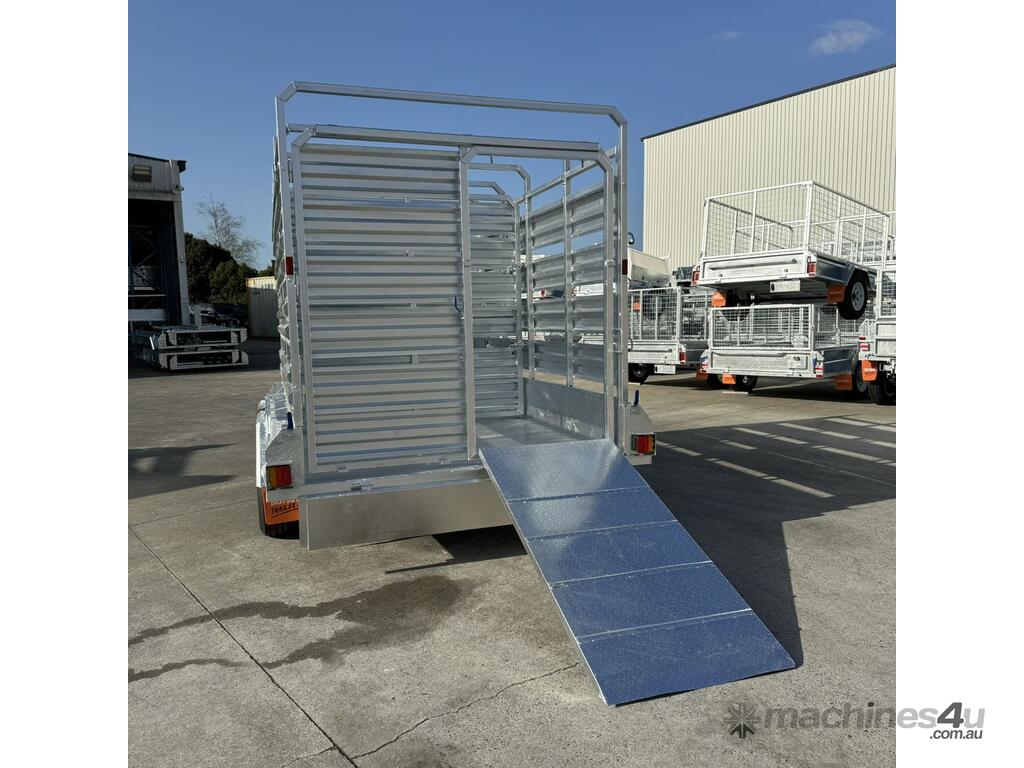

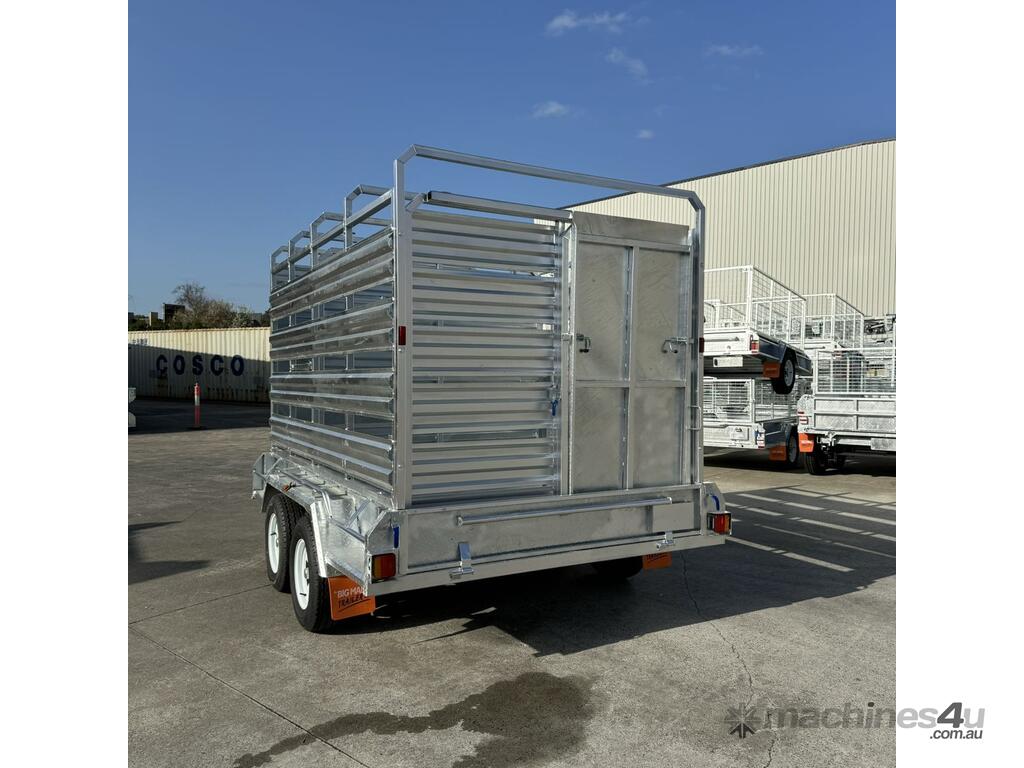

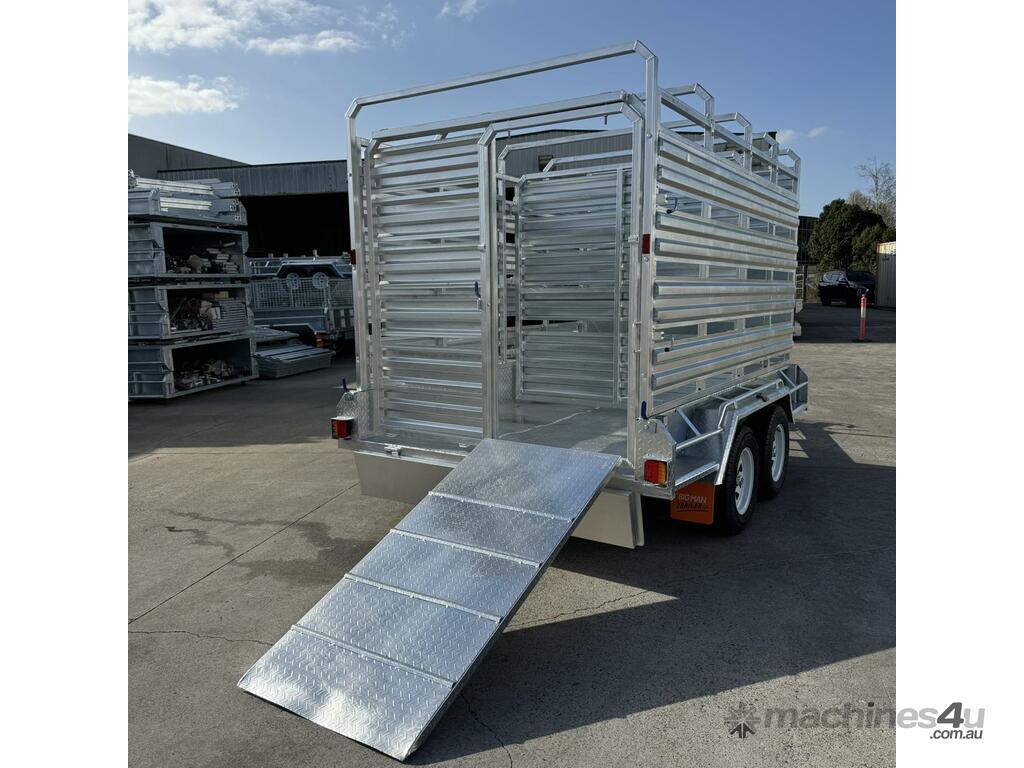

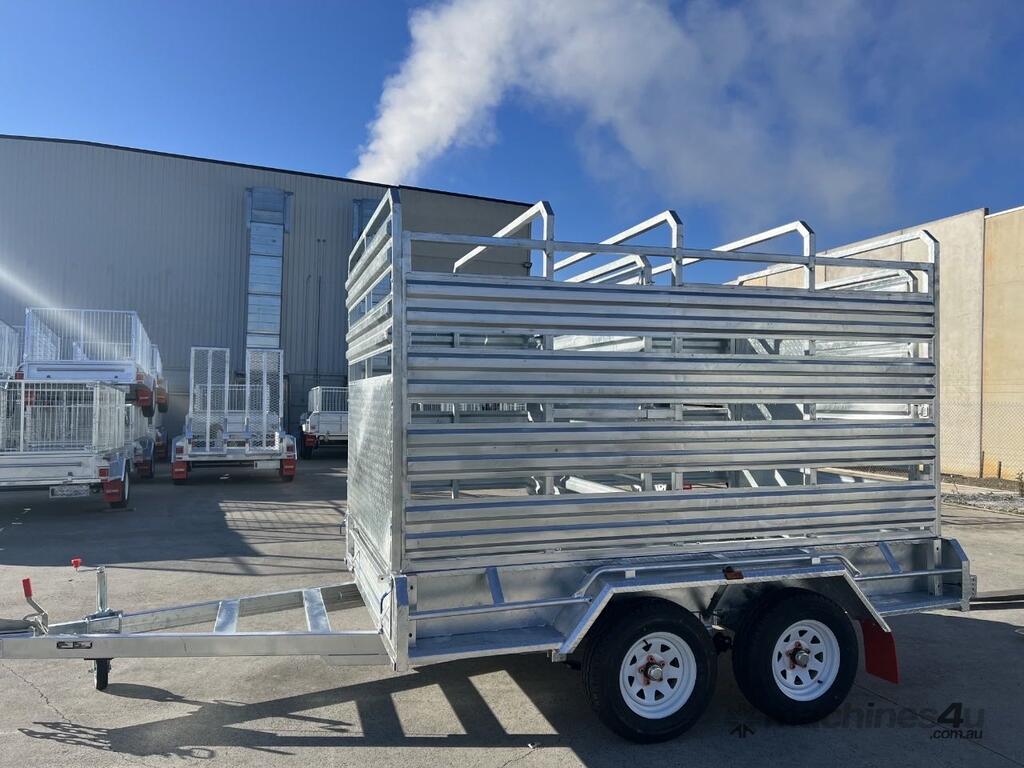

When transporting livestock, it’s essential that you have a strong, solid, well-built trailer to ensure that each animal is safe and protected while on the roads. At Big Man Trailer Co, we’ve developed a 10×6 cattle crate that will allow you a high level of maneuverability and control while driving without compromising on its maximum weight requirements. Each trailer is hot-dip galvanised to protect it from wear, tear, and the elements, and the cattle crate itself is removable, providing you with an extra element of customisation when working out your ideal setup for any given job. Featuring a stock crate and a multifunctional gated ramp, this trailer lets you get your job done like a champion.
A full body hot-dipped galvanised finish (including inside the rail)
A 24-month structural warranty
A heavy-duty jockey wheel
Brand new 14” Sunraysia rims and 185 light truck tyres
A removable cattle crate
A fully-welded body
A 300mm deep sidewall
2800kg ATM with electric drum brake

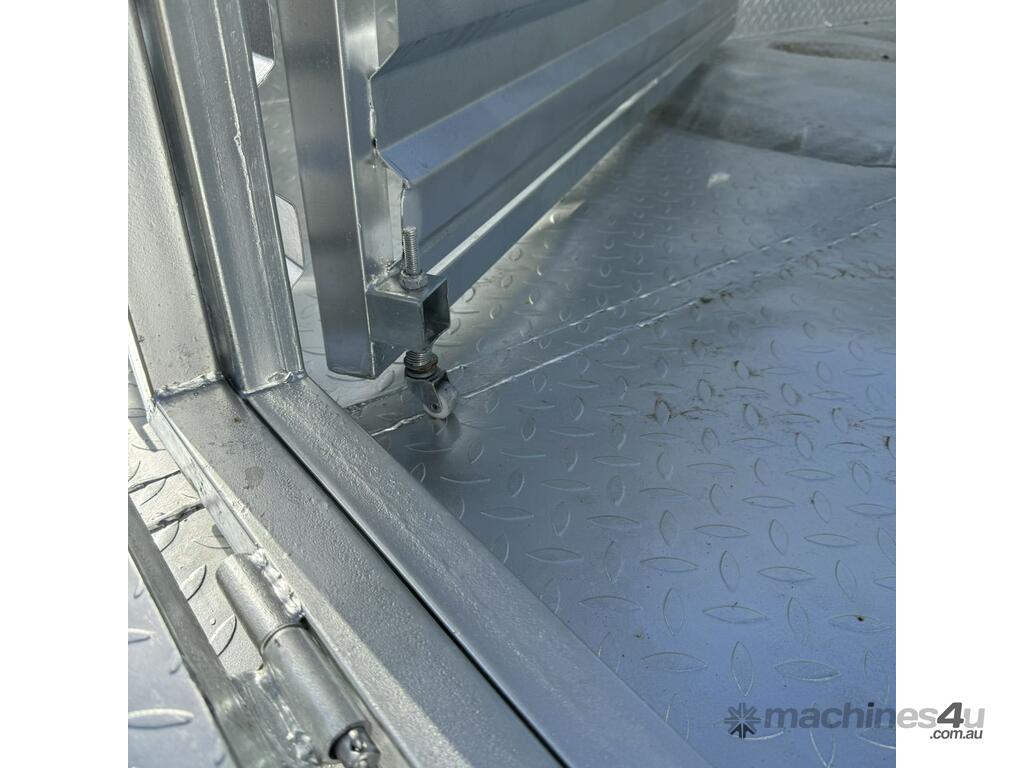

A checker plate floor

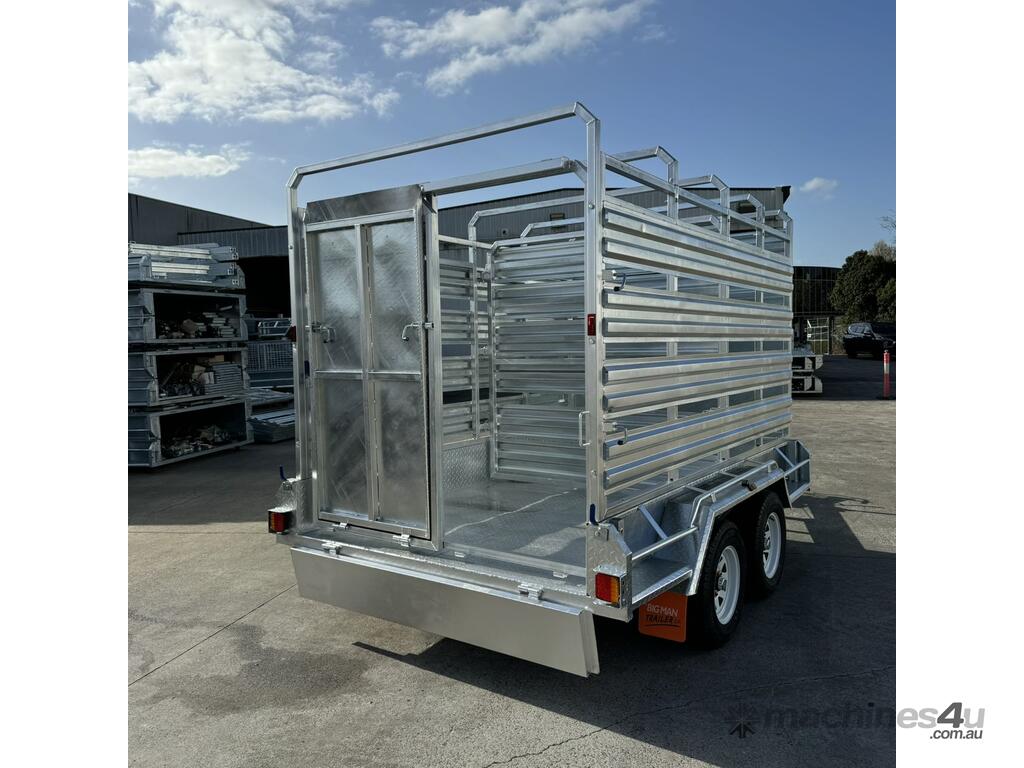

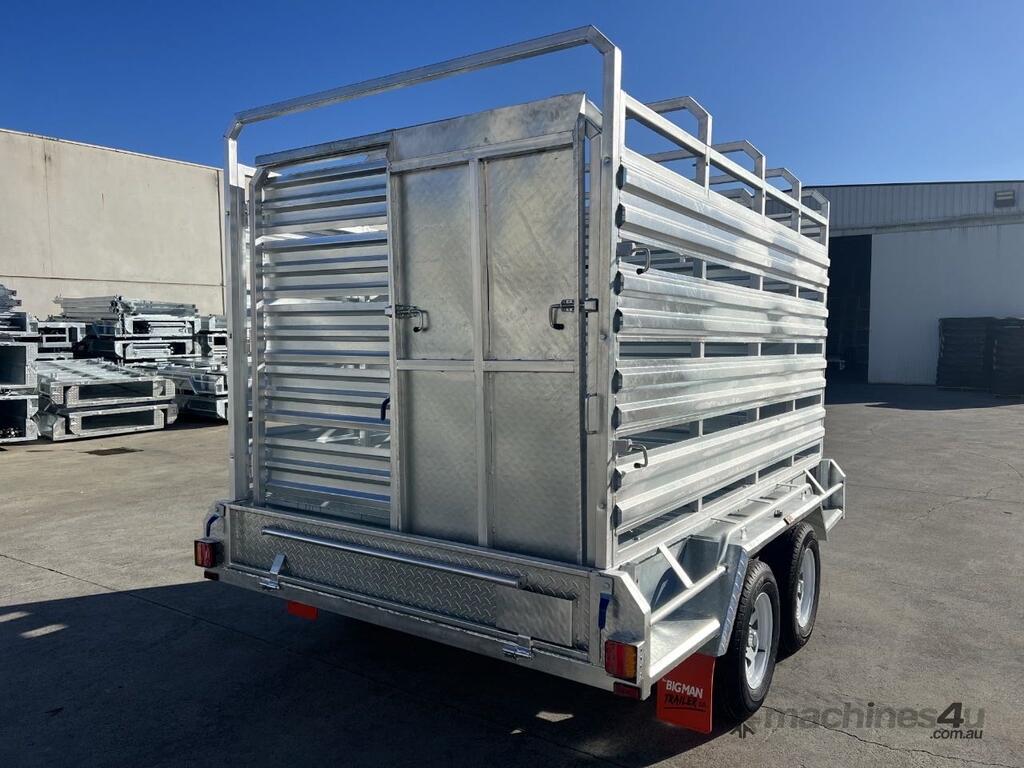

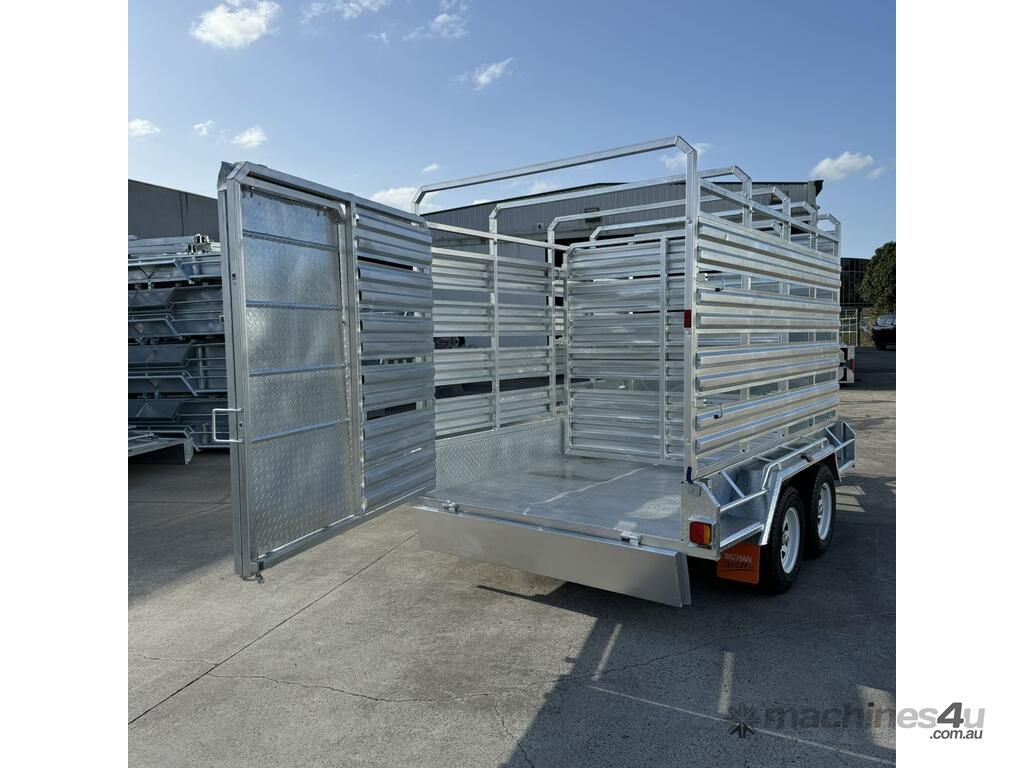

A 3-way open back door

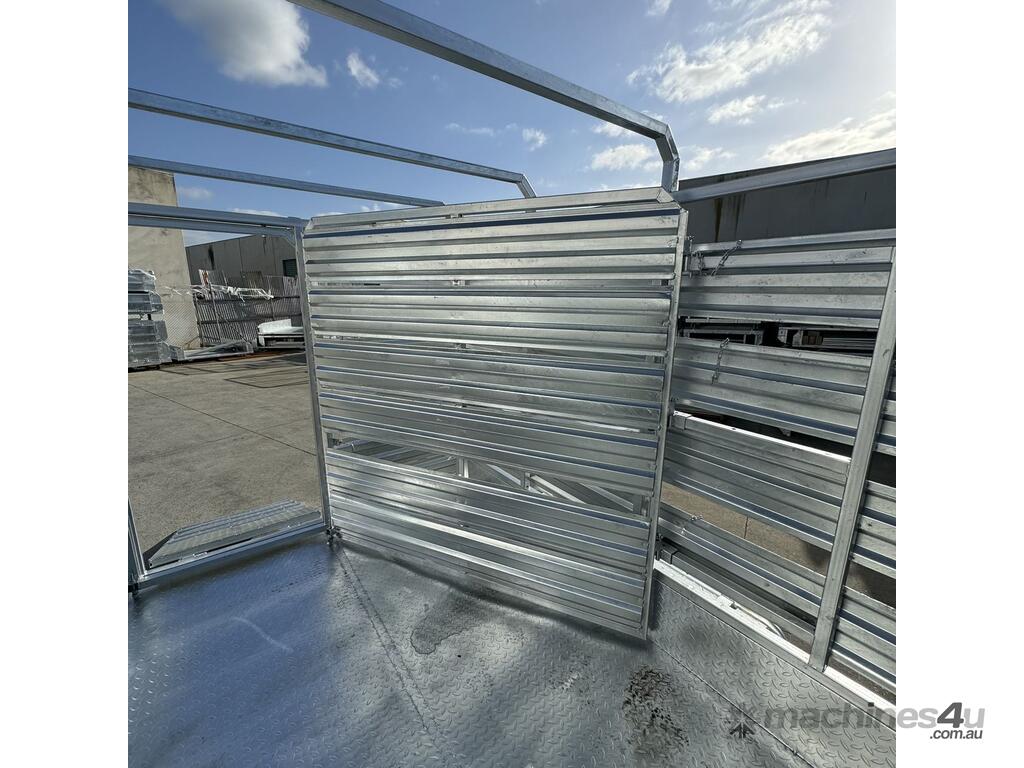

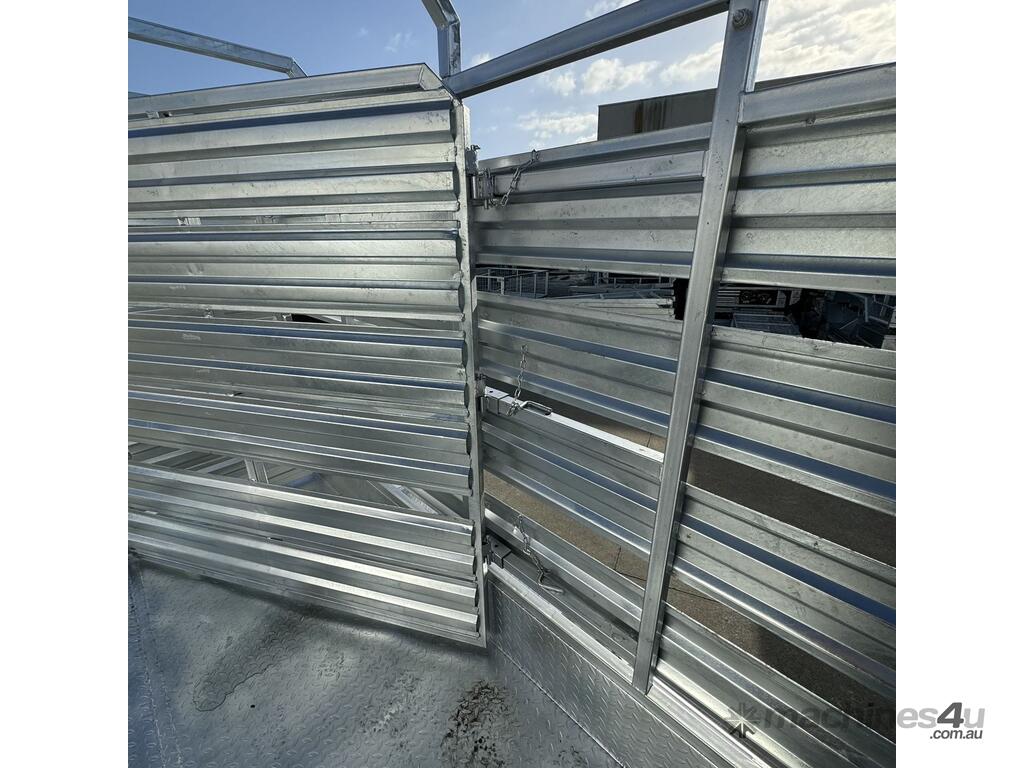

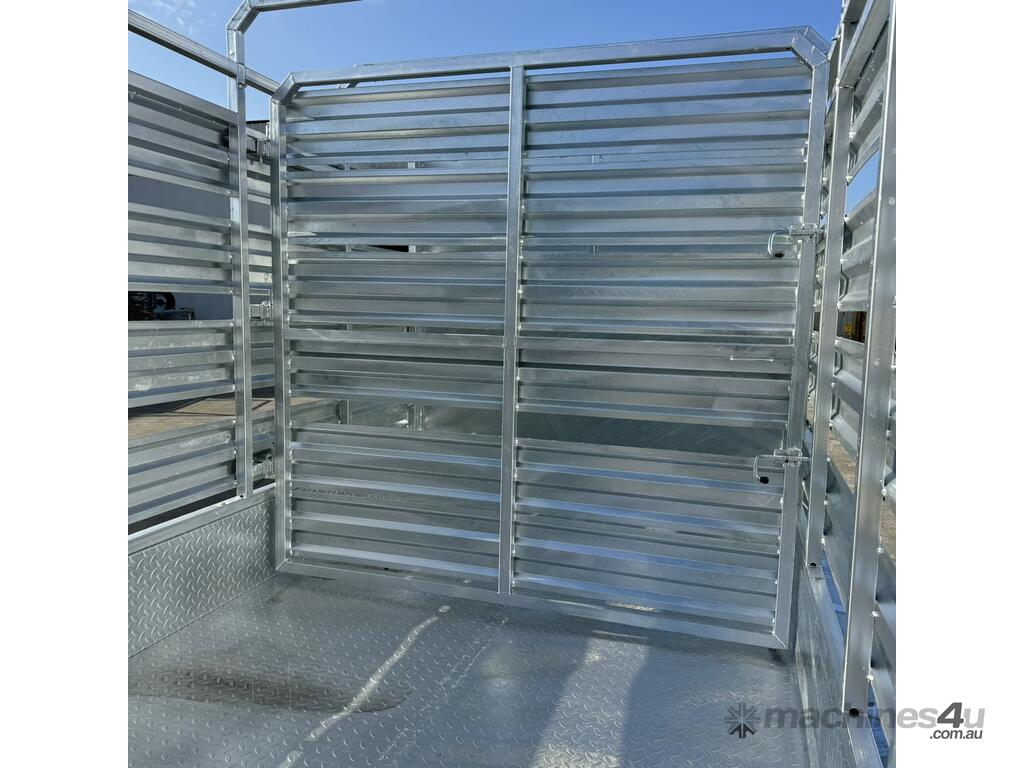

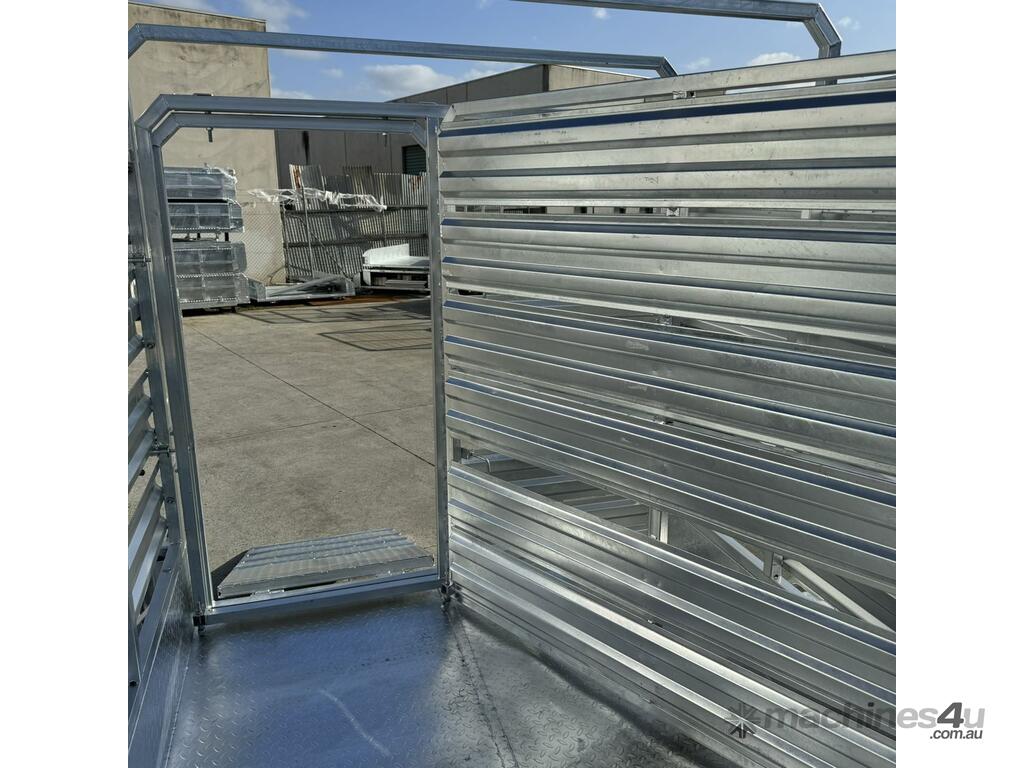

An included center divider
A fitted breakaway unit
7-pin flat plug

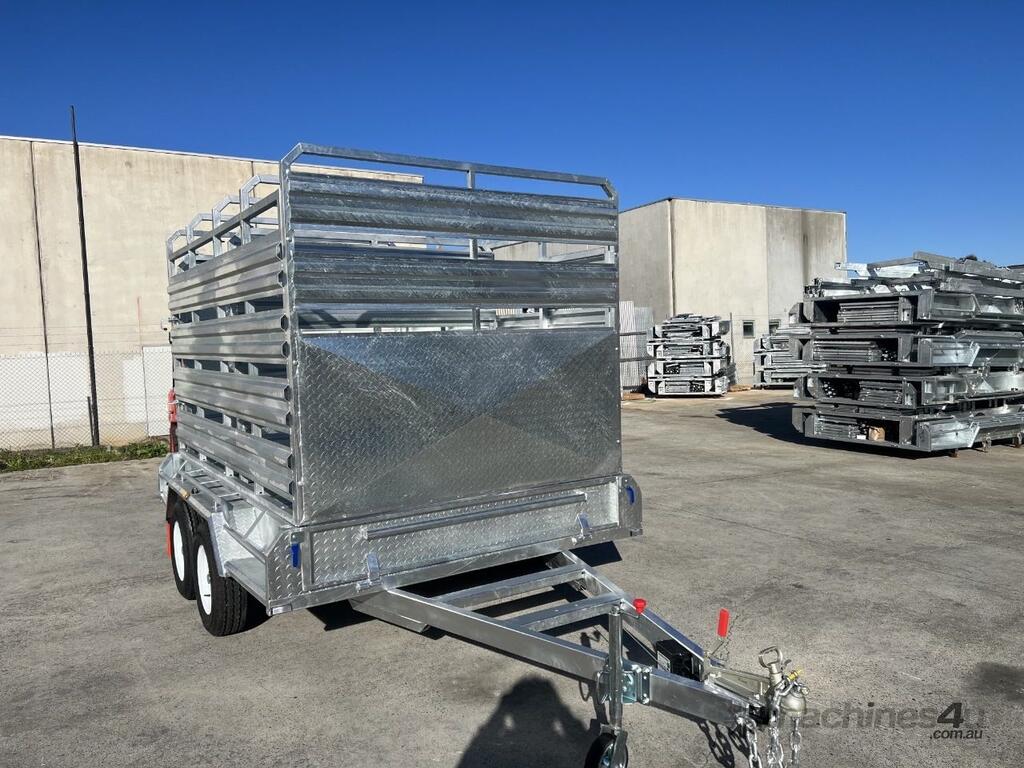

1800mm drawbar
Wheel nuts indicator included
Item Number CT106E
Trailer Size 10’ x 6’
Drawbar 100x50x3mm
Internal Size 3030mm x 1820mm
Surface Finish Hot Dipped Galvanised
Colour Silver
Lights LED ADR Light
Axle 50mm Solid axle
ATM 2800kg
Tare Mass 982kg
Jockey Wheel 8” Swivel
Fully Weld Yes
Checker Plate Full 2.5mm
Tilt body No
Side 300mm 2.5mm Fold Up

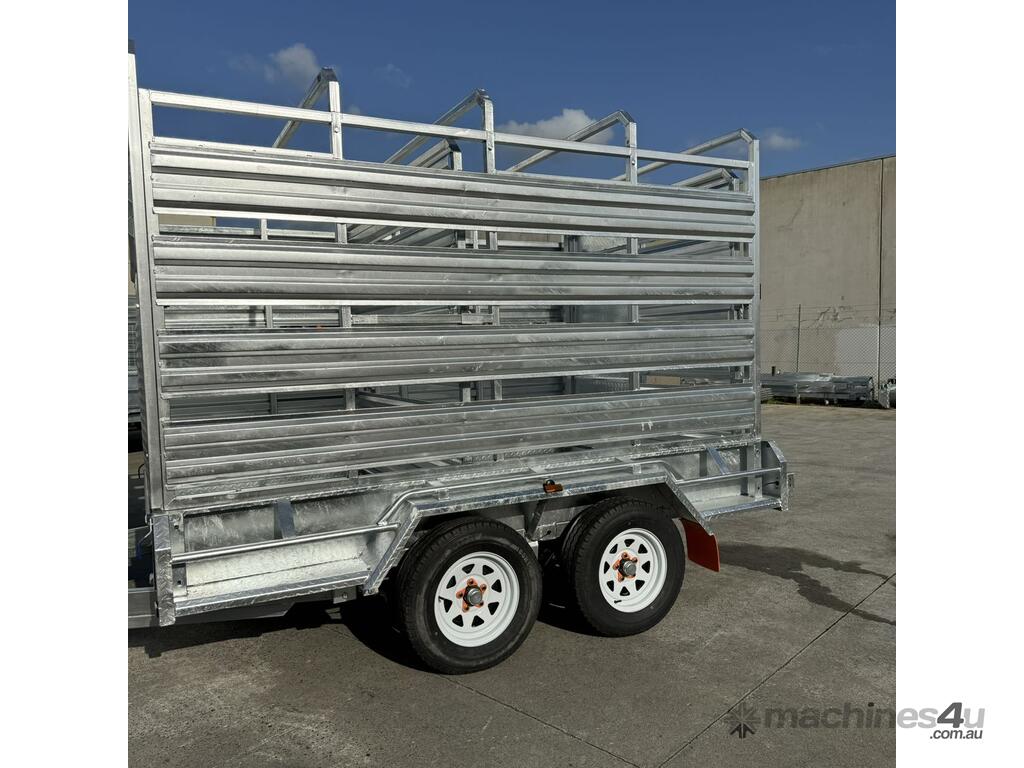

Cage 1800mm high removable cattle crate

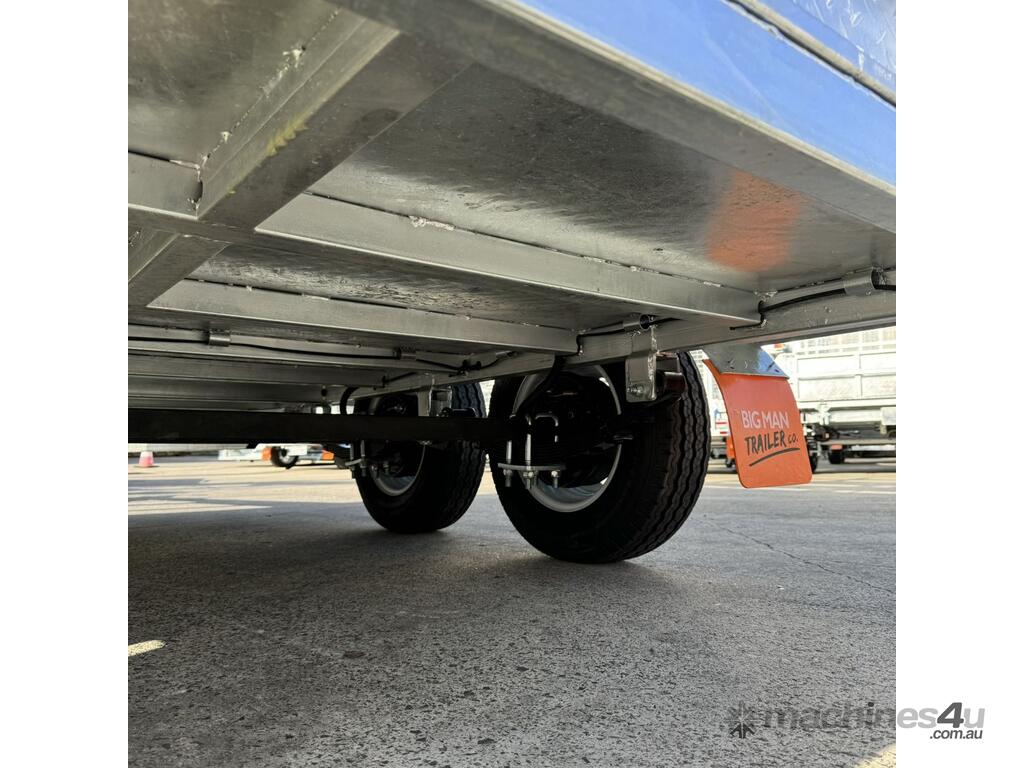

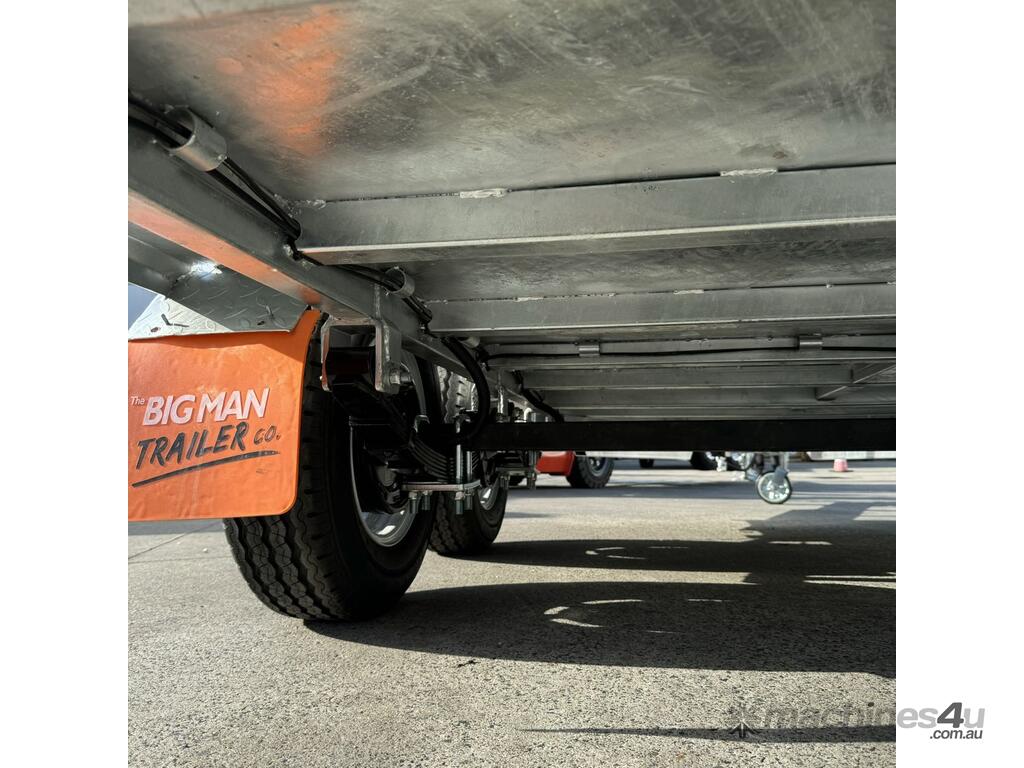

Suspension 7 leaf rocker roller
Cross Beam 50x50x3mm

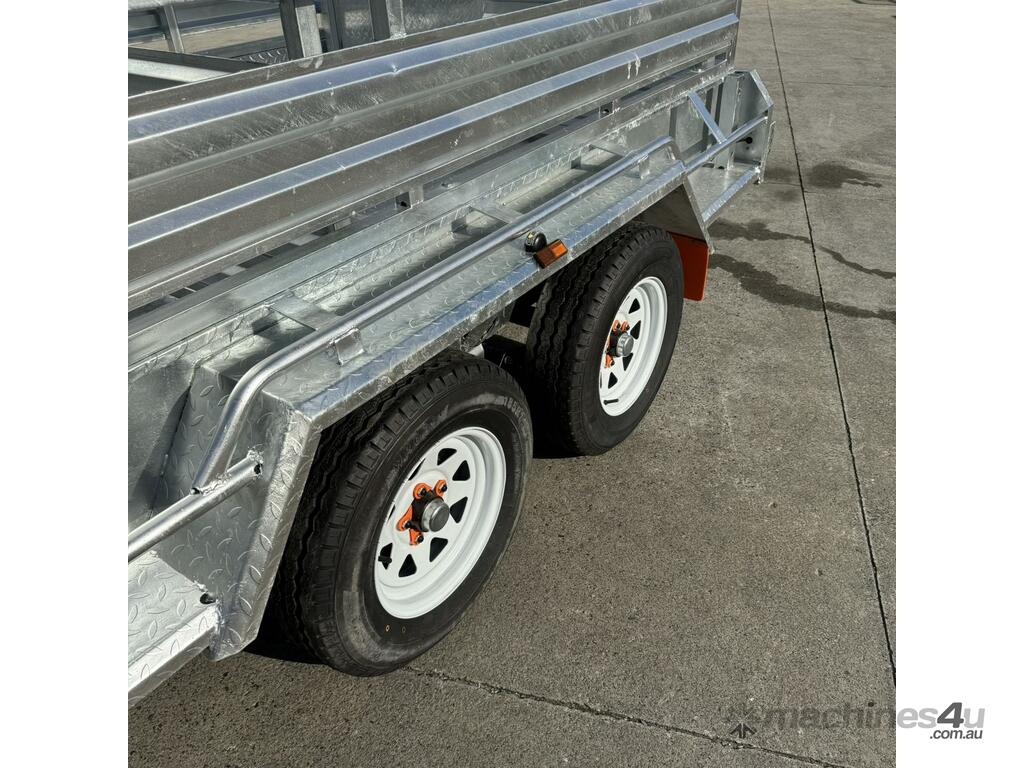

Wheel & Tyre 185R14C Light Truck
Brake 10 inch electric drum brakes
Warranty 24 Months Structural
Photos of the trailer include some optional extras. Pictures shown are only for demonstration only. Speak to one of us further for info on accessories
Pick up in our local stores are free, but please always contact us for availability.
We can deliver Australia wide simply send us your postcode for a quote and we quote for transporting for all major cities.
Finance is Available on all of our trailers however please contact us via phone or for further information.
The Big Man Trailer Co. specializes in designing and manufacturing high-quality trailers tailored to the specific needs of professionals and home users alike. Founded in 2014 in Dandenong, Victoria, the company has built a reputation for innovation, durability, and compliance with Australian Design Rules and Standards. Initially producing trailer parts, The Big Man Trailer Co. expanded in 2016 to deliver complete trailer solutions that cater to industries ranging from construction and farming to landscaping and furniture moving, with a strong focus on customer service and after-sales support.
Go to The Big Man Trailer Co showroom on Machines4u to see the full range of trailers that is available for immediate national delivery, send The Big Man Trailer Co a message about the item you are interested in, or give The Big Man Trailer Co a call, we are happy to answer any of your questions.
* Click on the pdf spec sheet or contact us for more detailed information *
