10x7 3500kg Flat Top Trailer BIGMAN TRAILER

This 3500kg Flat Top Trailer is an embodiment of design precision, offering a spacious flat platform that opens from all four sides, simplifying the transport of bulky items. Prioritizing both utility and safety, it features electric drum brakes on all wheels and a massive 3500KG ATM. Durability is unmatched with a fully welded and hot-dipped galvanised body and brand new 15” Sunraysia rims with 195 light truck tyres. It includes an 1800mm long drawbar, a removable 300mm side, and a resilient checker plate floor to withstand the challenges of working life. A convenient 2170mm long, 355mm wide ramp with a 1000kg maximum load capacity ensures easy loading and unloading and added safety and peace of mind are provided by a breakaway unit and a 24-month structural warranty.

Full body hot dipped galvanised (including inside the Rail)
24 months structural warranty
Free Heavy Duty jockey wheel
Brand new 15” Sunraysia rim and 195 light truck tyre
Removable 300mm side
Fully weld body
3500KG ATM with 12-inch electric drum brakes on 4 wheels
Breakaway unit fitted
Checker plate floor
1800mm long drawbar

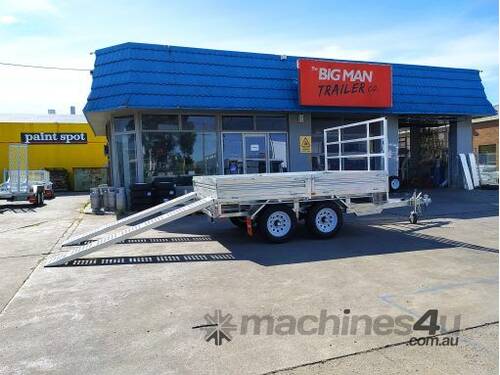

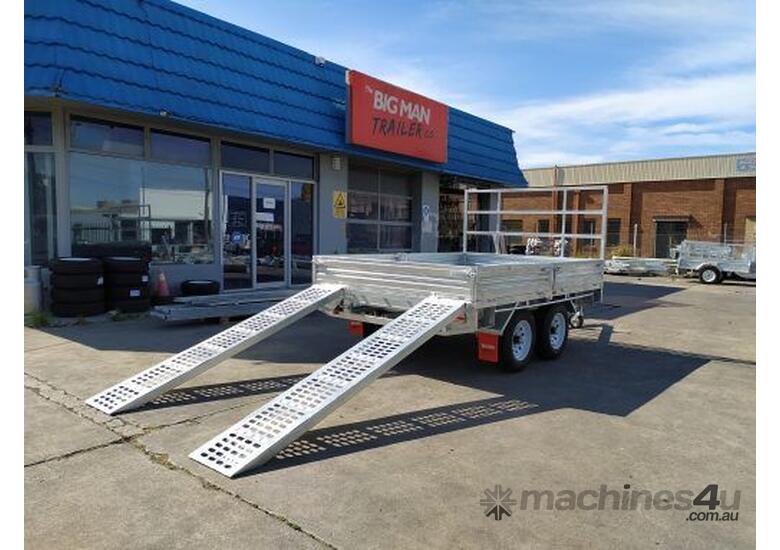

2170mm long 355mm wide loading ramp included (1000KG Max. load for a pair)
Wheel nuts indicator included

Item Number: FT107E35
Trailer Size: 10’ x 7’
Drawbar: 100x50x3mm
Internal Size: 3030mm x 2120mm
Surface Finish: Hot Dipped Galvanised
Colour: Silver
Lights: LED ADR Light
Axle: 50mm Solid
ATM: 3500kg
Tare Mass: 900kg
Jockey Wheel: 10” Swivel
Fully Weld: Yes
Checker Plate: Full 2.5mm
Tilt body: No
Side: 300mm 2.5mm Removable
Suspension: 9 leaf rocker roller
Cross Beam: 50x50x3mm
Wheel & Tyre: 195R15C Light Truck
Brake: 12 inch Electric Drum Brake
Warranty: 24 Months Structural
Extra: 2170mmx355mm loading ramp (1000KG Max. load)

Photos of the trailer include some optional extras. Pictures shown are only for demonstration only. Speak to one of us further for info on accessories

Pick up in our local stores are free, but please always contact us for availability.

We can deliver Australia wide simply send us your postcode for a quote and we quote for transporting for all major cities.

Finance is Available on all of our trailers however please contact us via phone or for further information.
