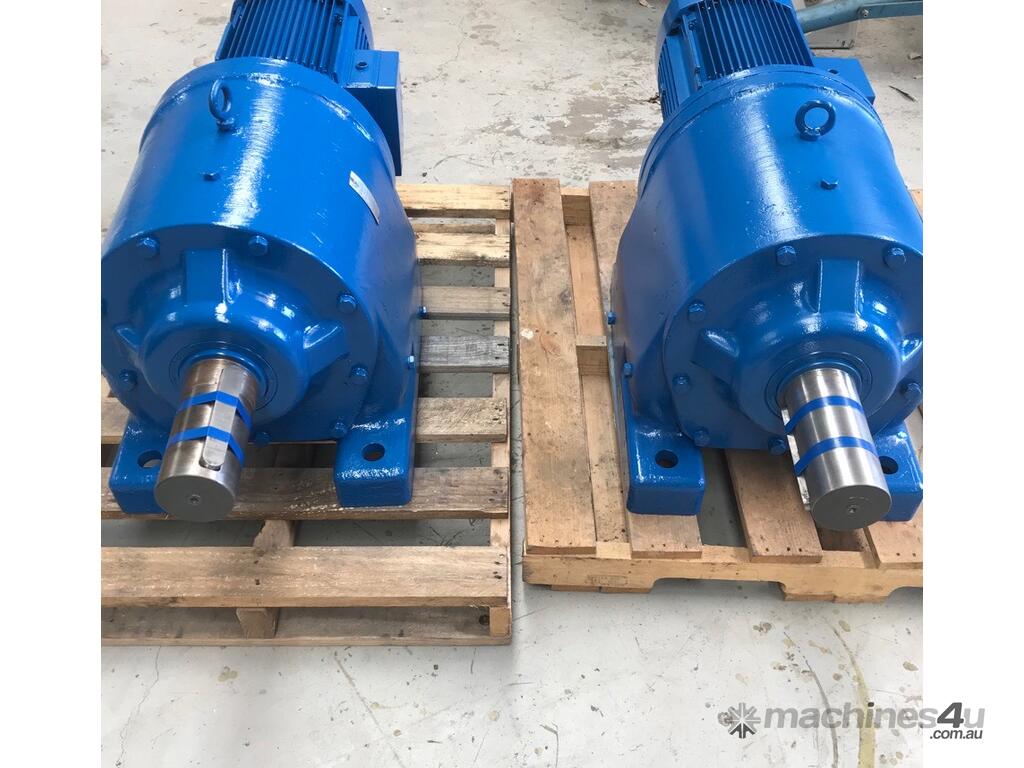

11 kw 15 hp 26 rpm Output Drive Foot Mount Geared Motor

11 kw 26 rpm Drive Geared Motor Solid Box Huge Torque

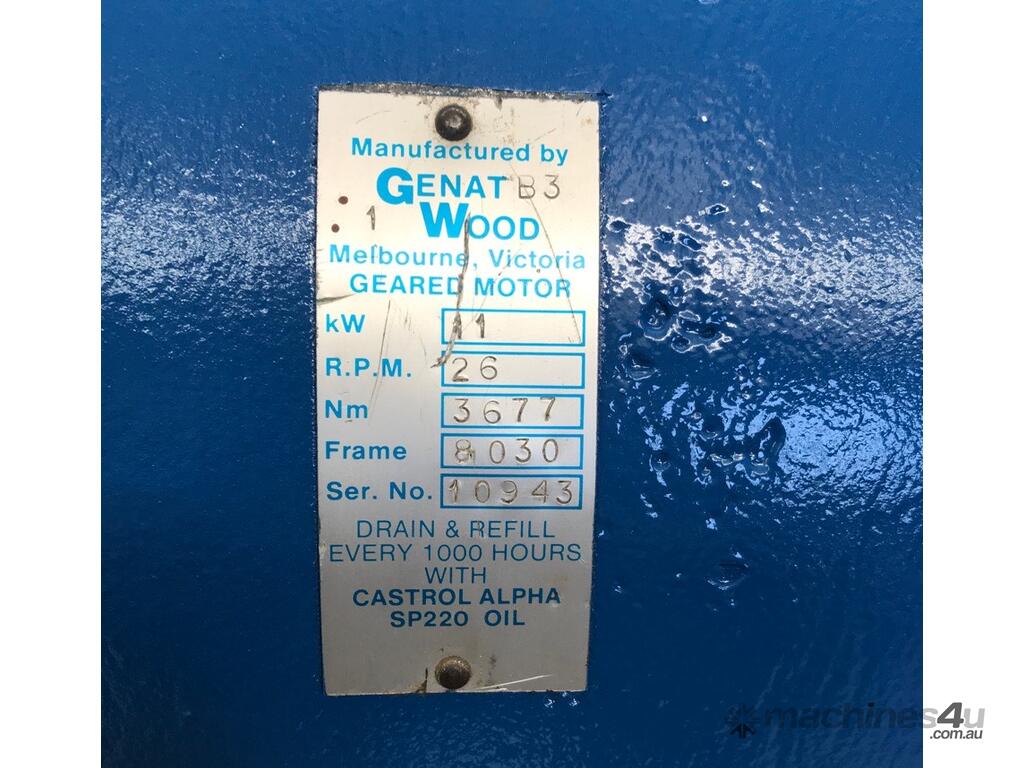

Make: Genat Wood
Type: In-line Drives
Power: 11 kw (15 hp)
Box Reduction Ratio: 57 : 1
Current Output speed: 26 rpm
Torque: 3677 Nm
Mount: Foot
Box Feet Measurements: 370 mm Across, 510 mm Front to Back
Shaft Diamater: 100 mm

Total Drive Weight: 700 kg ea
Qty: 2
Condition: Fully Reconditioned

Currently coupled with 11 KW, 4 pole (1490 rpm) motors (160 frame)
We can also couple with 7.5 KW, 8 pole (740 rpm) motors (160 frame) to provide:
7.5 KW
13 rpm output speed
7354 Nm Torque

Available for immediate supply Pakenham VIC
Freight service to anywhere in Australia
