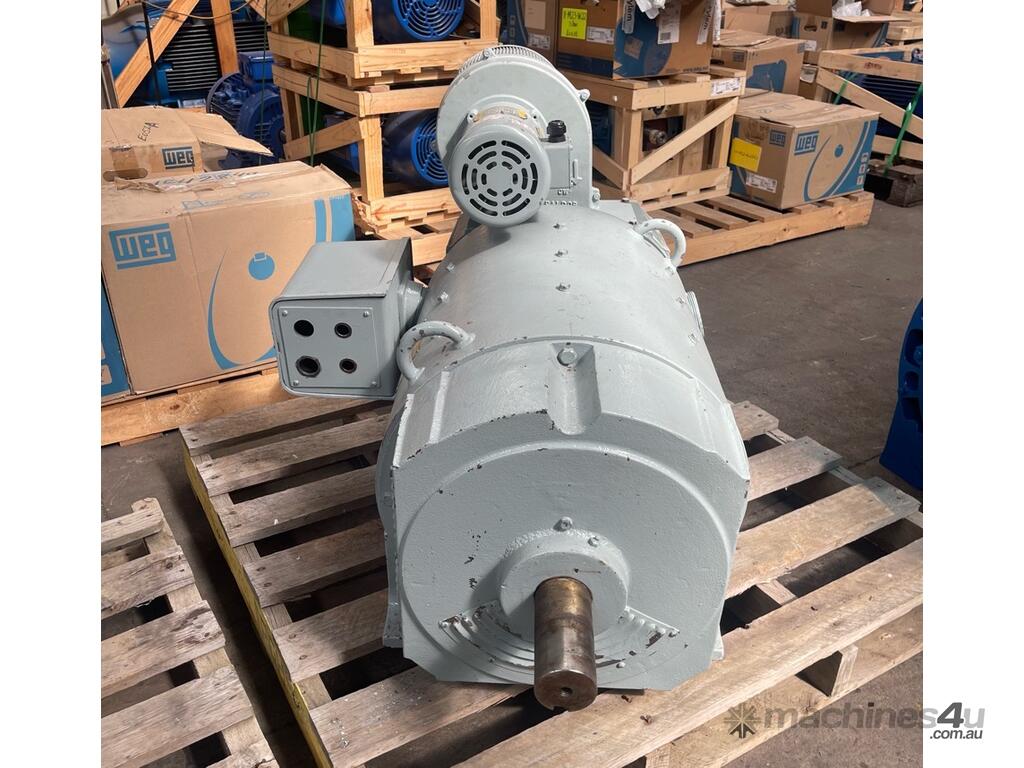

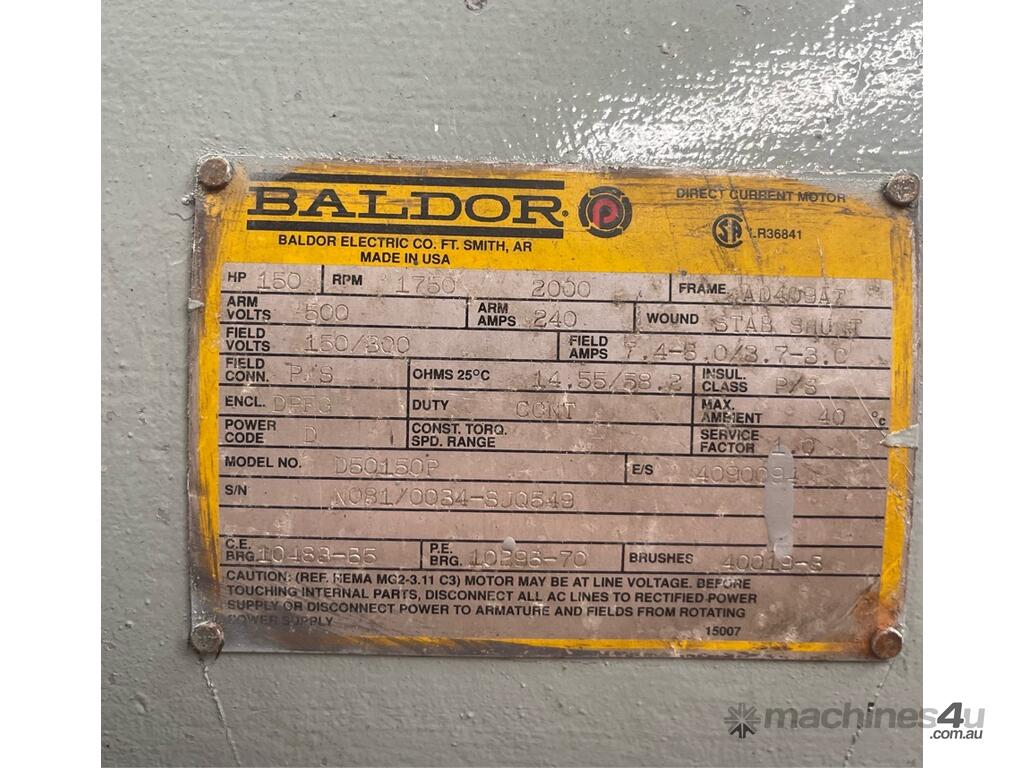

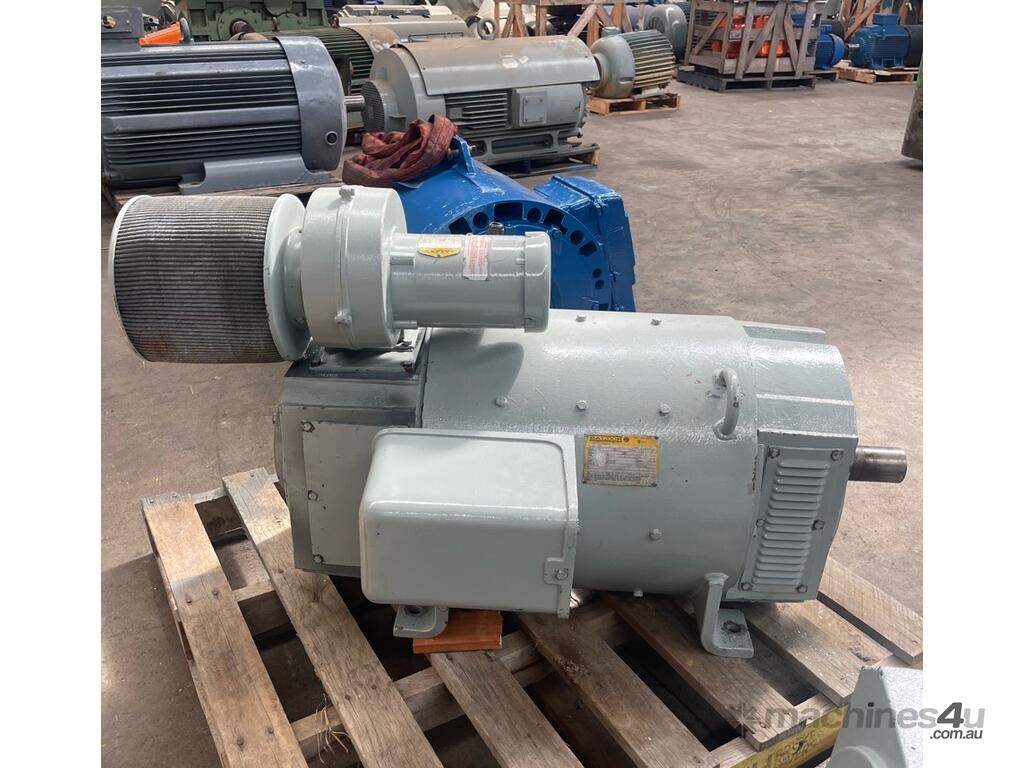

110 kw 150 hp 1750 rpm 500 volt Foot Mount DC Direct Current Electric Motor Baldor Electric Model D50150P
Category: DC Electric Motor
Make: Baldor Electric
Origin: USA
Power: 110 kw (150 hp)
Base Speed: 1750 rpm
Rated Armature Voltage: 500 v
Full Load Amperage: 240 A
Mount: Foot
Frame: AD409AT
Field Voltage: 150 / 300 v
Critical Measurements:
Centre shaft height: 250 mm
Shaft DIA: 2 and 5/8 inches
Feet measurements: Across 'A' - 406mm, Front to back 'B' - 550mm
Total Length - 1270 mm (incl. shaft & cooling/vent)
Total Width - 730 mm (incl. LHS to D.E. box)
Total Height: 730 mm (incl. cooling)

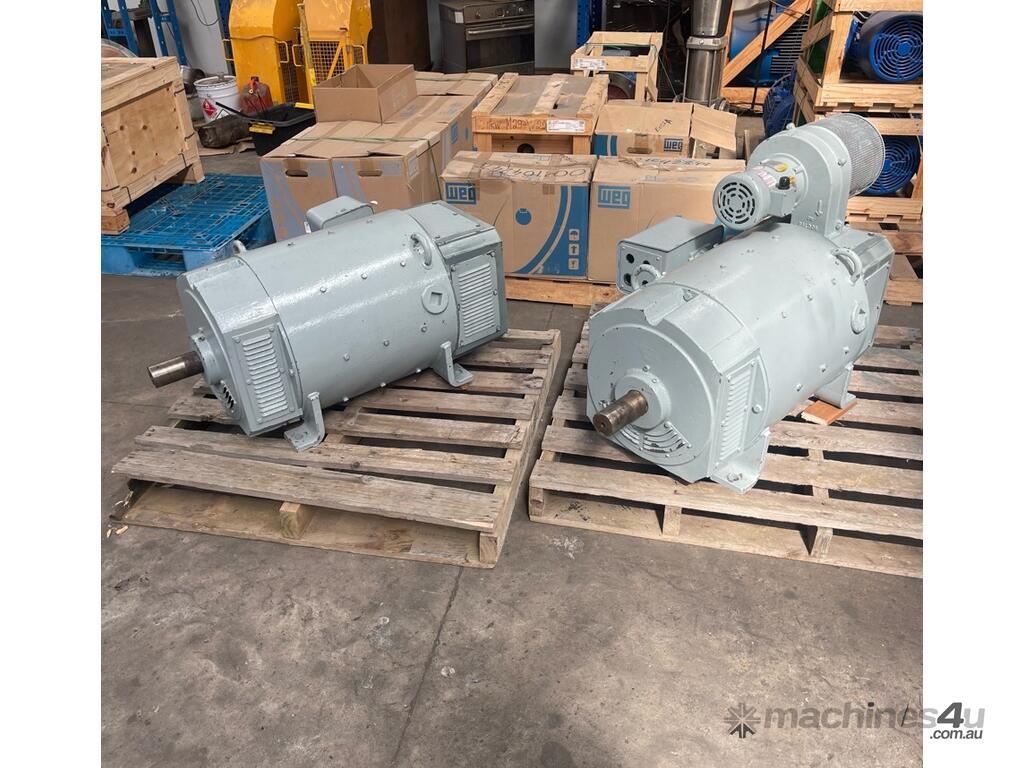

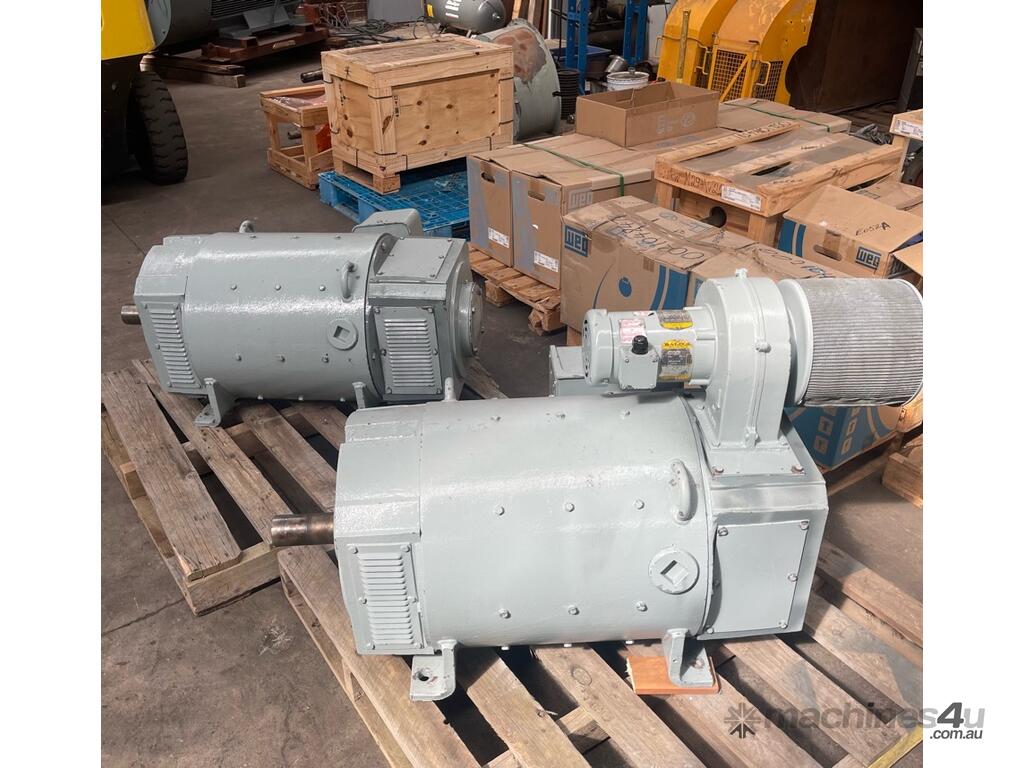

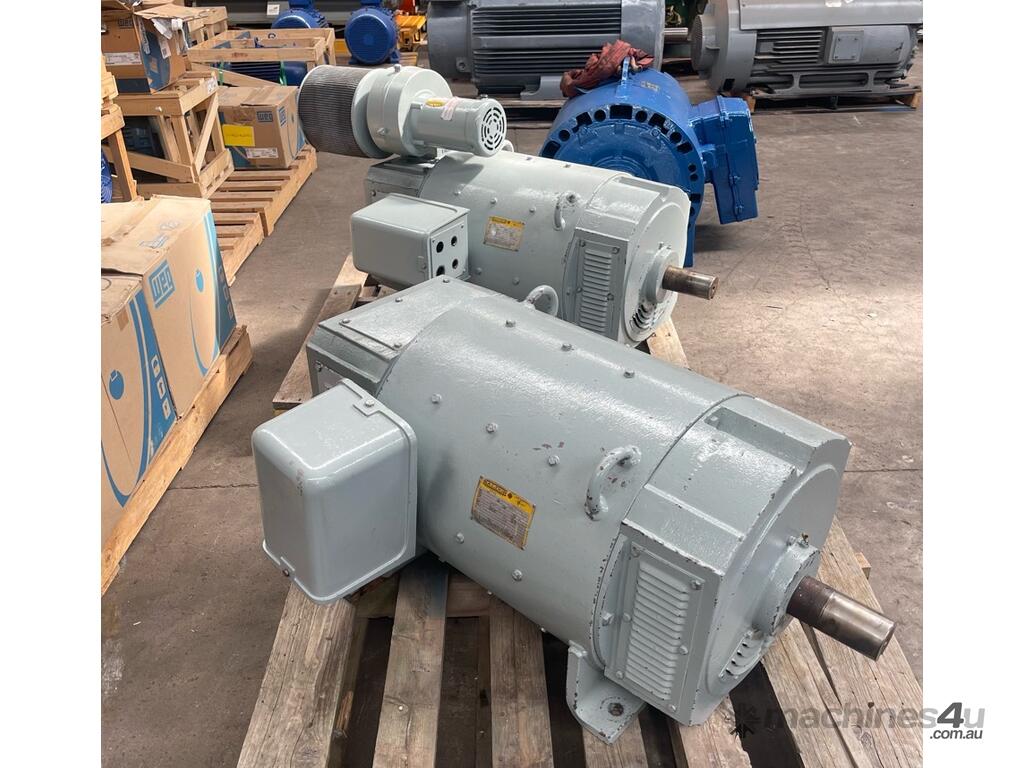

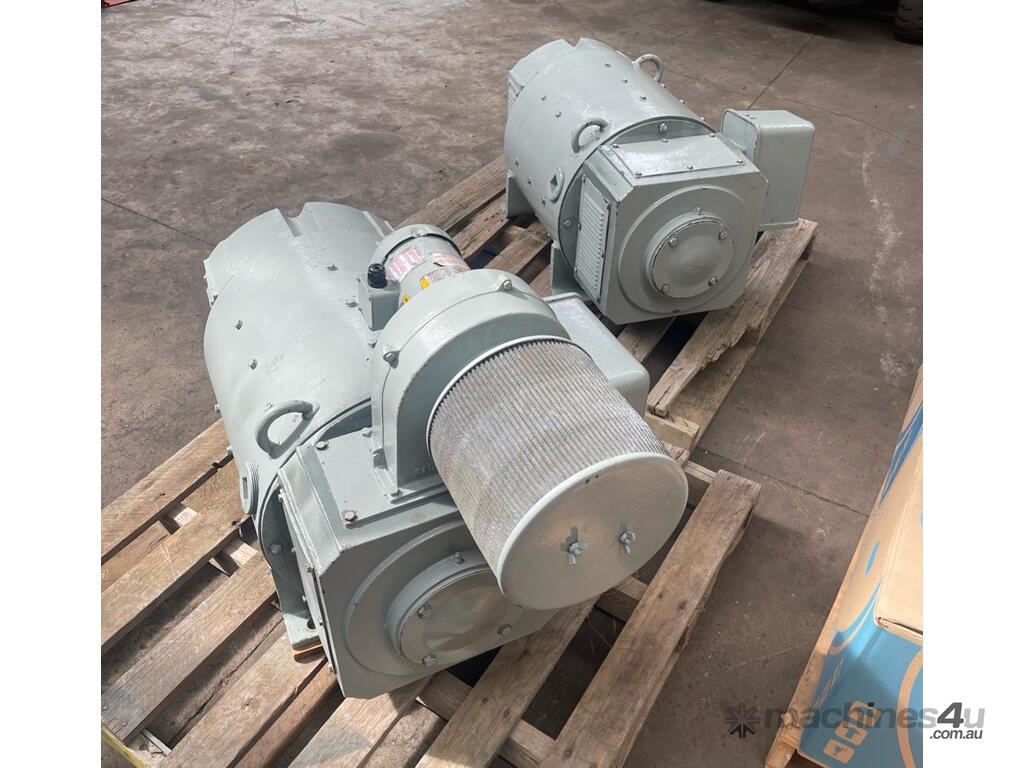

Available QTY: 2 (Pair - one has cooling, the spare is without)
Condition: Previously reconditioned & unused, electrically OK, warehouse storage
exStock Seaford VIC 3198 Victoria Australia
Available for immediate despatch - freight services available Australia wide
