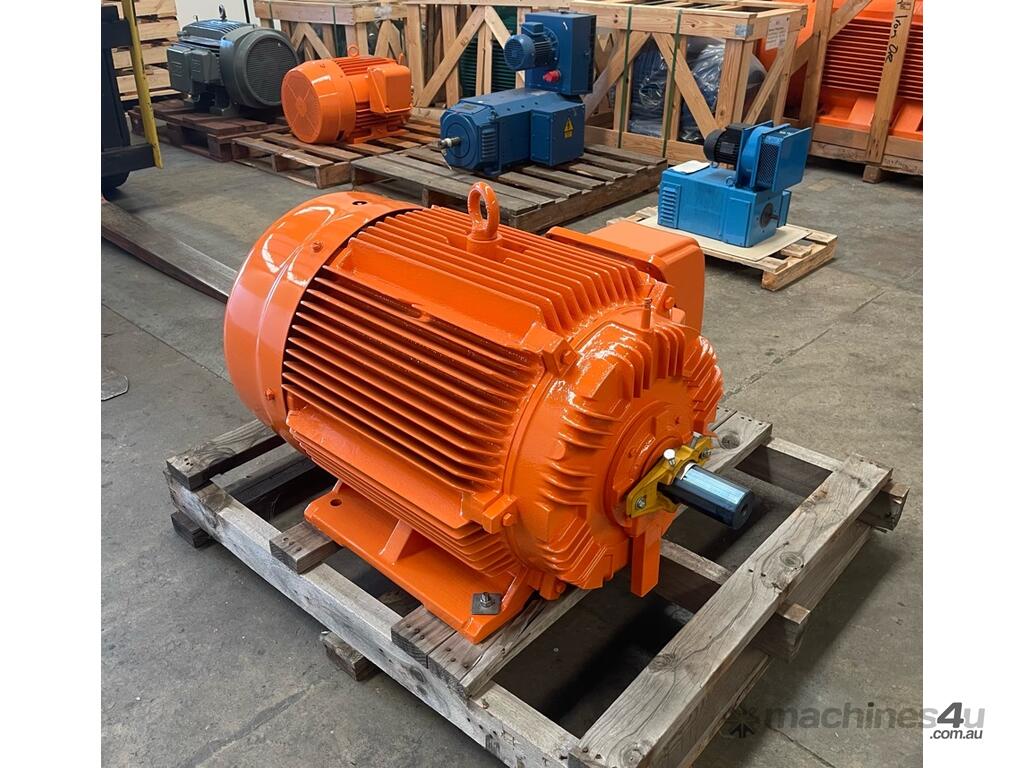

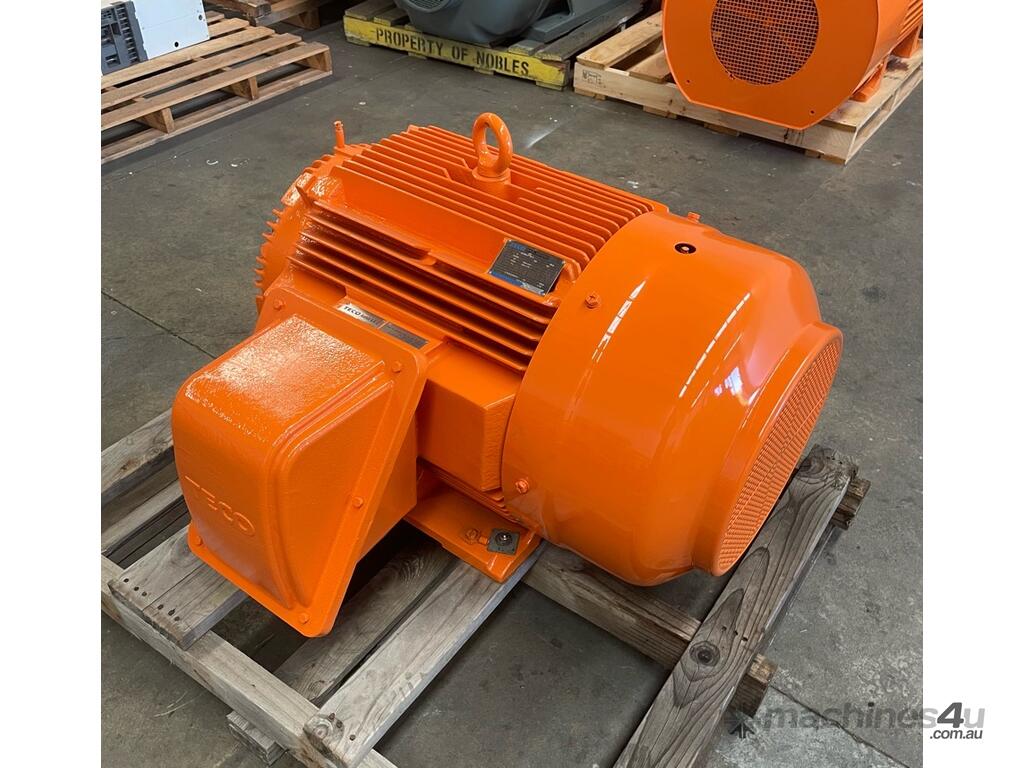

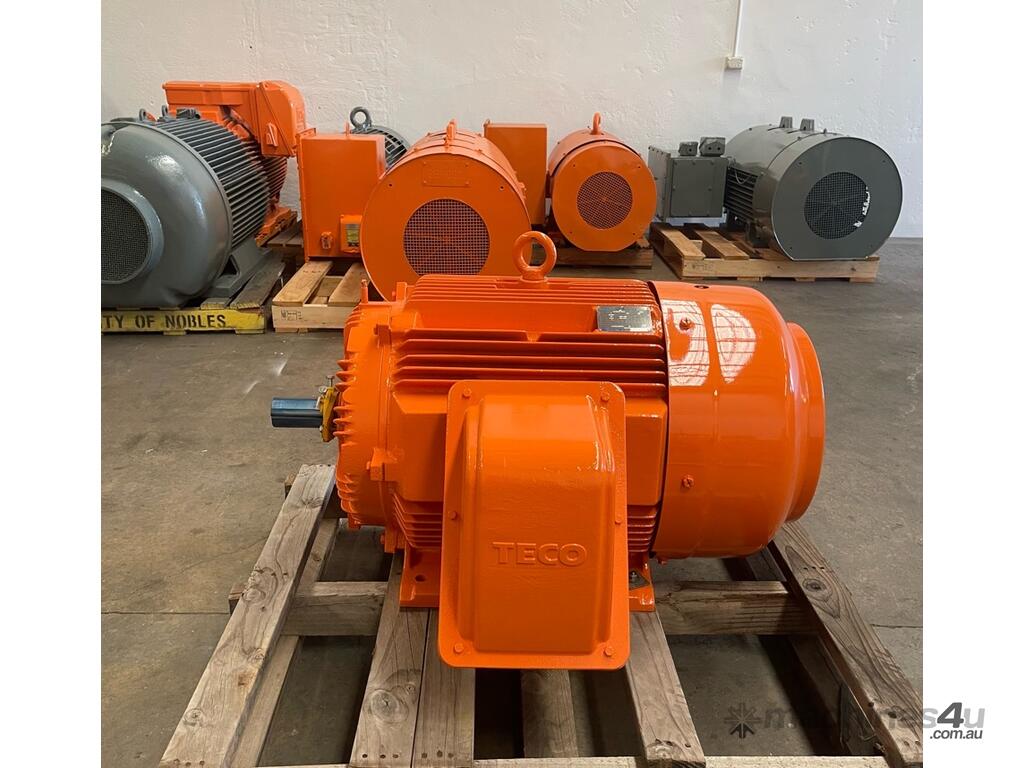

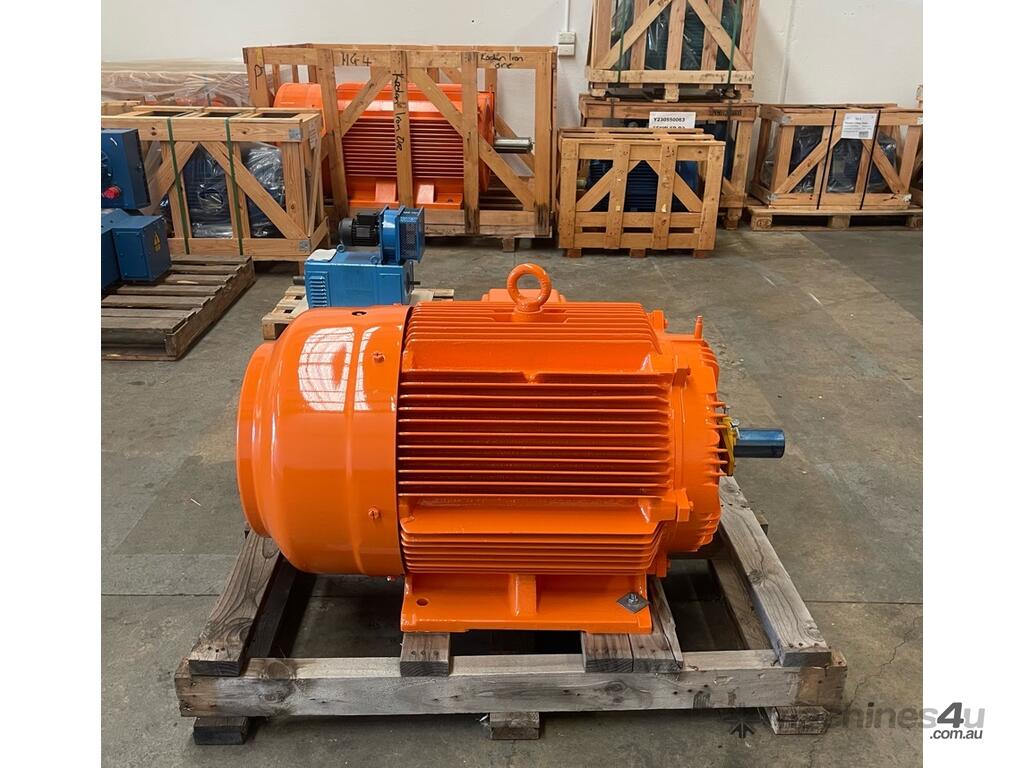

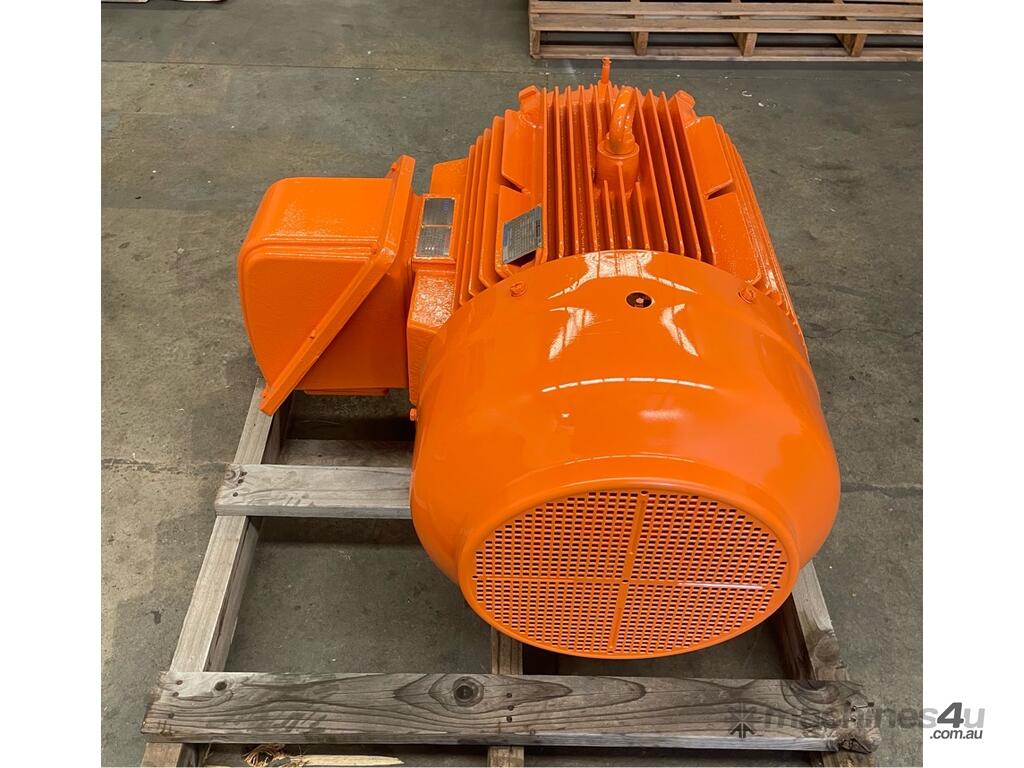

110 kw 150 hp 2-pole 2960 rpm 415 volt D280M frame IP66 Mining AC Electric Motor Teco MAXe Mining Type AEMBUC-DCV New Unused
Category: AC Squirrel Cage Electric Motor
3-phase induction motor
Make: Teco
Range: MAXe MINING
Type: AEMBUC-DCV
Power: 110 kw (150 hp)
Speed: 2-pole (2960 rpm)
Rated Frequency: 50 hz
Rated: Voltage: 415 v
Full Load Amperage: 179 A
Mount: B3 Foot
Frame: D280M
Protection rating: IP66 Mining
Insulation class: H
Weight: 678 kg
Critical Measurements:
Shaft DIA: 65 mm
Shaft Length: 140 mm
Total Length: 1092 mm (incl. shaft)
Total Width: 893 mm (incl. standard RHS to D.E. box)
Total Height: 651 mm
Feet Measurements: 'A' Across - 457 mm, 'B' front to back - 419 mm
Front hole to shaft: 'C' - 190 mm
Available QTY: 1
Condition: New / Unused. Warehouse storage
exStock Seaford VIC 3198 Australia
Available for immediate despatch - freight services available Australia wide
