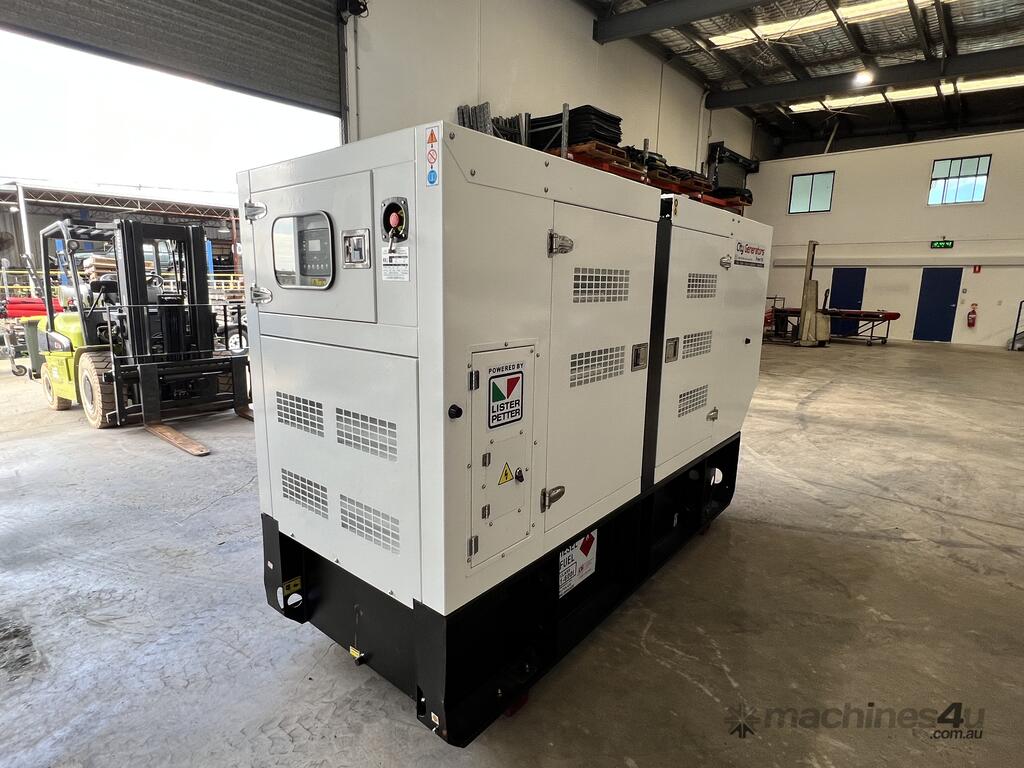

110KVA Powered by Lister Petter

TIDE POWER Diesel Generator Set:

NEW Aluminium Canopy


· 100kVA 240/415v 50Hz 139Amp’s per phase, Prime Power Rating Generator Set (110kVA Stand-by rating).

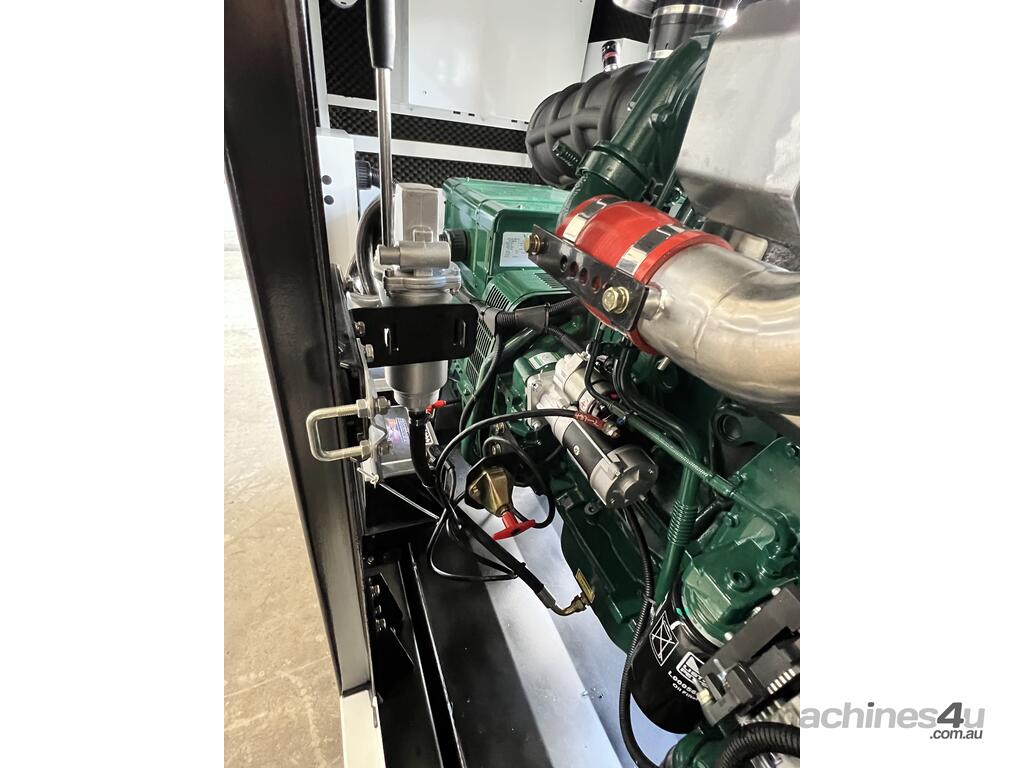

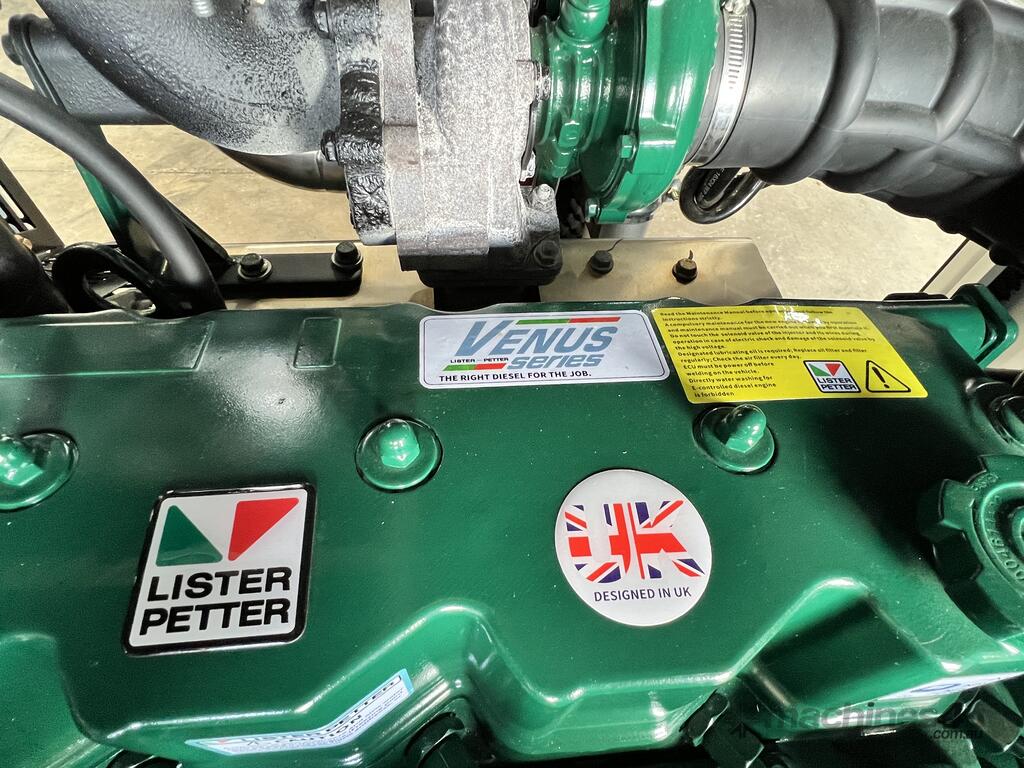

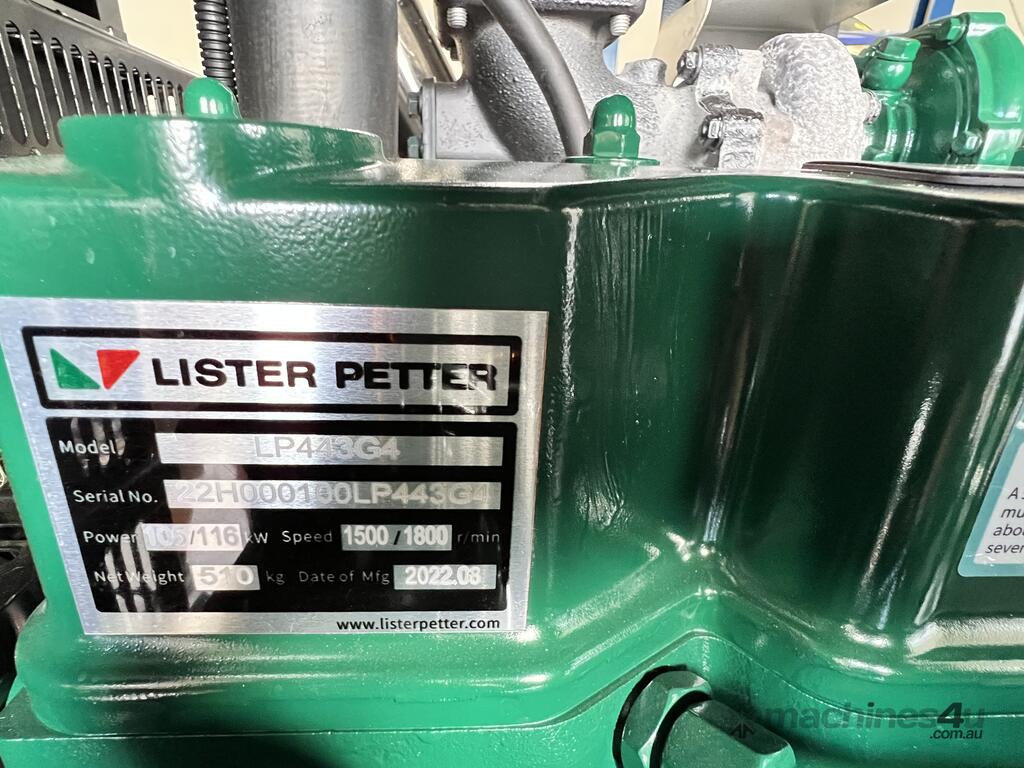

· Powered by Lister Petter® , 6 cylinder, 1500rpm industrial diesel engine.

· Set mounted radiator, and pusher engine driven fan.

- Centre lift, skid base oil pump for servicing.

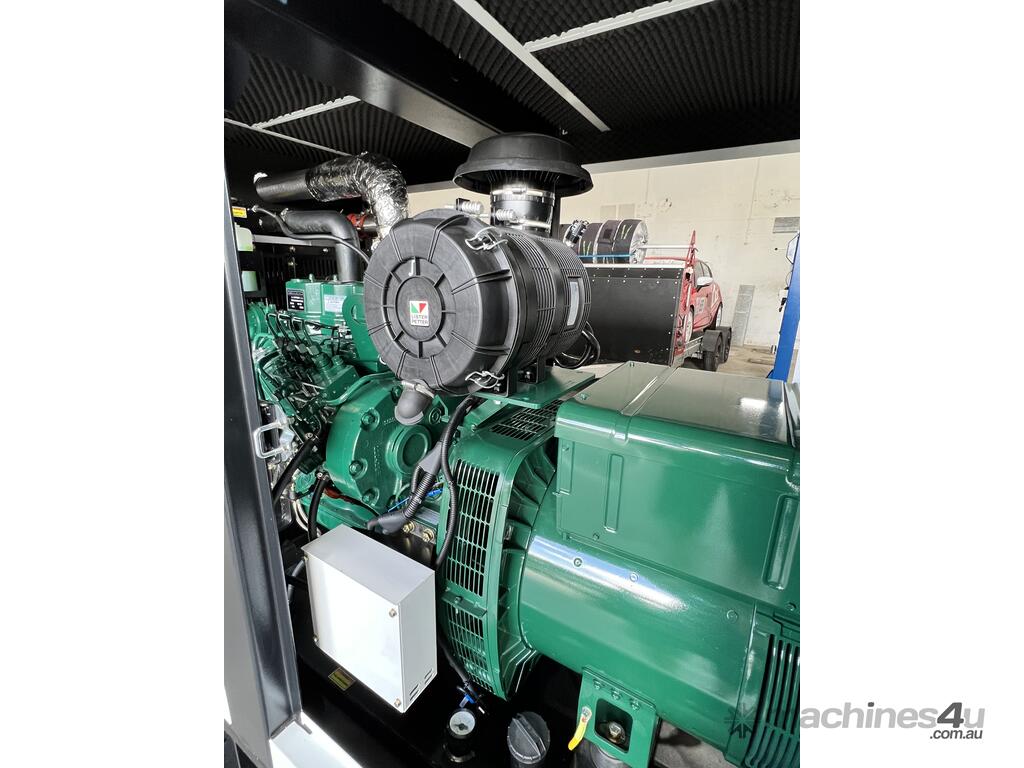

· Dry type replaceable element engine air intake filter.

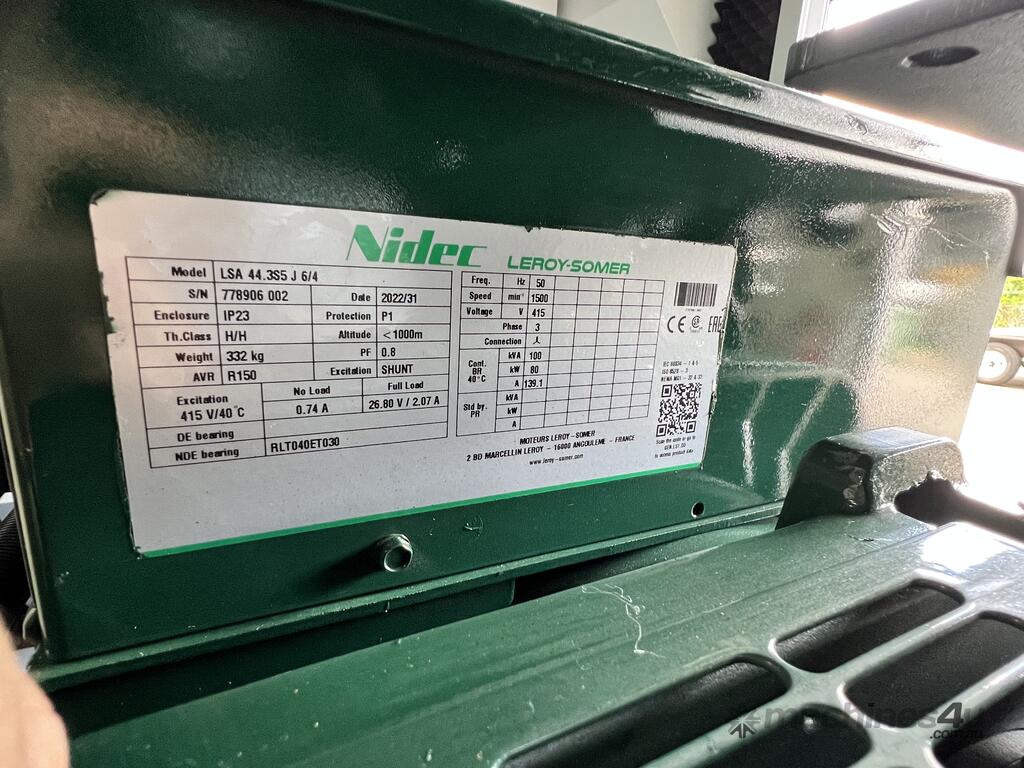

· Leroy Somer alternator, single bearing, flange mounted to the engine and driven by flexible steel discs.

· Class “H” insulation.

· Automatic voltage regulator.

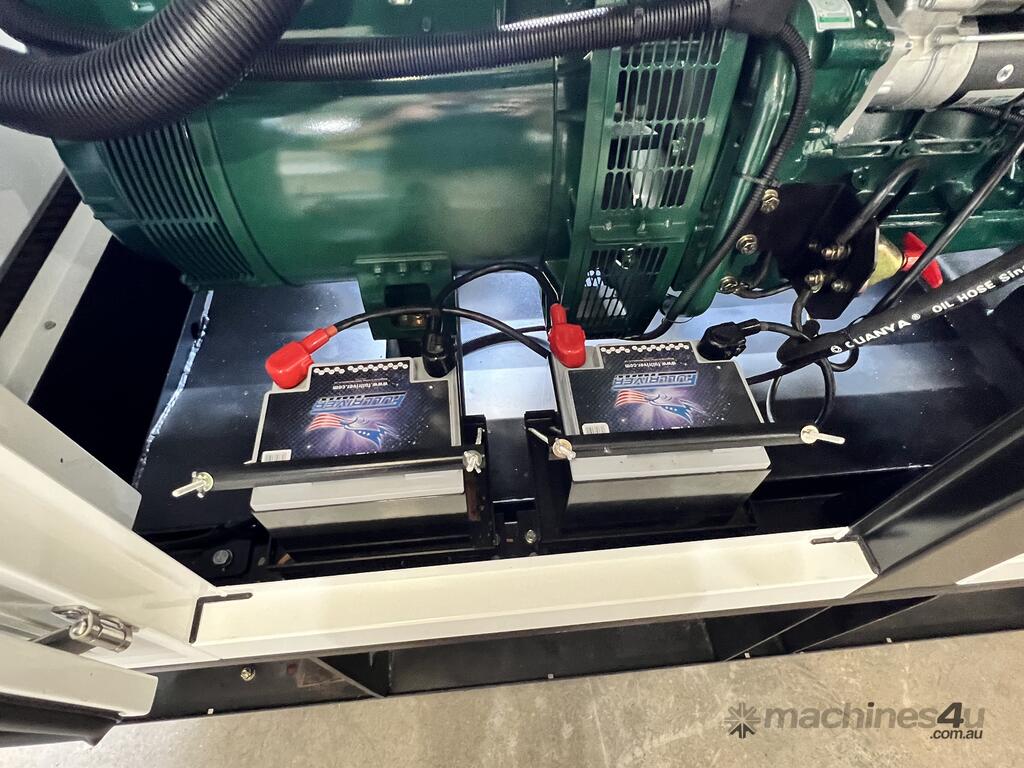

· Supply, lead acid starting battery, and leads.

· Supply Starting Battery Charger, mounted inside control cubicle.

· Engine fitted with charging alternator.

· Main output circuit breaker, mounted in control cubicle on generator.

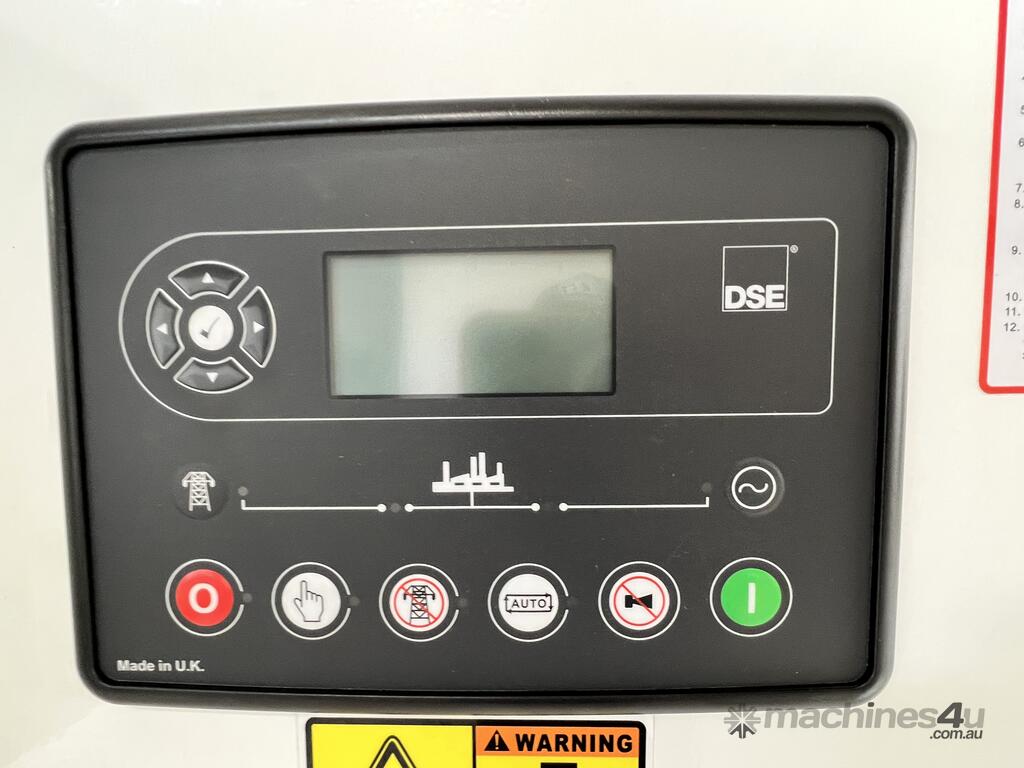

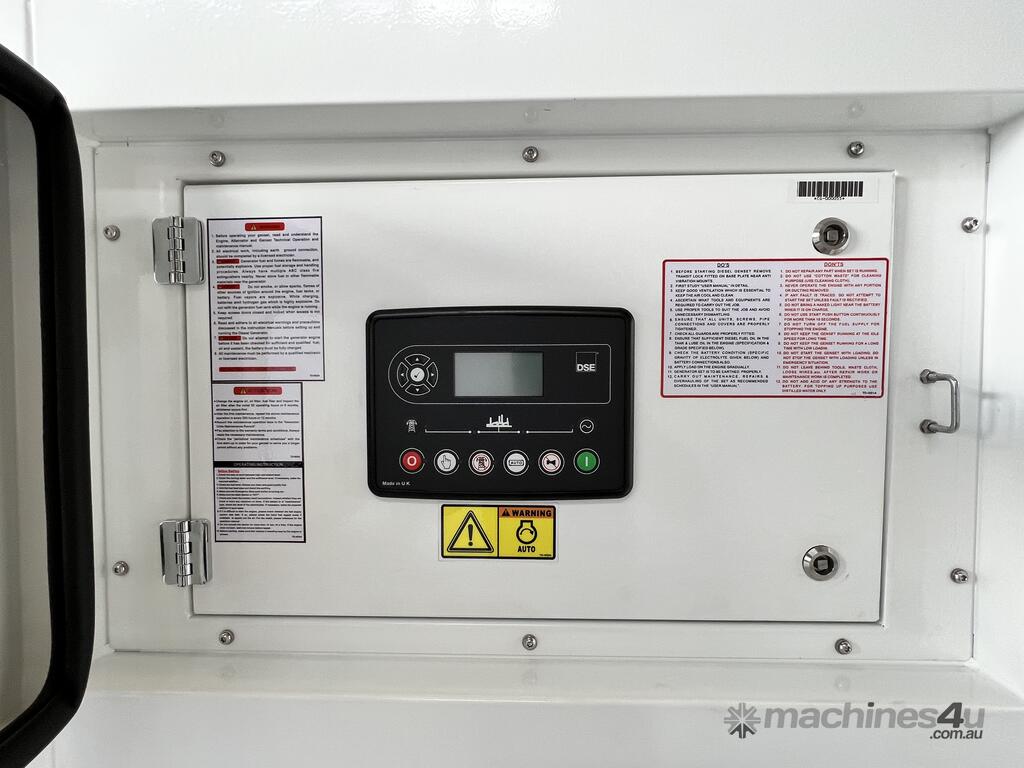

· The generator set controlled via a DSE6120 programmable set mounted, Automatic, remote stop / start generator Controller

· Generator set fitted with skid base fuel tank, suitable for 24hrs running at 100% of prime power load.

· Carry out pre delivery testing.

· Supply 1 copy of operation, and maintenance manuals.

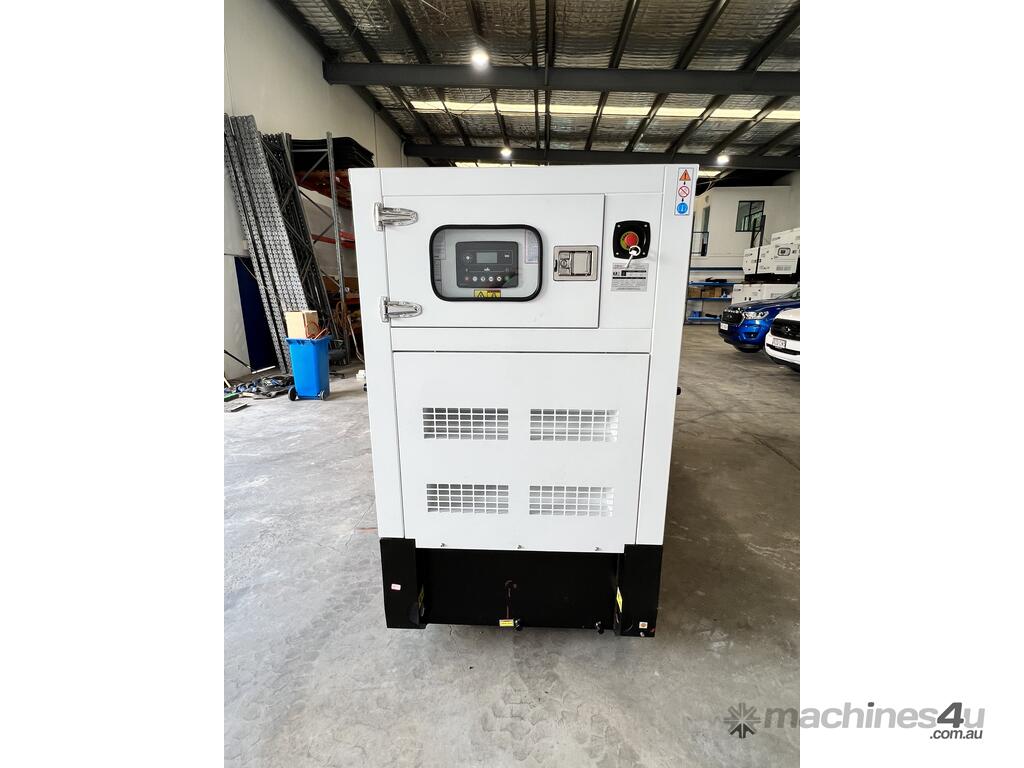

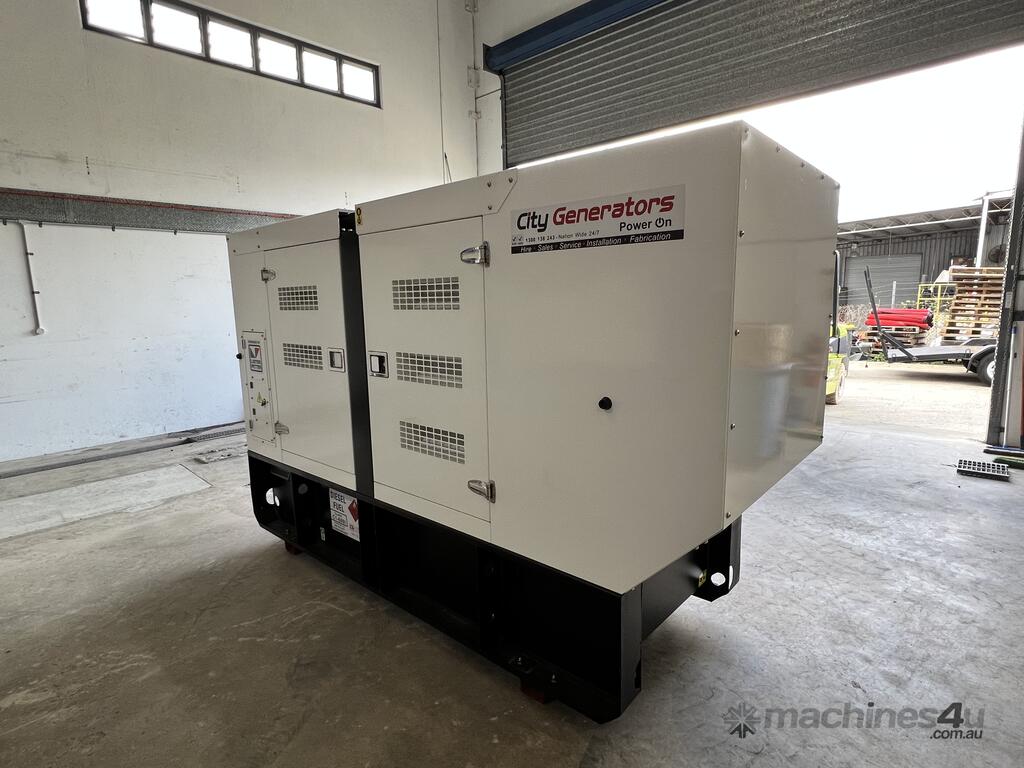

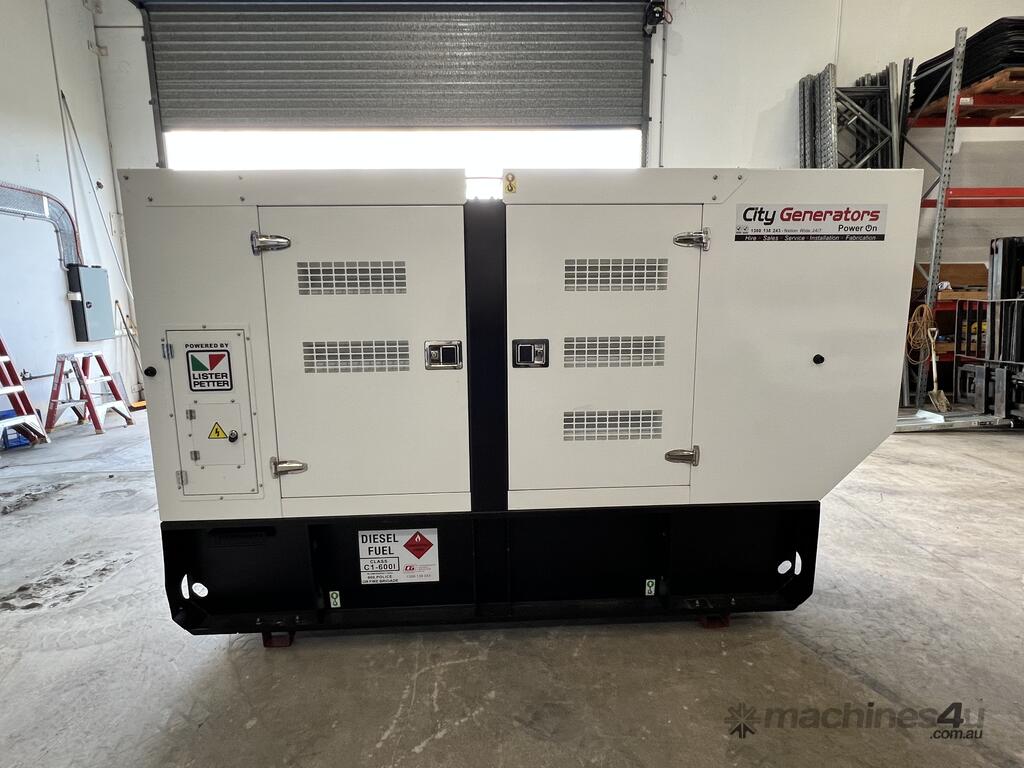

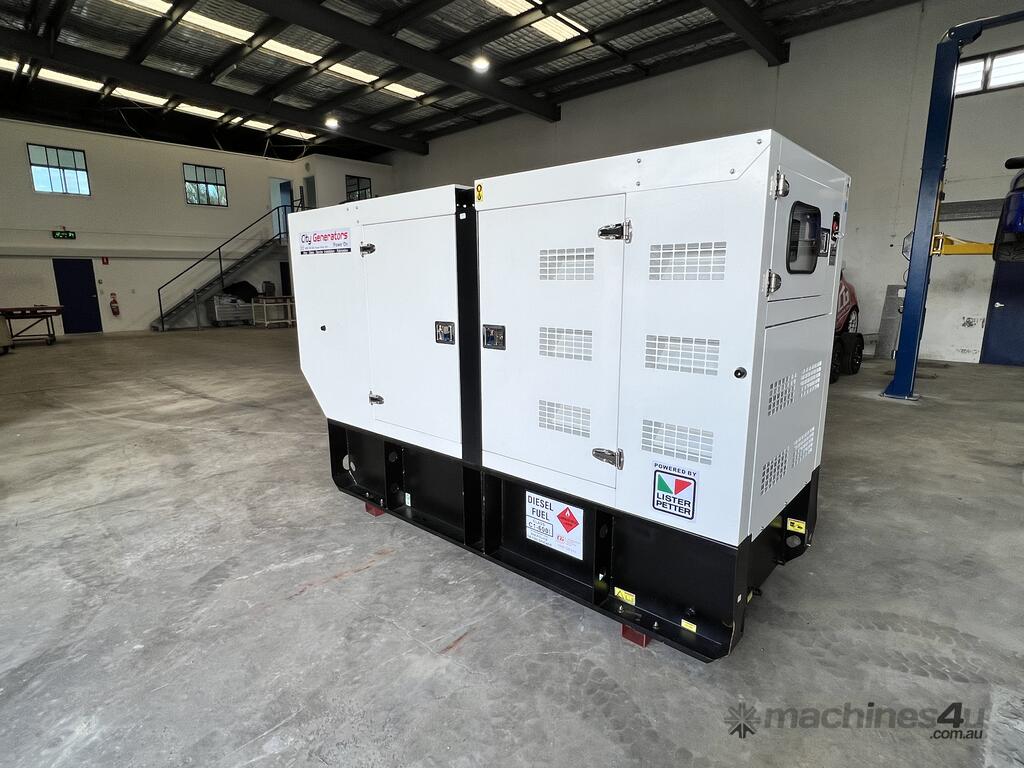

Acoustic canopy:

Tide Power canopies incorporate the following standard features.

· Acoustic sound attenuated canopy to nominally 74Bb 7m (this is industry standard, super silent is available at additional cost)

· Lube oil and coolant drains piped to the exterior of the canopy.

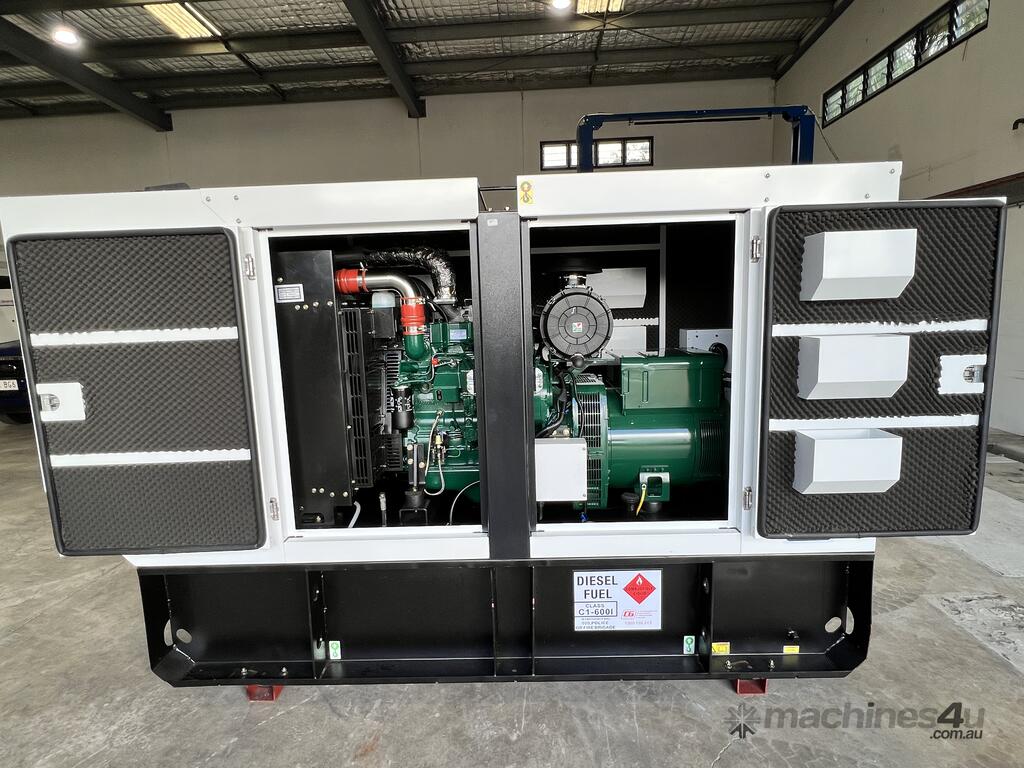

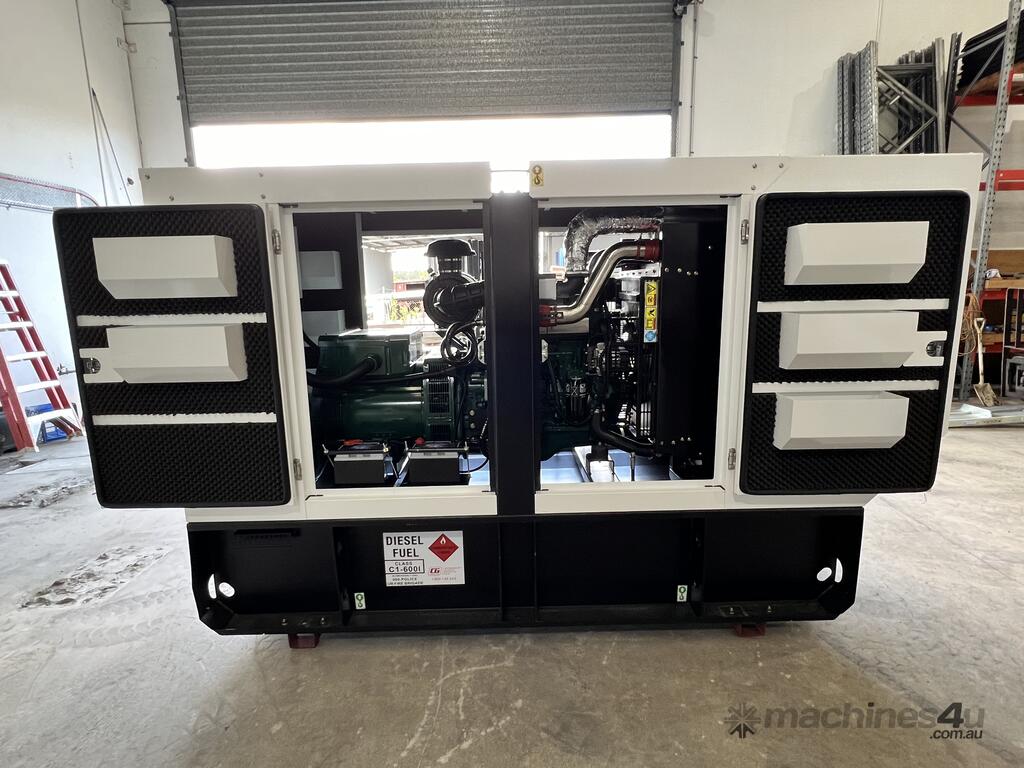

· Service access doors on each side of canopy.

· Control panel viewing window.

· Heavy lift and fork lift provisions.

· Exhaust outlet on top of the canopy.

· Cable entry provisions.

· The canopy constructed from 2mm Aluminium sheet metal and painted in polyester powder coating.

· High temperature fire retardant sound insulation.

· “Twist type” hinge and door handles.

· Exterior mounted emergency stop button.

· Lockable door handles for security.

2 years or 2000 hours warranty.


City Generators are the Australian Service Agent for Lister Petter.
