120 ton Punch and Shear

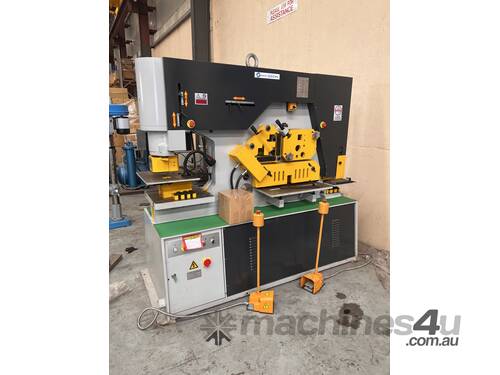

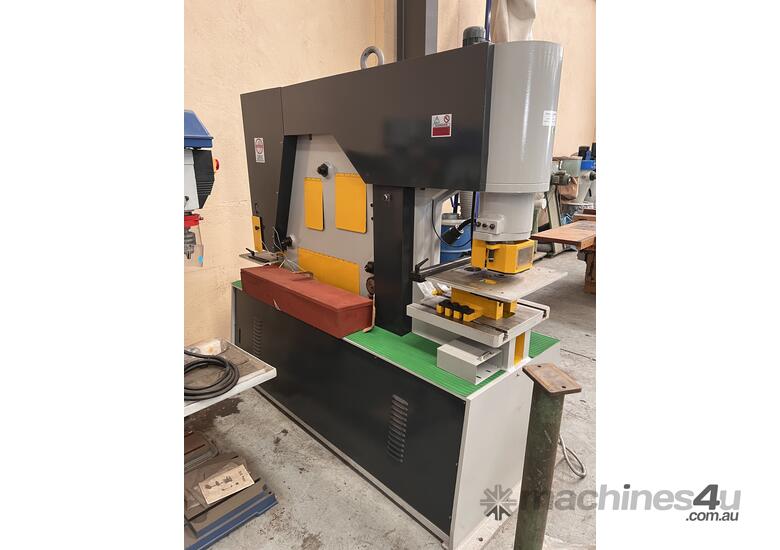

MADISON model HIW-120T Hydraulic Steelworker.

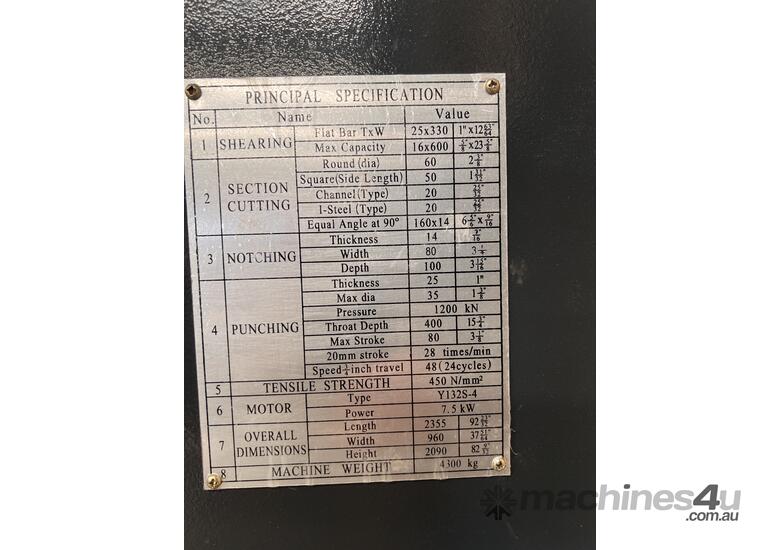

Specification

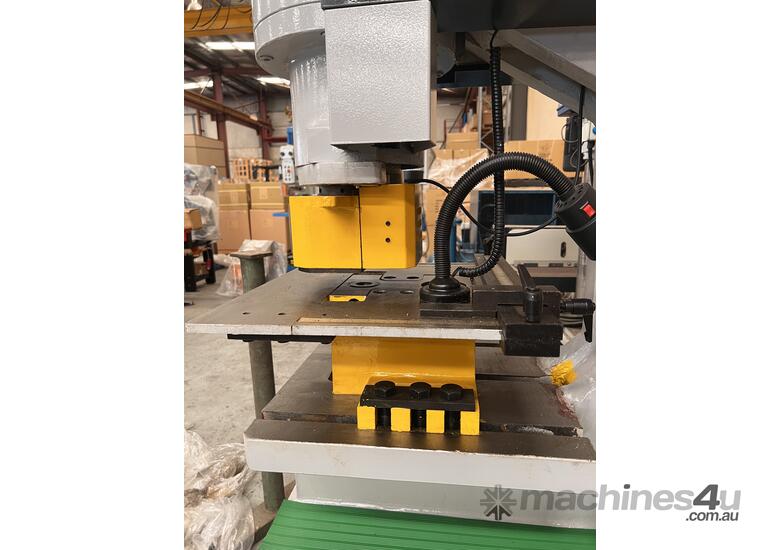

Punching
Rated capacity 120 t
Max. capacities 35Ø in 25 mm
Max. stroke length 80 mm
Throat depth 400 mm

Shearing
Flat bar 330 x 25 mm
Flat bar 600 x 16 mm
Blade length 600 mm
Rake Angle 8°

Angle Cutting
At 90º 160 x 14 mm

Section Cutting
Round/Square 60/50 mm

Notching
Material thickness 14 mm
Width 80 mm
Depth 100 mm

Machine
Motor 7.5 kw
Net weight 4800 kg
Floor space 2355 x 960 x 2090 mm


Standard Equipment
• Electric 1m touch and cut
• Hydraulic clamping for flat bar
* Easy change punch holder and adapters
* Swing away punch stripper unit
* Repetition support table at punch
* Support table at shear with squaring arm
* Magnetic moveable light
* Work station safety guards
* Full tank hydraulic oil
* Service tool kit
