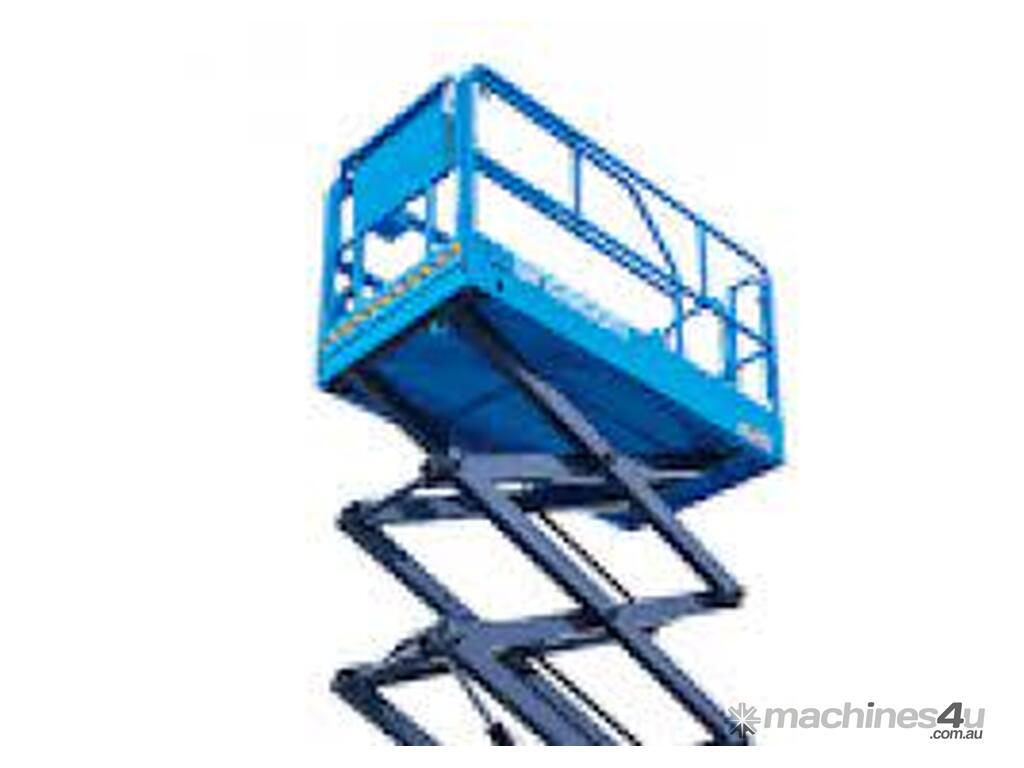

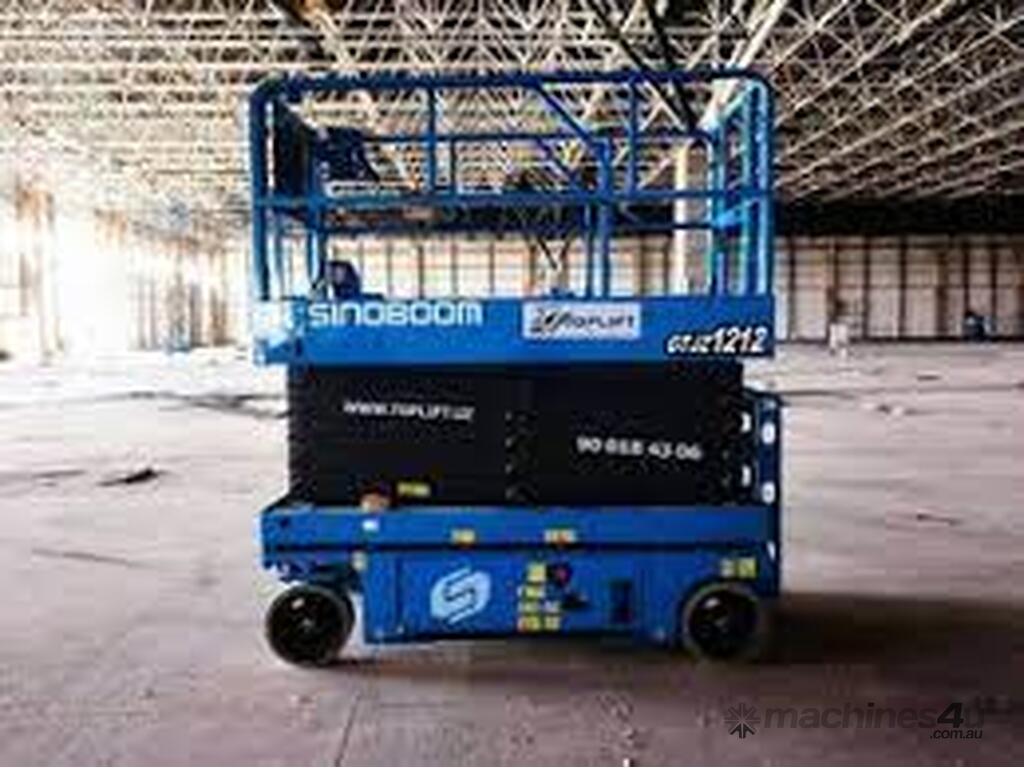

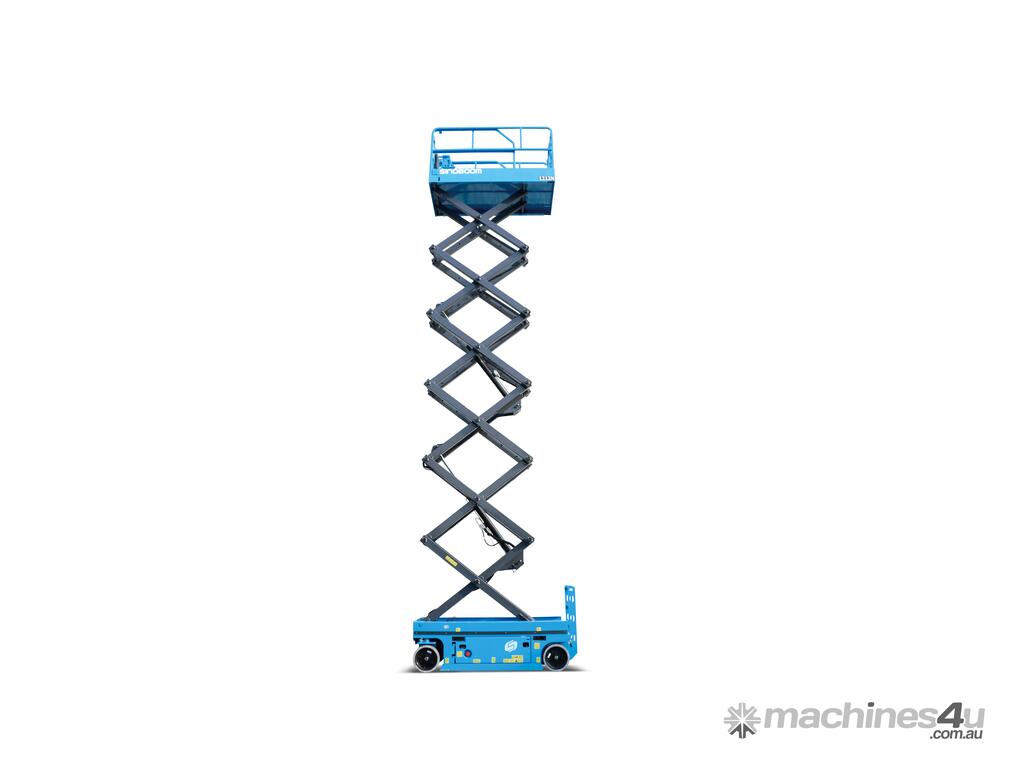

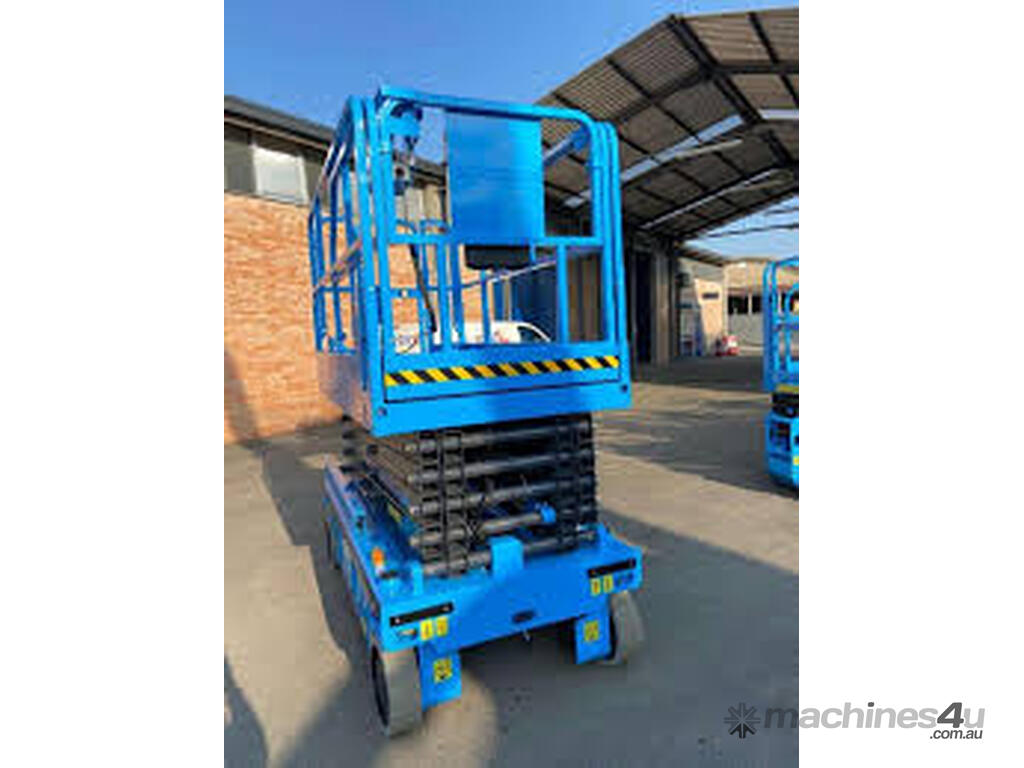

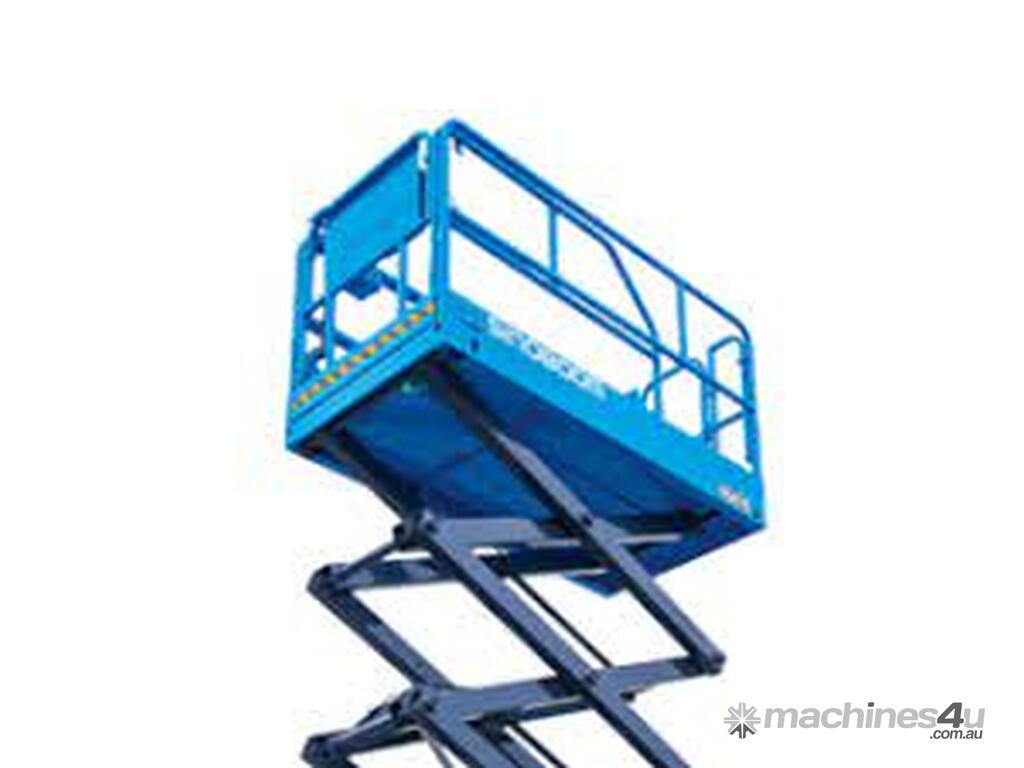

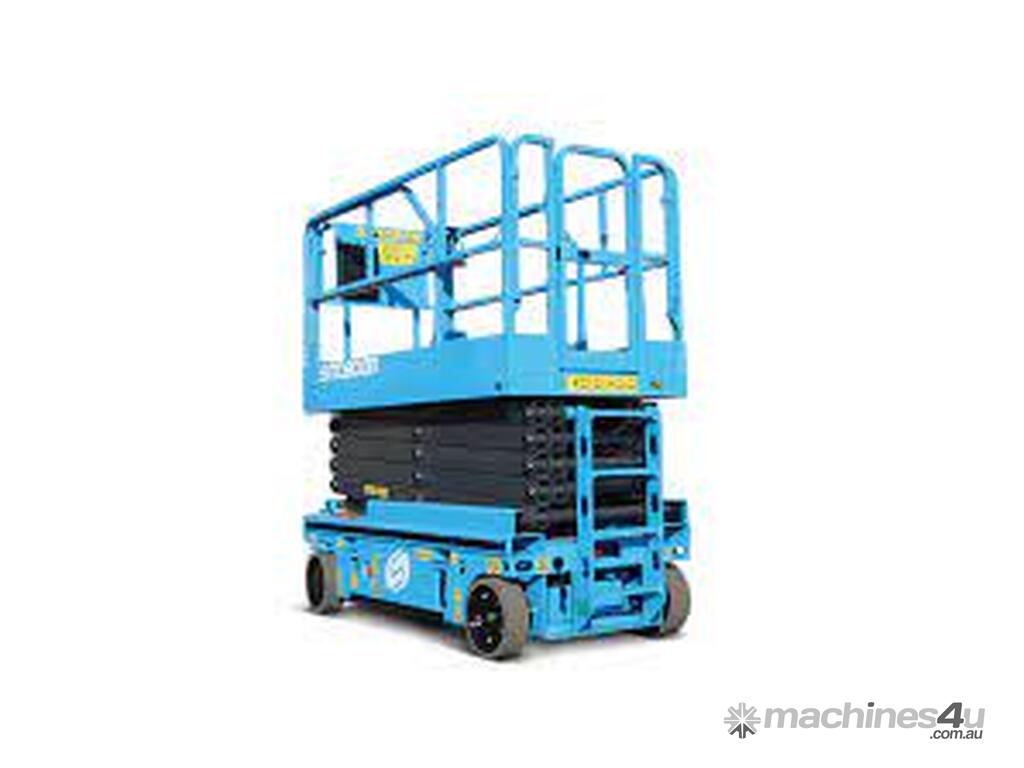

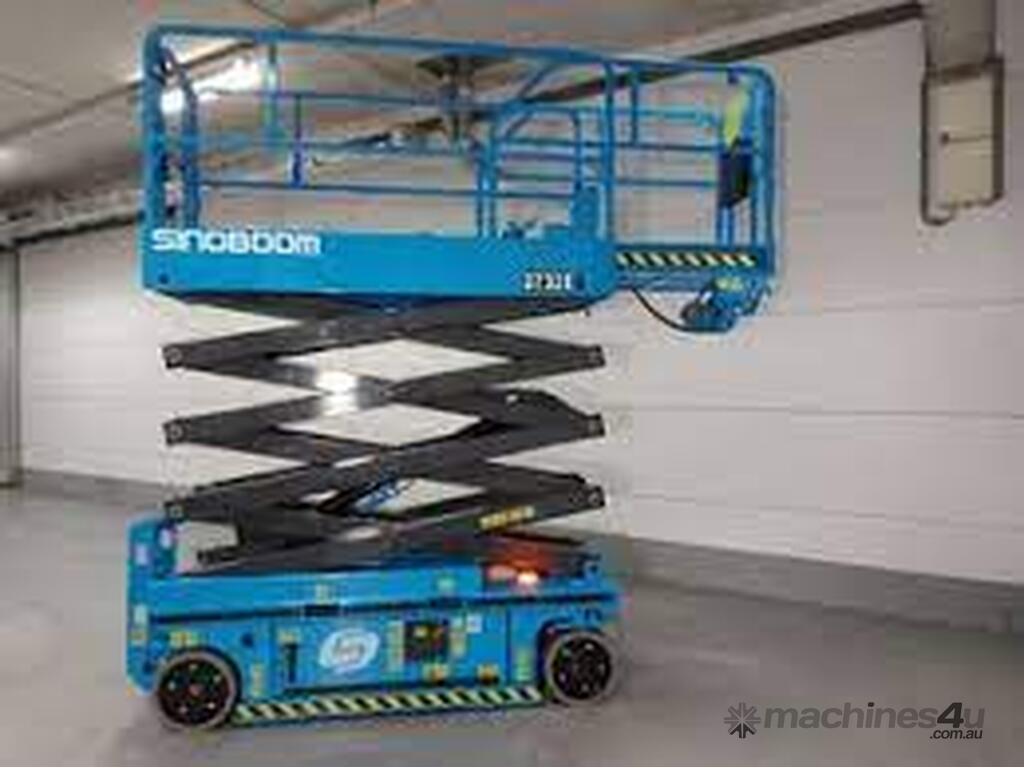

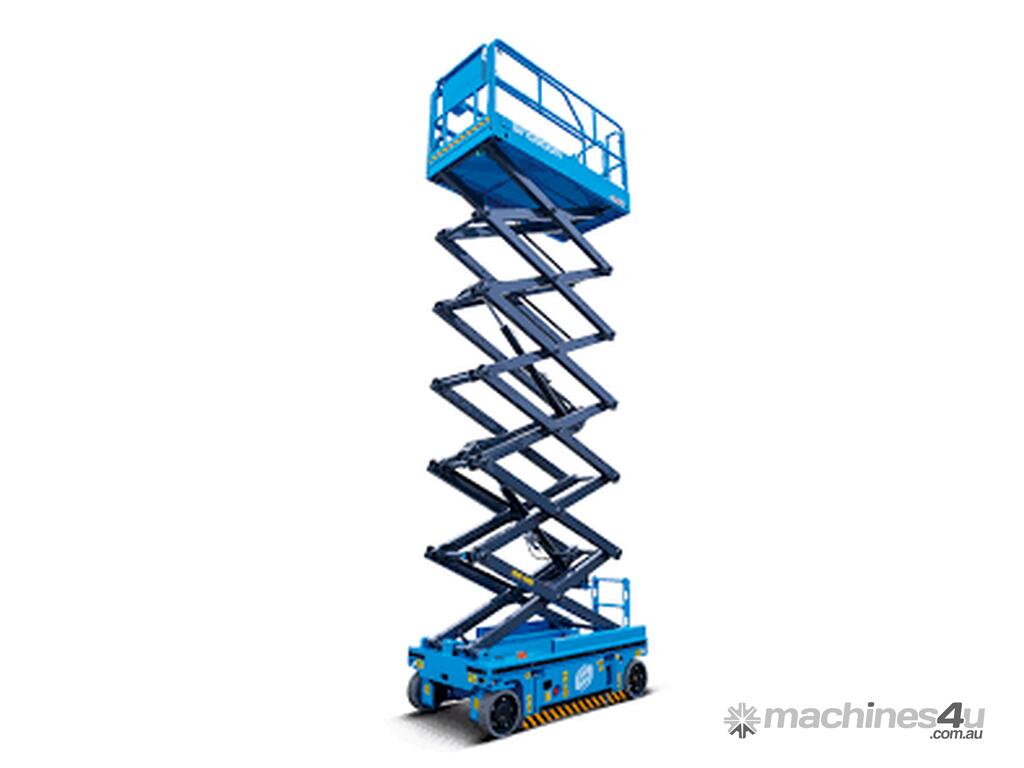

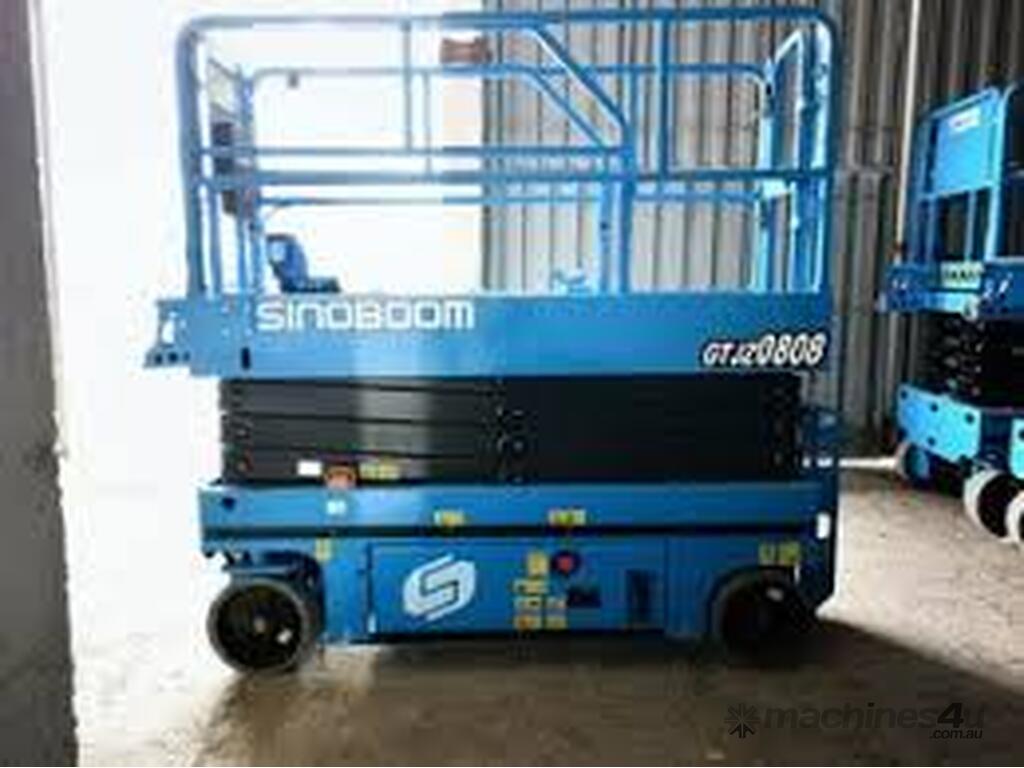

1212E (4046E) Hydraulic Series Scissor Lifts

Working height
13.9m
Platform Capacity
320kg
Gradeability
25%

DIMENSIONS
Max Working Height
13.9m (45’7’’)/11m (36’1’’)
[A] Max Platform Height
11.9m (39’)/9m (29’6’’)
[B] Max Horizontal Extension
0.9m (3')
[C] Length-Stowed
2.39m (7'10.1")
[D] Width-Stowed
1.18m (3’10.5")
Height - stowed (Rail Folded)
1.98m (6’6’’)
[E] Height - stowed
(Rail Unfolded)
2.62m (8’7.1")
[F] Wheelbase
1.85m (6'0.8")
Ground Clearance
0.088m(3.5")
Platform Dimensions(L×W×H)
2.25m×1.15m×1.1m (7'4.6"×3'9"×3'7")
PERFORMANCE
Platform Allowable Occupants
?Indoor/Outdoor?
2 Persons/ 1 Person
Platform Capacity
320kg (705lbs)
Drive Speed-Stowed
3.2km/h (2mph)
Drive Speed-Raised
0.5km/h (0.31mph)
Elevation Time
(Unloaded)
63s~68s
Descent Time
(Unloaded)
44s~49s
Gradeability
25%
Turning Radius
(Inside/Outside)
0.18m/2.35m (7.1’’/7'8.5")
Tilt Rating
(Front to Back/Side to Side)
3°/1.5°
Tyres-solid
380×125mm (15×5")
POWER
Batteries
24V, 220Ah (AGM maintenance-free battery)/25.6V, 200Ah (Lithium battery)
Power Source
24V DC
Drive Mode
2WD, front-wheel
Charger Input
100~240V AC
Charger Output
30A
Brake
2 rear wheel
Hydraulic System Capacity
24.5L (5.4gal (UK)6.5gal (US))

Weight(Indoor/Outdoor)
2,880kg (6,349lbs)
Weight(Indoor Only)
Standards Compliance
CE/ANSI/EAC
