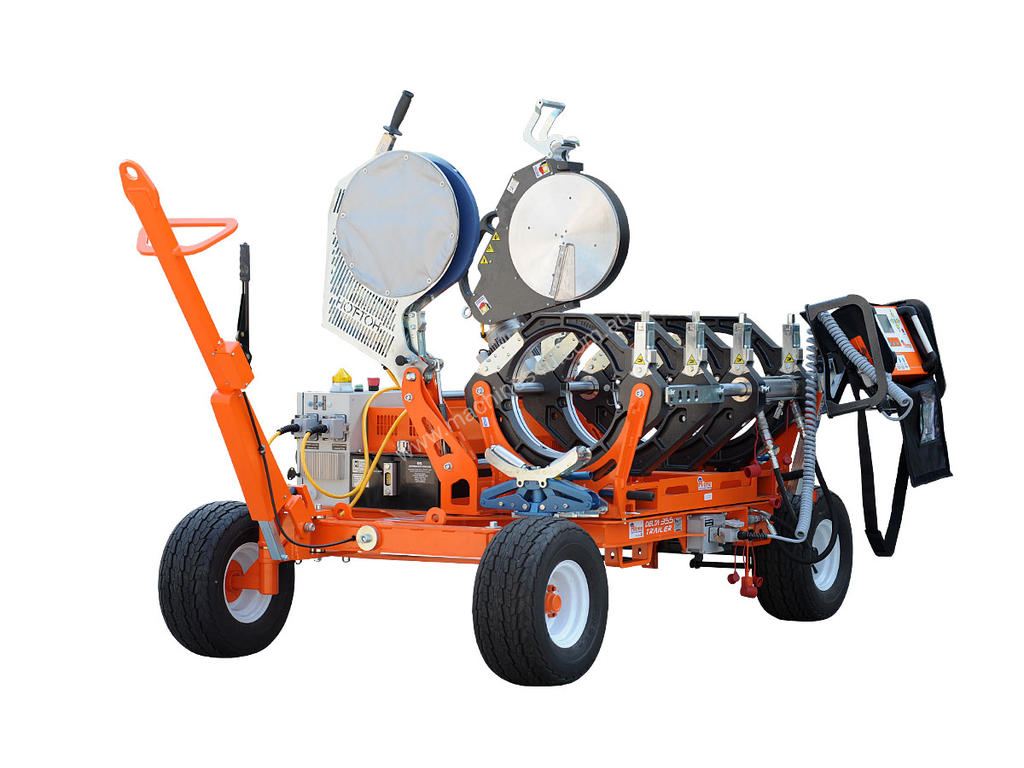

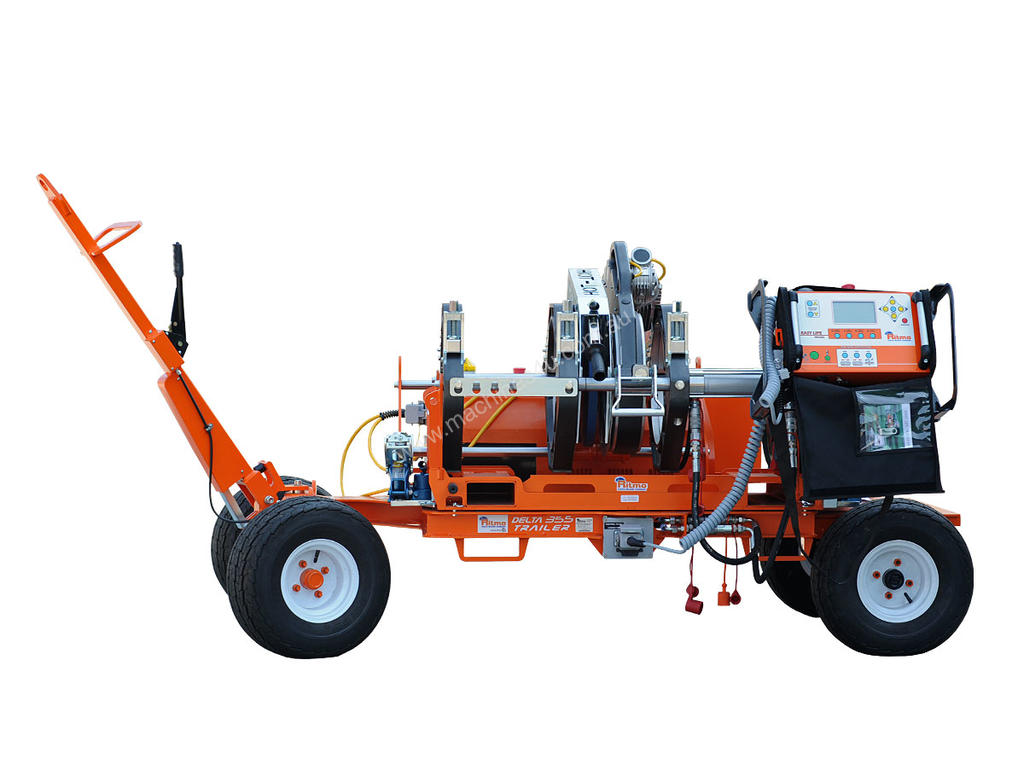

The Italian-Made Ritmo Delta 355 Trailer welds HDPE, PP pipes and fittings for the transportation of gas, water and other fluids under pressure from 125 mm to 355 mm. It is designed to work according to welding standard ISO 21307 High Pressure. The Delta 250 Trailer has the ability to weld fittings like elbows, tees, Y-branches and flanges necks.
Matrix Piping Systems also offers servicing, calibration and spare parts for Ritmo poly welding machinery. Our experienced team of service technicians can assist you with diagnosing and repairing any issues that may arise. Call us today to find out more!
Machine composition:

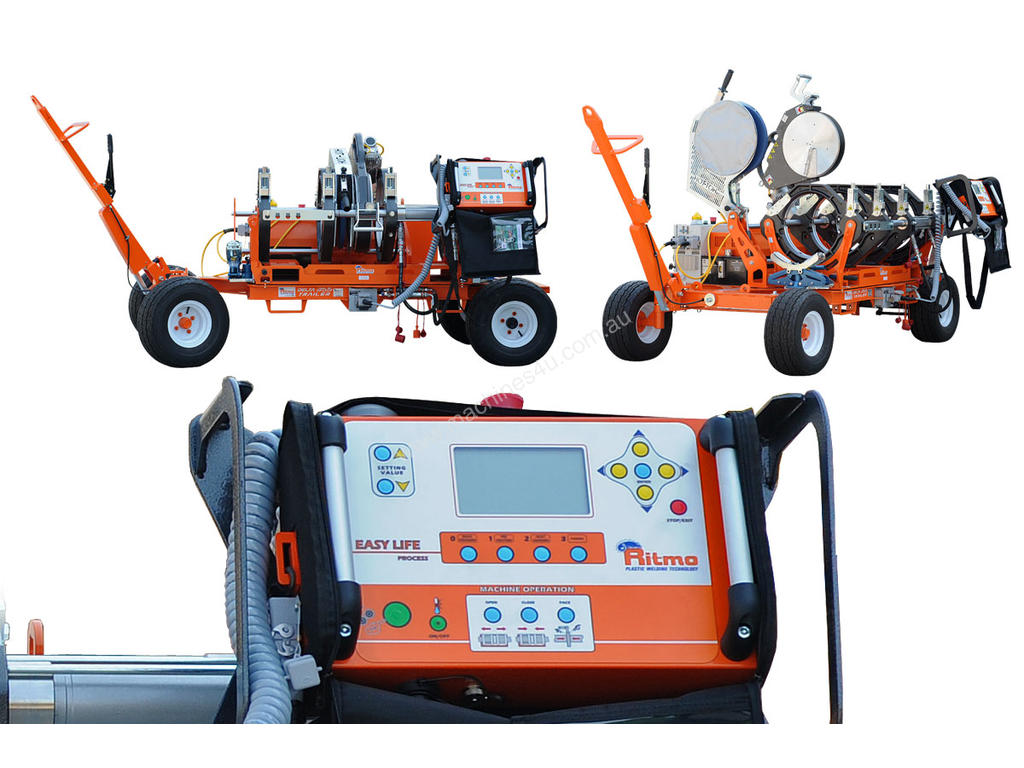

- Removable control panel with data-logging, memory up to 4000 welding reports, GPS traceability; USB port for welding report / data download / firmware upgrade. Easy-life welding control system: hardware and software have been developed to interact to each other sharing data during the entire workflow. Once set the welding parameters up, the system guarantees the repetition of the welding cycle, avoiding errors. The operator only have to confirm the work phases on the just pushing a button. Possibility to pre-set 20 customised.
- Chassis is equipped with front steering wheels; parking brake, machine frame design for forklift lifting
- Removable machine body to work in tight spaces with shavings collection tray
- Dragging bar designed to weld between the 3rd and 4th clamp
- Ritmo patented insert quick release SMARTLOCK SYSTEM
- On-board electrical milling cutter with integrated locking handle system, safety switch-off device, motor thermic
protection and gas spring to easily lift/lower the facer
- On-board heating plate with protection frame and insulated protection bag; gas-spring for easy lift/lower the heating plate
- Heating plate and facer locking system for safe transportation
- Two hydraulic rollers for pipe loading and unloading
Accessories available on request:
- Clamps’ inserts from Ø 125 to 315 mm (Master 250 mm)
- Tool for flange necks/stub-end holder
- Inserts’ transportation box
- Data-logging software and cable
Technical features:
Materials HDPE/PP
Working range Ø 125 ÷ 355 mm; 4" IPS ÷ 14" IPS
Power supply 230 Vac Single Phase 50-60 Hz
Absorbed power 6000 W
Memory 4000 Reports
Report PDF
Weight body machine 275 Kg
Weight standard composition 755 Kg
Dimension 2110 x 1600 x 1335 mm
