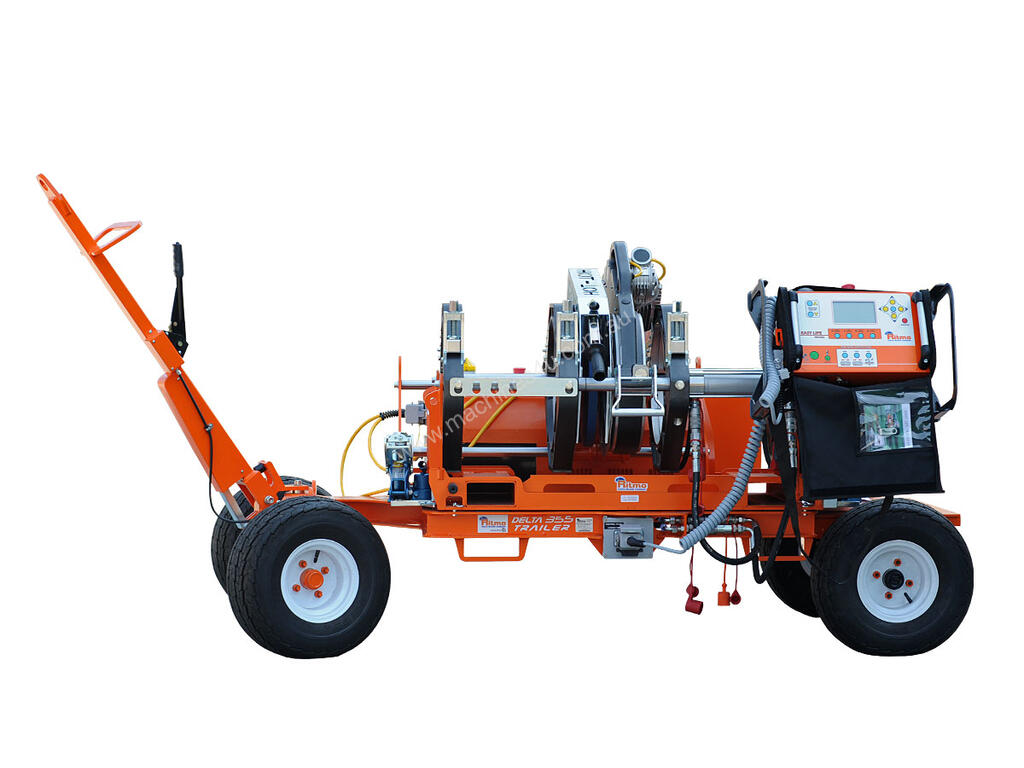

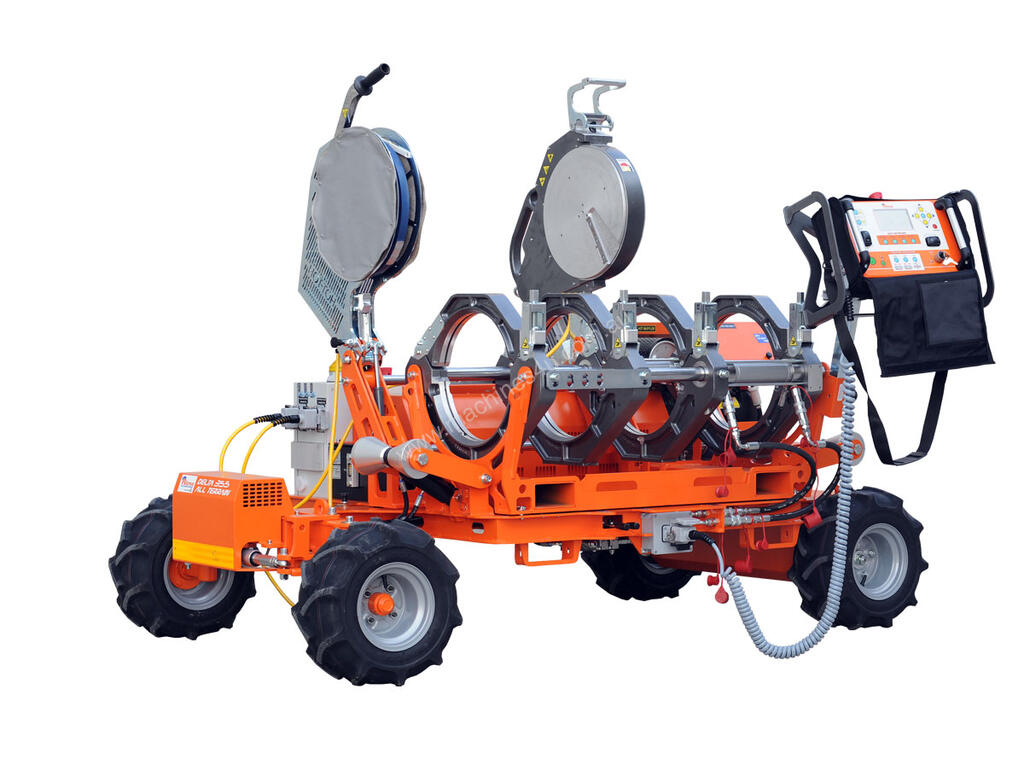

125-355mm Self-Propelled Automatic Butt Fusion Welder - Ritmo 355 All-Terrain

The Italian-Made Delta 355 All Terrain Butt Welder welds HDPE, PP pipes and fittings for the transportation of gas, water and other fluids under pressure from 125 mm to 355 mm. It is designed to work according to welding standard ISO 21307 High Pressure. Delta 355 All Terrain can be equipped with two types of engine: diesel low vibration and petrol. The engine, like an electrical generator, independently gives the necessary power supply to the machine during all its working and movement phases.

Matrix Piping Systems also offers servicing, calibration and spare parts for Ritmo poly welding machinery. Our experienced team of service technicians can assist you with diagnosing and repairing any issues that may arise. Call us today to find out more!

Machine composition:

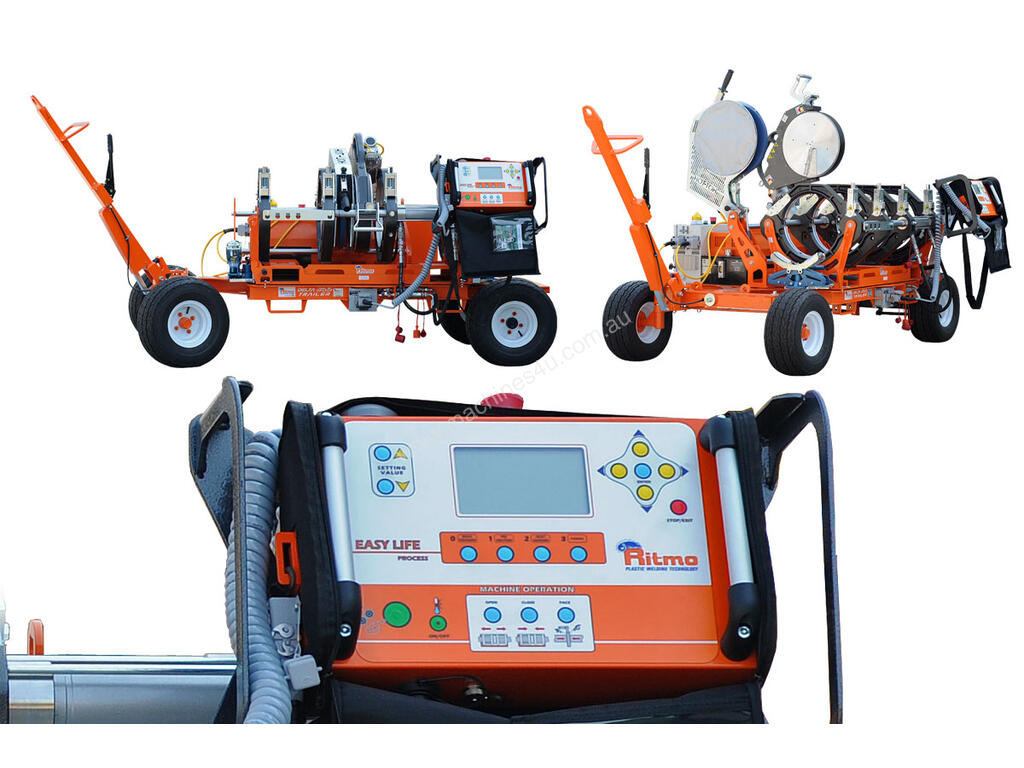

- Removable control panel with data-logging, memory up to 4000 welding reports, GPS traceability; USB port for welding report / data download / firmware upgrade. Easy-life welding control system: hardware and software have been developed to interact to each other sharing data during the entire workflow. Once set the welding parameters up, the system guarantees the repetition of the welding cycle, avoiding errors. The operator only have to confirm the work phases on the just pushing a button. Possibility to pre-set 20 customised.
- Chassis is equipped with front steering wheels and rear traction; parking brake, machine frame design for forklift lifting
- Removable machine body to work in tight spaces with shavings collection tray

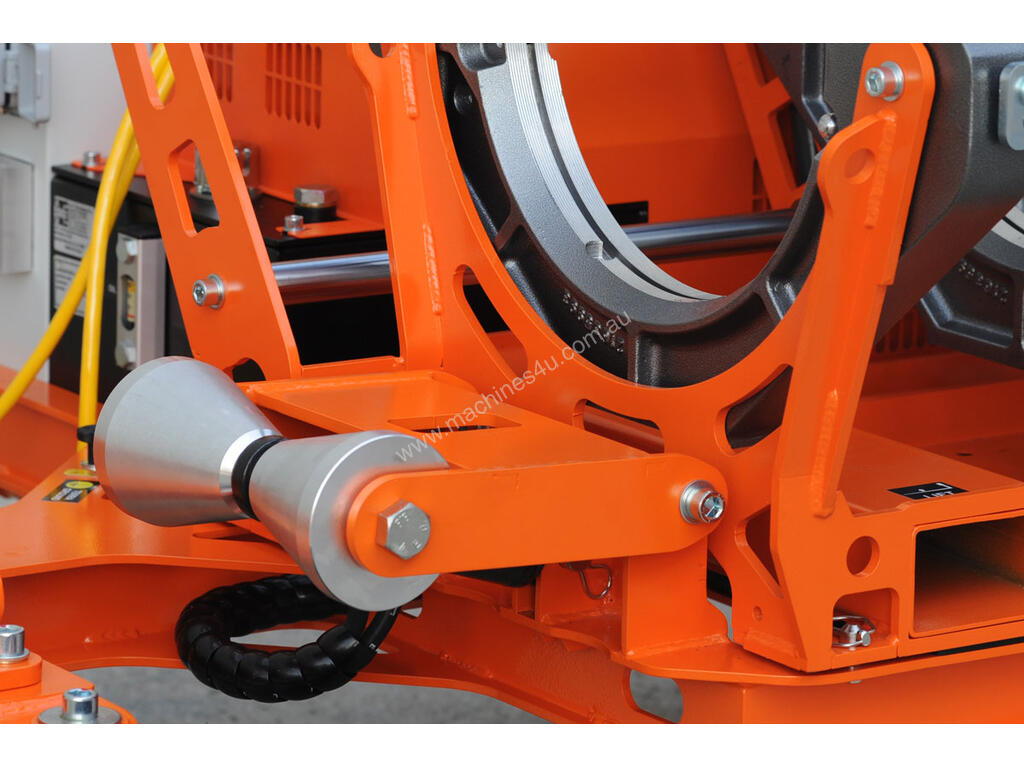

- Dragging bar designed to weld between the 3rd and 4th clamp
- Ritmo patented insert quick release SMARTLOCK SYSTEM
- On-board electrical milling cutter with integrated locking handle system, safety switch-off device, motor thermic
protection and gas spring to easily lift/lower the facer
- On-board heating plate with protection frame and insulated protection bag; gas-spring for easy lift/lower the heating plate
- Heating plate and facer locking system for safe transportation
- Two hydraulic rollers for pipe loading and unloading
- Kit for network power supply connection (upon request) excluding the machine engine and weld in closed environments
- 25 lt capacity tank for more than 12 working hours operating time


Accessories Available on Request:

- Clamps inserts from Ø 125 to 315 mm (MASTER 250 mm)
- Tool for flange necks/stub-end holder
- Inserts’ transportation box
- Data-logging software and cable

Technical features:

Materials: HDPE/PP
Working range: Ø 125 ÷ 355 mm
Power supply: Self contained / indipendent diesel engine Kohler - Lombardini 8,6 kW; gasoline Honda 14,5 kW
Fuel tank capacity: 25 Litres
Operational tank capacity over 12 Hours: Absorbed power Max 5,6 kW (230 V Single Phase) it refers to the welding machine use when connected to network power supply (excluding on-board generator)
Memory: 4000 Reports
Weight: 755 Kg
Dimension: 2110 x 1600 x 1335 mm
