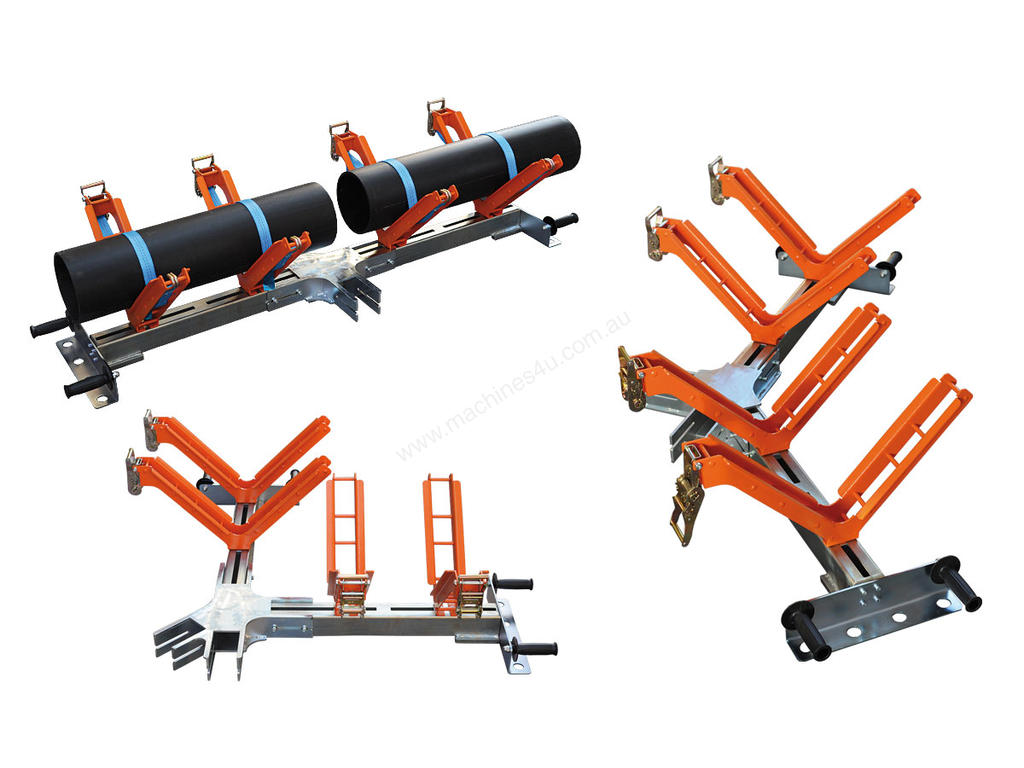

The Universal Aligner 125 - 500 is an indispensable professional tool for positioning and supporting pipes when welding electric sleeves from Ø 125 to 500 mm.
The aligner is entirely made of steel; it is composed of a central positioning plate and axes for fixing the pipes. The positioning plate has 4 working combinations in order to weld 45 °, 90 °, in-line and T-junctions. The axes are equipped with V-shaped vices with a locking system of the pipes by means of ratchet straps. In addition to fixing the tube to the vice, the system performs the centering function. Each axis has two guides on which the vices can move. Practical side handles ensure easy grip when moving and positioning the aligner, both in the welding configuration and during the preparation phases.
The aligner is available in two configurations: with two or three axes (for welding T-fittings).
Composition:
- Aligner complete with four clamps
- Service key
Technical specifications:
Field of work: Ø 125 ÷ 500 mm
For welding: 45 ° - 90 ° - in line - T
Dimensions 2 axes: 1815 x 610 x 410 mm
Dimensions 3 axes: 1815 x 1230 x 410 mm
Weight 2 axes version: 38 Kg
Weight 3 axes version: 52 Kg
