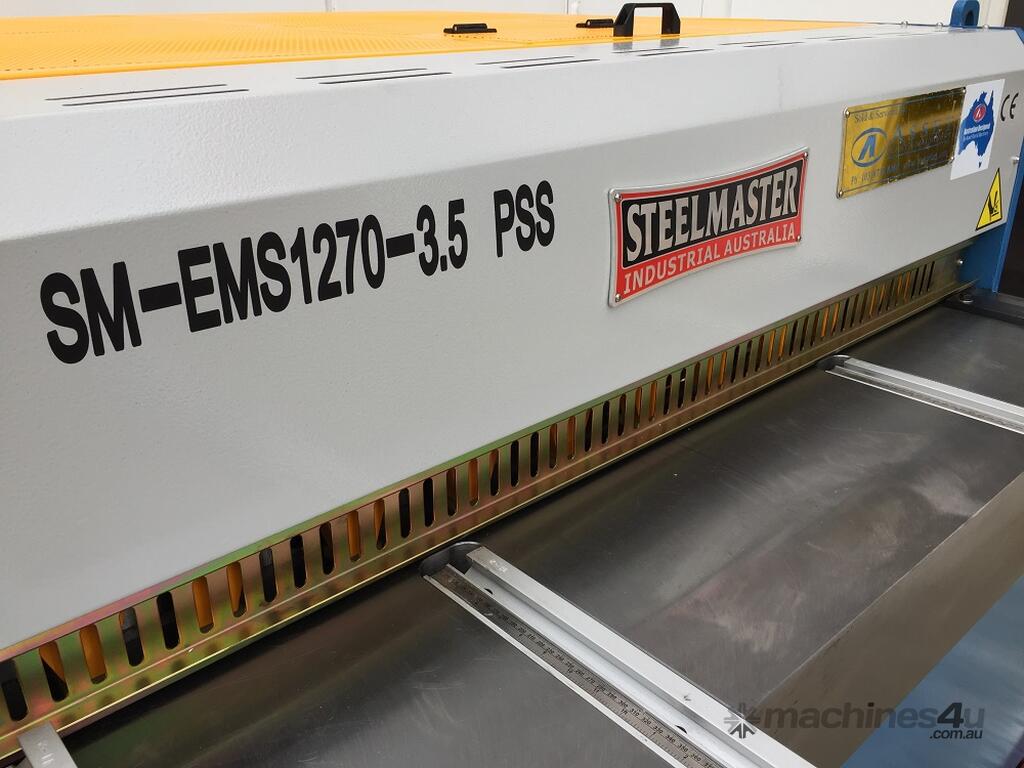

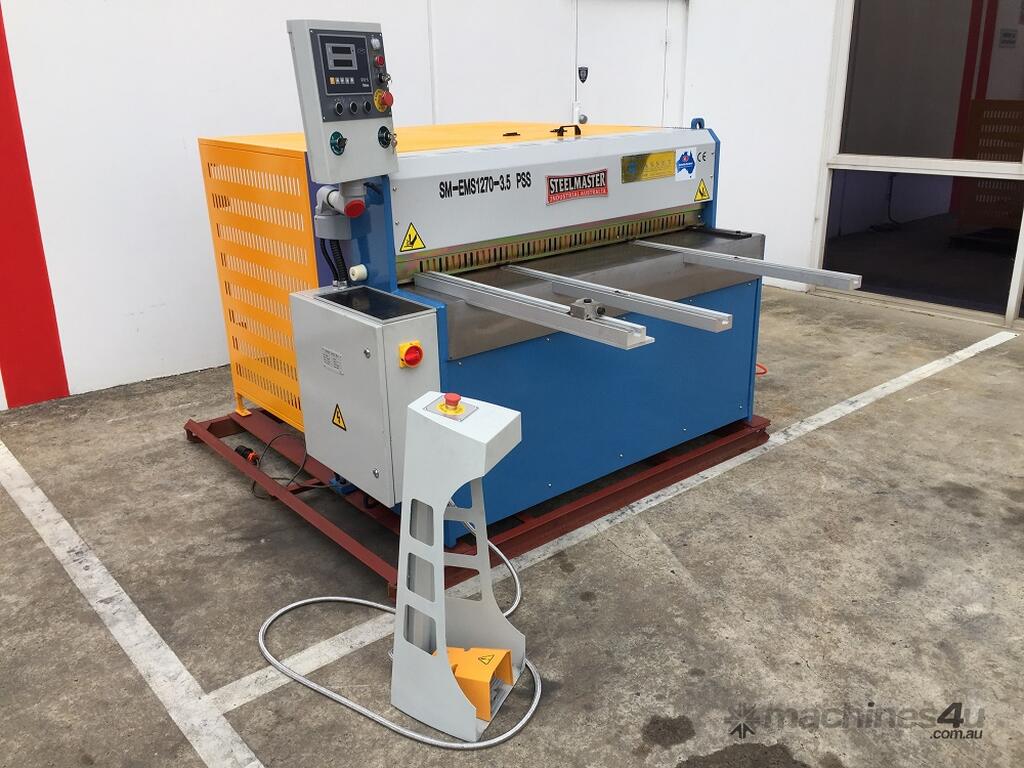

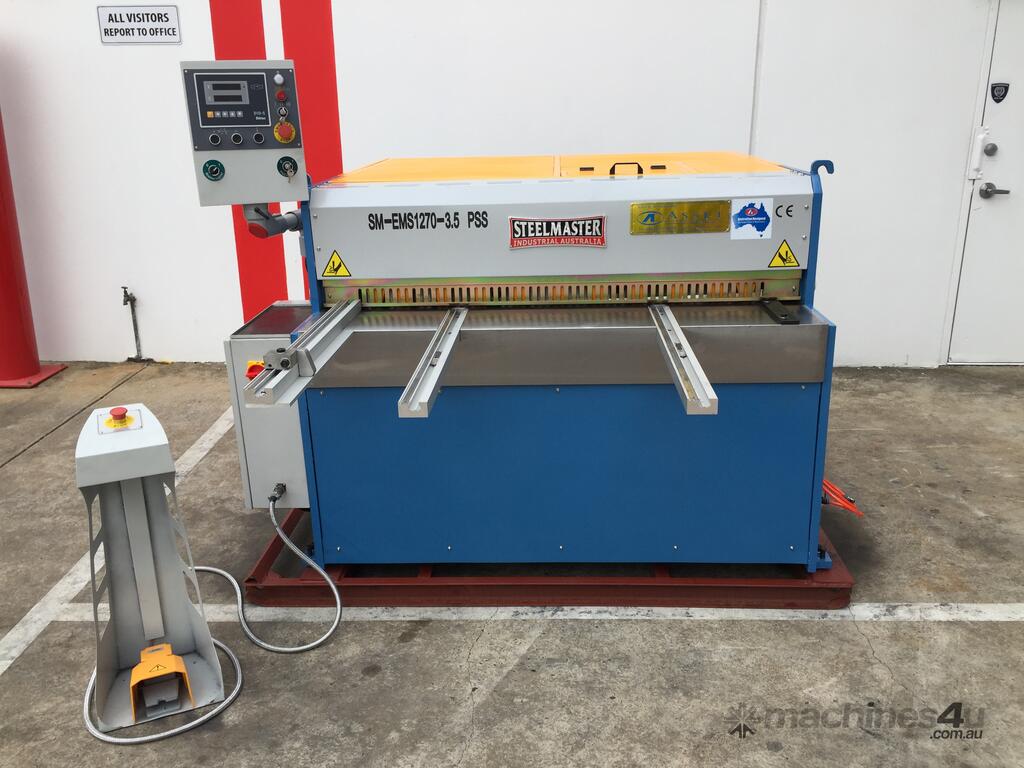

SM-EMS1270-3.5 Guillotine Electro Shear. 1270mm x 3.5mm Capacity, Pwr Back Gauge, Rear Sheet Support, Front Sheet Supports, Squaring Arm, Safety Guards. V
Description
Our Tru-Cut range offers a fast, efficient & affordable guillotine for use both in jobbing and production Features a heavy fabricated body with
foot control, precision ground blade, spring activated hold down, flat working table with calibrated front guides & squaring arm. Power backgauge

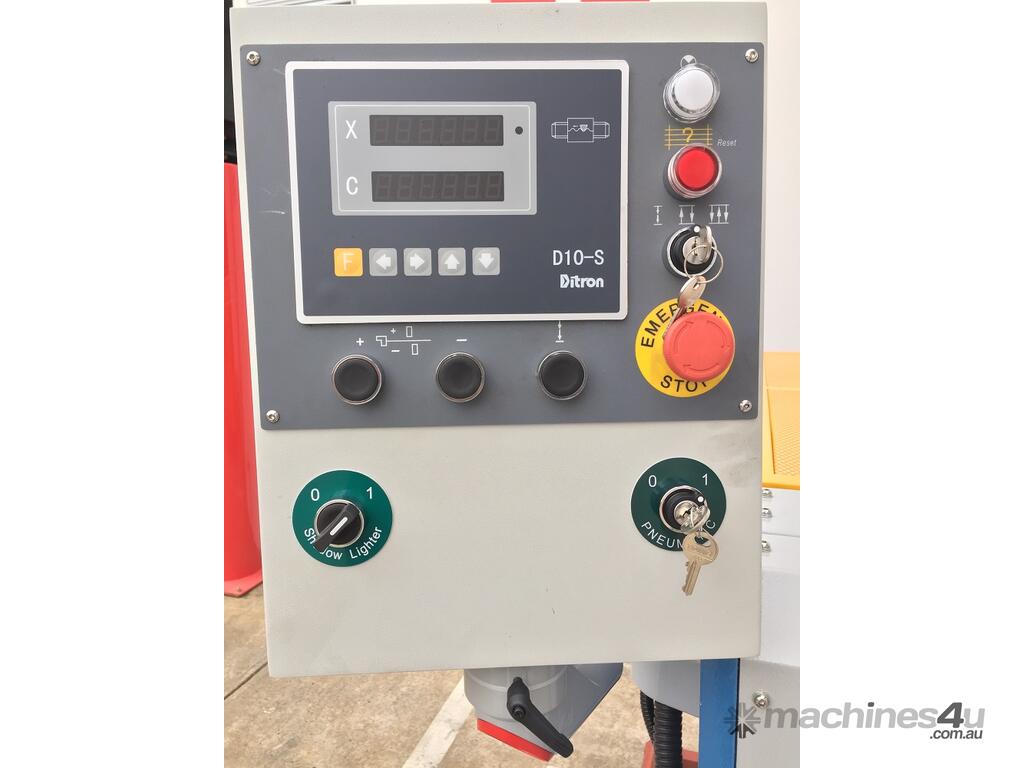

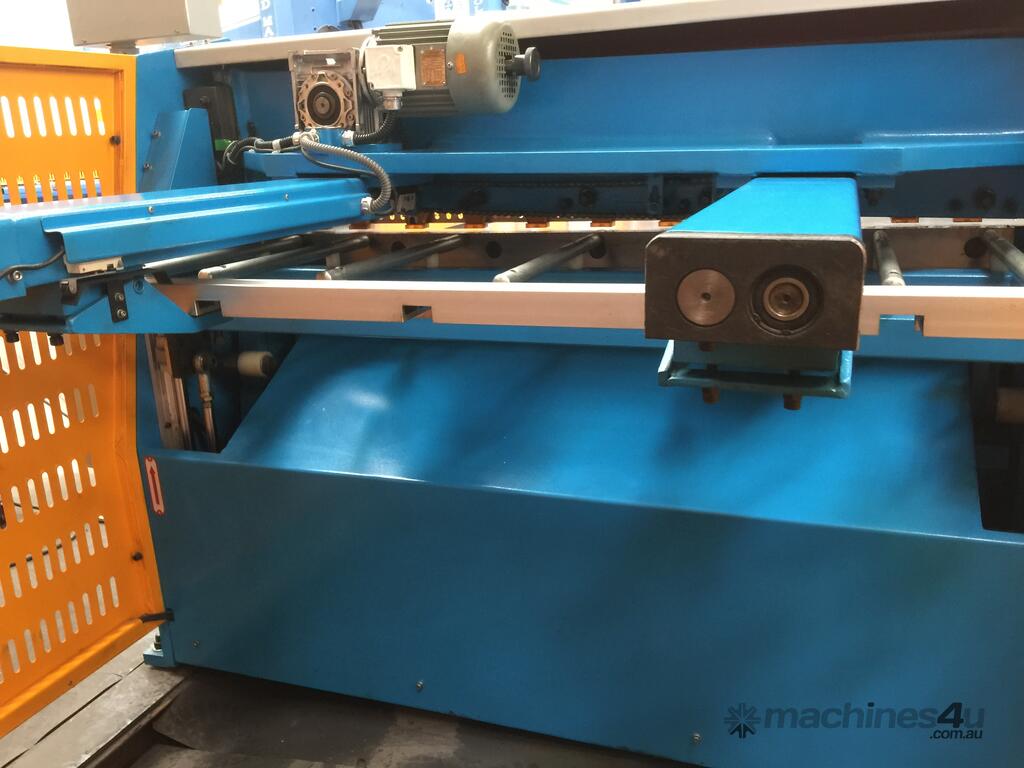

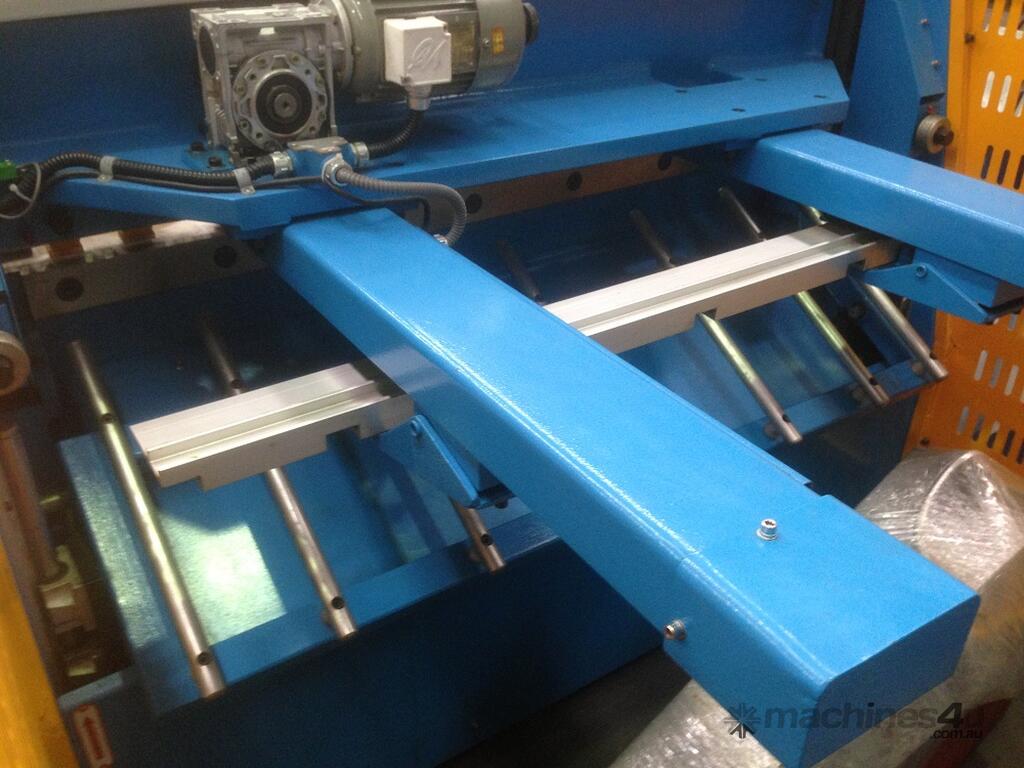

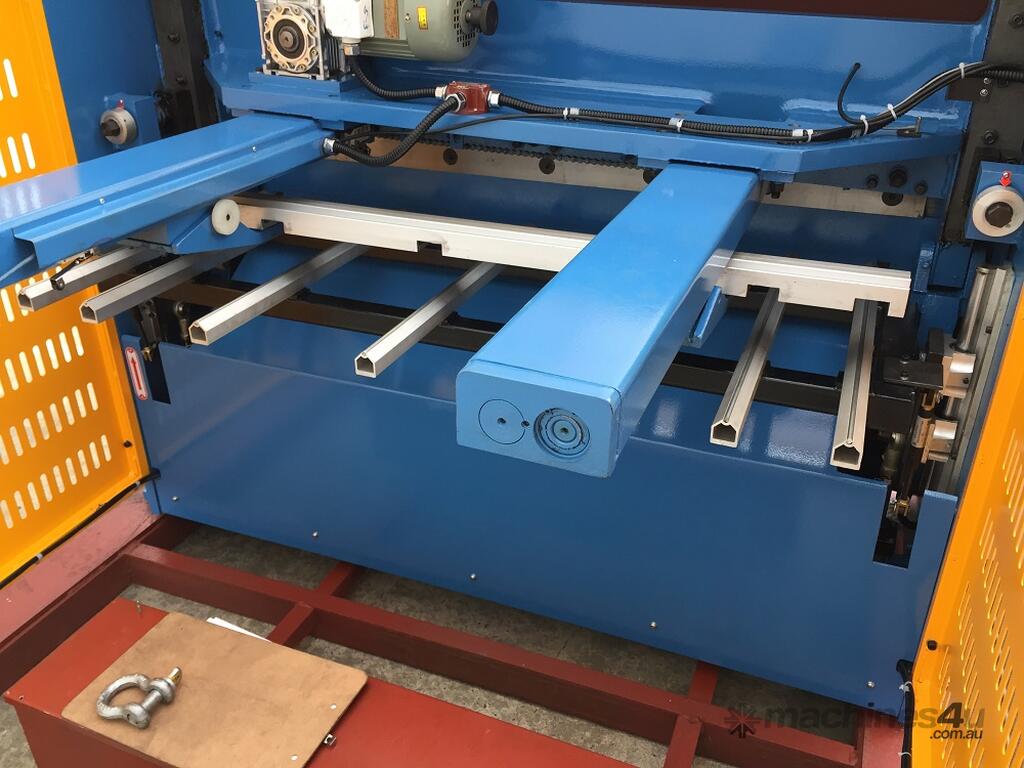

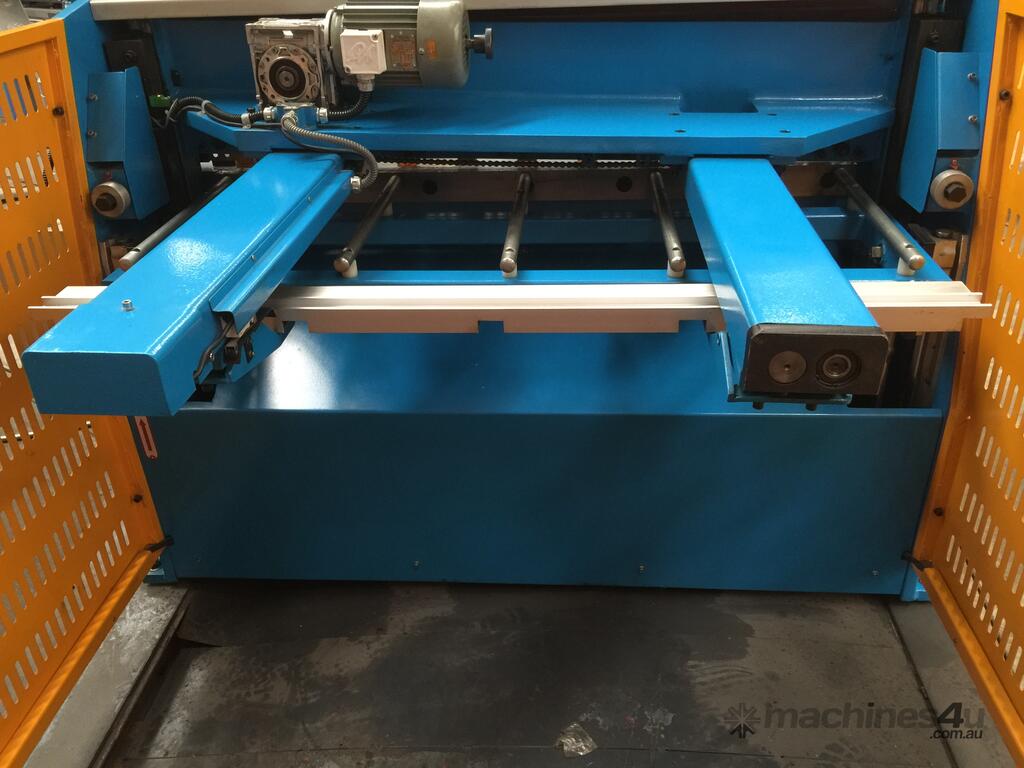

fitted with digital readout display. Added rear power operated light gauge sheet supports, ensuring material does not droop when being fed
through - Work smart - Not hard!
Front extension arms for those longer jobs, stainless foot pedal cable and all safety cut offs to ensure a safe workplace.
Features
?heavy steel weldment construction for maximum stability
?quiet operation with brake motor, all components run on maintenance free bearings
?parallel blade guides ensure high cutting precision
?hardened and ground high quality HSS blades fitted

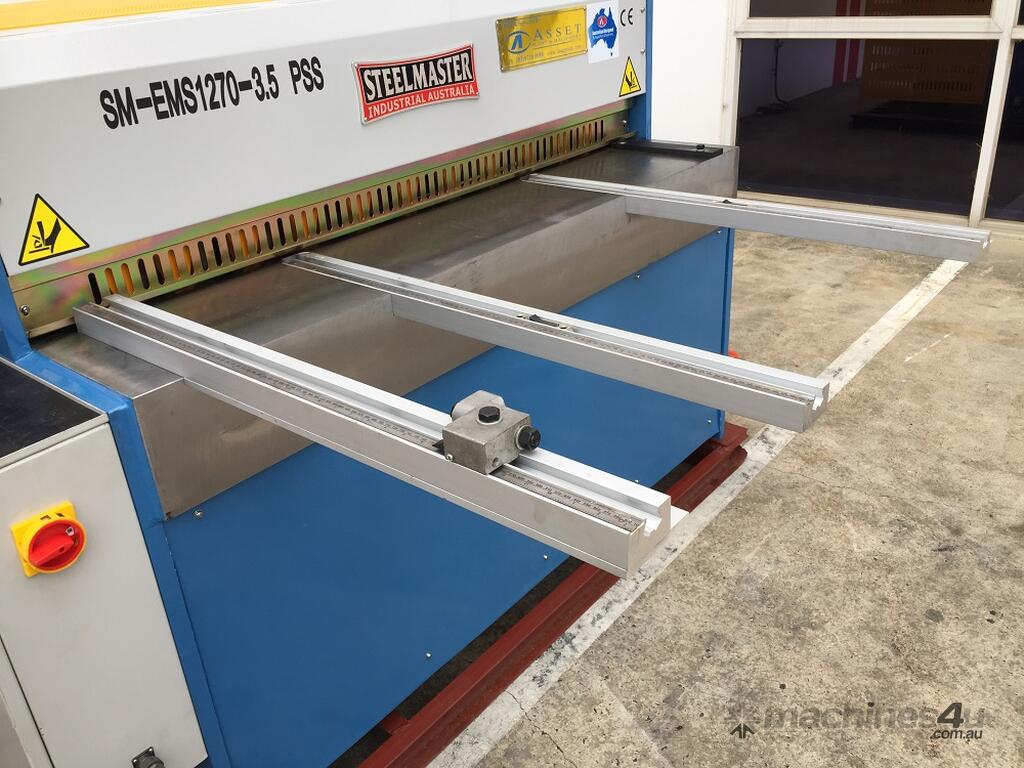

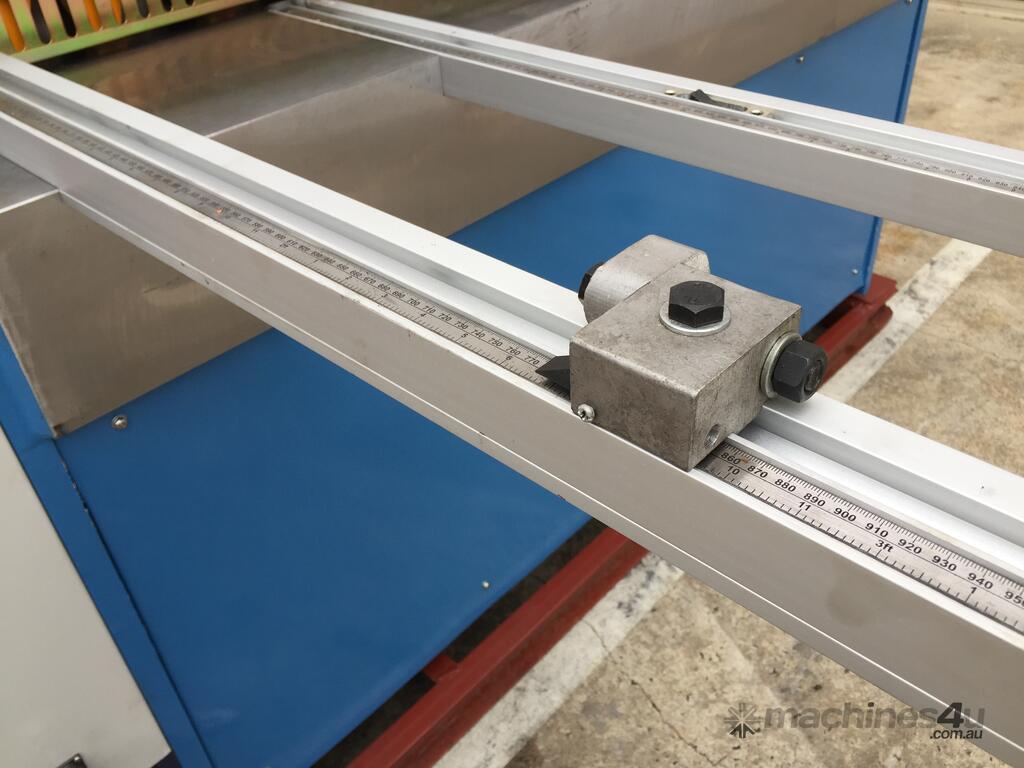

?calibrated squaring arm with front sheet supports
?hold-down system with slip-resistant rubber coating and front safety guard
?quick action blade-gap setting

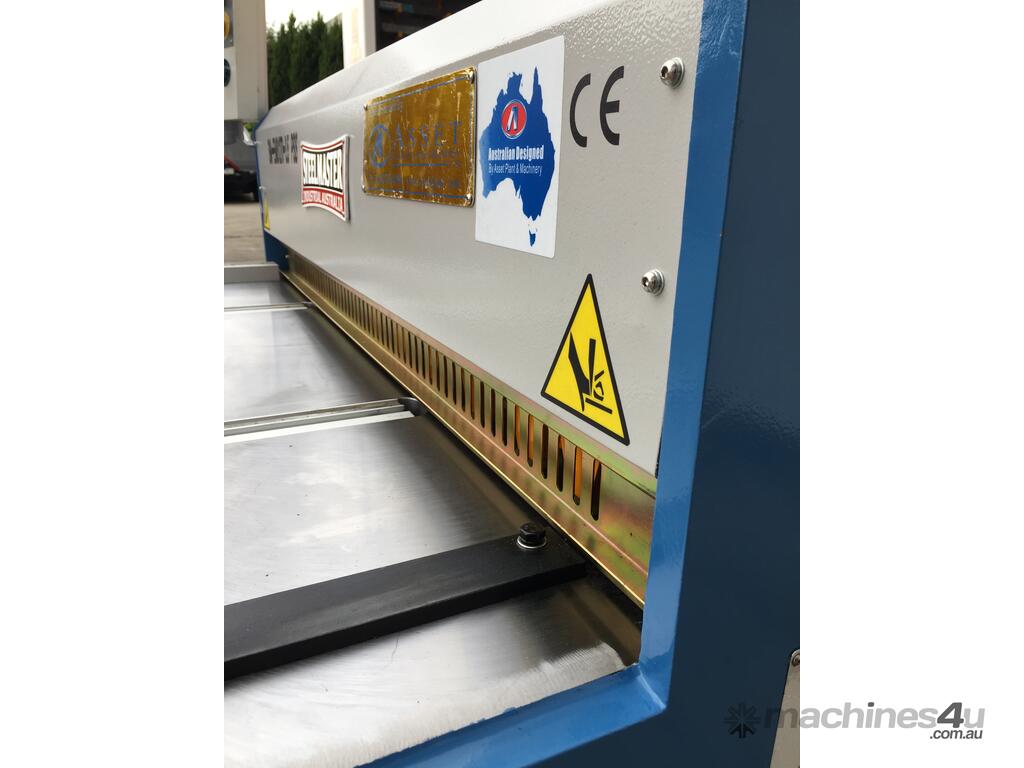

?slotted top cover offering clear visual to cutting area
?roving foot-pedal operation
?Rear safety light guarding
?heavy duty power operatedl backgauge
?CE compliant
Technical Data Snap-Shot
?1270mm x 3.5mm cutting capacity
?0 ~ 650 power operated backgauge range
?47 strokes per minute in auto mode
?shipping dimensions - 1860mm x 1100mm x 1180mm
?weight - 1700Kg
?power - 5.5Kw
