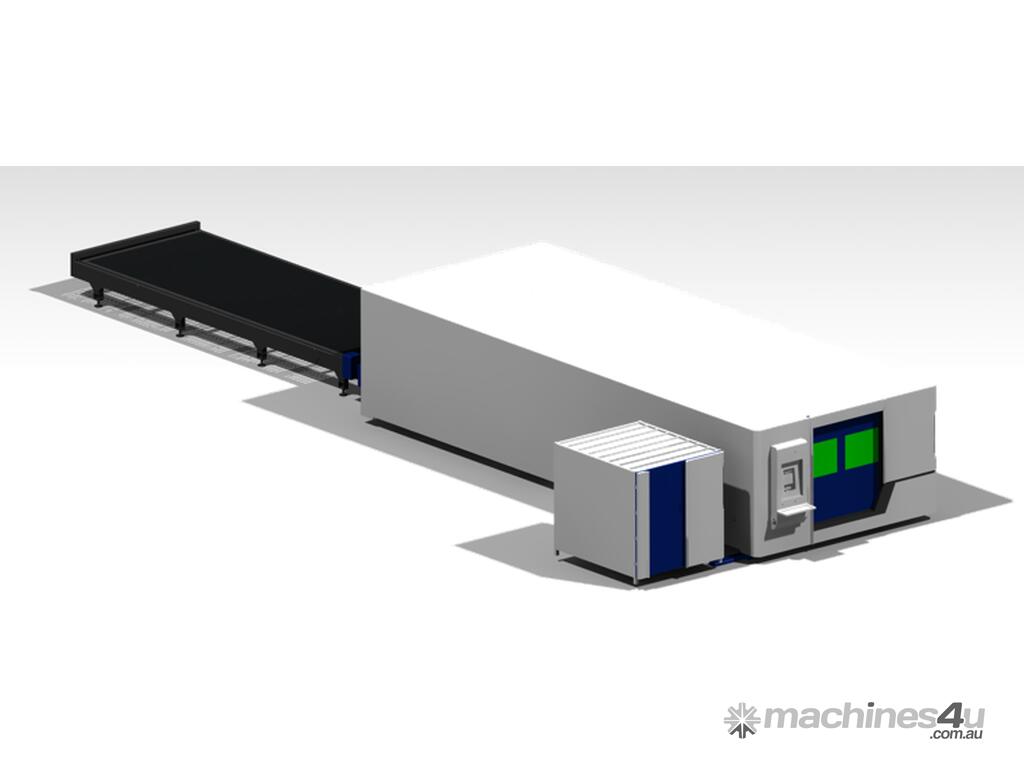

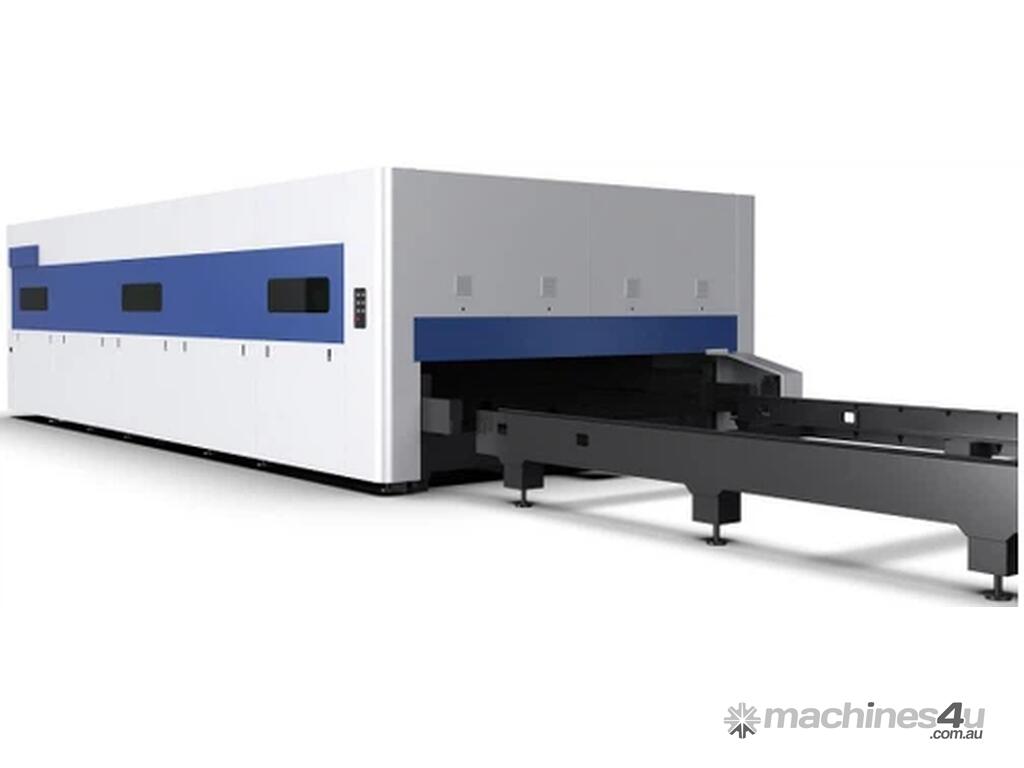

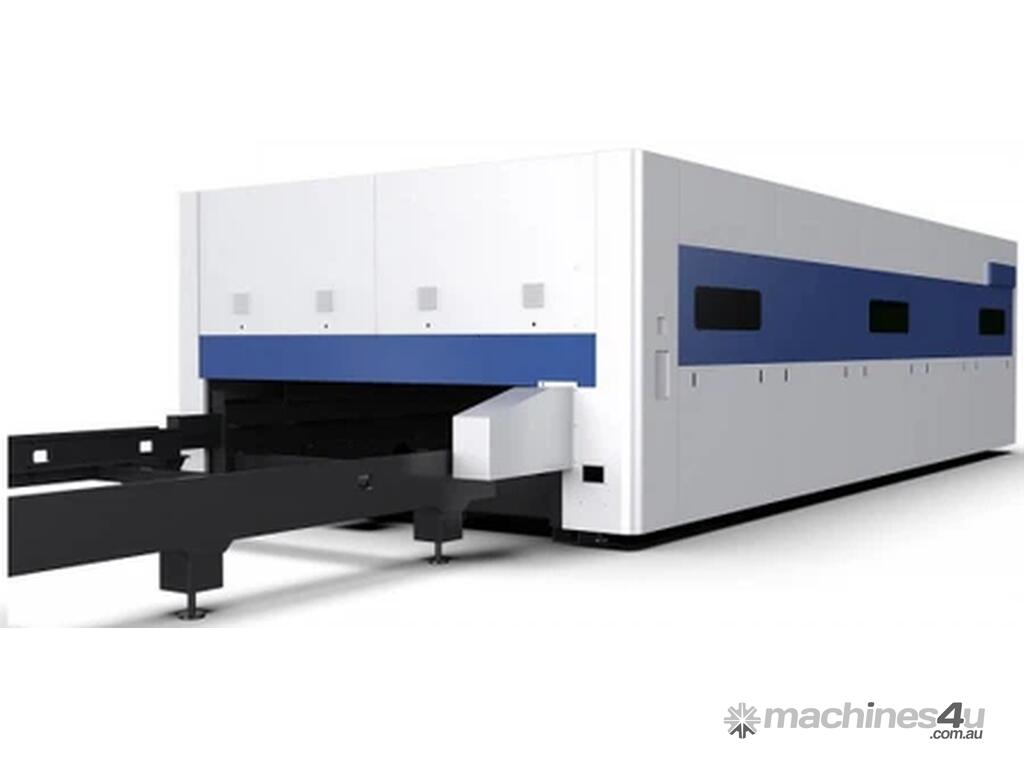

Introducing QY Laser 12KW G20-2565, the best quality-built Laser Cutting Machine on the market.
These machines are well known for their quality, precision, stability and durability.
The heaviest built, the most solid heavy plate welded and stress relieved machine bed, with the best configuration of high-quality components at very affordable price.

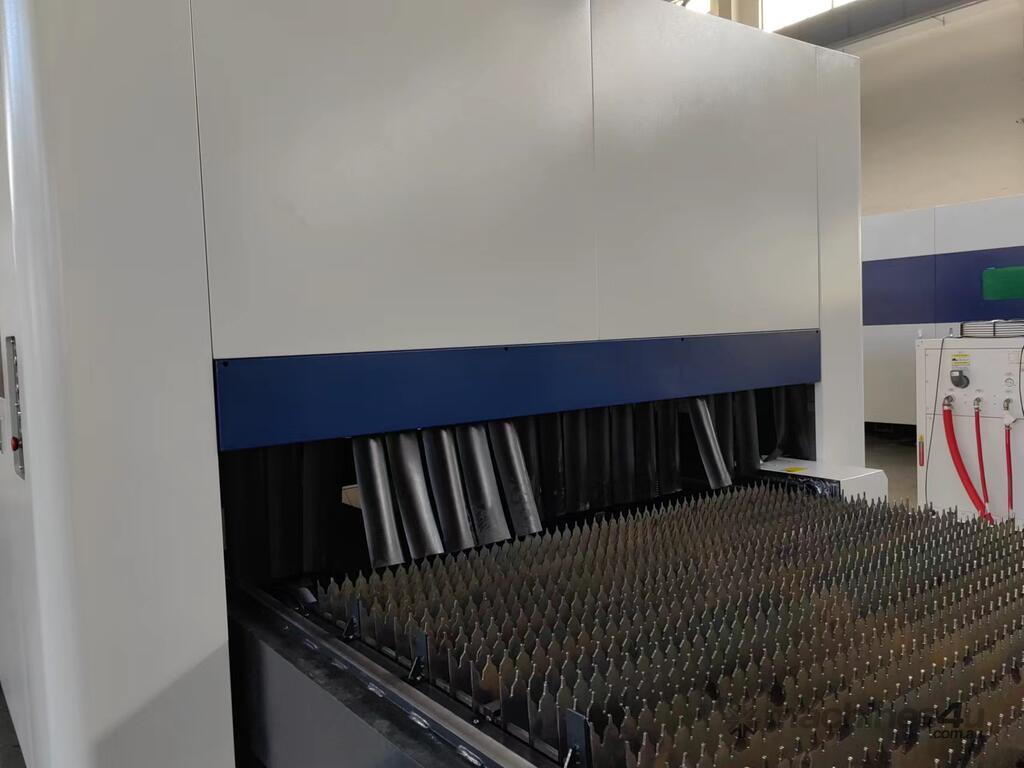

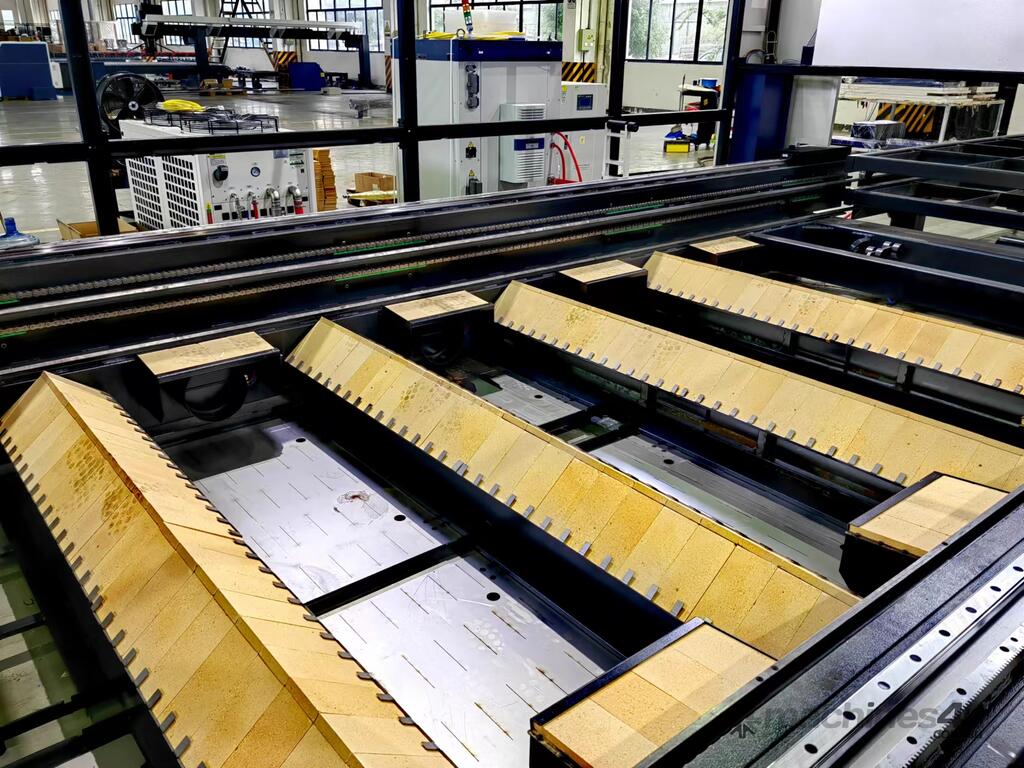

Effective cutting area 6500mm x 2500mm, Dual exchange table

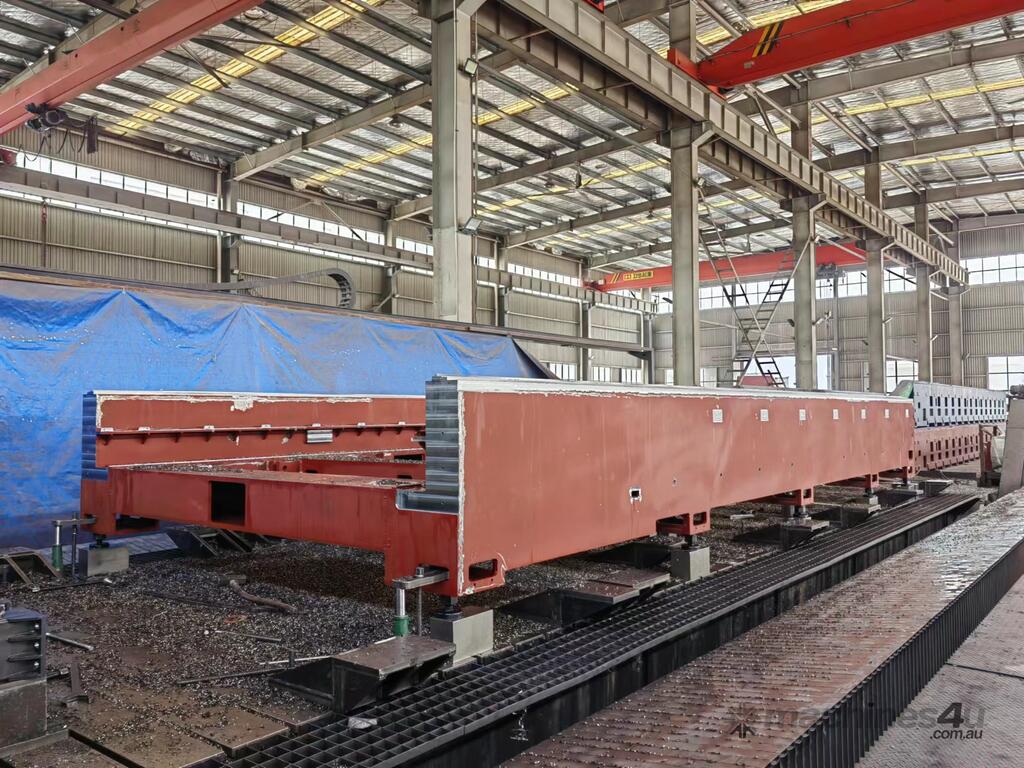

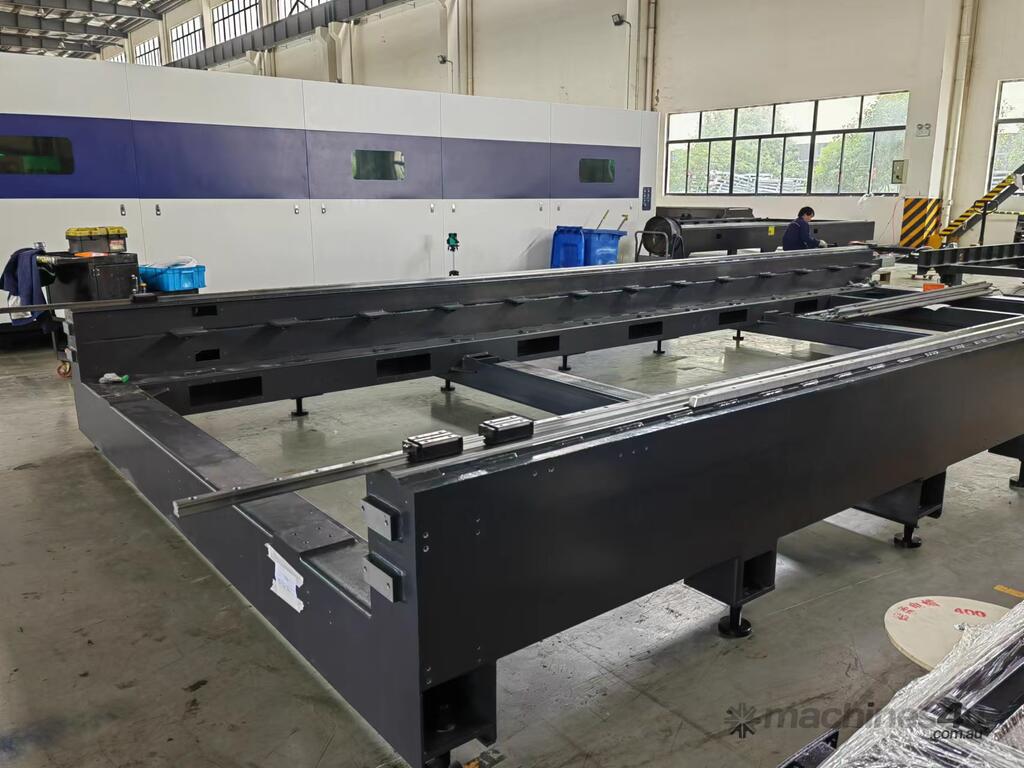

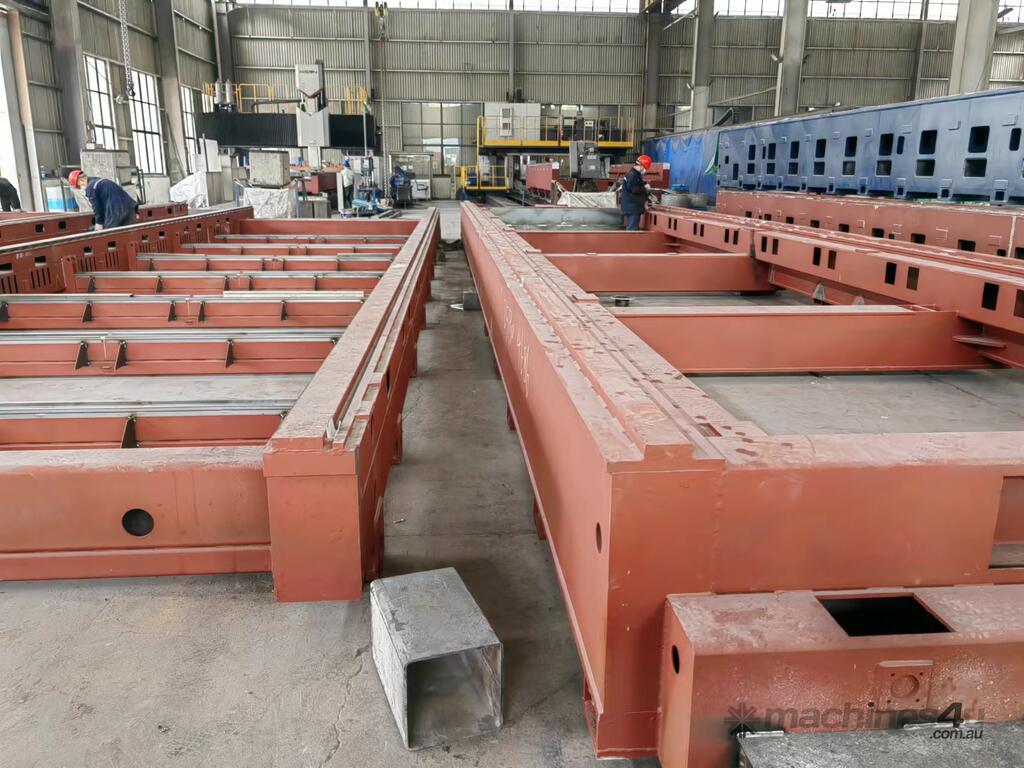

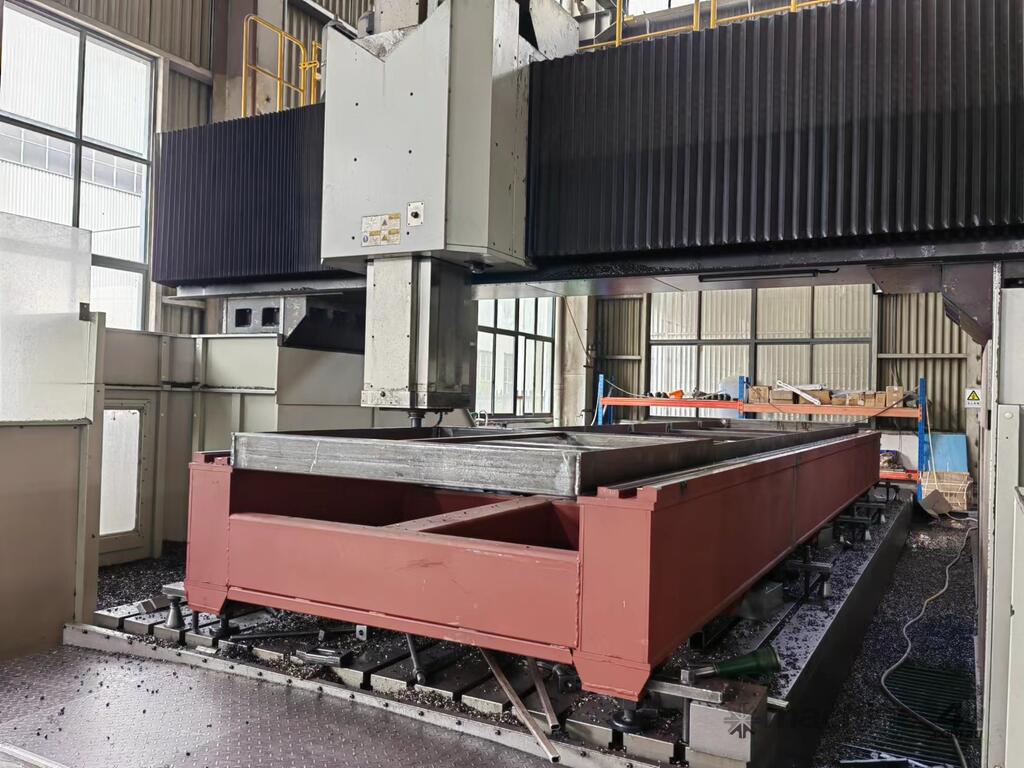

Heavy Duty Machine Body (Plate welded structure, heat treated and stress relieved)

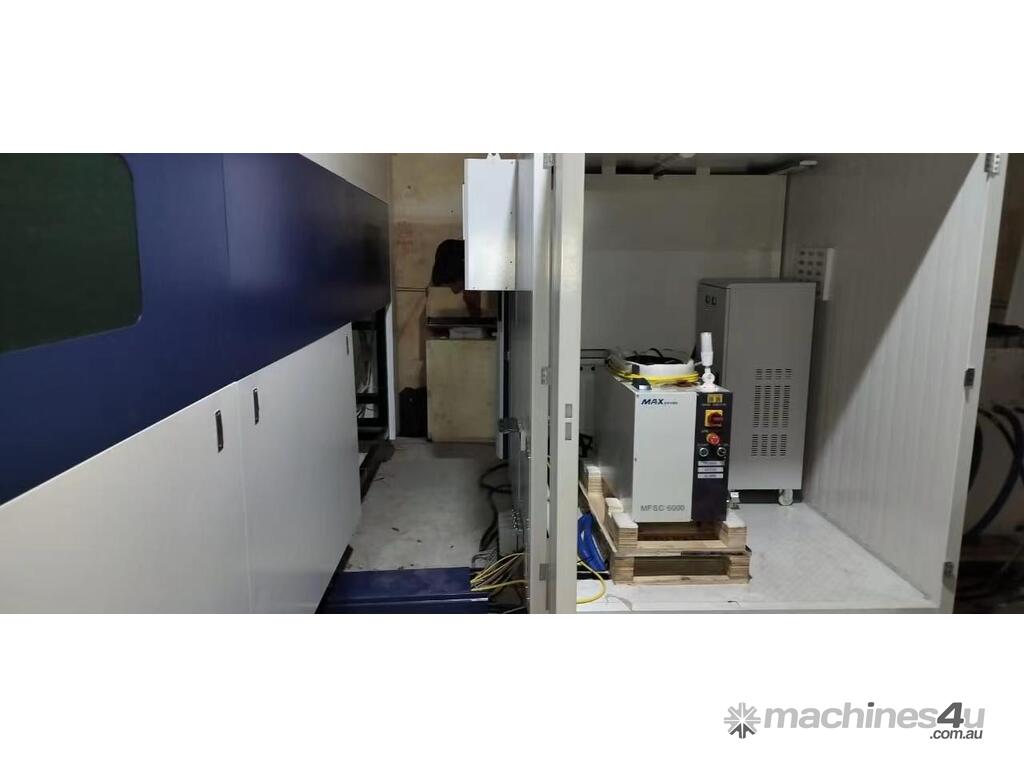

RAYCUS CE 12kW Laser Source (Global warranty version)
BOCI BLT642 Autofocus Intelligent Cutting Head
FSCUT 8000E Control System

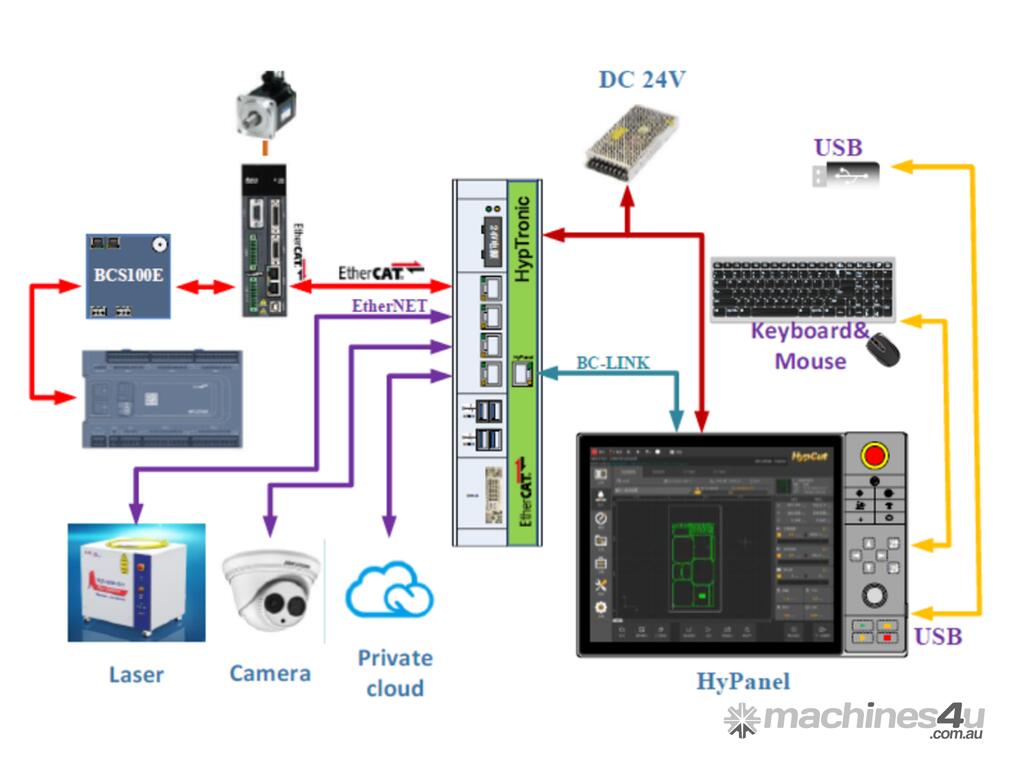

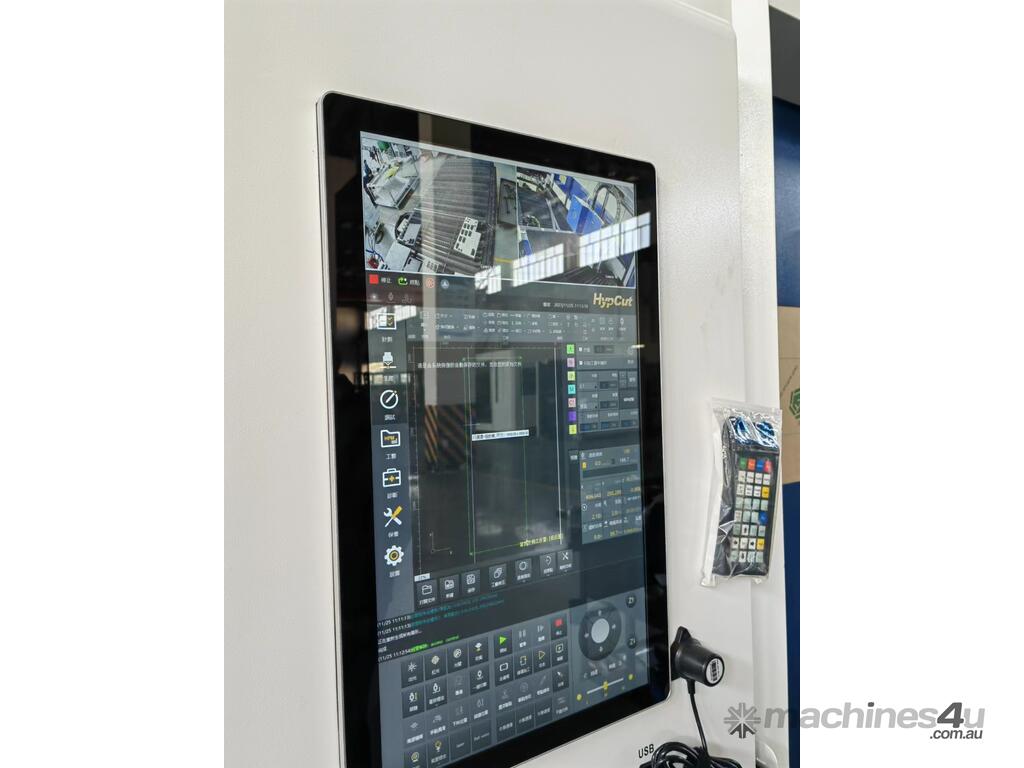

HYPTRONIC L2 PC system
YASKAWA (Japan) Servo Drives
SHIMPO (Japan) Planetary Reduction Gearbox

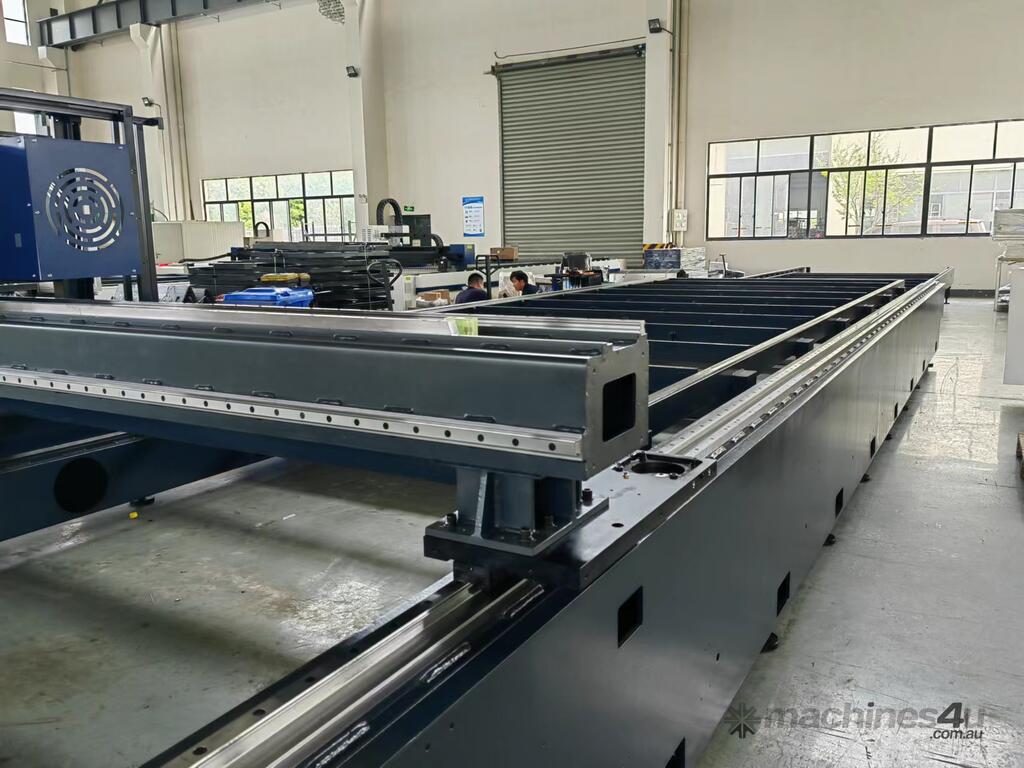

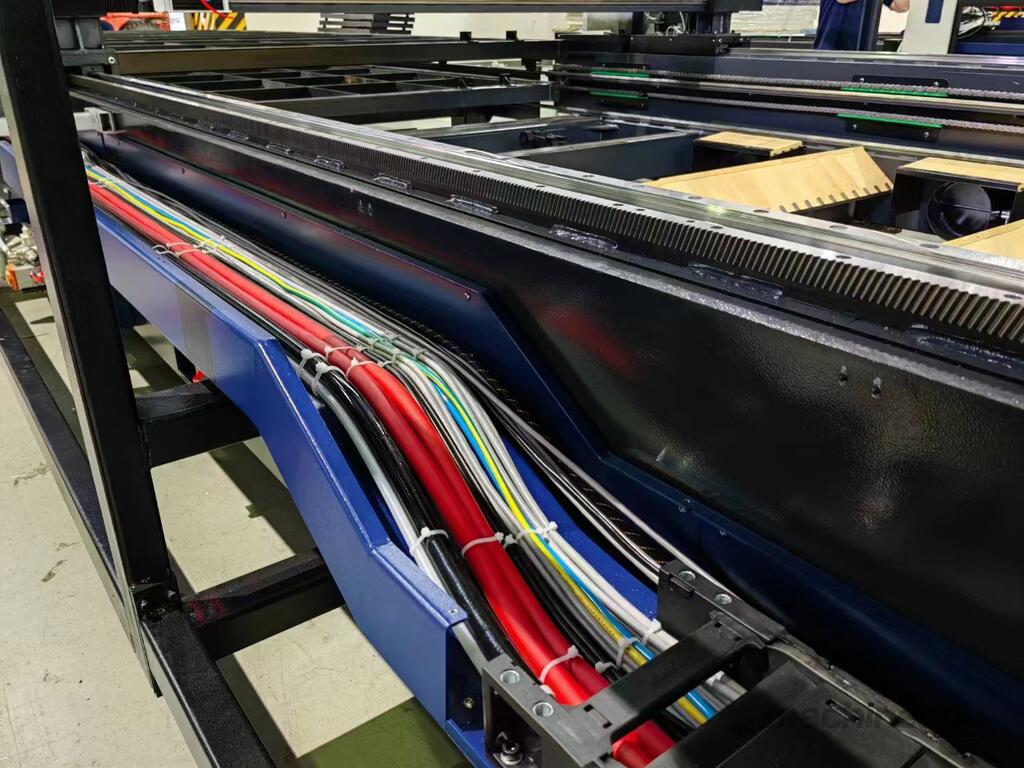

ROR (Germany) Helical Rack and Pinion
PMI (Taiwan) High Precision Linear Guide Rails
SMC (Japan) High Pressure Proportional valve
SCHNEIDER (French) Electrical Components
HANLI Dual Circuit Industrial Water Chiller
Voltage Stabilizer and Transformer
Automatic Lubrication System

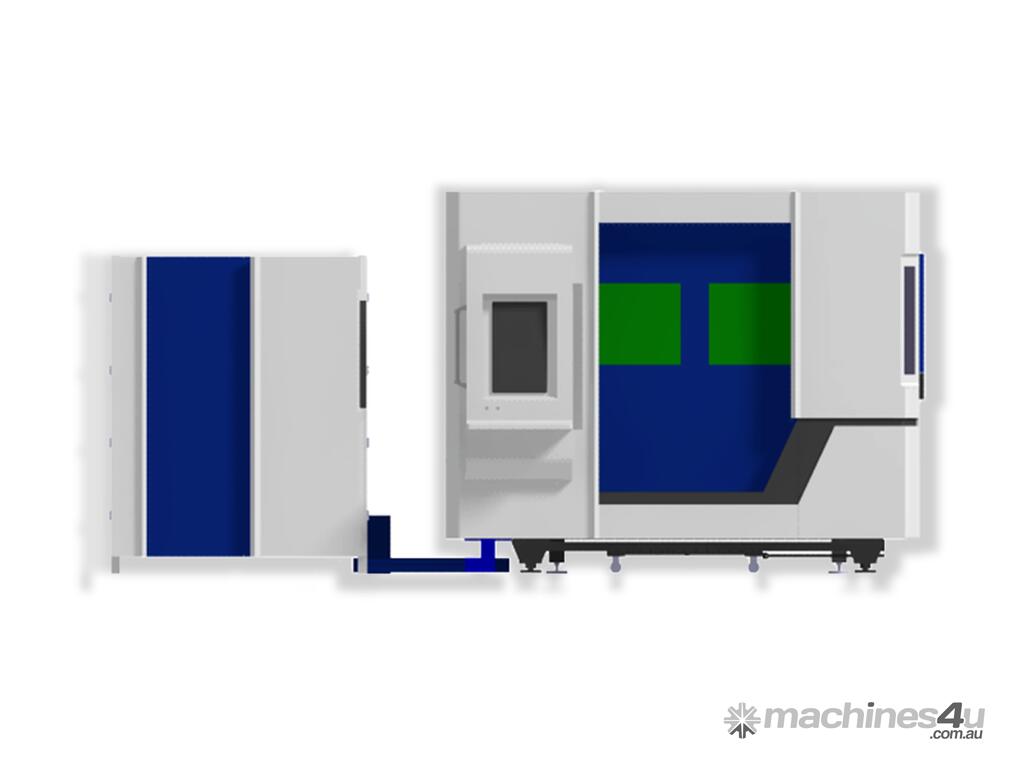

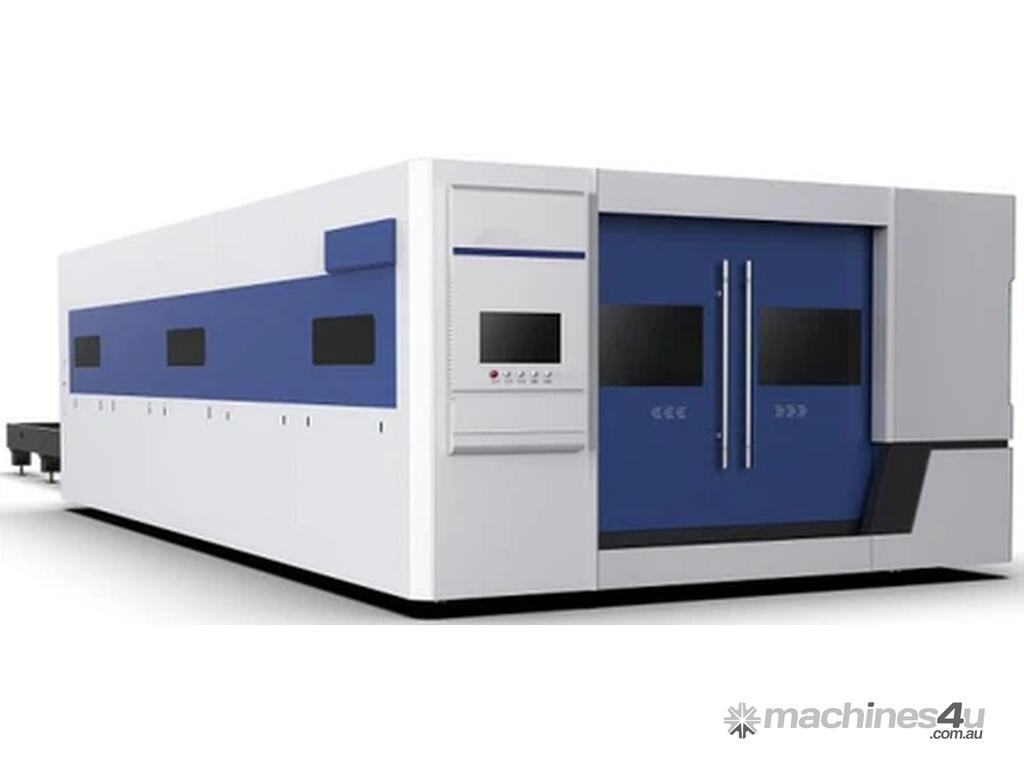

Full CE certified enclosure
Safety Viewing Glass Windows
Light Curtains with Safety Relays and Door Safety Interlock
TOPSIN dust collector 7.5KW included
CypNest offline nesting software with permanent license valued at $5000

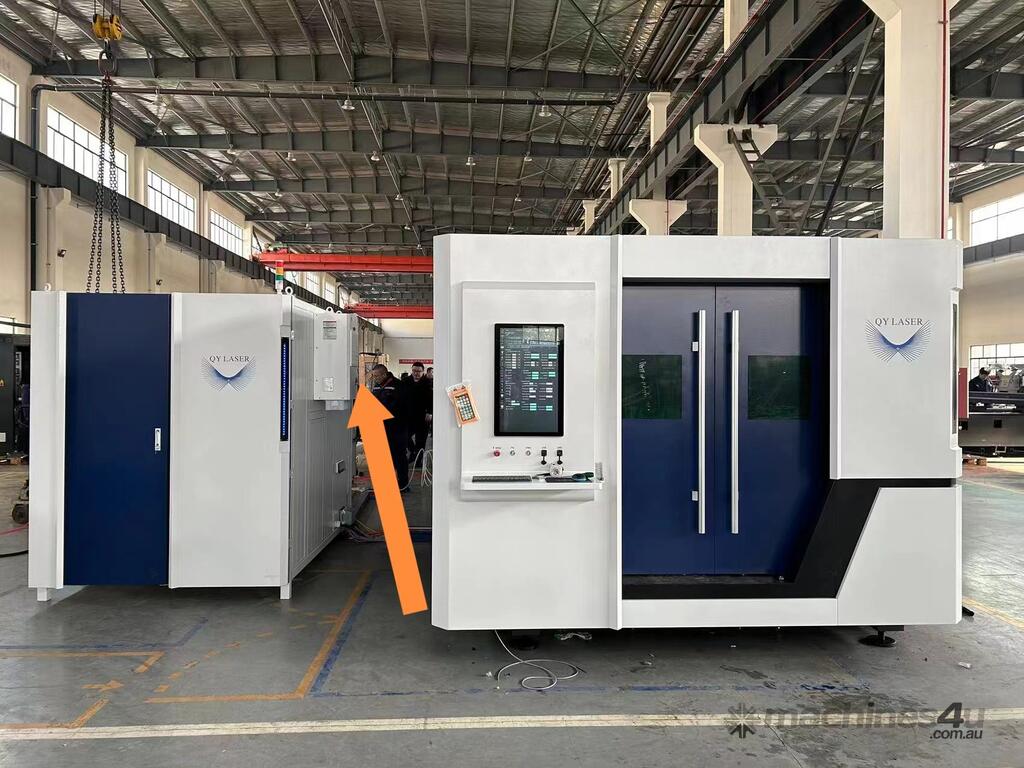

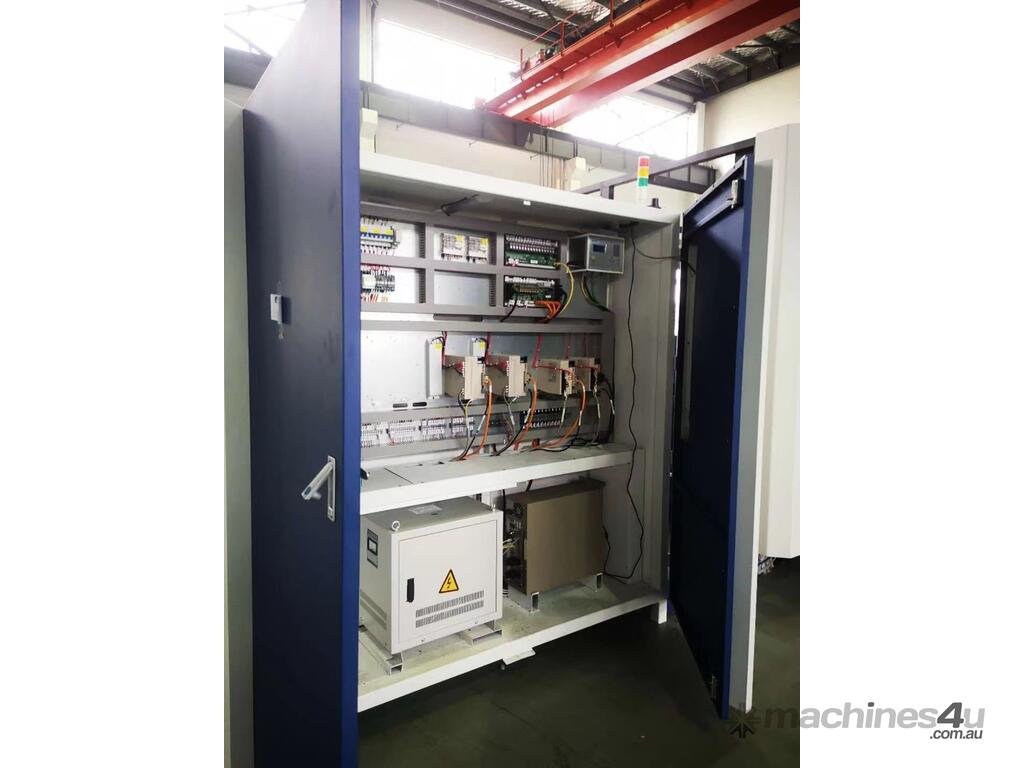

Air-conditioned dust proof electrical room to house in all electrical components, designed for continuous 3 shifts operation
WIFI card for remote access and data transfer
2 video cameras monitoring cutting and loading area.
Full production cutting capacity with 12KW laser source
MS 25mm 1.0 m/min; max 50mm
SS 20mm 1.4 m/min; max 40mm
AL 18mm 1.2 m/min; max 30mm
Different power options available up to 30KW
Please download PDF brochure for detailed description or contact us today to discuss your specific requirements!
