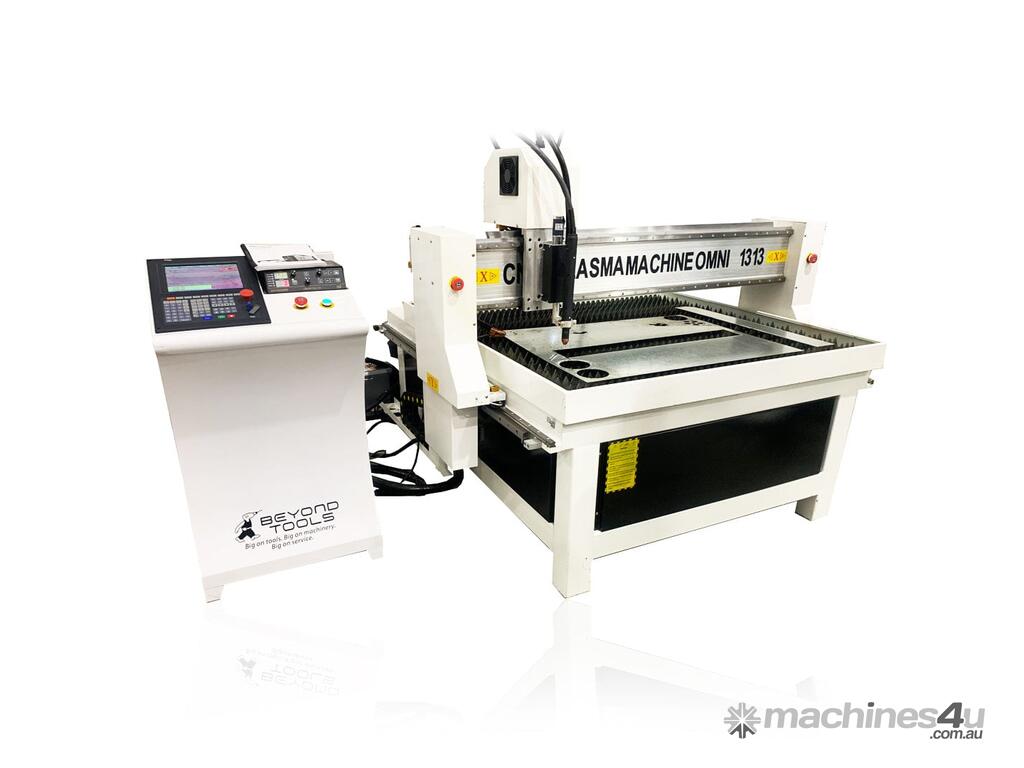

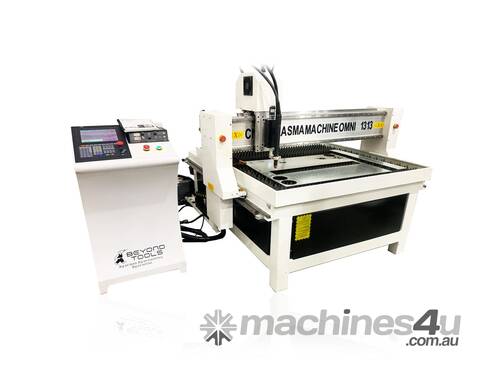

1300mm x 1300mm CNC Plasma Cutter with Huayuan Plasma Generator 415V 1313 by Omni

Omni CNC plasma cutting machines are ideal for creating smooth cutting edge and clean cut. Ideally suited for automotive fabrication, structural steel cutting, construction, sign shops, metal fabrication, decorative fencing.


Features



Plasma Generator: Huayuan Plasma


System Output Current: 45A

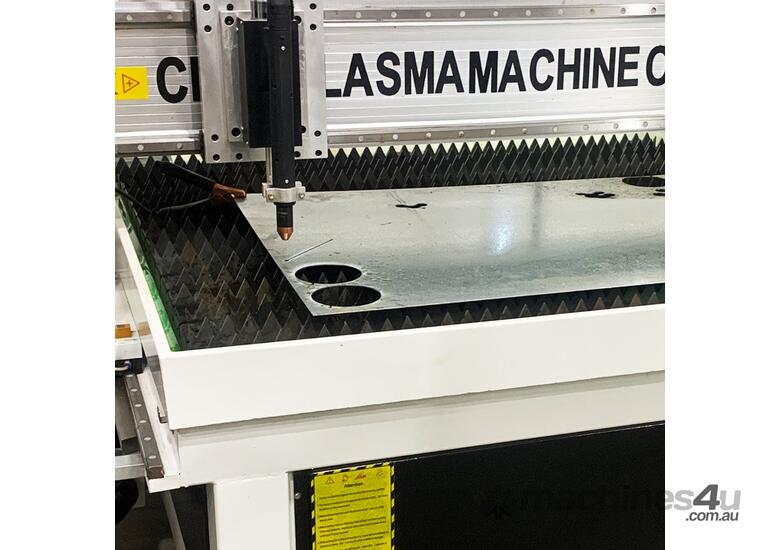

Torch:


Duramax ® Lock torches are designed for high-impact and heat resistance


SpringStart technology ensures consistent starting and optimum torch performance





Hiwin Square Guide Rails and Bearings, Helical Rack and Pinion on X,Y, Z Axis

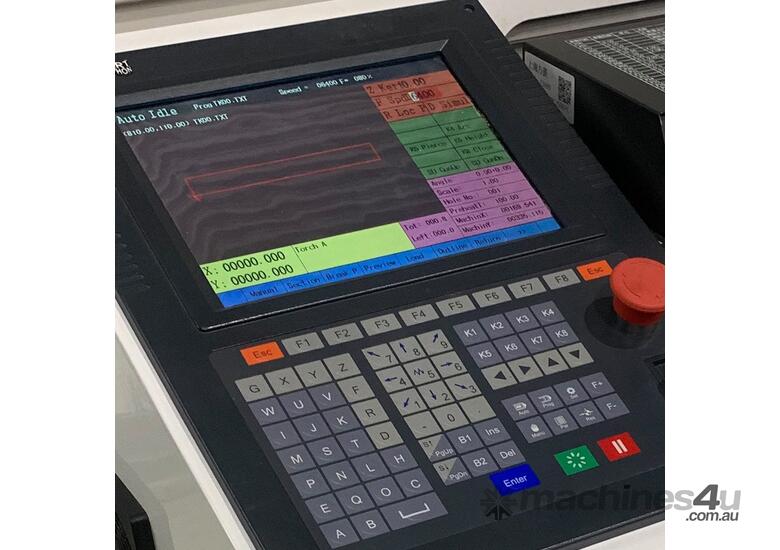

Operating START Control System with USB and Anti Collision System


Stepper Motor and Drivers – 0-8000mm Cutting Speed

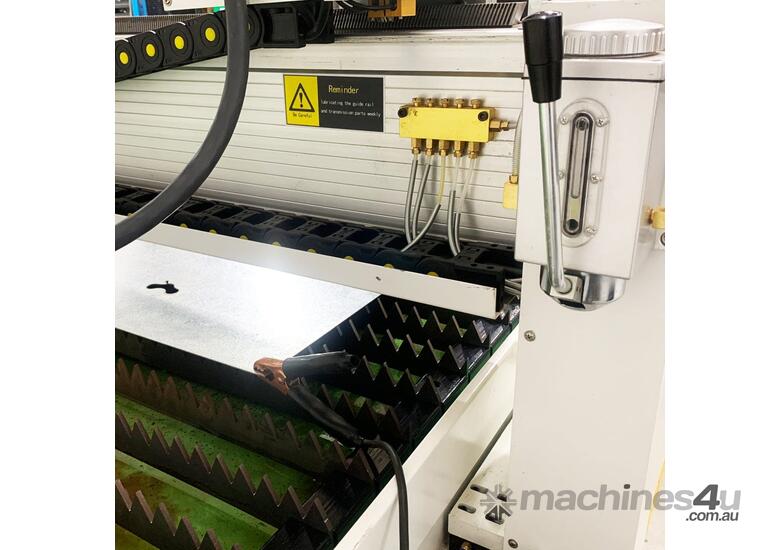

Welded Square Tube Steel Frame with Inlet and Outlet Tap for Water Table


Working Form: Untouched Arc Striking


X,Y,Z Travelling Positioning Accuracy: ±0.05mm


X,Y,Z Travelling Repositioning Accuracy: ±0.05mm



Operating / Production Cutting Data




Material
Thickness inches
Current amps
Production cut speed* ipm


Mild steel
10 GA
45
181


1/4
45
72


3/8
45
38


1/2
45
24


5/8
45
16


Stainless steel
10 GA
45
134


1/4
45
59


3/8
45
29


1/2
45
19


5/8
45
13


Aluminum
1/8
45
263


1/4
45
104


3/8
45
42


1/2
45
26


5/8
45
14






Material
Thickness mm
Current amps
Production cut speed* mm/min


Mild steel
3
45
5590


6
45
2110


10
45
920


12
45
690


16
45
400


Stainless steel
3
45
4725


6
45
1695


10
45
870


12
45
540


16
45
320


Aluminium
3
45
7120


6
45
3095


10
45
1015


12
45
745


16
45
340
