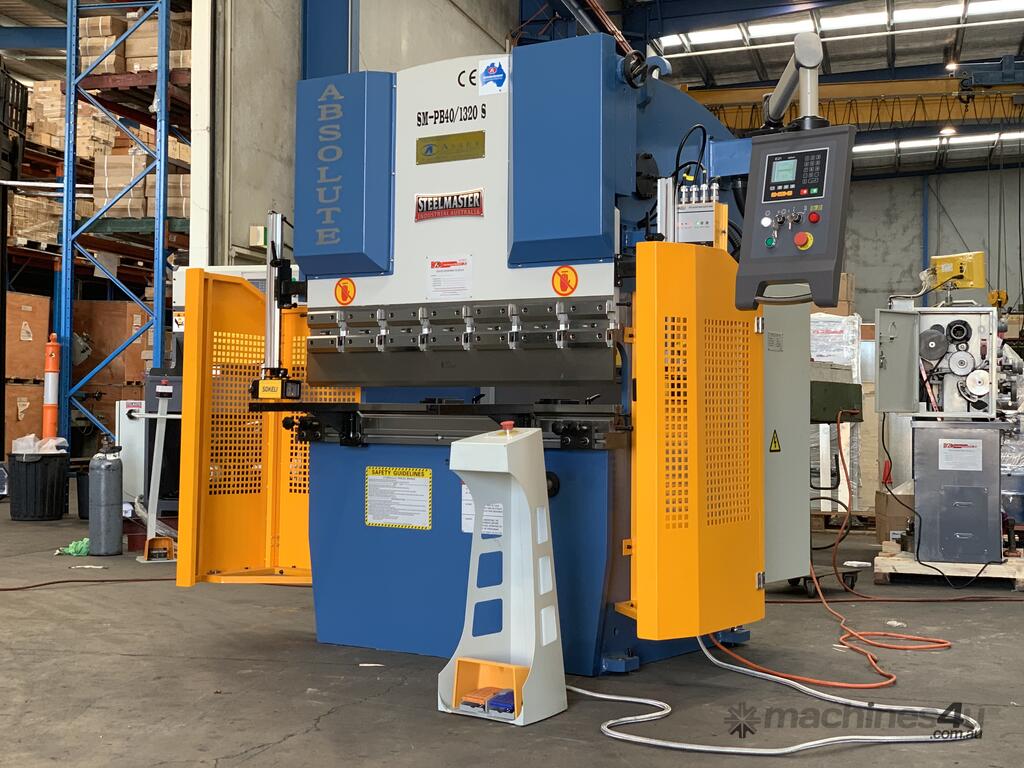

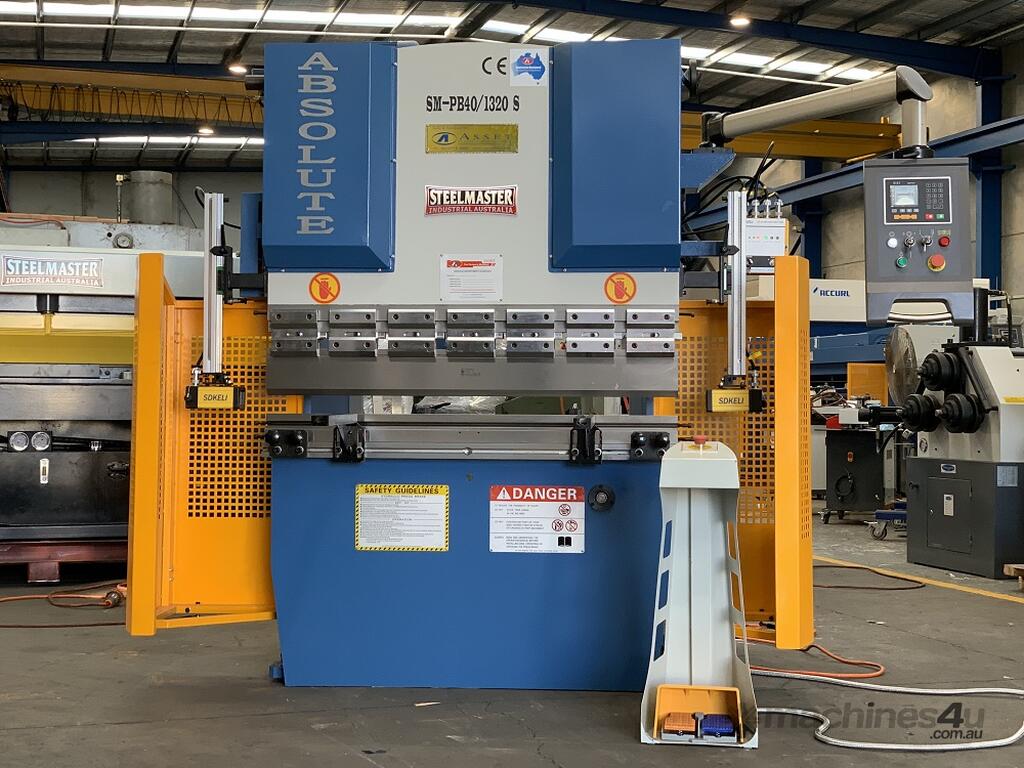

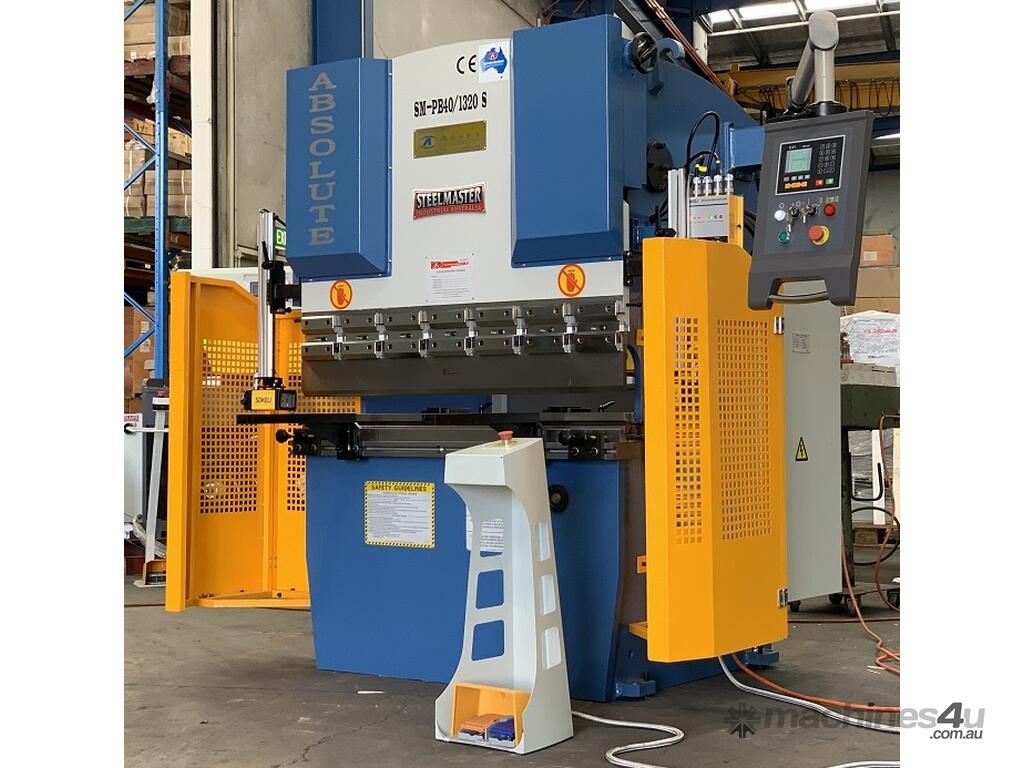

1320mm x 40-Ton Compact Pressbrake Loaded With All The Features You Need!

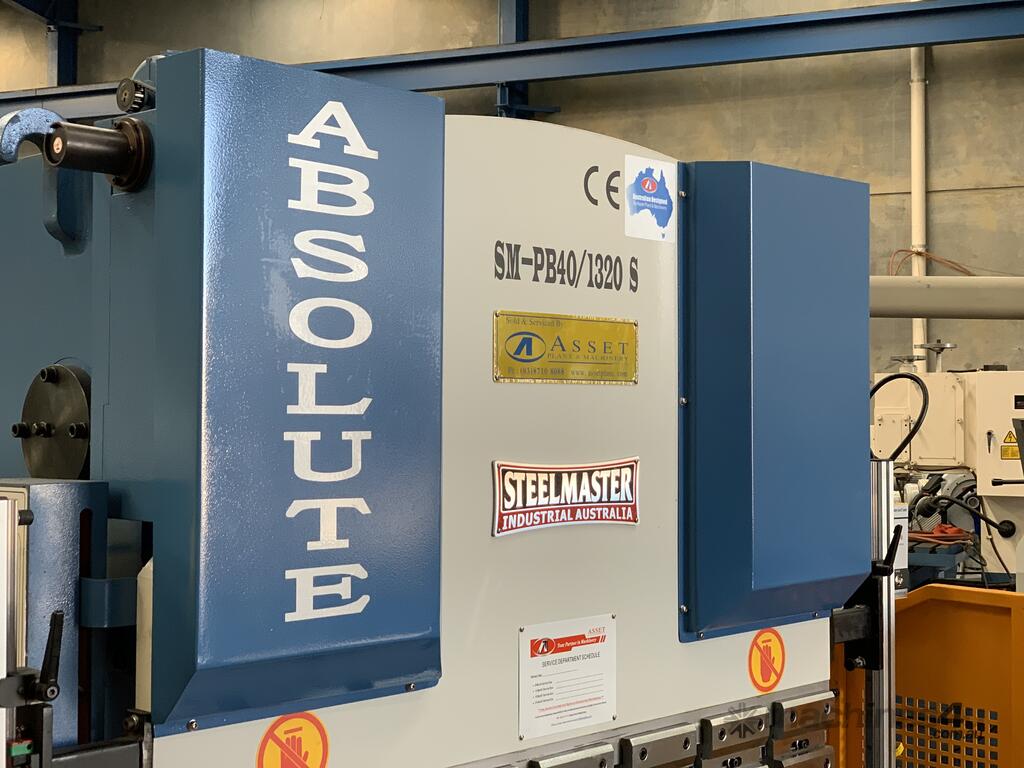

SM-PB40/1320NC-S, ABSOLUTE. Hydraulic Pressbrake. 1320mm x 40Ton. 2 Axis NC Estun E21 Controller
Top & Bottom Tooling, 200mm Side Throat, 1005mm Between Frames, Ballscrew Backgauge with 2 Fingers.

## CNC Upgrade Available as Per Video Attached ##

Our new "S" Series Steelmaster Pressbrake now offers purchases a new machine, with all modern
day features at a price that you would expect to pay for a used machine.
Etsun 2 x axis E21 NC programmable controller is standard. Deep side throats, large frame widths,
this list goes on!
Offering all the features, new machine warranty, at the right price in this challenging market!

Features
?hydraulic synchronised positive stop design, electronically controlled by Etsun NC programmable controller assuring accurate repeatability and ease of use.
?deep side throats and wider distances between the vertical frames offering you more application scope.

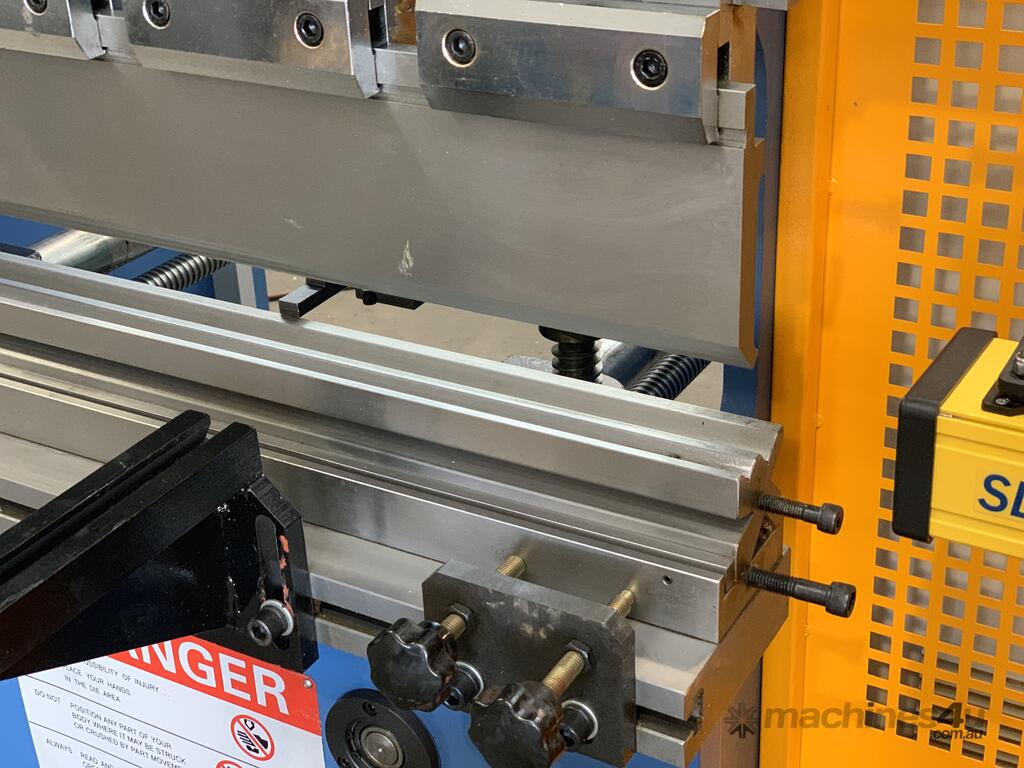

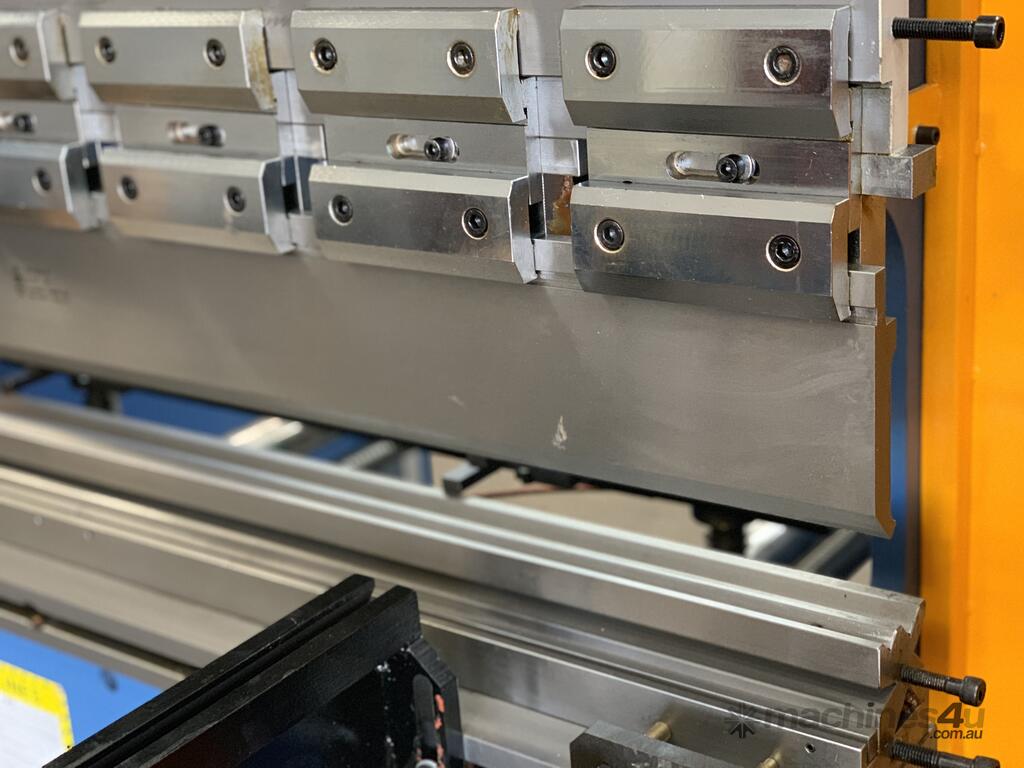

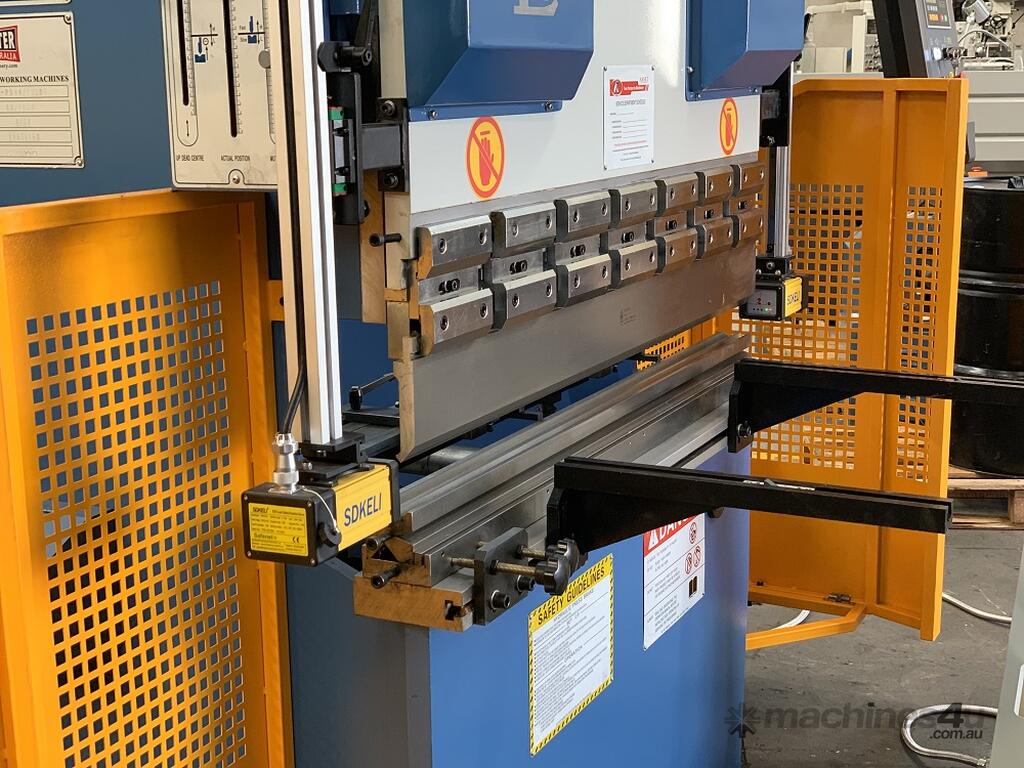

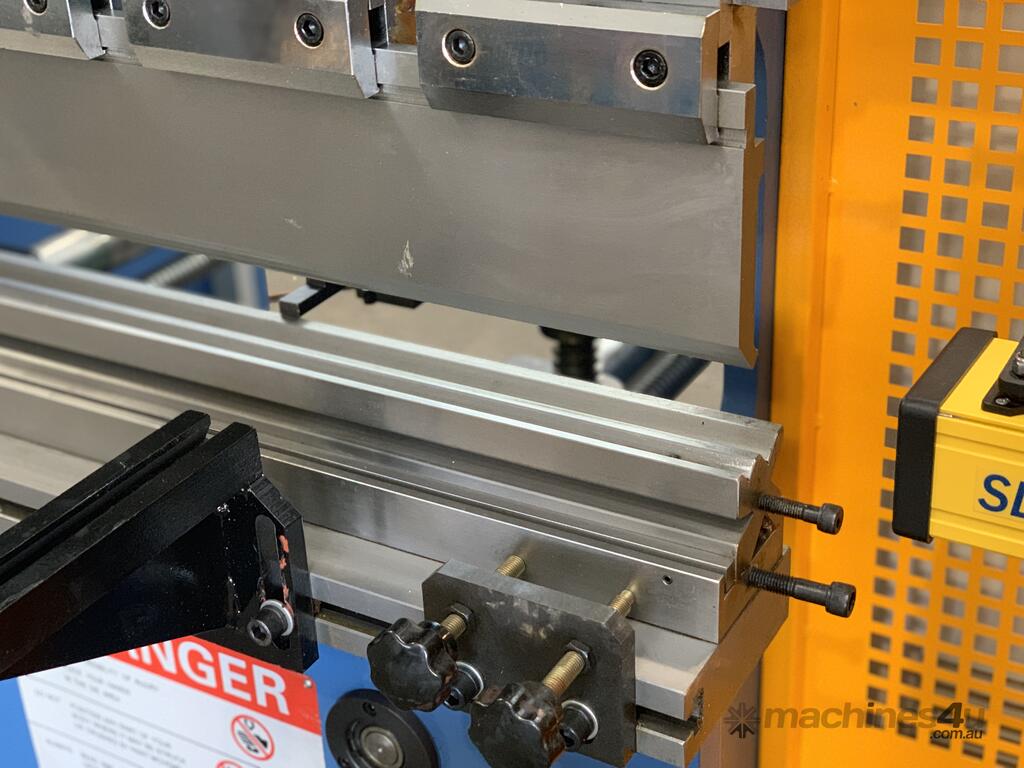

?segmented heavy duty 86° offset top tool, segmented for return bend clearance.
?full length Multi Vee bottom block with a smart selection of openings also including safety edge vee ('V') for over bending.

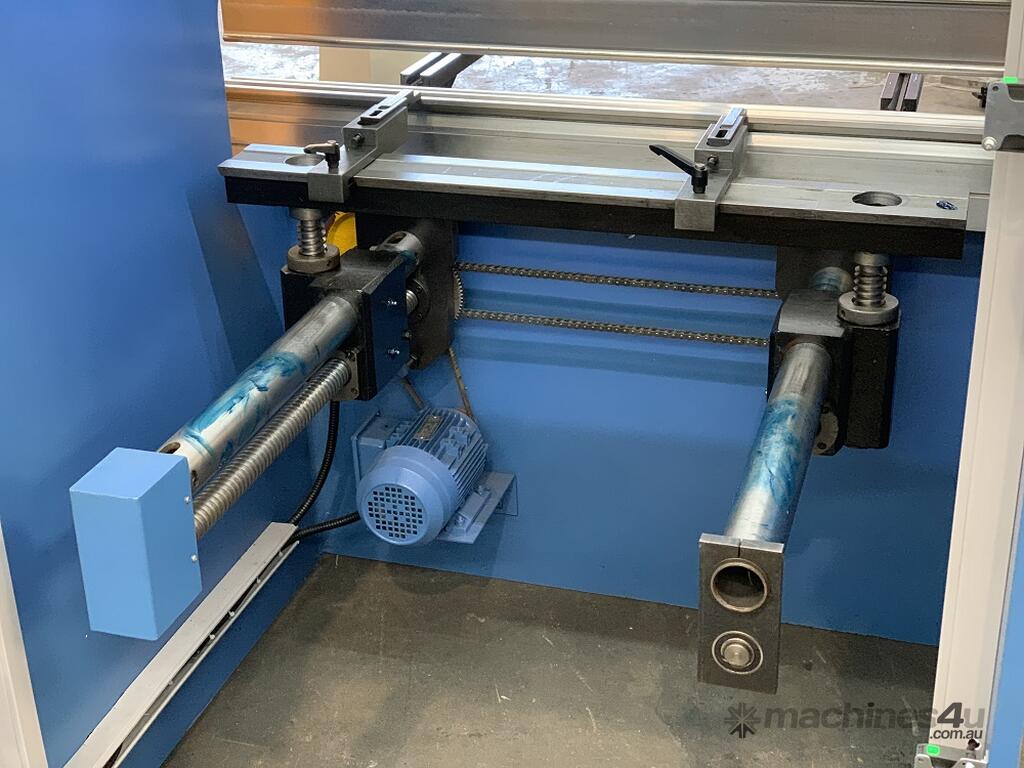

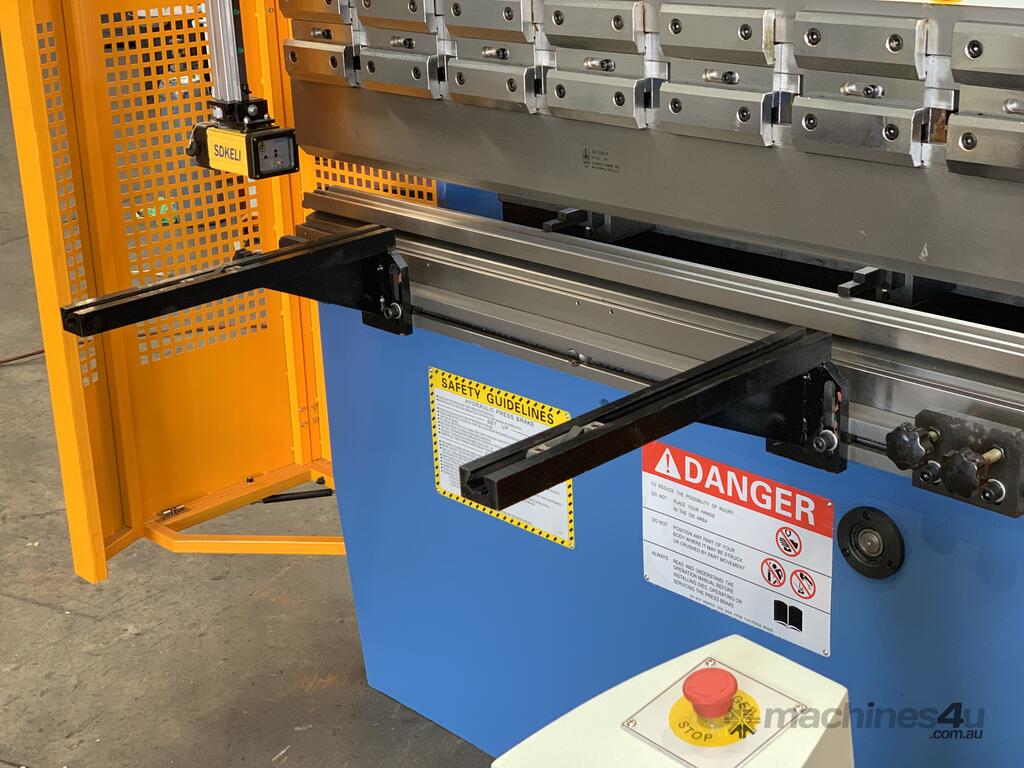

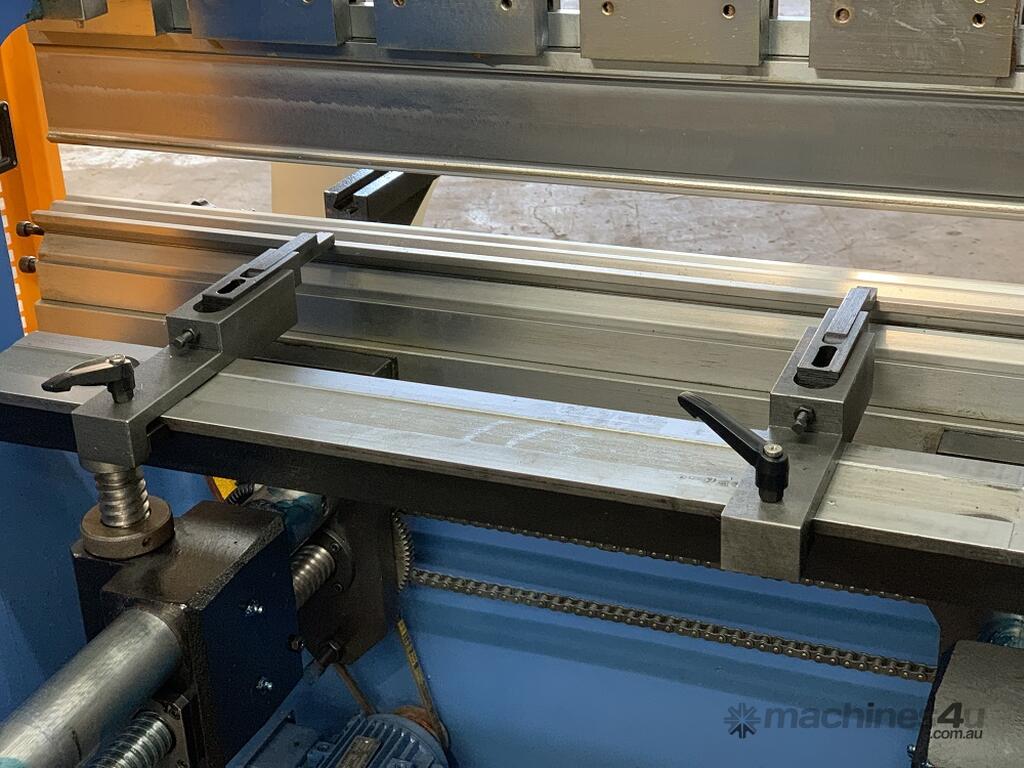

?power operated back gauge with quality support fingers also with vertical adjustment
?front sheet supports enabling a wide range of material sizes to be aligned and supported at the correct required height.
?conveniently mounted control box on pendant for quick swivel and adjustments.
?integrated hydraulic system allowing rapid approach switching automatically to slow bend.

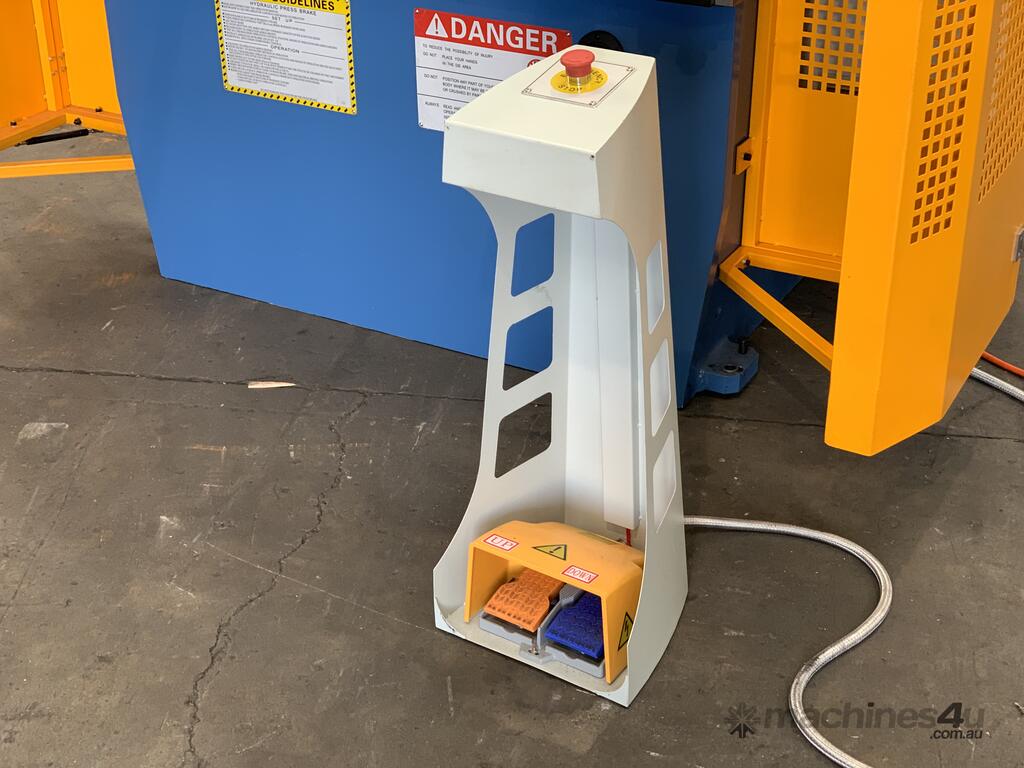

?modern designed pendant foot pedal operation with stainless braided cable.
?variable hydraulic pressure control valving fitted standard
?safety and material selection bending charts mounted on front beam for easy access.
?supplied pre commissioned prior to delivery
?CE compliant

Technical Data Snap-Shot

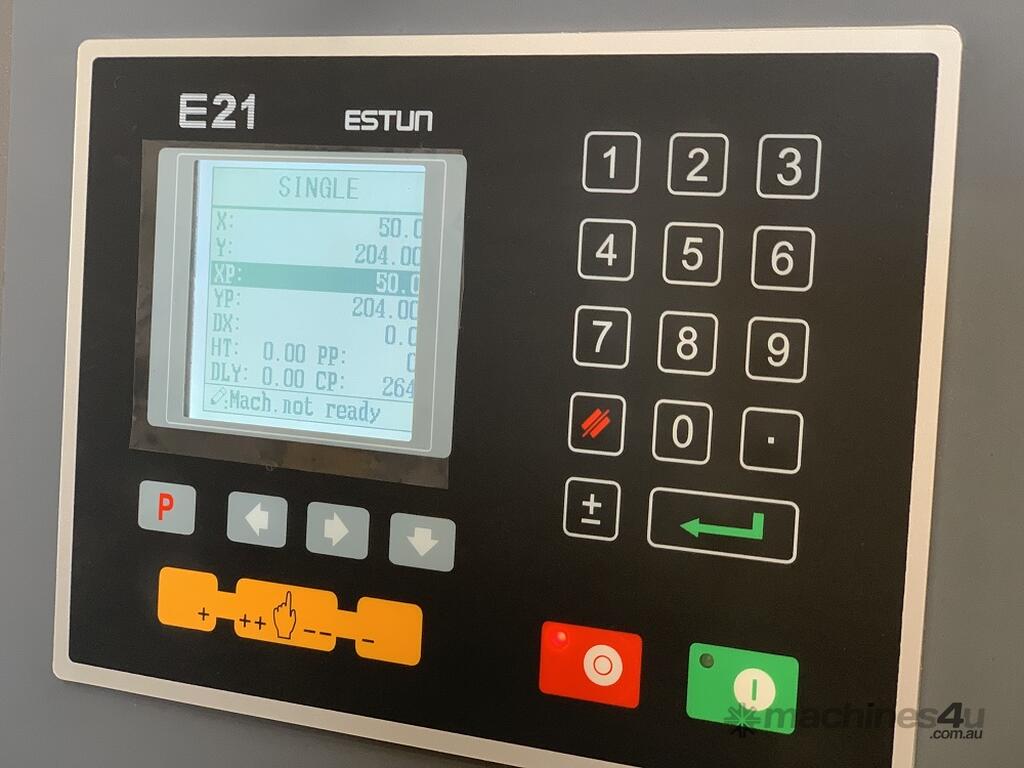

?Etsun E21 NC Programmable Controller
?40 Ton Bending Capacity
?1320mm Bending Length
?precision ball screw Backgauge
?tee slotted front beam
?1005mm Distance Between Frames
?200mm Side Throat Depth
?80mm Ram Stroke
?245mm Open Height
?400mm Back Gauge Travel
?4.0Kw / V Motor Power
?1500mm x 840mm x 1870mm Footprint
?2100Kg Weight

Standard Tooling Supplied
?50mm x 50mm x 1320mm Multi Vee Bottom Vee Block
?Segmented Offset Top Tooling 2 x 650mm

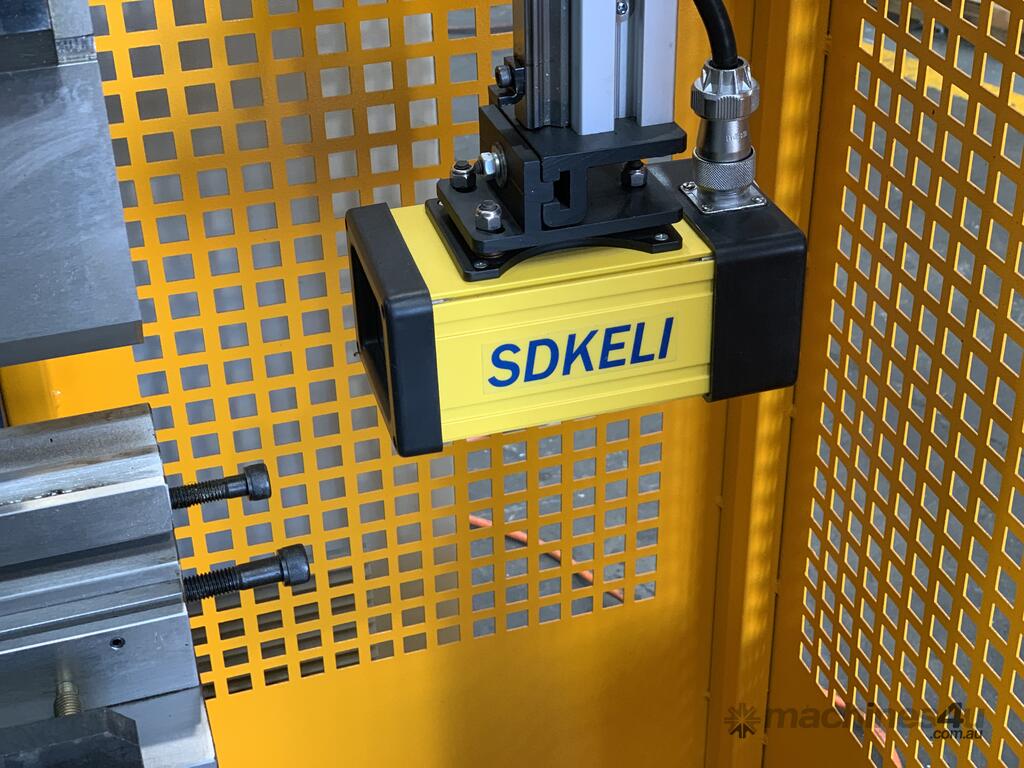

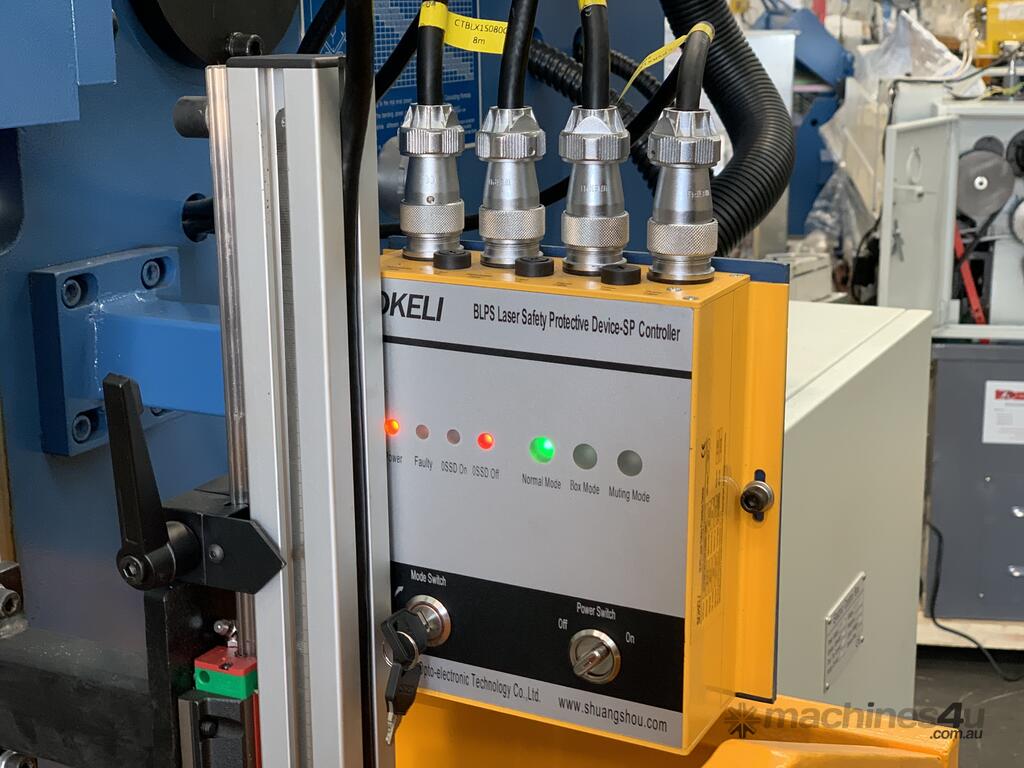

Front Laser Safety Guards
?Laser Guards to be added for OH&S requirements at additional cost

Recommended Add On Accessories
?19#0660 - STEELMASTER Plastic Die Cover Protective Folding Film – Sold Per Meter – Improves Bend Quality Finish
?19+0180 - 50mm Die Block - Pressbrake Tooling 50mm Square x 1320mm Long
?19+0241 - STEELMASTER Bottom Single 10mm Vee Tooling - US 20.43/35° V=10 R1,0 L.MM.835
?19+1073 - Double Edge Offset Top Punch - US 124/60 DEG R0.8mm 800mm Long x 60º Profile – Type 2
?19+0268 - STEELMASTER Fold & Crush Dutch Tooling - US 300/26° V=12 R2,0 L.MM.500
?50+0200 - Digital Thickness Gauge - 0mm ~ 15mm
?50+0156 - Dial Protractor With Bevelled Blade - Metric Calibrations.
?50+0112 - Digital LCD Vernier Calliper - 150mm Length.
?50+0159 - Digital Micrometers - 0-25mm Range, Dual Reading, Metric & Imperial.
