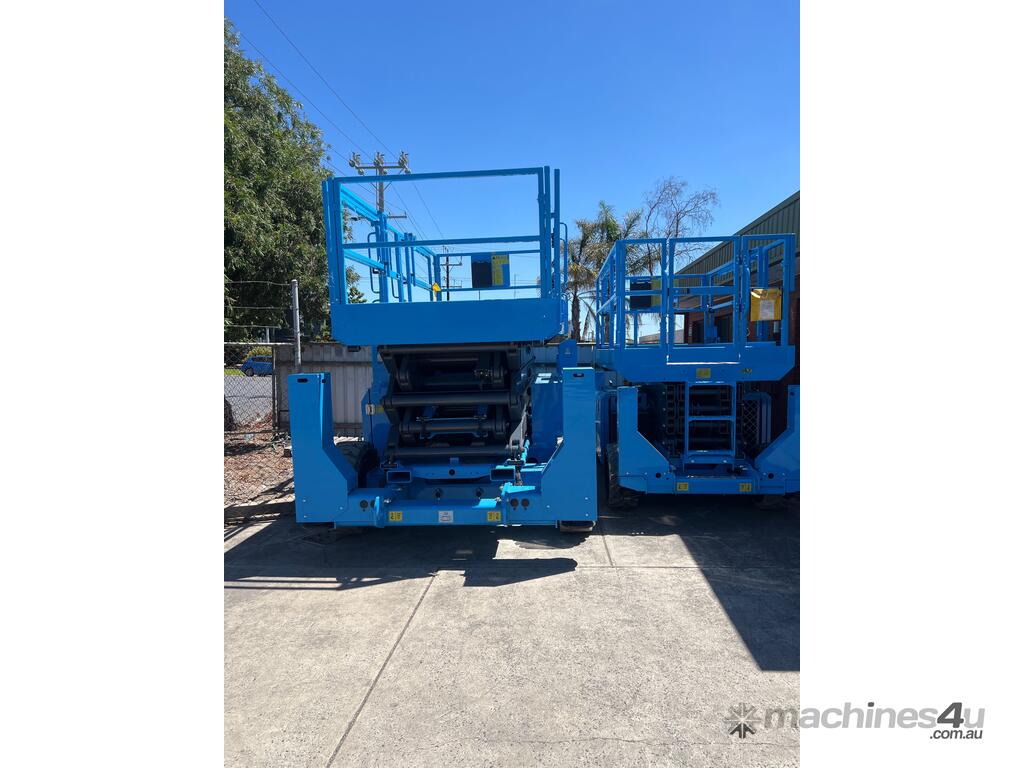

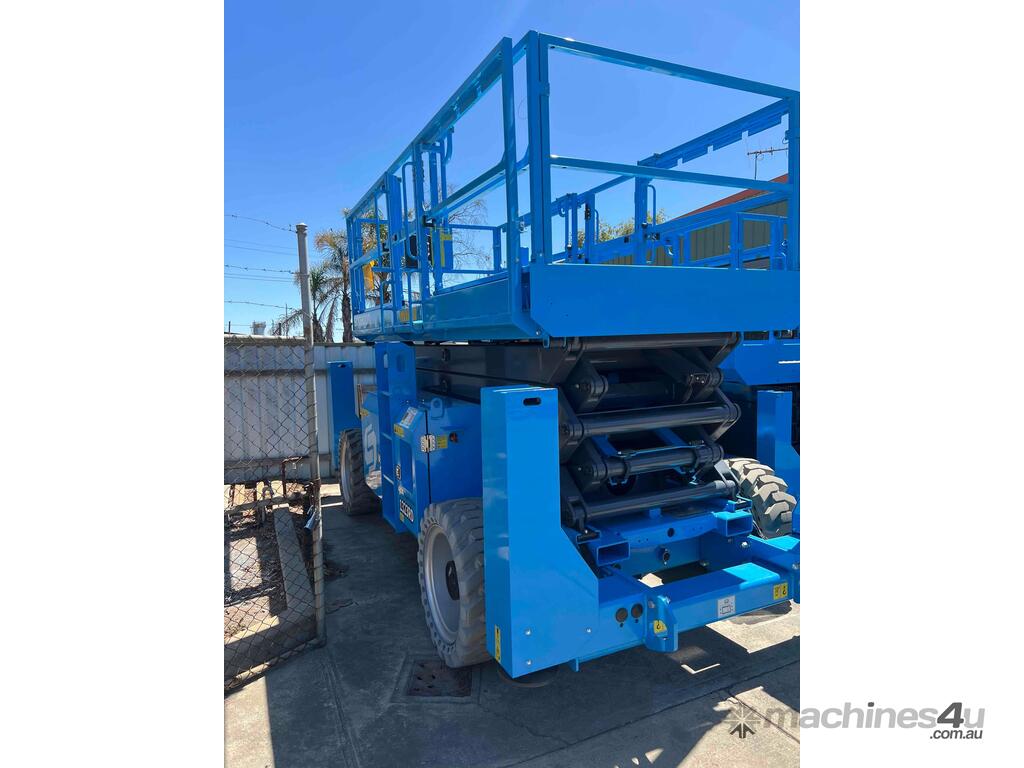

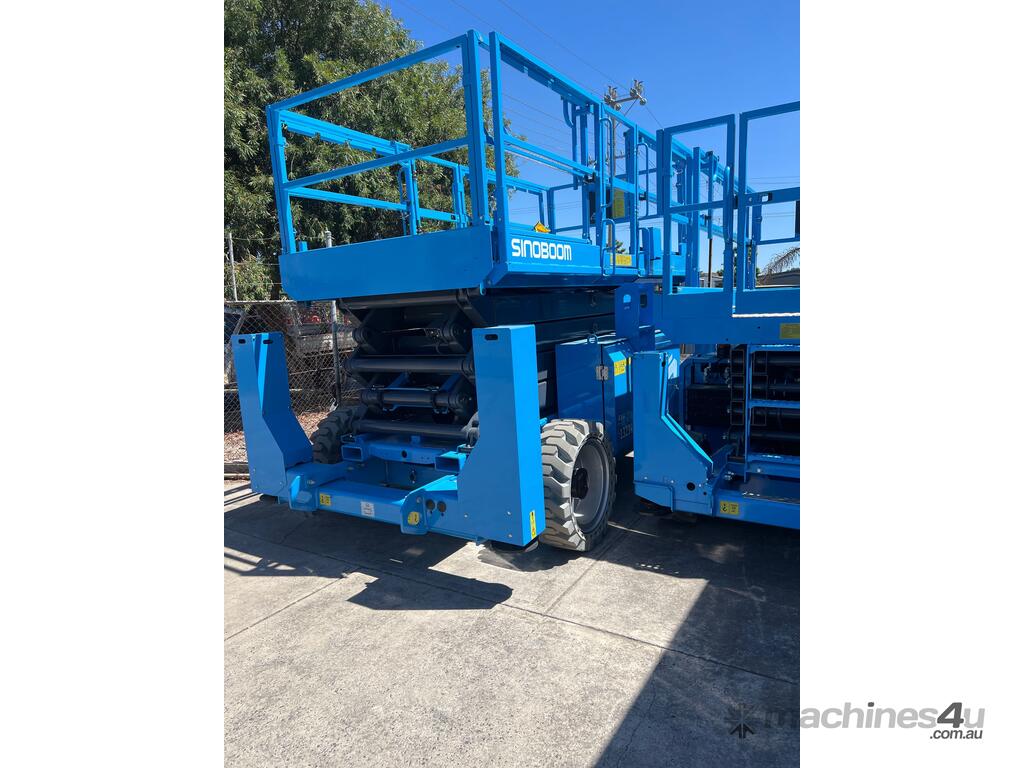

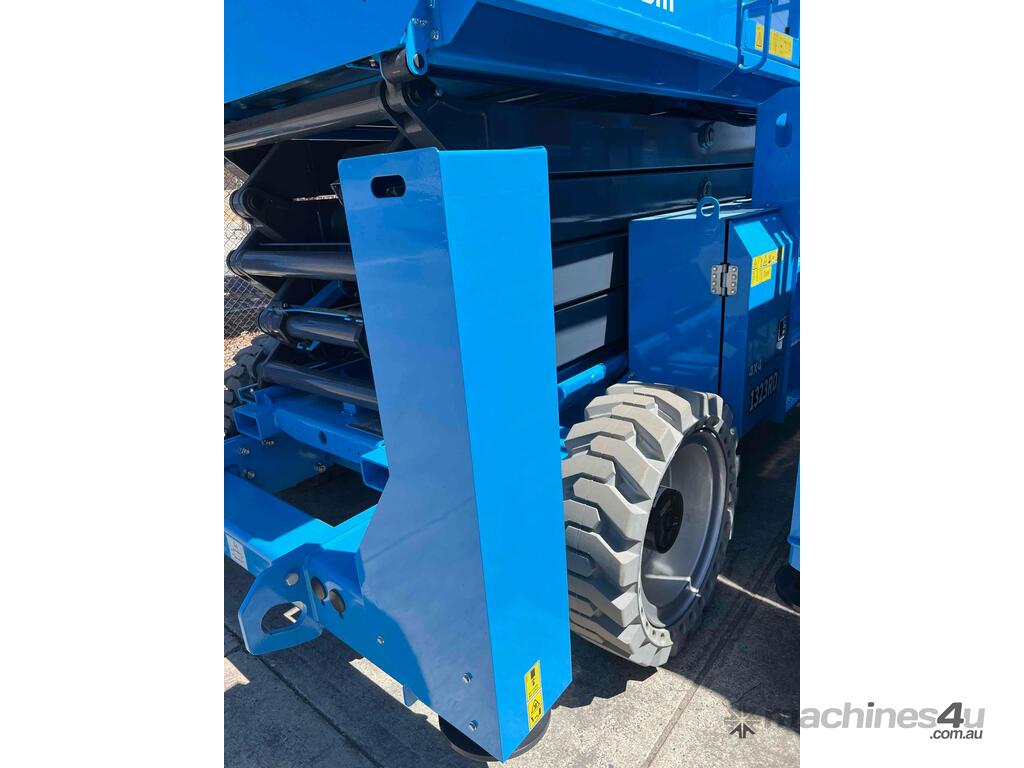

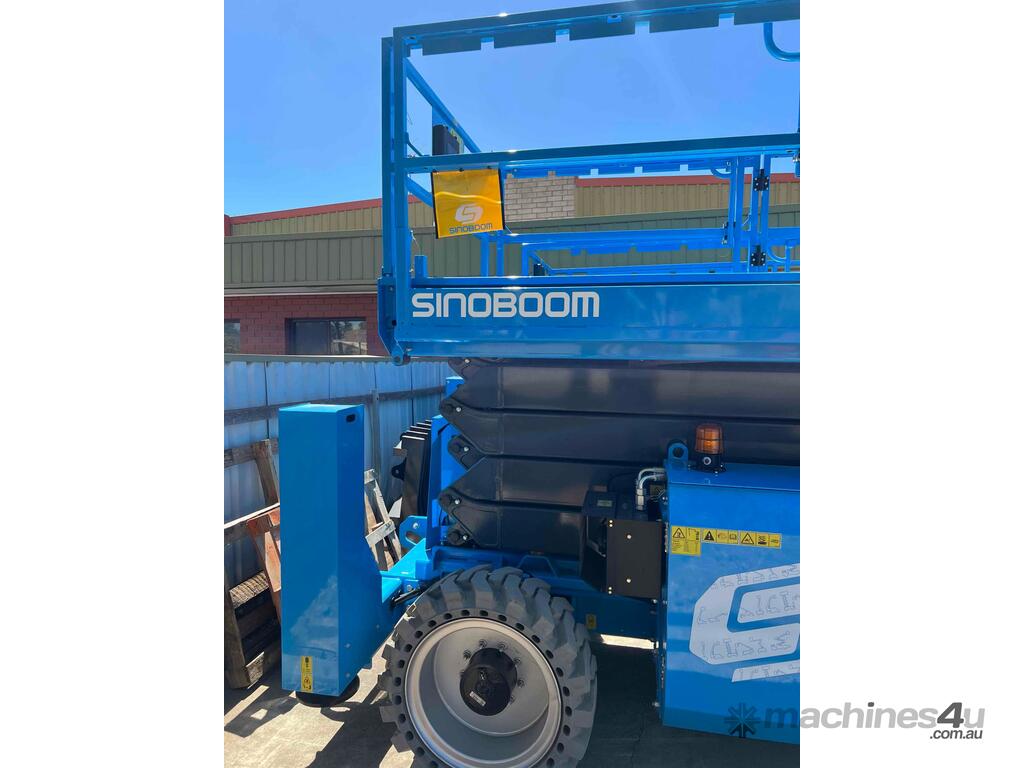

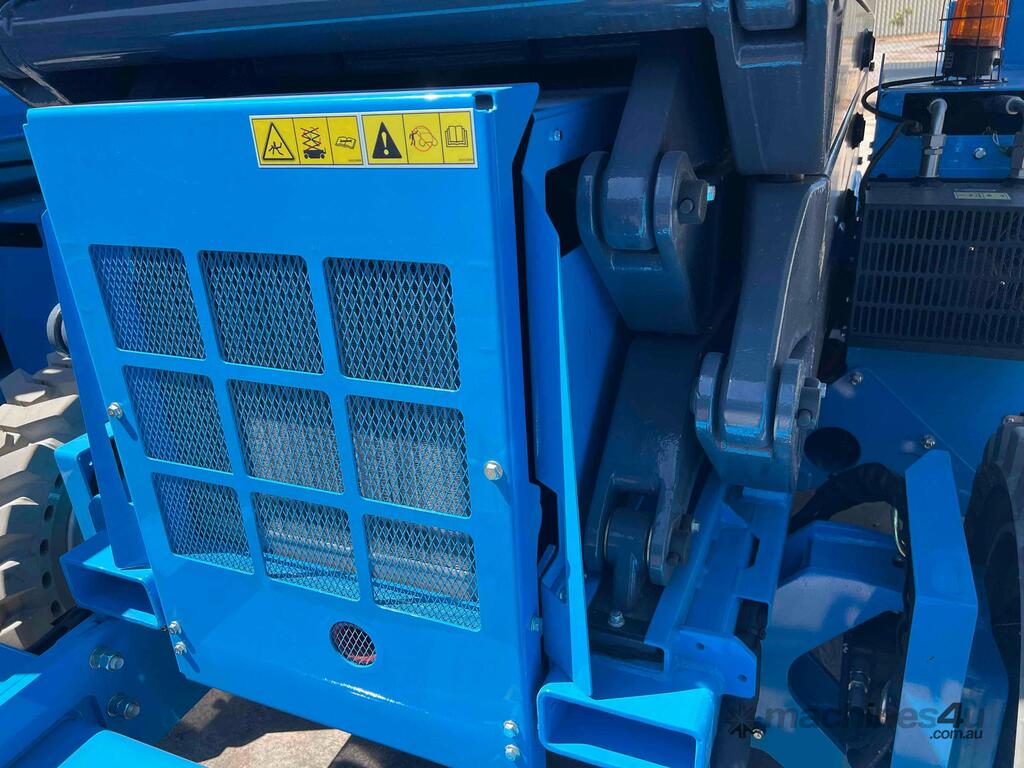

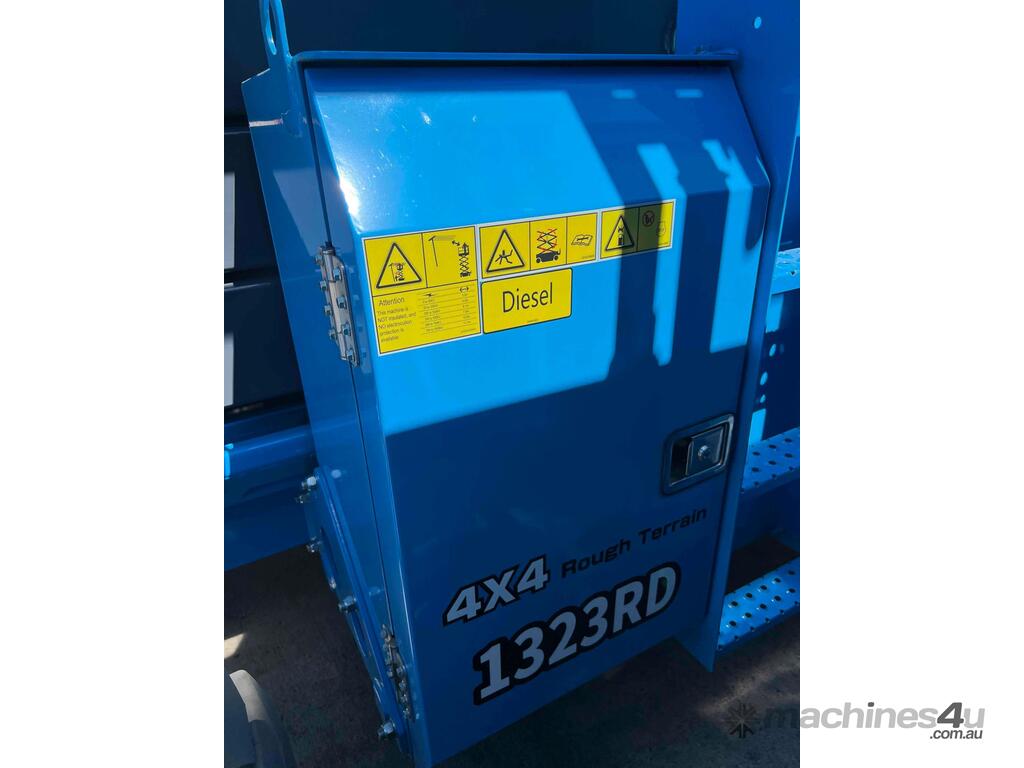

1323RD (4389RD) Rough Terrain Scissor Lifts

Working height
15.1m
Platform Capacity
680kg
Gradeability
50%

DIMENSIONS
Max Working Height
15.1m (49'6.5")
[A] Max Platform Height
13.1m (42'11.7'')
[B] Max Horizontal Extension
1.5m/1.2m (4'11.1"/3'11.2" )
[C] Length-Stowed
(Outriggers/Without Outriggers)
4.88m (16')
[D] Width-Stowed
2.28m (7'5.7")
Height - stowed (Rail Folded)
2.22m (7'3.4")
[E] Height - stowed
(Rail Unfolded)
2.98m (9'9.3")
[F] Wheelbase
2.84m (9'3.8'')
Ground Clearance
0.36m (1'2.2'')
Platform Dimensions(L×W×H)
6.5m platform: 3.96m×1.82m×1.1m (13'×6'×3'7'') /7.4m platform: 4.84m×1.82m×1.1m (15'10.6''×6'×3'7'')
PERFORMANCE
Platform Allowable Occupants
(Indoor)
7 Persons
Platform Allowable Occupants
(Outdoor)
7 Persons
Platform Capacity
50%
Drive Speed-Stowed
0?6.1 km/h (0?3.8 mph)
Drive Speed-Raised
0?1.1 km/h (0?0.68 mph)
Elevation Time
(Unloaded)
50s~60s
Descent Time
(Unloaded)
34s~44s
Gradeability
50%
Turning Radius
(Inside/Outside)
2.2m/5.3m (7'2.6"/17'4.7")
Tilt Rating
(Front to Back)
3°
Tilt Rating
(Side to Side, Outrigger Tele-In/Tele-Out)
2°/0.8°
Max Outrigger Leveling
(Front to Back)
7°
Max Outrigger Leveling
(Side to Side)
12°
Tyres-solid
315/55D20 (foam-filled)
POWER
Power Source
Yanmar 4TNV88-BDFLTC 34.5kW (China 3)
Drive Mode
4WD×2WS
Fuel Tank Capacity - Diesel
110L (24 gal (UK) / 29 gal (US))
Hydraulic System Capacity
140L (30.8gal (UK) / 37gal (US))

Weight
(Outriggers/Without Outriggers)
7,700 kg (16,976 lbs)
Standards Compliance
CE/ANSI/EAC/AS
