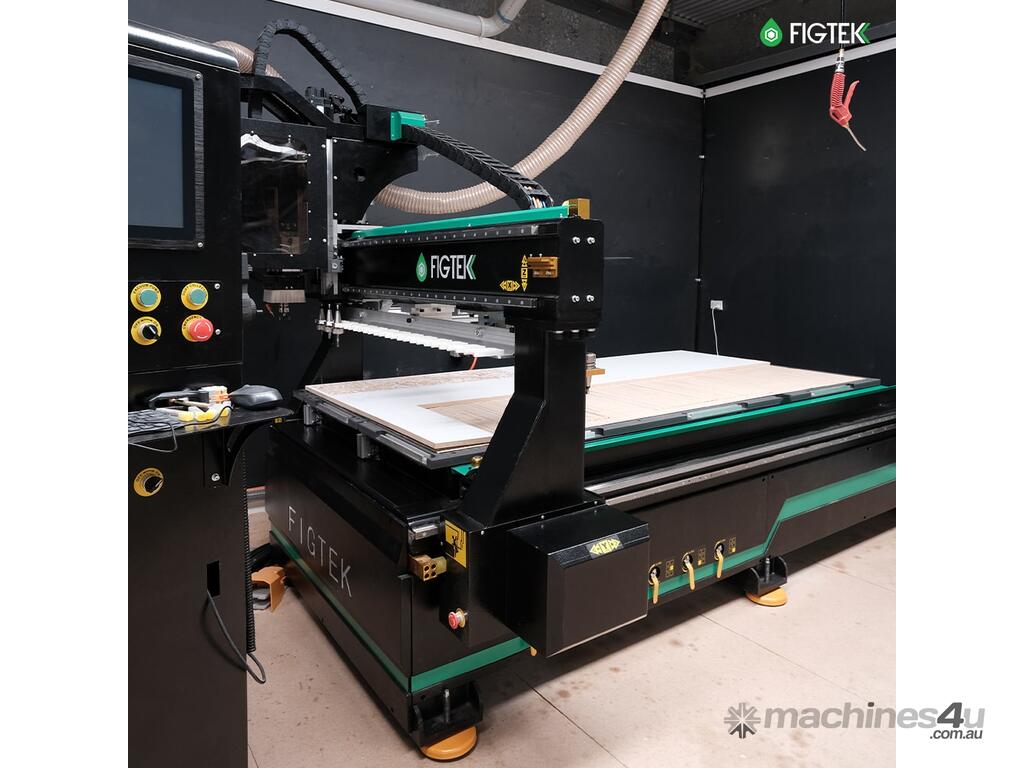

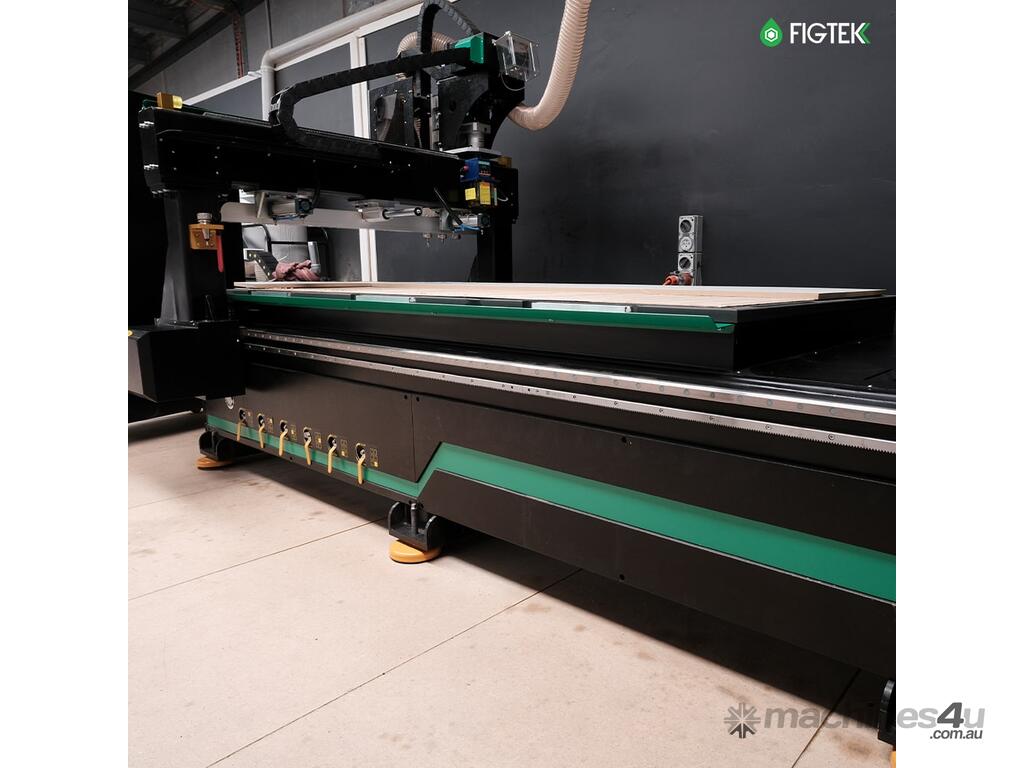

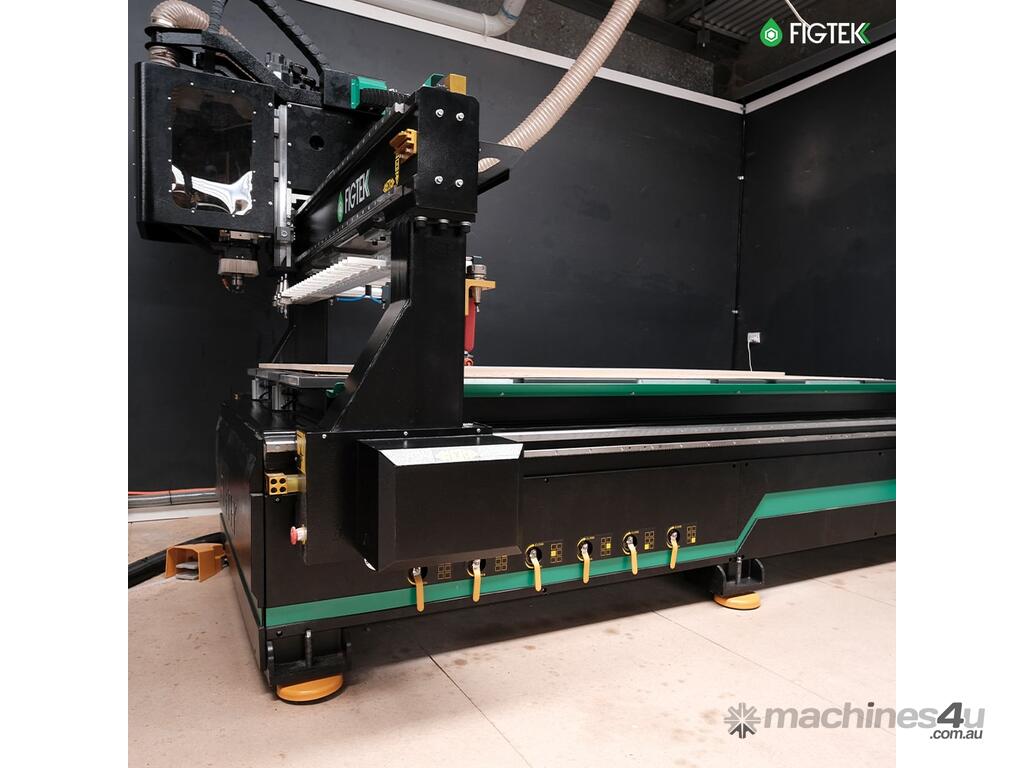

1325 LNC ATC Router with 9KW Air Cooling Spindle

Get the all-new LNC 1325 ATC CNC ROUTER

Welcome to take a look at the machines in our factory anytime during business hours. Chat with our engineers to understand what you can achieve with the machine.

Inclusions:
• Working Area: 1300 x 2500 x 300mm
• Acceptable Material Thickness: 150mm
• Working Table: Vacuum Table
• Vacuum Pump: 7.5 KW Water Vacuum Pump
• Processing Resolution: ±0.1mm
• Re-positioning resolution: ±0.02mm
• Spindle Motor: 7 Spindle motor 9KW HQD Air Cooling Spindle

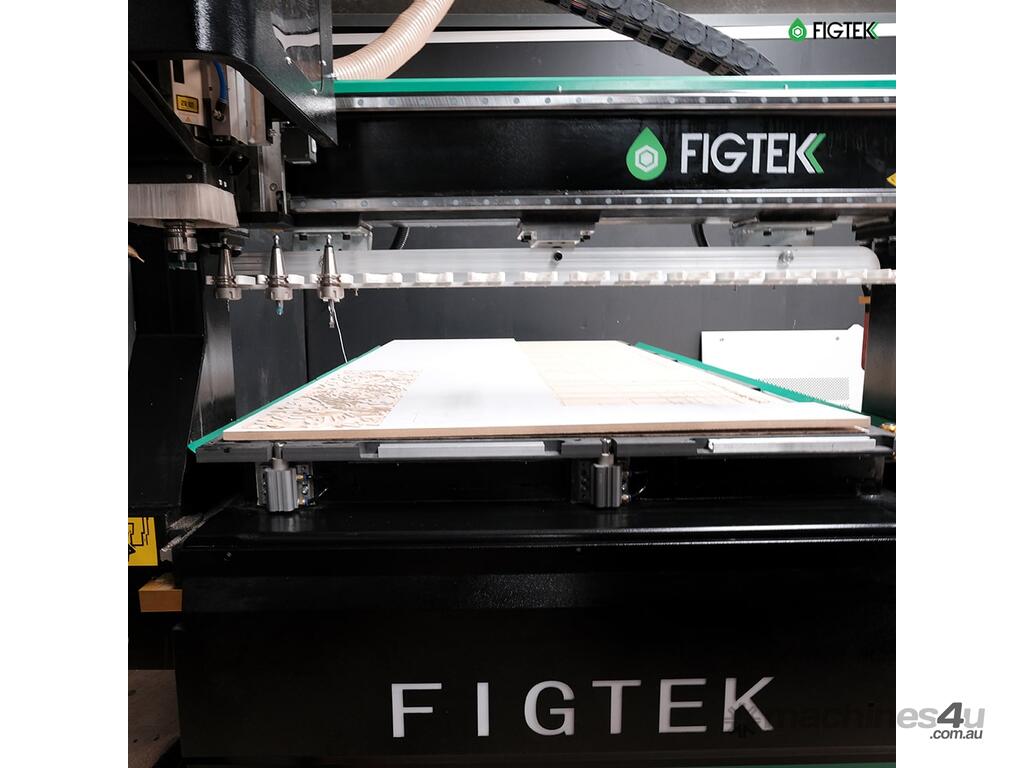

• Tool Changer: Duel-process Pneumatic Tool Changer
• Spindle Rotating Speed: 24000rpm
• Transmitting System: X\Y axis Rack and Opinion Square guide; Z axis ball screw Square guide
• Driving Motor: 11 Driving motor X/Y/Z 1.5KW Yaskawa Servo Motor & Driver
• Inverter: Fuling 11KW and Control System: LNC-MW2200
• Processing Speed: ?20000mm/min
• Tool Holder: 12Pieces and Voltage: 3 Phase 415V, 50HZ

Benefits of an Automatic Tool Changer:

• Ability to switch between a large number of tools without requiring a human operator.
• Increase accuracy.
• Increase efficiency
• Reduced labor cost
• Reduced downtime and total production time
• Increased tool storage capacity
• Increased machine versatility.
• Increased safety for employees and equipment
• Ability to change larger and heavier tools with ease

Applications:

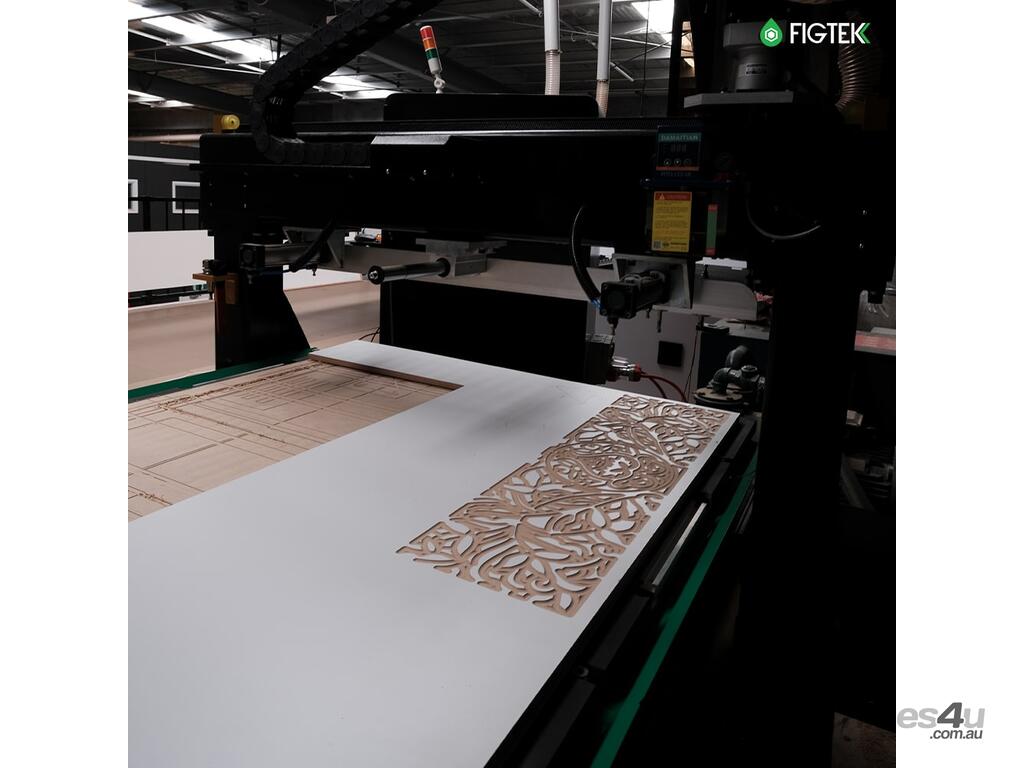

• Used in processing single lines, milling, 3D Cutting and engraving.
• Router can be used in furniture processing industry, woodwoking, decoration, wood art work, home decor and door's manufacturing.
