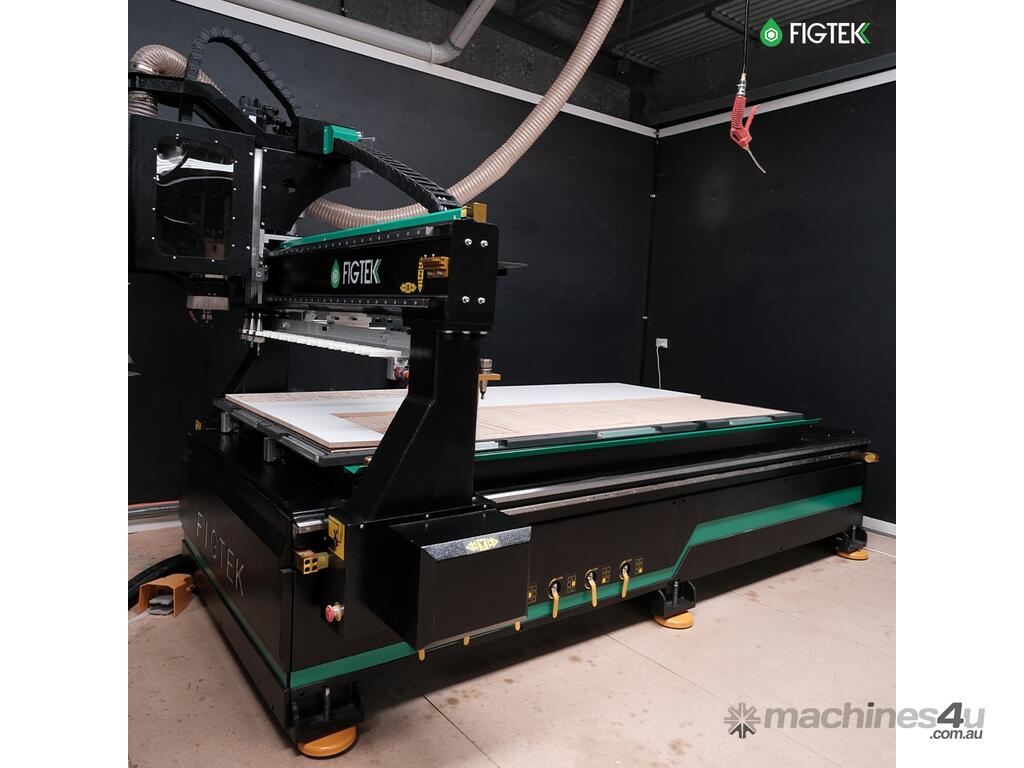

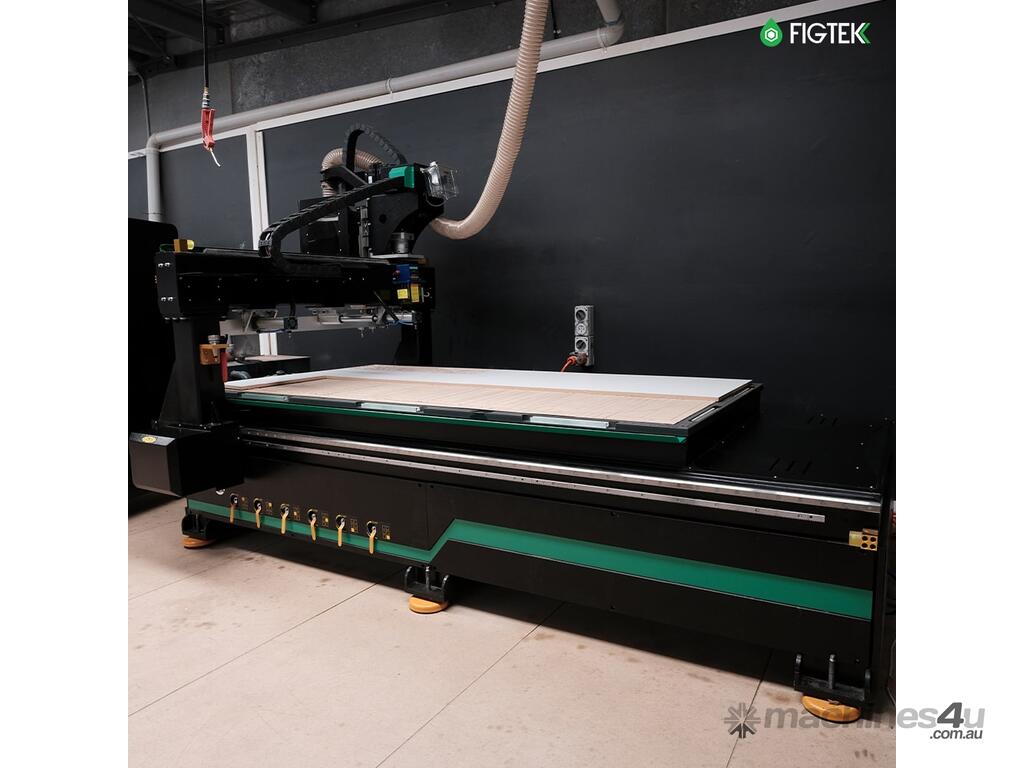

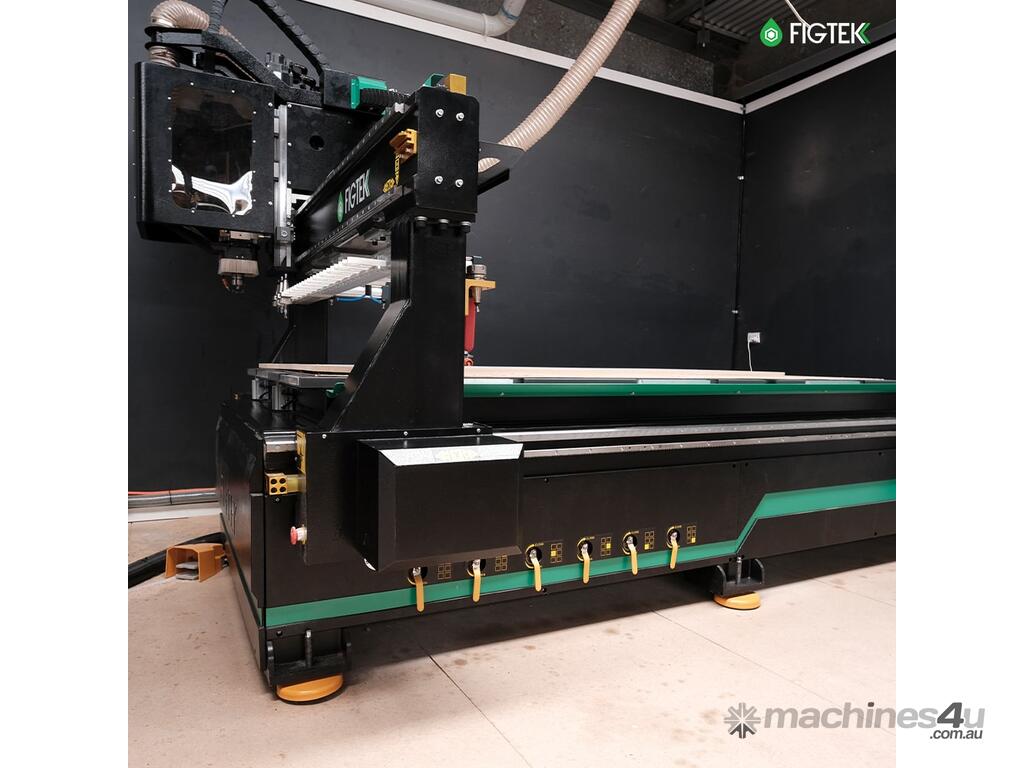

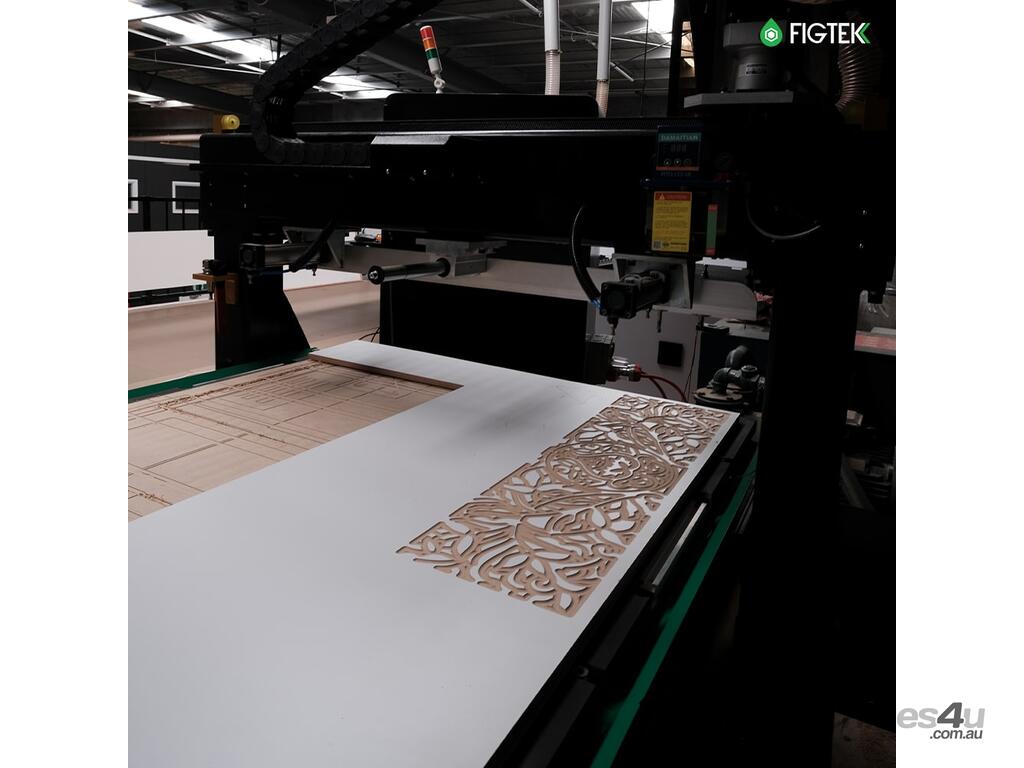

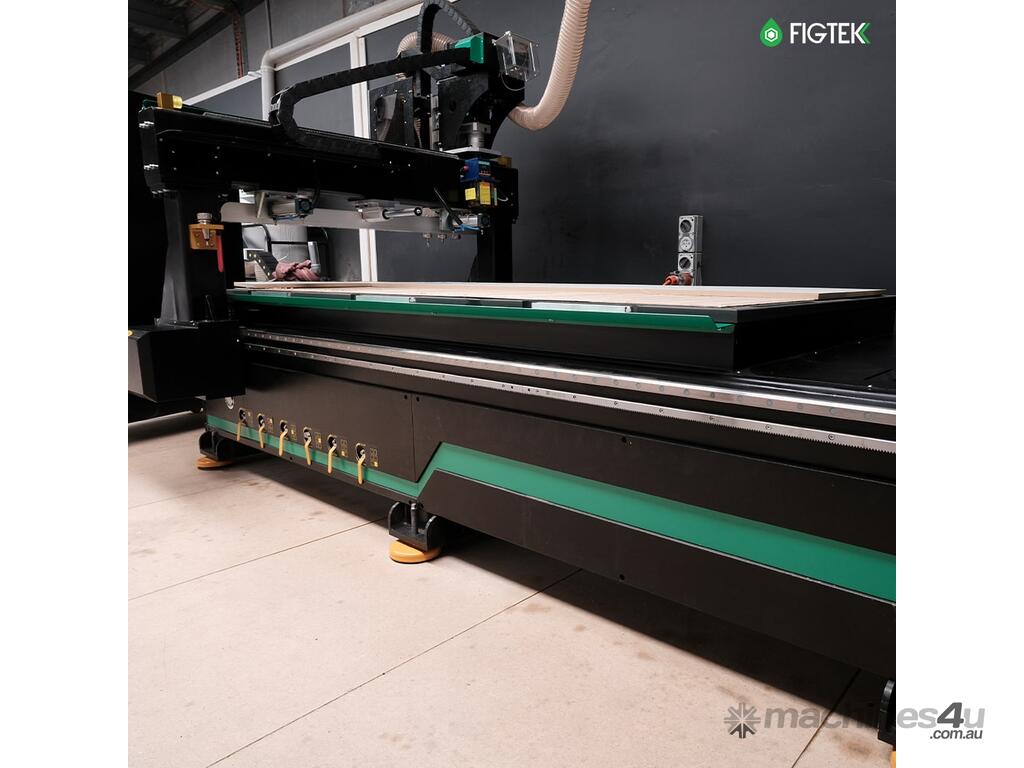

1325 LNC CNC ROUTER with 12 pieces Tool changer

Inclusion

• Working Area: 1300 x 2500 x 300mm

• Acceptable Material Thickness: 150mm

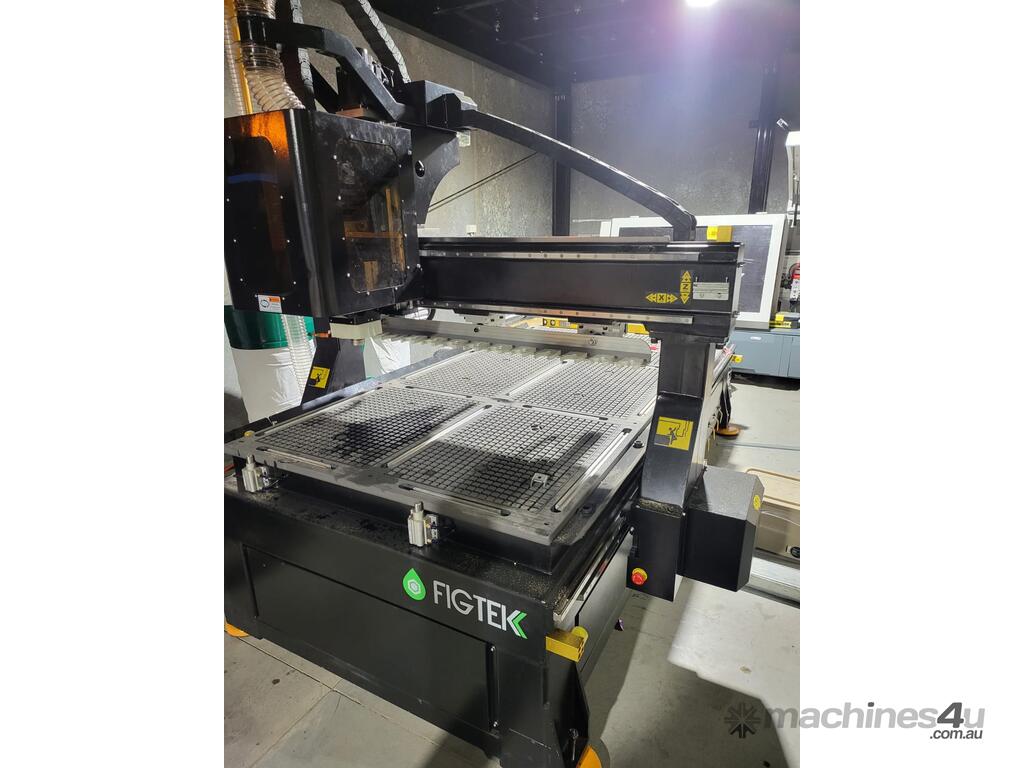

• Working Table: Vacuum Table

• Vacuum Pump: 7.5 KW Water Vacuum Pump

• Processing Resolution: ±0.1mm

• Re-positioning resolution: ±0.02mm

• Spindle Motor: 7 Spindle motor 9KW HQD Air Cooling Spindle

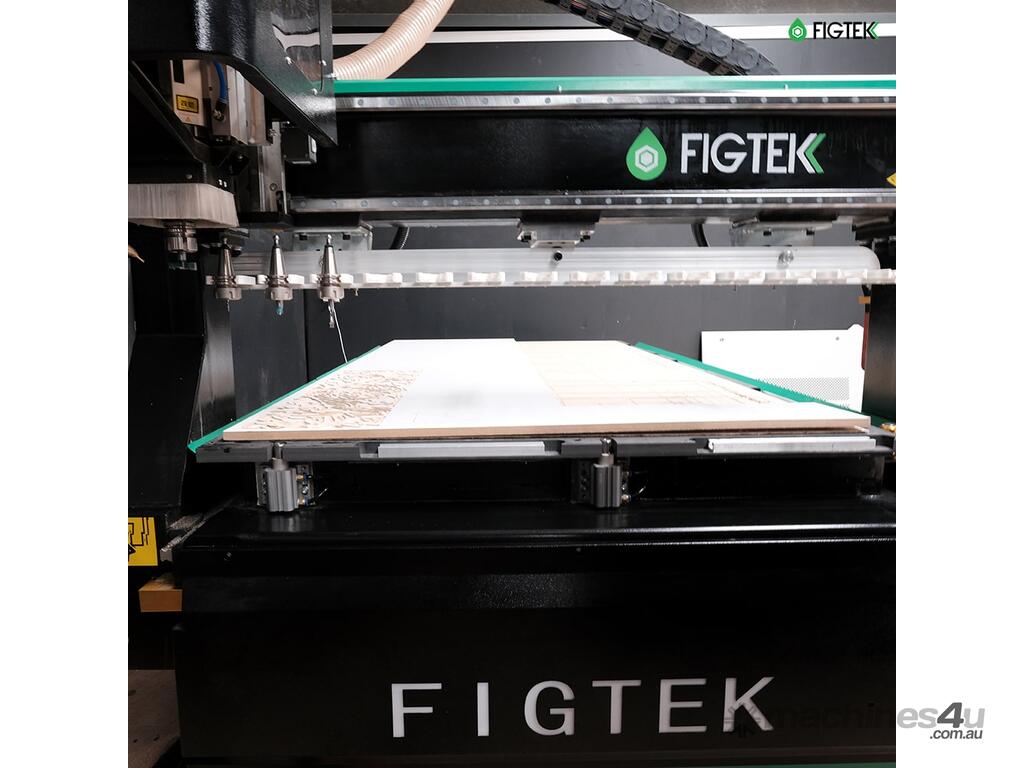

• Tool Changer: Duel-process Pneumatic Tool Changer

• Spindle Rotating Speed: 24000rpm

• Transmitting System: X\Y axis Rack and Opinion Square guide; Z axis ball screw Square guide

• Driving Motor: 11 Driving motor X/Y/Z 1.5KW Leadshine Servo Motor & Driver

• Inverter: Fuling 11KW

• Processing Speed: ?20000mm/min

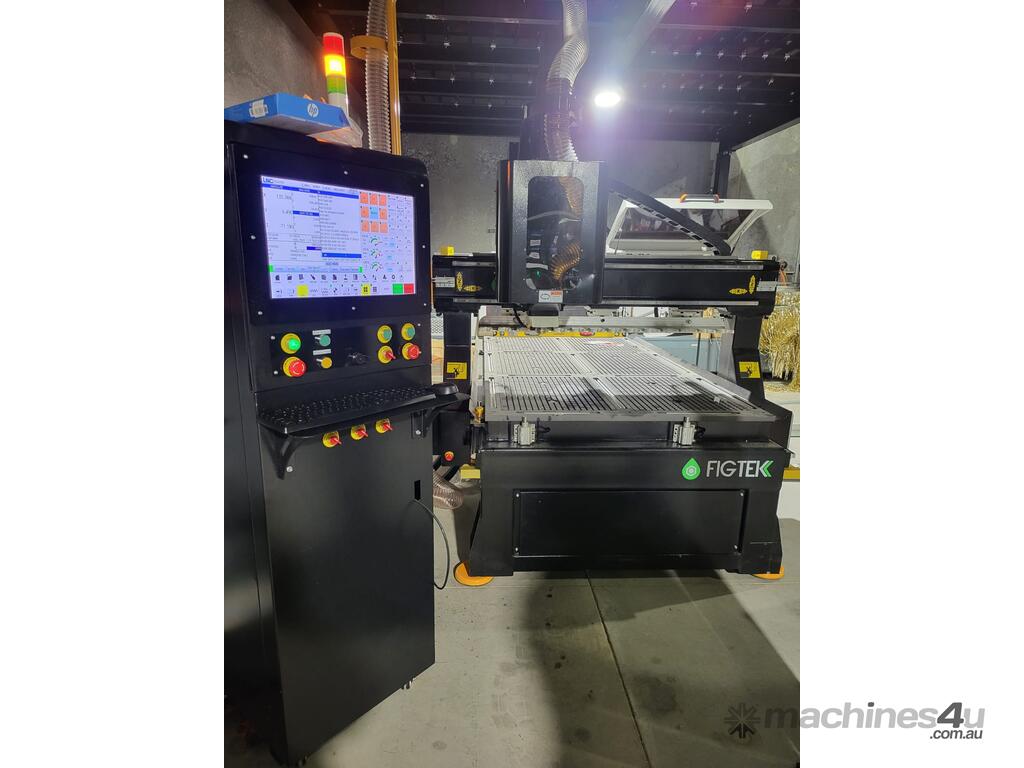

• Control System: LNC-MW2200

• Tool Holder: 12Pieces

• Voltage: 3 Phase 415V, 50HZ



APPLICATIONS:


• Wooden furniture: doors, windows, chairs, tables

• Plate processing: stairs, epoxy resin, insulation parts

• Used in processing single lines, milling, 3D cutting and engraving


Software Compatible with our CNC Routers:


• Fusion 360

• ArtCam

• AutoCad

• EnRoute

• Cadmate

• Aspire

• VCarve Pro

• Mozaik

• CADVision and much more


Why Buy Our ATC Router?


• Australian Local Support

• Only the best quality parts used

• Engineers with over 15 years of experience

• Custom built to your specifications

• 3-year Australian warranty – Only if the installation package is chosen
