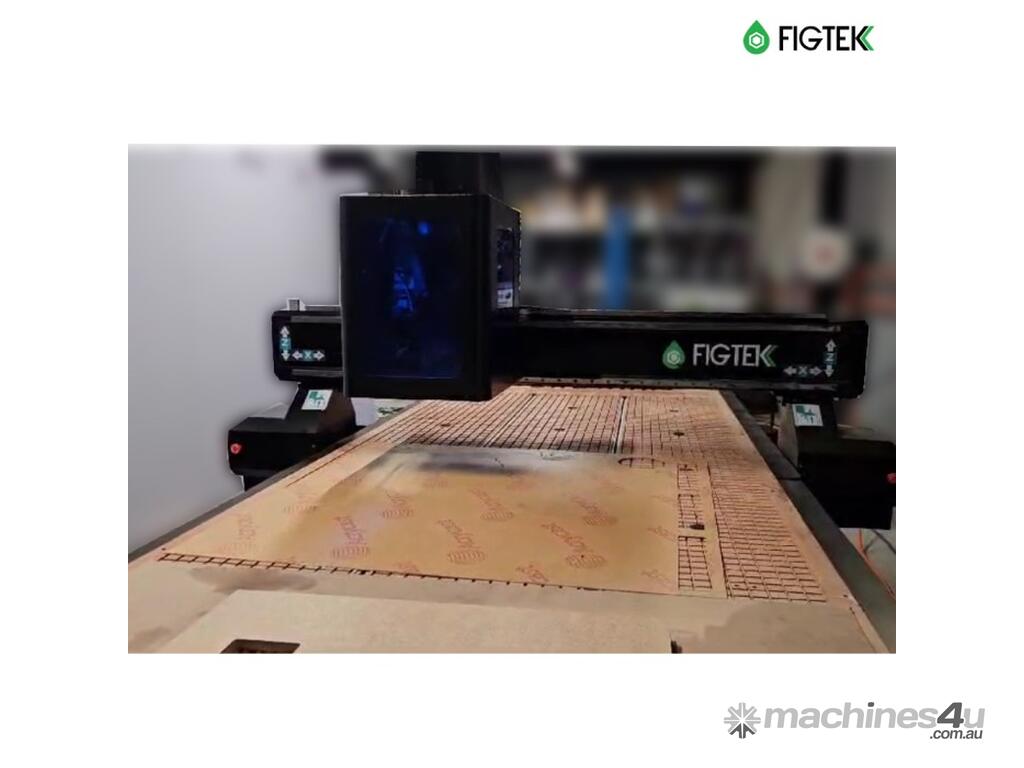

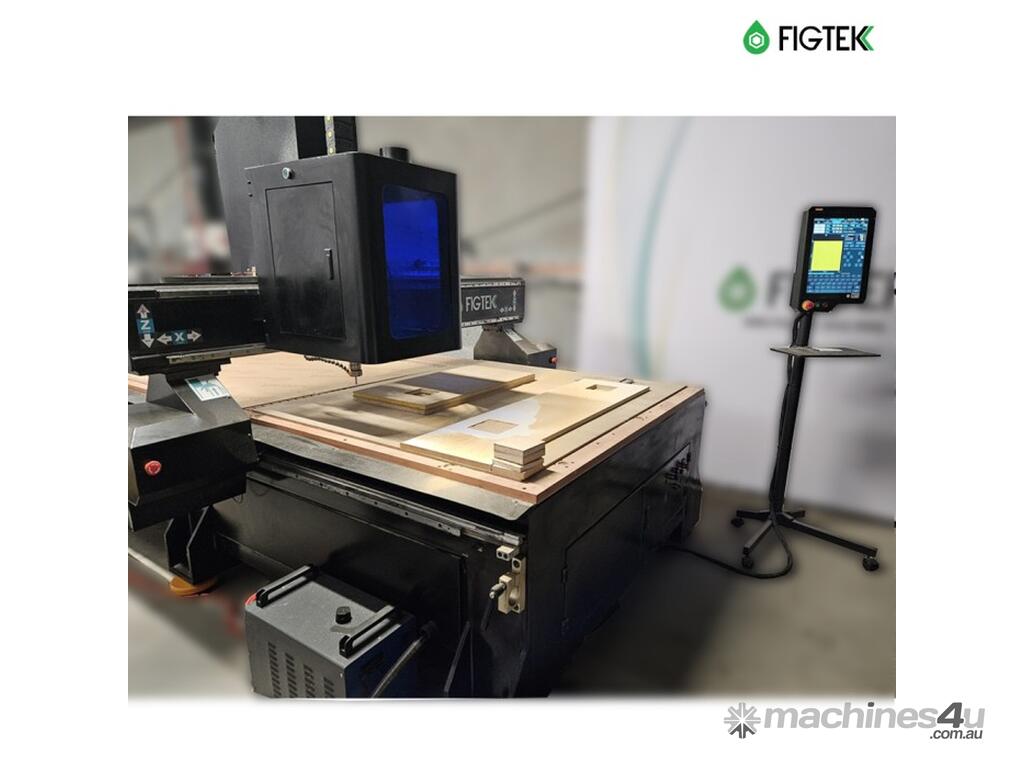

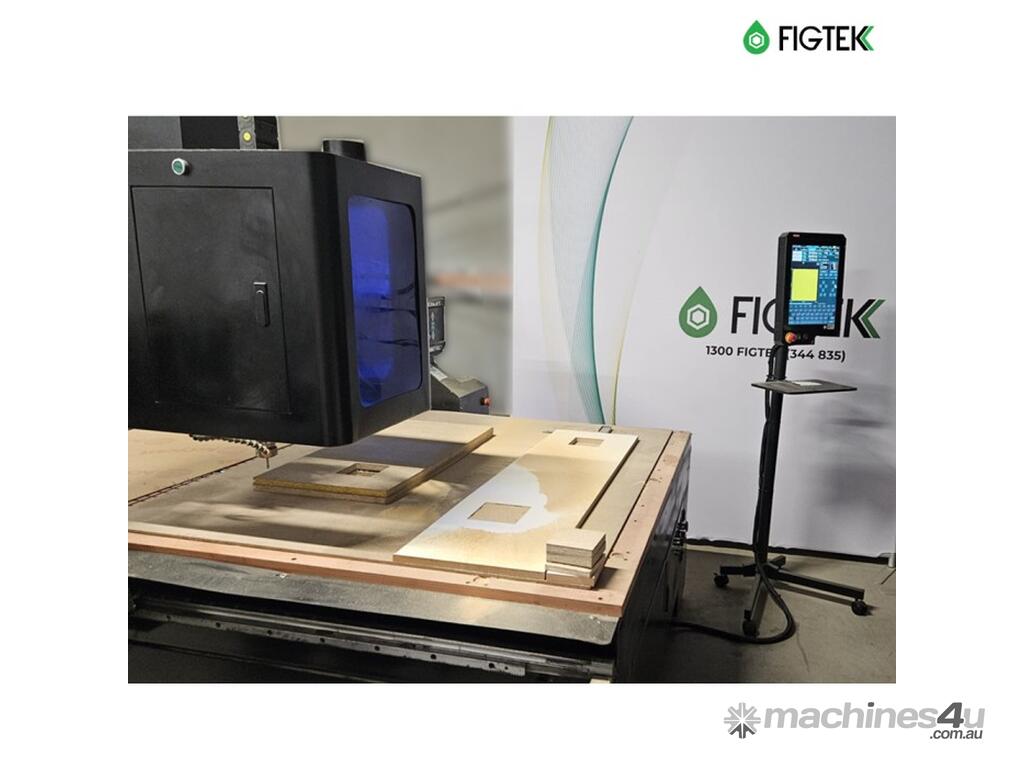

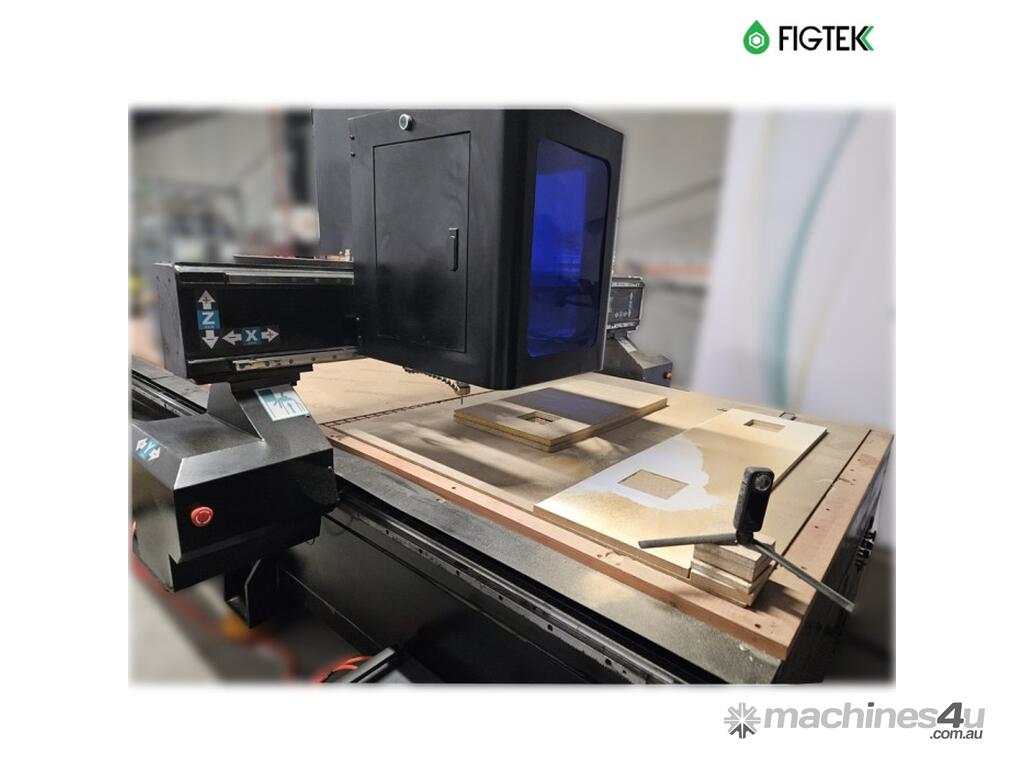

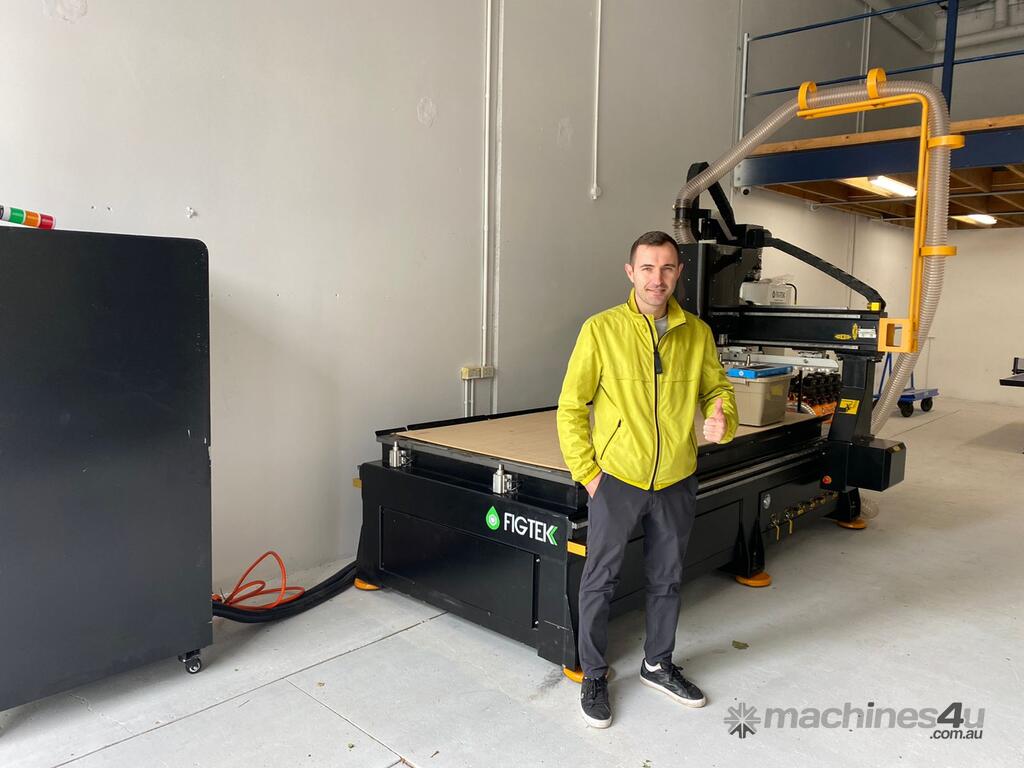

1330 ATC Router with Masso Controller - 9kW Air Cooled Spindle

Discover the 1330 ATC Router with Masso Controller
Enhance your workshop's capabilities with the 1330 ATC Router, powered by the cutting-edge Masso controller. Perfect for various industries, this machine promises exceptional performance, precision, and reliability.

Key Specifications
Working Area: 1300 x 3000 x 200mm
Worktable: Vacuum Bed and T-slot table
Vacuum Pump: Included
Guide Rails: 25mm Taiwan linear guides
Spindle: 9kW Air Cooled
Servo Motors and Drivers: Yaskawa / Leadshine 1.5KW
Inverter: 5.5 KW Fuling
Construction: Welded machine structure with a heavy-duty body
Power Supply: 220V Single Phase or 3-Phase
Lubrication: Automatic oil lubricant system
Position Control: Position Cylinder with foot pedal control
Dust Management: Automatic Dust Shoe (Dust Collector available for an additional $880)

Key Features

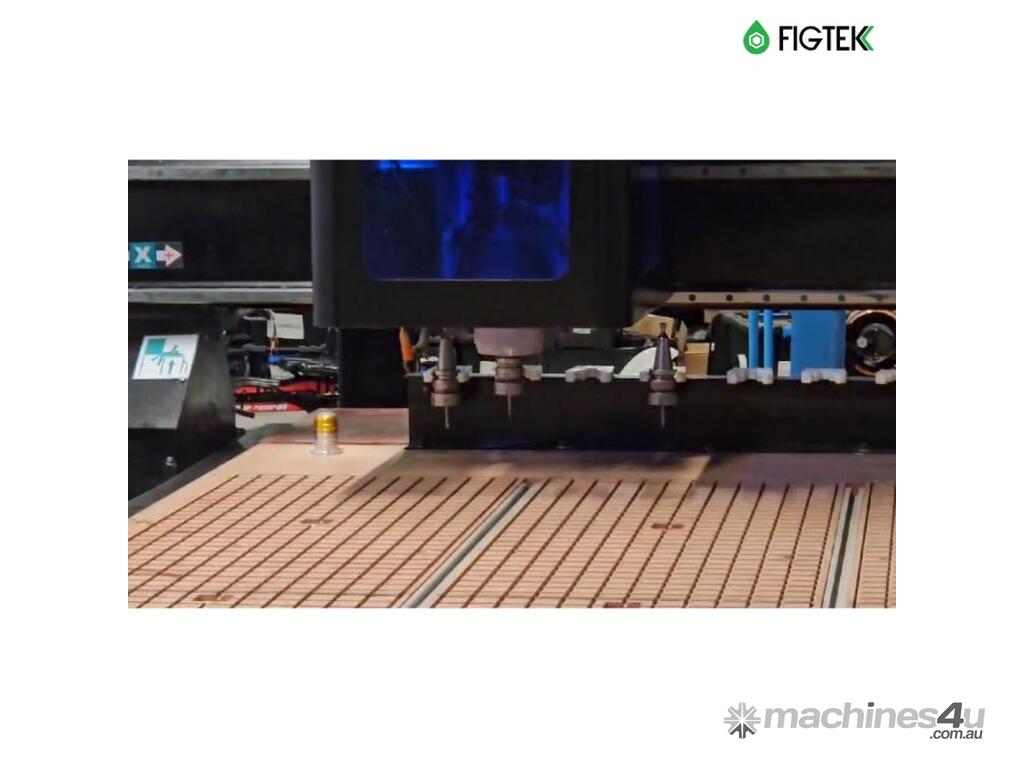

Automatic Linear Tool Changer: Enhances production efficiency
High Precision Servo Motor and Driver: Ensures accuracy
Sturdy Construction: Built for durability
Vacuum & T-slot Table: Provides stability during operations

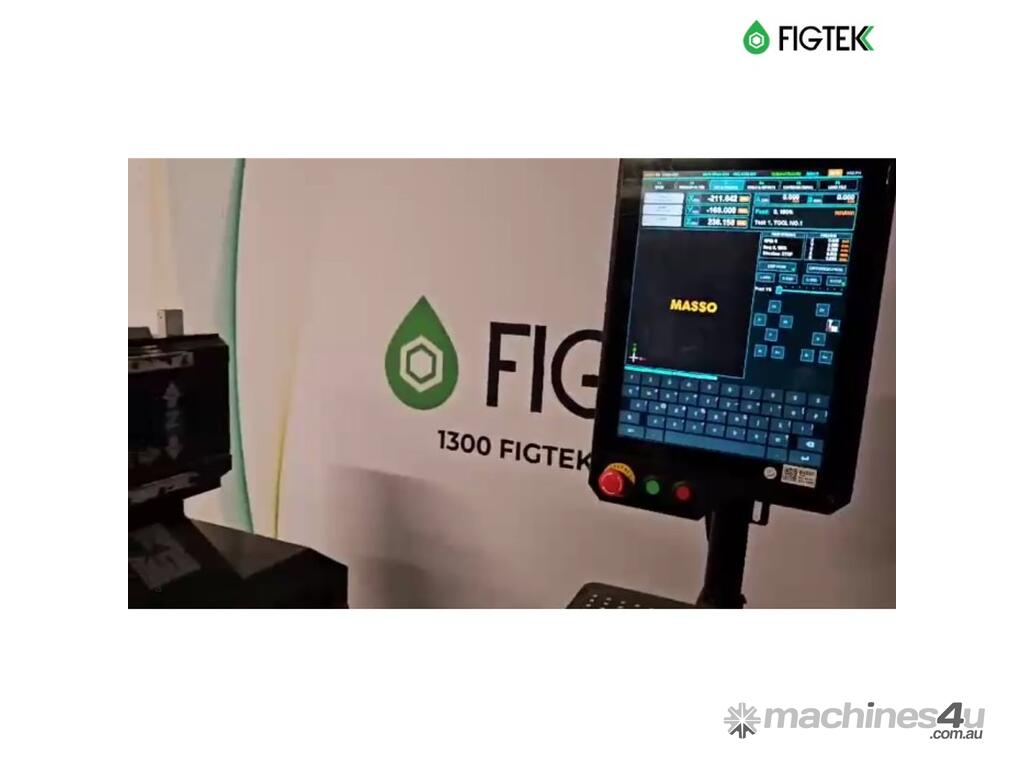

Masso Controller
Control Buttons: E-Stop, cycle start, and cycle stop for easy control

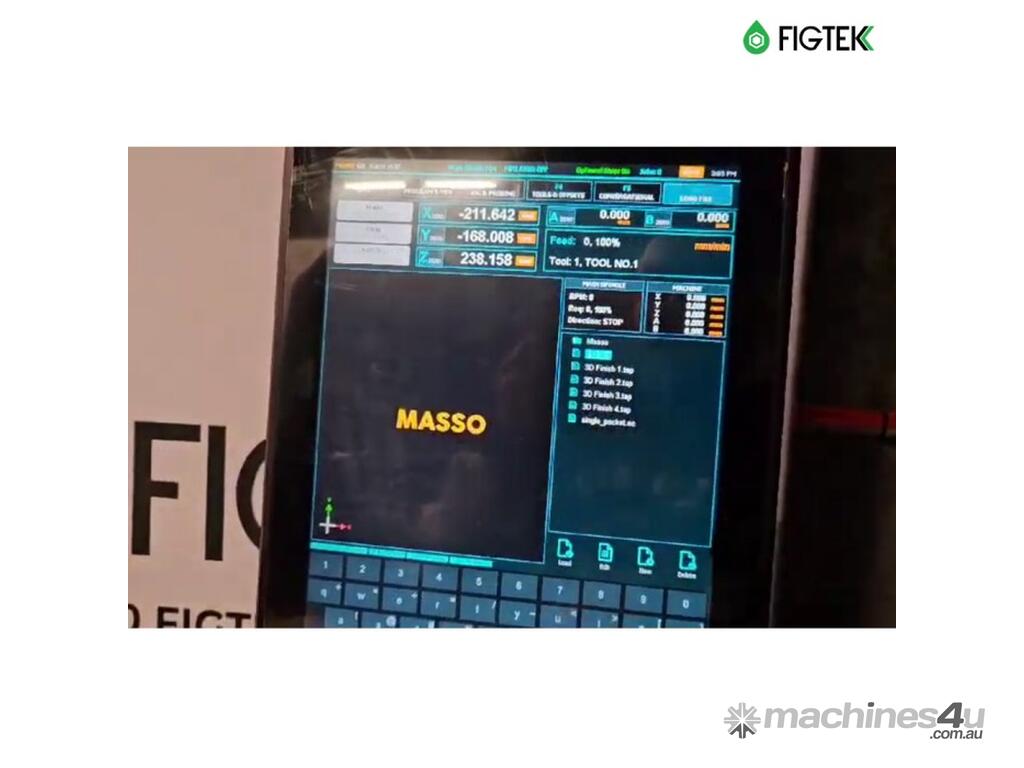

Interface: Supports both horizontal and vertical user interfaces with an on-screen touch keyboard for vertical use
USB Ports: Connect keyboard, mouse, and flash drives
Inputs/Outputs: 24 isolated inputs and 18 outputs
Signal Support: Step & Direction signals for stepper or servo drives
Spindle Control: Direct control with 0-10 volts, CW, CCW & PWM
MPG Handwheel Dial: Supported

Applications

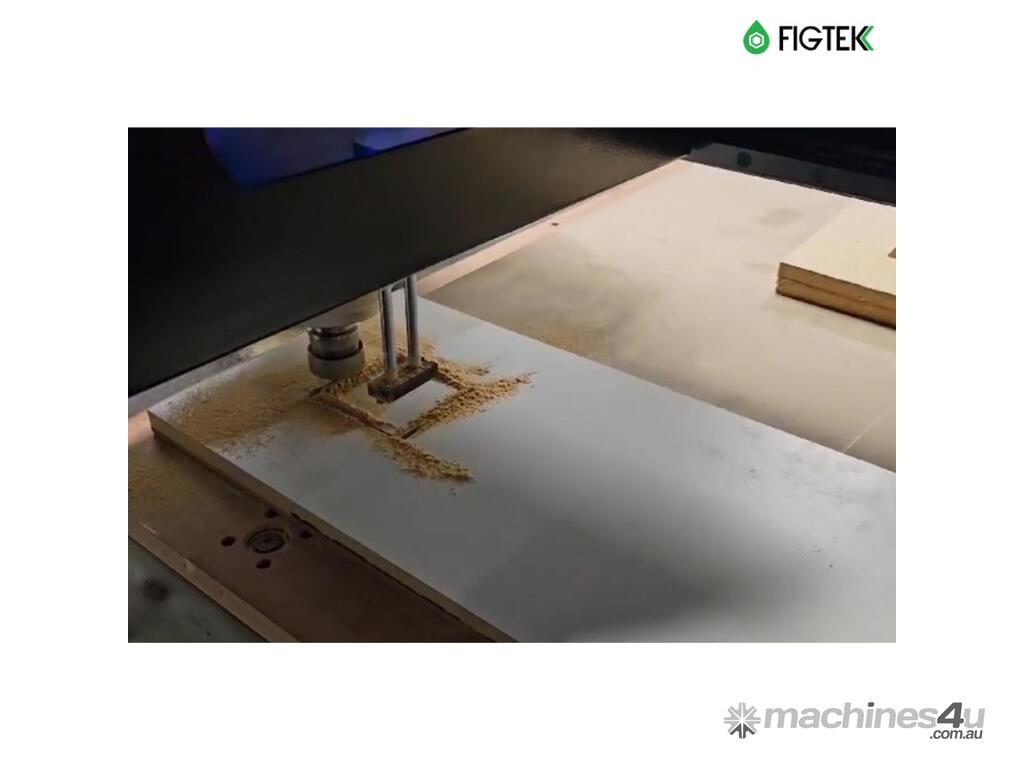

Woodworking: Ideal for furniture manufacturing, cabinetry, and crafts
Signmaking: Perfect for intricate designs and lettering on materials like acrylic, PVC, and wood
Prototyping: Suitable for product design, automotive, and aerospace industries
Plastic Fabrication: Great for displays, enclosures, and machine parts
Aluminium Machining: Suitable for light-duty machining, custom parts, and prototypes
Foam Cutting: Excellent for packaging, insulation, and theatrical props
Composite Material Processing: Works with fiberglass, carbon fiber, and laminates for aerospace, marine, and automotive applications
Educational Purposes: Ideal for teaching CNC machining, design principles, and manufacturing processes

Why Choose Us
Australian Local Support: Reliable, local assistance
Top-Quality Components: Ensuring reliable performance
Experienced Engineers: Proven track record of success
Customization Options: Tailored solutions available
3-Year Warranty if installation package chosen
