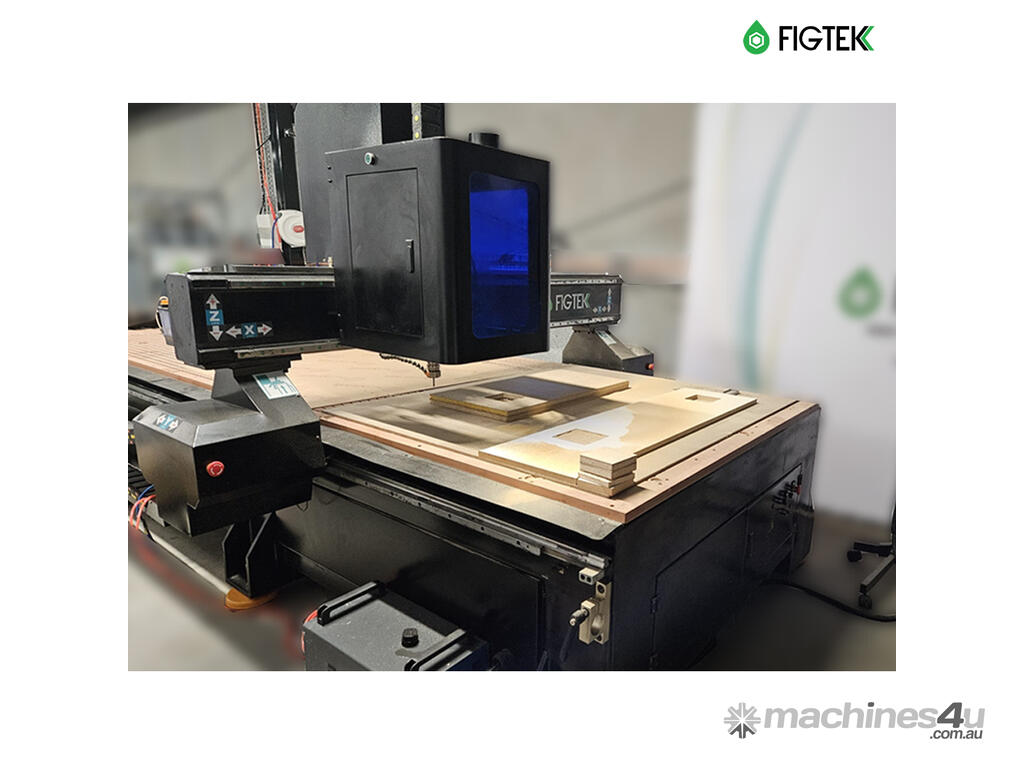

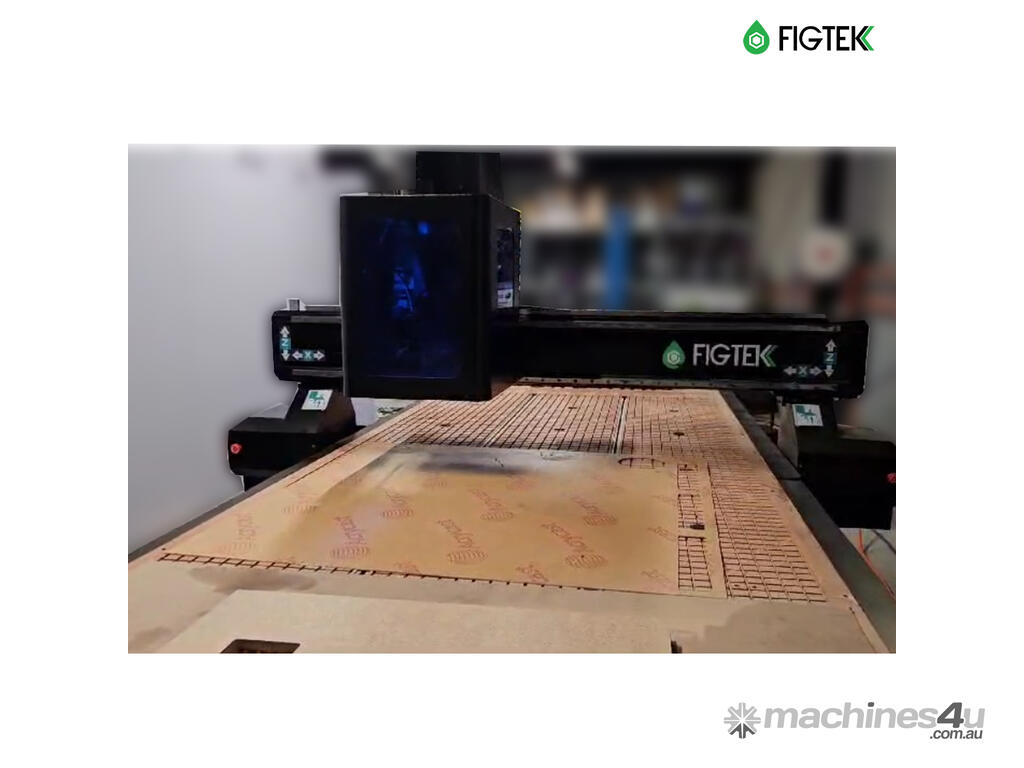

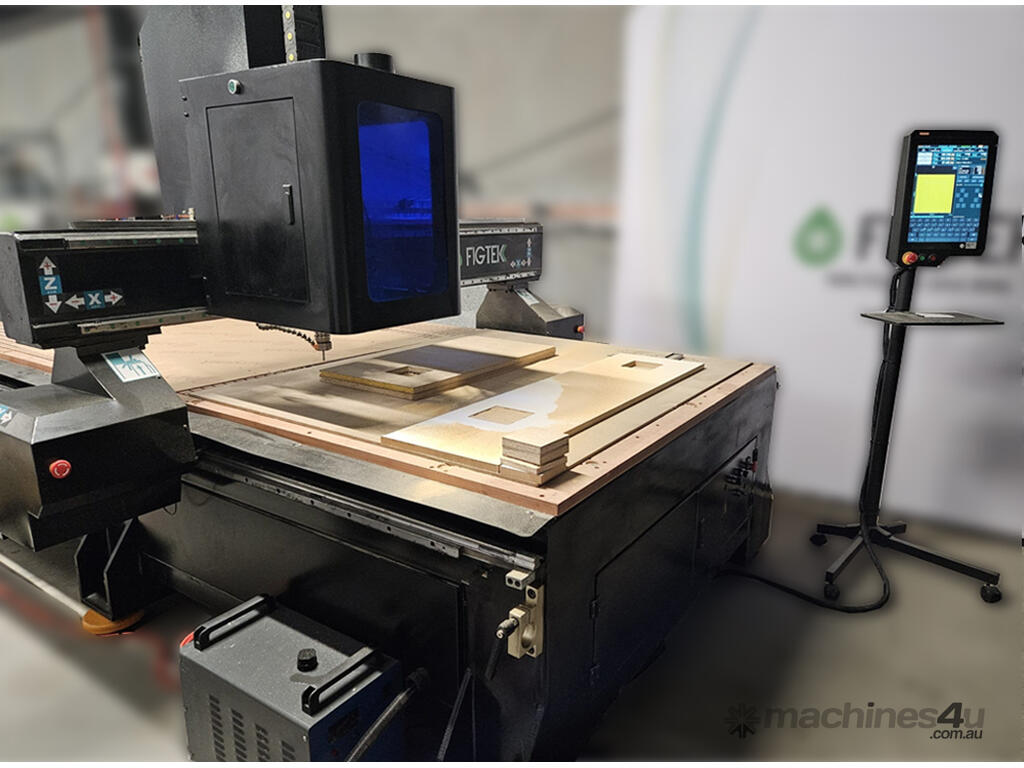

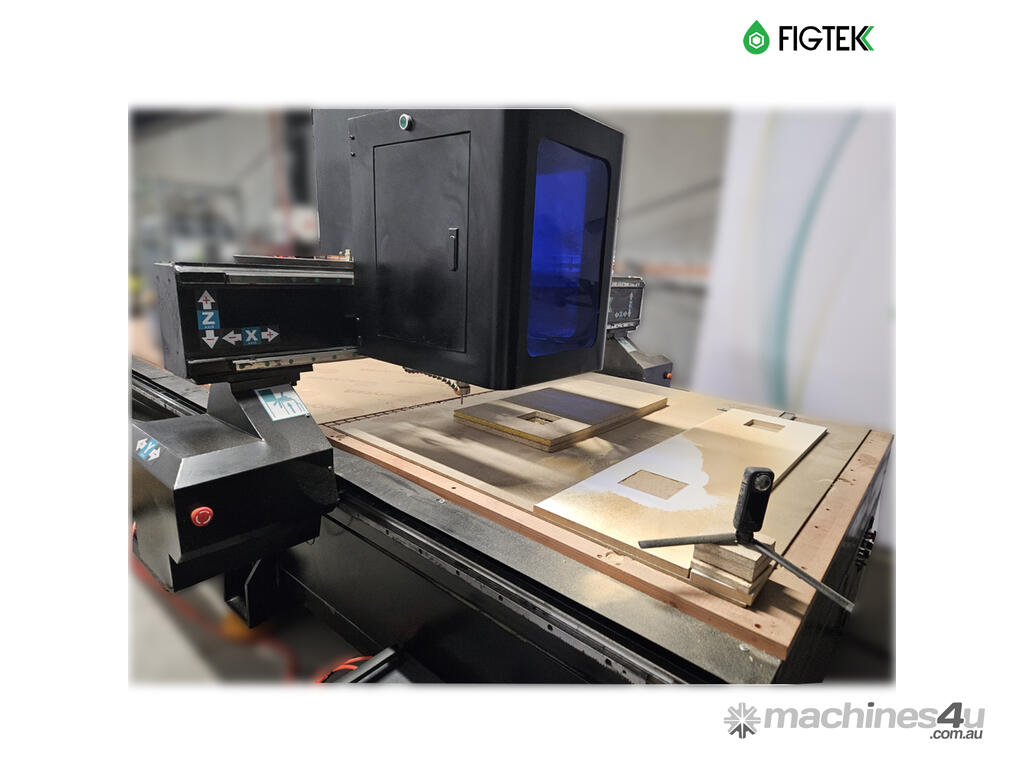

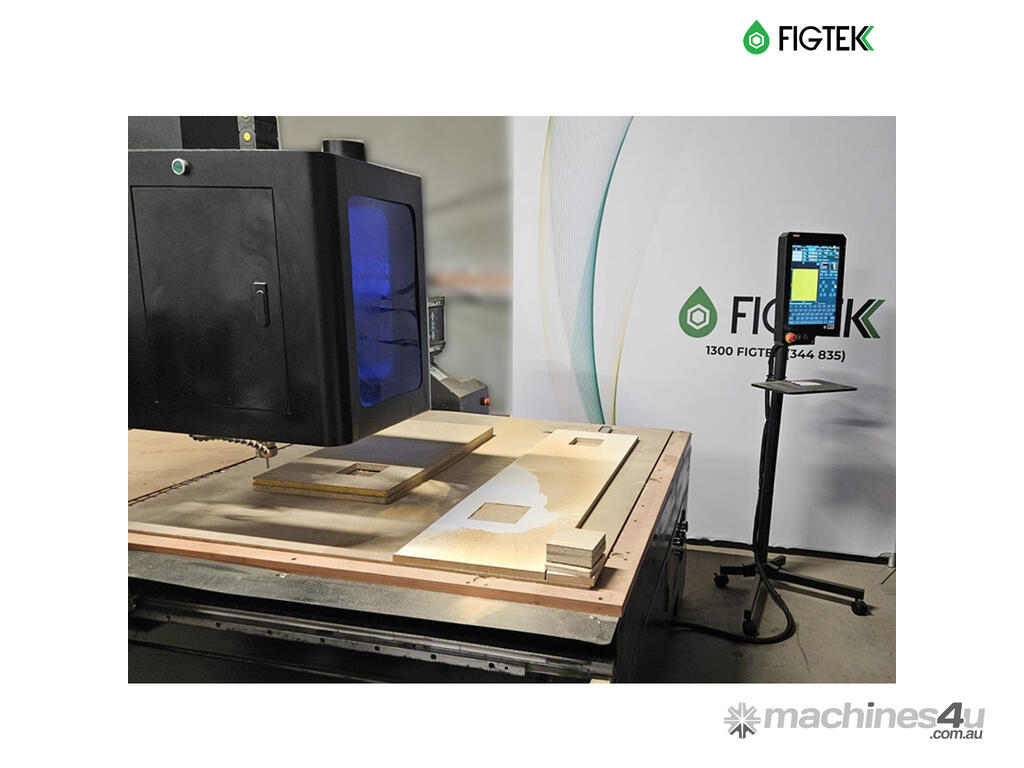

1330 ATC Router with Masso Controller

This CNC machine is a robust and versatile tool designed to handle a wide range of materials and applications. Here's a breakdown of its key specifications, features, applications, and benefits:

Key Specifications:
Working Area: 1300 x 3000 x 200mm
Working Table: Vacuum Bed and T-slot
Vacuum System: Vacuum pump included
Guide Rails: 25mm Taiwan linear guide rails
Spindle: 9kW Air Cooled Spindle
Controller: Masso Controller
Motors and Drivers: Yaskawa / Leadshine 1.5KW Servo Motor and Driver
Inverter: 5.5 KW Fuling
Structure: Welded machine structure, heavy-duty body
Power Supply: 220V - single phase
Lubrication: Automatic Oil Lubricant system
Positioning: Position Cylinder controlled by foot pedal
Dust Management: Dust Collector available for an extra $880 and Automatic Dust Shoe

Key Features:

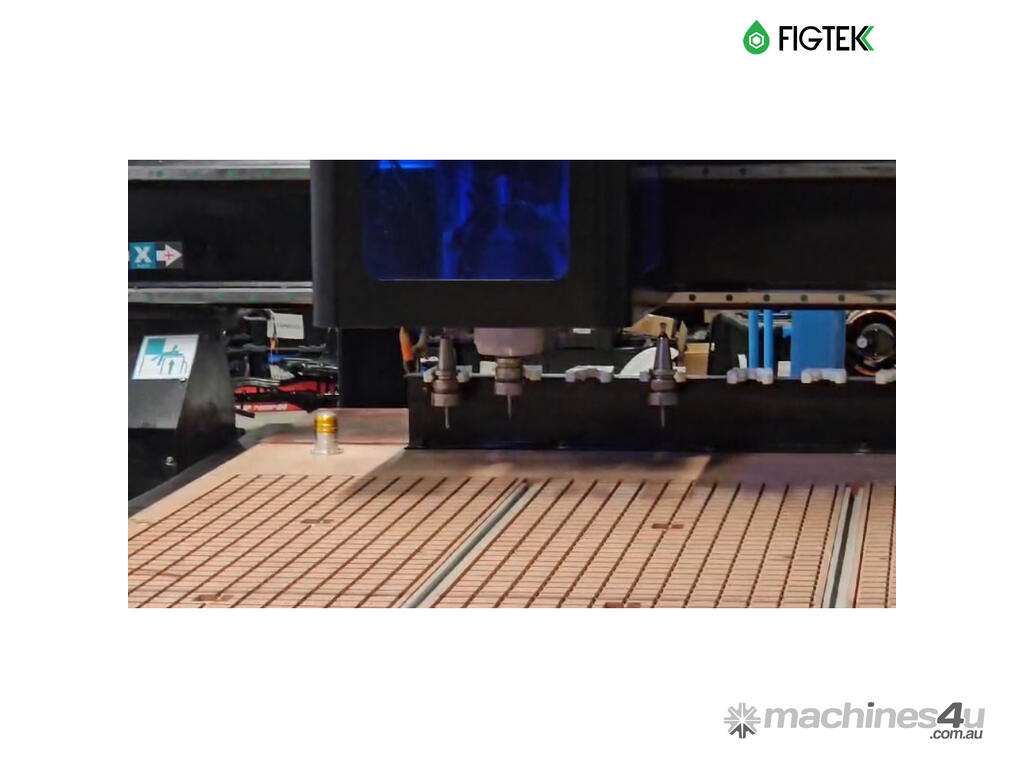

Automatic Linear Tool Changer: Enhances production efficiency.
High Precision Servo Motor and Driver: Ensures accurate operations.
Sturdy Construction: Provides durability and stability.
Vacuum & T-slot Table: Offers stability during various operations.

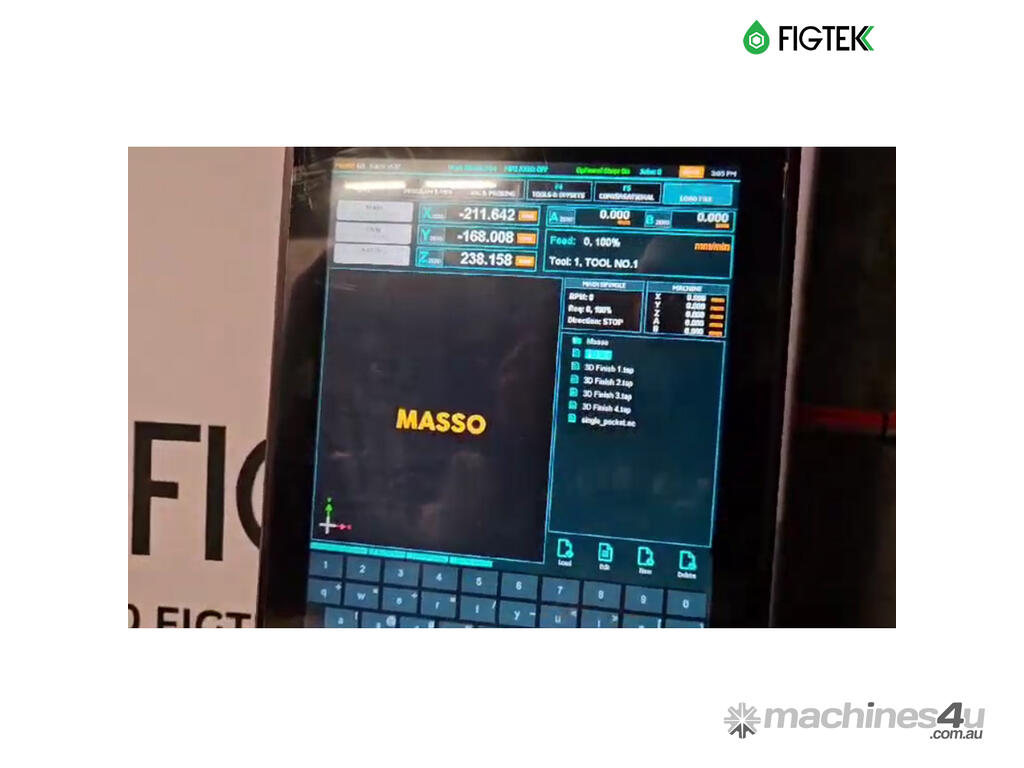

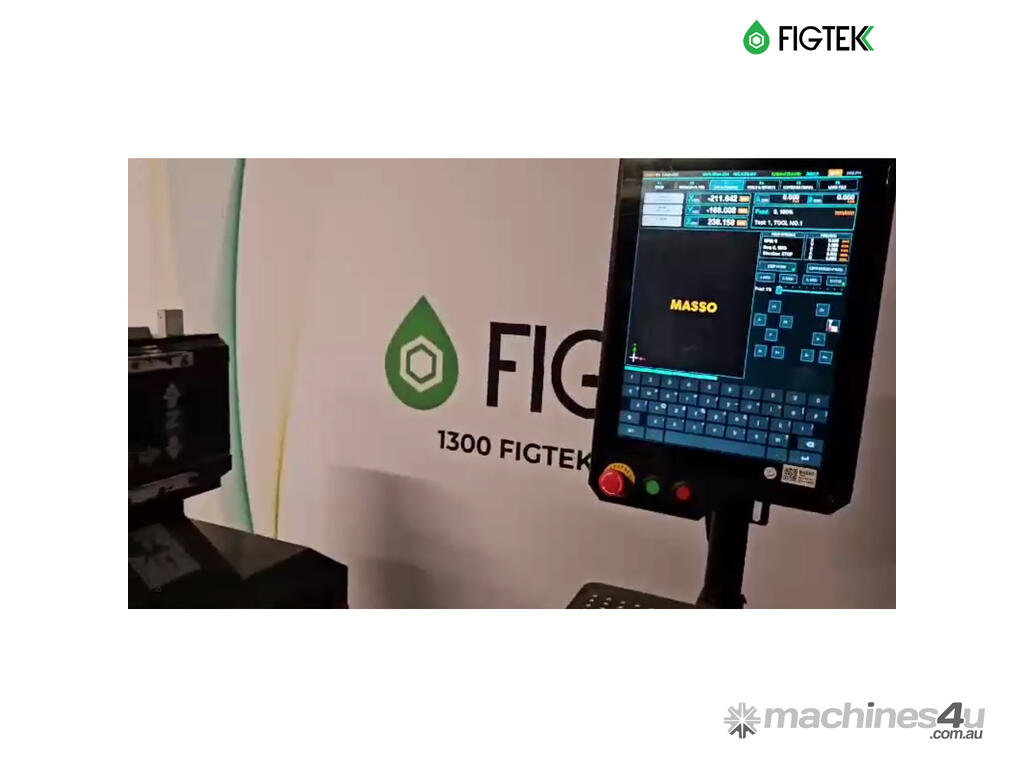

Masso Controller Features:
Controls: E-Stop, cycle start, and cycle stop buttons.
Interface: Supports horizontal and vertical user interface with on-screen touch keyboard.
Connectivity: USB ports for keyboard, mouse, and flash drives.
Inputs and Outputs: 24 Isolated Inputs, 18 Outputs.
Signal Support: Step & Direction signals for stepper or servo drives.
Spindle Control: Direct spindle control with 0-10 volts, CW, CCW & PWM.
MPG Handwheel Dial Support: For precise manual adjustments.

Applications:
Woodworking: Furniture manufacturing, cabinetry, and woodworking crafts.
Signmaking: Creating intricate designs and lettering on materials like acrylic, PVC, and wood.
Prototyping: Suitable for industries such as product design, automotive, and aerospace.
Plastic Fabrication: Making displays, enclosures, and machine parts.
Aluminium Machining: Light-duty machining for custom parts and prototypes.
Foam Cutting: Used for packaging, insulation, and theatrical props.
Composite Material Processing: Handles fiberglass, carbon fiber, and laminates for aerospace, marine, and automotive applications.
Educational Purposes: Ideal for teaching CNC machining, design principles, and manufacturing processes.

Benefits:
Efficiency: Automatic tool changing increases efficiency.
Accuracy: High precision reduces downtime and improves accuracy.
Versatility: Suitable for various woodworking and plate processing applications.
Safety: Enhanced safety features provide peace of mind.
Customization: Can be tailored to specific needs.

Why Choose Us:
Local Support: Australian local support for customer service and technical assistance.
Quality Components: Top-quality components ensure reliable performance.
Experienced Engineers: Our engineers have a proven track record of success.
Customization Options: Available to meet specific requirements.
Warranty: 3-Year Warranty if installation package chosen.
