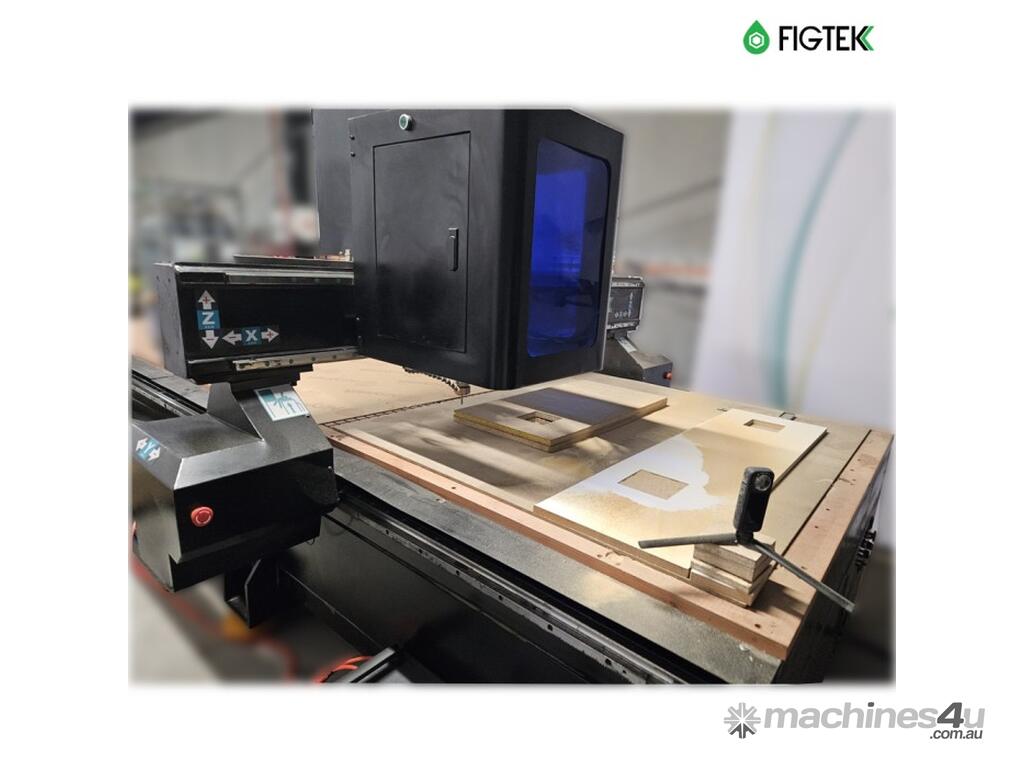

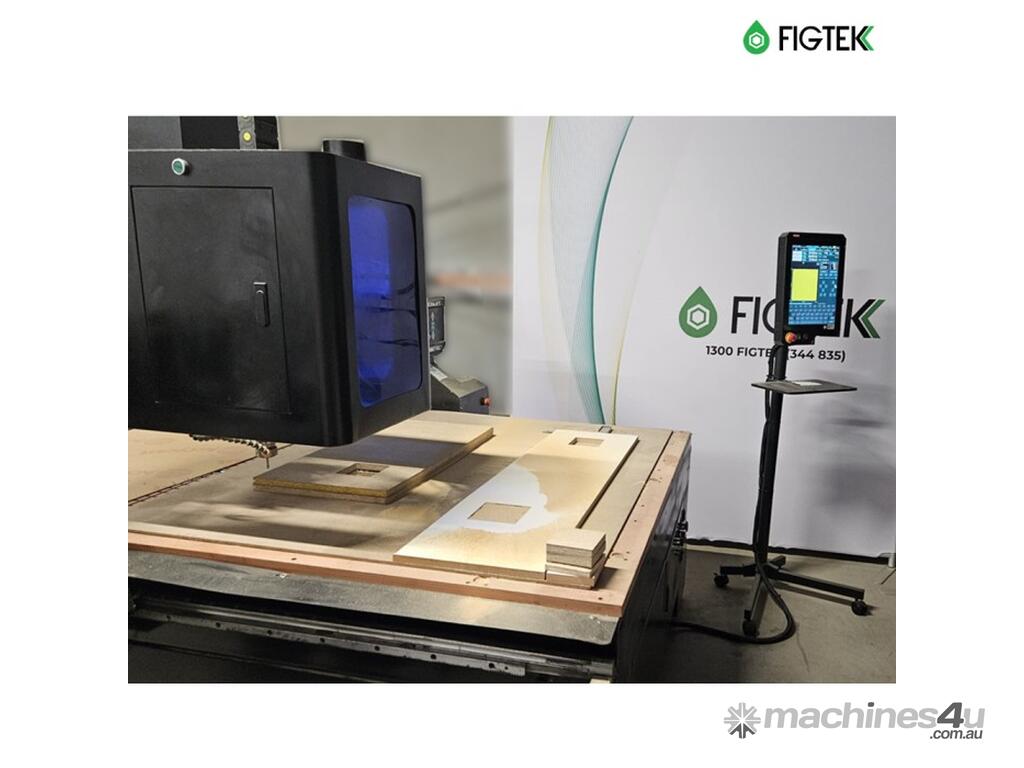

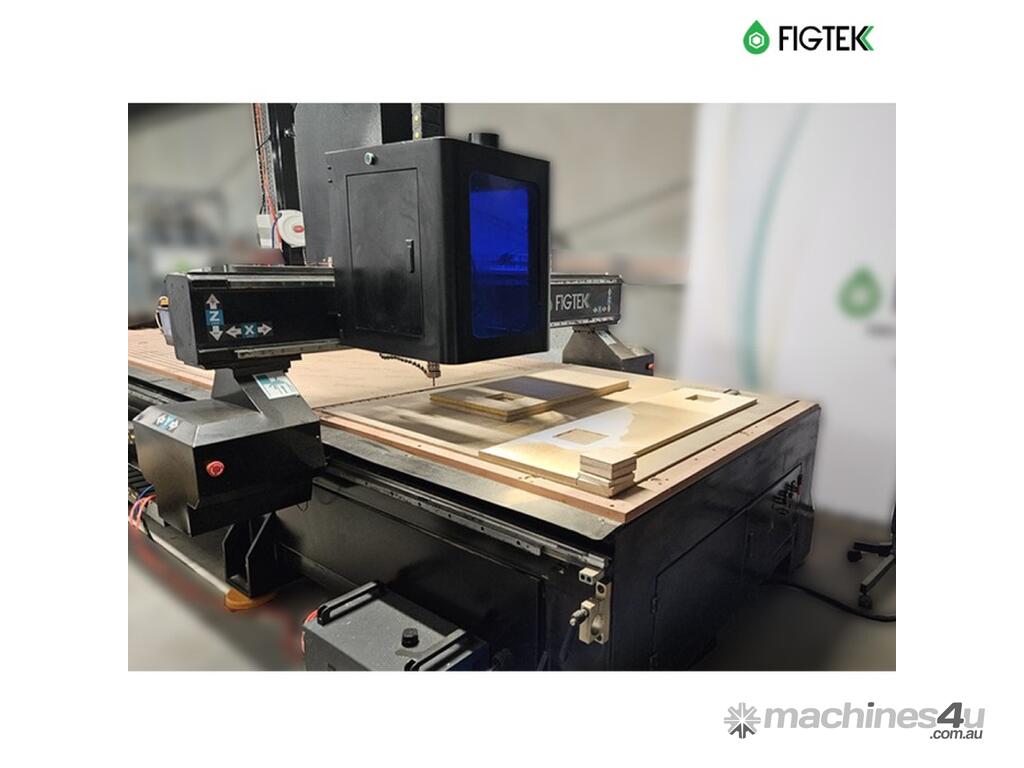

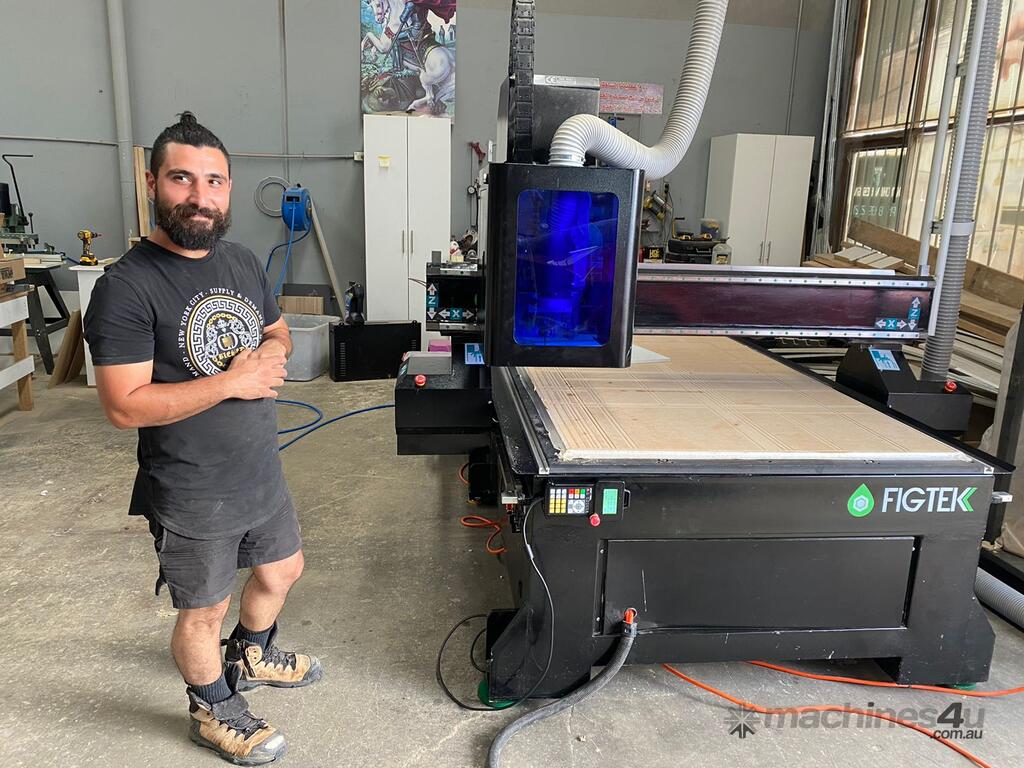

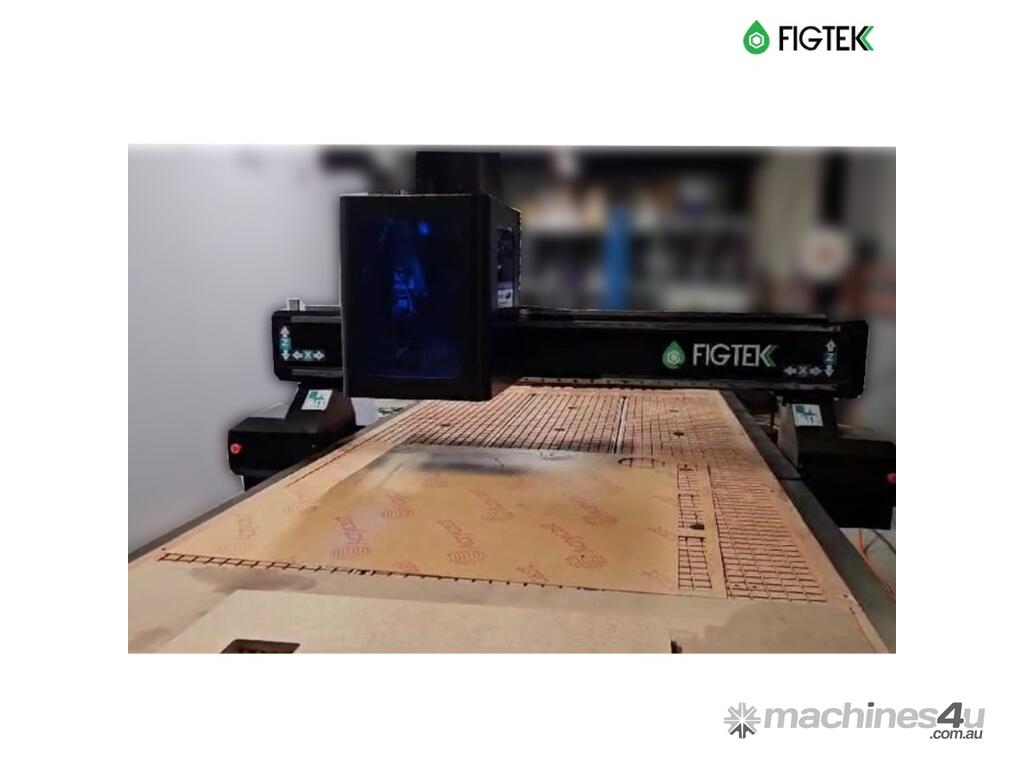

1330 ATC Router with Masso Controller

Step into the future of precision machining with the 1330 ATC Router, powered by the advanced Masso controller. Designed for efficiency, accuracy, and versatility, this machine is the perfect addition to any workshop looking to enhance its capabilities. Whether you're in woodworking, prototyping, or industrial manufacturing, the 1330 ATC Router offers unparalleled performance and reliability.

Key Specifications
Working Area: 1300 x 3000 x 200mm
Worktable: Vacuum Bed and T-slot table
Vacuum Pump: Included
Guide Rails: 25mm Taiwan linear guides
Spindle: 9kW Air Cooled
Servo Motors and Drivers: Yaskawa / Leadshine 1.5KW
Inverter: 5.5 KW Fuling
Construction: Welded machine structure with a heavy-duty body
Power Supply: 220V Single Phase or 3-Phase
Lubrication: Automatic oil lubricant system
Position Control: Position Cylinder with foot pedal control
Dust Management: Automatic Dust Shoe (Dust Collector available for an additional $880)

Key Features

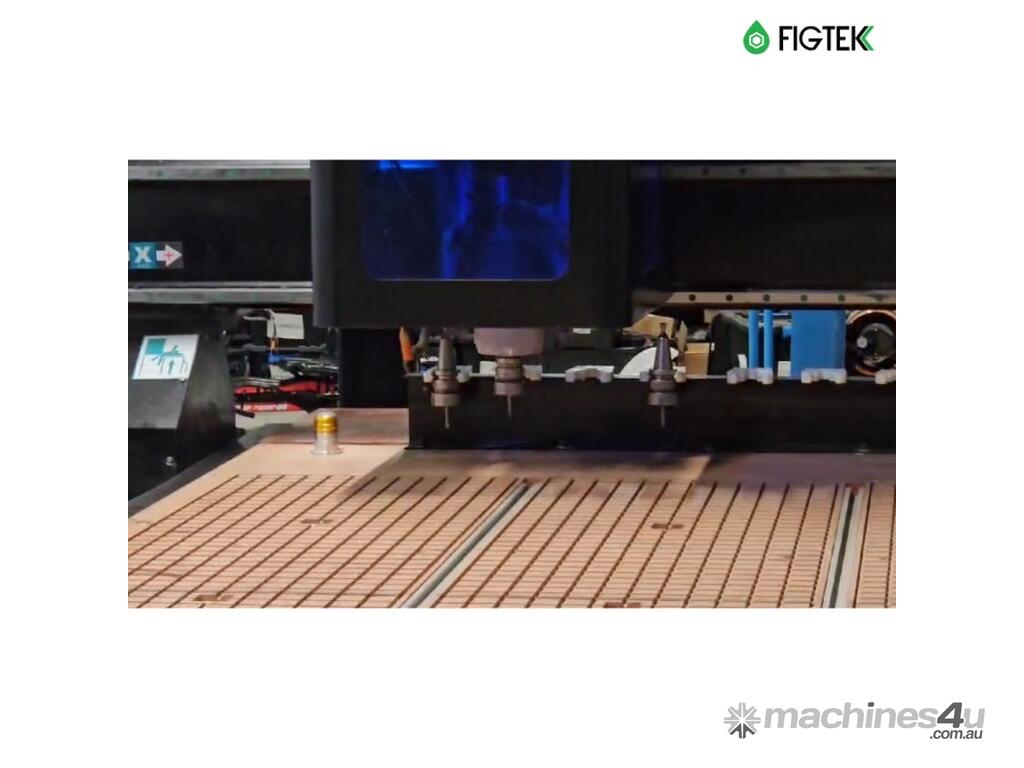

Automatic Linear Tool Changer: Enhances production efficiency
High Precision Servo Motor and Driver: Ensures accuracy
Sturdy Construction: Built for durability
Vacuum & T-slot Table: Provides stability during operations

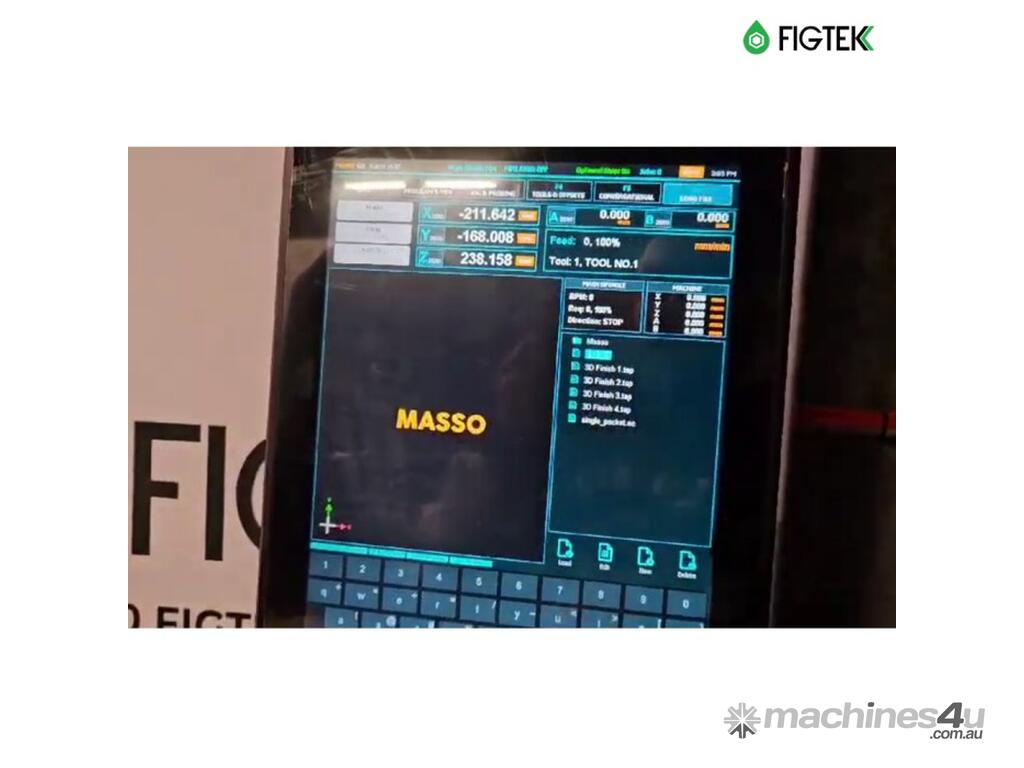

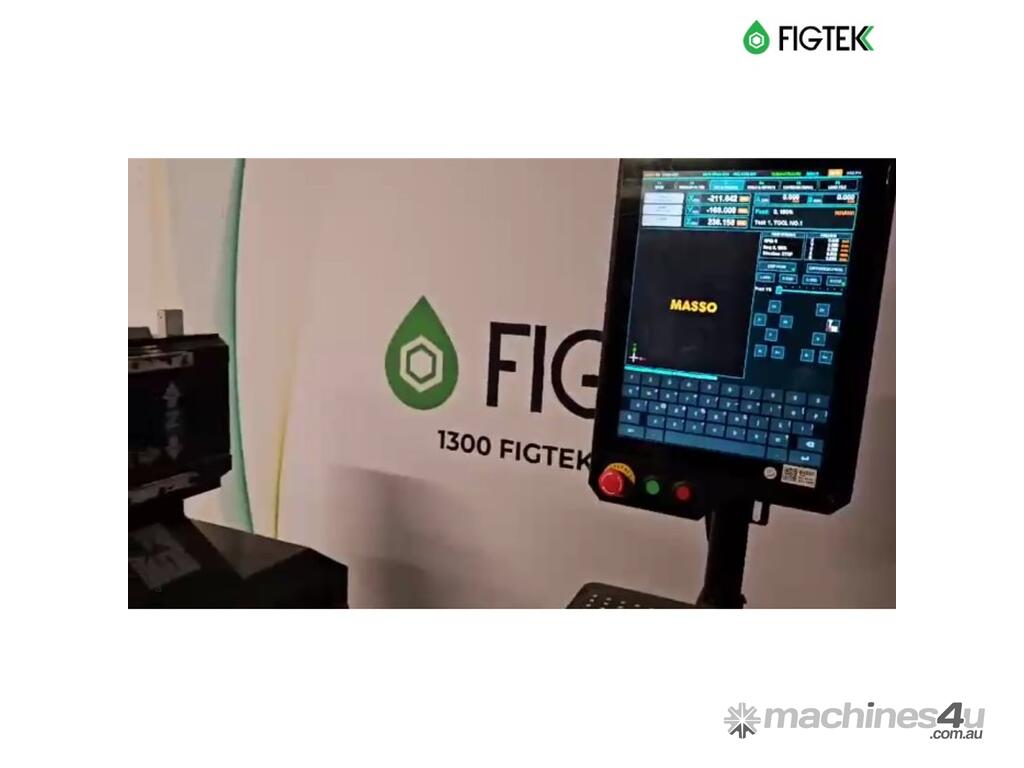

Masso Controller
Control Buttons: E-Stop, cycle start, and cycle stop for easy control
Interface: Supports both horizontal and vertical user interfaces with an on-screen touch keyboard for vertical use
USB Ports: Connect keyboard, mouse, and flash drives
Inputs/Outputs: 24 isolated inputs and 18 outputs
Signal Support: Step & Direction signals for stepper or servo drives
Spindle Control: Direct control with 0-10 volts, CW, CCW & PWM
MPG Handwheel Dial: Supported

Applications

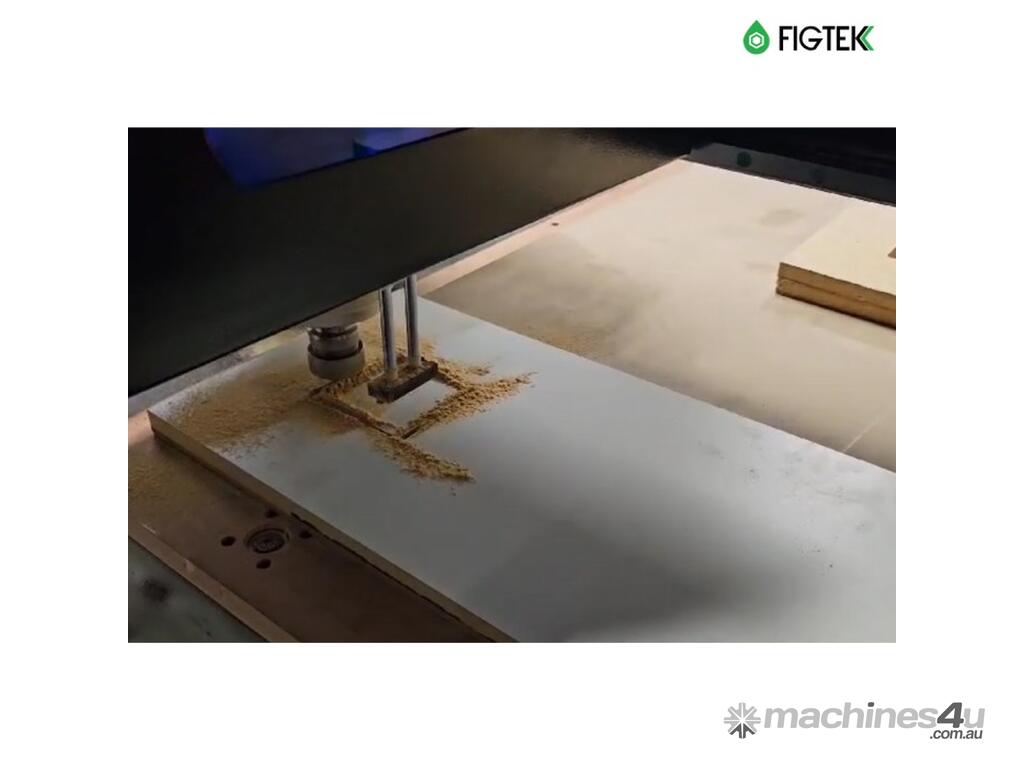

Woodworking: Ideal for furniture manufacturing, cabinetry, and crafts
Signmaking: Perfect for intricate designs and lettering on materials like acrylic, PVC, and wood
Prototyping: Suitable for product design, automotive, and aerospace industries
Plastic Fabrication: Great for displays, enclosures, and machine parts
Aluminium Machining: Suitable for light-duty machining, custom parts, and prototypes
Foam Cutting: Excellent for packaging, insulation, and theatrical props
Composite Material Processing: Works with fiberglass, carbon fiber, and laminates for aerospace, marine, and automotive applications
Educational Purposes: Ideal for teaching CNC machining, design principles, and manufacturing processes
Benefits

Why Choose Us
Local Support: Australian-based assistance
Quality Components: Reliable performance with top-quality parts
Experienced Engineers: Proven track record of success
Customization: Tailored solutions available
Warranty: 3-Year warranty if installation package chosen
