Figtek is a group of small niche Australian businesses that complement and support each other to create a vast array of solutions for all of its client’s needs.
In Taiwan we employee a group of exceptionally passionate and experienced engineers that source the most reliable and cost-effective parts from around the world. They now build to our specifications, for our local market. This way we know we can satisfy all of our customer’s needs. This means we now control the design and quality of what we import. We now import, service and support all of these machines Australia wide!
What does the router come with?
• Working area: 1300 x 3000 x 200mm

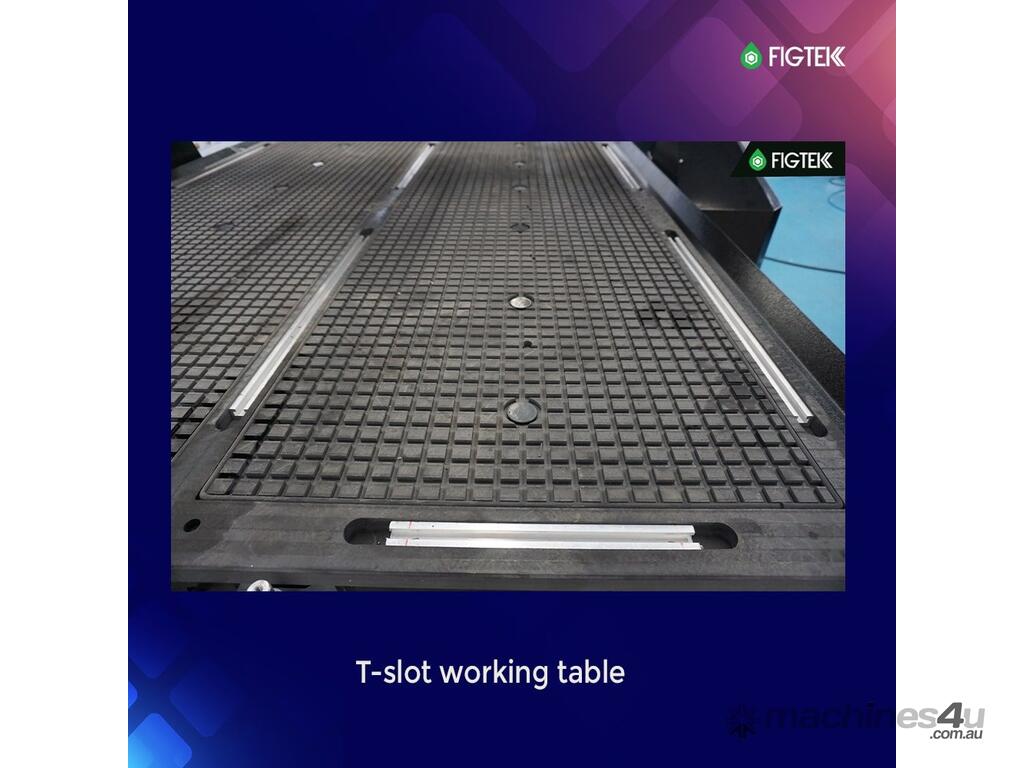

• Vacuum Bed and T-slot working table Vacuum pump
• 25mm Taiwan linear guide rails
• 9 kW Air Cooled Spindle
• NK105 handle controller with USB port
• Yaskawa / Leadshine 850W servo motor and driver
• 5.5 KW Fuling inverter
• Welded machine structure
• Heavy-duty machine body
• 220V single phase or 3 Phase
• Automatic Oil Lubricant system
• Position Cylinder
• Foot pedal to control Position Cylinder
• Double Barrel dust collector * Extra $880
• Automatic Dust shoe
• Tool holder with different size collets

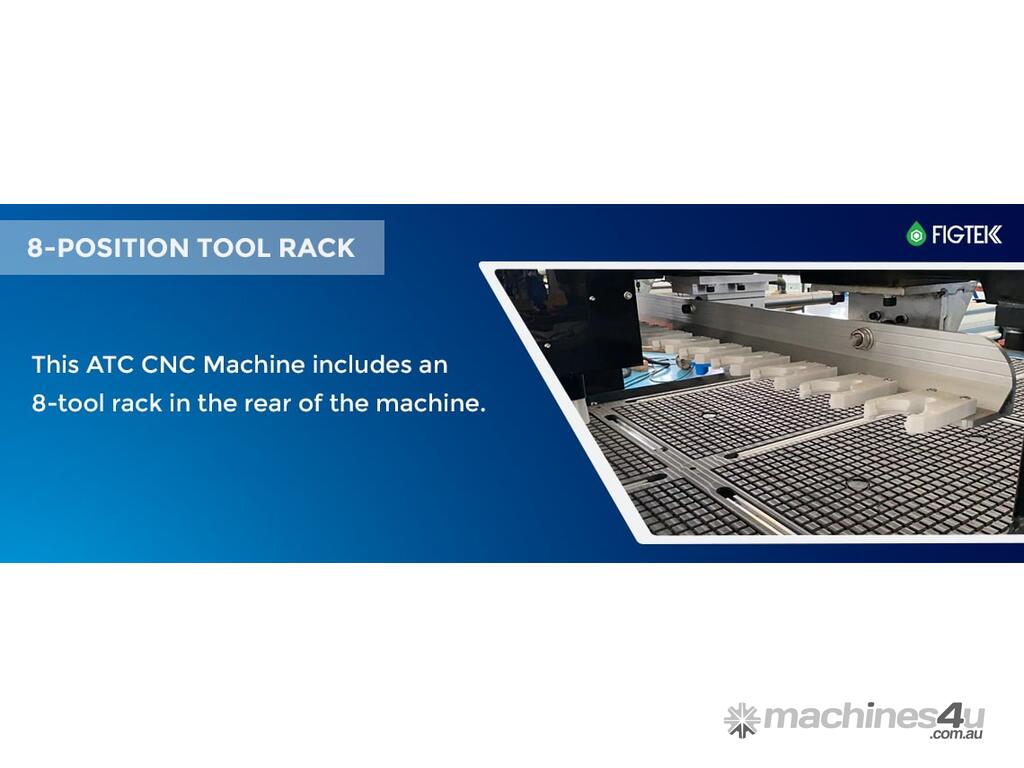

8-POSITION TOOL RACK:
• The ATC CNC machine includes an 8-tool rack in the rear of the machine

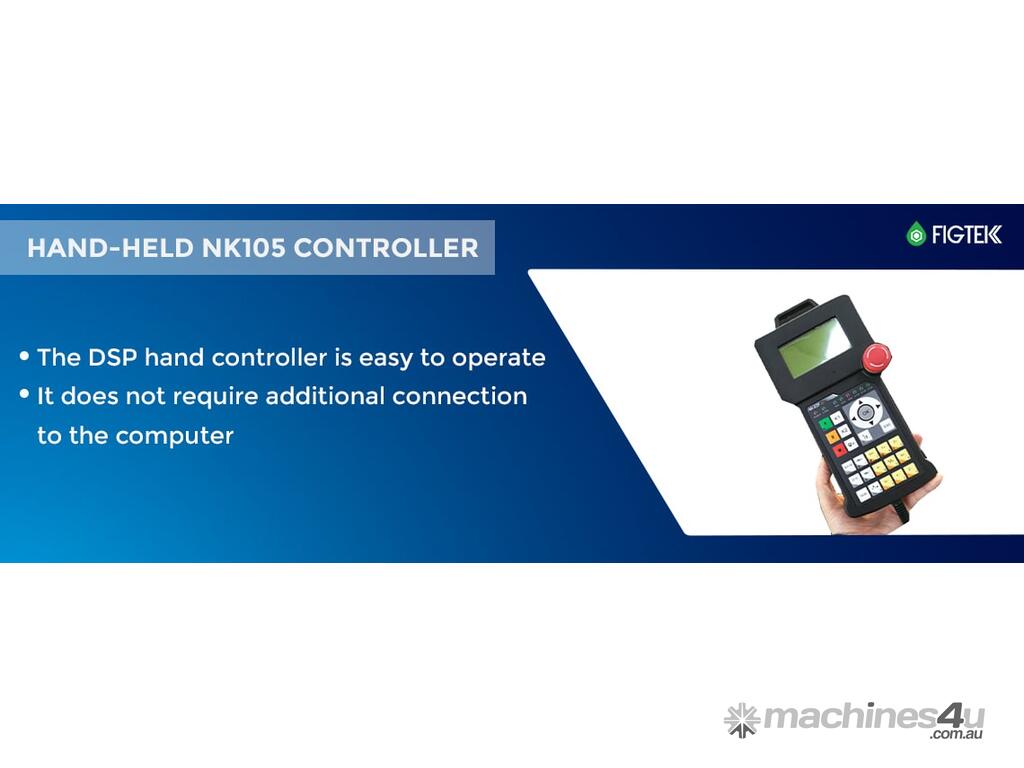

HAND-HELD NK105 CONTROLLER:
• The DSP hand controller is easy to operate
• It does not require additional connection to the computer

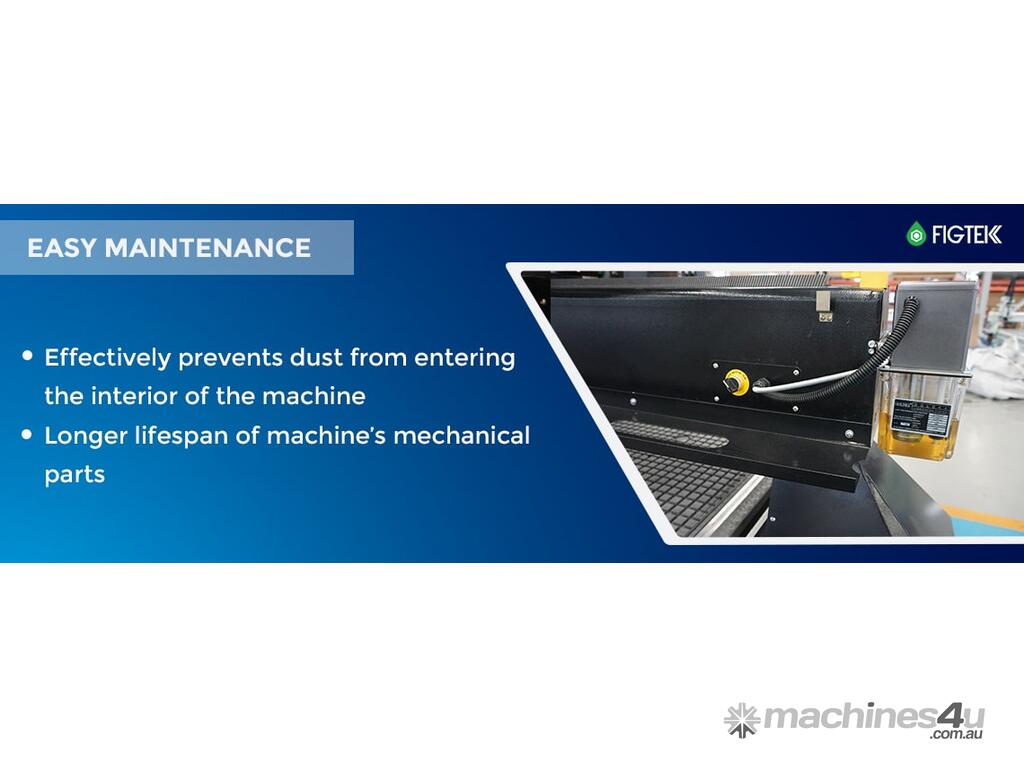

EASY MAINTENANCE:
• Cleaner working environment without automatic dust collector unit
• Longer lifespan of machine’s mechanical parts
Applications:
• Wooden furniture: doors, windows, chairs, tables
• Plate processing: stairs, epoxy resin, insulation parts
• Decorate industry: acrylic, PVC, MDF, soft and plastic metals
• Local Brand: Australian Local Support
• Quality: Highest quality materials used
Why Buy Our CNC Machine?
Australian Local Support
Only the best quality parts used
Engineers with over 15 years of experience
Custom built to your specifications
3 - year Australian Warranty - If Installation Package is chosen.
