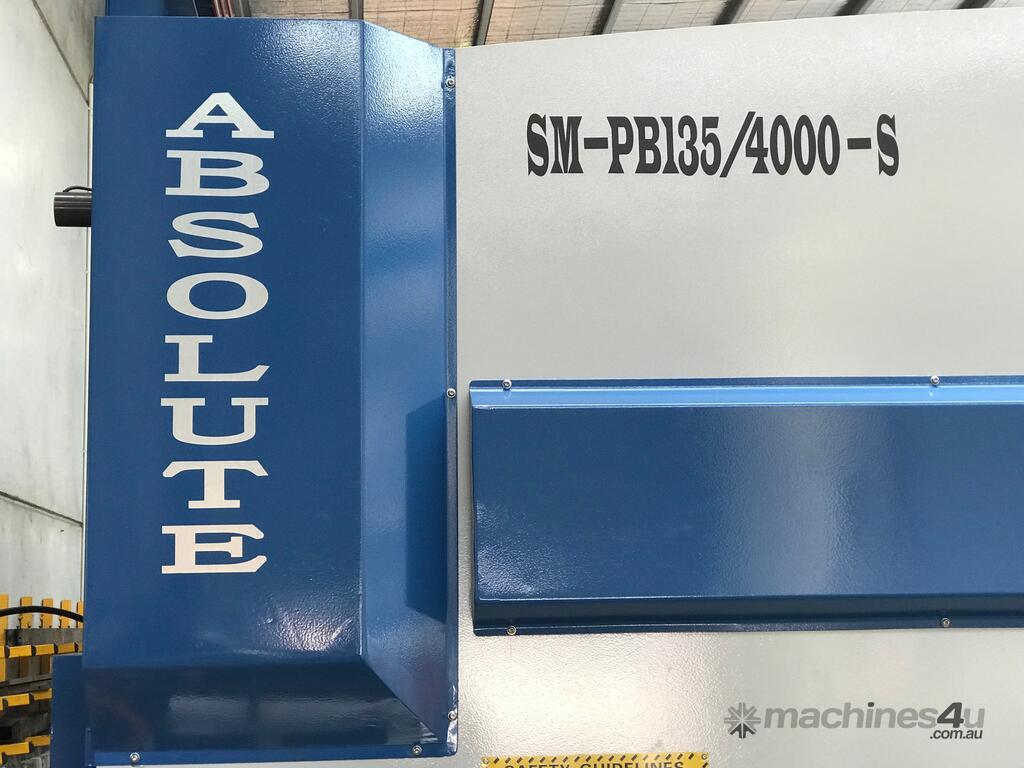

SM-PB135/4000NC-S. ABSOLUTE. Hydraulic Pressbrake. 4000mm x 135Ton. 2 Axis NC Estun E21 Controller,Top & Bottom Tooling, 425mm Side Throat, 3600mm Between Frames, Leadscrew Backguage with 4 Fingers.
Our new "S" Series Steelmaster Pressbrake now offers purchases a new machine, with all modern
day features at a price that you would expect to pay for a used machine.
Estun 2 x axis E21 NC programmable controller is standard. Deep side throats, large frame widths,
this list goes on!
Offering all the features, new machine warranty, at the right price in this challenging market!
Features
-hydraulic synchronised positive stop design, electronically controlled by Estun NC programmable controller assuring accurate repeatability and ease of use.
-deep side throats and wider distances between the vertical frames offering you more application scope.
-segmented heavy duty 86° offset top tool, segmented for return bend clearance.

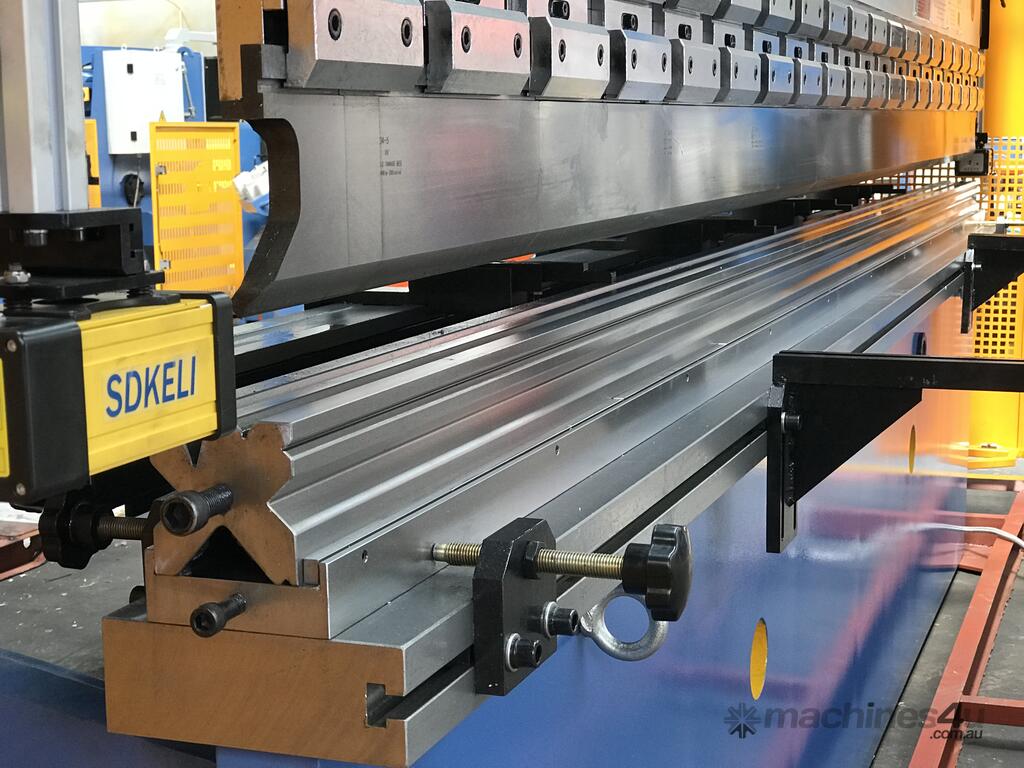

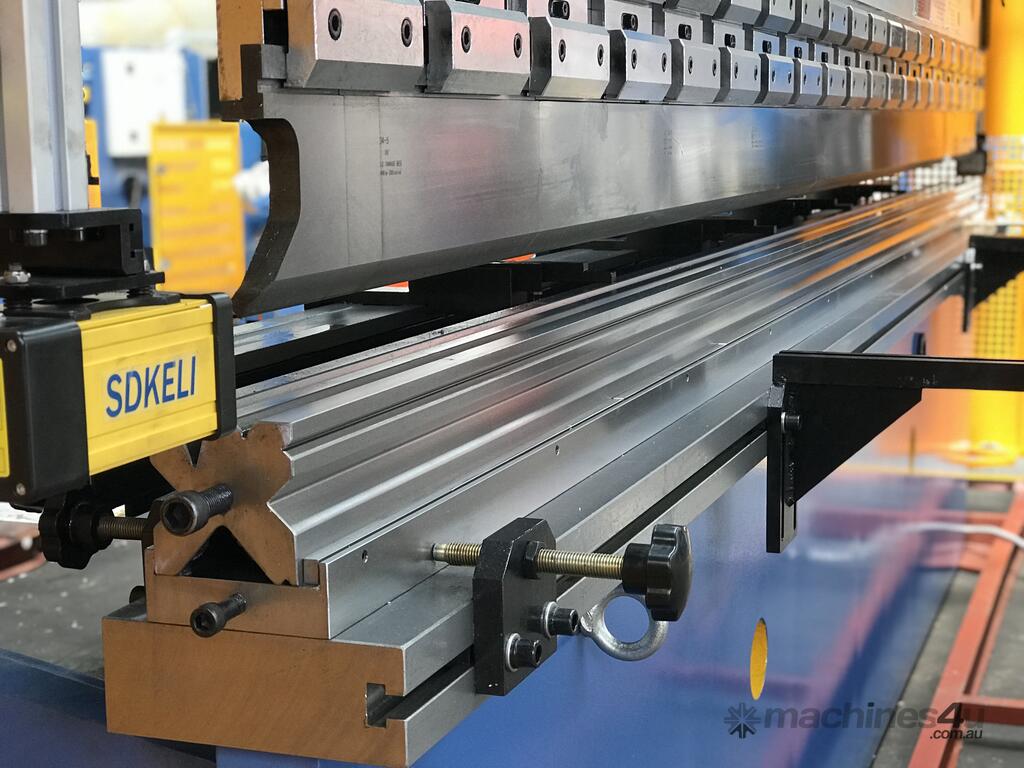

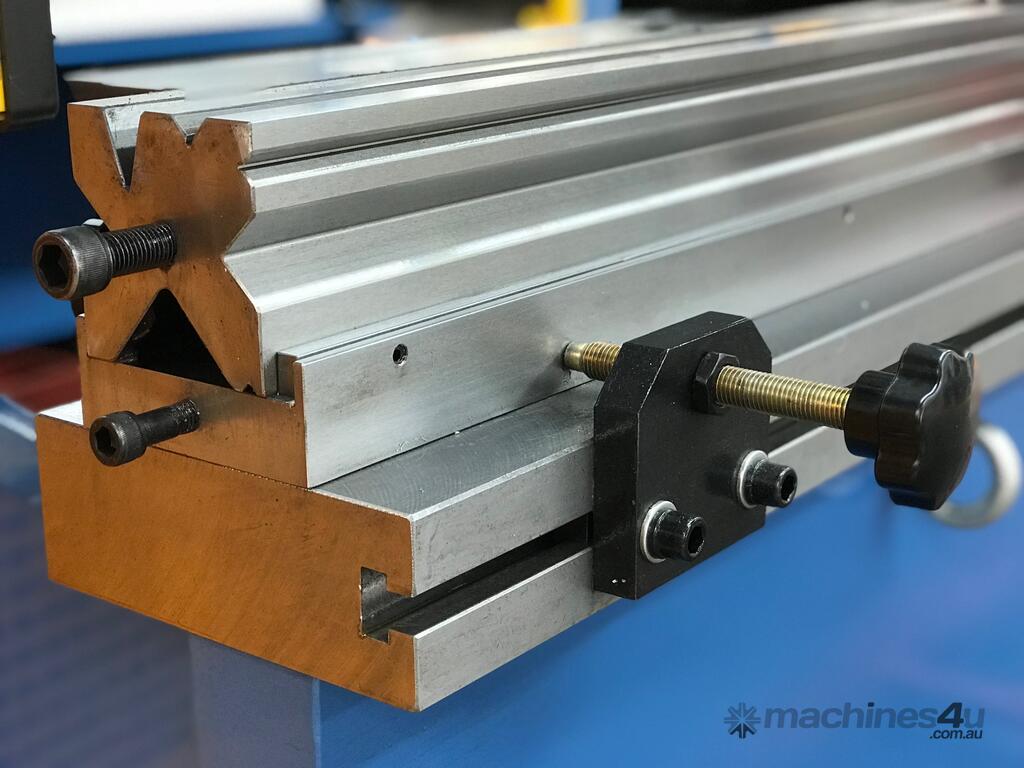

-full length Multi Vee bottom block with a smart selection of openings also including safety edge vee ('V') for over bending.

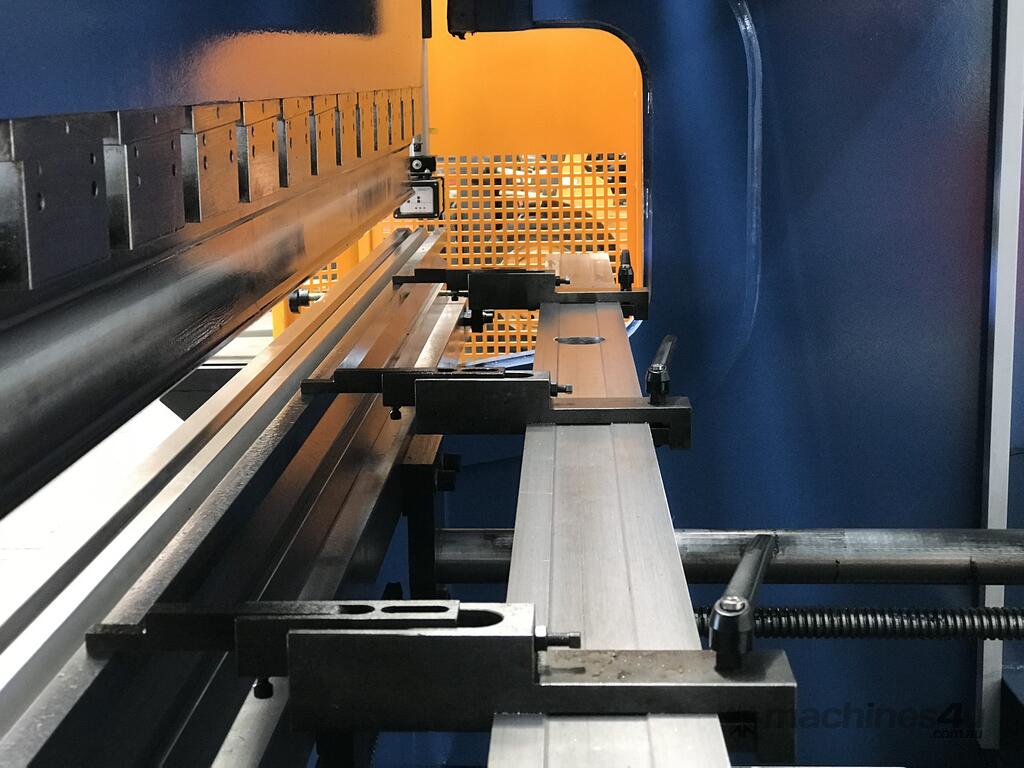

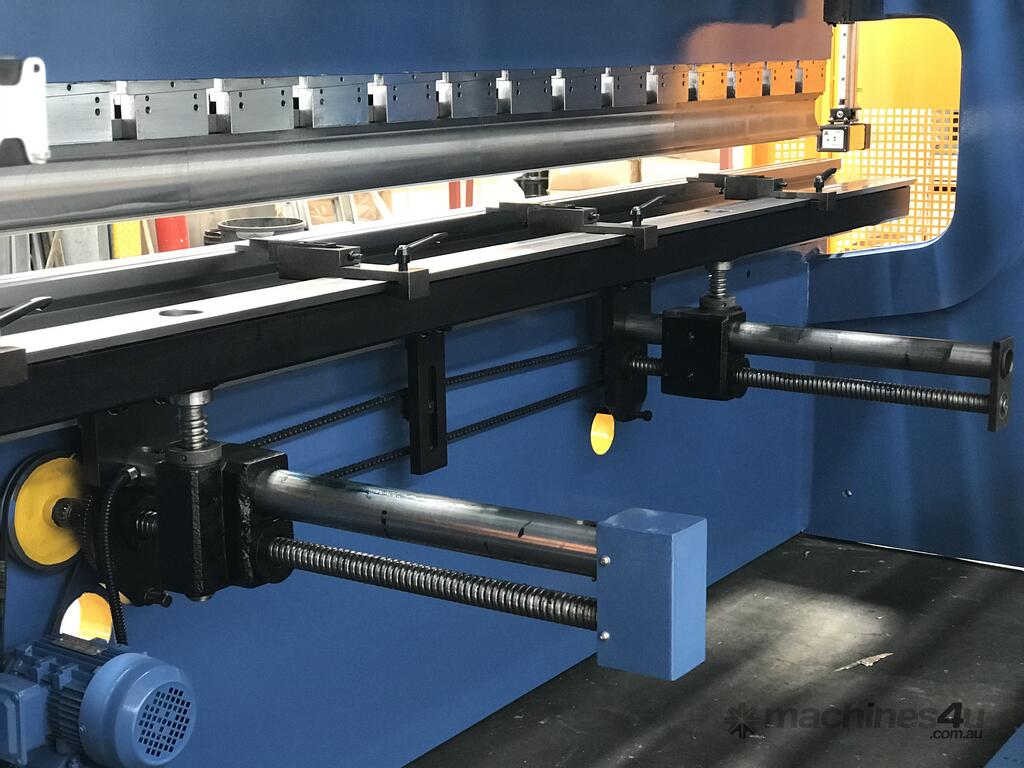

-power operated back gauge with quality support fingers also with vertical adjustment

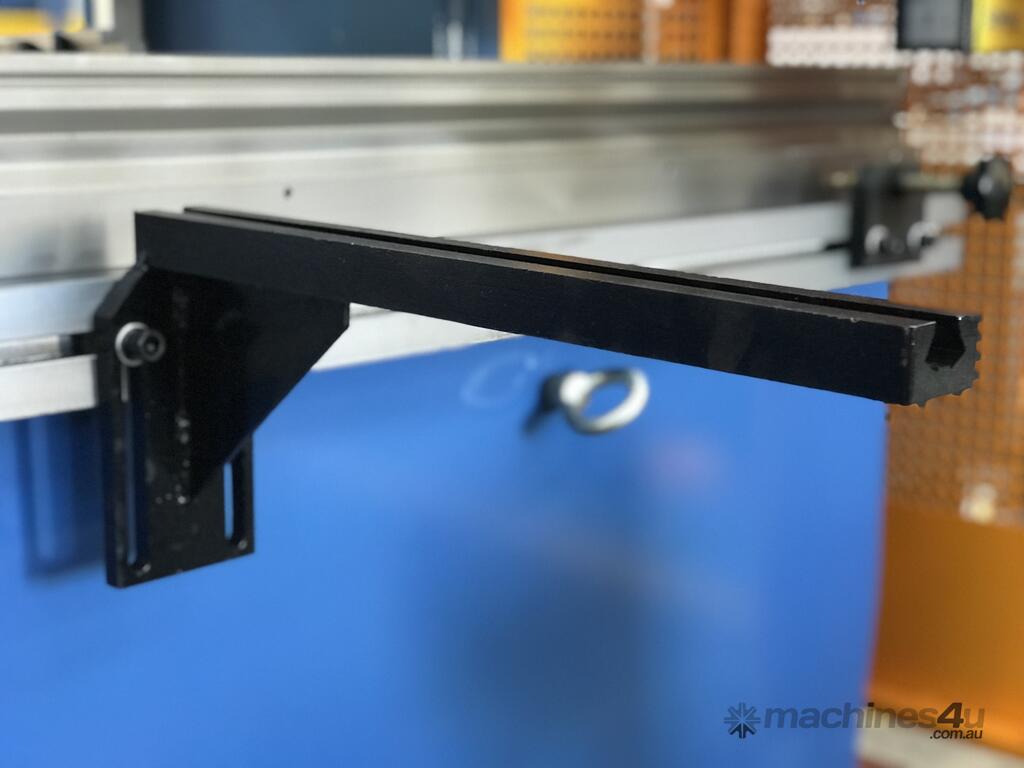

-front sheet supports enabling a wide range of material sizes to be aligned and supported at the correct required height.

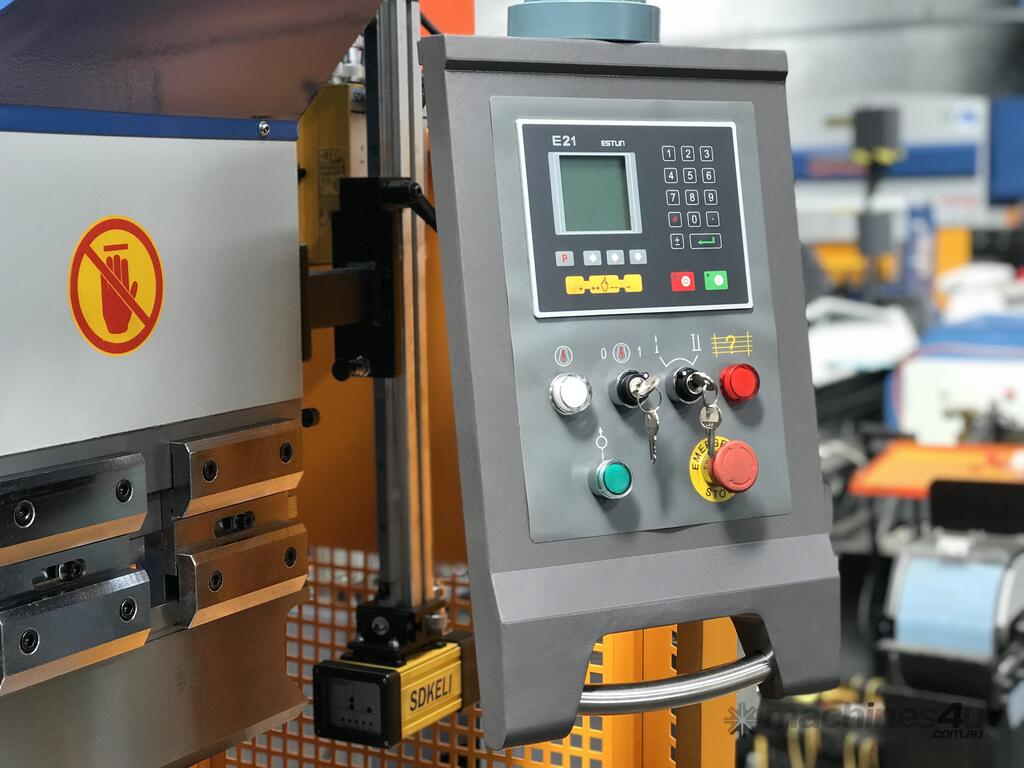

-conveniently mounted control box on pendant for quick swivel and adjustments.
-integrated hydraulic system allowing rapid approach switching automatically to slow bend.
-modern designed pendant foot pedal operation with stainless braided cable.
-variable hydraulic pressure control valving fitted standard
-safety and material selection bending charts mounted on front beam for easy access.
-supplied pre commissioned prior to delivery
-CE compliant
Technical Data Snap-Shot

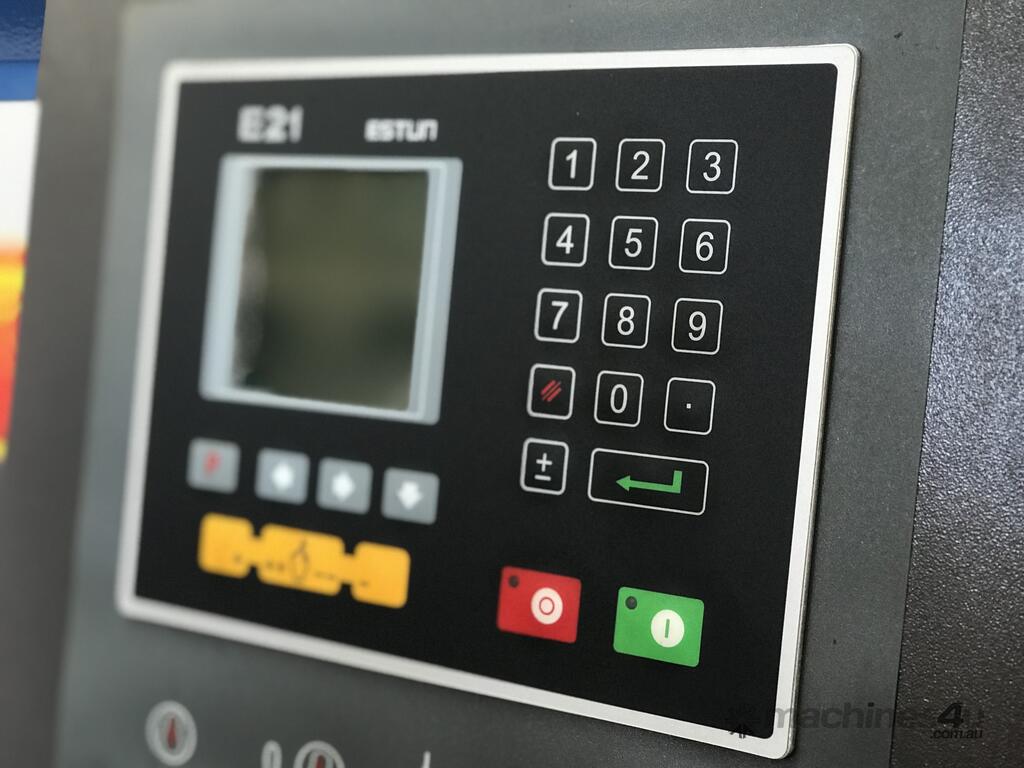

-Estun E21 NC Controller
-135 Ton Bending Capacity
-4000mm Bending Length

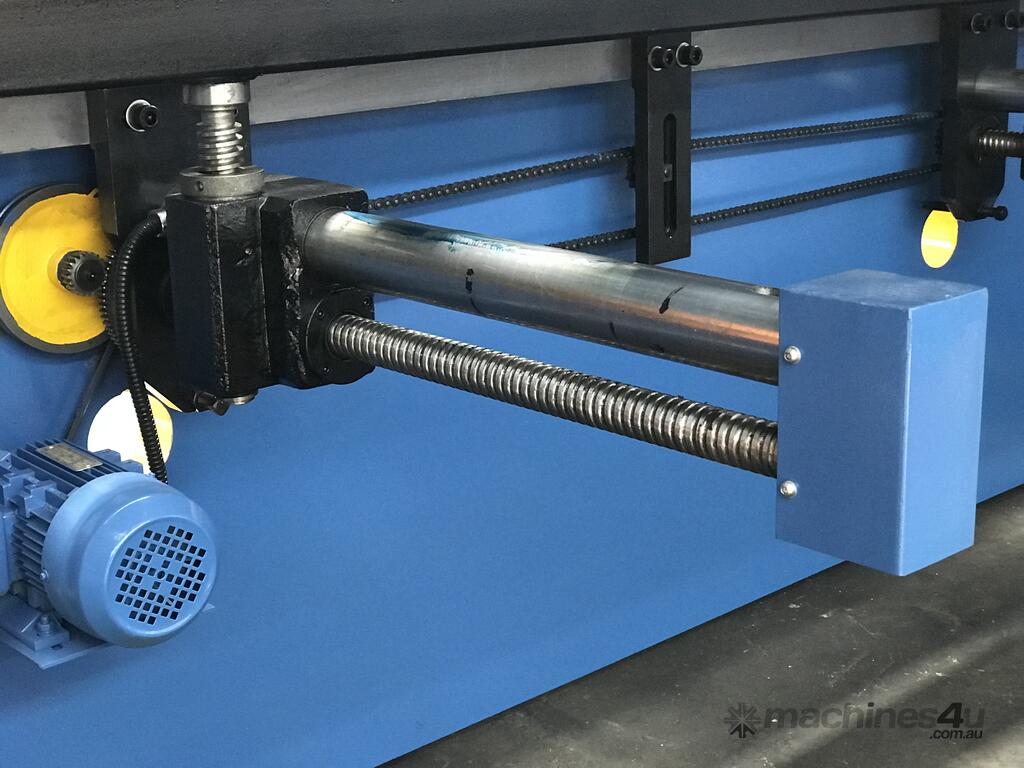

-precision ball screw Backgauge
-tee slotted front beam
-3600mm Distance Between Frames
-425mm Side Throat Depth
-150mm Ram Stroke
-420mm Open Height
-600mm Back Gauge Travel
-7.5Kw / V Motor Power
-4400mm x 1850mm x 2800mm Footprint
-10300Kg Weight

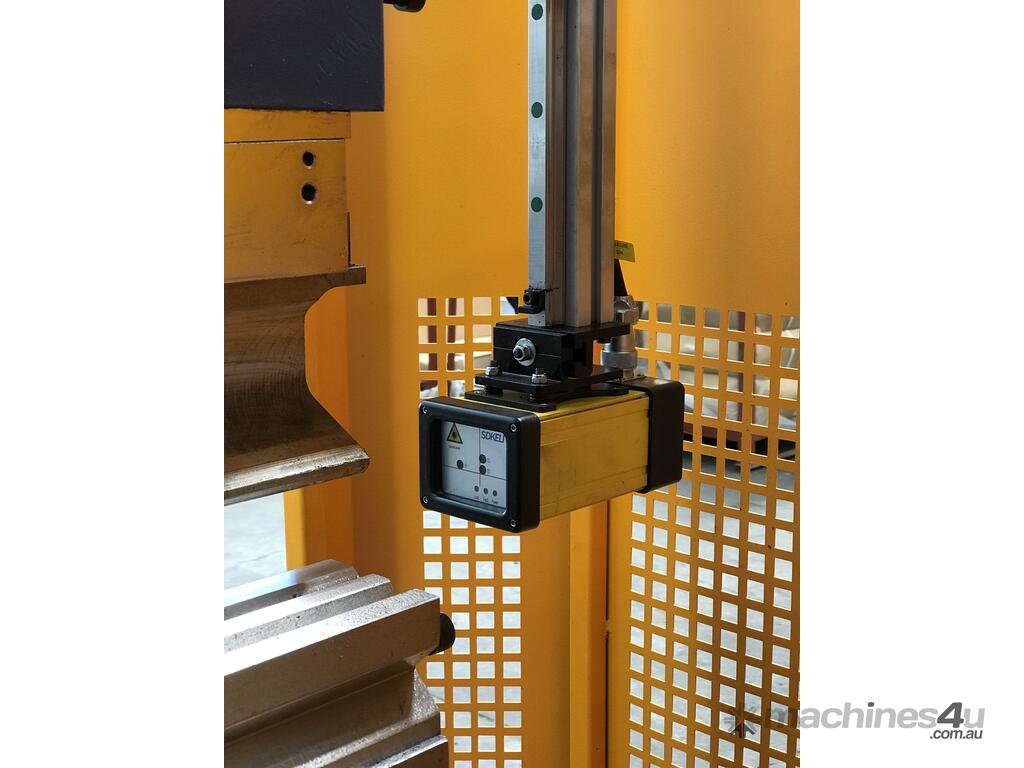

Optional Safety Light Guards ADDED AT $4,995.00 + GST.
