15-30 ton (80mm pin) 1200mm Kobelco Excavator GP Digging Bucket with Sidecutters

Name: 15-30 ton 80mm pin 1200mm Kobelco Excavator GP Digging Bucket with Sidecutters
Brand: kobelco
SKU: 1585AW240619550
Price: 3409 AUD
Availability: InStock

PULLENVALE, QLD

$3,409 AUD($3,750 Inc. GST)
Confirm with seller if additional costs apply

Commercial Finance
Estimate

$12.02
Per Week

3.99% p.a.
Rate From

5 year term, 30% final payment. View disclaimer

View Instant Finance Quote

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

Used

Category:

Excavator Bucket

Make:

KOBELCO

Year:

Not specified

Member Since: Oct 2023

Bronze Member

Listings: 171

Bucket Type:

GP Digging Bucket

Bucket Width (mm):

1200 Wide Bucket

Hitch/3PL Pin size(mm):

Sellers stock ID:

1585AW240619550

Description

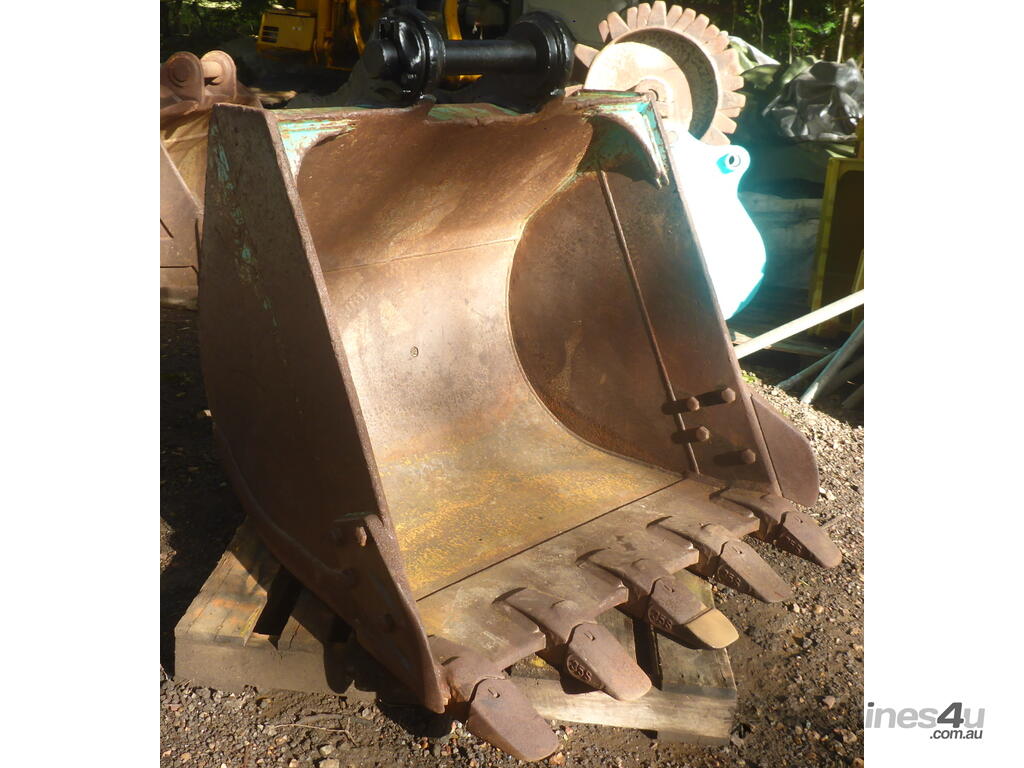

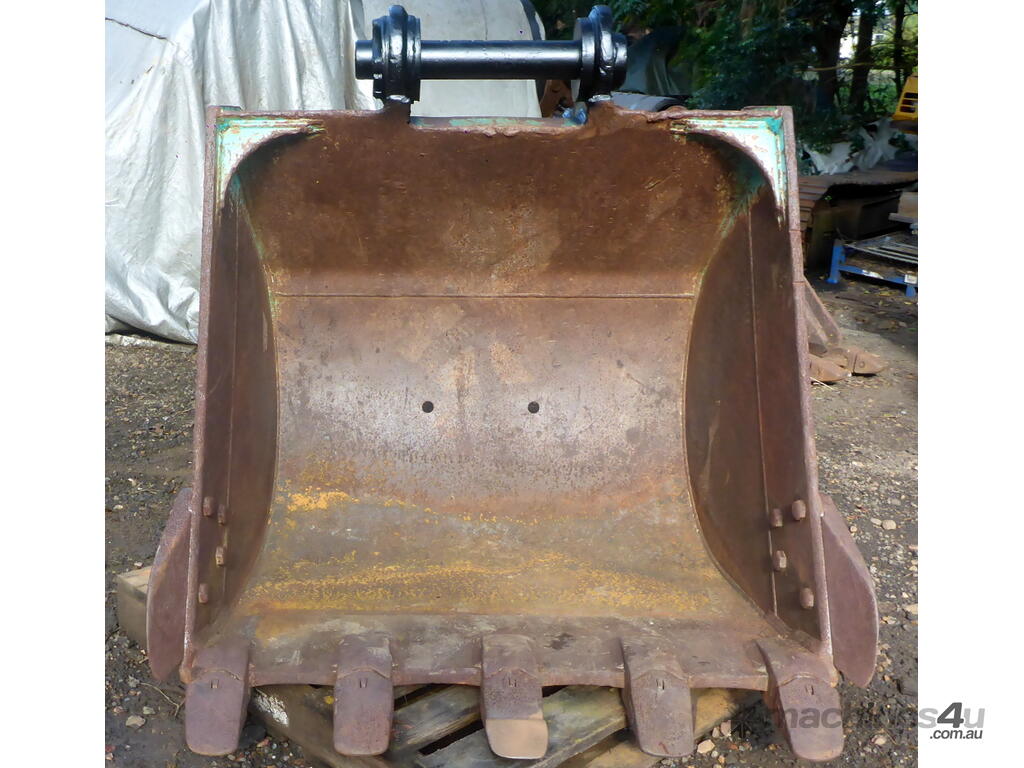

1200mm Kobelco Heavy Duty Excavator GP Digging Bucket suit 15-30 Ton machine.

Condition is used but it is a sturdy, well built bucket with plenty of life left.

It has Tapered sides so the mud slides out easily.

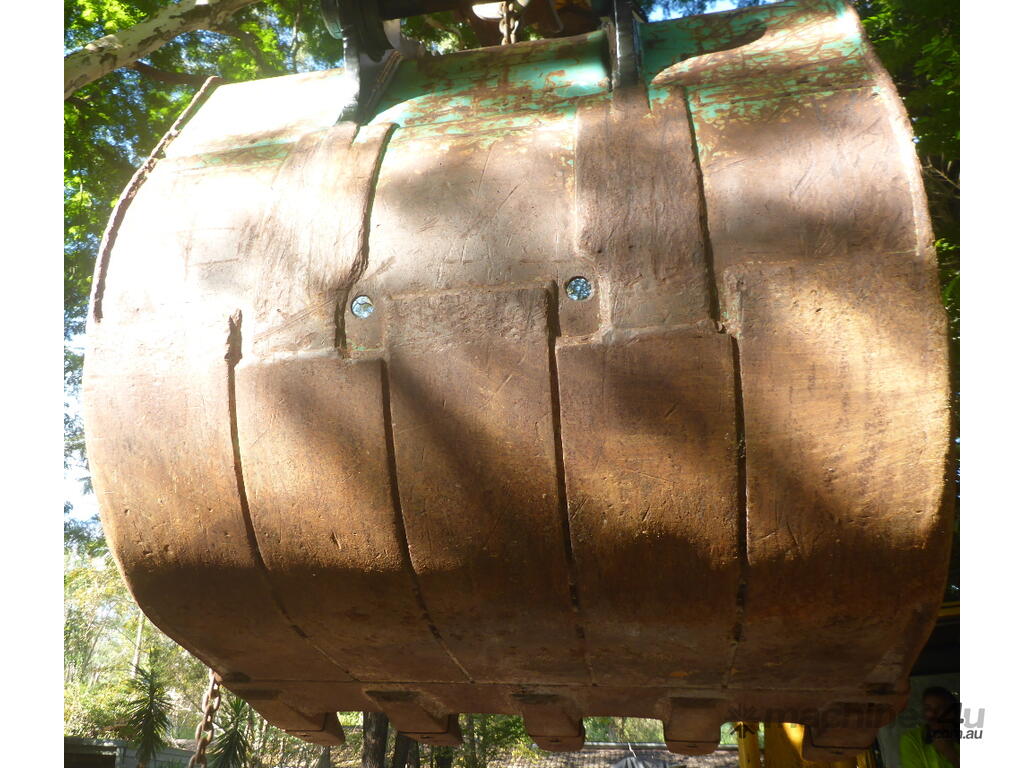

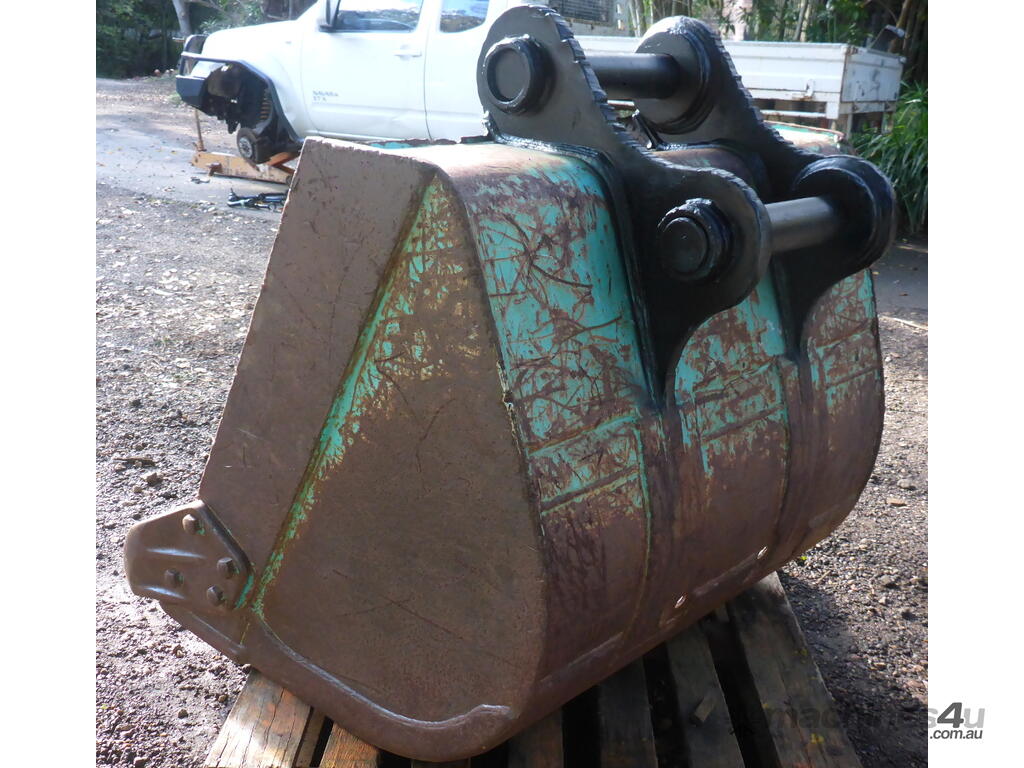

There are extra wear plates attached to the lower sides, and also some very decent extra wear strips welded underneath for durability (see pic# 10).

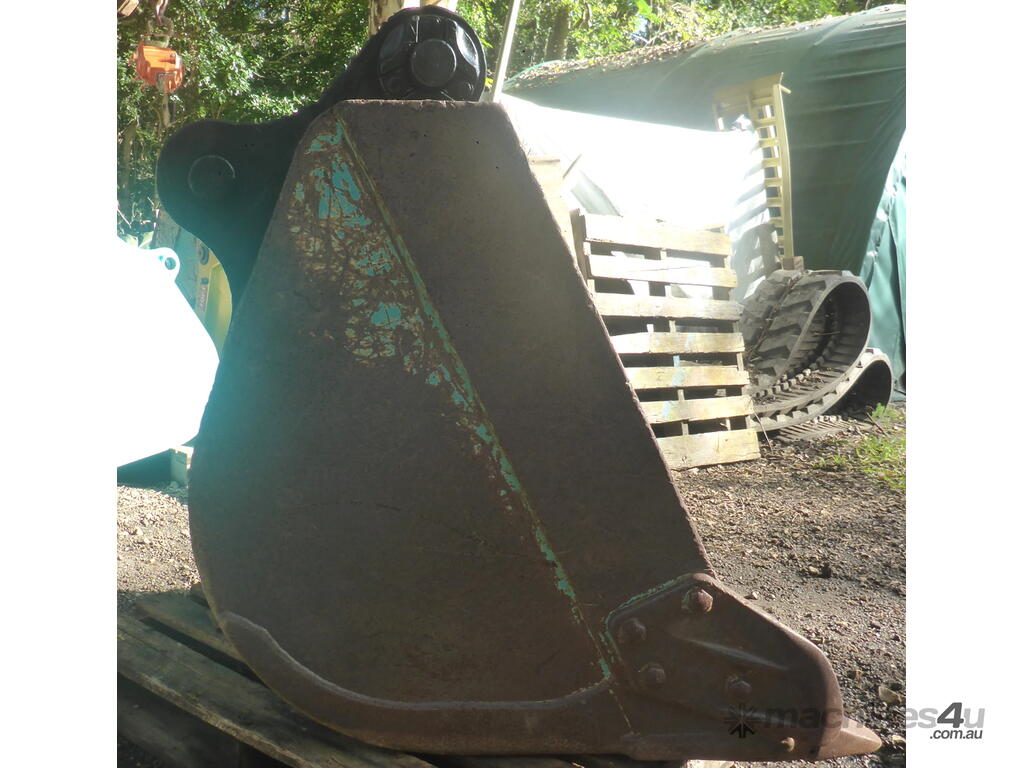

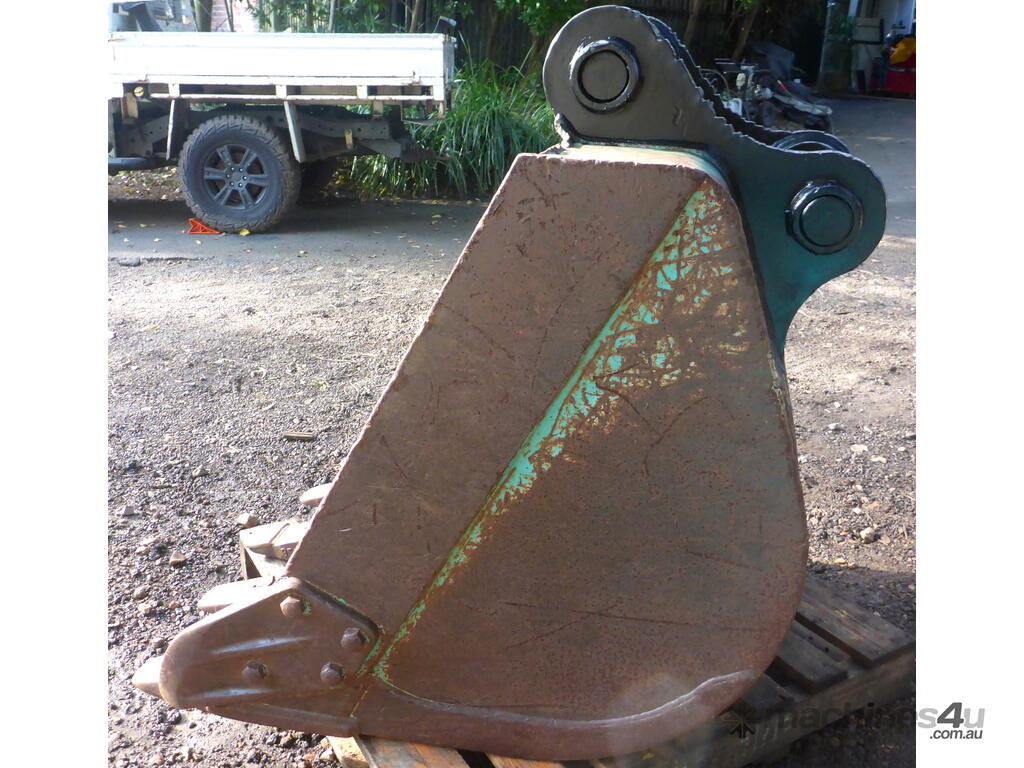

It has removable bolt-on Side Cutters.

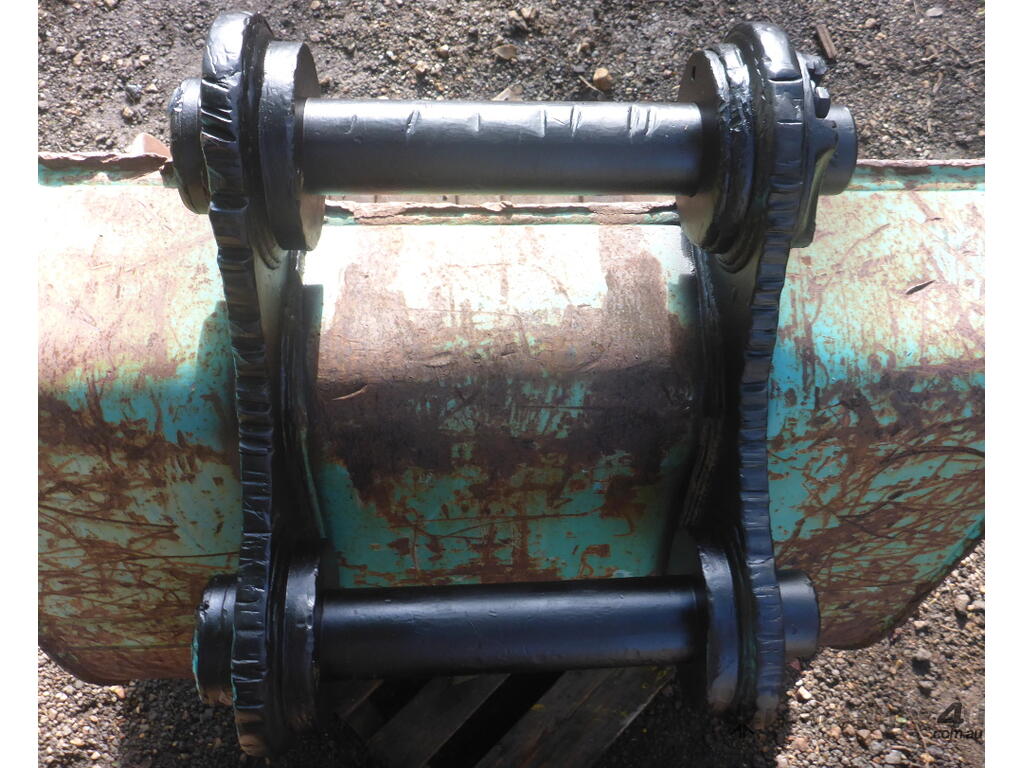

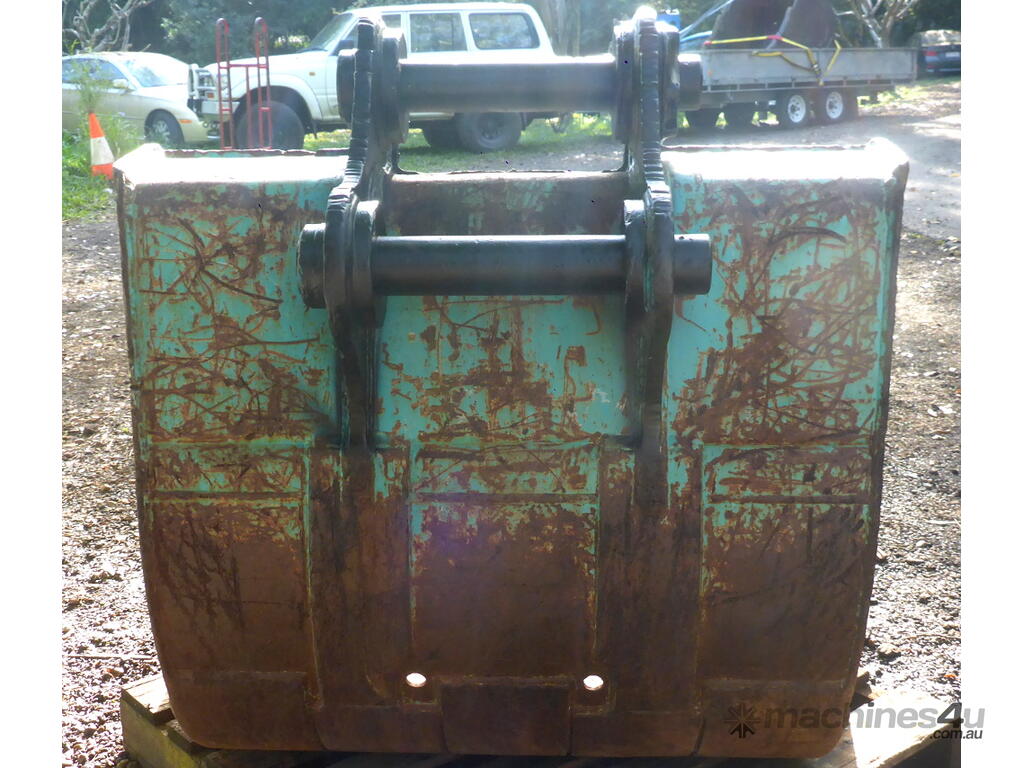

There are some gouges in the top of the front pin (see pic# 7) but we have ground the raised portion smooth so they won't affect it's contact with your hitch.

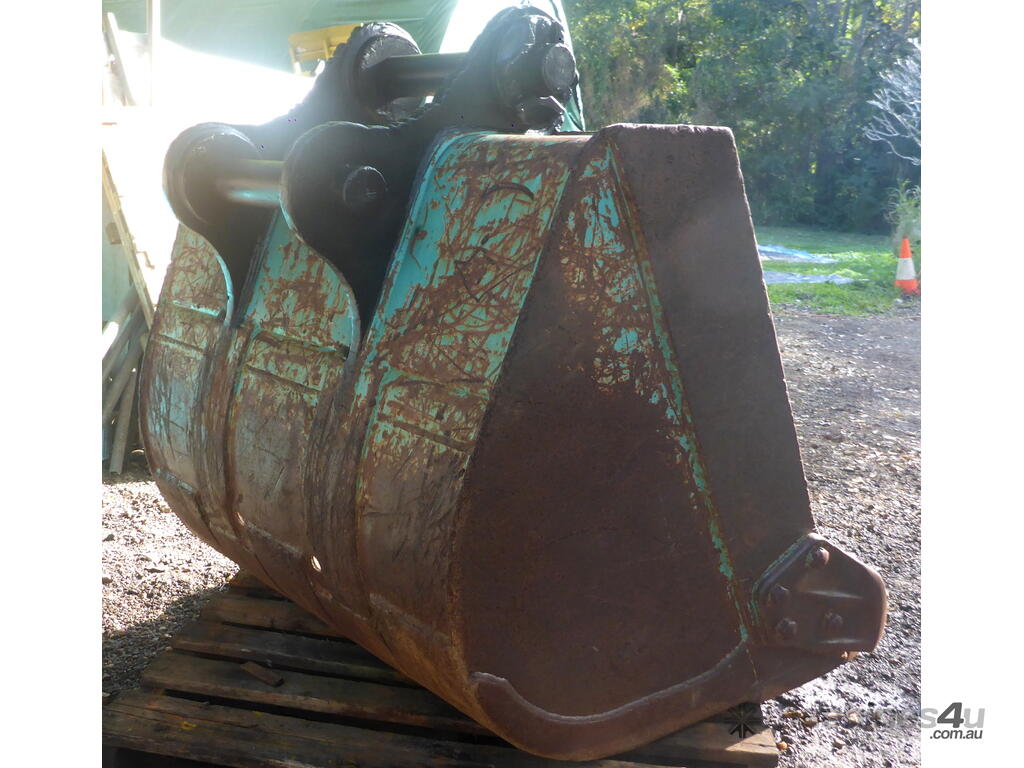

Also the top edge of the Ear Plates is a bit rough (see pics# 7-9), but likewise will not affect the bucket's operation or strength.

We put on a quick coat of paint on the Headstock to protect from rust.

Current Headstock configuration:
80mm Pin Diameter, 430mm Pin Center to Pin Center (CtoC), 326mm Between the inside Ear Bosses (which can be shaved back up to 395mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).

Should fit: Case CX160, JCB JS150LC / JS160 / JS160LC / JS180, Kobelco 200SRLC / SK200 / SK210 / SK210LC / SK210LC-VI / SK235SR, Liebherr 912 / 912 LITRONIC / 922 LITRONIC, Link-Belt 160LX / 160X2 / 225SA / 2700 QUANTUM / 2800 QUANTUM, New Holland EH215LC, Sumitomo SH150 / SH160 / SH200 / SH200LC / SH215U-1 / SH215X-1.

Maybe fit: Case 9021 / CX210 / CX210B / CX225SR, Caterpillar 318B L / 320 / 320B w/B Link / 320D w/B Link / 321 / 322B w/B Link / 322C w/B Link / 324D w/Reach Linkage / 330C / 330D w/Long Linkage / B Family Linkage, Daewoo Solar 170LC-V / 170W-3 / 175LC-V / 200W-3 / 200W-V / 220LC-V / 225LC-V / 225NLC-V / 225SLR / 250LC-V / 255LC-V, Doosan DX180LC / DX180LC-3 / DX180W-3 / DX190W / DX210W / DX225 / DX225LC-3 / S175LC-V / S180W-V / S210W-V / S225LC-V / S255LC-V / S470LC-V, Halla HE280, Hitachi EX150 / EX150-1 / EX150-2 / EX150-3 / EX150-4 / EX150-5 / EX160 / EX165 / EX200 / EX215 / FH165 / FH200 / FH215, Hitachi Zaxis 160 / 200 / 200 LC / 210 / 225US LC, Hyundai R210LC-7, JCB JS200 / JS200LC / JS210 / JS220 / JS220LC / JS235, John Deere 160C LC / 200C LC / 200D LC, Komatsu PC200 / PC200 Mighty / PC200-3 / PC200-5 / PC200-6 / PC200-7 / PC200LC-8 / PC210 / PC210-6 / PC220-3 / PC220-5 / PC220LC-6 / PC220LC-7 / PC220LC-8 / PC228USLC-1 / PC228USLC-2 / PC228USLC-3 / PC240 / PC250-6 / PC270 / PC270LC-6 / PC270LC-7 / PC280 / PW210, Link-Belt 210LX, LiuGong 922 / 925, Samsung SE210 Early Series / SE210-3 / SE210LC-2 / SE210LC-3, Sumitomo SH200-2 / SH200-3 / SH200LC-3 / SH210-5 / SH225X-3, Terex TXC 175LC / TXC 180LC / TXC 225LC / TXC 255LC, Volvo EC210 / EC210B / EC210C / EC220D / ECR235C / ECR235D / EW230C / MX225LS / SE210LC-3 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

Shipping dimensions: 1320mm Wide, 1360mm Deep, 1250mm High.
Weight: 734kg.

Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
