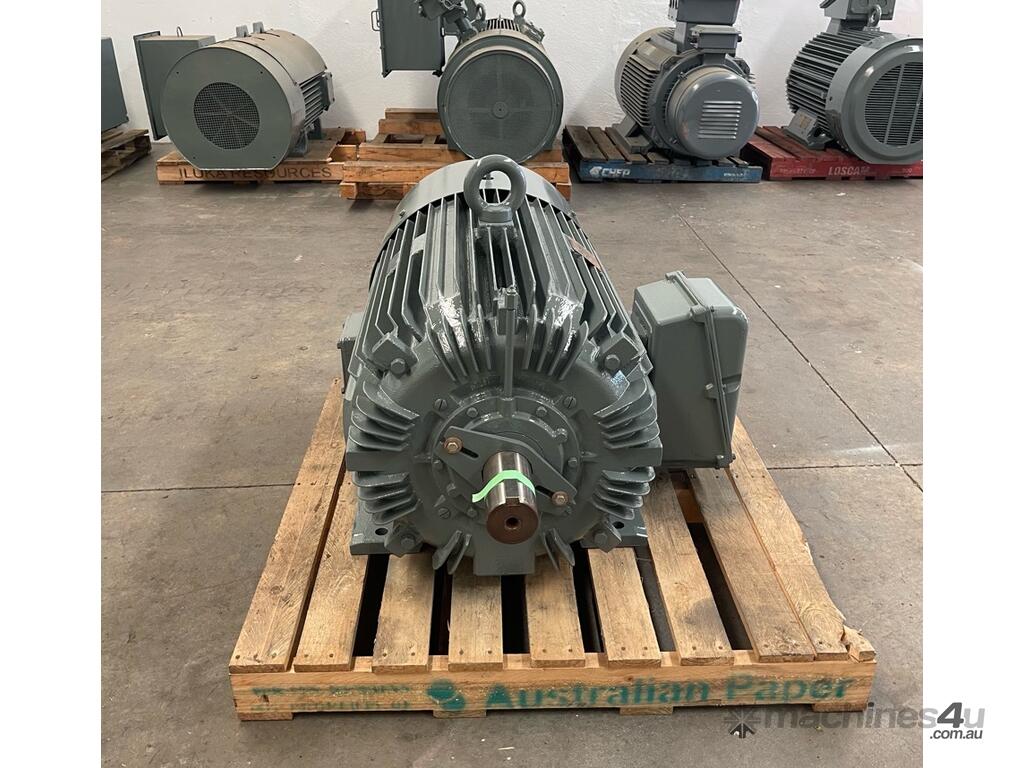

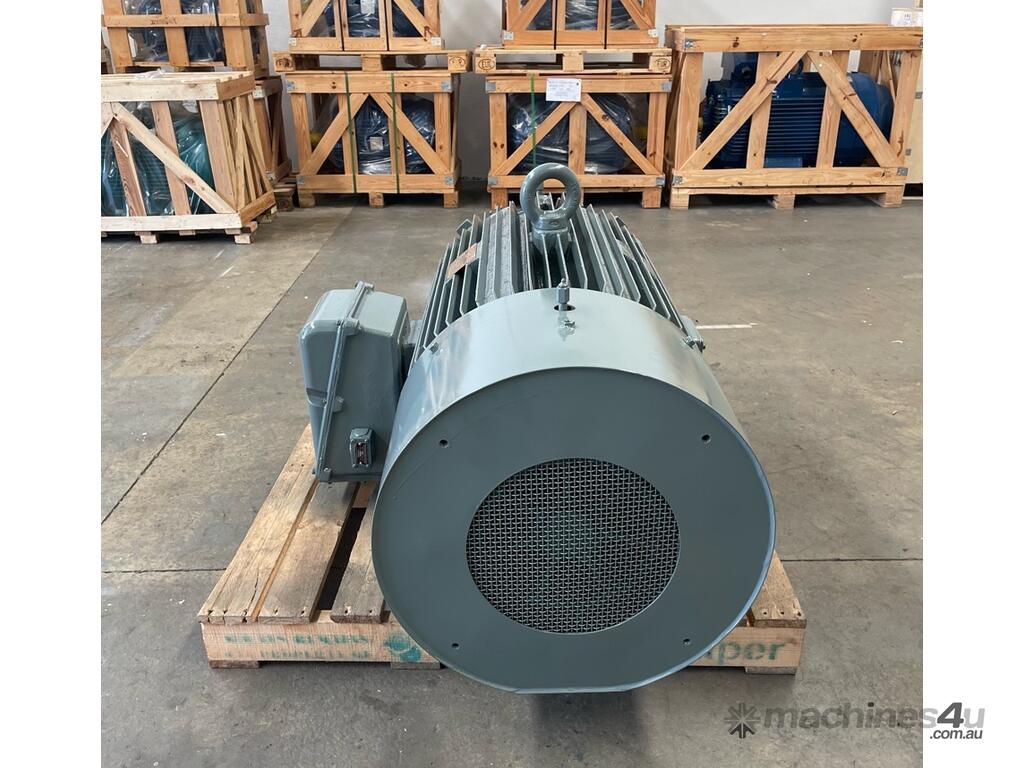

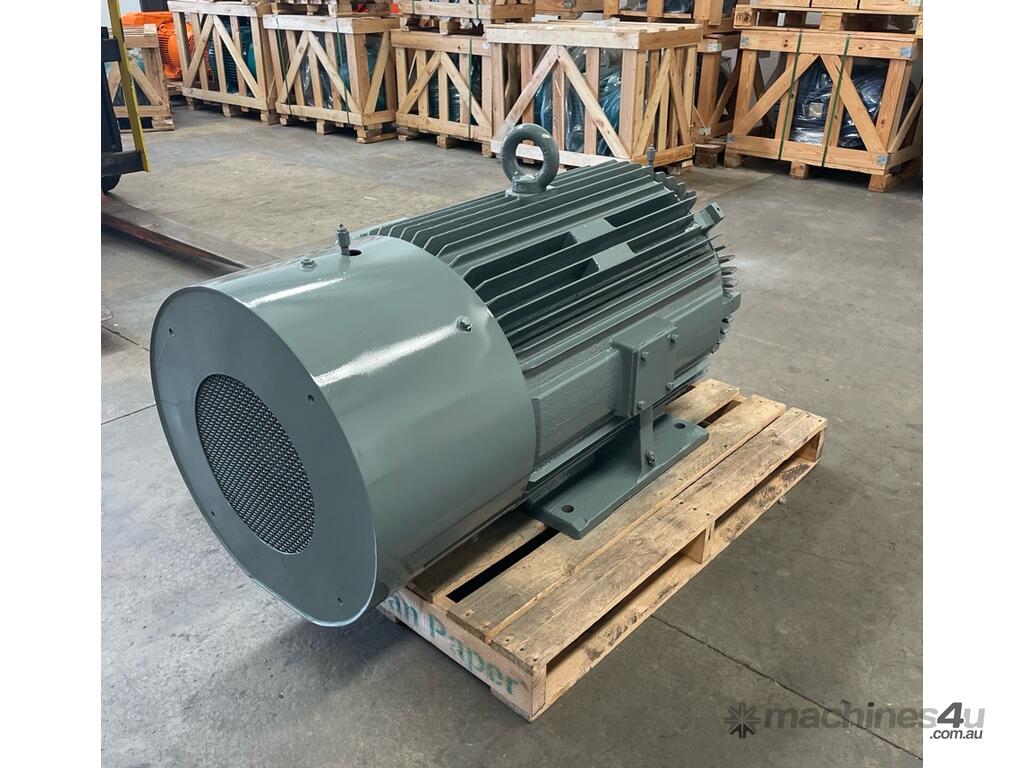

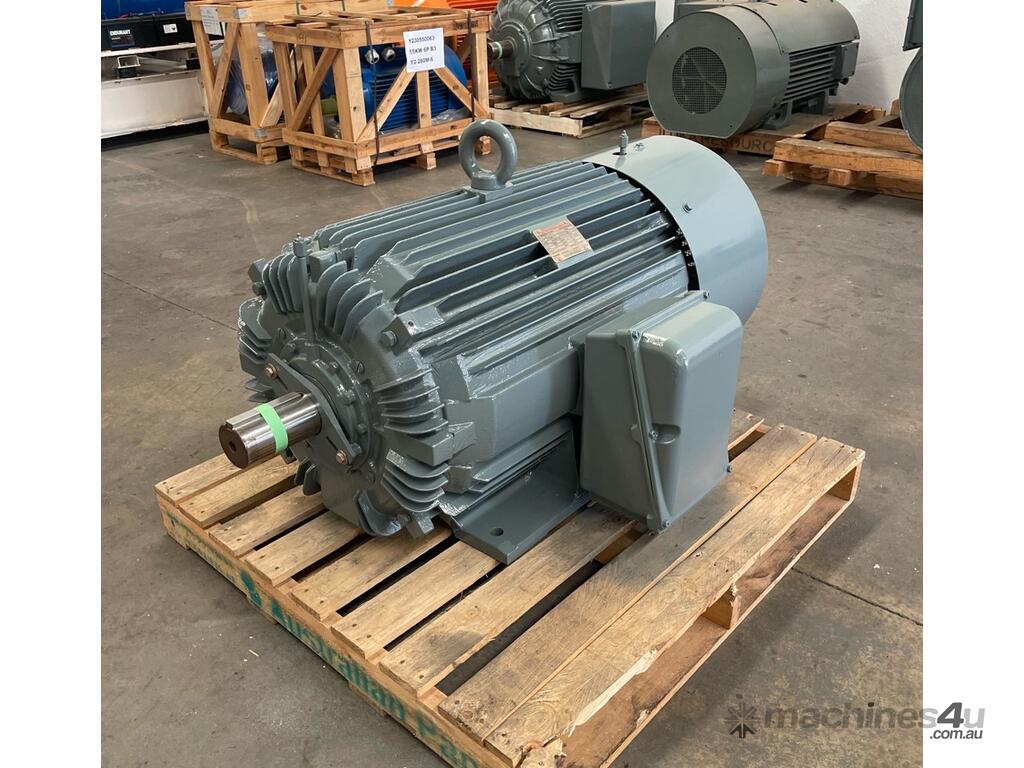

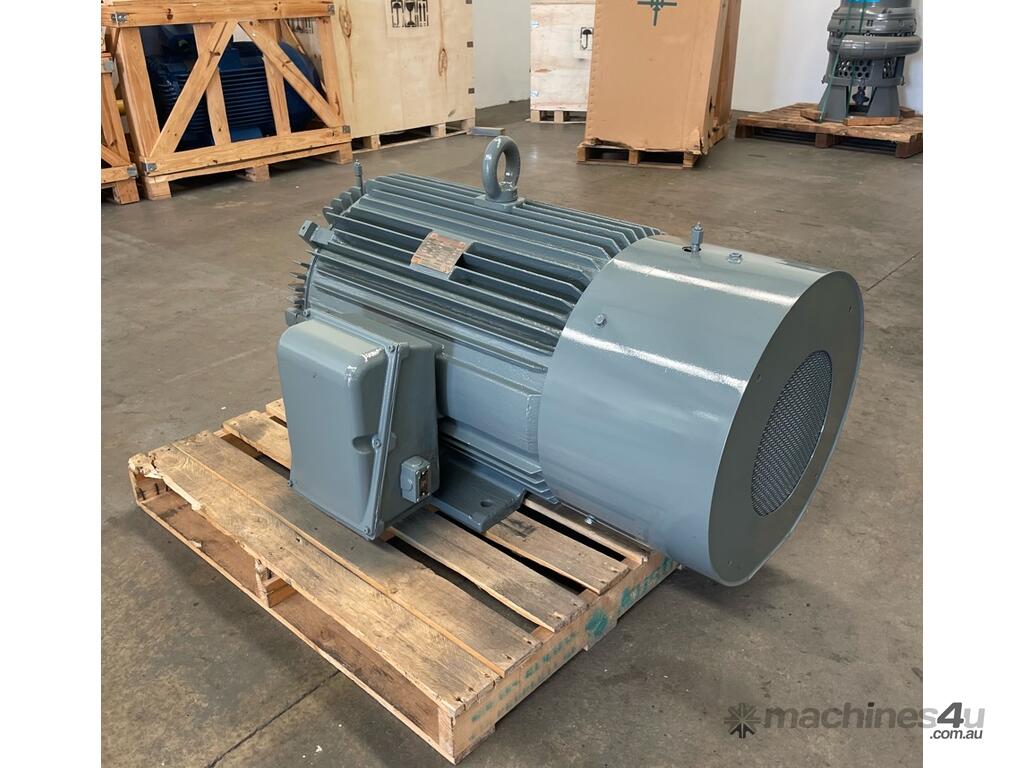

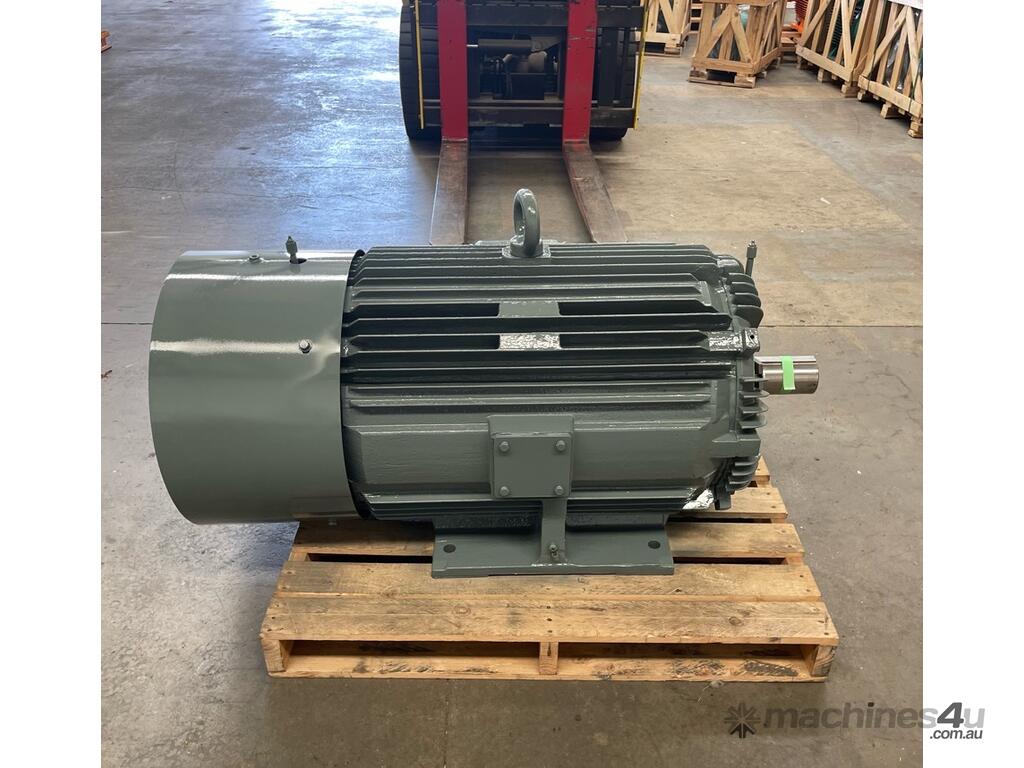

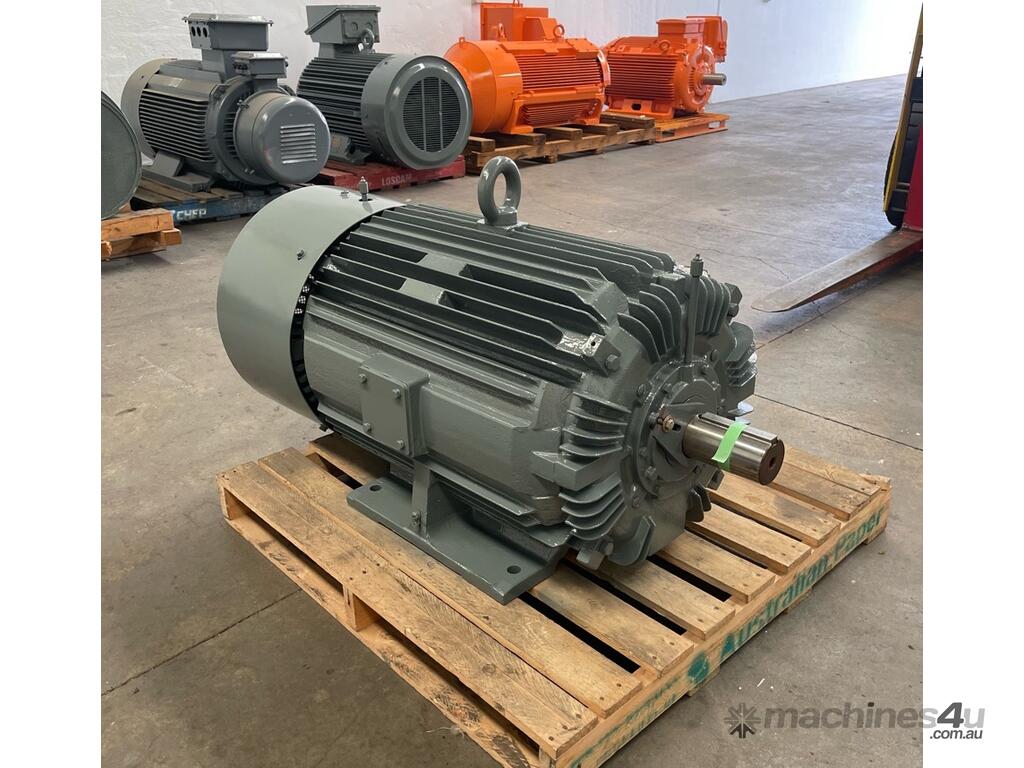

150 kw 200 hp 4-pole 1485 rpm 415v Foot Mount D315M frame TEFC Mining AC Electric Motor Toshiba Moel TSH-01
Category: AC Squirrel Cage Electric Motor
3-phase induction motor

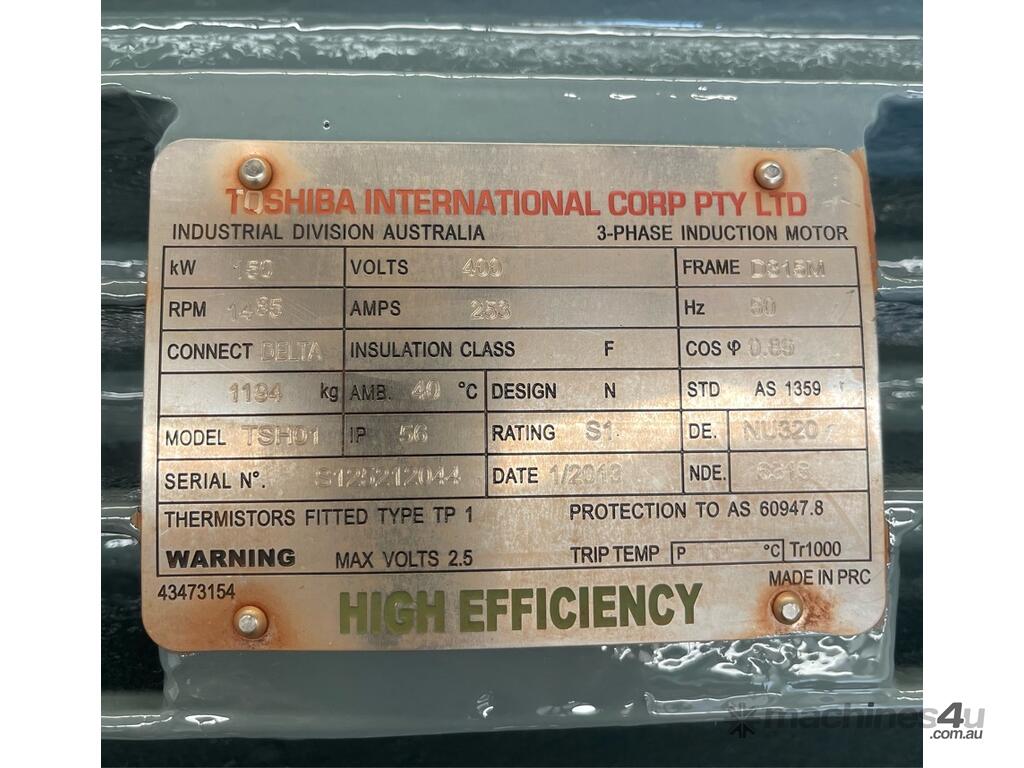

Make: Toshiba
Model: TSH-01 High Efficiency
YOM: 2013
Power: 150 kw (200 hp)
Speed: 4-pole (1485 rpm)
Rated Frequency: 50 hz
Rated Voltage: 400 v
Full load amperage: 253 A
Mount: B3 Foot
Frame: D315M
Protection rating: Mining IP56
Insulation class: F
Duty: S1
Notes: Includes drive-end roller bearing (for belt-driven application).
Critical Measurements:
Centre shaft height: 315 mm
Shaft DIA: 90 mm (by 170 mm long)
Total length: 1400 mm (incl. shaft)
Total width: 950 (incl. RHS to D.E. terminal box)
Total height: 750 mm
Feet Measurements: Across 'A' - 500 mm, Front to Back 'B' - 450 mm
Front hole to shaft: approx. 215 mm
Available QTY: 1
Condition: Unused & decommissioned critical spare. N/L test run & paint in motor workshop August 2023
exStock Seaford VIC 3198 Australia
Freight services available Australia-wide. Immediate despatch.
