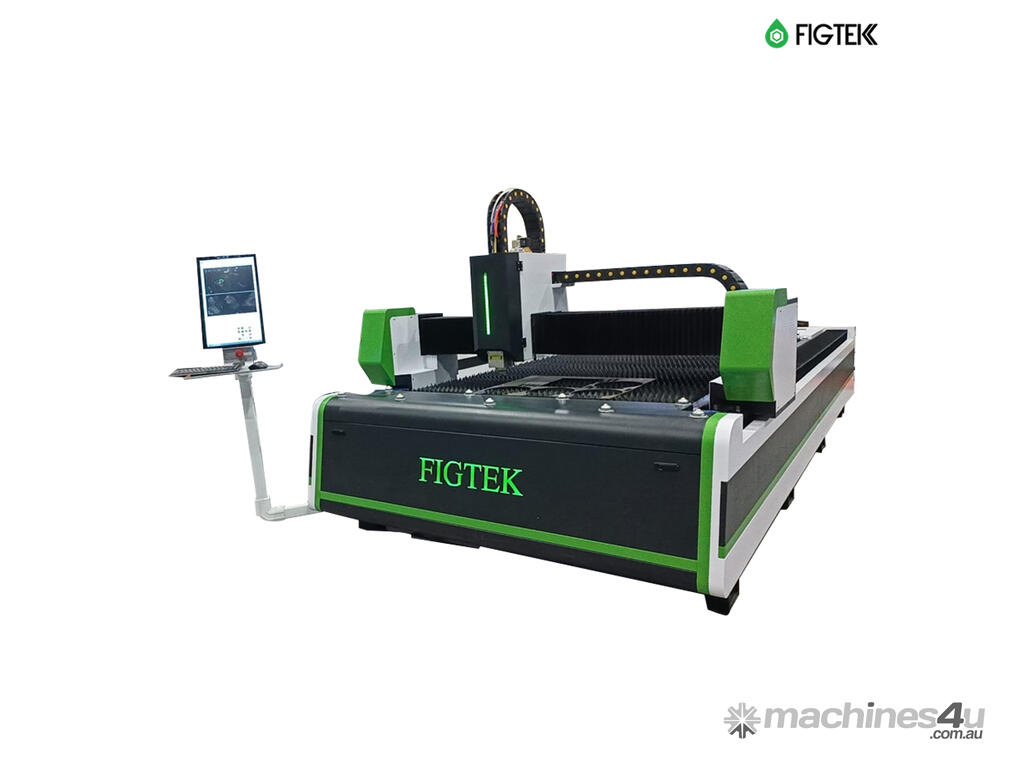

1530 FIBER METAL CUTTING MACHINE 6000W

Figtek is a group of small niche Australian businesses that complement and support each other to create a vast array of solutions for all of its client’s needs.

Inclusions:

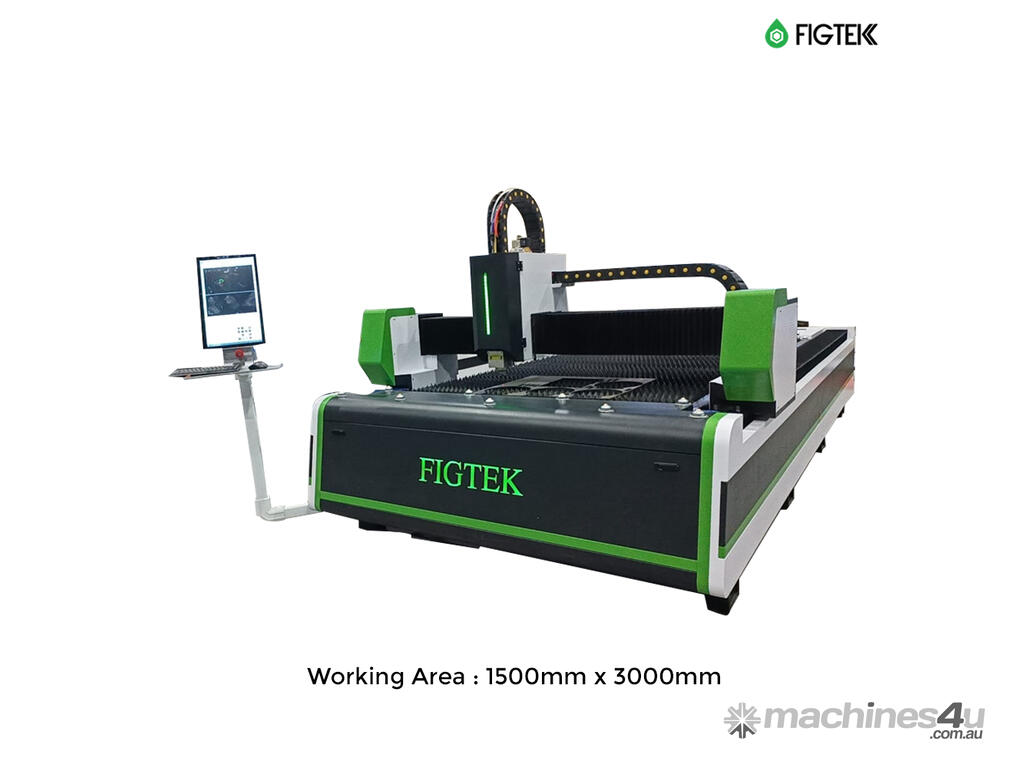

• Working Size: 1500mm x 3000mm
• Cutting Head: Raytools
• Fuji Servo Motor
• Taiwan HIWIN Guide Rails
• Reducer: France Motovalia
• Pneumatic Part: Taiwan Air Tec
• Cooling Way: Hanli Water Chiller
• Voltage:380V/50HZ,3 Phase
• Watts: 6000W

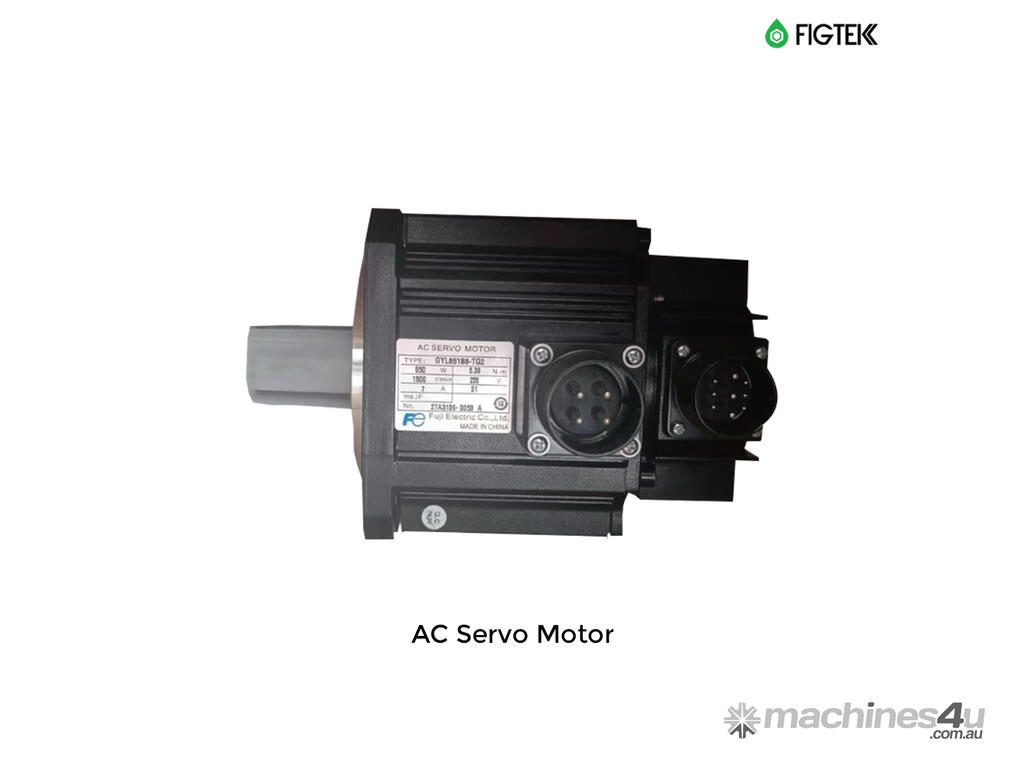

• AC Servo Motor and Driver
• Fiber Laser Cutting Data Base
• External optical path and cutting head
• CNC Control and Software System
• High-precision linear guide transmission system
• Electrical Components and Pneumatic Systems
• CYPCUT CNC Control System

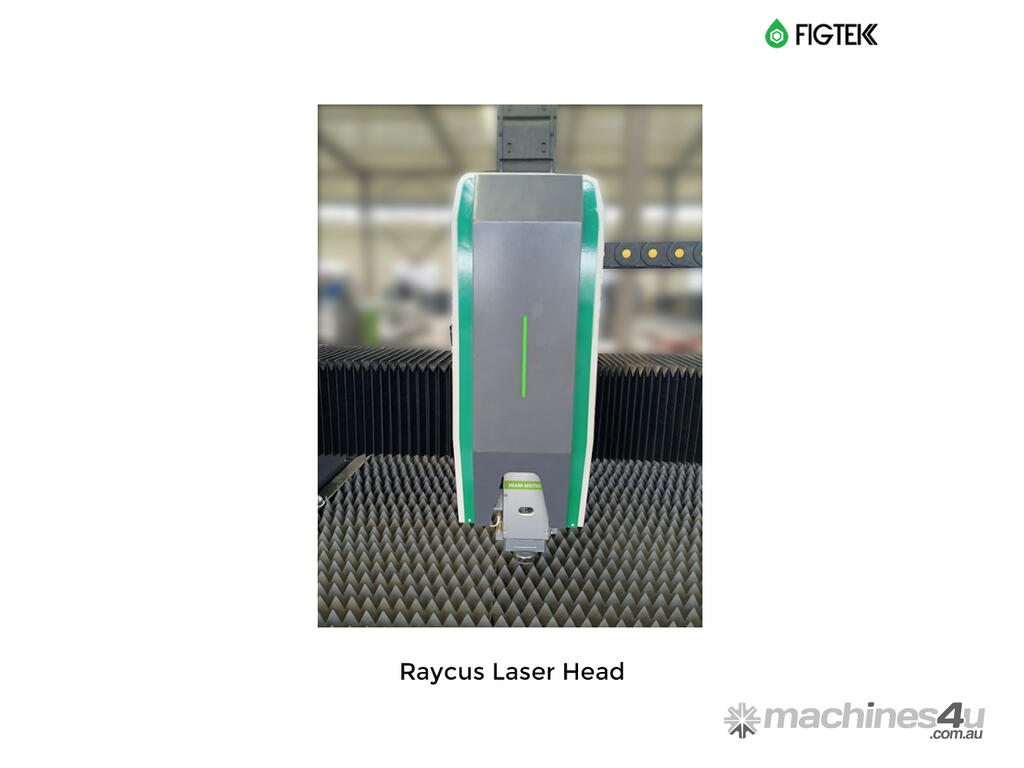

Laser Head Features:
• Optimized optical configuration and smooth and efficient airflow design.
• Knob type of focus adjustment, meticulous and flexible, Adjustable range is 15mm, and accuracy is 0.05mm.
• Drawer-type of the lens mount, quick and easy access to the cover glass.
• Modular design, can be equipped with crash protection devices.
• Optional elongated nozzle link for 3D cutting.
• Optional with 2D/3D magnetic breakaway crash protection.
• With a variety of optical interfaces, can be adapted with a variety of fiber lasers.

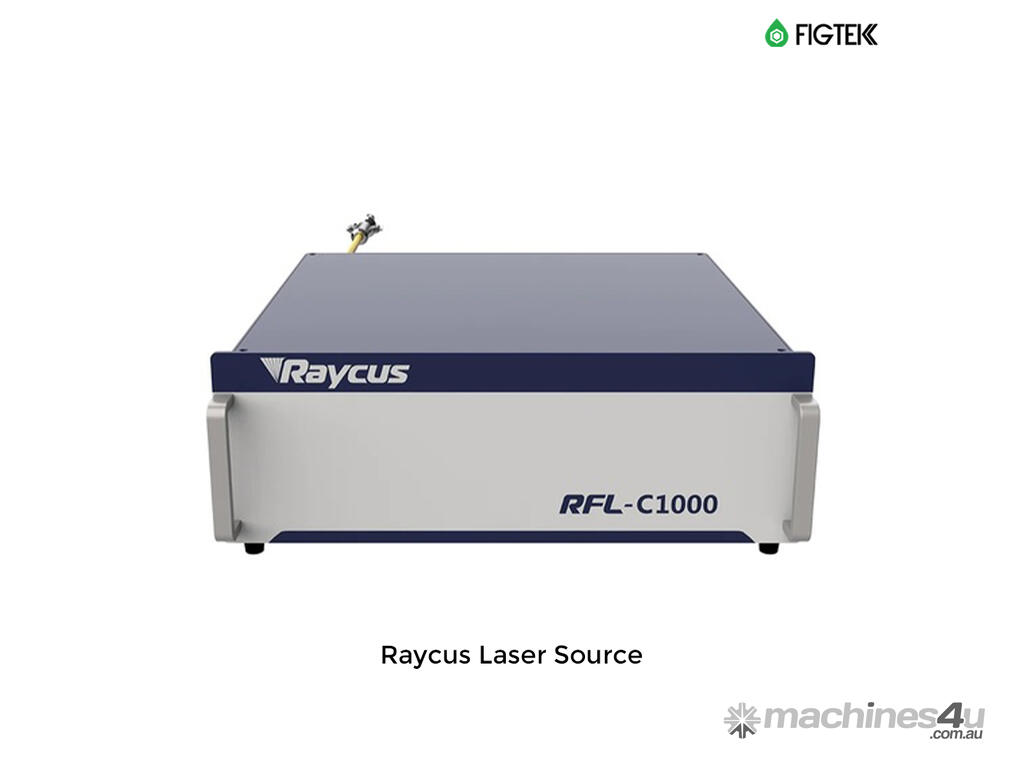

Laser Resource:
• High electro-optical conversion efficiency
• Altitude stress-resisting capacity
• Sheet-cutting efficiency
• Customized output fiber length
• Maintenance-free operation
• Wide modulation frequency range

Servo Motor and Driver:
• Japan servo motor and driver improve cutting speed and stability.
• The X and Y axis are made of servo motors, and the Z axis are equipped with Z-axis servo motors. The combination ensures stability and efficiency.
• The servo system ensures the possibility of precise positioning with excellent dynamic response acceleration characteristics and closed-loop control mode, and the mechanism runs smoothly, reliably and without maintenance.

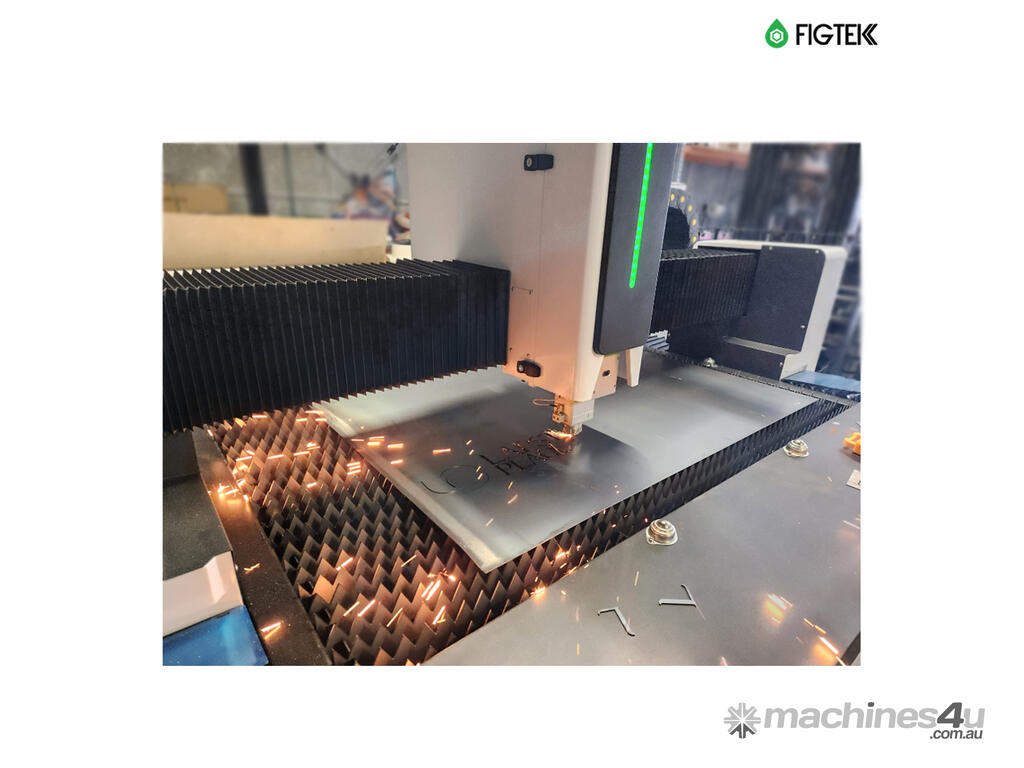

Applications:
• Industry and advertising industry for Plate Cutting
• It is mainly used for cutting carbon steel, stainless steel, low carbon steel and aluminium profiles. It has the advantages of high speed, high precision, high efficiency and high-cost performance. It is the metal-cutting equipment that the metal processing industry first considers.


Services we provide:
• We offer installation and training
• We deliver machines anywhere in Australia
• We also commission it to ensure the machine is performing as it should at your factory.
• We also ensure calibration is done
• We train and up-skill you on how to use the machine and software on-site


The Facts:

• We build the machines from scratch
• Wired to Australian Standard
• All machines undergo heaps of testing and calibration
• Engineers with over 30 years of experience
• Plug and Play option available - Ask us what's this about
• We import to the customer - Out of the container and to you.
• Local Brand: Australian Local Support
• Quality: Highest quality materials used

Why Buy Our Fiber Laser Machine?
• Australian Local Support
• Only the best quality parts used
• Engineers with over 15 years of experience
• Custom built to your specifications
• 3-year Australian warranty - If the installation package is chosen
