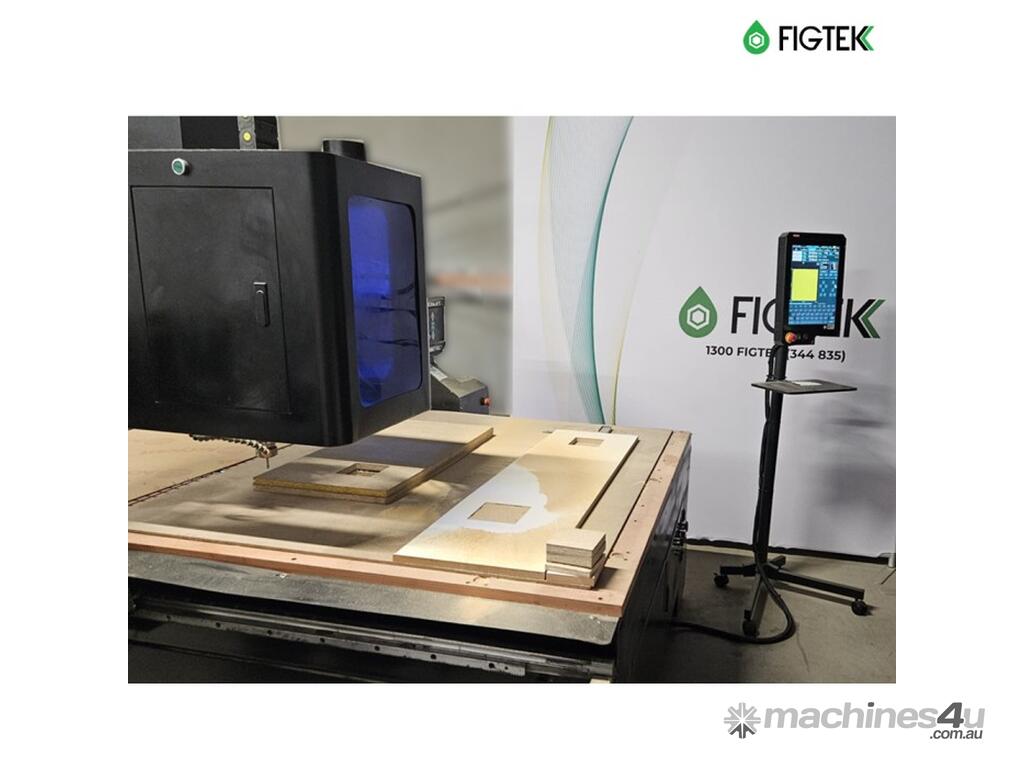

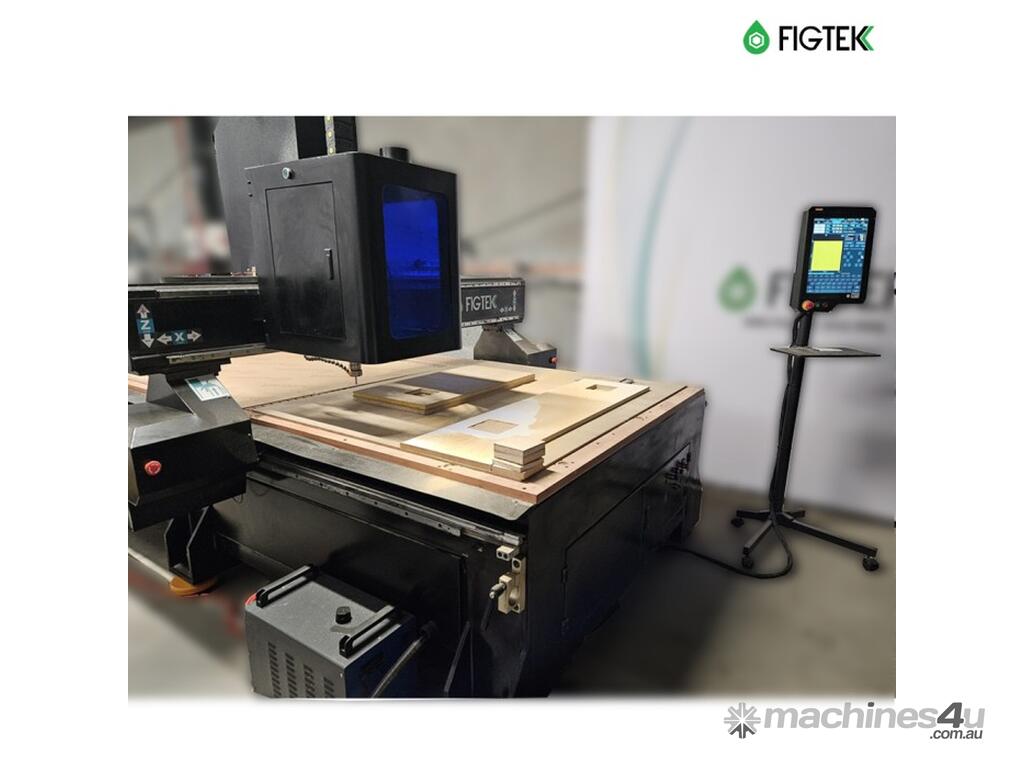

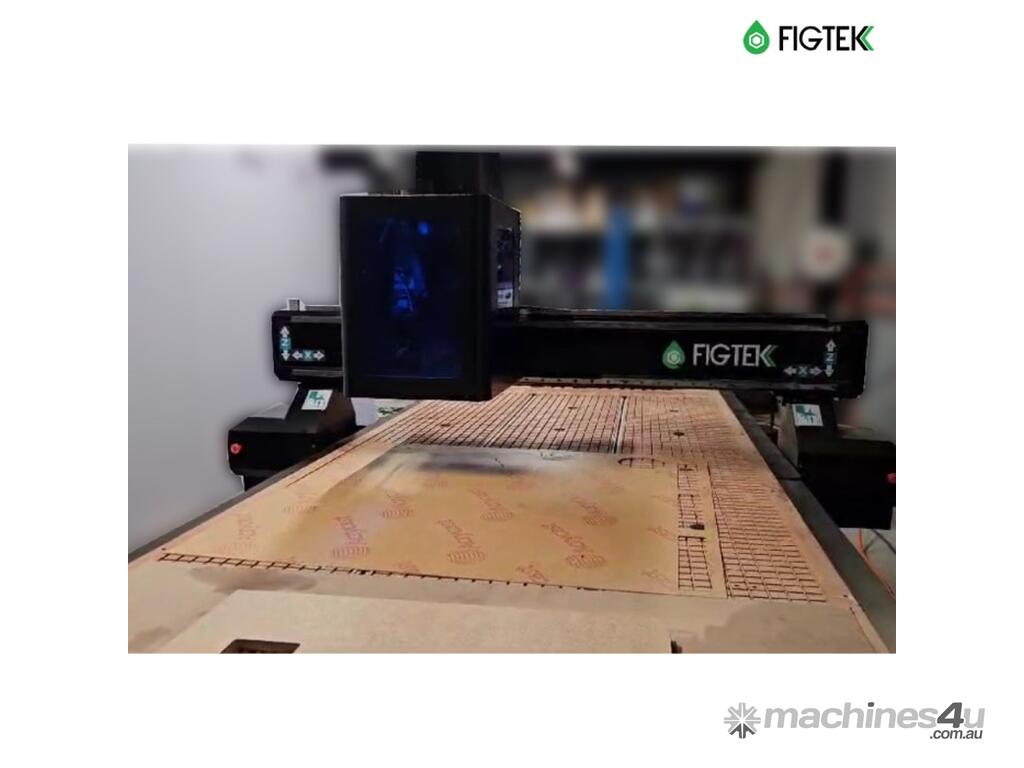

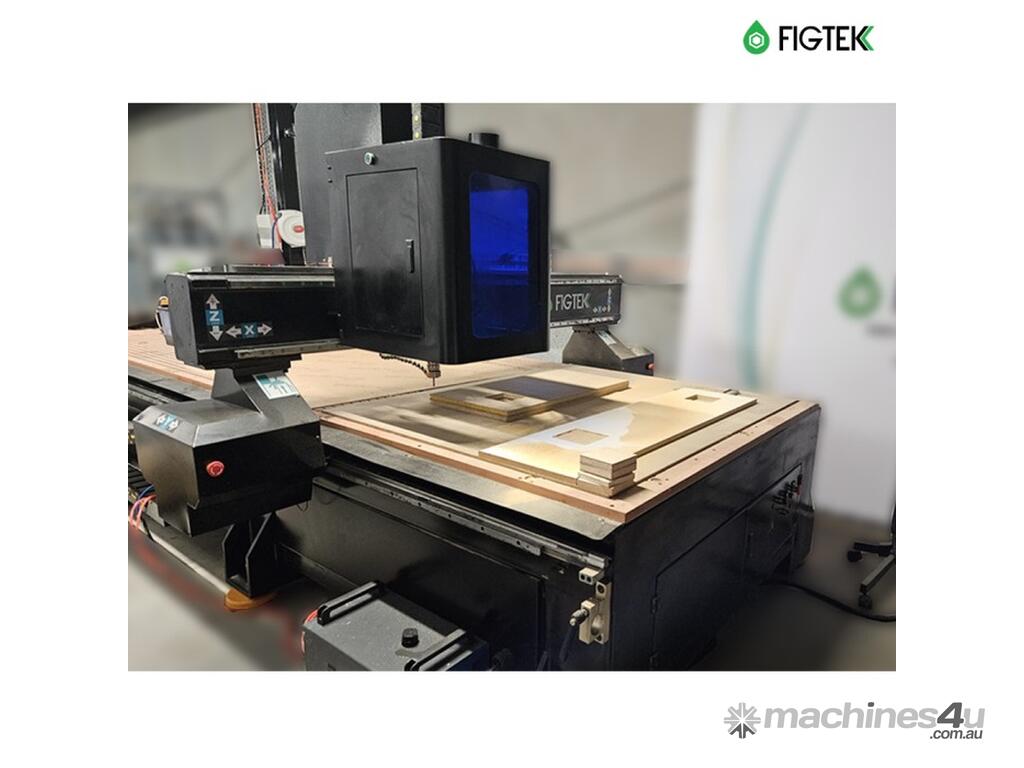

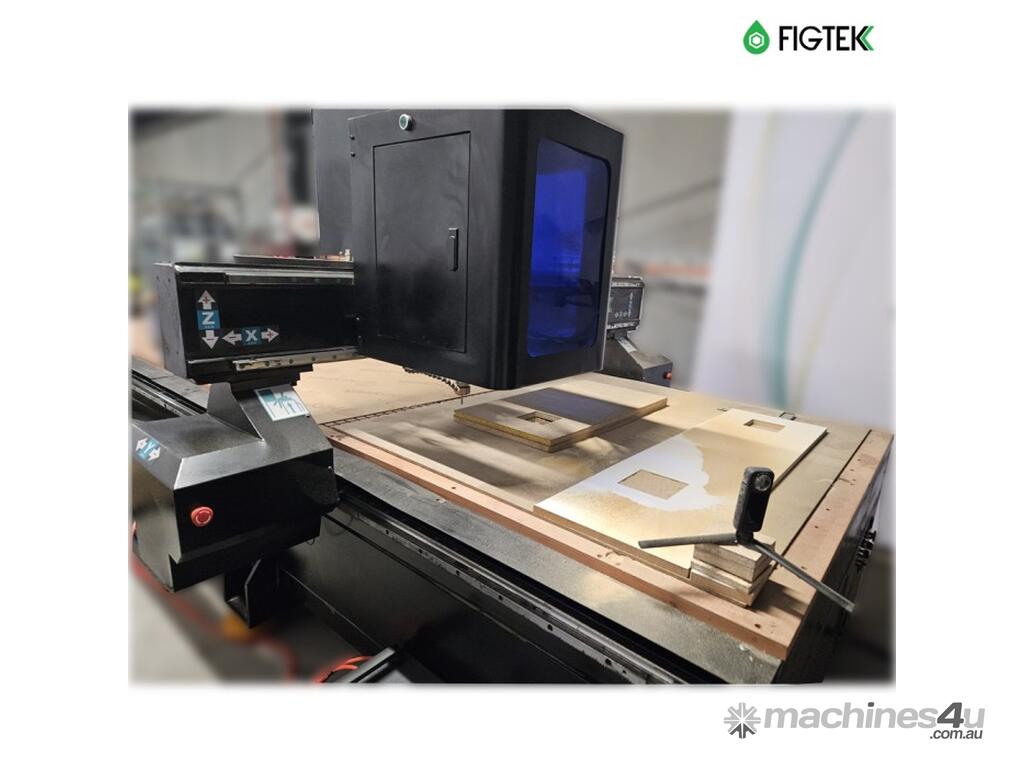

Experience unparalleled efficiency and precision with the 1540 ATC Router, integrated with the advanced Masso controller. This machine is designed to meet the diverse needs of industries such as woodworking, prototyping, and more.
Key Specifications
Working Area: 1500 x 4000 x 200mm
Worktable: Vacuum Bed and T-slot table
Vacuum Pump: Included
Guide Rails: 25mm Taiwan linear guides
Spindle: 9kW Air Cooled
Servo Motors and Drivers: Yaskawa / Leadshine 1.5KW
Inverter: 5.5 KW Fuling
Construction: Welded machine structure with a heavy-duty body
Power Supply: 220V Single Phase or 3-Phase
Lubrication: Automatic oil lubricant system
Position Control: Position Cylinder with foot pedal control
Dust Management: Automatic Dust Shoe (Dust Collector available for an additional $880)
Key Features

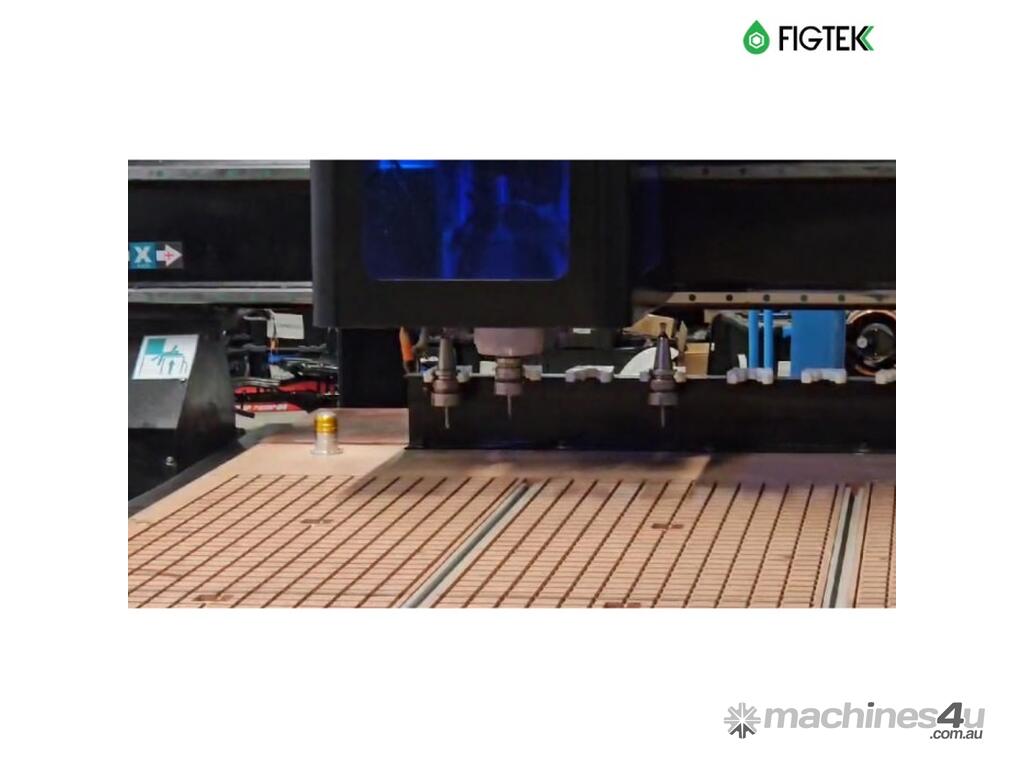

Automatic Linear Tool Changer: Maximizes production efficiency
High Precision Servo Motor and Driver: Ensures precise operations
Sturdy Construction: Delivers long-lasting durability
Vacuum & T-slot Table: Provides stable positioning during operations

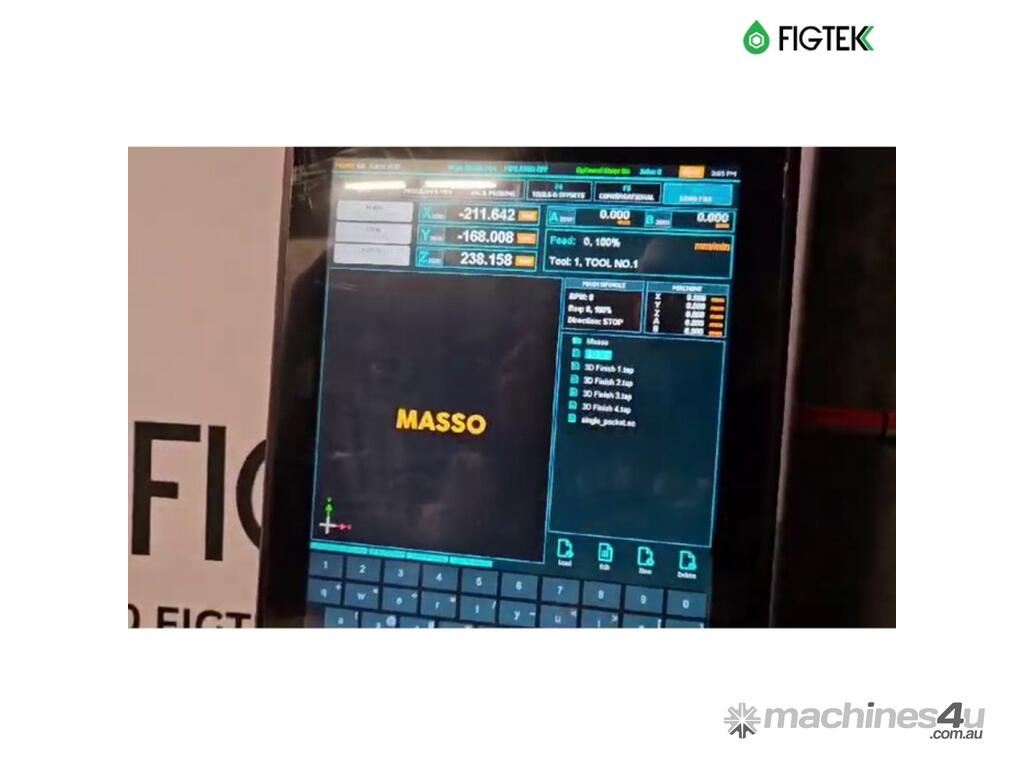

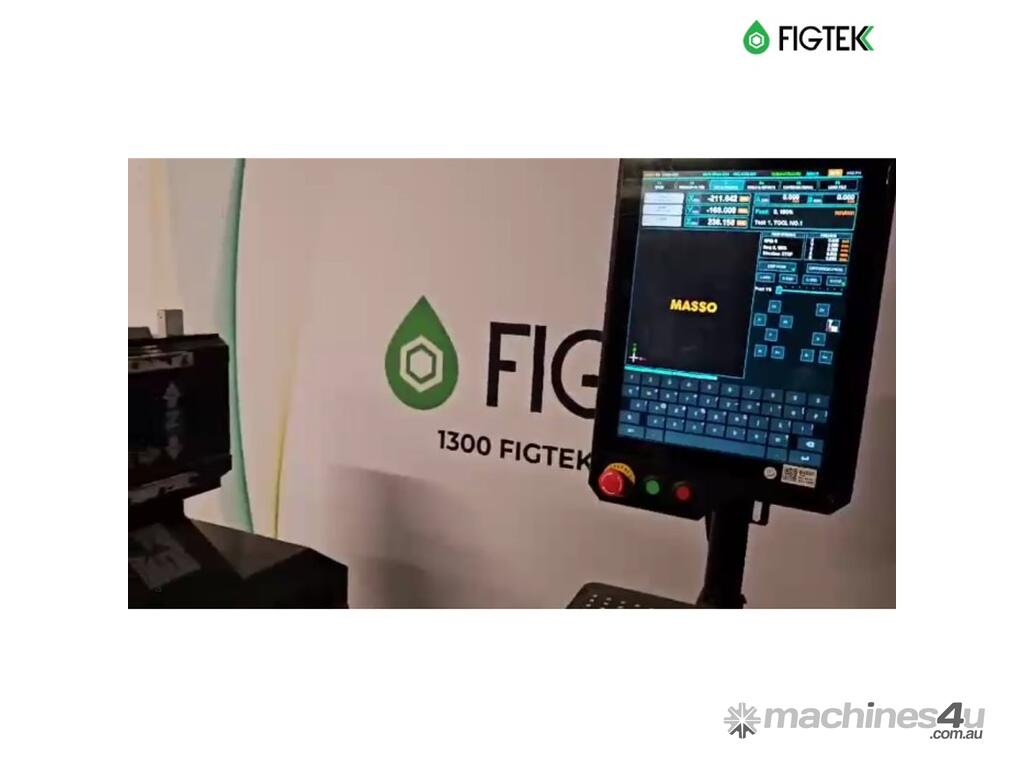

Masso Controller
Control Buttons: E-Stop, cycle start, and cycle stop for intuitive control
User Interface: Horizontal and vertical support with an on-screen touch keyboard for vertical use
USB Ports: For direct connection of keyboard, mouse, and flash drives
Inputs/Outputs: 24 isolated inputs and 18 outputs
Signal Support: Step & Direction signals for stepper or servo drives
Spindle Control: 0-10 volts, CW, CCW & PWM control
MPG Handwheel Dial: Supported
Benefits
Enhanced Efficiency: Automatic tool changing reduces downtime
Superior Accuracy: High precision components ensure consistent results
Versatility: Suitable for a wide range of applications
Advanced Safety: Features for operator peace of mind
Customization: Adaptable to specific needs
Why Choose Us
Local Support: Australian-based assistance
Top-Quality Components: Ensuring reliable performance
Experienced Engineers: Proven track record of success
Customization Options: Tailored solutions available
Warranty: 3-Year warranty if installation package chosen
