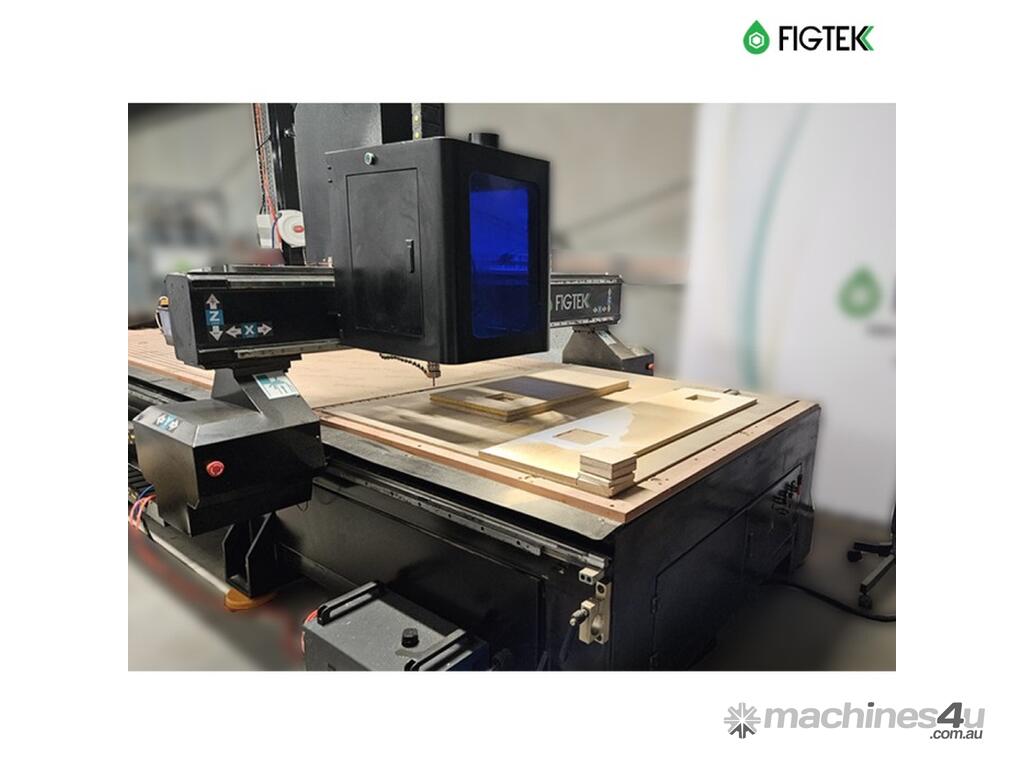

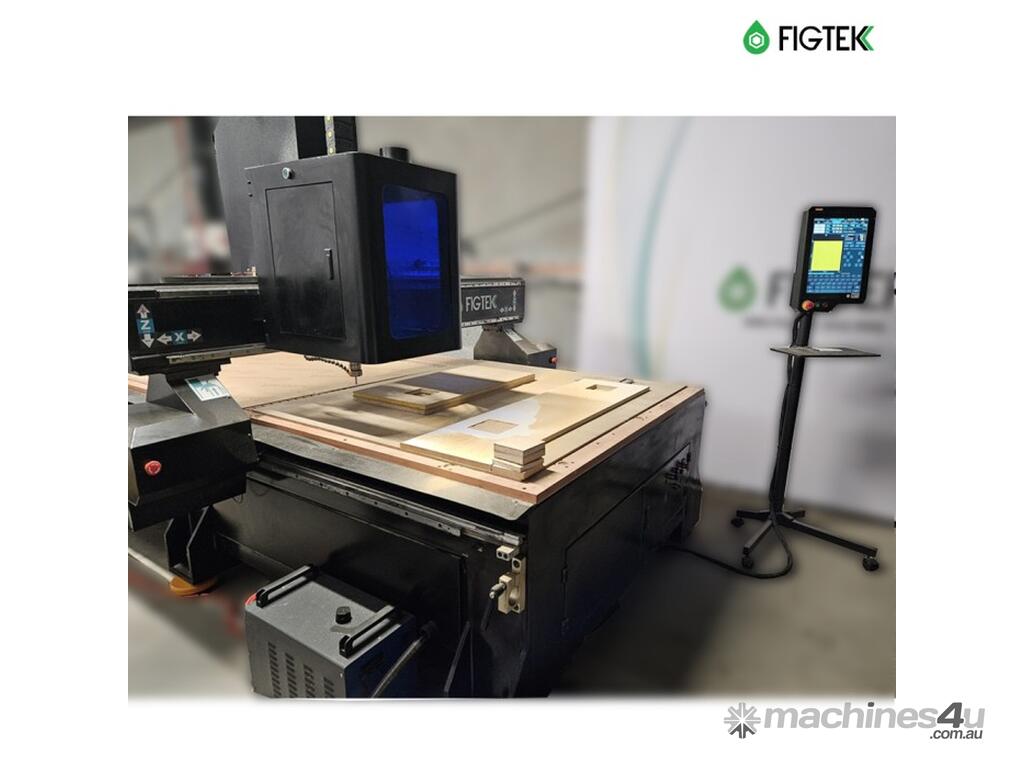

1540 ATC Router with Masso Controller - Welded machine structure

Experience the Power of the 1540 ATC Router with Masso Controller

Unlock new levels of precision and efficiency with the 1540 ATC Router, featuring the state-of-the-art Masso controller. This robust machine is designed to cater to various industries, ensuring high performance and reliability in every task.

Key Specifications
Working Area: 1500 x 4000 x 200mm

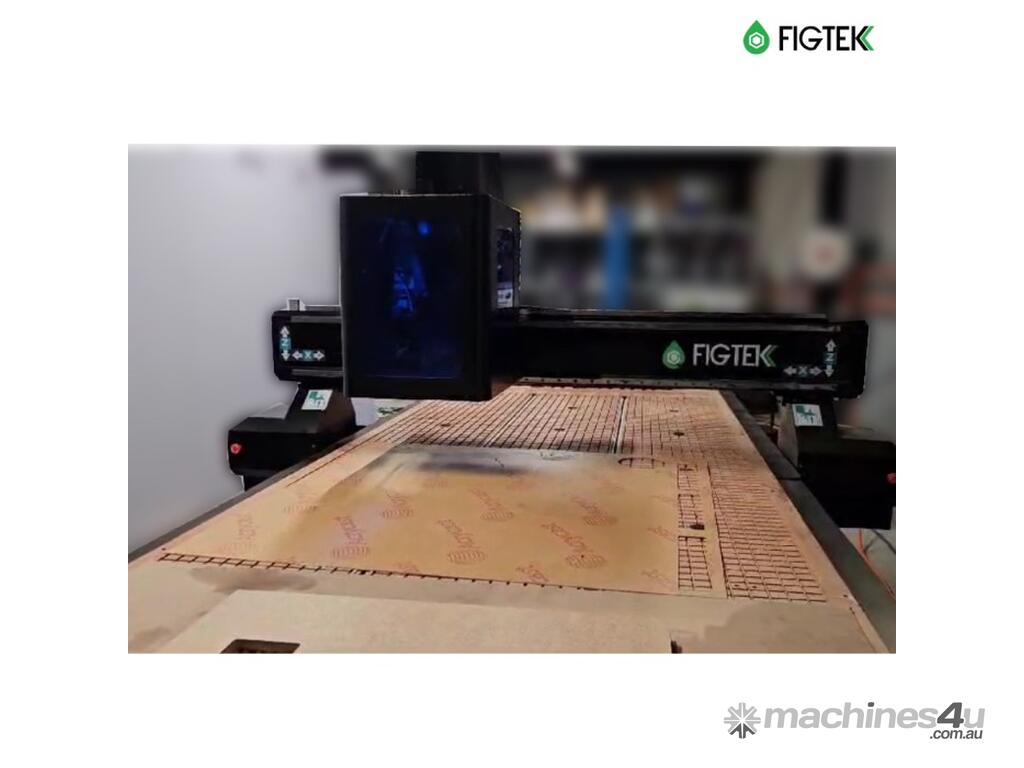

Worktable: Vacuum Bed and T-slot table for versatile operations
Vacuum Pump: Included for enhanced material hold
Guide Rails: Durable 25mm Taiwan linear guides
Spindle: Powerful 9kW Air Cooled Spindle
Servo Motors and Drivers: High-performance Yaskawa / Leadshine 1.5KW
Inverter: Efficient 5.5 KW Fuling
Construction: Sturdy welded machine structure with a heavy-duty body
Power Supply: Compatible with 220V Single Phase or 3-Phase
Lubrication: Automatic oil lubricant system for smooth operations

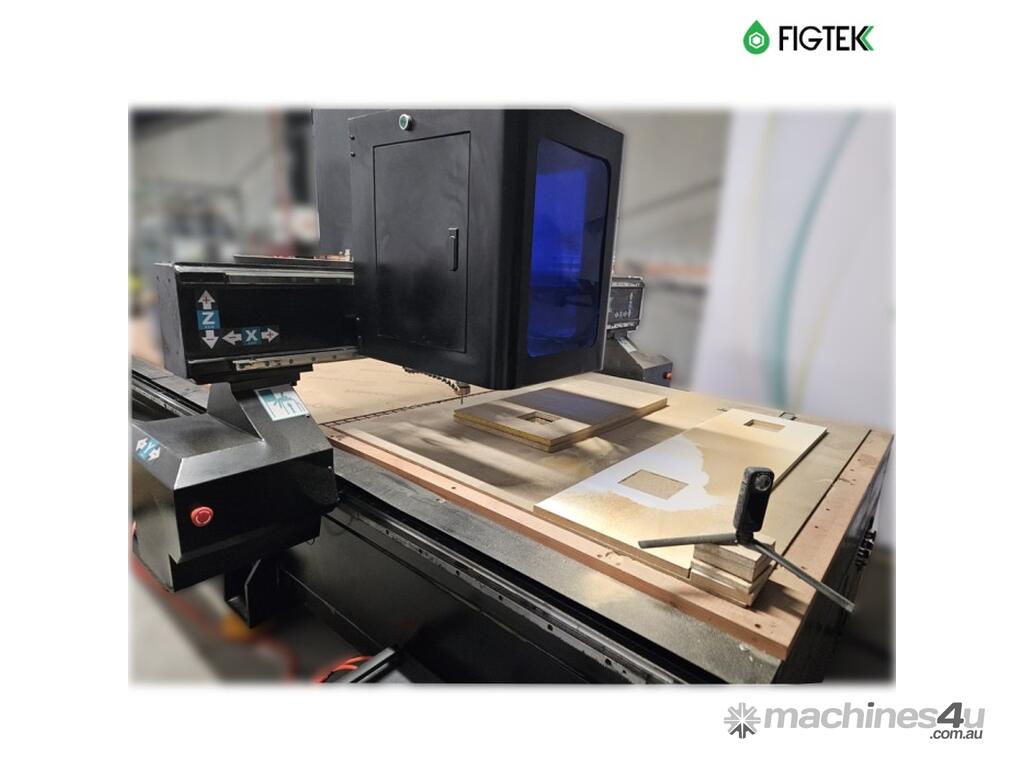

Position Control: Position Cylinder controlled by a foot pedal
Dust Management: Automatic Dust Shoe (optional Dust Collector for an extra $880)

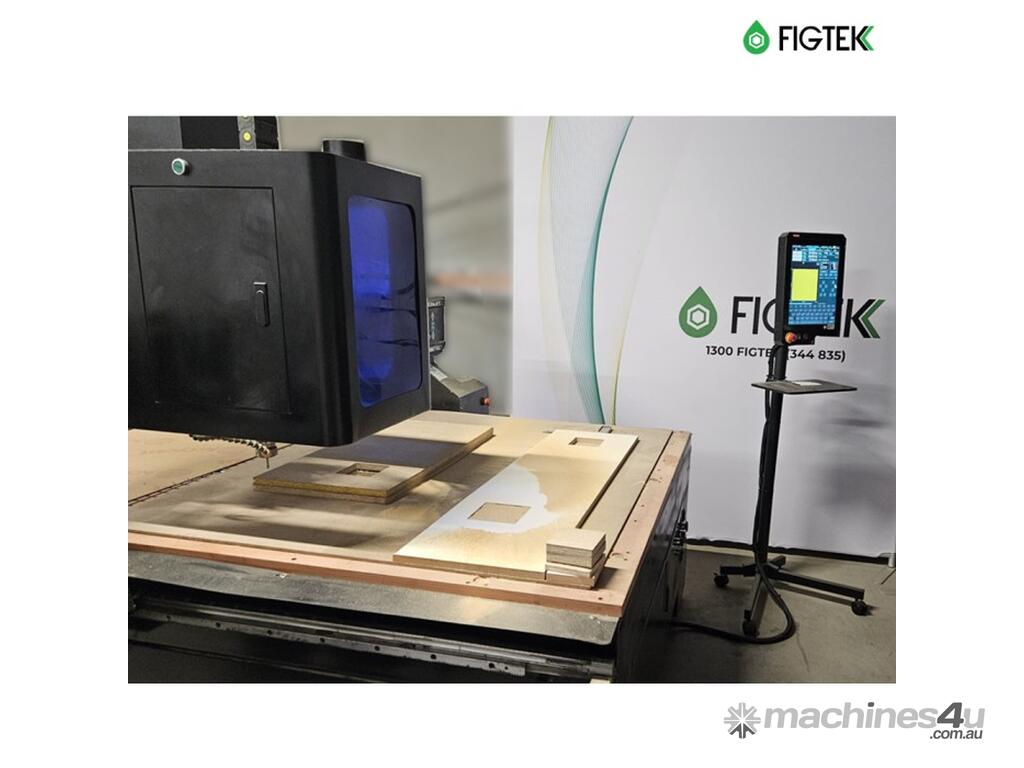

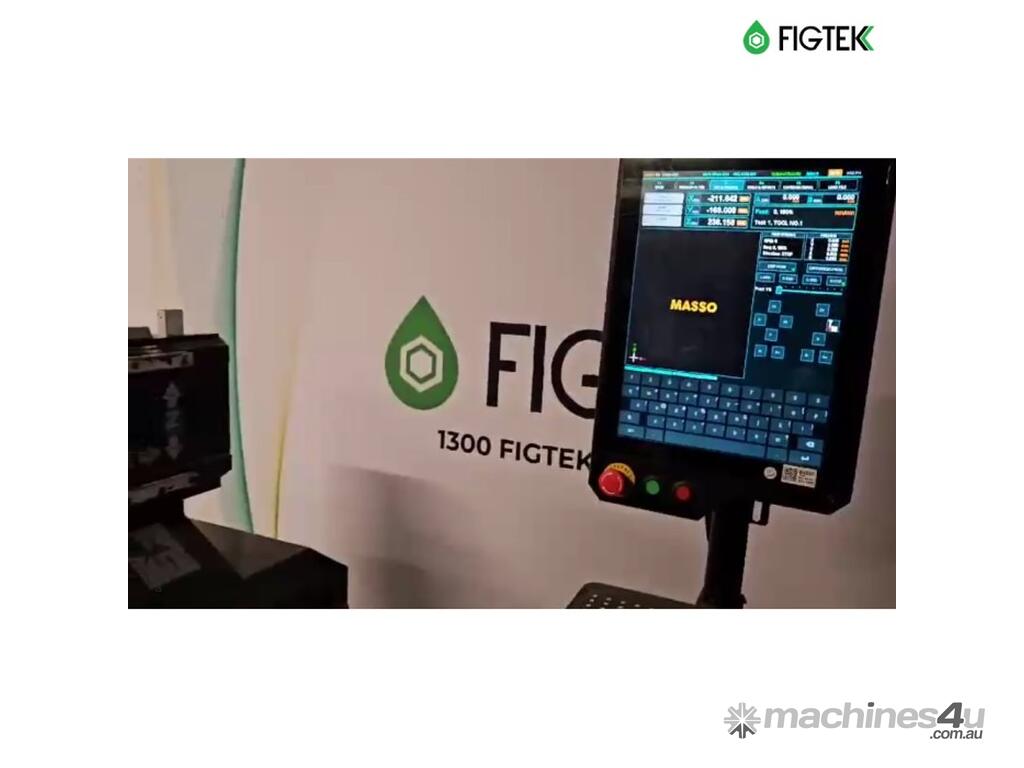

Masso Controller
Control Buttons: Easy control with E-Stop, cycle start, and cycle stop buttons

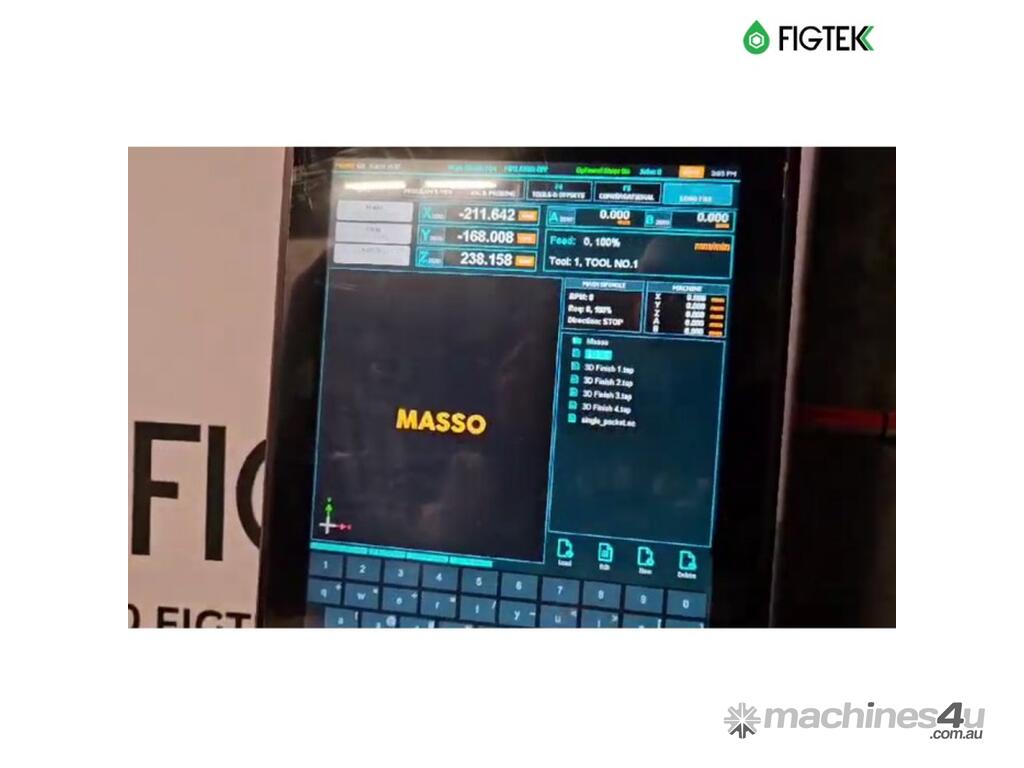

User Interface: Supports both horizontal and vertical modes with an on-screen touch keyboard for vertical use
USB Ports: Conveniently connect keyboard, mouse, and flash drives
Inputs/Outputs: 24 isolated inputs and 18 outputs for versatile connectivity
Signal Support: Step & Direction signals for stepper or servo drives
Spindle Control: Direct control with 0-10 volts, CW, CCW & PWM
MPG Handwheel Dial: Supported for manual adjustments

Applications

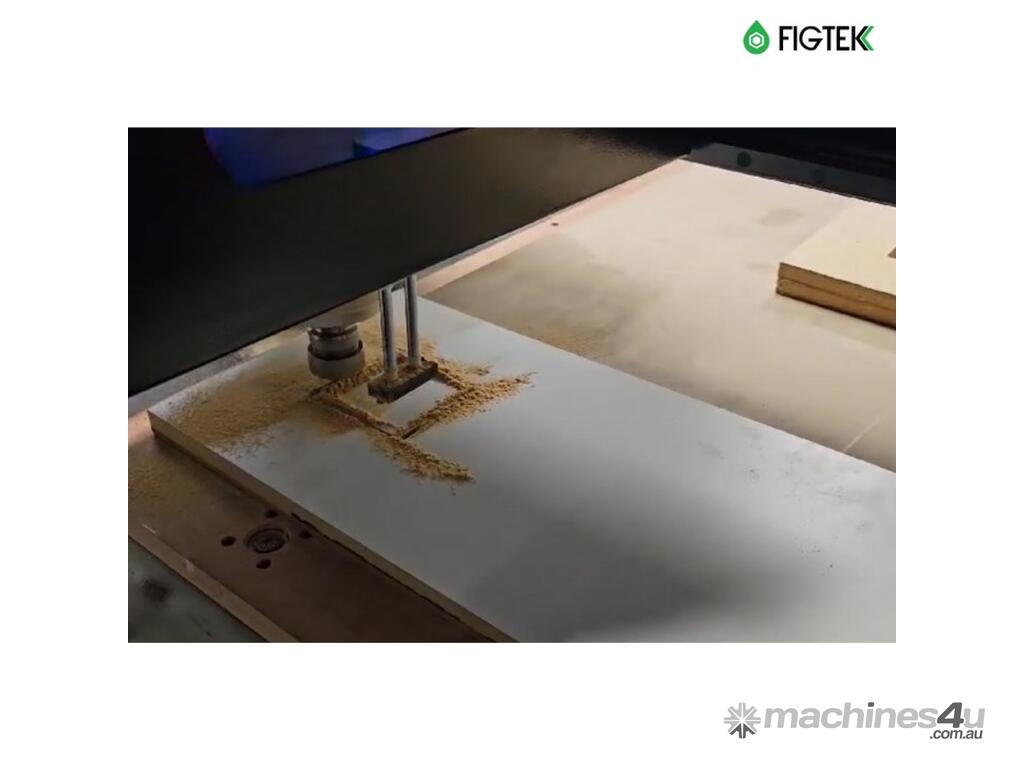

Woodworking: Ideal for furniture manufacturing, cabinetry, and crafts
Signmaking: Perfect for intricate designs and lettering on acrylic, PVC, and wood
Prototyping: Essential for product design, automotive, and aerospace industries
Plastic Fabrication: Great for displays, enclosures, and machine parts
Aluminium Machining: Suitable for light-duty machining, custom parts, and prototypes
Foam Cutting: Excellent for packaging, insulation, and theatrical props
Composite Material Processing: Works with fiberglass, carbon fiber, and laminates for aerospace, marine, and automotive applications
Educational Purposes: Ideal for teaching CNC machining, design principles, and manufacturing processes

Benefits

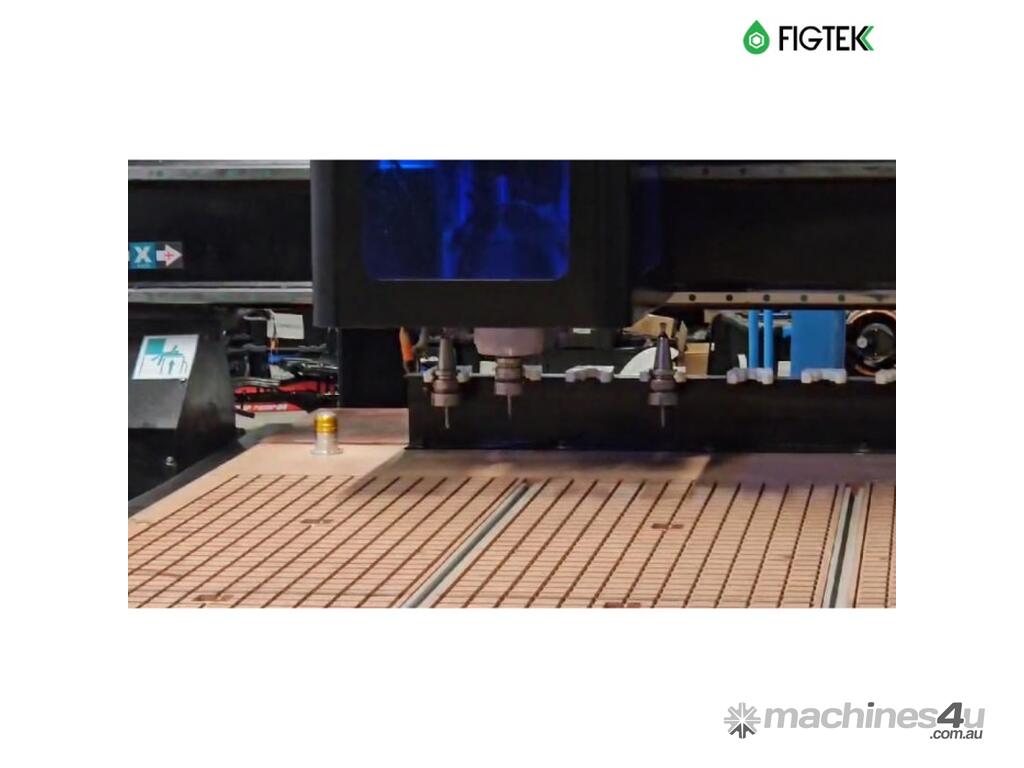

Increased Efficiency: Automatic tool changing minimizes downtime
Improved Accuracy: High precision components ensure consistent, reliable results
Versatility: Suitable for a wide range of applications
Enhanced Safety: Advanced safety features provide peace of mind
Customization: Adaptable to meet specific needs

Why Choose Us
Local Support: Australian-based assistance for timely support
Quality Components: Ensuring reliable, long-lasting performance
Experienced Engineers: Proven track record of successful projects
Customization Options: Tailored solutions to fit your unique requirements
Warranty: Comprehensive 3-Year warranty if installation package chosen
