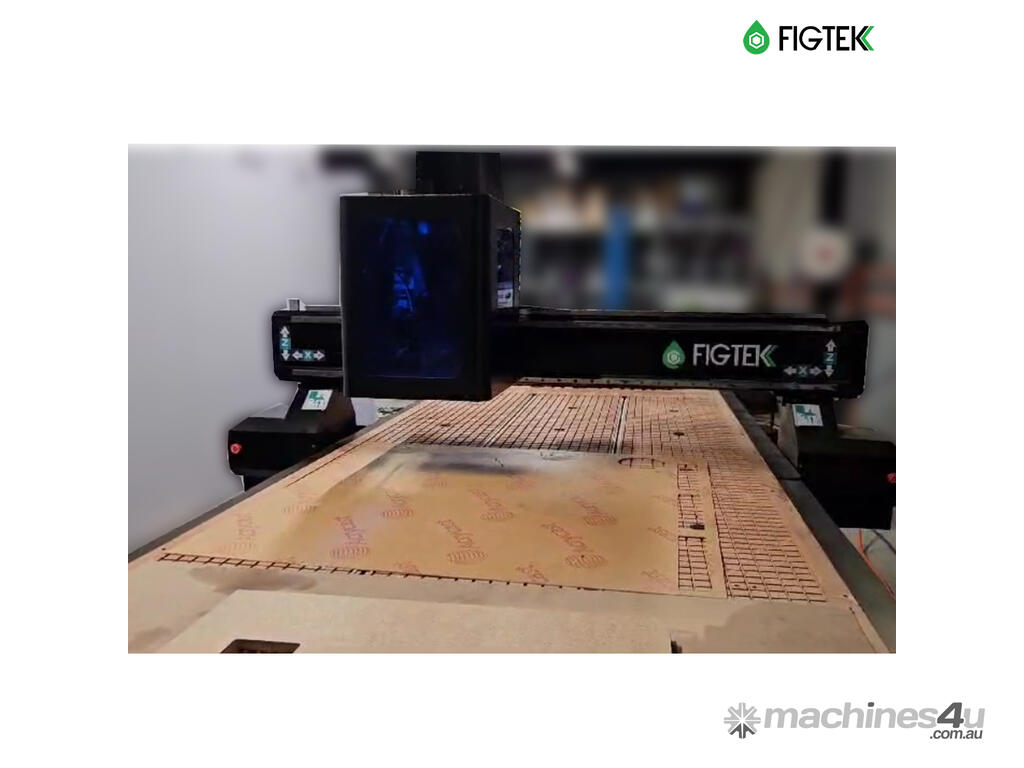

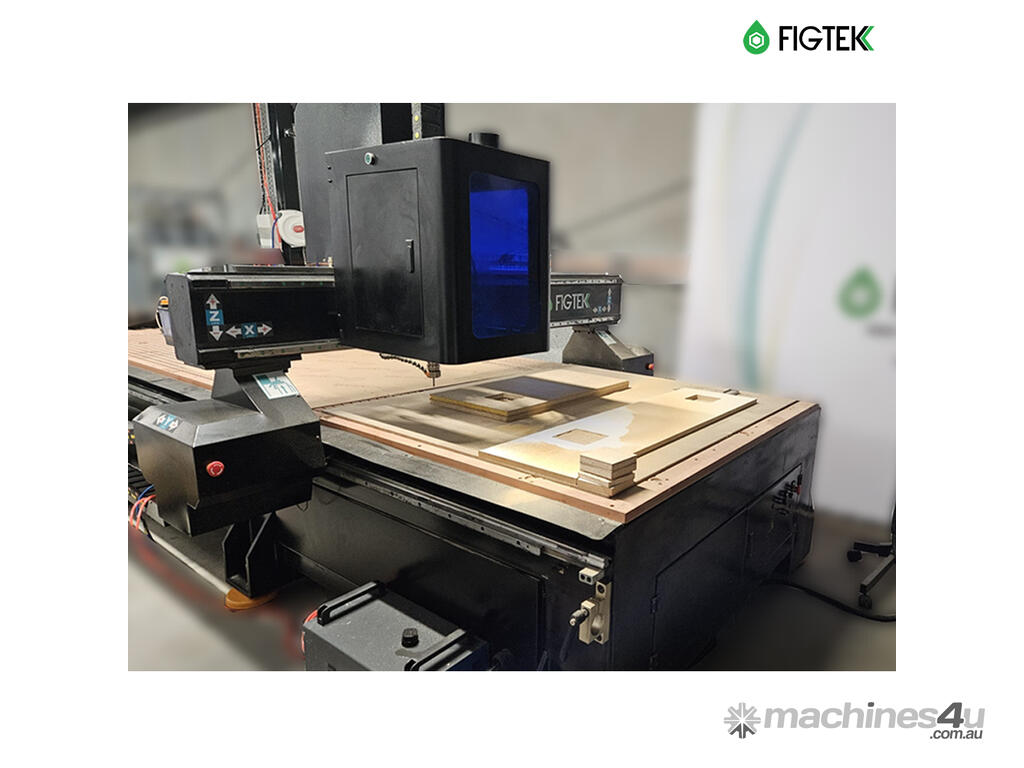

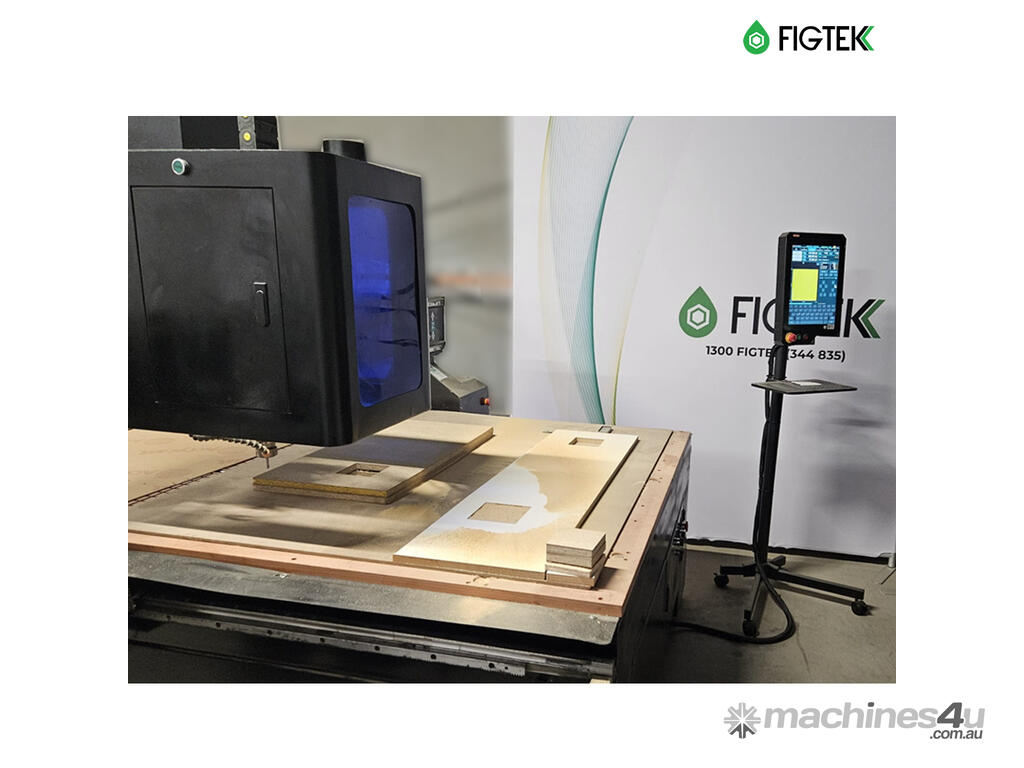

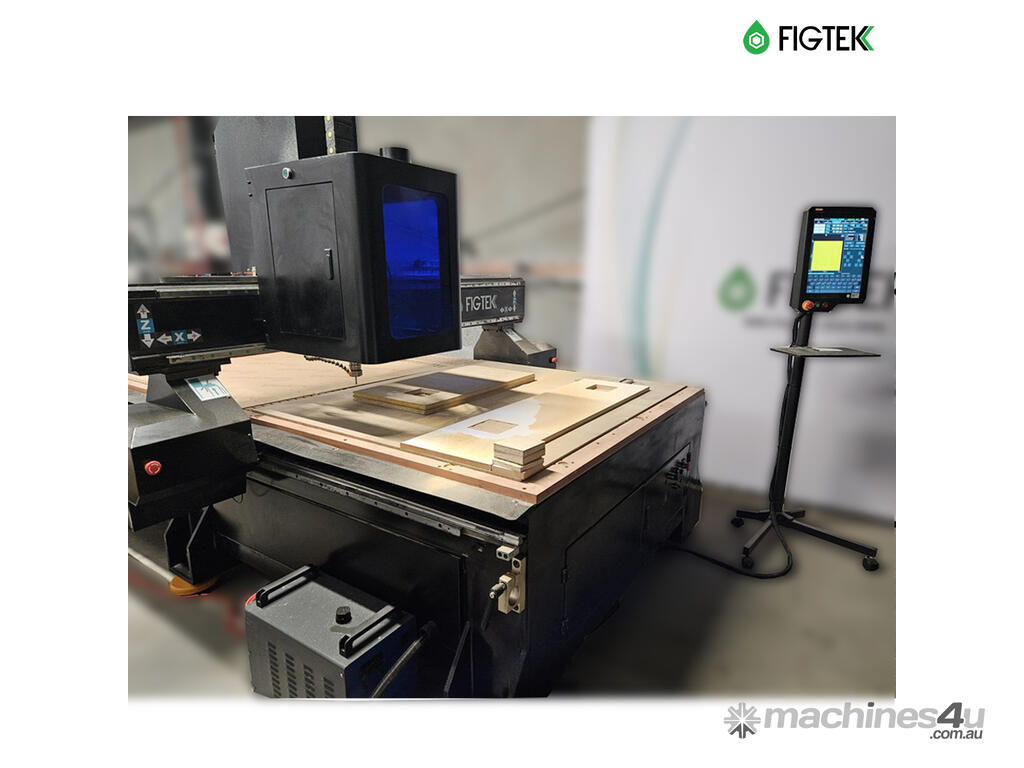

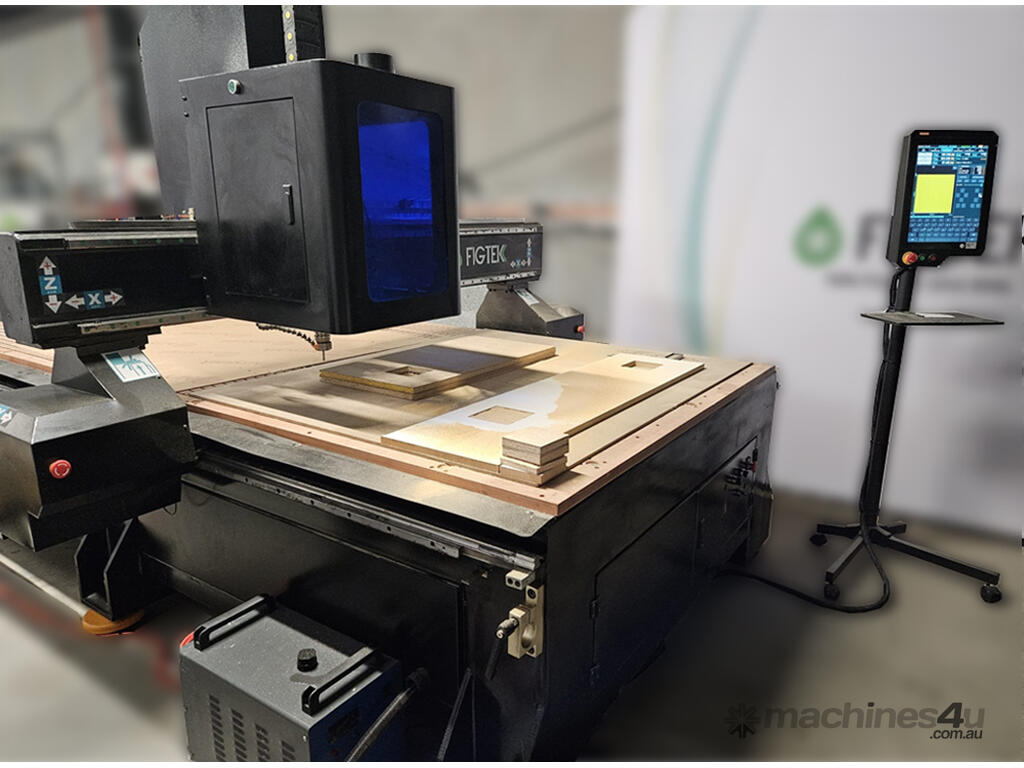

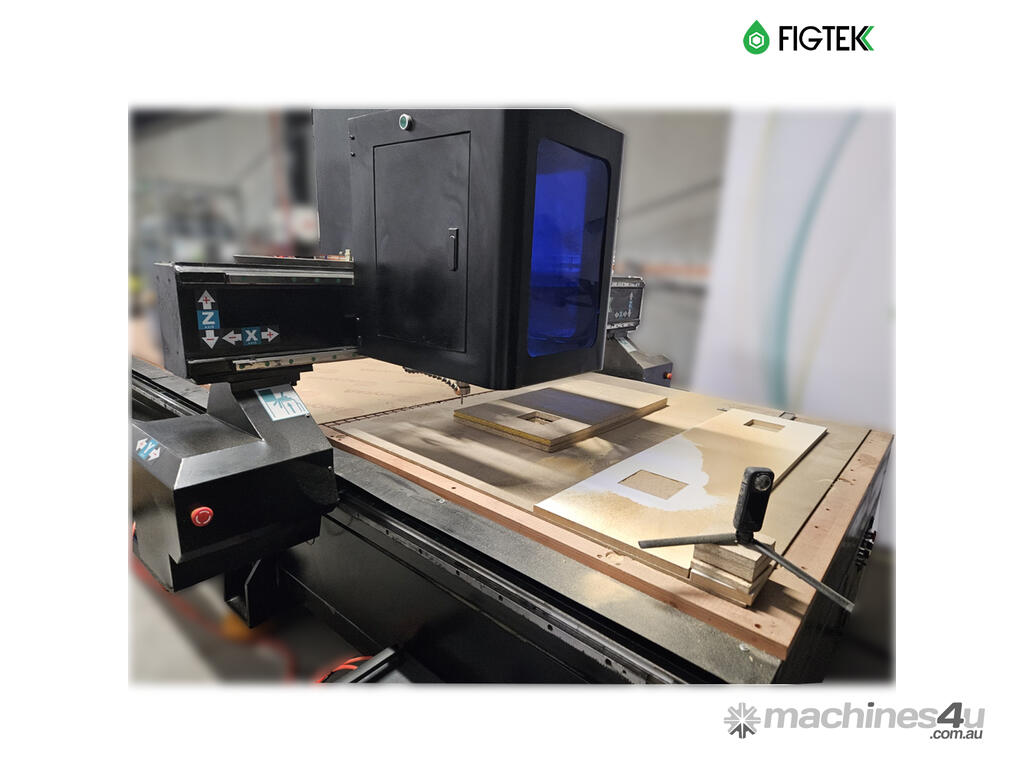

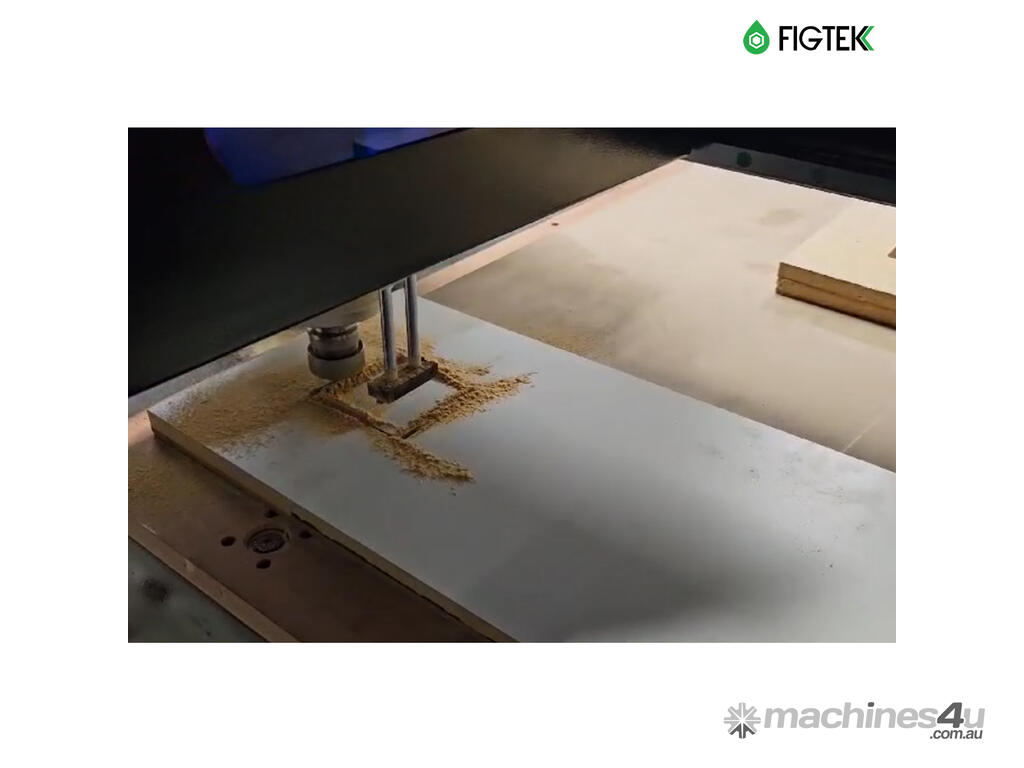

1540 ATC Router with Masso Controller

Key Specifications:
Working Area: 1500 x 4000 x 200mm
Table: Vacuum Bed and T-slot working table
Vacuum Pump: Included
Guide Rails: 25mm Taiwan linear guide rails
Spindle: 5.5 kW Water Cooled
Controller: Masso Controller
Servo Motor and Driver: Yaskawa / Leadshine 1.5KW
Inverter: 5.5 KW Fuling
Structure: Welded machine structure with a heavy-duty body
Power Supply: 220V Single Phase or 3-Phase
Lubrication: Automatic Oil Lubricant system
Positioning: Position Cylinder with foot pedal control
Dust Management: Optional Dust Collector for $880 and Automatic Dust Shoe

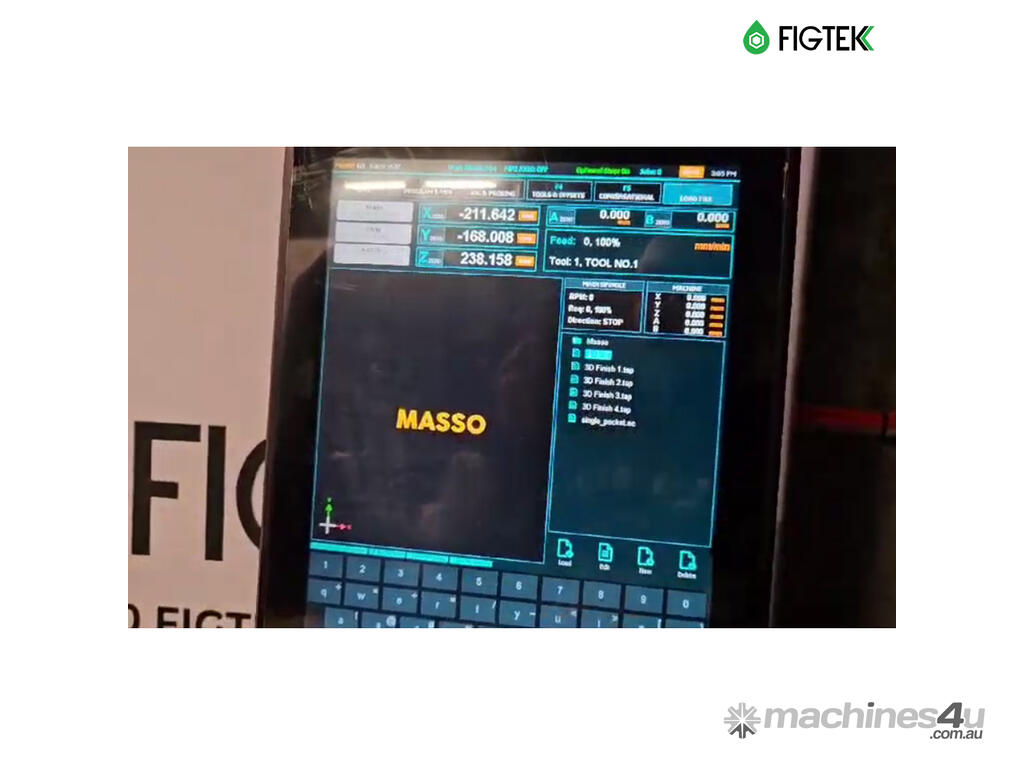

Masso Controller Features:
Control Buttons: E-Stop, cycle start, and cycle stop.
User Interface: Supports horizontal and vertical interfaces with on-screen touch keyboard.
USB Connectivity: Direct connection for keyboard, mouse, and flash drives.
Inputs and Outputs: 24 Isolated Inputs and 18 Outputs.
Signal Support: Step & Direction signals for stepper or servo drives.
Spindle Control: Direct control with 0-10 volts, CW, CCW & PWM.
MPG Handwheel Dial Support: For precise manual adjustments.

Applications:
Woodworking: Furniture manufacturing, cabinetry, and woodworking crafts.
Signmaking: Creating intricate designs and lettering on materials such as acrylic, PVC, and wood.
Prototyping: Useful for product design, automotive, and aerospace industries.
Plastic Fabrication: Ideal for displays, enclosures, and machine parts.
Aluminium Machining: Light-duty machining for custom parts and prototypes.
Foam Cutting: Suitable for packaging, insulation, and theatrical props.
Composite Material Processing: Handles fiberglass, carbon fiber, and laminates for aerospace, marine, and automotive applications.
Educational Use: Perfect for teaching CNC machining, design principles, and manufacturing processes.

Benefits:

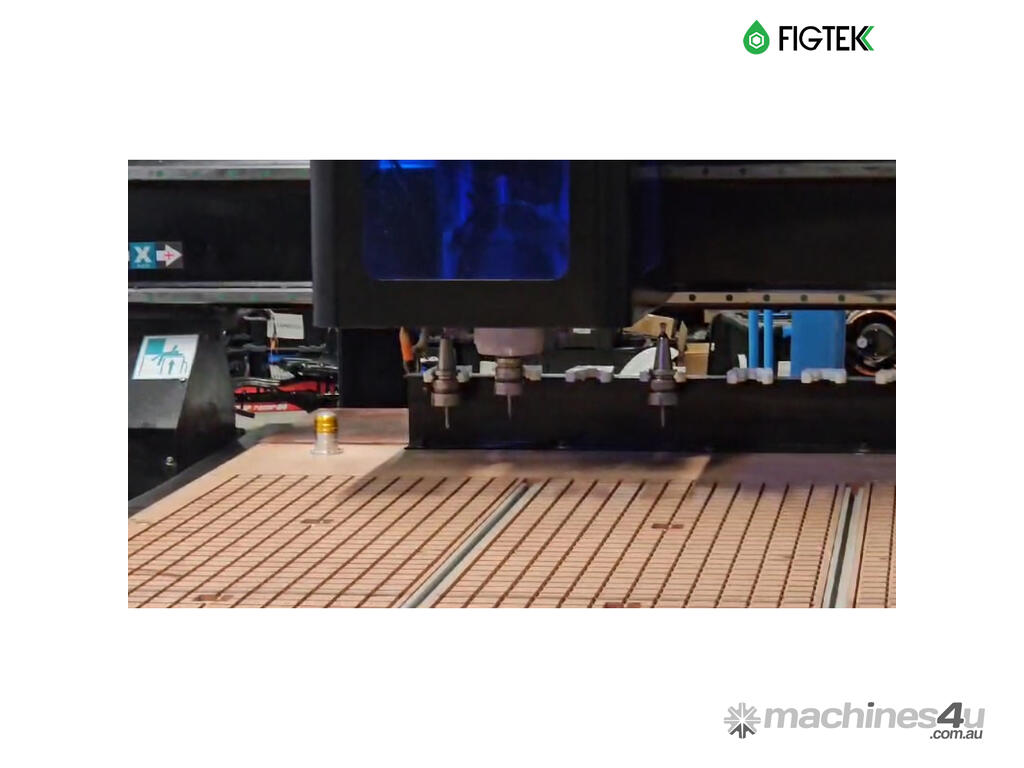

Increased Efficiency: Automatic tool changing improves production speed.
Enhanced Accuracy: High precision reduces downtime and enhances accuracy.
Versatility: Suitable for various woodworking and plate processing tasks.
Safety Features: Enhanced safety features ensure peace of mind.
Customization: Tailored solutions to meet specific needs.

Why Choose Us:
Local Support: Australian-based customer service and technical assistance.
Quality Components: Top-quality parts ensure reliable performance.
Experienced Engineers: Proven track record of success.
Customization Options: Available to suit specific requirements.
Warranty: 3-Year Warranty if installation package chosen

For updates and more information, follow us on : figtekindustry

This CNC machine is a comprehensive solution for various industrial applications, supported by reliable components, local support, and customization options to meet your specific needs.
