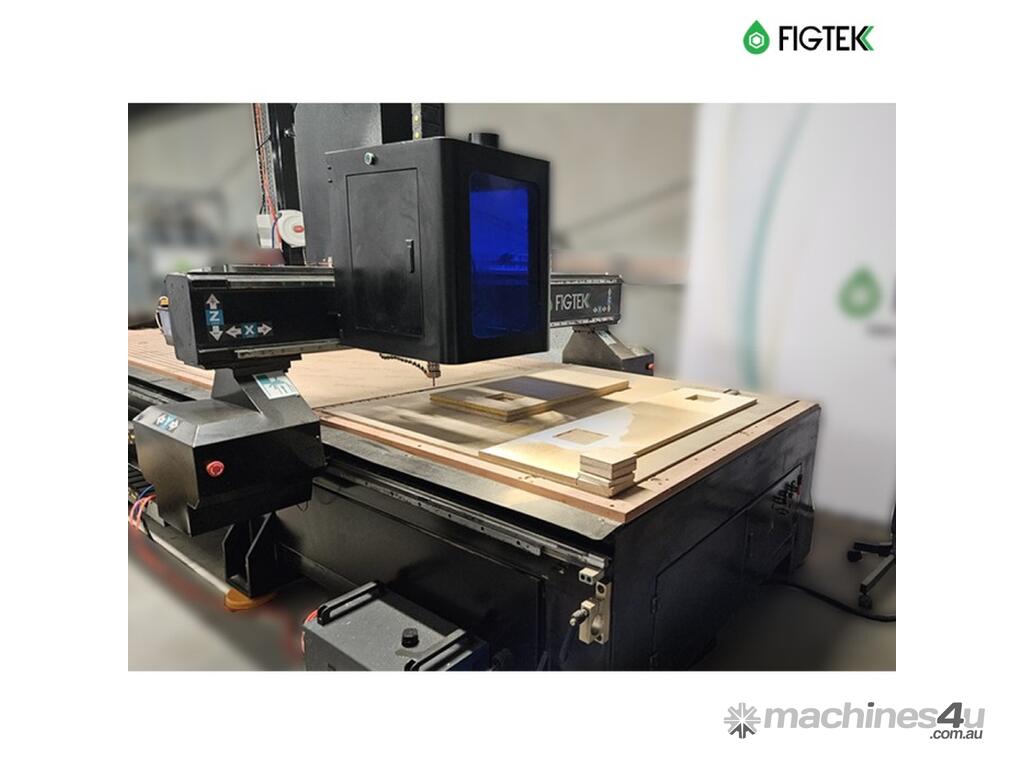

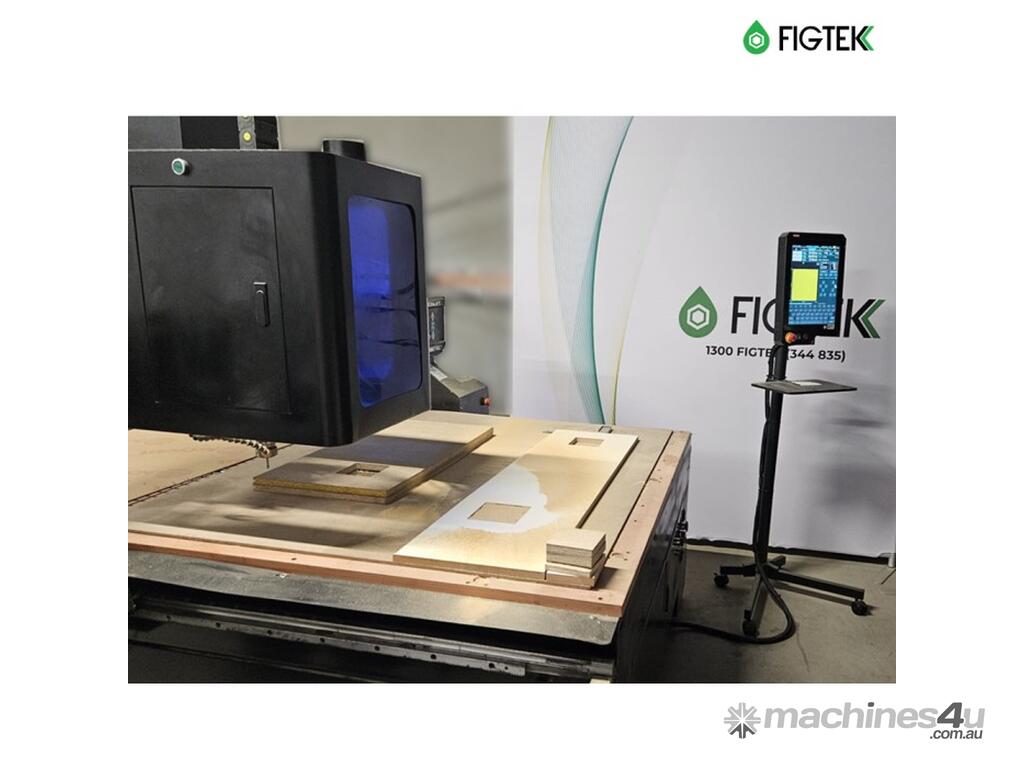

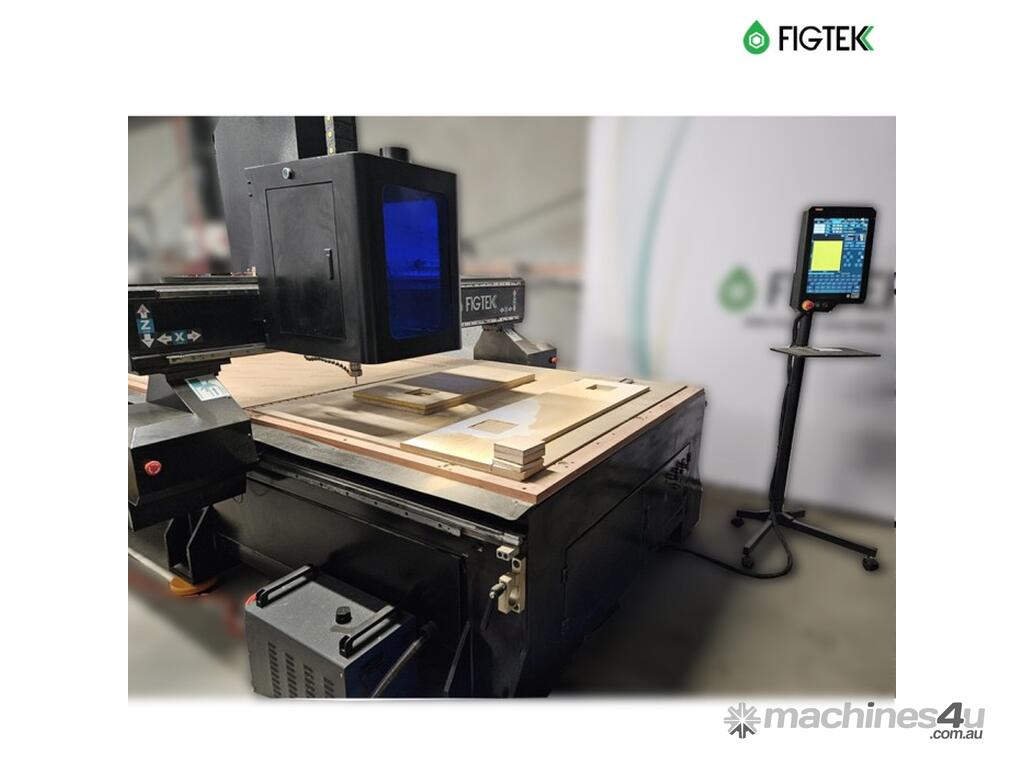

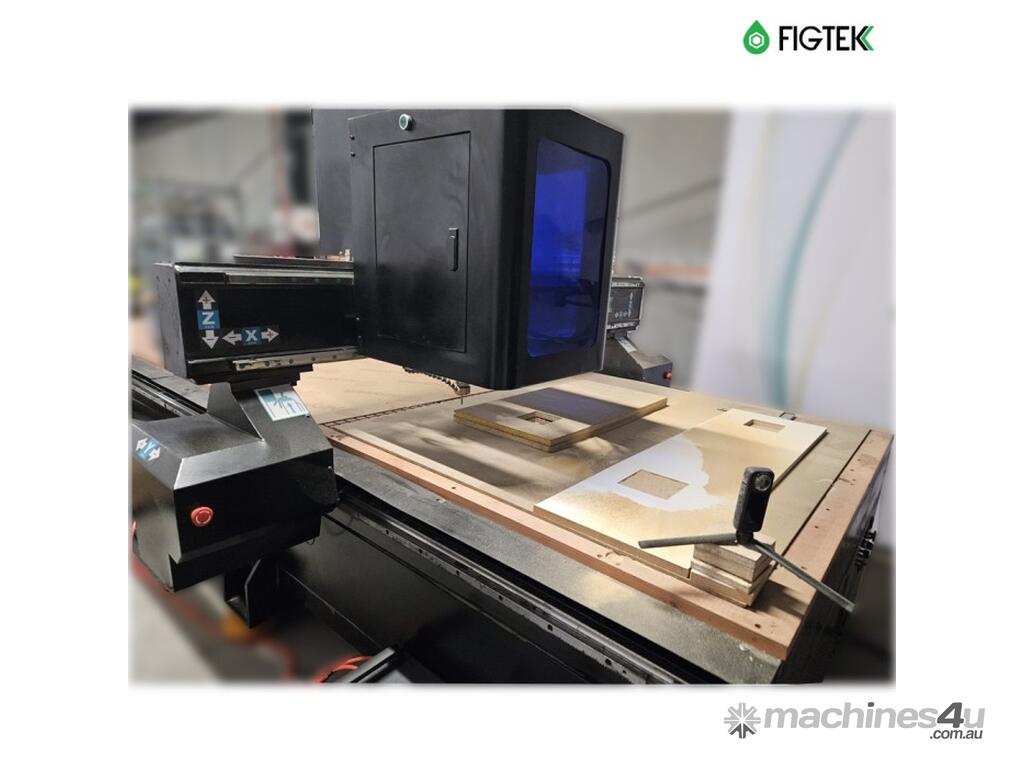

1540 ATC Router with Masso Controller

Elevate your workshop's capabilities with the 1540 ATC Router, powered by the advanced Masso controller. Designed for precision, efficiency, and durability, this machine is perfect for various industries including woodworking, prototyping, and more.

Key Specifications
Working Area: 1500 x 4000 x 200mm
Worktable: Vacuum Bed and T-slot table
Vacuum Pump: Included
Guide Rails: 25mm Taiwan linear guides
Spindle: 9kW Air Cooled
Servo Motors and Drivers: Yaskawa / Leadshine 1.5KW
Inverter: 5.5 KW Fuling
Construction: Welded machine structure with a heavy-duty body
Power Supply: 220V Single Phase or 3-Phase
Lubrication: Automatic oil lubricant system
Position Control: Position Cylinder with foot pedal control
Dust Management: Automatic Dust Shoe (Dust Collector available for an additional $880)

Key Features

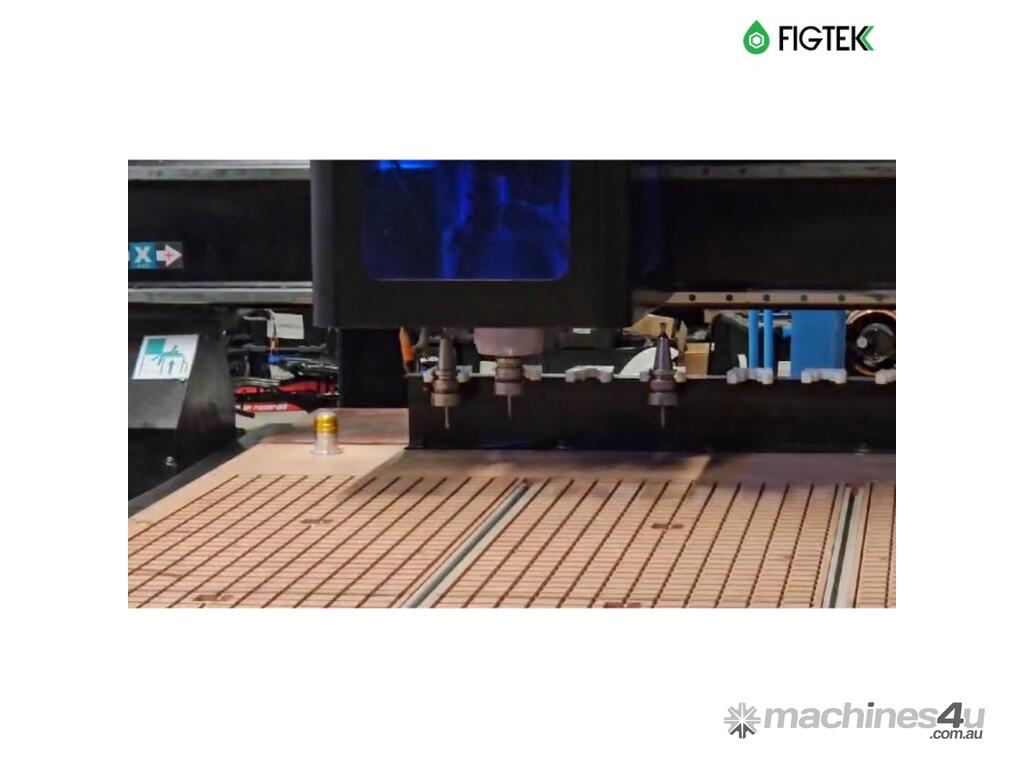

Automatic Linear Tool Changer: Boosts production efficiency
High Precision Servo Motor and Driver: Ensures accurate operations
Sturdy Construction: Provides long-lasting durability

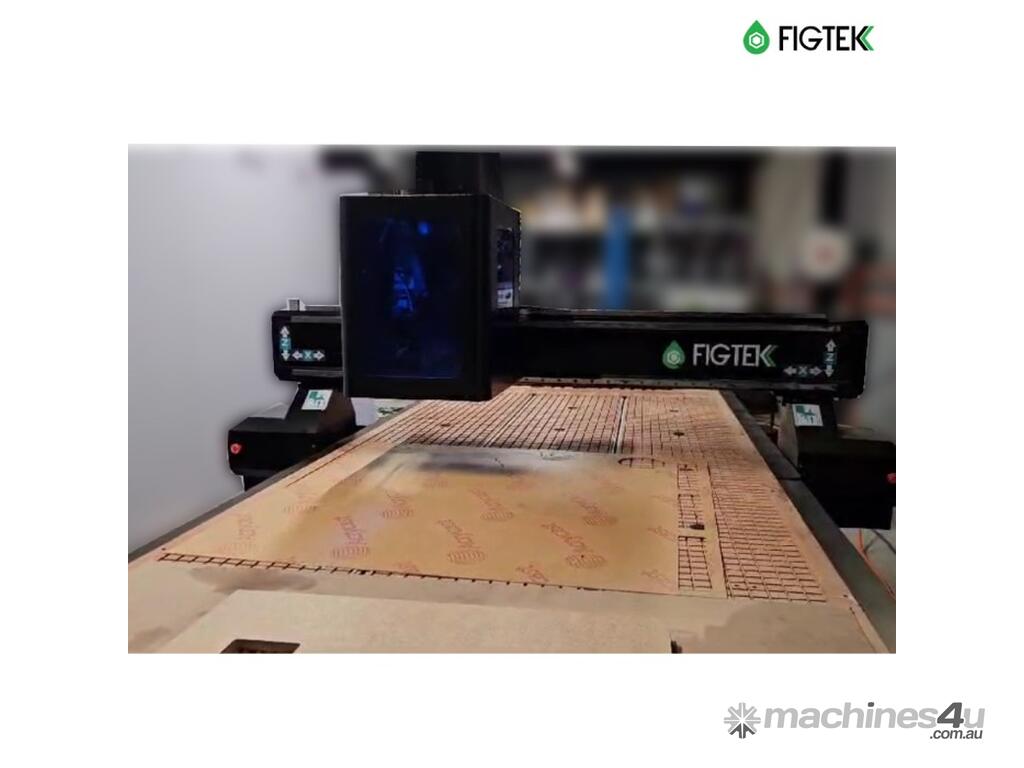

Vacuum & T-slot Table: Offers stable workpiece positioning during operations

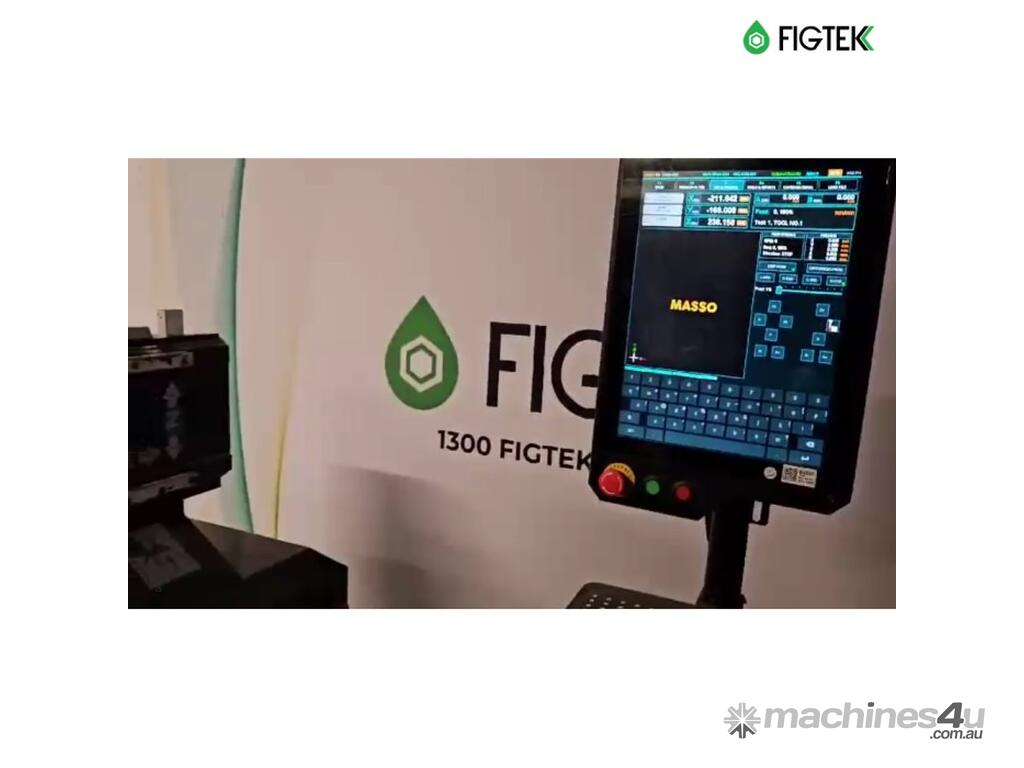

Masso Controller
Control Buttons: E-Stop, cycle start, and cycle stop for easy control

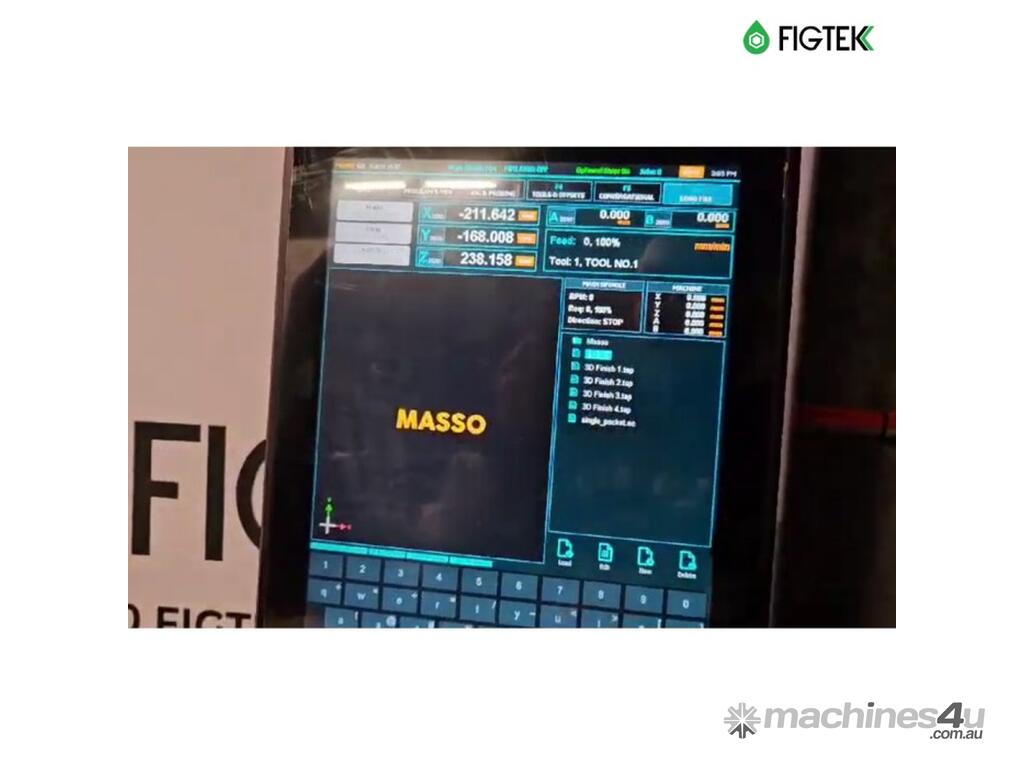

User Interface: Supports both horizontal and vertical modes with an on-screen touch keyboard for vertical use
USB Ports: For direct connection of keyboard, mouse, and flash drives
Inputs/Outputs: 24 isolated inputs and 18 outputs
Signal Support: Step & Direction signals for stepper or servo drives
Spindle Control: Direct control with 0-10 volts, CW, CCW & PWM
MPG Handwheel Dial: Supported

Applications

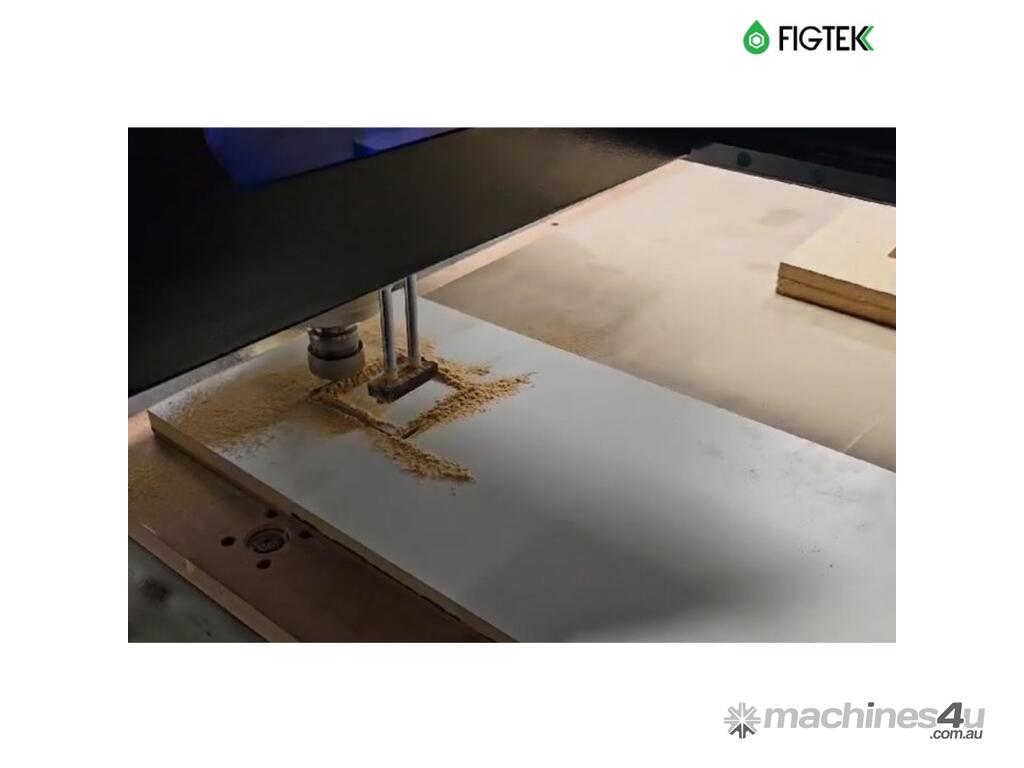

Woodworking: Ideal for furniture manufacturing, cabinetry, and crafts
Signmaking: Perfect for intricate designs and lettering on materials like acrylic, PVC, and wood
Prototyping: Suitable for product design, automotive, and aerospace industries
Plastic Fabrication: Great for displays, enclosures, and machine parts
Aluminium Machining: Suitable for light-duty machining, custom parts, and prototypes
Foam Cutting: Excellent for packaging, insulation, and theatrical props
Composite Material Processing: Works with fiberglass, carbon fiber, and laminates for aerospace, marine, and automotive applications
Educational Purposes: Ideal for teaching CNC machining, design principles, and manufacturing processes

Why Choose Us
Local Support: Australian-based assistance
Quality Components: Reliable performance with top-quality parts
Experienced Engineers: Proven track record of success
Customization Options: Tailored solutions available
Warranty: 3-Year warranty if installation package chosen
