1550mm Wide Full HVAC Production Line - Servo Driven Production Series.

HVAC Duct Production Line. Model: SM-Auto Pro CAL-6C-1.2-1600- Production Series x 10 Function
Straightener,Beading, Notching, Flying Pittsburgh, Shear, Duplex TDF, Rapid Conveyor & Folding

Description

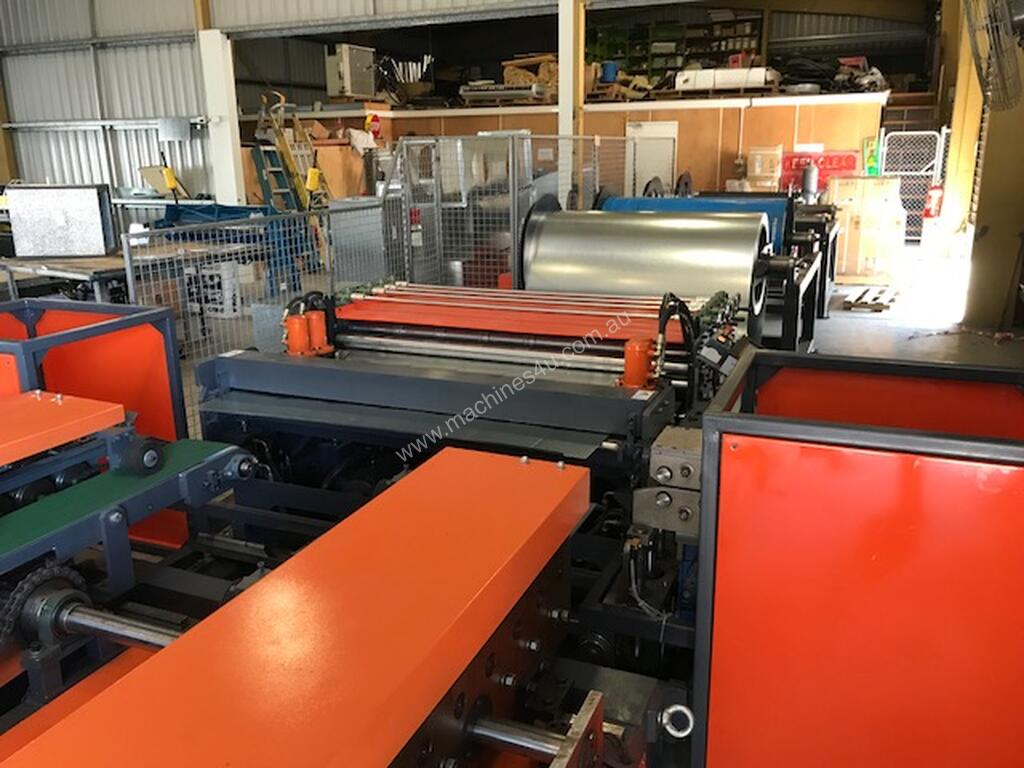

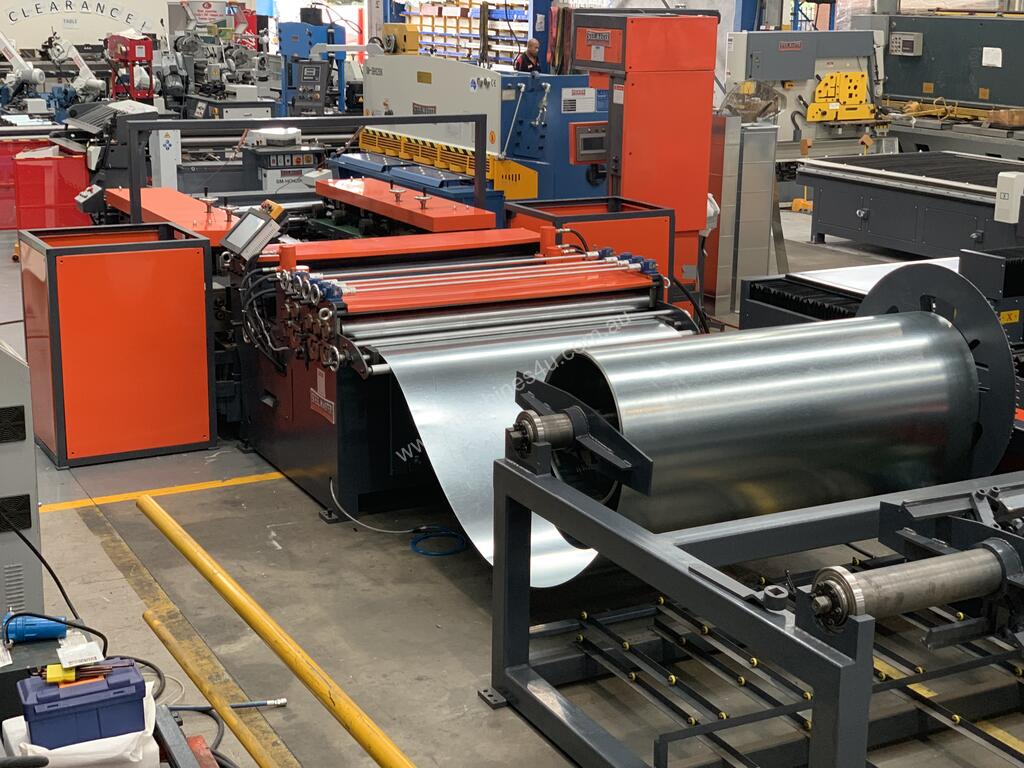

The world’s newest designed duct manufacture auto line is now available by STEELMASTER - Auto Line Pro – CAL-6C – Production Series!
Our production series auto line consists of duplex twin Decoiler (a special design which is easy to load coils in construction site), straightening, beading, punching, notching, shearing, patented automation Pittsburgh lock forming (shearing, Pittsburgh lock, right angle lock in one time), duplex TDF flange forming, duplex right angle lock forming, production conveyor & folding.
It can process different ducting of “L”, and“ ?”. Used with the STEELMASTER vertical duct seaming machine and corner inserter, increases production efficiency and saves labour cost.

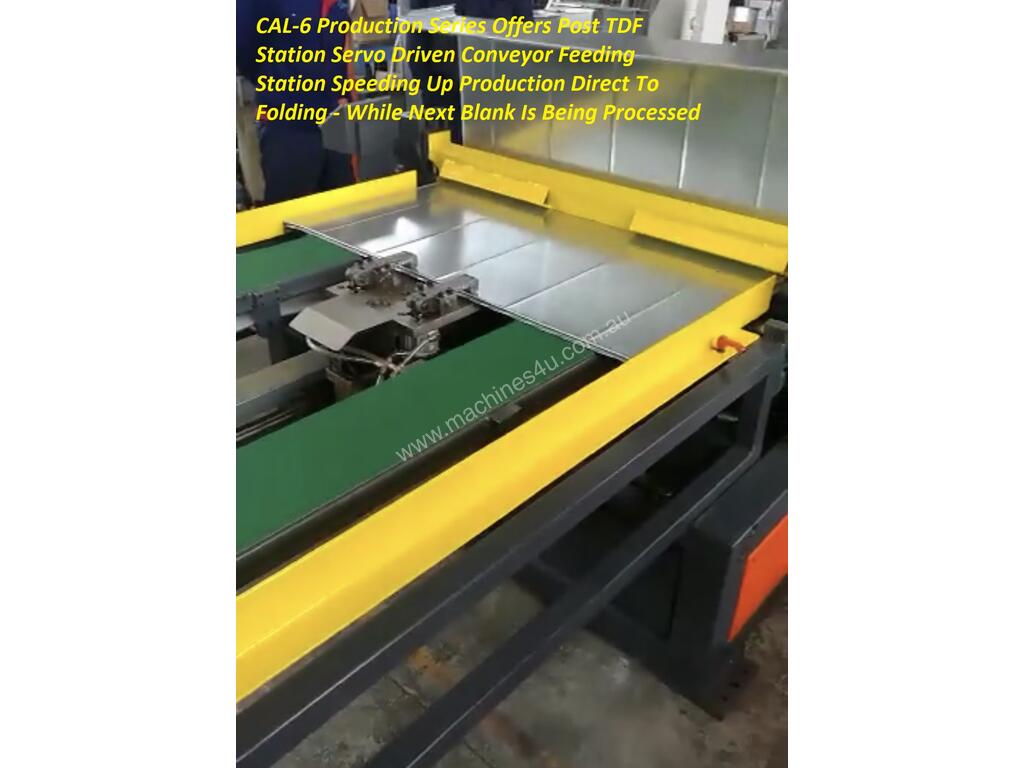

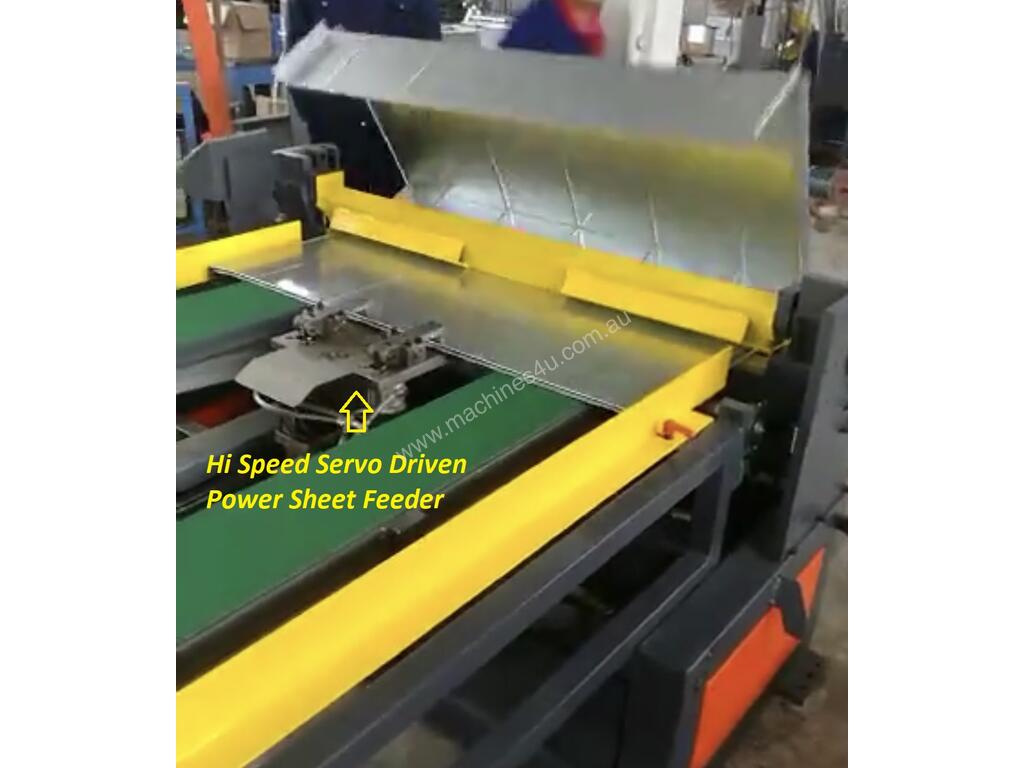

The added inline conveyor with mechanical arm ramps up production speed continuously feeding into the folding application. This model produces faster than our standard SM-CAL-6

CONFIGURATION?

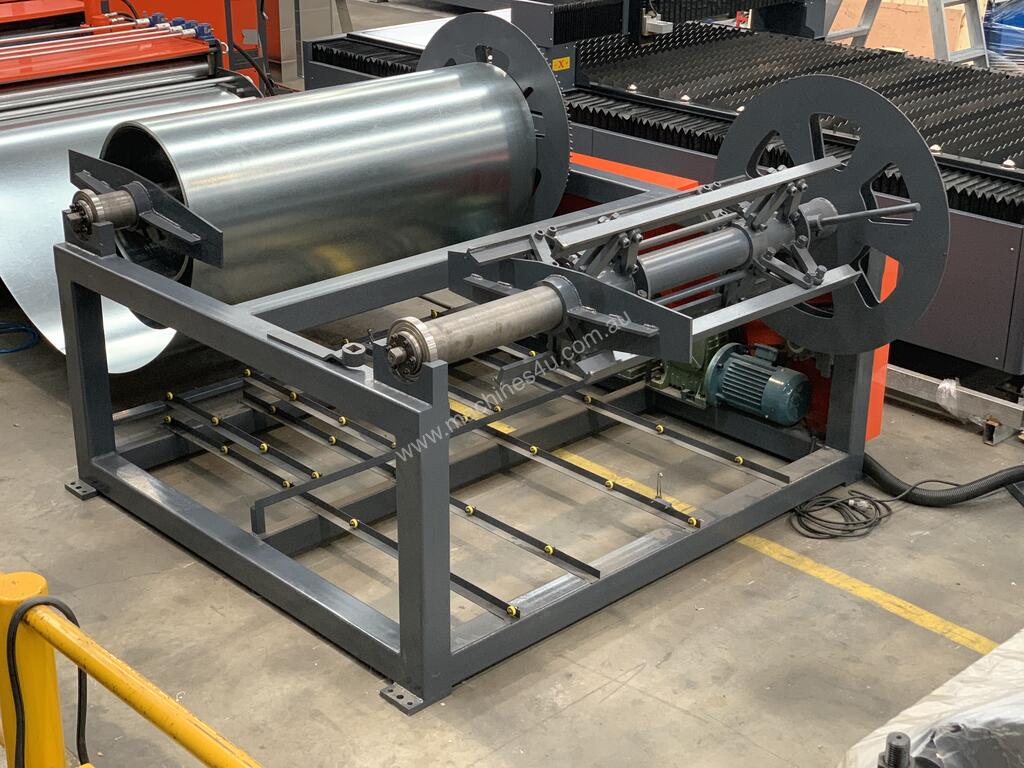

1) Motorized Twin Decoiler – 5000Kg - 2 x Double Mandrel Set Supplied

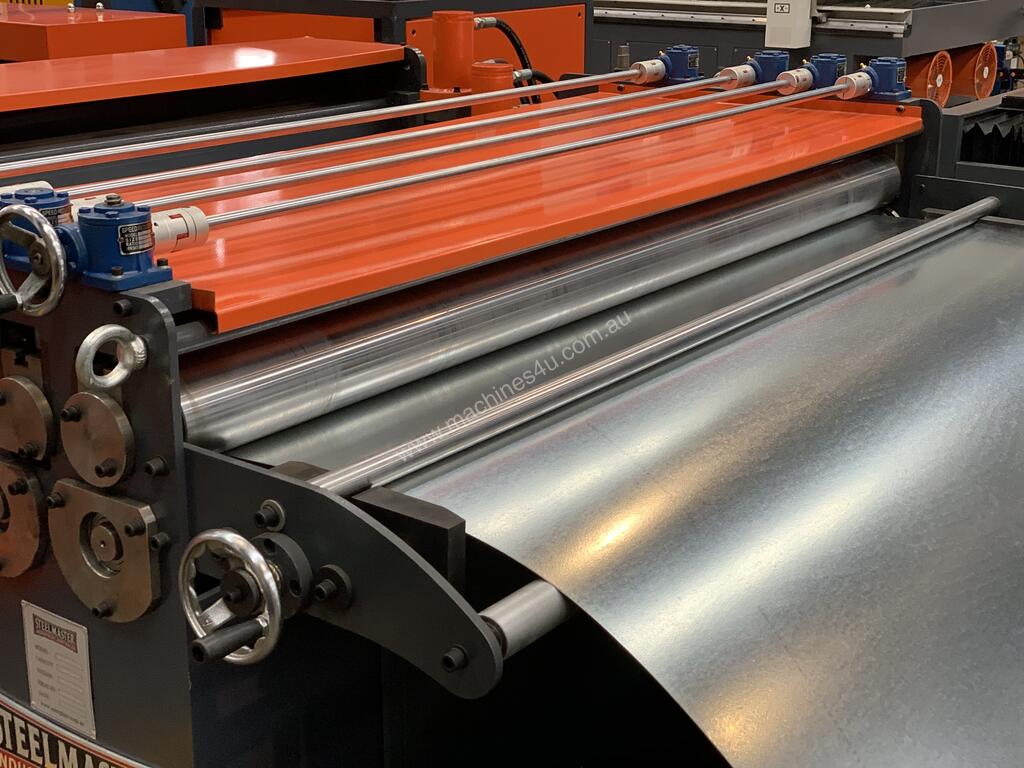

2) Straightener
Pneumatic Controller Straightener, No Adjustment Required When Changing From 0.4mm ~ 1.2mm Material
No. of Straightening Rollers - 9
Straightening Roll Diameter – 100mm
Straightening Roll Material – Chrome Plated, Hardened &Ground

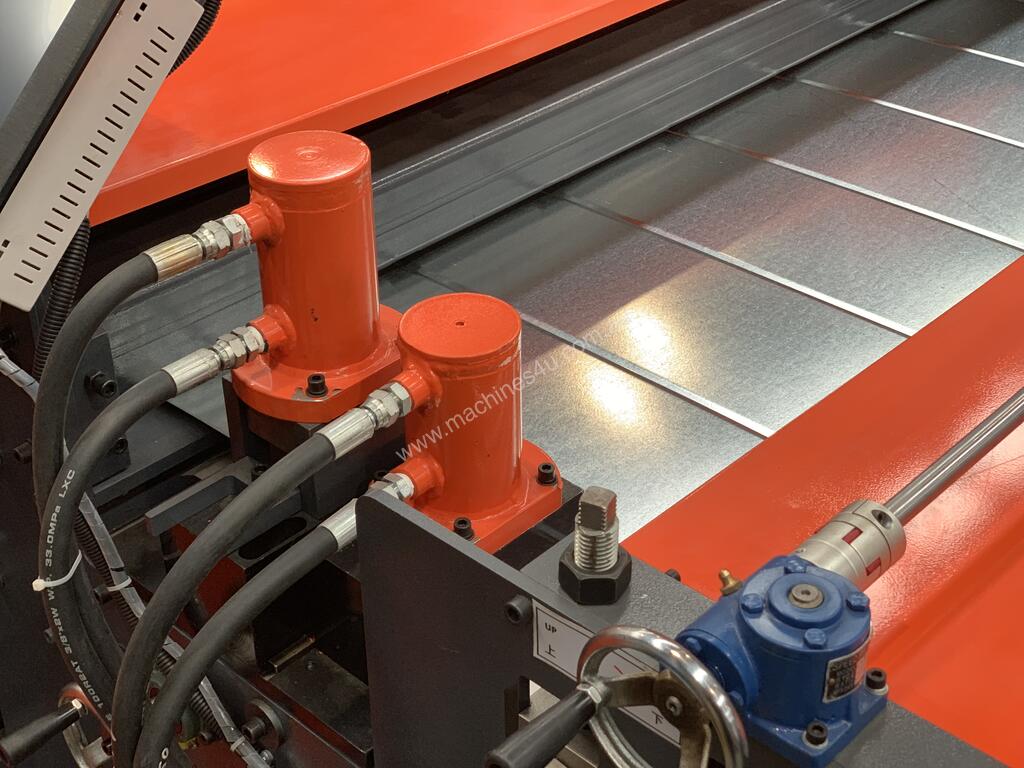

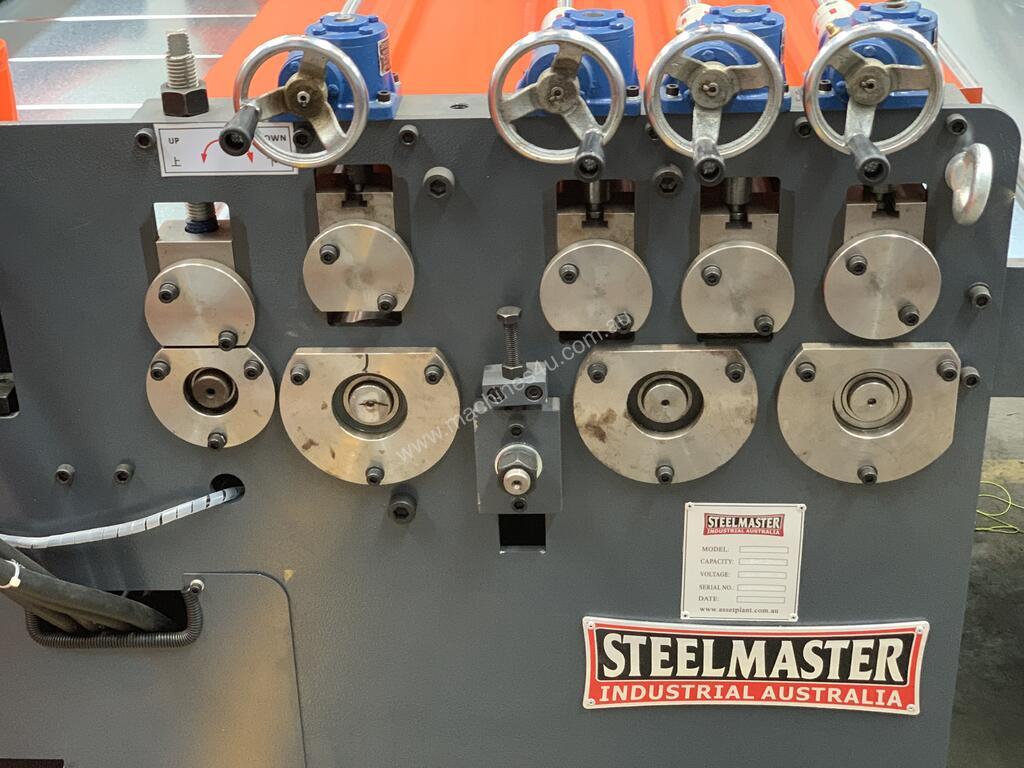

3) Beading?Pneumatic Controlled Beader, No Adjustment Required When Changing From 0.4mm ~ 1.2mm Material
No. of Beading Rollers – 5 – Others Can Be added

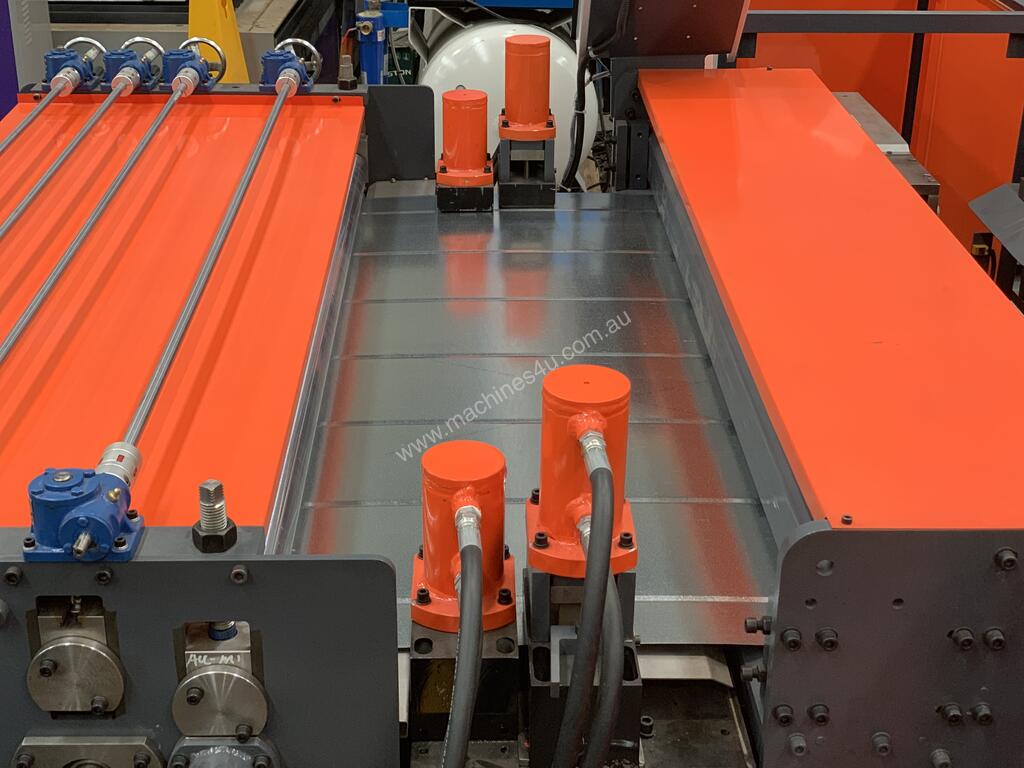

4) Notching & Punching

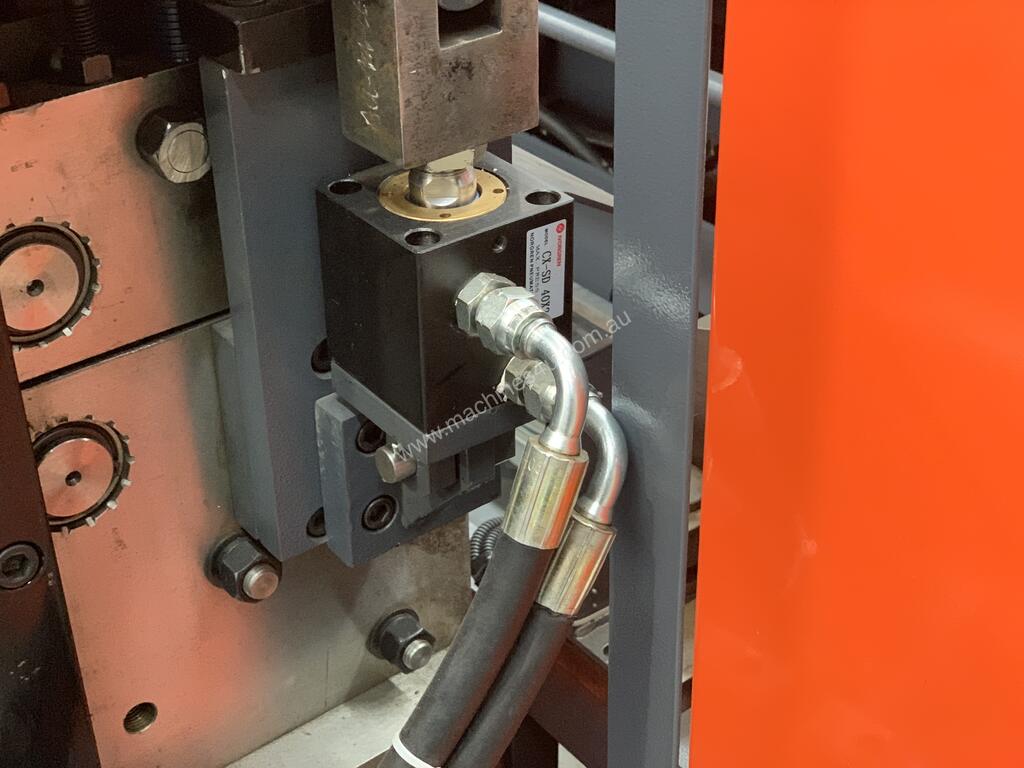

5) Hydraulic Shearing Tolerance ±0.5mm

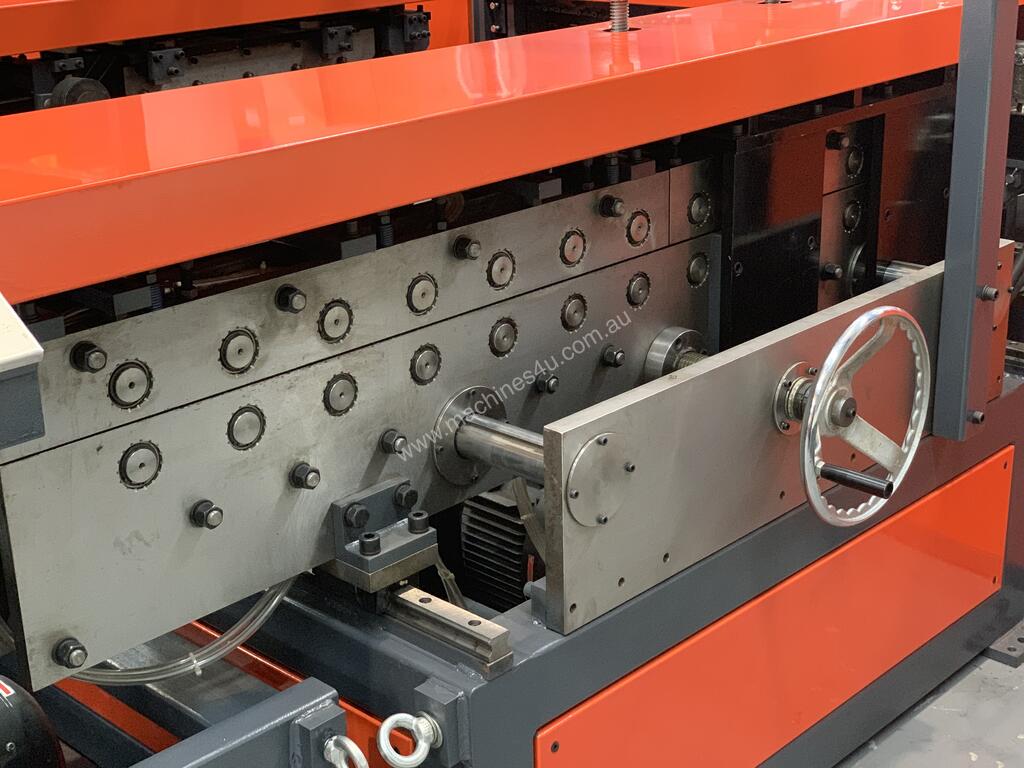

6) Pittsburgh Profile.

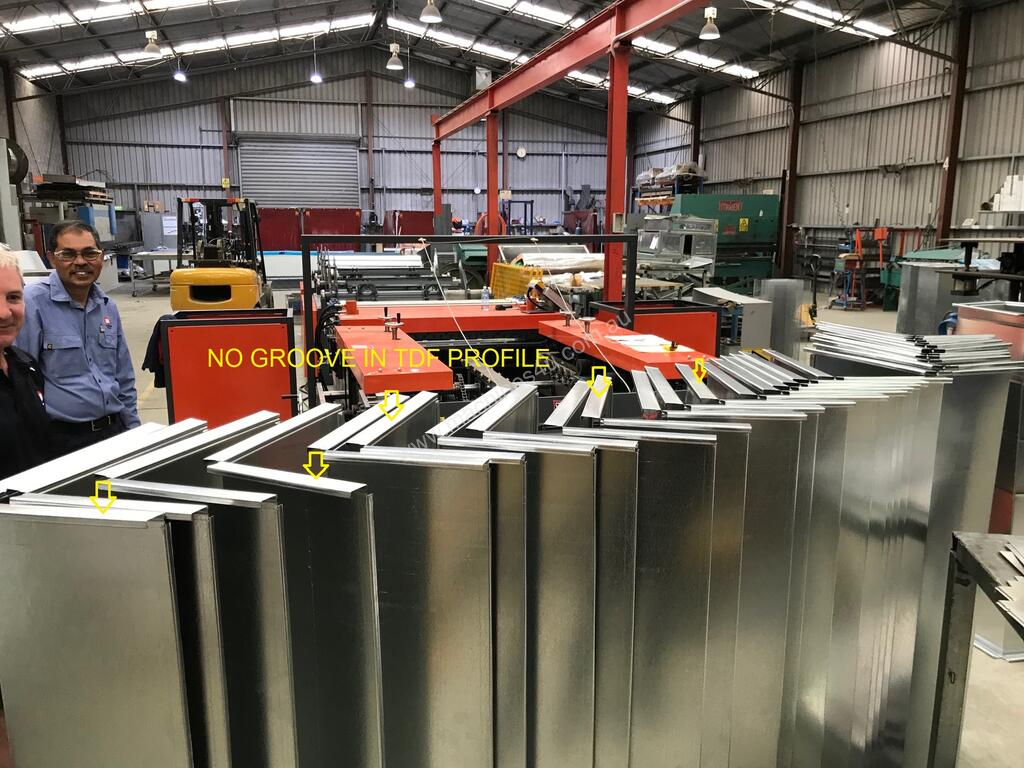

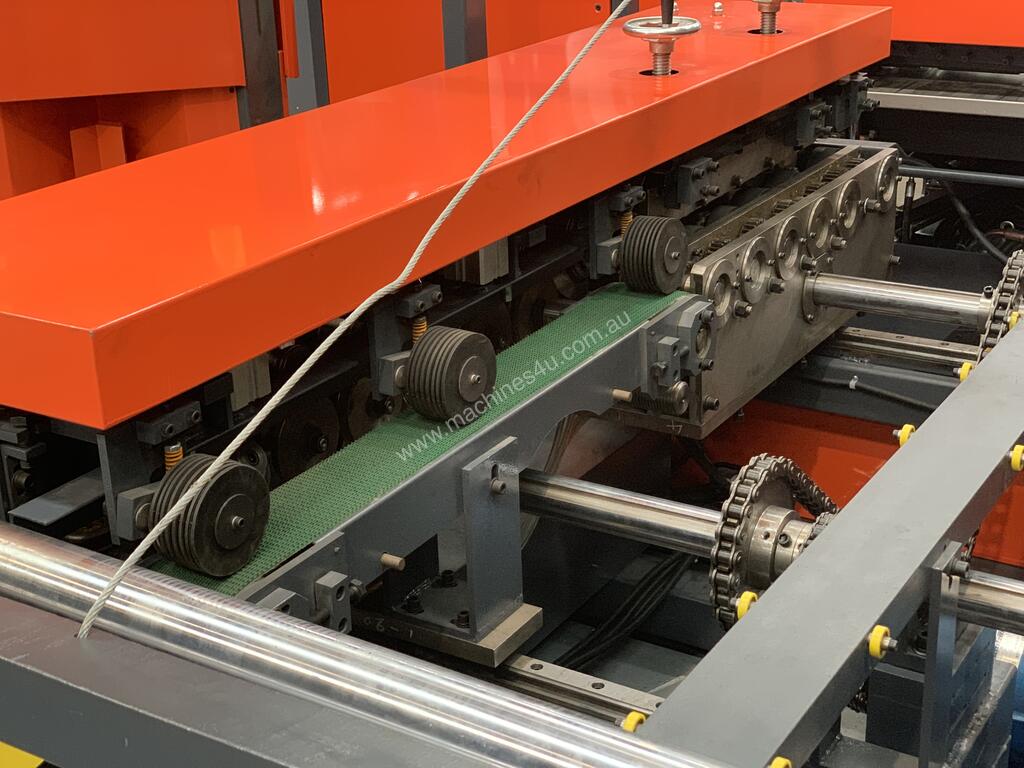

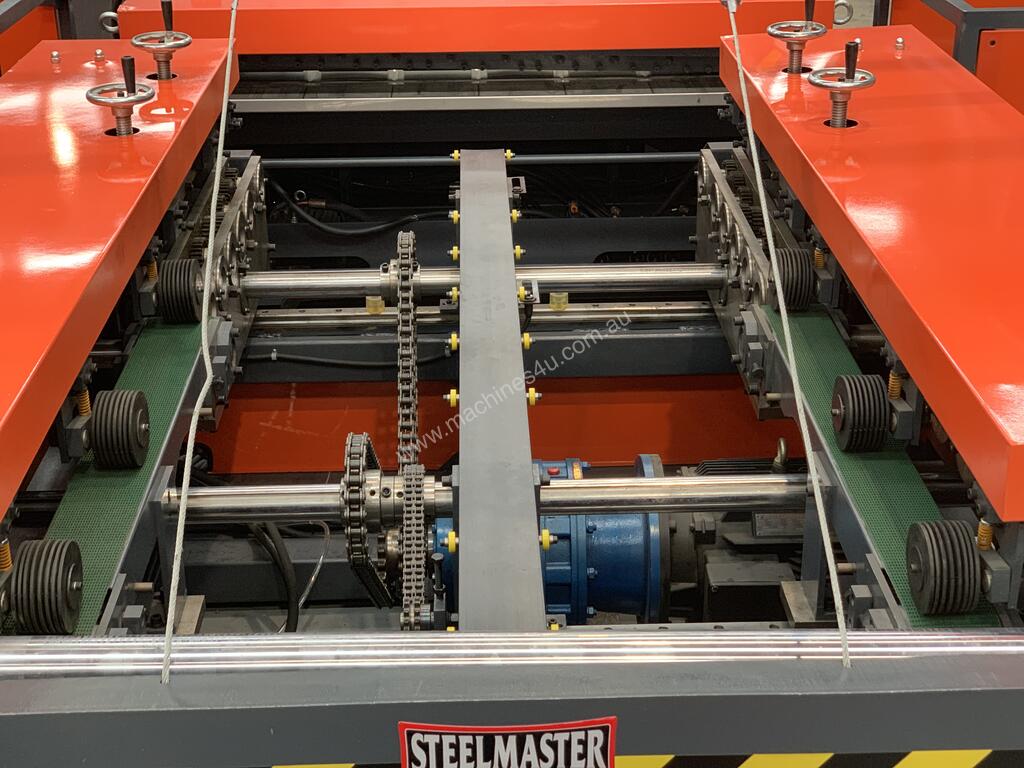

7) Duplex / Twin TDF Flanger

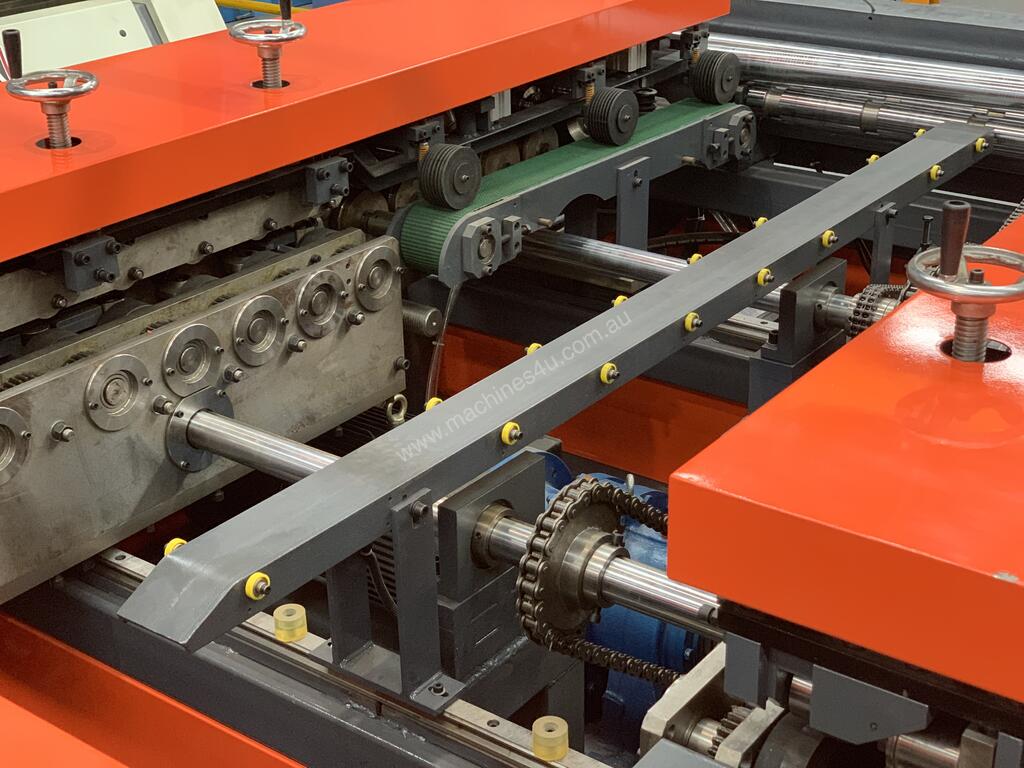

8) Inline Production Servo Conveyor With Mechanical Arms
9) Hydraulic Folder

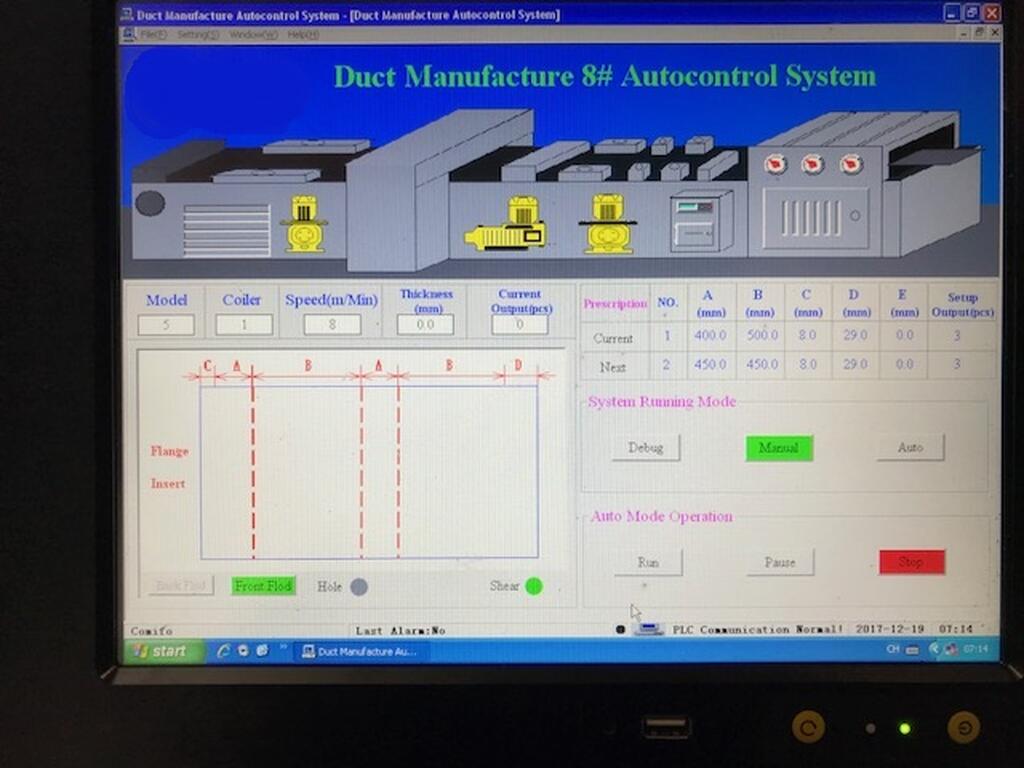

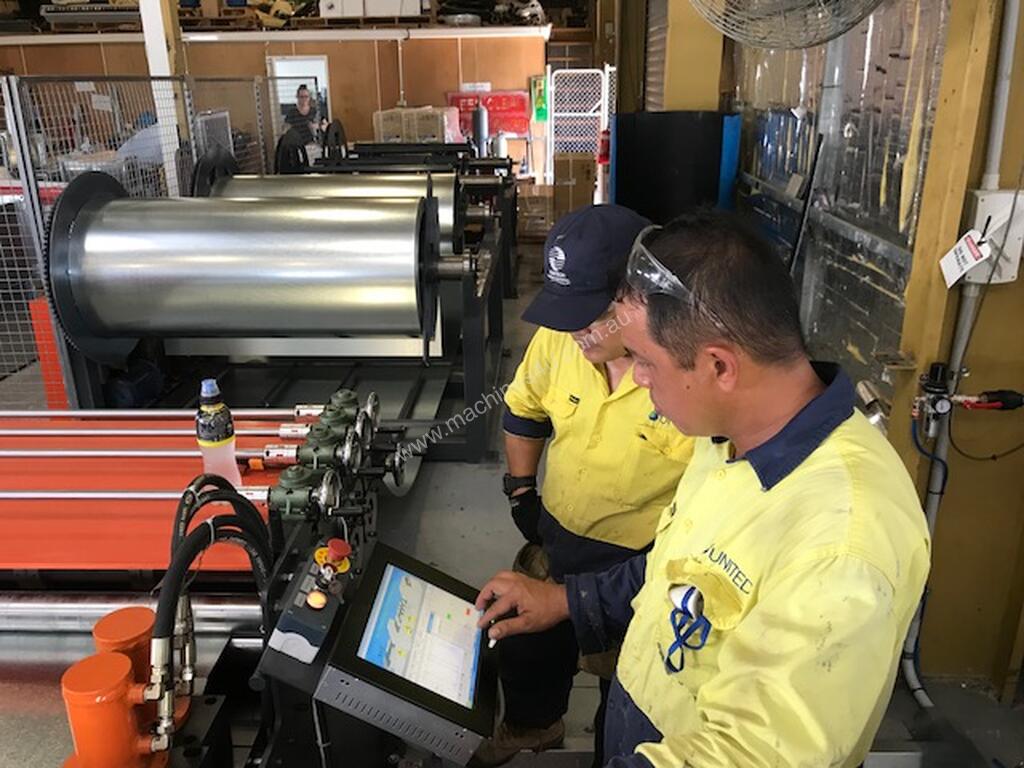

10) Touch Screen Controller: Simply Input Your Dimensions – Easy To Operate

Technical Snap Shot
?Model No. SM-Auto Pro CAL6-1.2-1600- Production Series.
?Panasonic Servo with Touch screen PLC Control
?Multiple page programming capability
?Material Thickness: 0.4 ~ 1.2mm (Gal)
?Maximum Width: 1600mm
?Maximum Folding Height: 1550m
?Minimum Folding Height: 180mm
?Maximum Blank Length: 4000mm
?Line Speed: 2-18m/min / 2000 M³ Day (Common Sizes)
?Can straight inline blank from 1220mm wide ~ 1550mm and all inline function can be turn on and off to suit.
?Decoiler: 460mm ~ 510mm I.D x 1100mm OD Max. 5000Kg Per Mandrel
?Straightener: Pneumatic Controlled – No Adjustment After Changing.
?Beading: Pneumatic Controlled – No Adjustment When Changing 0.4mm ~ 1.2mm.
?Beading Spaces: 220mm Centres x 5 Formers
?Pittsburgh Station: Forms Pittsburgh Lock, Right Angle & Shear
?TDF Flange Station: Forms Duplex Adjustable Width.
?C Cleat & Right Angle Station: Forms Duplex.
?Conveyor with Production Servo Driven For Quick Material Positioning.
?Power: 27.8Kw/V With 2 x Duplex Decoiler
?Power: 35Kw / 70 Amp overall power.
?Dimensions.15200mm x 3600mm (moving Pittsburgh included) x 1500mm - with 2 x duplex Decoiler
?Component Dimensions
?Duplex Decoiler: mm x 1700mm x 1500mm (2 off)
?Main Body: 1850mm x 1450mm x 1200mm
?Pittsburgh Station: 600mm x 3350mm x 1000mm
?Duplex TDF Station: 2100mm x 1900mm x 1000mm
?Inline Production Conveyor: 4600mm x 1500mm x 1000mm
?Folding & Shear Station: 800mm x 1620mm x 1000mm
