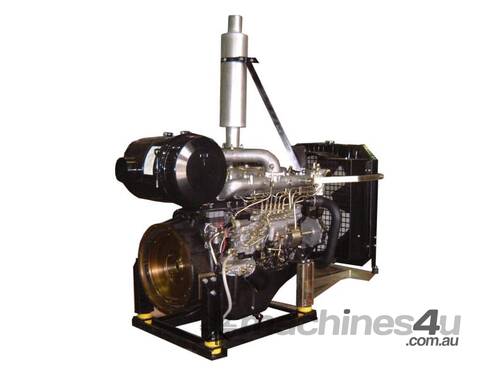

155hp – 6BG1T Radiator Cooled or Marine Power Pack

The Engine
Isuzu Model 6BG1 TRW02 OD – Exhaust elbow outlet 4 inch
Aspiration Turbocharged OD – Raw water inlet 1 inch
Cylinders Six OD – Fuel Inlet 10mm
Bore x Stroke (mm) 105 x 125 OD – Fuel Return 10mm
Displacement (cc) 6494 Engine Alternator - 12 volt 60 amp
Maximum Output kW (hp) 115.5 (155) 2200rpm
Maximum Torque Nm (lb/ft) 526 (388) 1800rpm
Engine Rotation Counterclockwise, viewed from flywheel
Flywheel Housing SAE # 3
Flywheel SAE # 11.5
Approx.Fuel Consumption: 29.5 litres/hour 100% Rated Output
(note that fuel consumption will vary substantially with load and rpm)
