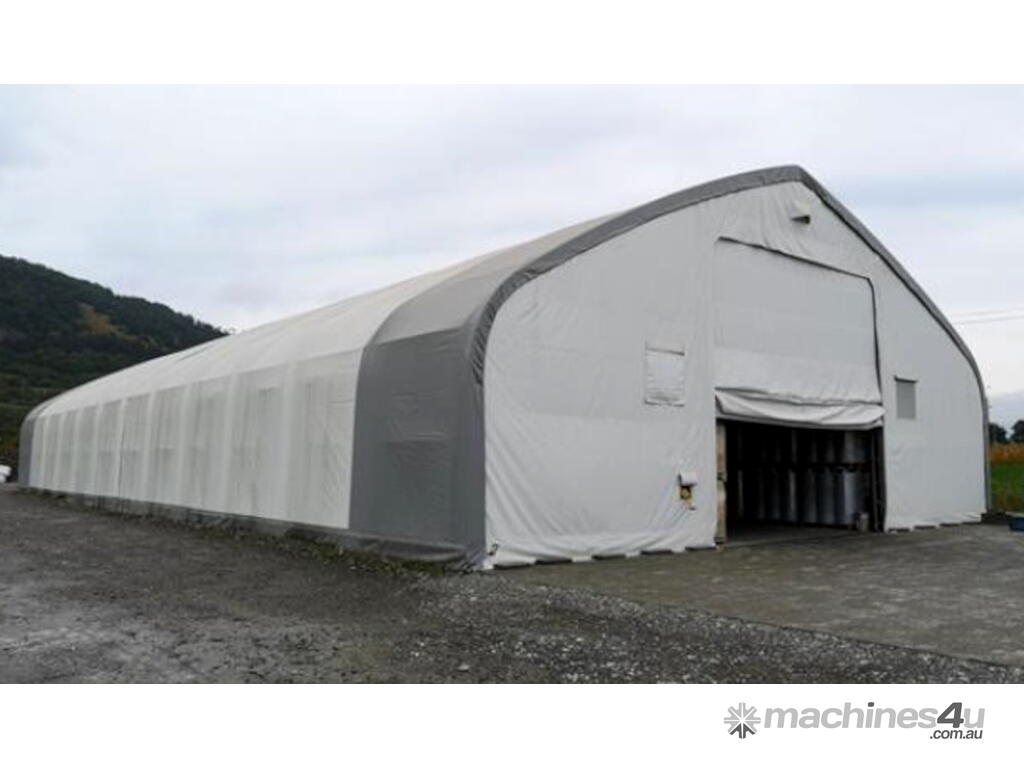

New Heavy Duty Workshop Igloo Dome Humpy Storage Shelter Building 15.25m wide x 30.5m long x 7.015m high = 465m2 (50ft x 100ft x 23ft = 5,000 ft2) = fit 42 cars comfortably (56 at a squeeze).

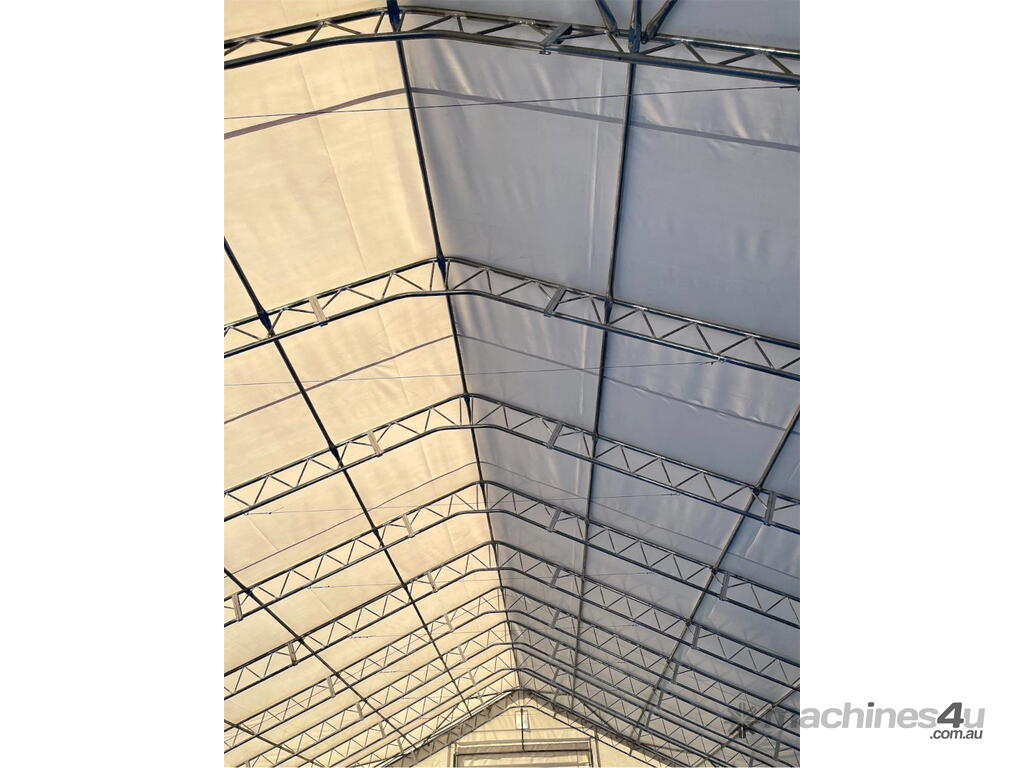

Strong heavy gauge galvanized Double Truss tube frame. No internal support posts = maximum usable space. Industrial grade PVC cover.
Winch operated entrance doors both ends.
Designed to sustain hard rain & wind. Engineered for heavy snow and extreme weather conditions.
Ratchet strap system to secure the cover to the footplates.
*** Cover:

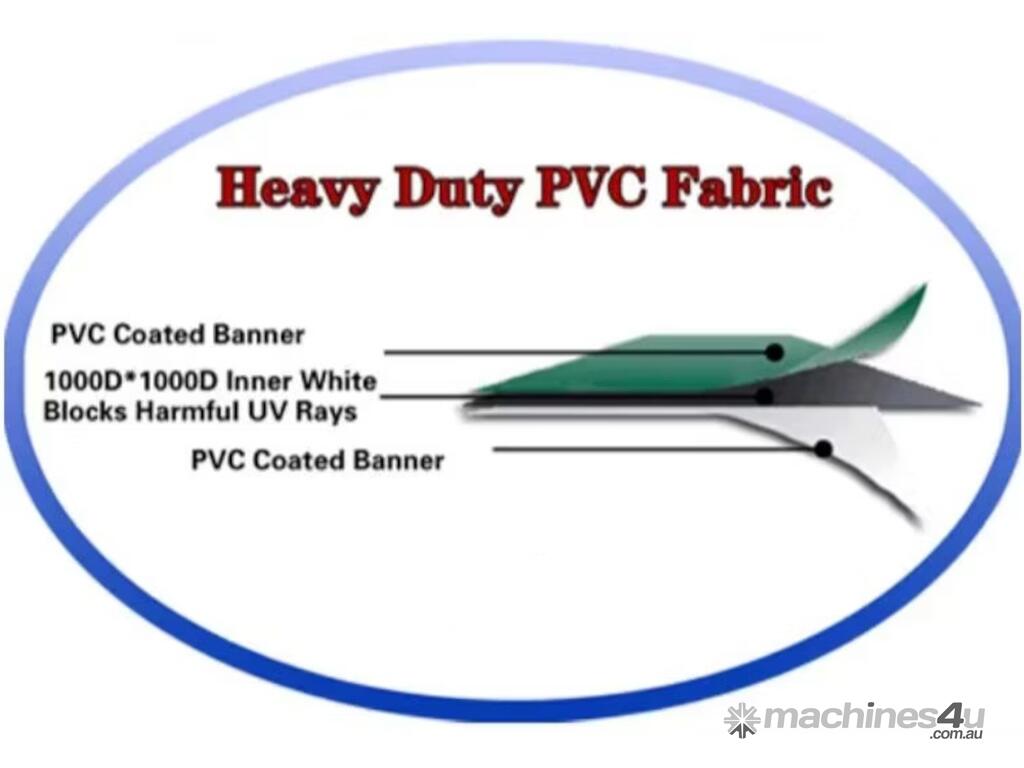

* Commercial grade 1000x1000 denier polyester coated PVC tarpaulin fabric (same material as truck tarps).
* UV-treated inside and out with added fade blockers, anti-aging and anti-fungal agents. Fire Retardant.
* PVC Fabric cover - Allows natural light in while blocking harmful UV, creates comfortable working conditions.
* 100% Waterproof - Superior resistance to rain/snow, mold, wind, cuts and rips.
* SCE SGS TUV CSA certificated.
*** Frame:

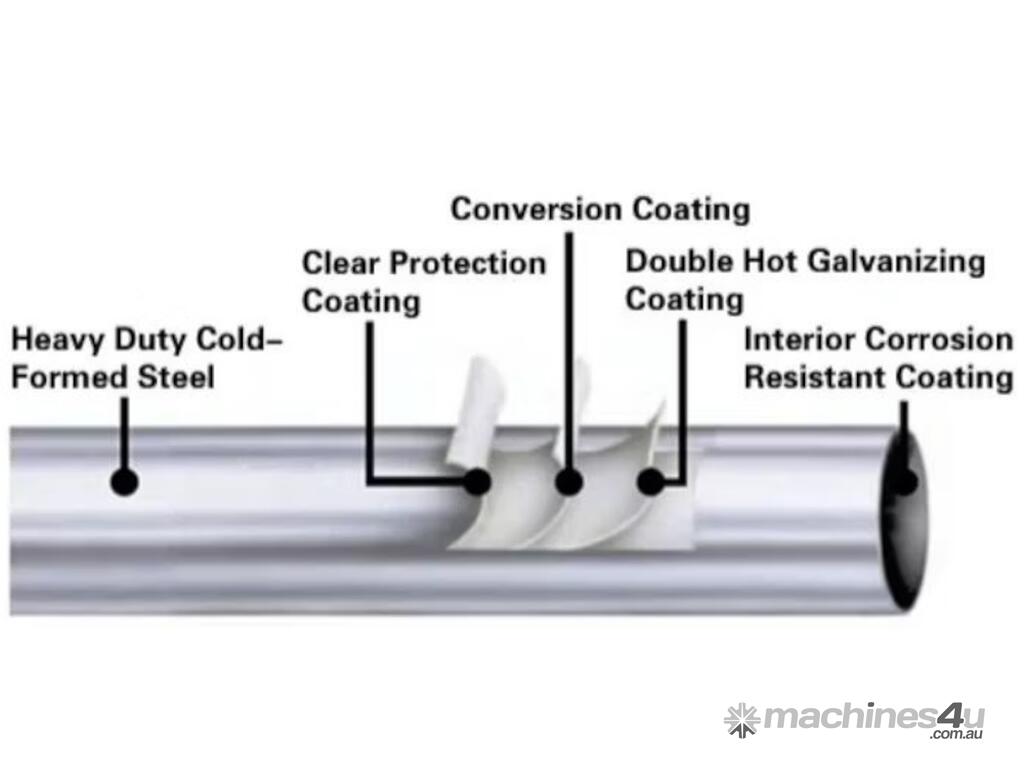

* Frame is built with high grade hop dip galvanized steel that prevents chipping, peeling, rust and corrosion.
* Bolt hardware at every connection ensures a solid structure.
* Rugged Ratchet tensioning for quick and easy cover installation.
* Easy slide cross rail system locks down and squares up covers.
* Easy assembly, No welding required. Manual included.
Minimum lifespan is 8 years, but the cover is made from a heavy duty grade (750gsm) PVC, like truck tarp. In reality the cover should last 12-15 years or more. This is mostly determined by how you tension the cover, you want it kept taught (but not ridiculously tight). If it is loose and flapping around in the breeze it will shorten the lifespan.
The steel frame being fully galvanised and protected from the weather will well outlast the cover.
*** Specifications:
* Model: Suihe - S5010023DP
* Side wall height: 3.5m
* Winch door size: 4.88m wide x 5.49m high (16ft x 18ft)
* Double Truss tubes: 60mm (1.8mm wall)
* Truss quantity: 11 arches
* Truss spacing: 3.05m (10ft)
* Purlin tubes: 60mm (1.5mm wall)
* Purlin rows: 11 horizontal rows (including top row)
* Footplates with pre-drilled holes (comes with 108 ground stake pegs for securing onto soil. Anchor bolts for securing to concrete not included)
* Cover material: 750gsm (27oz) PVC
* Wind Speed: 110km/h
* Snow Load: 2.3Kpa
* Temperature range: -30? ~ +70? (-22?~+158?)
Sometimes called a Poly Tunnel, Hoop House, Quonset Hut, Igloo, Container Workshop, Prefabricated Warehouse Storage Building, Industrial Marquee Tent, Green House.
Great for: Hay Barn, Temporary Shelter, Tractor or Farming supplies, Truck Shelter, Agricultural Building, Green House, Automotive & Caravan Garage, Carport, Tent, Bulk Stock, Pallet & Equipment Storage, Portable Venue for Functions, Paint Room / Spray Booth / Sand-Blasting Room etc.
Assembly Manual: (see links in 'View Brochure' above...)

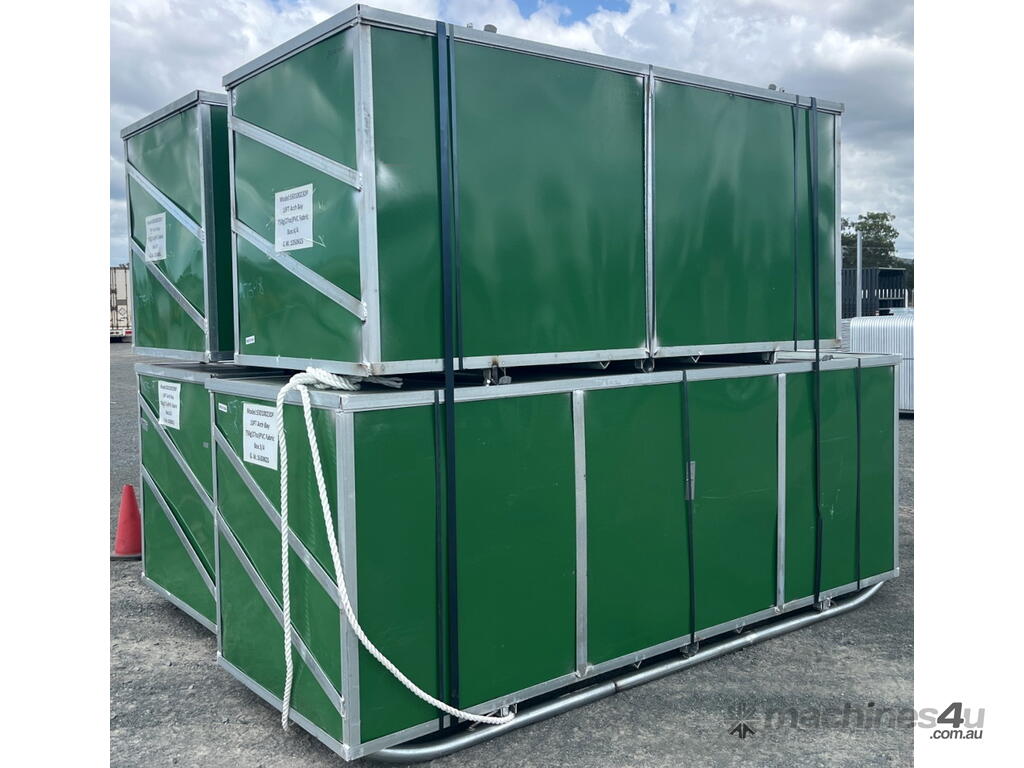

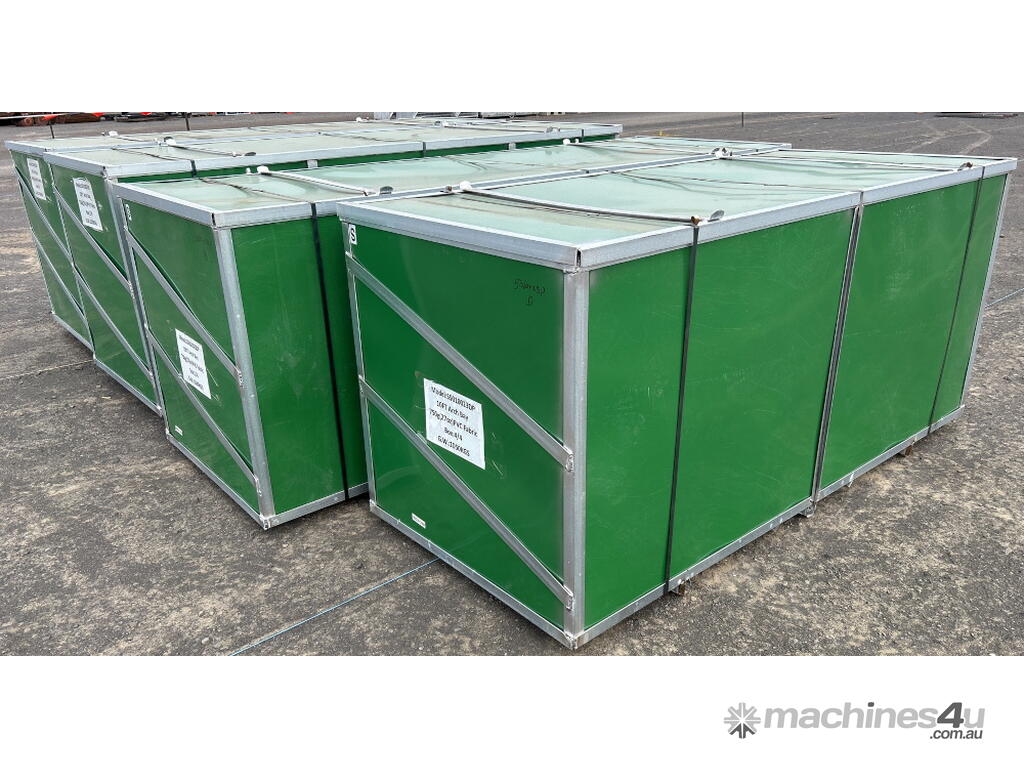

Comes in 4 reusable steel boxes: (5,280kg total weight)
Box1: 1580kg.
Box2: 1020kg.
Box3: 1630kg.
Box4: 1050kg.
We also have these shelters in other sizes.
Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
