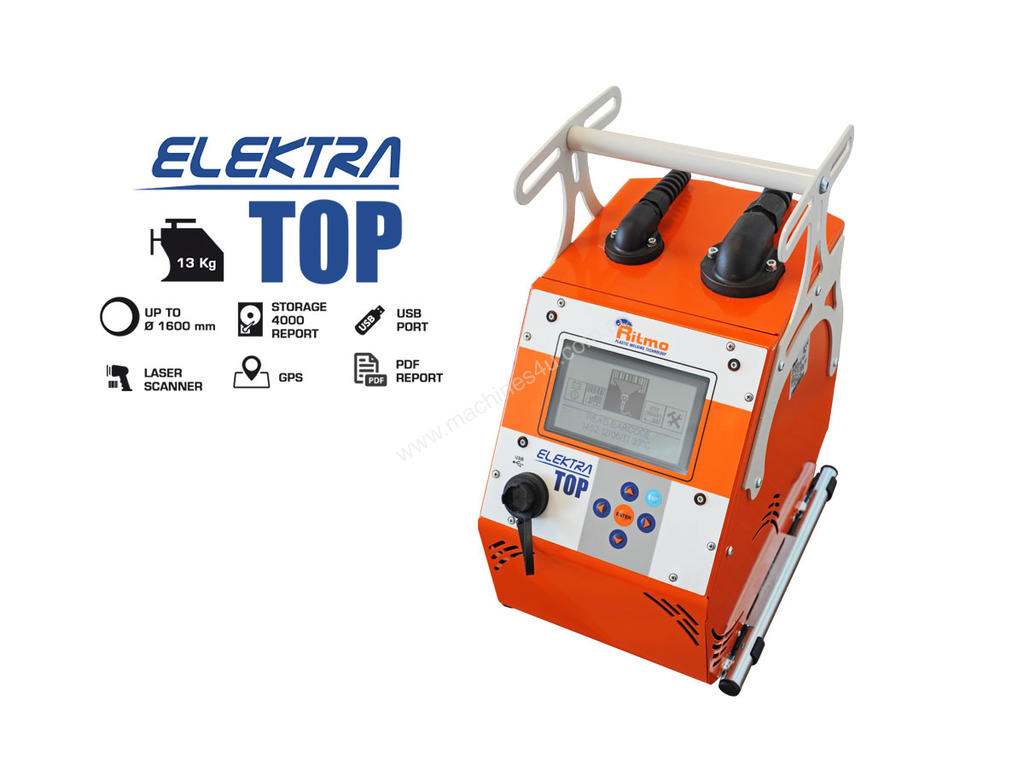

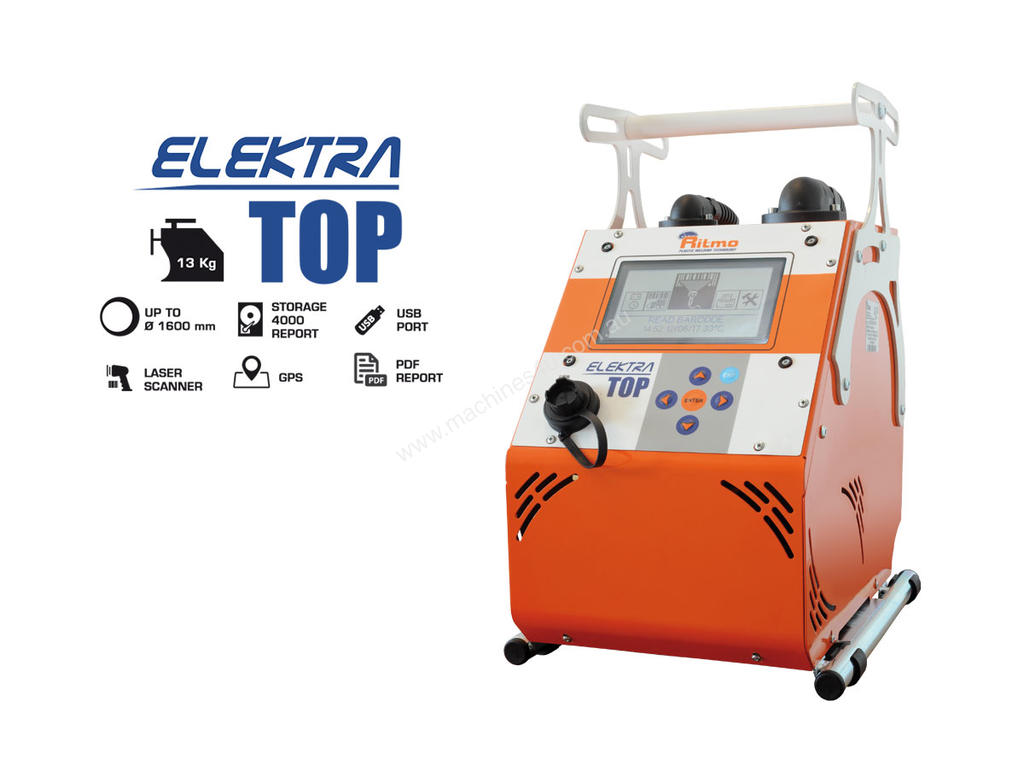

The Italian-Made Ritmo Elektra Top is a high performance universal electrofusion machine, characterized by its light weight and high efficiency. The machine is suitable to weld HDPE, PP, PP-R couplings (from 8 to 80 V) and has an approximate diameter working range* up to 1600 mm.
Matrix Piping Systems also offers servicing, calibration and spare parts for Ritmo poly welding machinery. Our experienced team of service technicians can assist you with diagnosing and repairing any issues that may arise. Call us today to find out more!
Machine Composition:

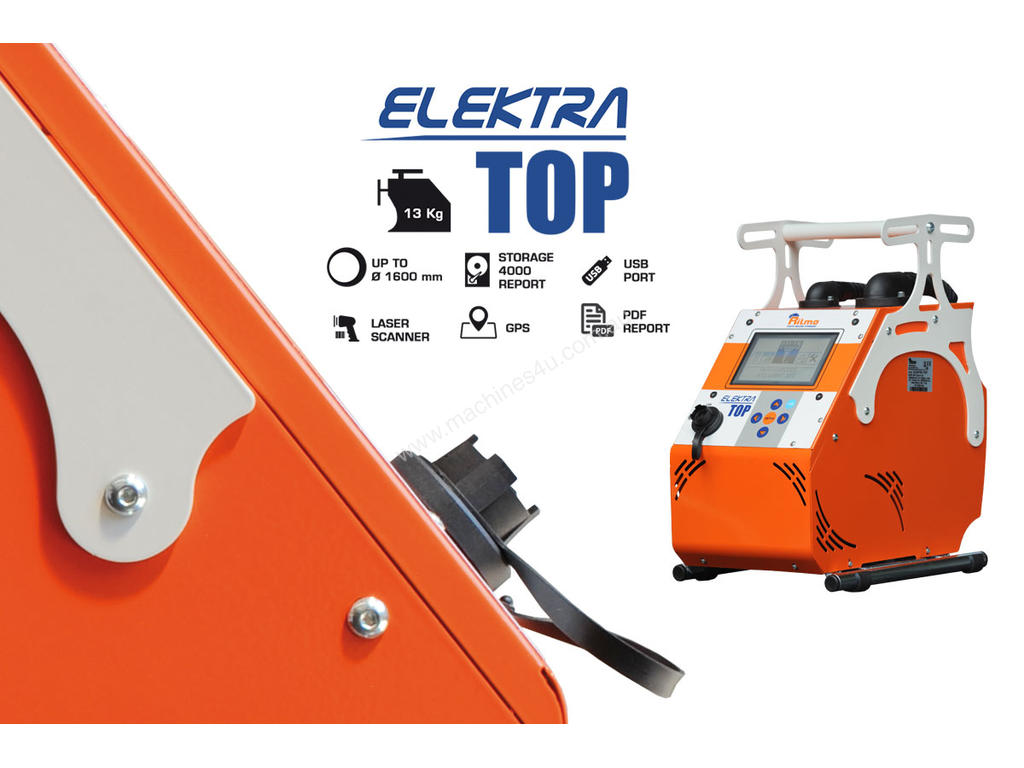

- Steel machine frame containing the newest Ritmo’s electrofusion technology. Safe transportation thanks to Elektra Top’s wide handle which enables a perfect grip and cable winding.
- 4000 welding reports memory.
- Welding reports can be downloaded in PDF file format, CSV, or BIN (Software Ritmo Transfer required) in to an external pen drive through the machine usb port, which allows also the welder firmware updating, or a printer ESC-POS connection.
- Large graphic display 6,5” LCD.
- Intuitive control panel.
- Universal connectors 90° 4 - 4,7 mm; no need of adapters.

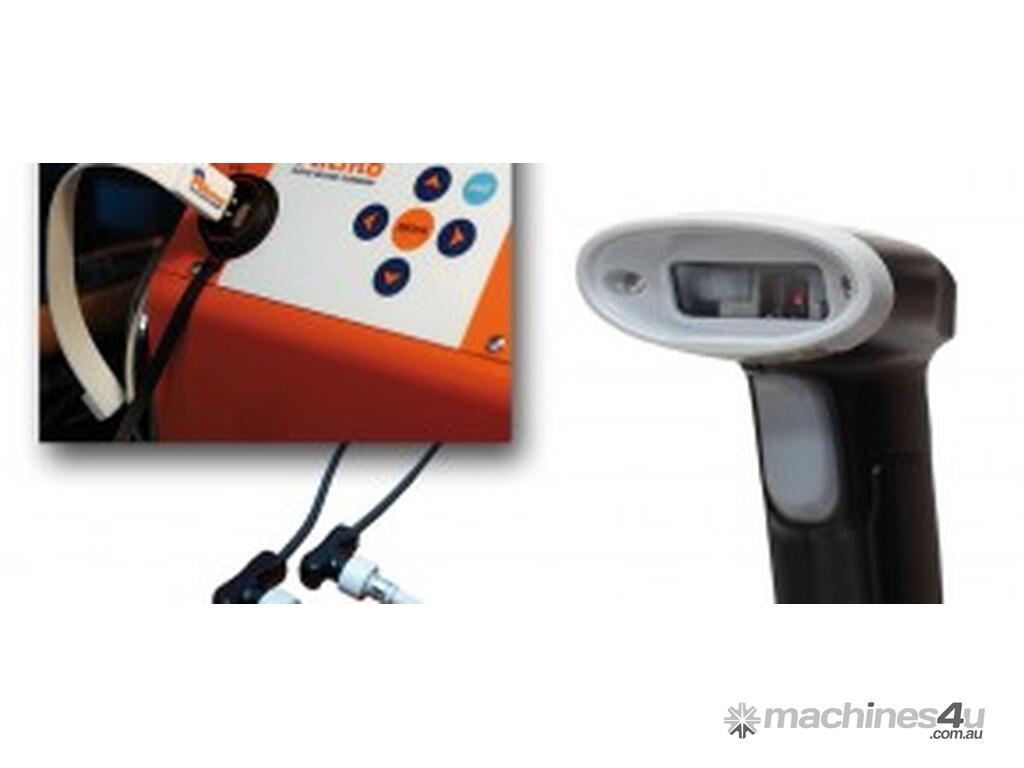

- Laser scanner - bar code reading system that allows the welding parameters automatic setting. Possibility to set the welding parameters manually: by setting the welding tension/time, or by entering the fiitting’s numerical code indicated under the bar code. Traceability function ISO 12176.
- Universal adapter Ø 4,0 - 4,7 mm
- Laser scanner
- Transport case
- Manual scraper
Accessories Available on Request:
- GPS
Technical features:
Materials: HDPE/PP/PP-R
Working range: Ø 20 ÷ > 1600 mm (1/2" IPS ÷ 63" DIPS
Power supply: 230 V single phase 50/60 Hz
Total absorbed power: (60% Duty Cycle output): 3500 W
Max output current: 120 A
Working temperature range: -20° +50° C
Memory capacity: 4000 reports
Protection degree: IP 54
Dimensions: 259 x 342 x 428 mm
Case dimensions: 480 x 350 x 400 mm
Weight: 13.9 Kg
