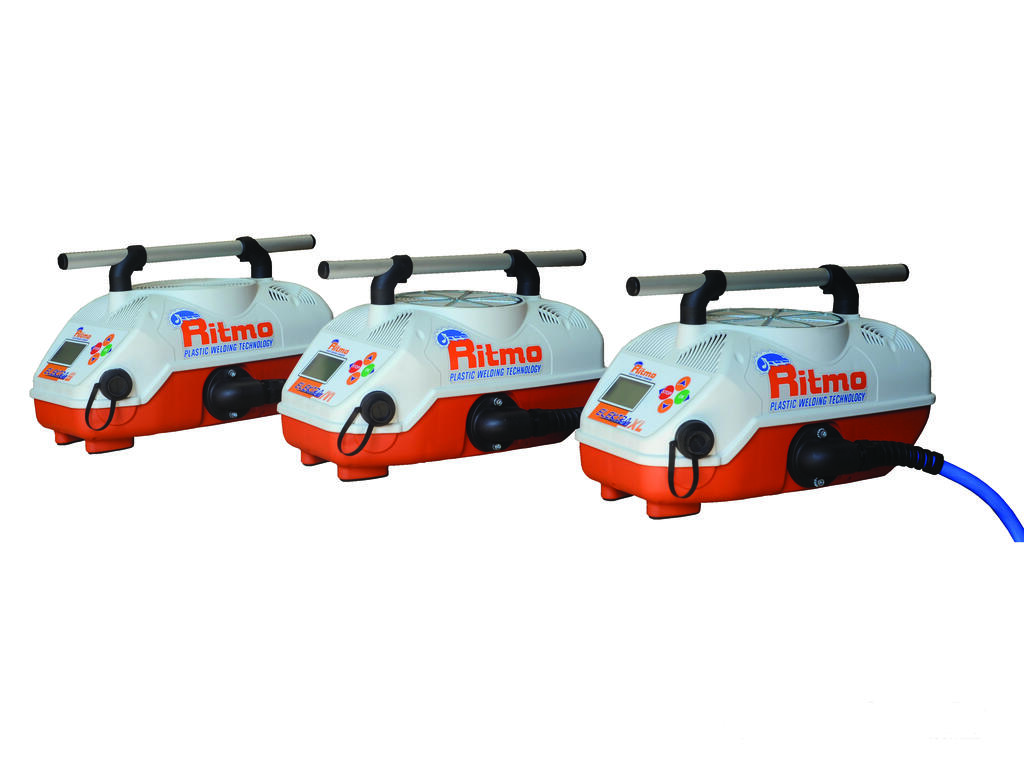

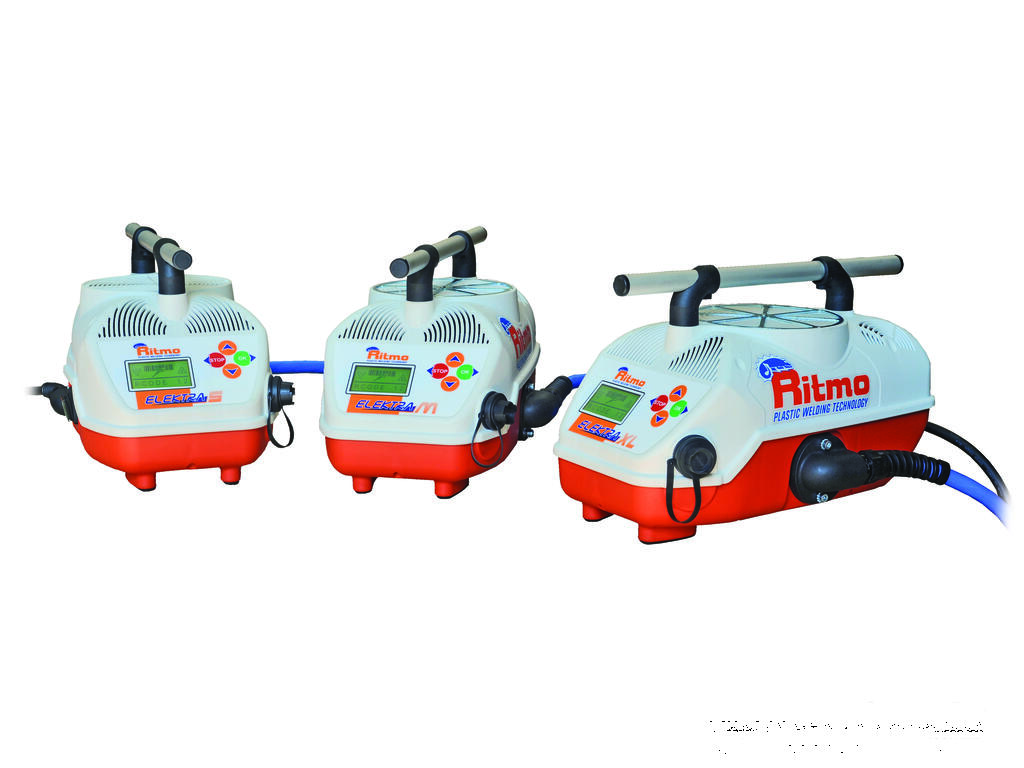

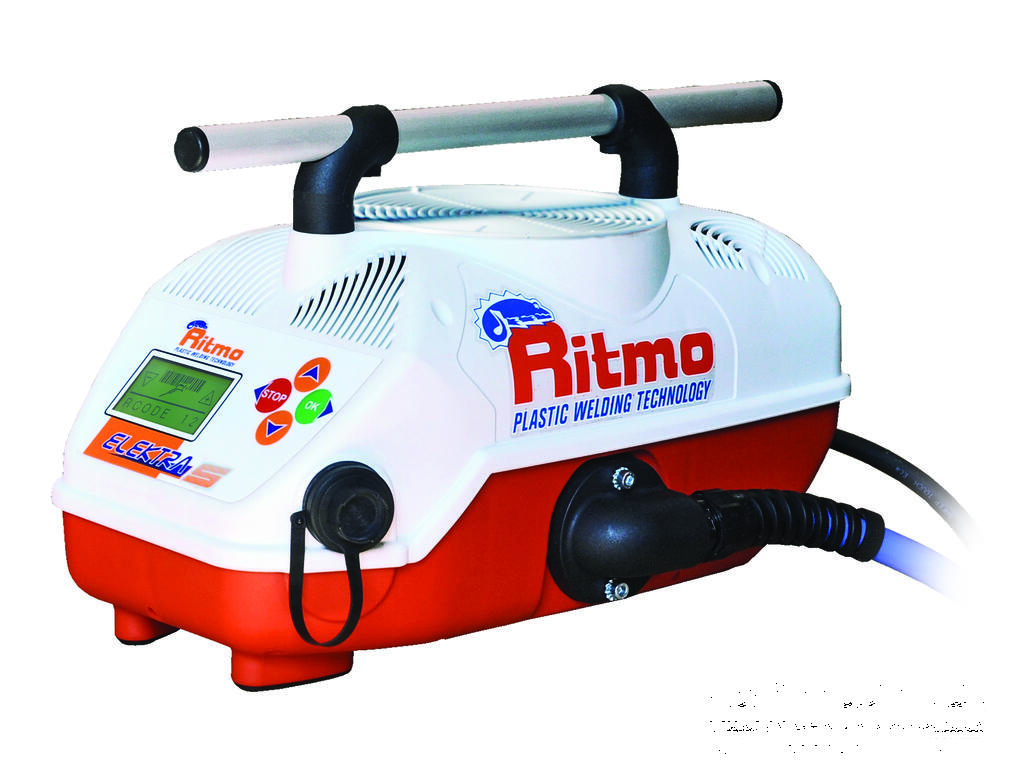

At only 8.4KG, the all new Italian-Made Ritmo Elektra Line is the lightest Electrofusion welder range in the market. With new technology, comes increased performance and efficiencies - and the Elektra S is no exception.
Welds all pressure EF brands! This universal electrofusion machine is suitable for welding pipe/fittings for the transport of gas, water and for fire sprinkler systems up to OD 200* mm (230 V version) or 315* mm (110 V version) for PE, PP, PP-R high pressure pipelines.
Matrix Piping Systems also offers servicing, calibration and spare parts for Ritmo poly welding machinery. Our experienced team of service technicians can assist you with diagnosing and repairing any issues that may arise. Call us today to find out more!

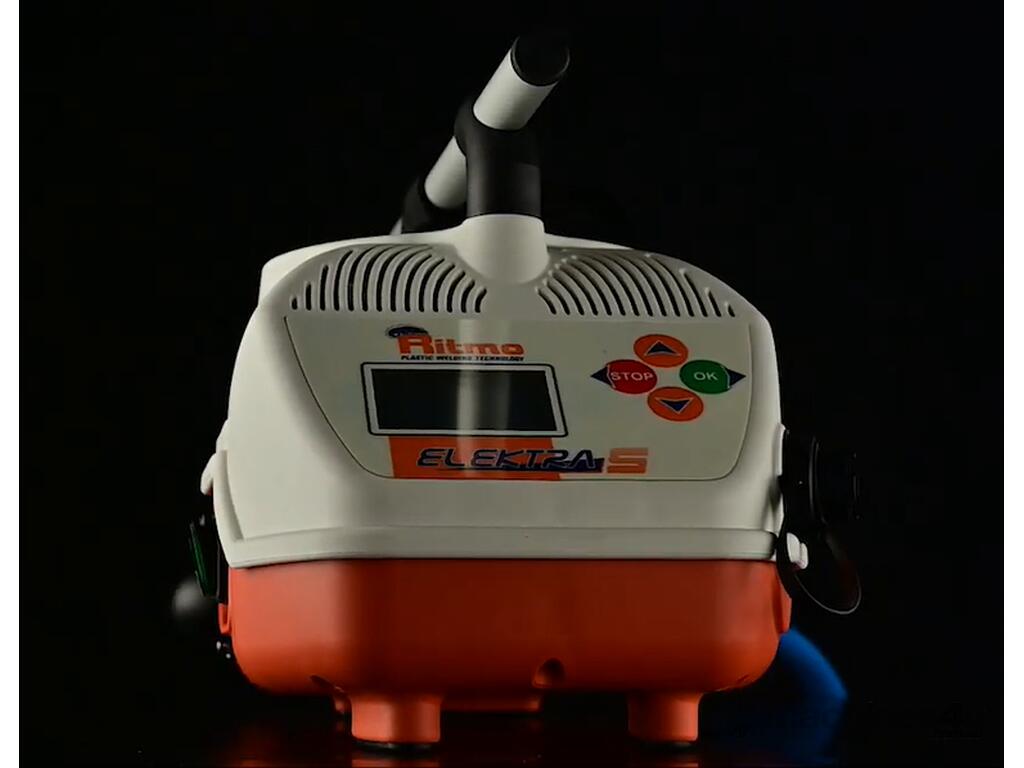

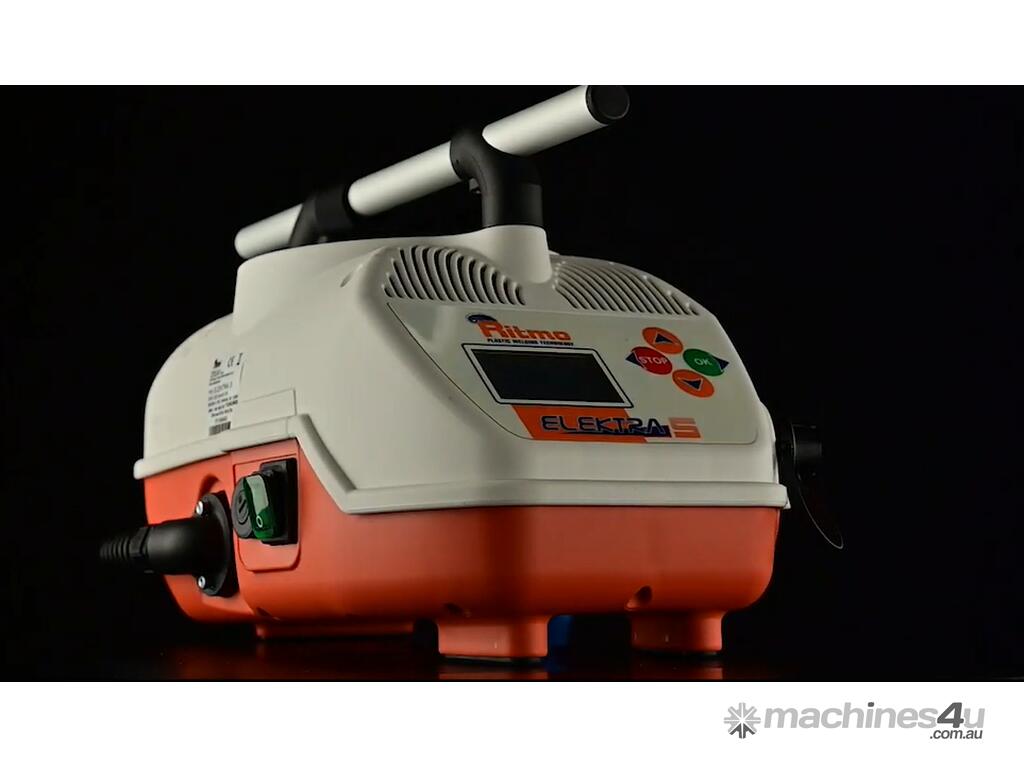

Machine Composition:
- High resistance technopolymer shell
- "Defender" protection system against dust and rain
- Lifting handle and cable wrapping
- in-built memory of 4000 welding report
- Possibility to download the welding report thanks to the USB port in PDF, CSV, BIN format. For BIN format it is necessary
the RITMO transfer software. The USB port is also used to upgrade the welding machine firmware and to plug the ESC-POS
printer to get immediately the welding report printed on site.

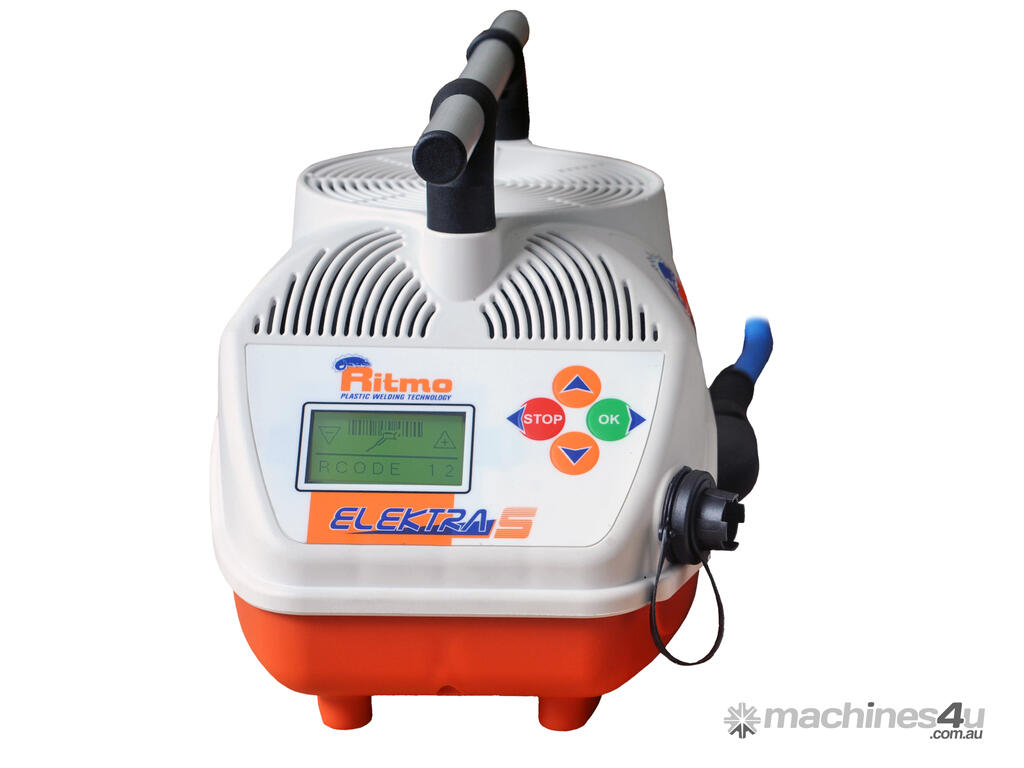

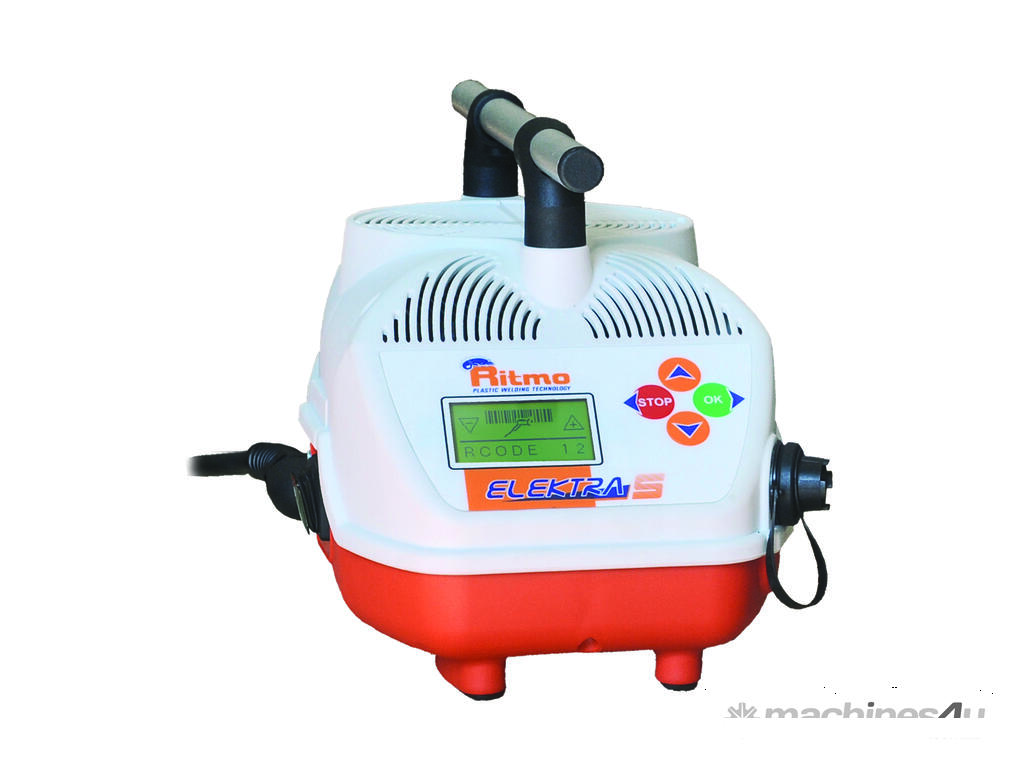

- 2,4” LCD Graphic display
- Intuitive control panel with the possibility to customize the menu with 20 different languages
- 90° universal connectors 4.0-4.7mm, no need of adapters
- Laser scanner in order to read the EF fitting barcode and to set automatically the welding parameters according to the
ISO 13950. The laser technology of the scanner enhances the reading quality in case of severe light reflections or contrasts.
It is also possible to enter manually both the welding parameters (Voltage/Time) and the welding barcode digits.
- Traceability: ISO 12176-3 Operator traceability; ISO 12176-4 Fitting/ pipe traceability
- In-built GPS device (on request)
Bring me with you, feel the difference!
