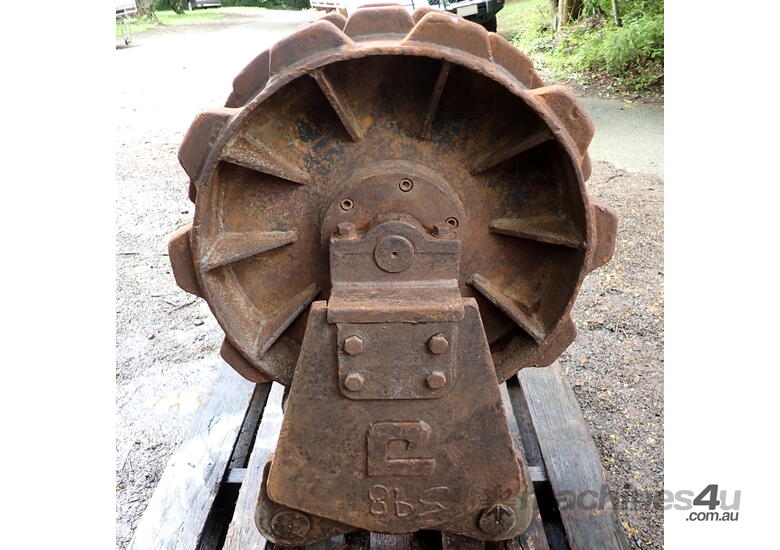

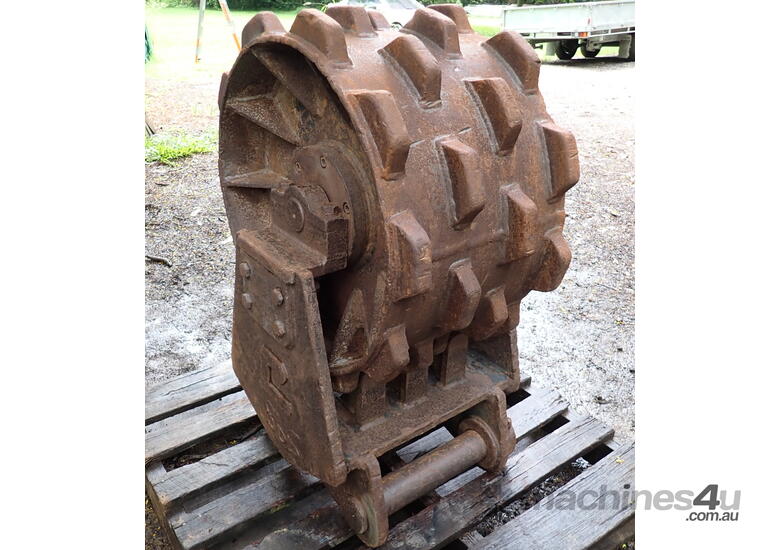

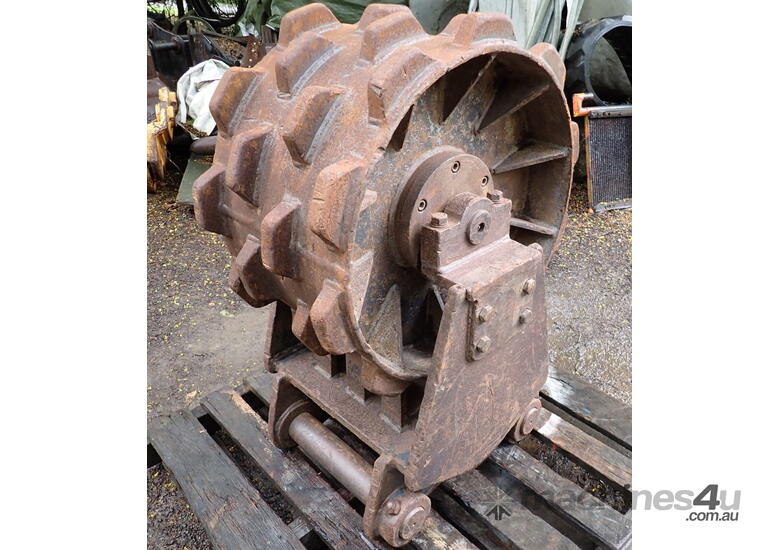

16-32 ton (80mm pin) 450mm Excavator Compaction Wheel

Used 450mm Wide Drum, Excavator Compaction Wheel suit 16-32 Ton machines.
4 rows of pads and fitted with dual Mud Scrapers between the pads.

Conditions is used, it has a few bangs & dints but rolls smooth and has plenty of life left.
This is a well engineered, heavy duty Compaction Wheel.

Drum:
* Width: 450mm.
* Curved Steel Plate Diameter: 680mm (not including pads).
* Total Drum Diameter (including pads): 780mm.

Pads (tapered):
* Height: 50mm.
* Size at Top: 35mm wide x 90mm long.
* Size at Base: 40mm wide x 140mm long.

Current Headstock configuration:
80mm Pin Diameter, 458mm Pin Center to Pin Center (CtoC), 343mm Between the inside Ear Bosses (which can be shaved back up to 370mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).

Should fit: Case 9021, CX210, CX210B, CX225SR, Daewoo Solar 170LC-V, 170W-3, 175LC-V, 200W-3, 200W-V, 220LC-V, 225LC-V, 225NLC-V, 225SLR, 250LC-V, 255LC-V, Doosan DX180LC, DX180LC-3, DX180W-3, DX190W, DX210W, DX225, DX225LC-3, S175LC-V, S180W-V, S210W-V, S225LC-V, S255LC-V, S470LC-V, Hyundai R210LC-7, JCB JS200, JS200LC, JS210, JS220, JS220LC, JS235, Komatsu PC200, PC200 Mighty, PC200-3, PC200-5, PC200-6, PC200-7, PC200LC-8, PC210, PC210-6, PC240, PW210, Link-Belt 210LX, Samsung SE210 Early Series, SE210-3, SE210LC-2, SE210LC-3, Sumitomo SH200-3, SH200LC-3, SH210-5, SH225X-3, Terex TXC 175LC, TXC 180LC, TXC 225LC, TXC 255LC, Volvo EC210, EC210B, EC210C, ECR235C, EW230C, MX225LS, SE210LC-3.

Maybe fit: Case CX160, Caterpillar 318B L, 320, 320B w/ B Link, 320B w/ C Link, 320C w/ C Link, 320D w/ B Link, 321, 321 w/ Mass Linkage, 322B w/ B Link, 322C w/ B Link, 322C w/ Reach Linkage, 324D w/ Reach Linkage, 325B w/ C Link, 325C w/ C Link, 325C w/ Reach Linkage, 330C, 330D w/ Long Linkage, E300 Series, B Family Linkage, C Family Linkage, Halla HE280, Hitachi EX200, EX215, FH200, FH215, Zaxis 200 & LC, Zaxis 210, Zaxis 225US LC, Zaxis 225USR, JCB JS150LC, JS160, JS160LC, JS180, John Deere 200C LC, 200D LC, 225C LC RTS, Kobelco 200SRLC, SK200, SK210, SK210LC, SK210LC-VI, SK235SR, Komatsu PC220-3, PC220-5, PC220LC-6, PC220LC-7, PC220LC-8, PC250-6, PC270, PC270LC-6, PC270LC-7, PC280, Link-Belt 160LX, 160X2, 225SA, 2700 QUANTUM, 2800 QUANTUM, LiuGong 922, 925, New Holland EH215LC, Sumitomo SH150, SH160, SH200, SH200-2, SH200LC, SH215U-1, SH215X-1 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


Dimensions (standing up): 620mm Wide, 780mm Deep, 1120mm High. Weight: 768kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
