1600mm Wide - Full Auto HVAC Production Line

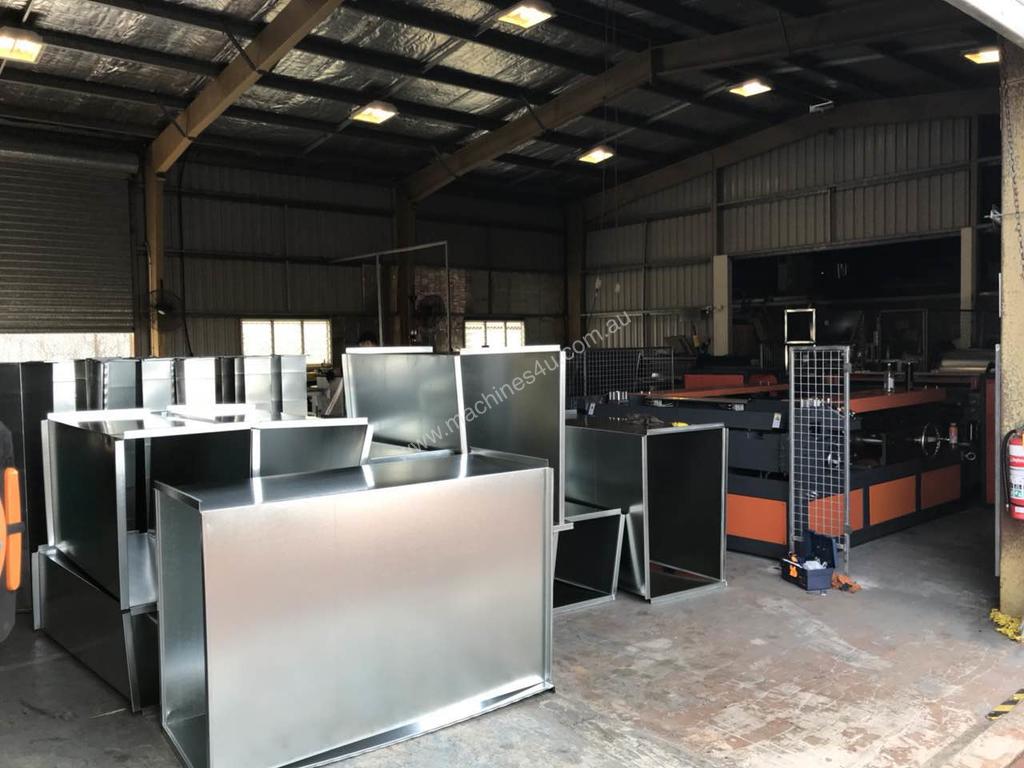

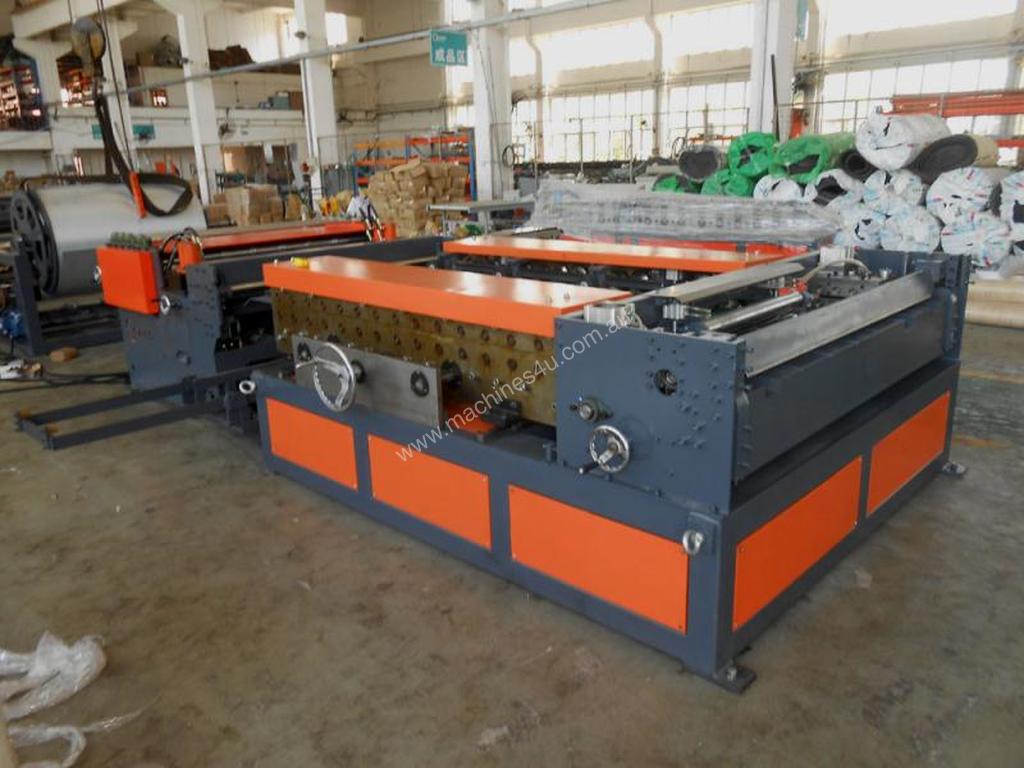

HVAC Duct Manufacturing Line 6. Model: SM-CAL6-1.2-1600- Compact Series. 9 Function Heavy Duty Model Decoiler, Straightener, Beading, Notching, Punching, Shearing, Pittsburgh, Duplex TDF & Folding.

Description
The world’s newest designed duct manufacture auto line is now available by STEELMASTER - Auto Line VI - Compact!
Strategically, can be placed in which can be put in a 20GP container and shipped to site.
Container Duct Auto Line VI with the feature of small size, heavy duty structure and easy for installation, it can be used in the construction site to fulfill the ideal of movable operation and processing.

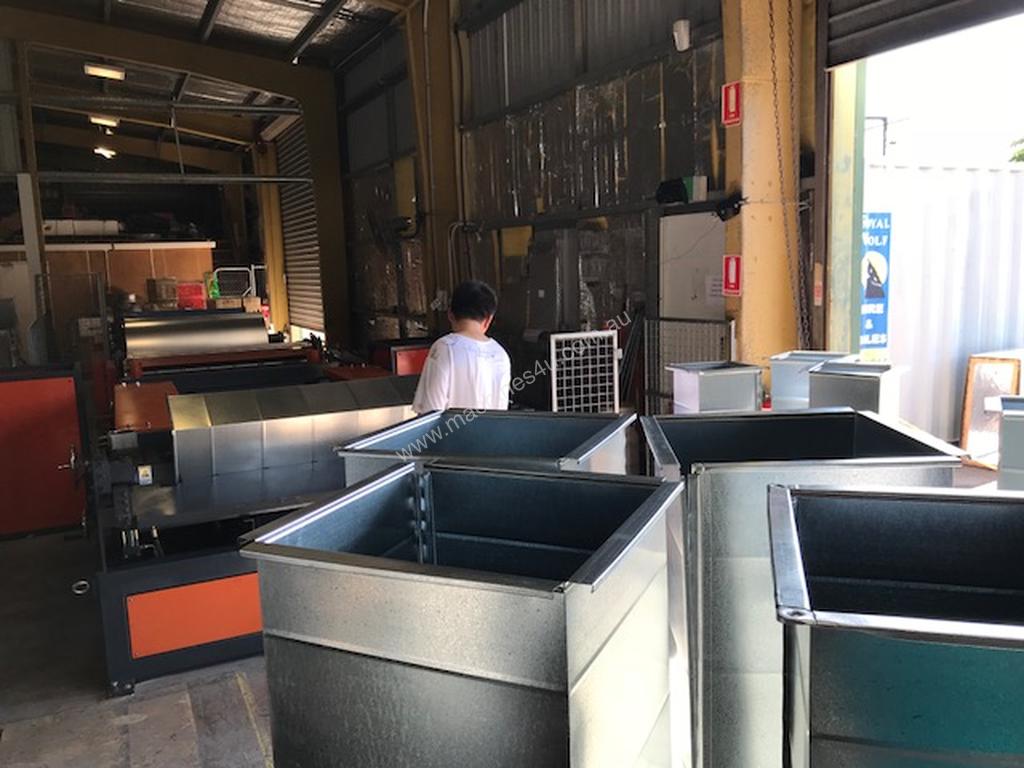

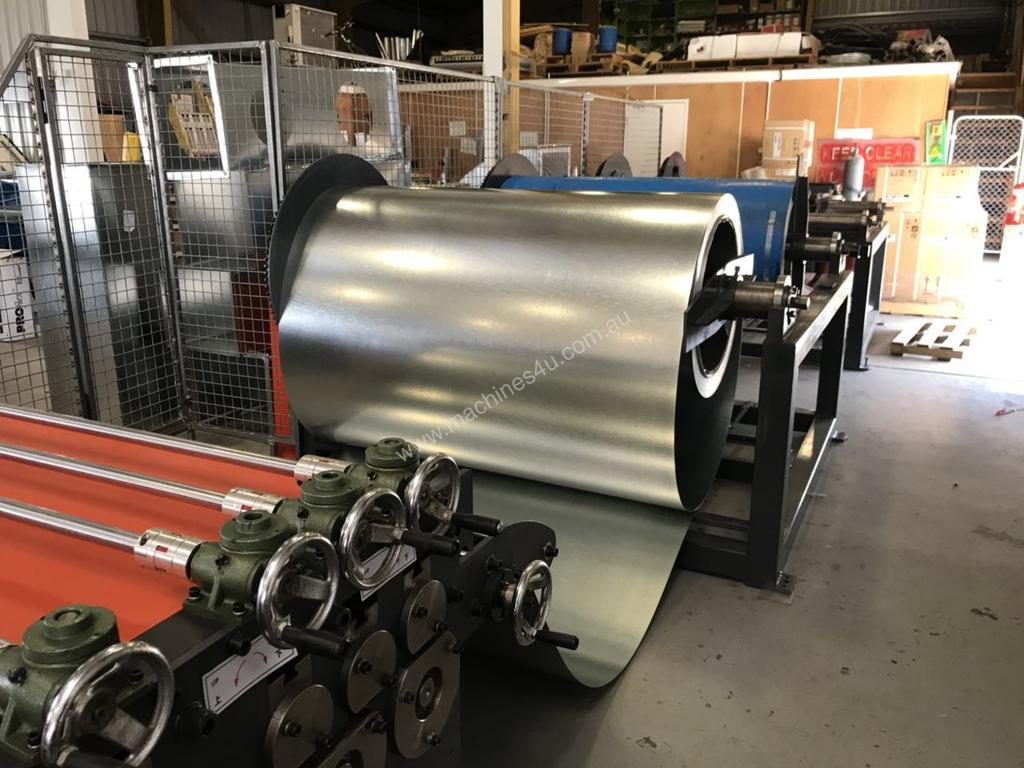

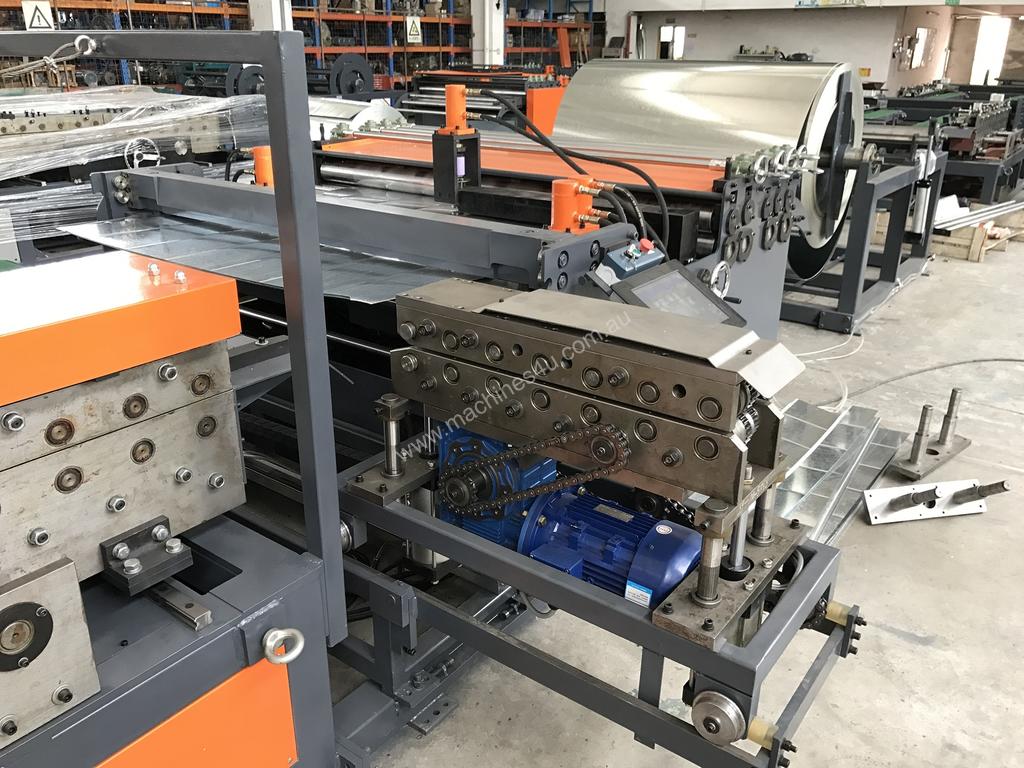

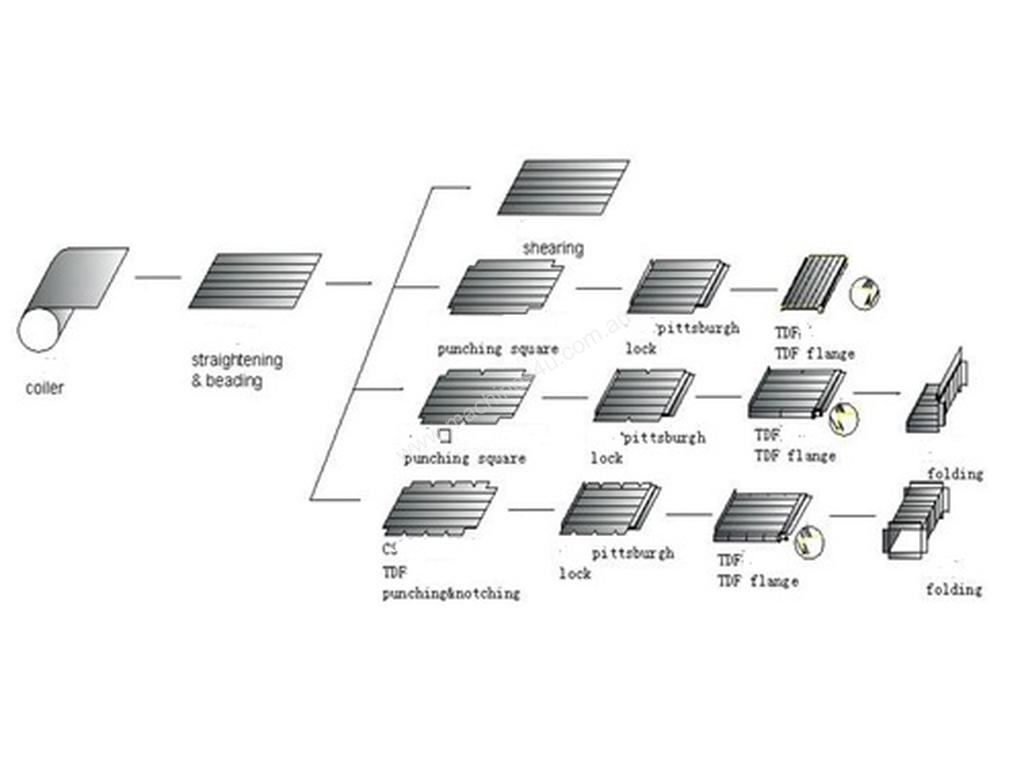

This auto line consists of decoiler (a special design which is easy to load coils in construction site), straightening, beading, punching, notching, shearing, patented automation Pittsburgh lock forming (shearing, Pittsburgh lock, right angle lock in one time), duplex TDF flange forming, duplex right angle lock forming (for angle iron), and TDF folding. It

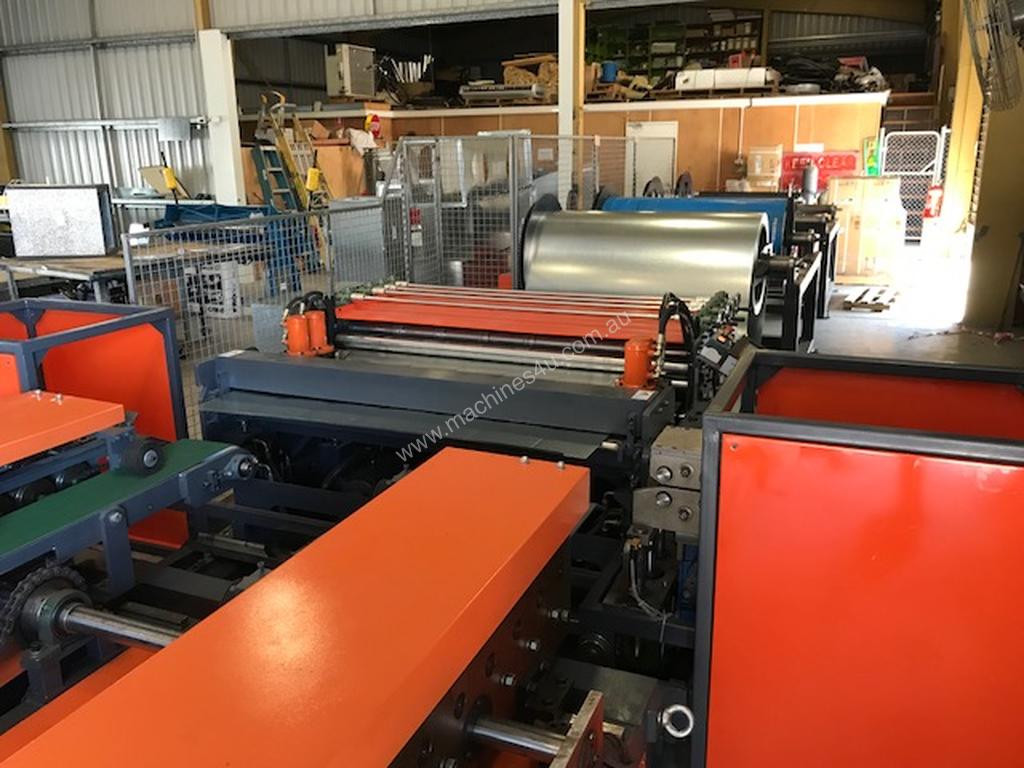

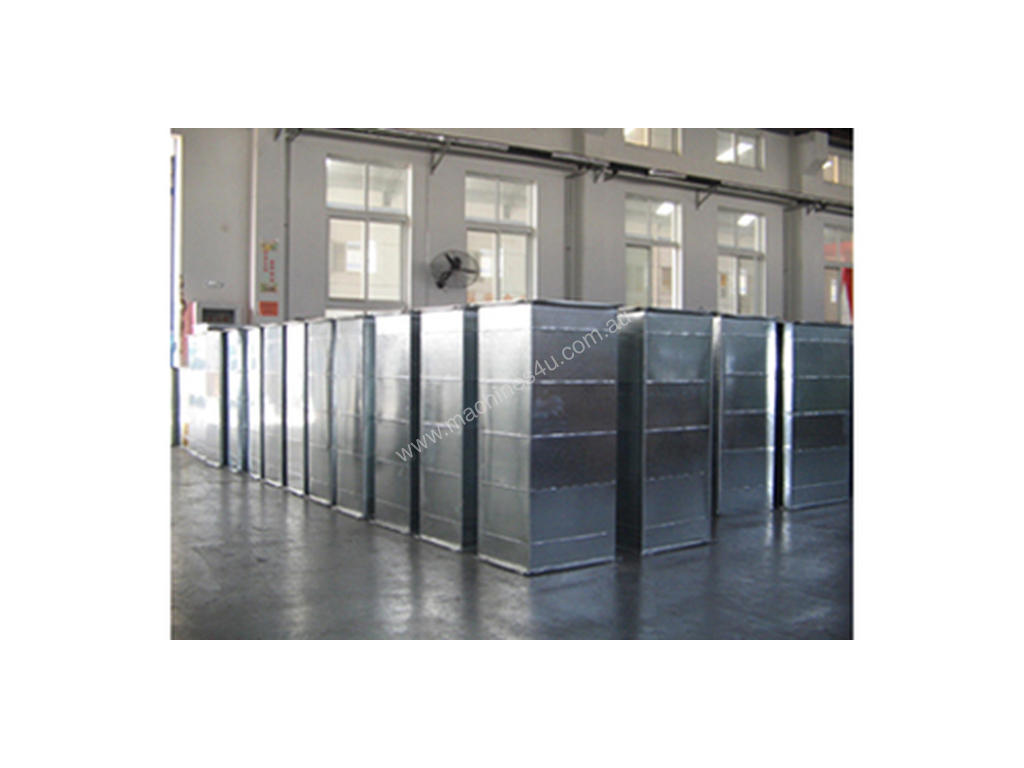

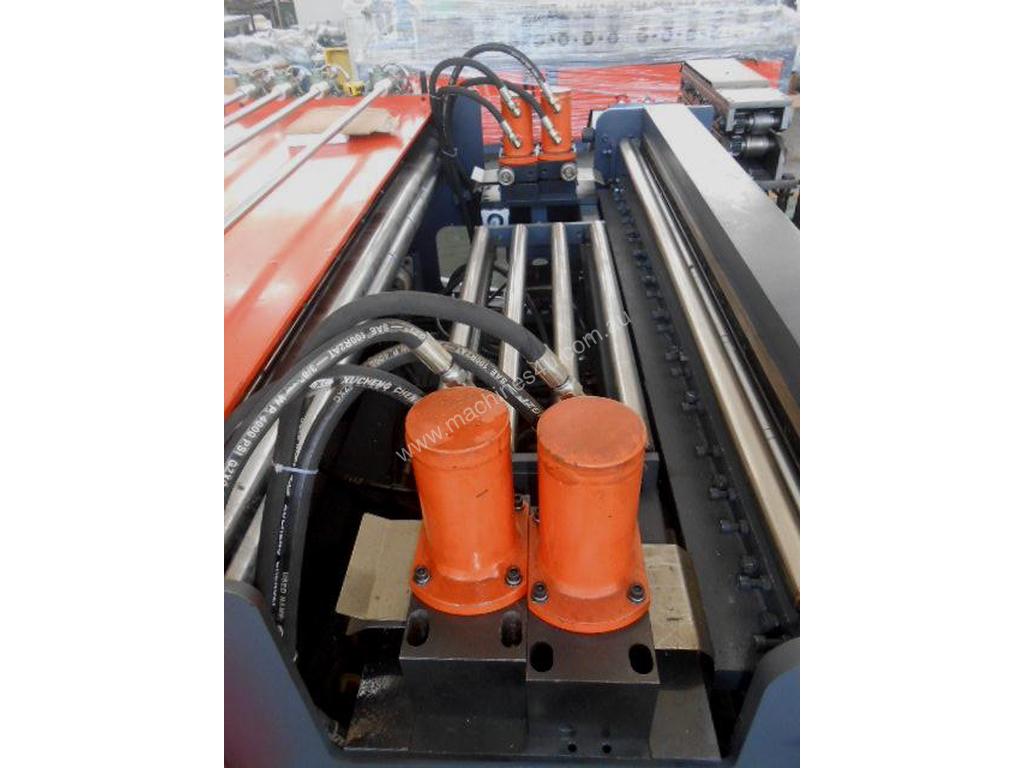

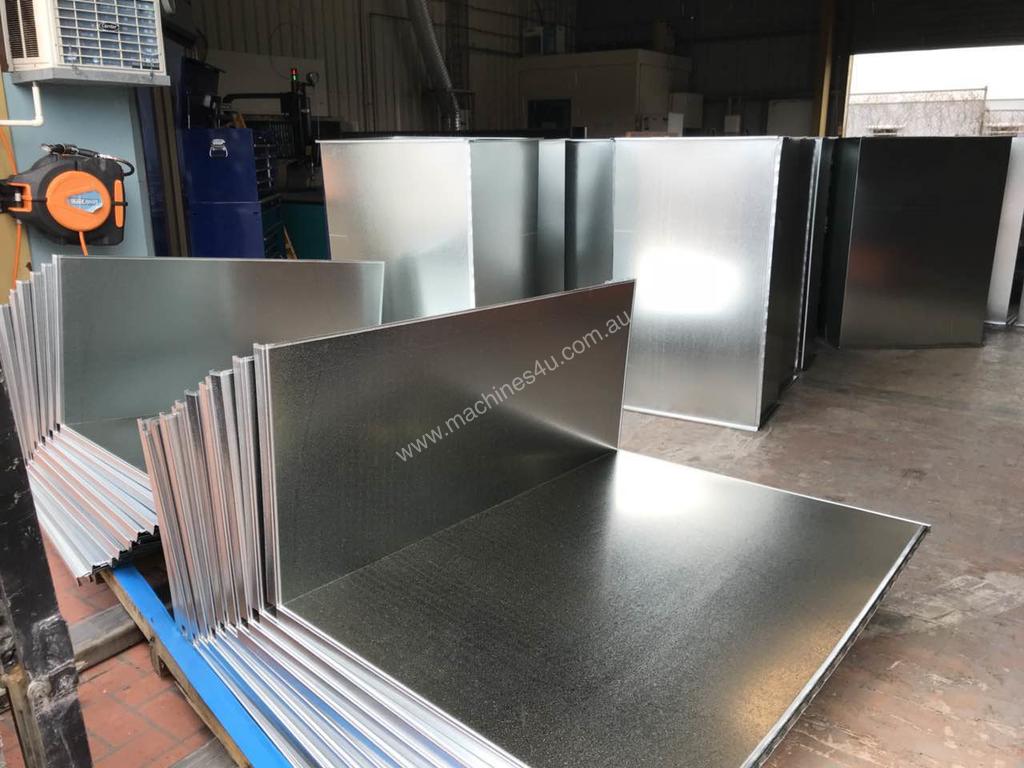

can process different ducting of “L”, and “?”. Used with the STEELMASTER vertical duct seaming machine and corner inserter, increases production efficiency and saves labor cost.
Utilizing the container set up saves the manual work and transportation cost, which can move to different construction sites just by moving the container (No extra installing and testing are needed).

CONFIGURATION?
1) Motorized Twin Decoiler – 5000Kg - 1/2 Set
2) Straightener
Pneumatic Controller Straightener, No Adjustment Required When Changing From 0.4mm ~ 1.2mm Material
No. of Straightening Rollers - 9
Straightening Roll Diameter – 100mm
Straightening Roll Material – Chrome Plated, Hardened &Ground
3) Beading?Pneumatic Controlled Beader, No Adjustment Required When Changing From 0.4mm ~ 1.2mm Material
No. of Beading Rollers – 2 – Others Can Be added.
Optional Beading Profile Shapes Can Be Ordered
4) Notching & Punching
5) Hydraulic Shearing Tolerance ±0.5mm
6) Pittsburgh Profile.
7) Duplex / Twin TDF Flanger
8) Hydraulic Folder

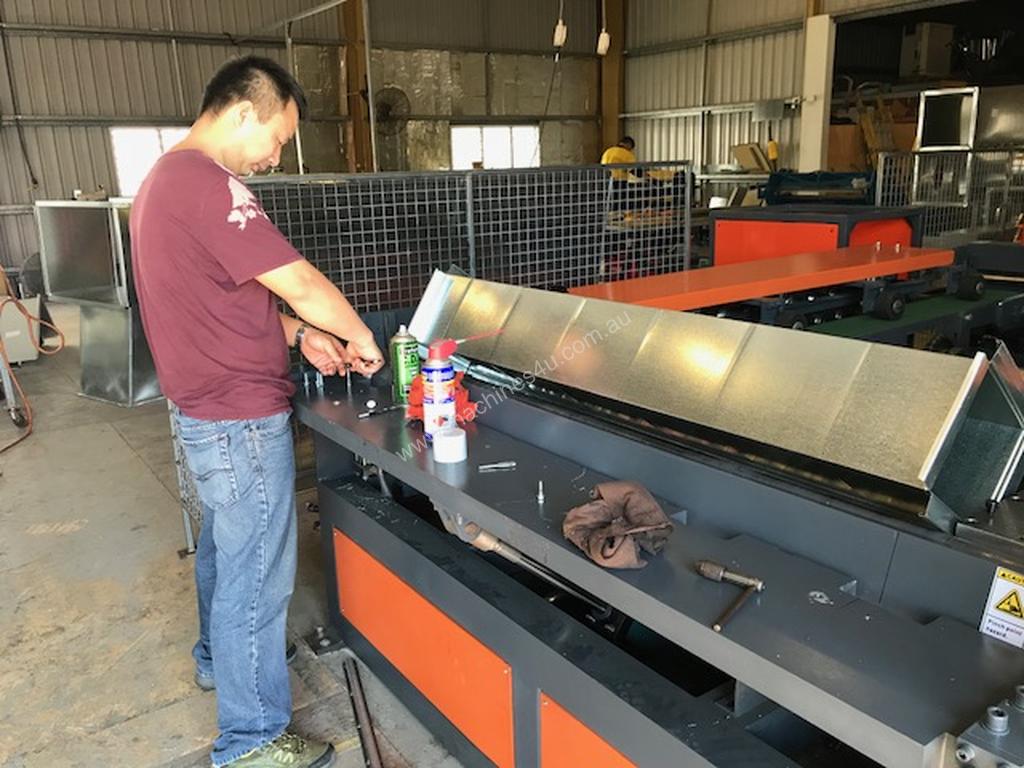

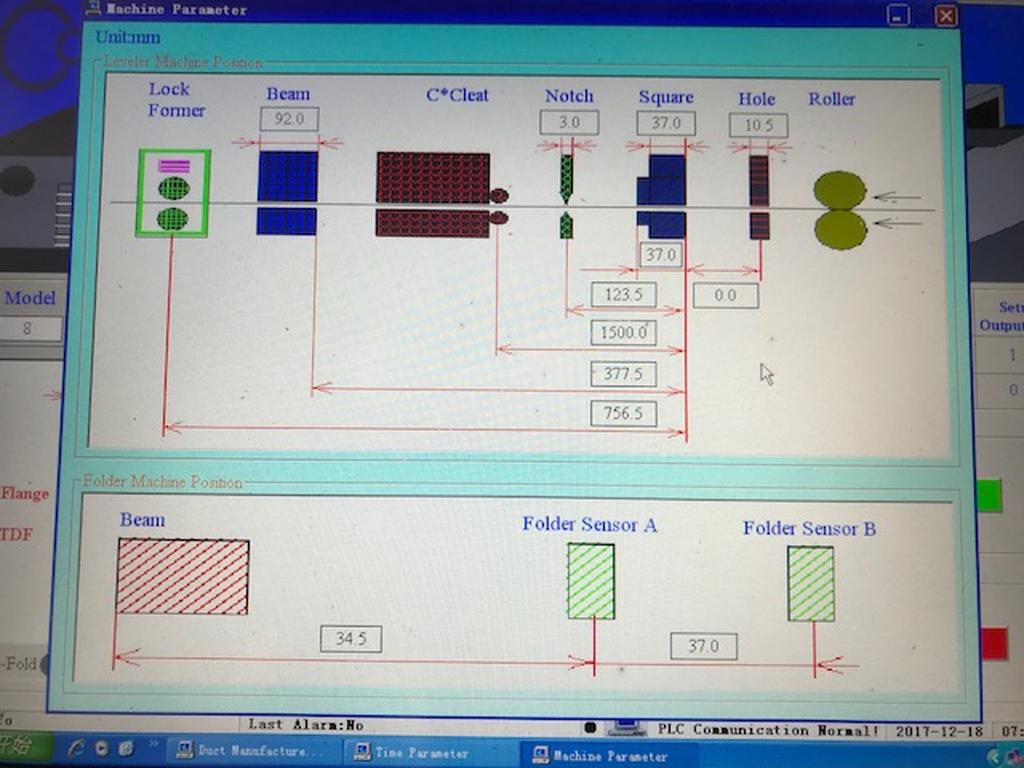

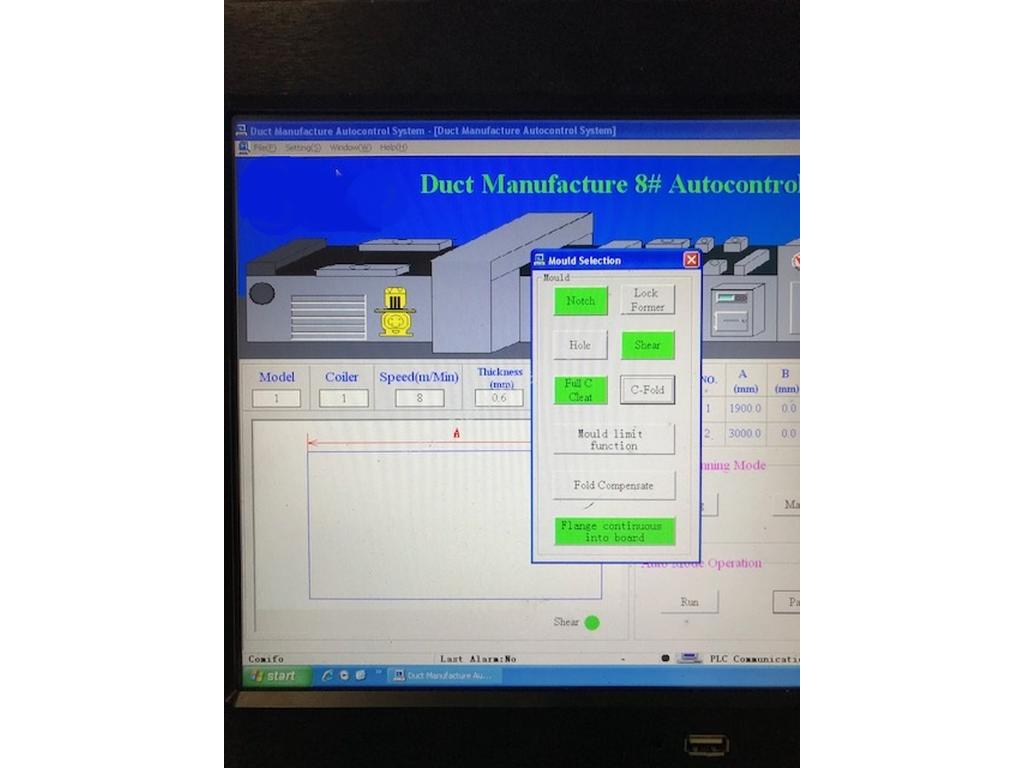

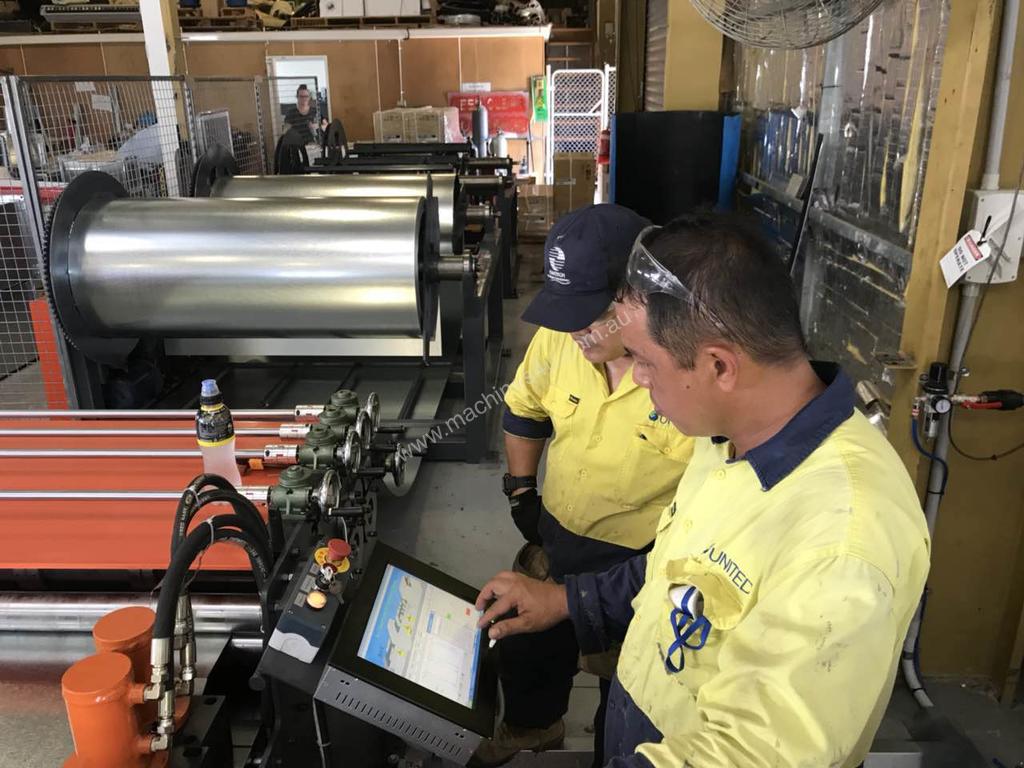

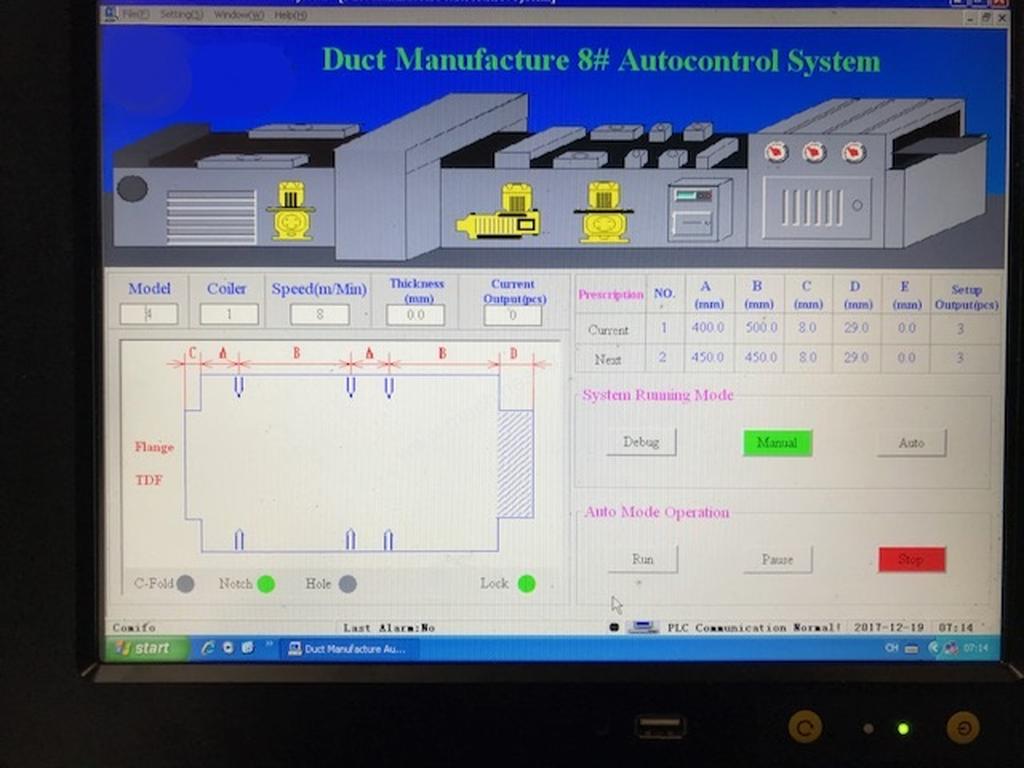

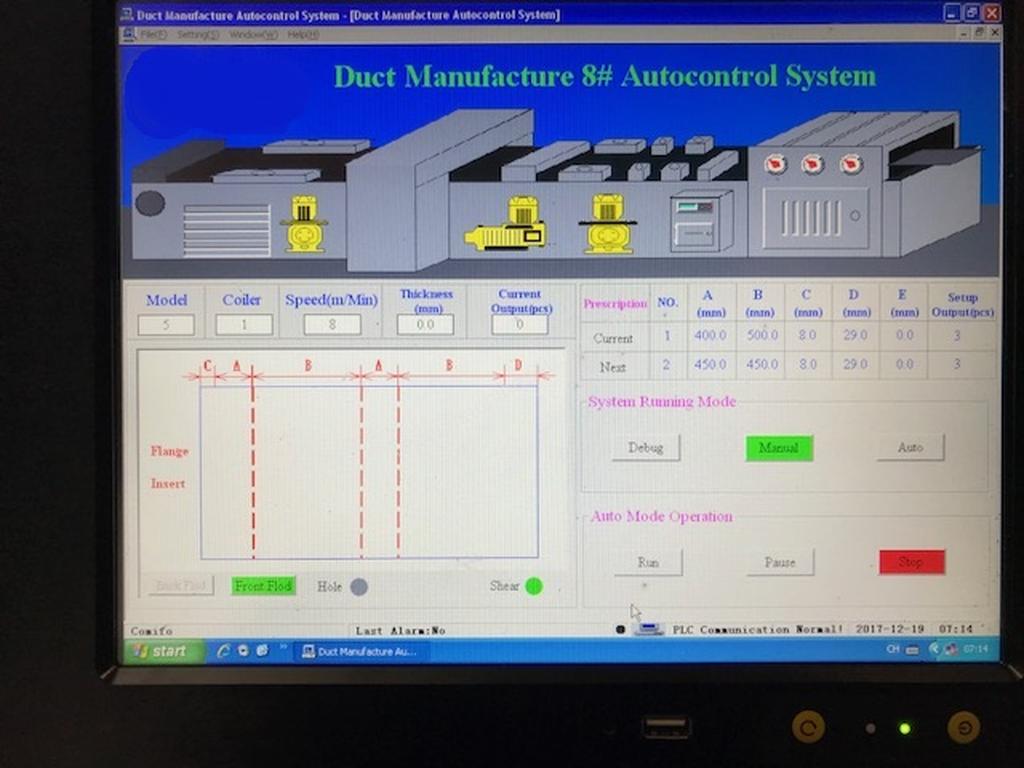

9) Touch Screen Controller: Simply Input Your Dimensions – Easy To Operate

Technical Snap Shot
?Model No. SM-CAL6-1.2-1600- Compact Series.
?Panasonic Servo with Touch screen PLC Control
?Material Thickness: 0.4 ~ 1.2mm (Gal)
?Maximum Width: 1600mm
?Maximum Folding Height: 1550m
?Line Speed: 8-20m/min.
?Power: 27.8Kw/V With 1 x Duplex Decoiler
?Power: 27.8Kw/V With 1 x Duplex Decoiler
?Dimensions.10000mm x 4000mm (moving Pittsburgh included) x 1500mm - with 1 x duplex decoiler

Optional
?Shipping Container Supplied Extra To Customers' Requirements.

We also offer, TDF folders, TDF Powered Flange Machines, Lockseamer, Jenny Swages & More.

We have many more items available than listed here.

Asset offer a wide variety of machinery, spare parts and accessories to suit our range.
We can also offer experienced service technicians in house or onsite to assist – Please contact us for further information.
